W61-500 Silicone Heat Resistant Paint

This two components paint is composed of organosilicon resin, heat-resistant and anti-corrosive pigments, fillers, additives and curing agent, etc., and it has the following outstanding characteristics:

Can withstand 500°C long-term.	Corrosion-resistant	Anti-aging
Waterproof	Chemical atmosphere resistance

W61-500 Silicone Heat Resistant Paint Video

W61-500 Silicone Heat Resistant Paint

Basic Technical Datasheet

Color	Aluminum Silver,Customized
Gloss	Glossy
Density	~1.3Kg/L(after mixing)
Hardness	Heat-resistant curing agent
Solid Volume	(45±2 )%
Standard Film thickness	60um dry film thickness  (about 133um wet film thickness)
Theoretical spreading rate	5.77m²/Kg (60um dry film thickness)
Full cure	(23±2℃) 24h
Flash Point	27℃

W61-500 Silicone Heat Resistant Paint Product Packaging Packaging: part A：20kg in a 20-liter iron bucket. part B：2kg in a 4-liter iron bucket. Shelf Life: Part A：12 months，Part B：6 months If exceeding shelf life, the products shall be tested before using.

W61-500 Silicone Heat Resistant Paint Applicable Environment

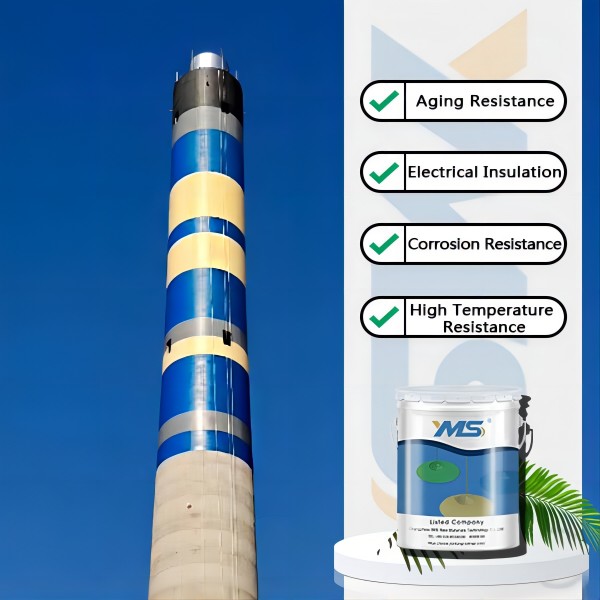

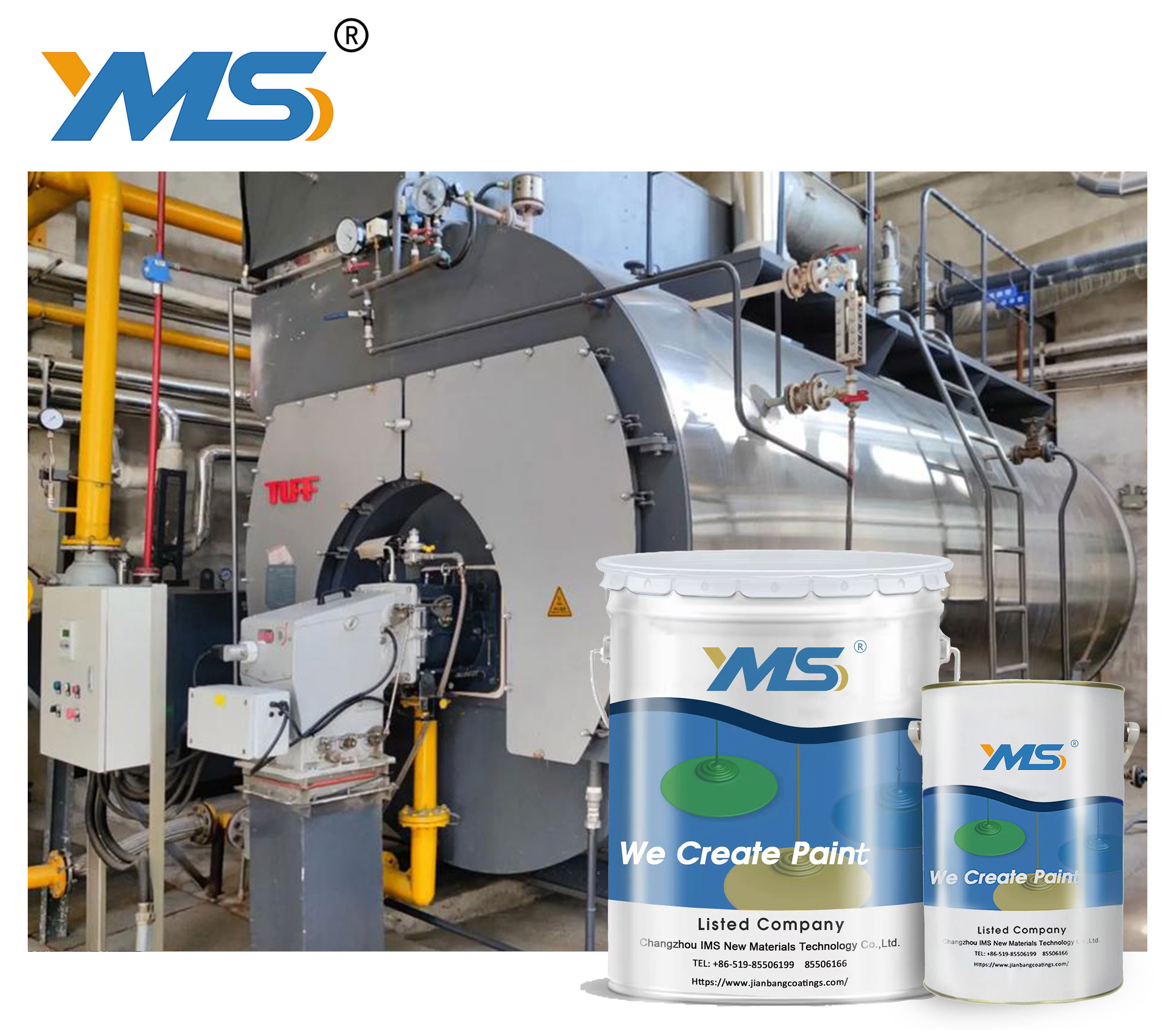

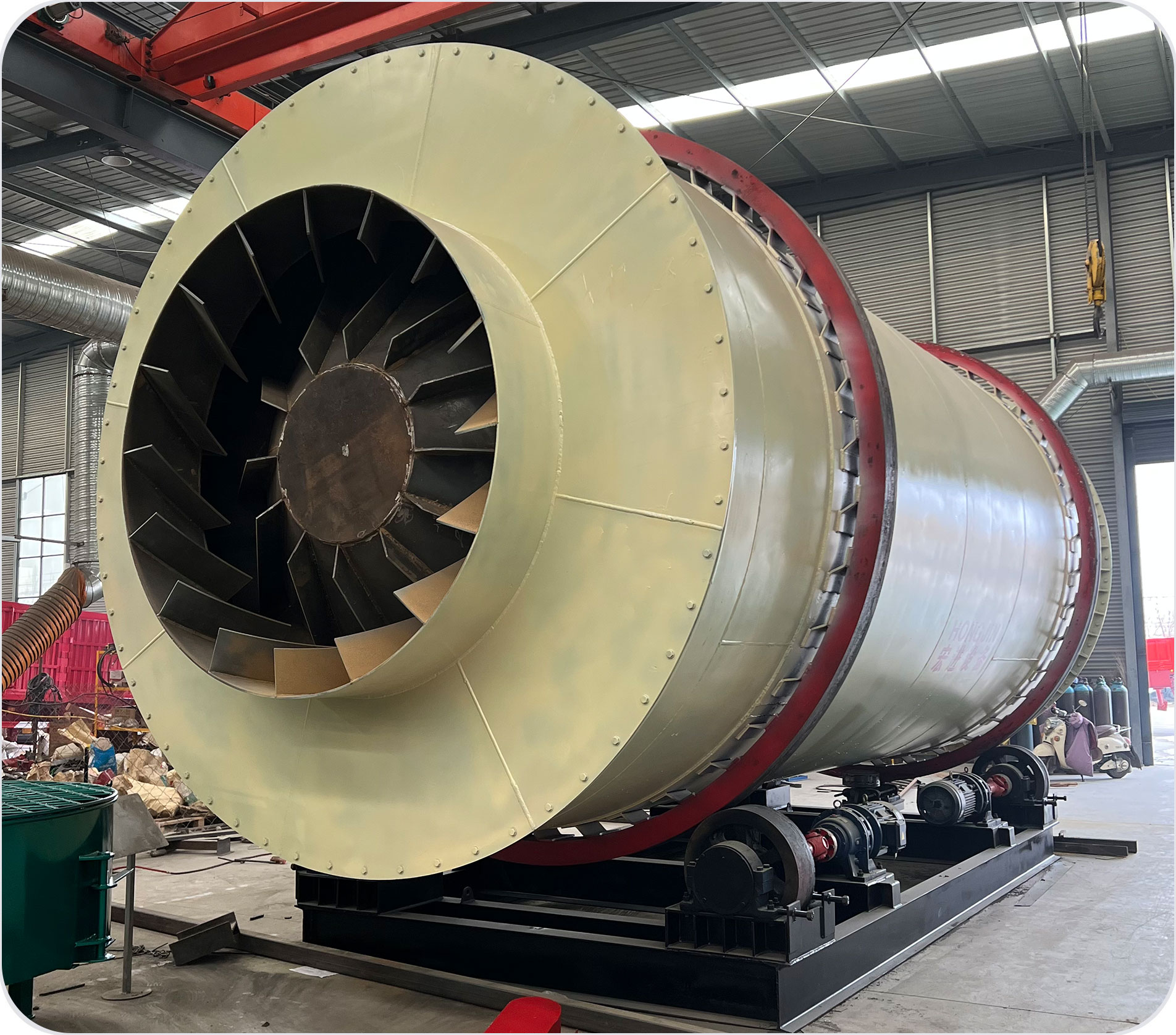

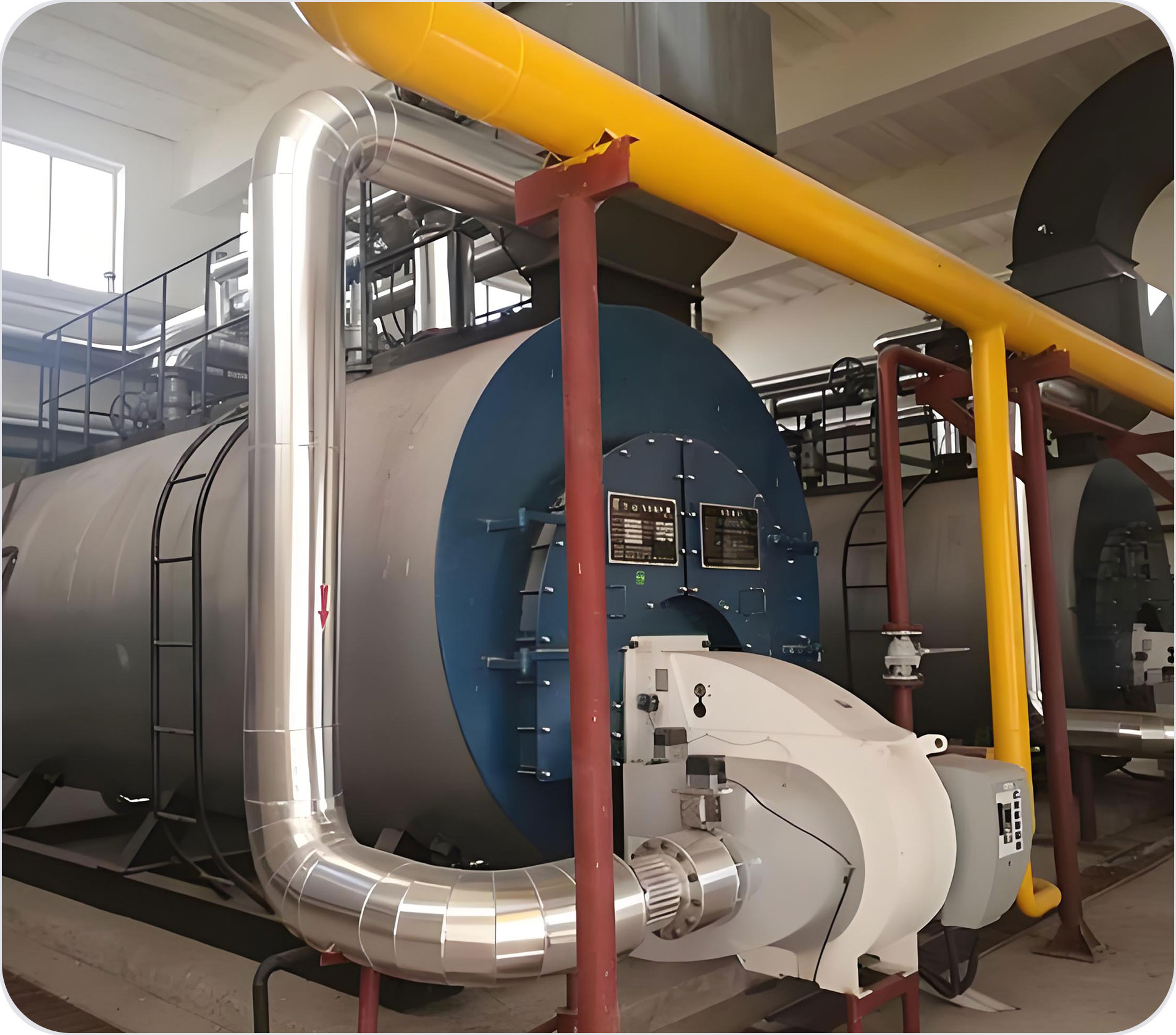

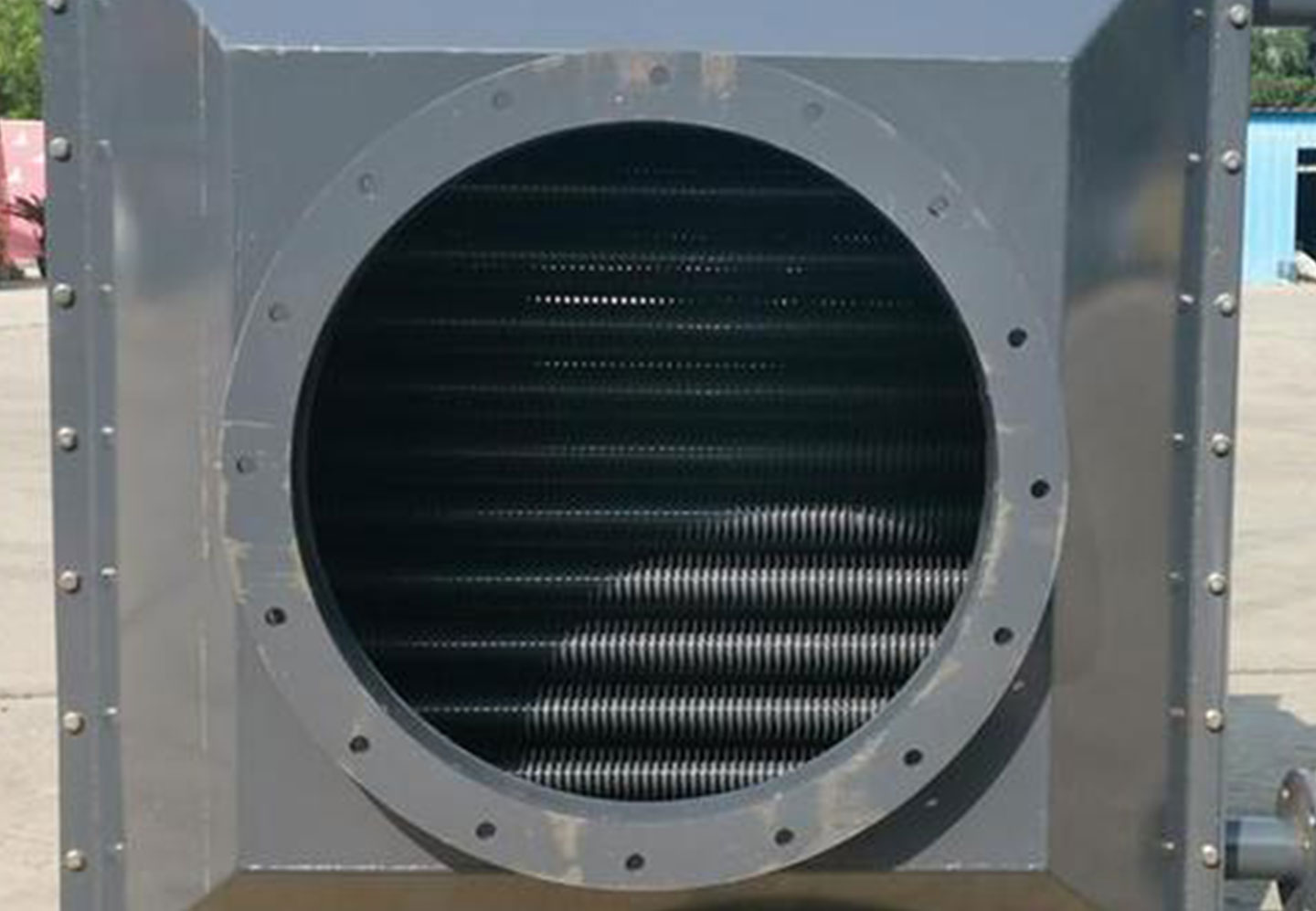

Chimney	Drying passage	Exhaust pipe	Thermal unit

W61-500 Silicone Heat Resistant Paint Compatibility

	Product	Thickness
Primer:	E06-500 Inorganic Heat Resistant Primer	2*40 µm (dry film thickness)
Topcoat:	Silicone Heat Resistant Paint 500℃	2*30um (dry film thickness)

W61-500 Silicone Heat Resistant Paint Finished Projects



W61-500 Silicone Heat Resistant Paint Production Process

W61-500 Silicone Heat Resistant Paint

Instructions For Use

Substrate Treatment：

The surface to be coated shall be clean, dry and free from contaminations. Also, the surface shall be evaluated and handled according to ISO8504 standard.

Bare steel: sandblasting to Sa2.5(IOS8501-1:2007). For the non-soaking site, acceptable for power tool grinding, but at least reach St2(IOS8501-1:2007).

Steel painted shop primer: apply to clean, dry, intact and approved primer.

Painted surface: only apply to clean, dry and intact compatible primer.

Instructions for Use:

• Mixing:

Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you to mix the paint well.

• Mixing ratio:

Part A: Part B= 20:2 (by weight)

• Thinner:

Exclusive thinner for heat-resistant paint

• Airless spray:

Nozzle tip: 0.017~0.023 inches

Spray pressure: 15~18Mpa

Thinner ratio: 5~15% (by weight of paint)

• Brush、Roller:

Recommended for small areas only.  Must achieve required thickness.

• Roller coater

Not recommended.
