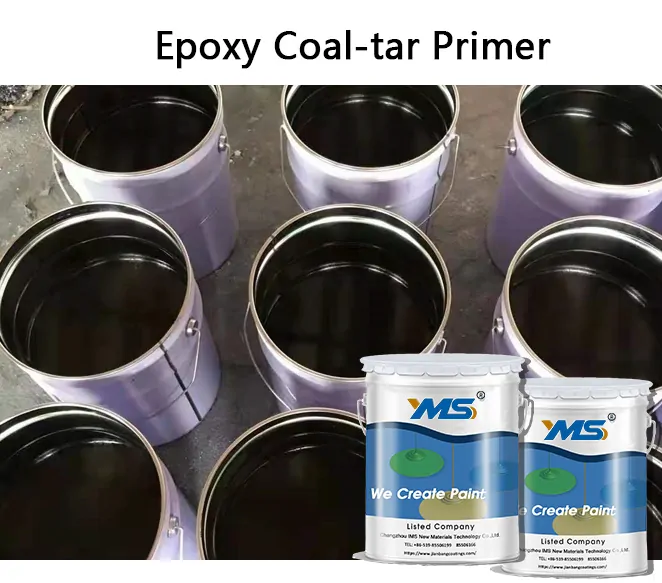

Epoxy Coal-tar Primer HL52-4

Epoxy Coal-tar PrimerHL52-4is mainly prepared by epoxy resin, curing agent, dispersant, and aggregates depend on requirements.
  • HL52-4

  • IMS

  • Custom color

  • 1.41

  • 74 ±2

  • Mix part A and part B as 22:22 by weight. Slowly add part B into part A and ensure mixed completely.

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Epoxy Coal-tar PrimerHL52-4

|Epoxy Coal-tar PrimerHL52-4  Application Video

Epoxy Coal-tar Primer HL52-4 Product Description

This two-component product is mainly prepared by epoxy resin, coal-tar, aluminum powder and polyamide as curing agent. This product features:

●      High hardness

●      Great adhesion

●      Great physical resistance to abrasion, impact

●      Great resistance to sea water, moisture, sewage, mineral oil, rust

|Epoxy Coal-tar Primer HL52-4Tyipical Uses

  • Gas & oil storage tank

  • Underwater pipeline

  • Offshore drilling rigs

  • Penstocks

  • Liner for clarifiers

  • Dam gates

  • Crude oil & gasoline tank

  • Underground pipeline

|Epoxy Coal-tar Primer HL52-4Product Packaging

        A:22kg                                   B:22kg

Acrylic Polyurethane Floor Paint

Part A: 22 kg in a 20-liter iron barrel

Part B: 22 kg in a 20-liter iron barrel

|Epoxy Coal-tar Primer HL52-4 Basic Technical Datasheet


Black, Semi-gloss

Density, kg/L

~ 1.41

Flash point, oC

Part A: 39

Part B: 27

Volume solids, %

74 ±2

Adhesion, MPa

≥ 6

Impact resistance, kg.cm


Flexibility, mm


Resistance to water,30d

No change

Resistance to salt water (3% NaCl), 168h

No change

Resistance to acid (5% H2SO4), 168h

No change

Resistance to alkali(5%NaOH), 168h

No change

Resistance to heat & humidity, 120

No change

Salt sprat test, 120h

No change

Pot life, h

≥ 5

Theoretical spreading rate, kg/m2


@ 35µm dry film

VOC, g/L

250 ~ 300

|Epoxy Coal-tar Primer HL52-4 Compatibility:




HL52-4 epoxy coal-tar primer



HL52-3Epoxy coal-tar finish


|Epoxy Coal-tar Primer HL52-4 Comment & FAQ

1. Who are we?

About Us We are headquartered in Jiangsu, China, established in 2016, and our market reach extends to Southeast Asia (40.00%), Africa (15.00%), Eastern Europe (15.00%), Western Europe (10.00%), the Middle East (10.00%), North America (5.00%), and the Domestic Market (5.00%). Our team comprises approximately 51-100 dedicated professionals.

2. How can we guarantee quality?

Ensuring the highest quality is our priority. We achieve this by: Conducting pre-production samples before mass production.

Carrying out thorough final inspections before shipment.

3. What can you buy from us?

Our product range includes a variety of offerings such as Alkyd Paint, Polyurethane Paint, Epoxy Paint, Acrylic Paint, Organic Silicone Paint, and more.

4. Why should you buy from us not from other suppliers?

There are several compelling reasons to opt for our products:We possess a rich 22-year history dedicated to the development, production, and sales of heavy anti-corrosion coatings.

We hold the prestigious designation as the developer for a military unit and are located within the Changzhou state high technology industrialization base for new paint.

Our commitment to quality is underscored by ISO9001, ISO14001, and OHSAS18001 certifications.

5. What services can we provide?

We offer the following services:Accepted Delivery Terms: FOB, EXW

Accepted Payment Currency: USD

Accepted Payment Type: T/T

Multilingual Support: English and Chinese

Feel free to reach out to us for all your coating needs, and we will be delighted to assist you.

Epoxy Coal-tar Primer HL52-4 Production Process



Epoxy Coal-tar PrimerHL52-4 Factory show.


 Epoxy Coal-tar Primer HL52-4 Certifications

Acrylic Polyurethane Floor Paint ROHS


Acrylic Polyurethane Floor Paint iso 19001

ISO 9001

Acrylic Polyurethane Floor Paint SRC


Acrylic Polyurethane Floor PaintCE


|Epoxy Coal-tar Primer HL52-4Case Show

12.18环氧煤焦油底漆案例1 12.18环氧煤焦油底漆案例2 12.18环氧煤焦油底漆案例3

Epoxy Coal-tar PrimerHL52-4Case Show

|Epoxy Coal-tar Primer HL52-4 Instructions For Use

  • Mixing

  • Mix part A and part B as 22:22 by weight. Slowly add part B into part A and ensure mixed completely.

  • Thinner:

  • X-7 Epoxy paint thinner ≤ 10 % w./w.

  • Cleaner:

  • X-7 Epoxy paint thinner

  • Application methods:

  • Airless spray (recommended):Nozzle tip: 0.017-0.025 inch, minimum 3000 psi.

  • Brush: recommended for small areas only.

  • Roller: recommended for small areas only.
