YMS COATINGS
Gray, reddish brown, grayish brown
Matte, flat
~1.55Kg/L
35℃
(58±2 )%
Ready to use
4.67m²/Kg (80um dry film thickness)
Availability: | |
---|---|
Alkyd Mica Iron Oxide Intermediate Paint
This product is an anti-rust paint based on medium oil dry vegetable oil modified alkyd resin.It has the following resistance characteristics:
|
|
|
Color | Gray, reddish brown, grayish brown |
Gloss | Matte, flat |
Density | ~1.55Kg/L |
Solid Volume | (58±2 )% |
Standard Film thickness | 80um dry film thickness (about 138um wet film thickness) |
Theoretical spreading rate | 4.67m²/Kg (80um dry film thickness) |
Flash Point | 35℃ |

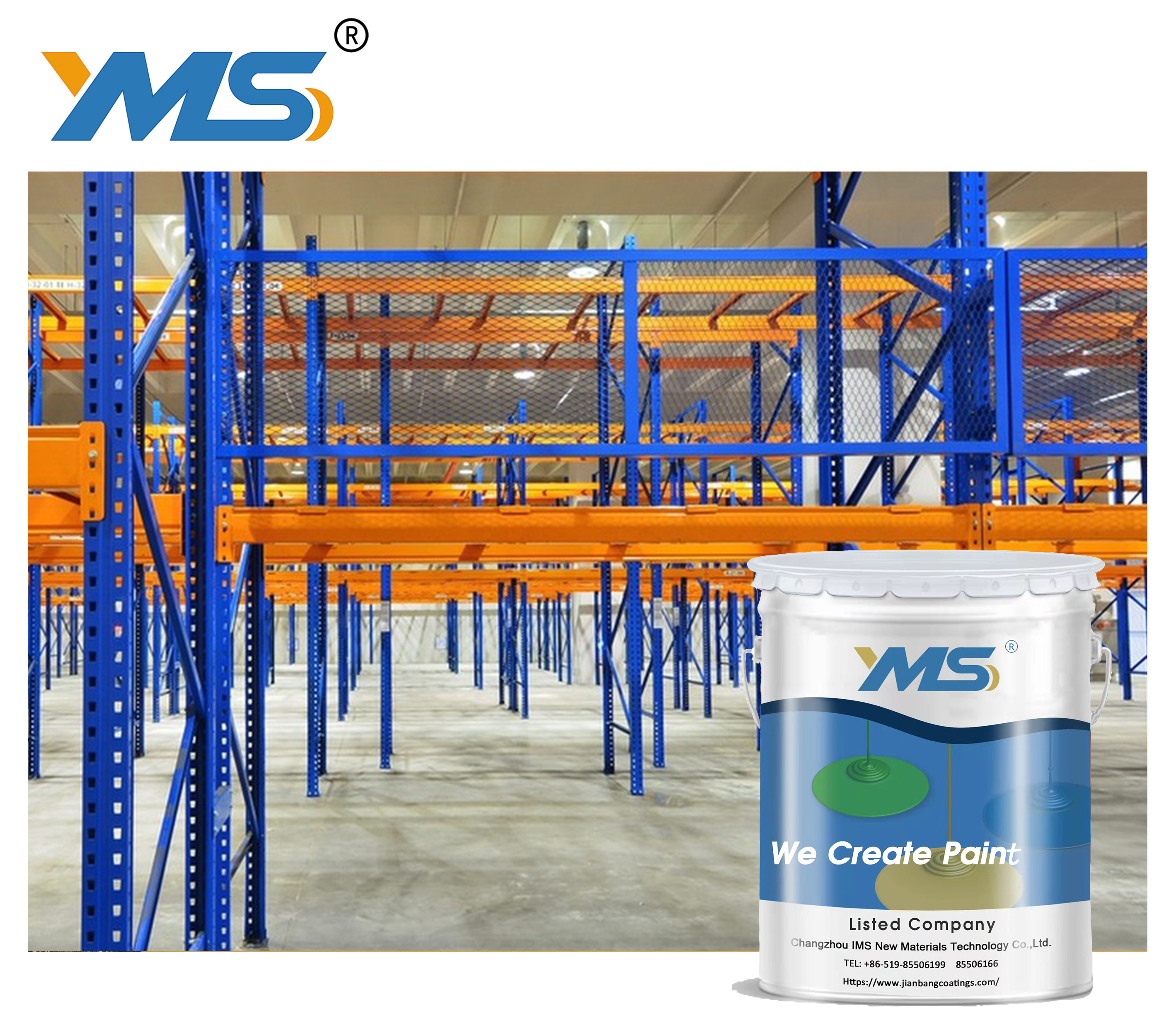

![]() | Alkyd Mica Iron Oxide Intermediate Paint Product Packaging Packaging: 25kg in a 20-liter iron bucket. Shelf Life: 12 months If exceeding shelf life, the products shall be tested before using. |
![]() | ![]() | ![]() | ![]() |

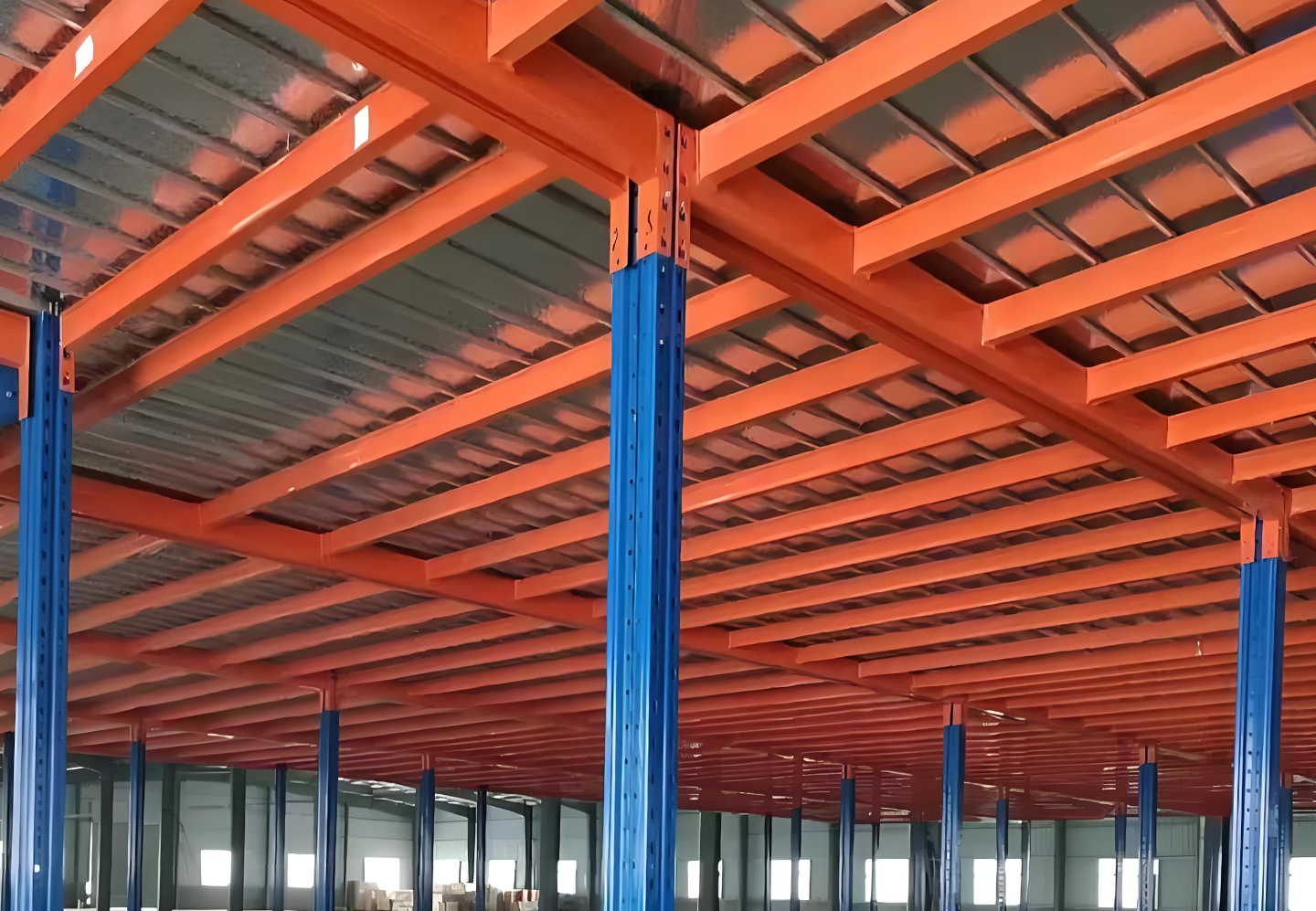

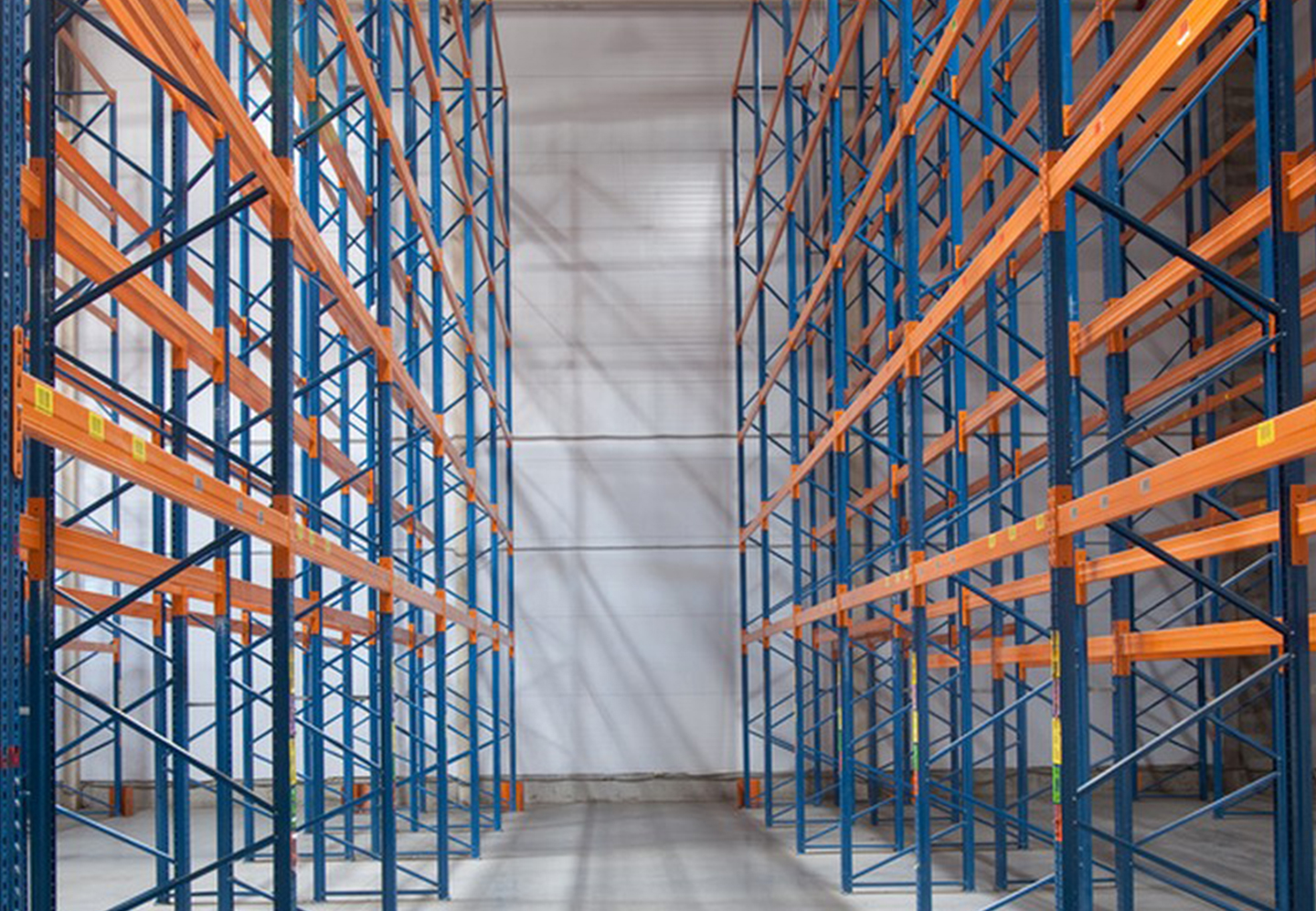

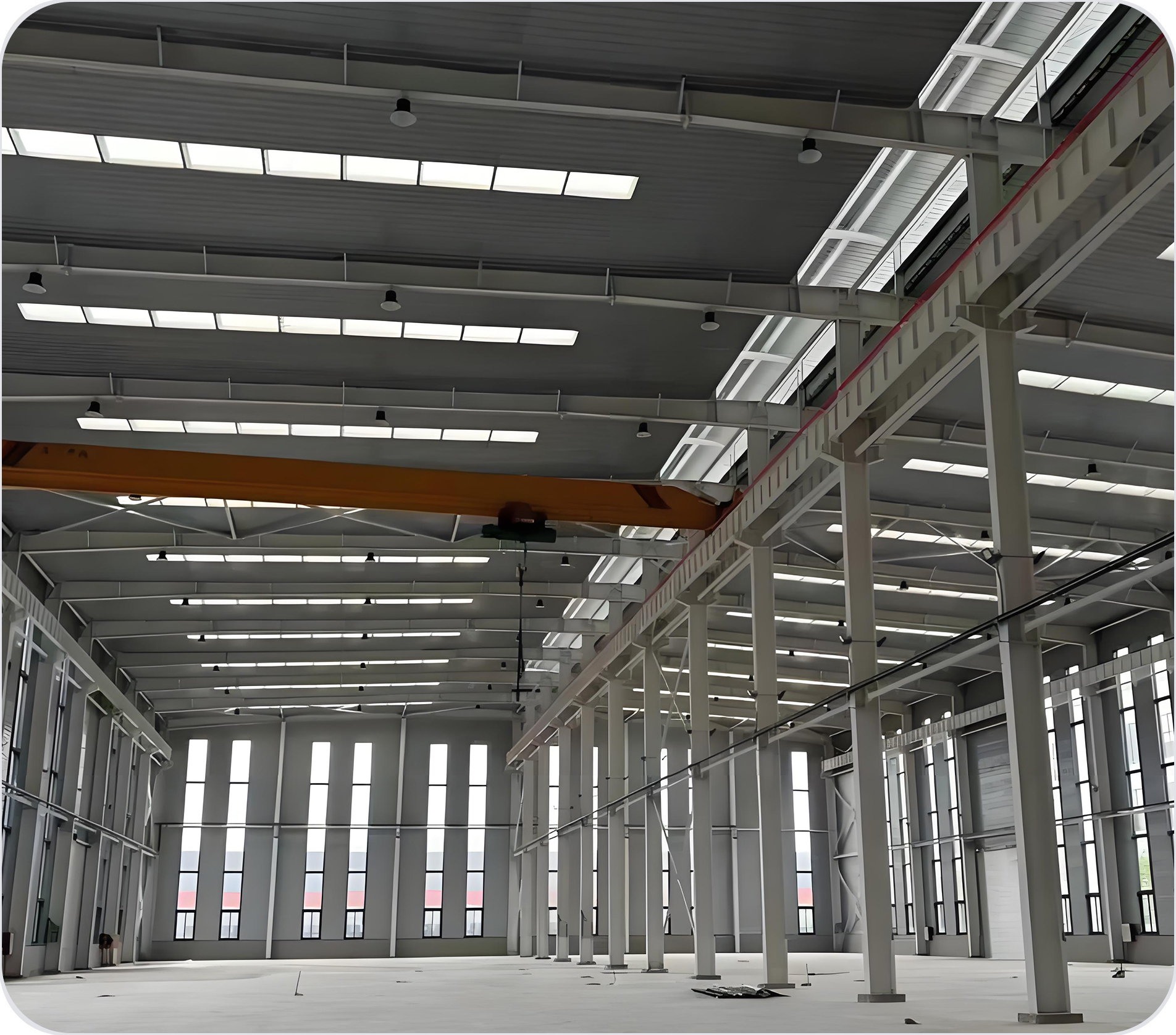

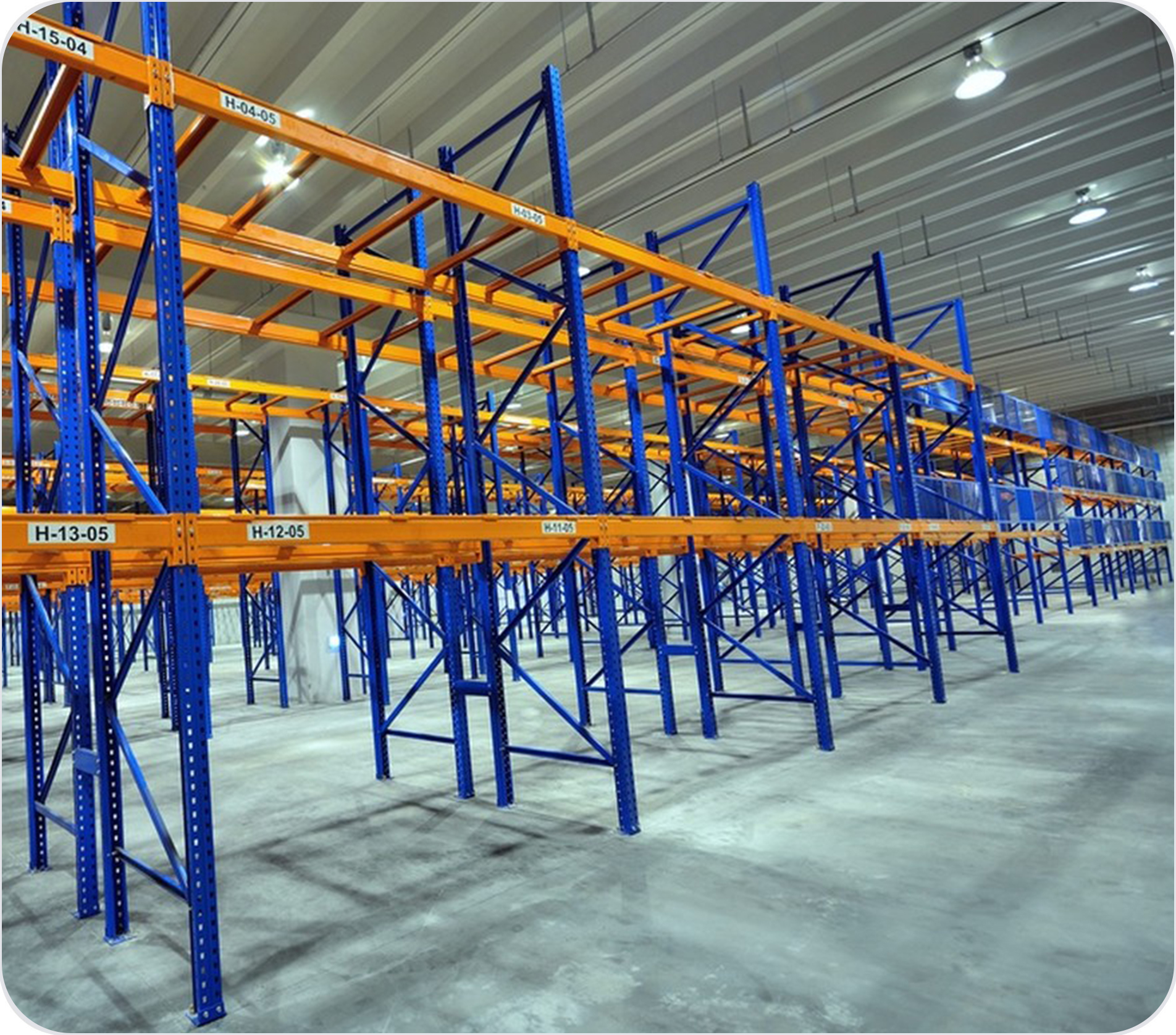

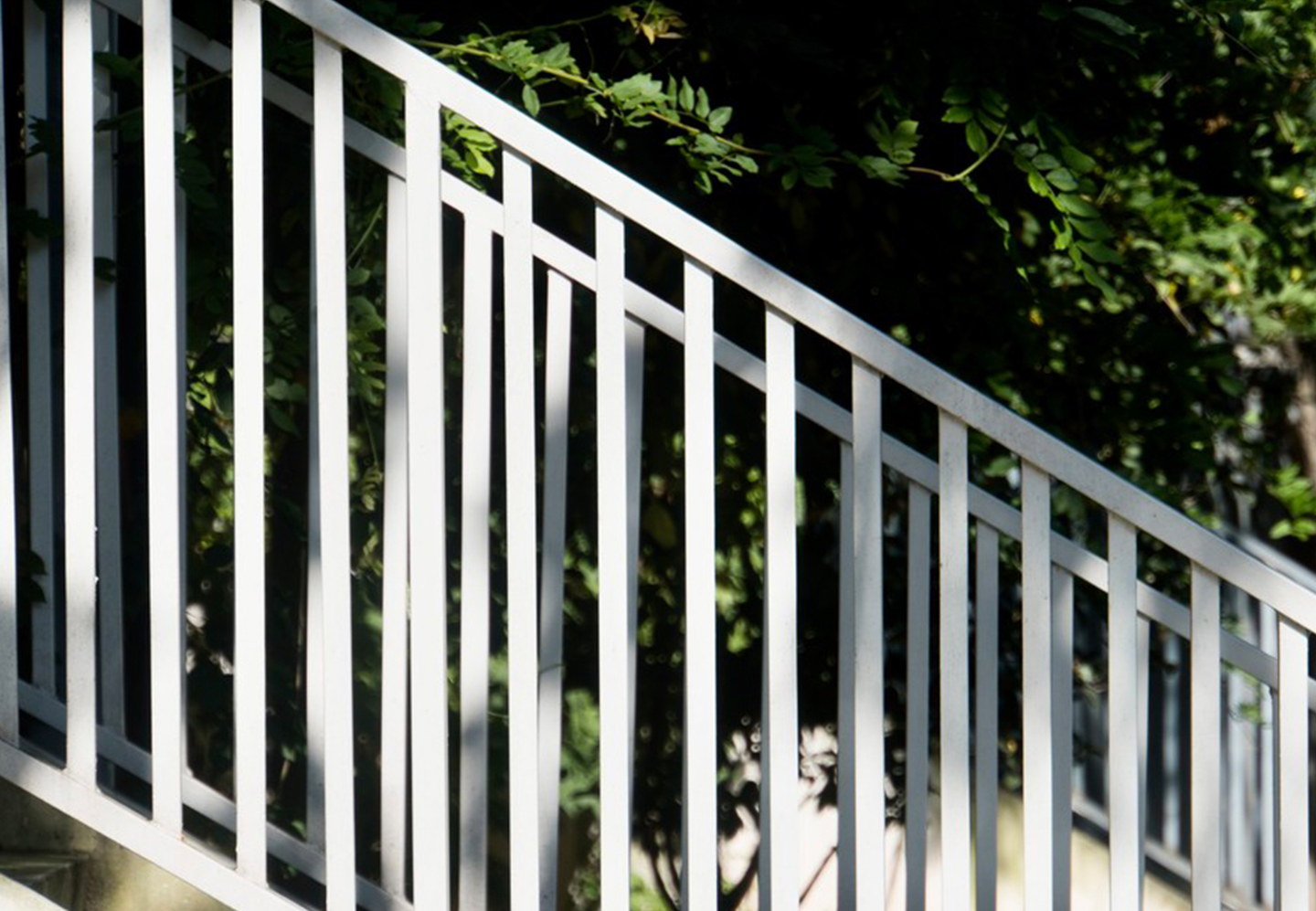

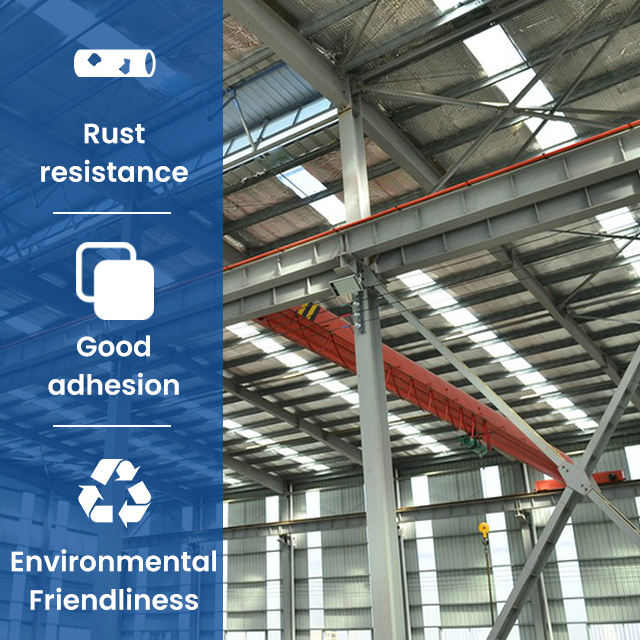

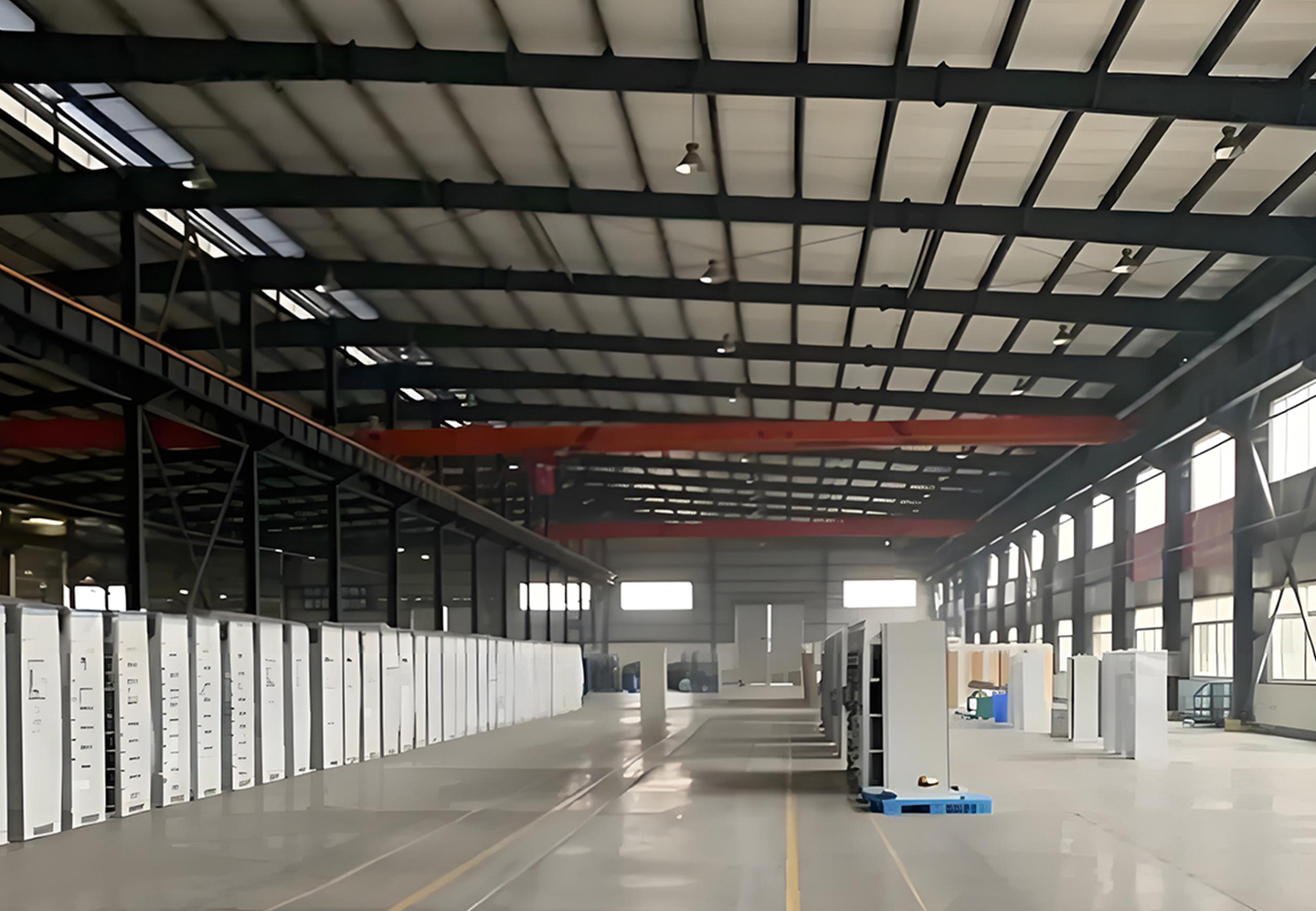

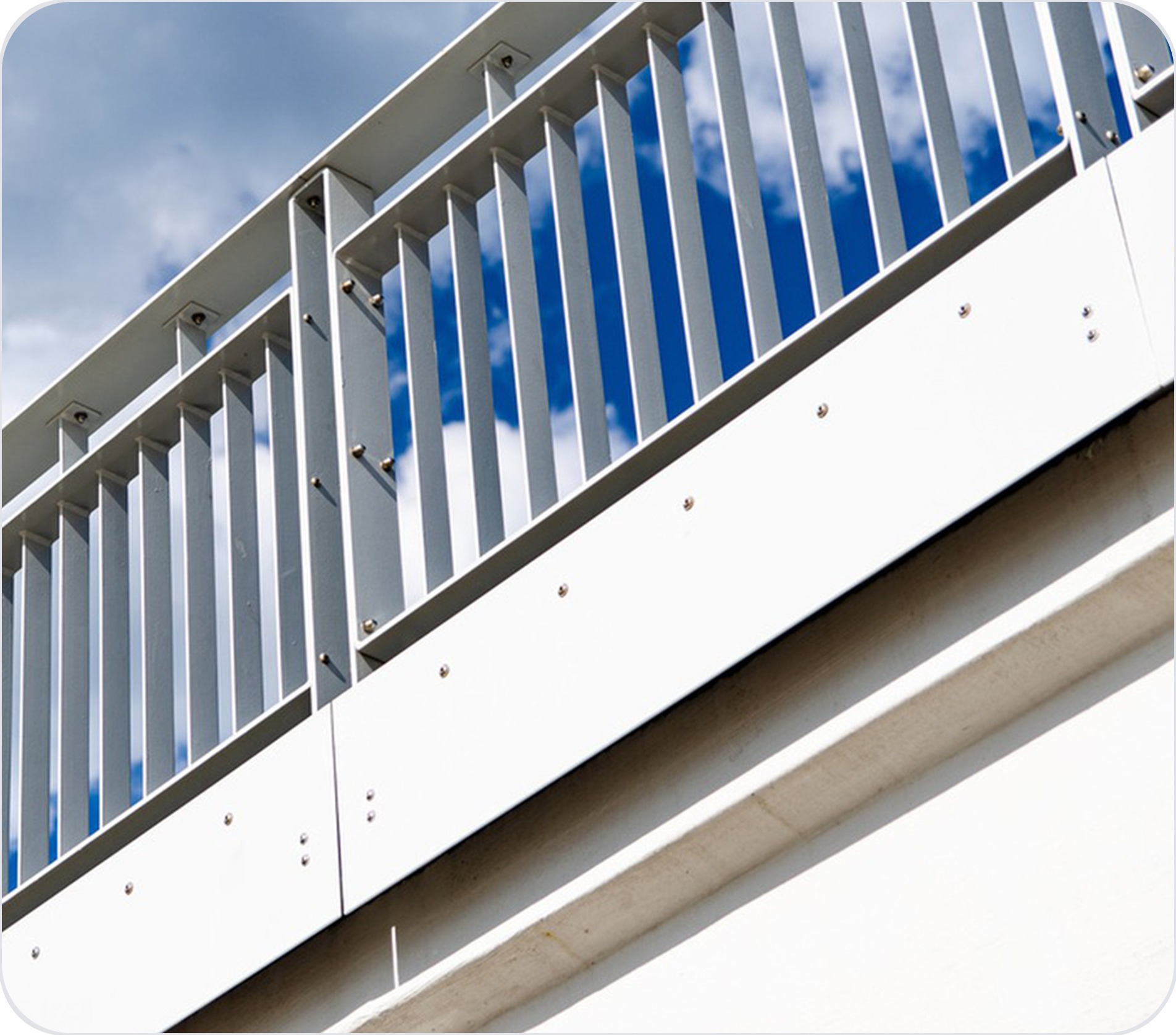

Steel platform | Storage rack | Handrail | Workshop steel beam |
Product | Thickness | |
Primer: | Alkyd Iron Oxide Red Anti-rust Paint | 2*40 µm (dry film thickness) |
Paint: | Alkyd Mica Iron Oxide Intermediate Paint | 2*40 µm (dry film thickness) |
Topcoat: | Alkyd Enamel | 2*35 µm (dry film thickness) |
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
Substrate Treatment:
All surface to be coated shall be clean and dry. The surface shall be evaluated and treated according to ISO8504 standard.
For bare steel, it shall be sandblasted to reach Sa2.5(iso8501-1:2007) standard. Depending on the environment of the non-immersed part, grinding with power tools is acceptable but shall at least reach St2(iso8501-1:2007) standard.
For shop primed steel, the shop primer shall be clean, dry and approved.
For surface painted coatings, this product can apply only to clean, dry and good compatible primer.
Instructions for Use:
Mixing:
Ready to use
Thinner:
Alkyd thinner
Airless spray:
Nozzle tip: 0.017~0.023 inches
Spray pressure: 15~18Mpa
Thinner ratio: 5~15% (by weight of paint)
BrushRoller:
Recommended
Must achieve required thickness
![]() | |||
![]() | ![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
