Alkyd Red Lead Anti-Rust Primer – A Complete Technical Reference

For much of the 20th century, the words “red lead” and “anti-rust” were nearly synonymous in industrial painting. Among the most enduring formulations is the alkyd red lead anti-rust primer—a coating that combines the time‑honored corrosion inhibition of lead tetroxide with the film‑forming versatility of alkyd resins. Though its use has sharply declined due to toxicity, understanding this primer remains essential for maintenance engineers, heritage conservators, and corrosion specialists who encounter legacy structures or require high‑performance shop primers in regulated environments.

1. What Is It?

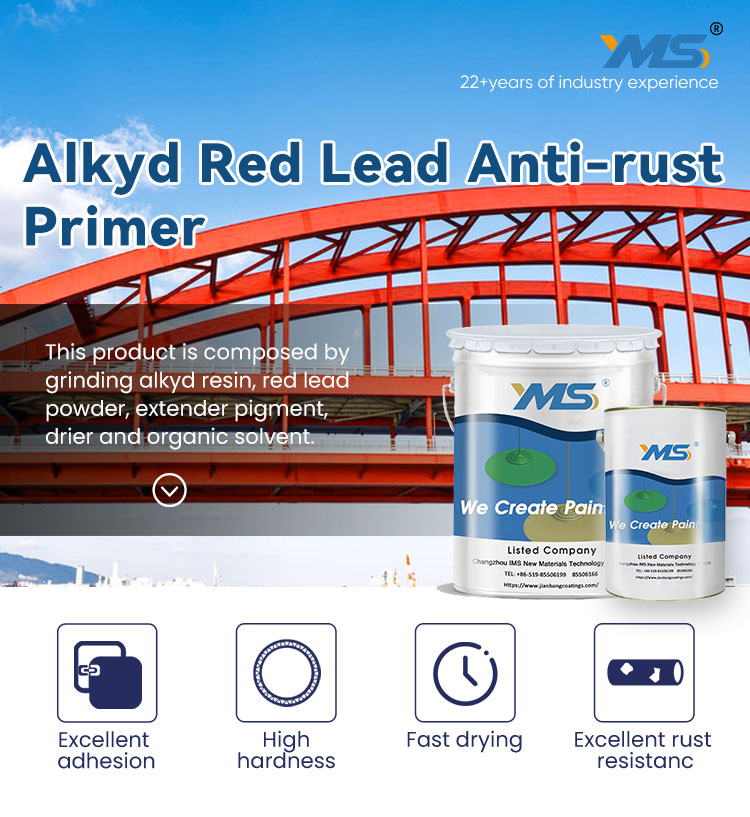

An alkyd red lead anti‑rust primer is a solvent‑borne surface coating that contains:

• Pigment: Red lead (Pb₃O₄, also called minium), typically 40–60% by weight of the pigmented film.

• Binder: A medium‑oil or long‑oil alkyd resin, often modified with drying oils (e.g., linseed or soya oil) to enable air‑drying through auto‑oxidation.

• Solvents: Aliphatic or aromatic hydrocarbons (e.g., white spirit, xylene) to adjust viscosity for brushing, rolling, or spraying.

• Additives: Anti‑settling agents (e.g., bentonite), driers (cobalt, manganese, or zirconium soaps) to accelerate curing, and sometimes inert extenders like barytes or talc to control cost and film permeability.

The result is a high‑build, thixotropic paint that dries to a tough, flexible, orange‑red film with exceptional adherence to steel.

2. How Does It Work? – The Electrochemical and Chemical Mechanism

Corrosion of steel requires an anode, a cathode, an electrolyte, and an oxygen supply. Red lead acts on multiple fronts:

• Cathodic passivation: Red lead is a mixed‑valence oxide (2PbO·PbO₂). The Pb⁴⁺ species is a strong oxidizer. In the presence of moisture, it slowly releases active oxygen, which oxidises the steel surface to form a thin, adherent layer of gamma‑Fe₂O₃ (maghemite) or iron phosphates (if phosphate extenders are present). This passive layer raises the corrosion potential, shifting the cathodic reaction toward a less aggressive regime.

• Soap formation: Fatty acids from the alkyd binder react with lead ions to form lead soaps (lead carboxylates). These water‑repellent soaps precipitate within the micropores of the film, blocking ionic transport and reducing water permeability.

• Alkaline buffering: Red lead imparts a mildly alkaline pH (around 8–9) to the wet film. This alkalinity helps maintain the passive iron oxide layer, especially in slightly acidic industrial atmospheres.

• Barrier effect: The high pigment volume concentration (PVC) – typically near the critical PVC – creates a dense, tortuous path for oxygen and chloride ions, while the alkyd binder provides elastic recovery to accommodate thermal expansion without micro‑cracking.

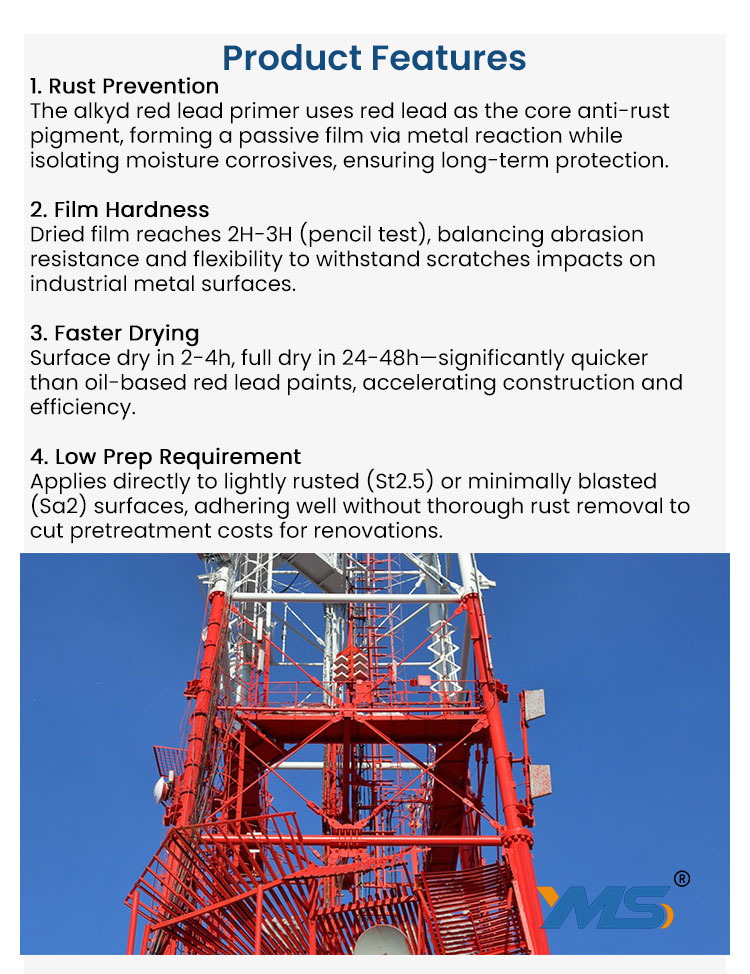

Unlike zinc‑rich primers, which rely on galvanic sacrificial action, red lead works primarily through chemical passivation – it “tames” the steel surface rather than sacrificing itself. This makes it exceptionally effective on marginally prepared surfaces (e.g., hand‑cleaned or power‑tool‑cleaned steel), where it can tolerate residual rust better than many modern high‑performance coatings.

3. Application and Curing

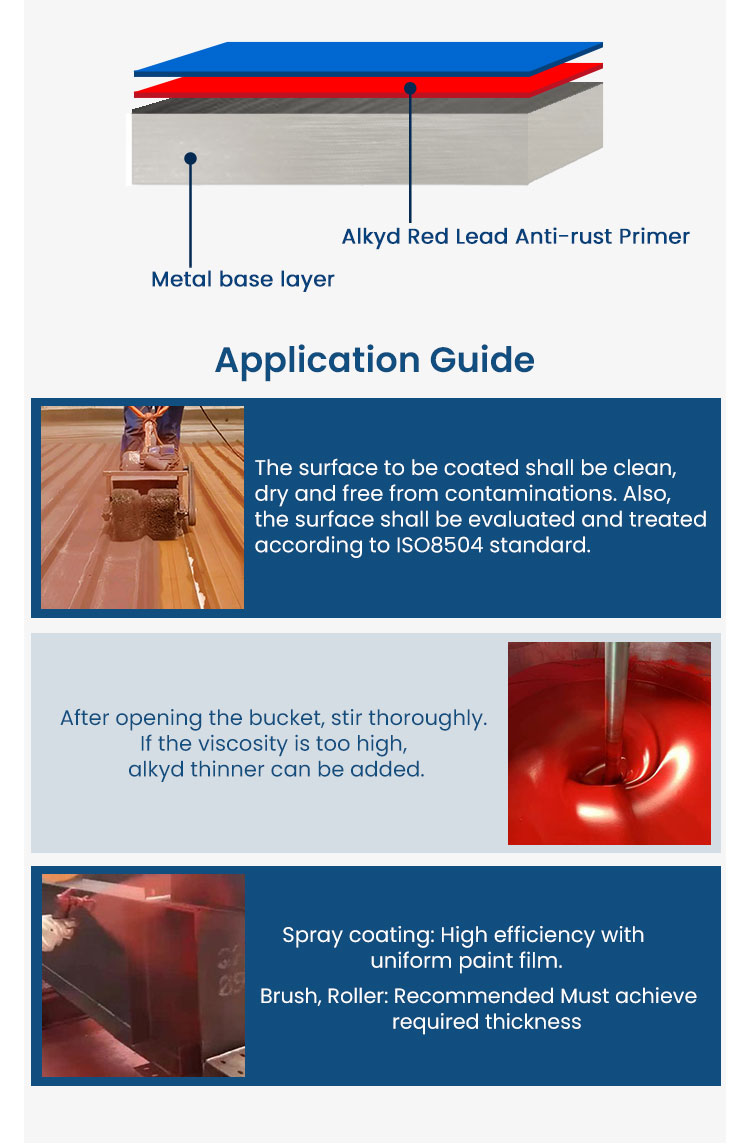

• Surface preparation: Ideally, blast cleaning to Sa 2½ (ISO 8501) is recommended, but the primer’s tolerance for rust means it performs adequately over St 2 (hand‑tool cleaning) – a major advantage in field repair.

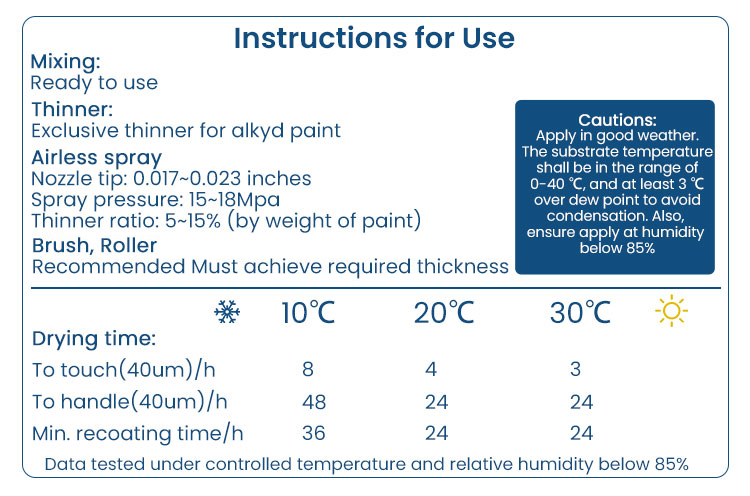

• Application methods: Brush, roller, or airless spray. Typical dry film thickness (DFT) per coat: 40–80 µm. Two coats are often specified for aggressive environments.

• Curing: Drying occurs via oxidative polymerisation of the alkyd’s unsaturated fatty acids. At 20 °C and 50% RH, tack‑free time is 4–6 hours; through‑cure for overcoating takes 16–24 hours. Low temperatures (<5 °C) retard drying, while high humidity can cause blush or saponification.

• Overcoating: Compatible with most topcoats – alkyd enamels, chlorinated rubber, or even epoxy (with proper intercoat adhesion testing). However, overcoating with highly solvent‑strong paints may lift the uncured primer.

4. Performance Characteristics – The Pros

5. Limitations and Weaknesses

• Temperature resistance: Not for service above 80–100 °C; the alkyd binder softens and oxidises, while red lead can decompose to PbO above 500 °C – irrelevant for most ambient applications.

• Chemical resistance: Poor against strong acids (which dissolve lead soaps) and strong alkalis (which saponify the alkyd binder). Not suitable for immersion or chemical spill areas.

• Weathering: The primer alone is not UV‑stable – it chalks and erodes. It must be topcoated for exterior exposure.

• Slow drying in cold/humid conditions: Requires solvent adjustment or warmer shop environments.

• Compatibility with modern topcoats: Some high‑solid epoxies or polyurethanes may cause “strike‑through” or intercoat delamination if the primer is not fully cured or if applied too thickly.

6. The Dark Side – Health, Environment, and Regulatory Phase‑out

Red lead is classified as a Category 1A reproductive toxicant and a suspected carcinogen (IARC Group 2B for inorganic lead compounds). The key hazards:

• Inhalation of dust during mixing/sanding – leads to lead poisoning (plumbism).

• Ingestion from contaminated hands or food – chronic neurological and renal effects.

• Environmental persistence – lead bioaccumulates in soil and aquatic life.

Consequently, the European Union’s REACH regulation and the U.S. EPA have severely restricted its use. Since the 1990s, it has been banned for most decorative and general industrial applications in the EU (under Annex XVII of REACH). Today, permitted uses are narrow:

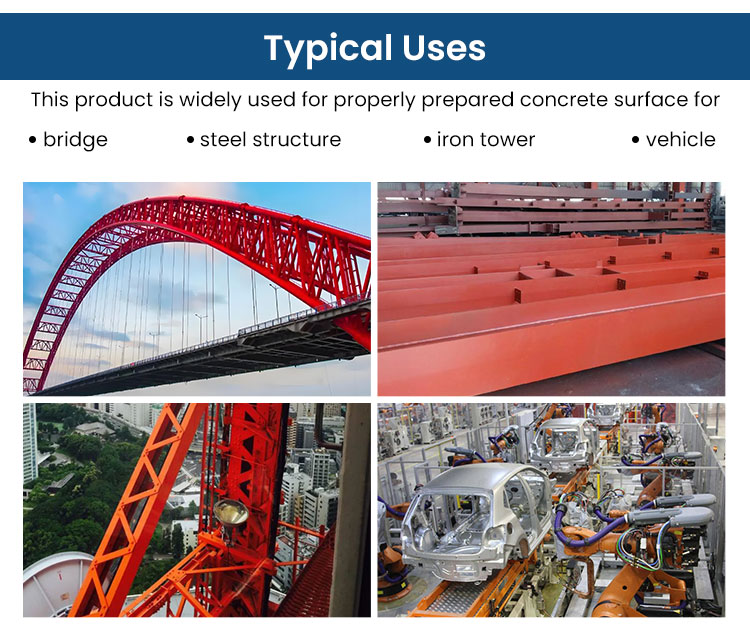

• Heritage and historic structure maintenance (e.g., bridges, lock gates, railway rolling stock built before the ban) – where removal is impractical and alternative coatings have not proven equivalent in field trials.

• Military and aerospace specifcations – some defence contracts still exempt legacy primers for tactical equipment.

• Shipbuilding – in a few non‑EU nations, though IMO’s Anti‑Fouling Systems Convention does not directly ban red lead primers, many port authorities prohibit their use.

7. Modern Alternatives – What Replaces It?

When replacing alkyd red lead, specifiers consider:

• Zinc phosphate alkyd primers – less toxic, but offer only barrier and moderate passivation; shorter lifespan in high‑humidity zones.

• Zinc‑rich epoxy primers (85–95% zinc dust) – superior galvanic protection but require near‑white blast cleaning and are less forgiving on hand‑cleaned surfaces.

• Calcium sulphonate alkyd primers – a newer “green” passivator that mimics the soap‑forming action of lead, with good wet adhesion, though field data are still accumulating.

• Micaceous iron oxide (MIO) reinforced alkyds – excellent barrier properties but no chemical passivation; require thicker films.

For existing red‑lead‑coated structures, the preferred strategy is overcoating rather than removal – using a tie‑coat (e.g., epoxy‑modified alkyd) to isolate the old lead film, followed by a durable topcoat, thus locking the lead in place and minimising dust generation.

8. Practical Tips for Today’s Maintenance Engineer

If you encounter an alkyd red lead primer in service and need to repaint:

1. Identify – confirm by XRF (X‑ray fluorescence) or chemical spot test; do not abrasive‑blast without containment due to hazardous dust.

2. Clean – use wet‑abrasive methods (hydroblasting) or low‑dust needle‑gunning to remove loose rust and chalk.

3. Feather edges – but avoid grinding which generates lead‑laden dust.

4. Apply a compatible sealer – e.g., a low‑solvent alkyd or epoxy‑mastic tie coat, then topcoat with your chosen system.

5. Document – record the presence of lead primer in the asset’s coating register for future workers’ safety.

9. Conclusion – A Legacy Material with Lessons for Coating Science

The alkyd red lead anti‑rust primer is a masterpiece of classical paint chemistry – its multi‑modal protection (passivation, soap‑blocking, alkalinity, and barrier) remains a benchmark against which modern anti‑corrosive primers are judged. Yet its toxicity has rightly relegated it to the history books for new construction. For the engineer, studying its formulation teaches enduring principles: the value of chemical compatibility with the substrate, the importance of surface tolerance in maintenance, and the critical trade‑off between performance and sustainability.

Today, no responsible specifier would choose red lead for a new project. But for those managing aging infrastructure, understanding its behaviour is not nostalgia – it is practical necessity. The primer that protected millions of tonnes of steel now protects us by reminding that the best coating is not merely one that shields metal, but one that safeguards both structure and society.
