Anti-corrosive Primer/ Finish

This product is composed of advanced special resin, zinc powder, filler, auxiliary, etc.It has the following characteristics：

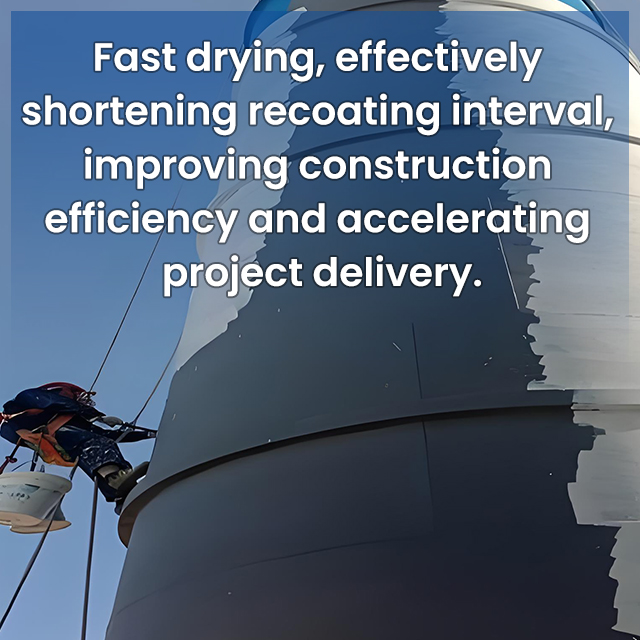

Long‑term salt‑spray resistance	High hardness	Fast drying property
Abrasion and impact resistance	Water resistance	Excellent penetration
Chemical corrosion resistance	Heat resistance	Mildew resistance

Anti-corrosive Primer/ Finish Basic Technical Datasheet

Color	Finish: Customized, aluminum silver Primer: Gray
Gloss	High gloss
Density	Finish:~1.4Kg/L(after mixing) Primer:1.65Kg/L(after mixing)
Solid Volume	Finish:(48±2 )% Primer:(58±2 )%
Standard Film thickness	Finish:100um dry film thickness  (about 200um wet film thickness) Primer:80um dry film thickness  (about 135um wet film thickness)
Theoretical spreading rate	Finish:3.6m²/Kg (50um dry film thickness) Primer:4.54m²/Kg (80um dry film thickness)
Full Cure	(23±2℃)24h
Flash Point	27℃

Anti-corrosive Primer/ Finish Product Packaging Packaging: Primer part A：25 kg in a 20-liter iron bucket. part B：5 kg in a 6-liter iron bucket. Finish part A：20 kg in a 20-liter iron bucket. part B：4 kg in a 5-liter iron bucket. Shelf Life: 12 months If exceeding shelf life, the products shall be tested before using.

Anti-corrosive Primer/ Finish Applicable Environment

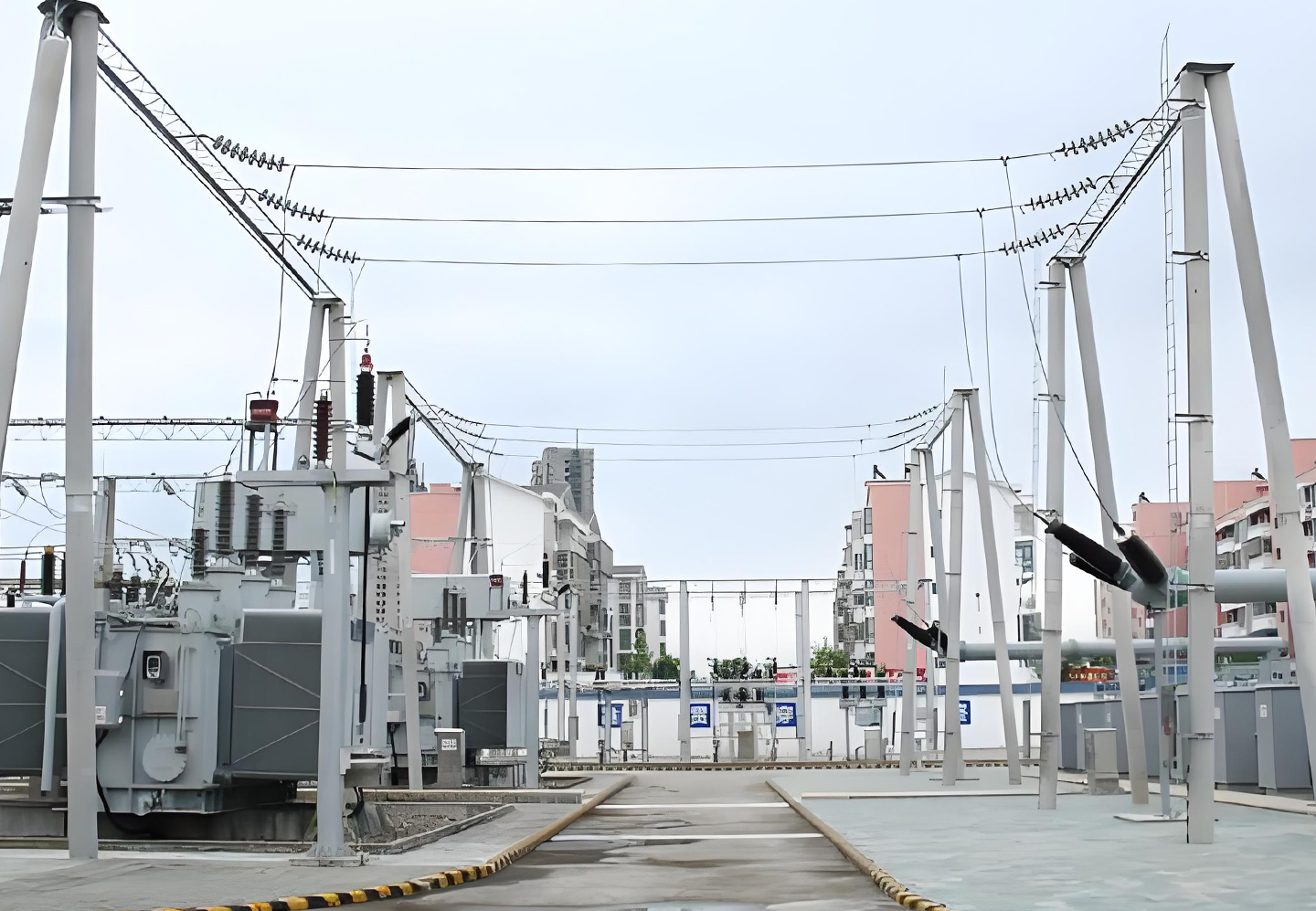

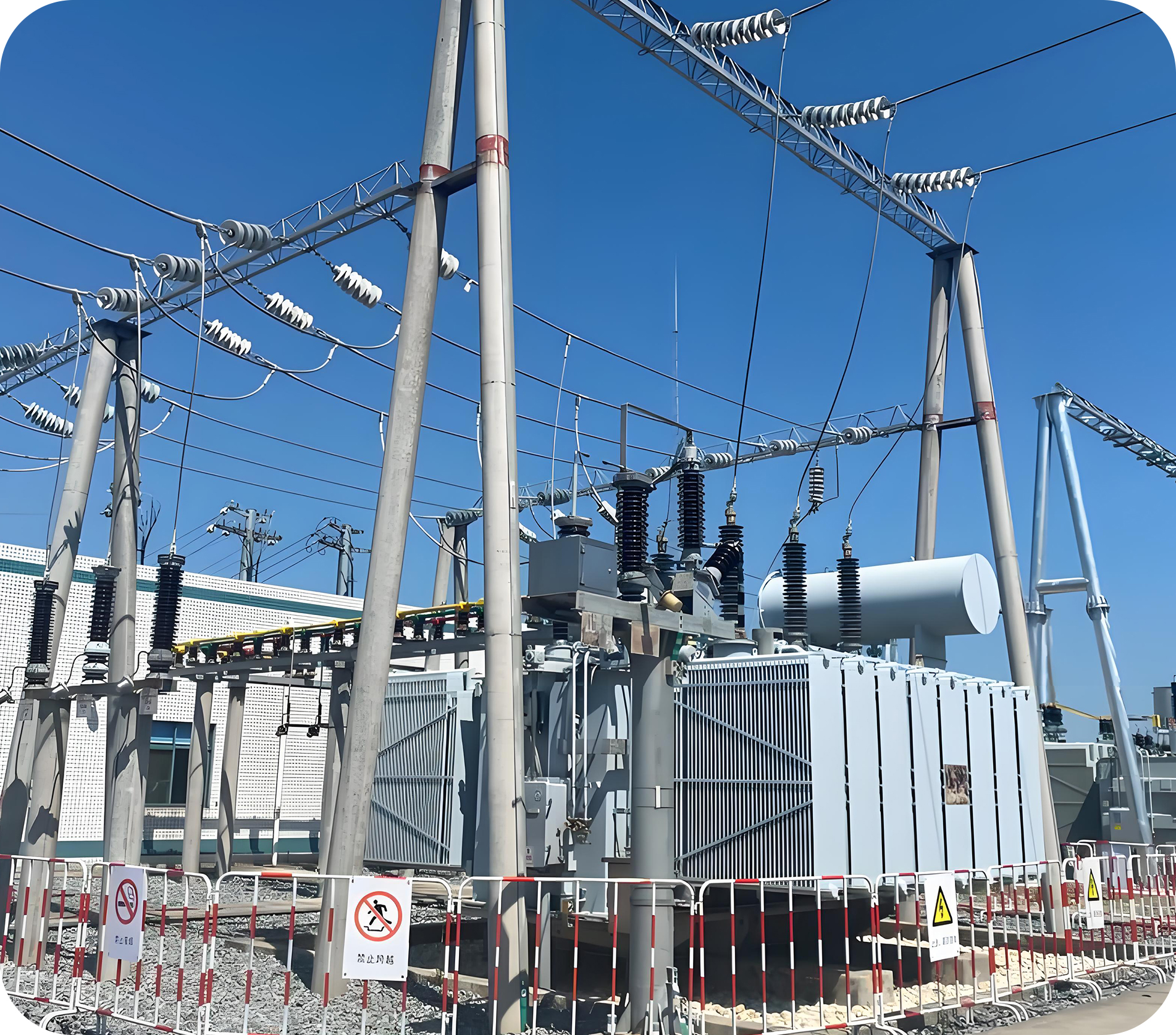

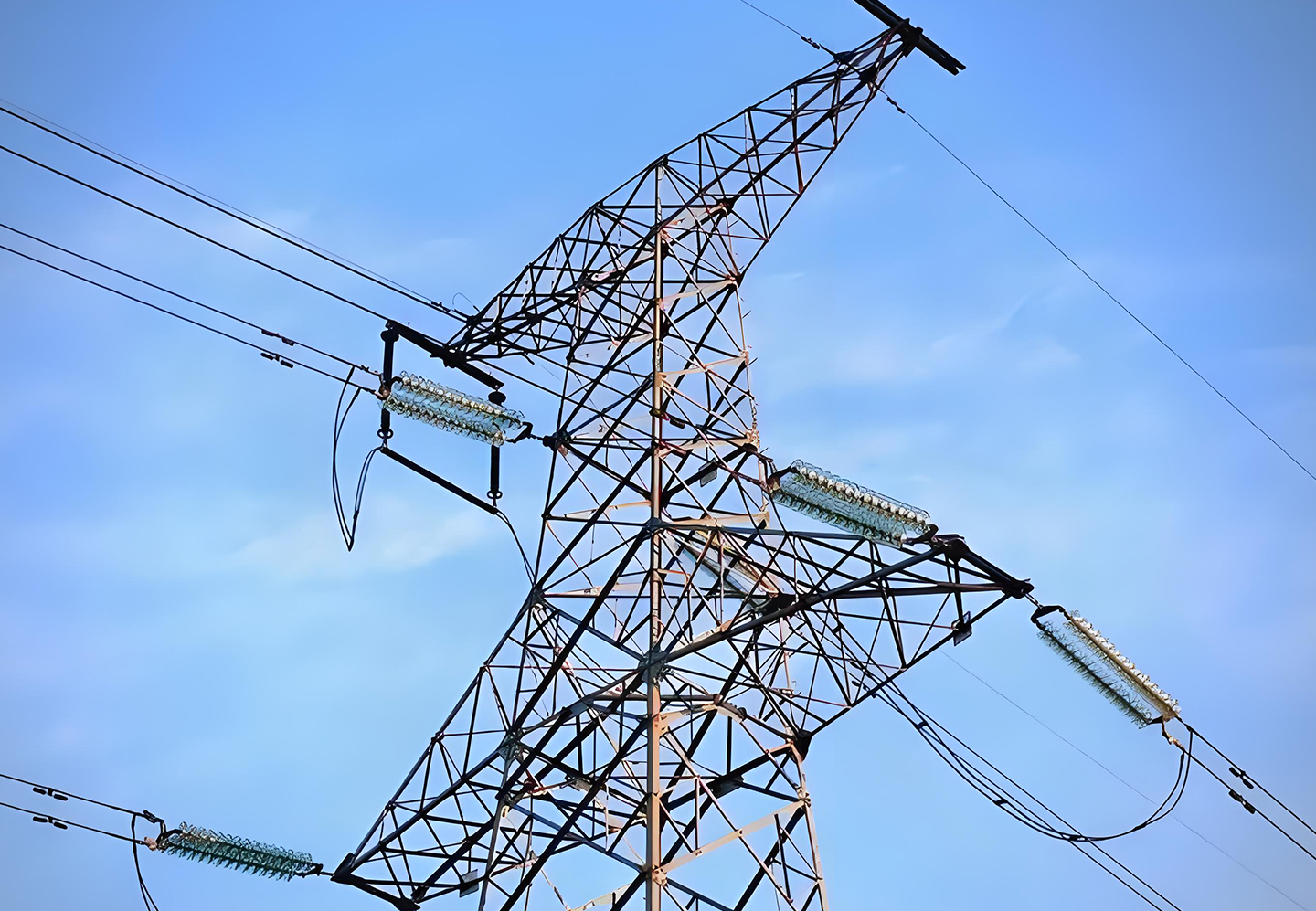

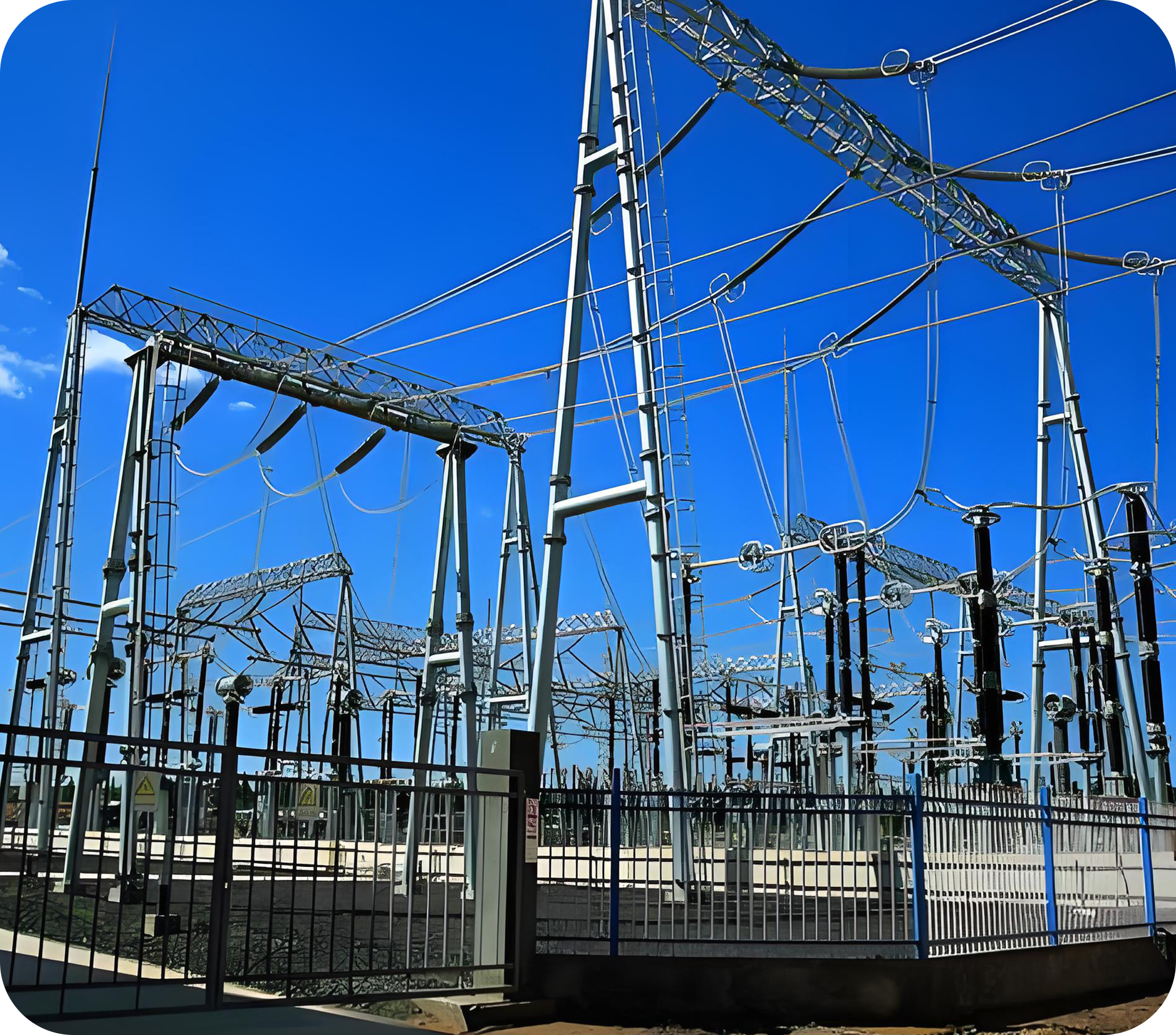

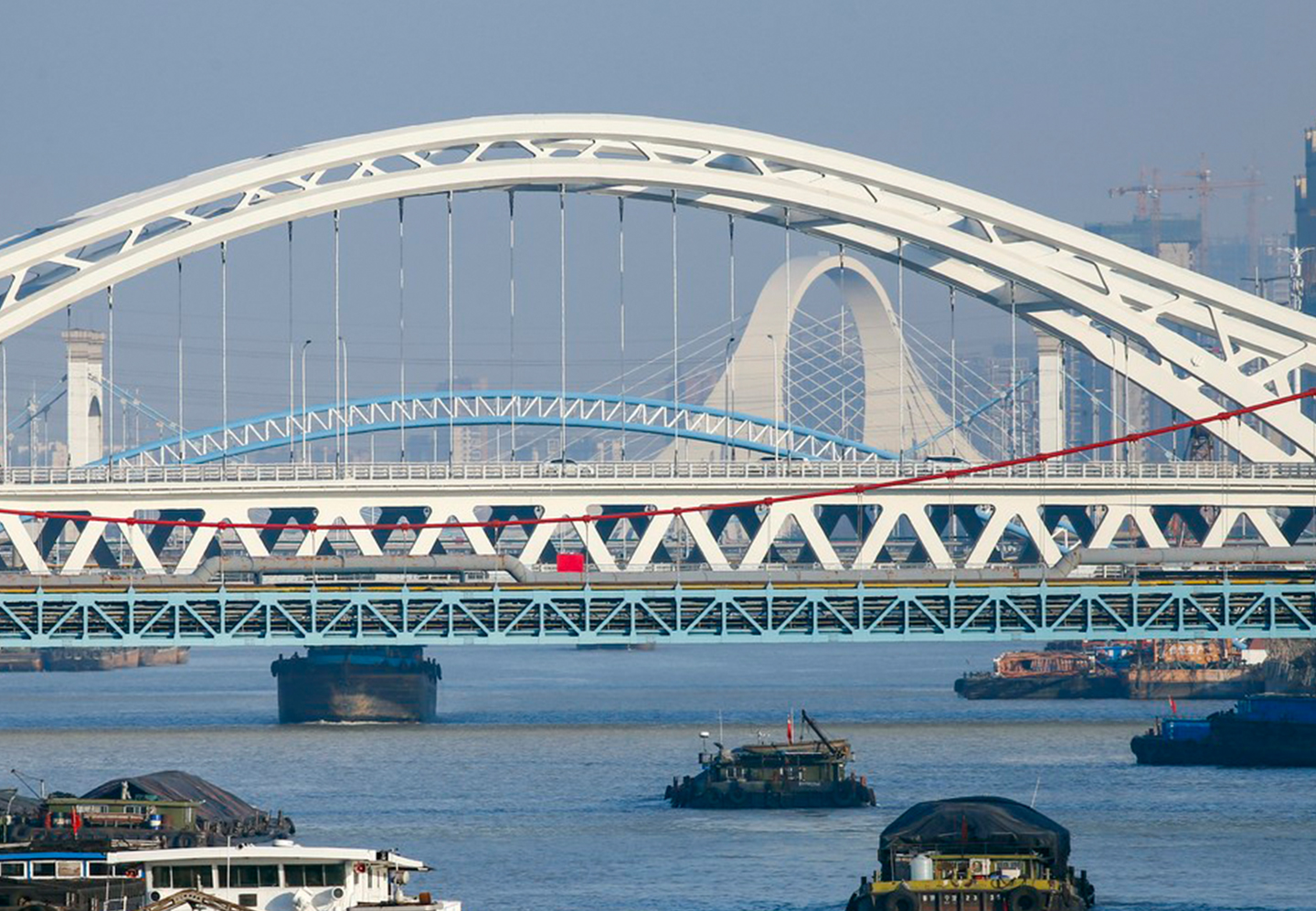

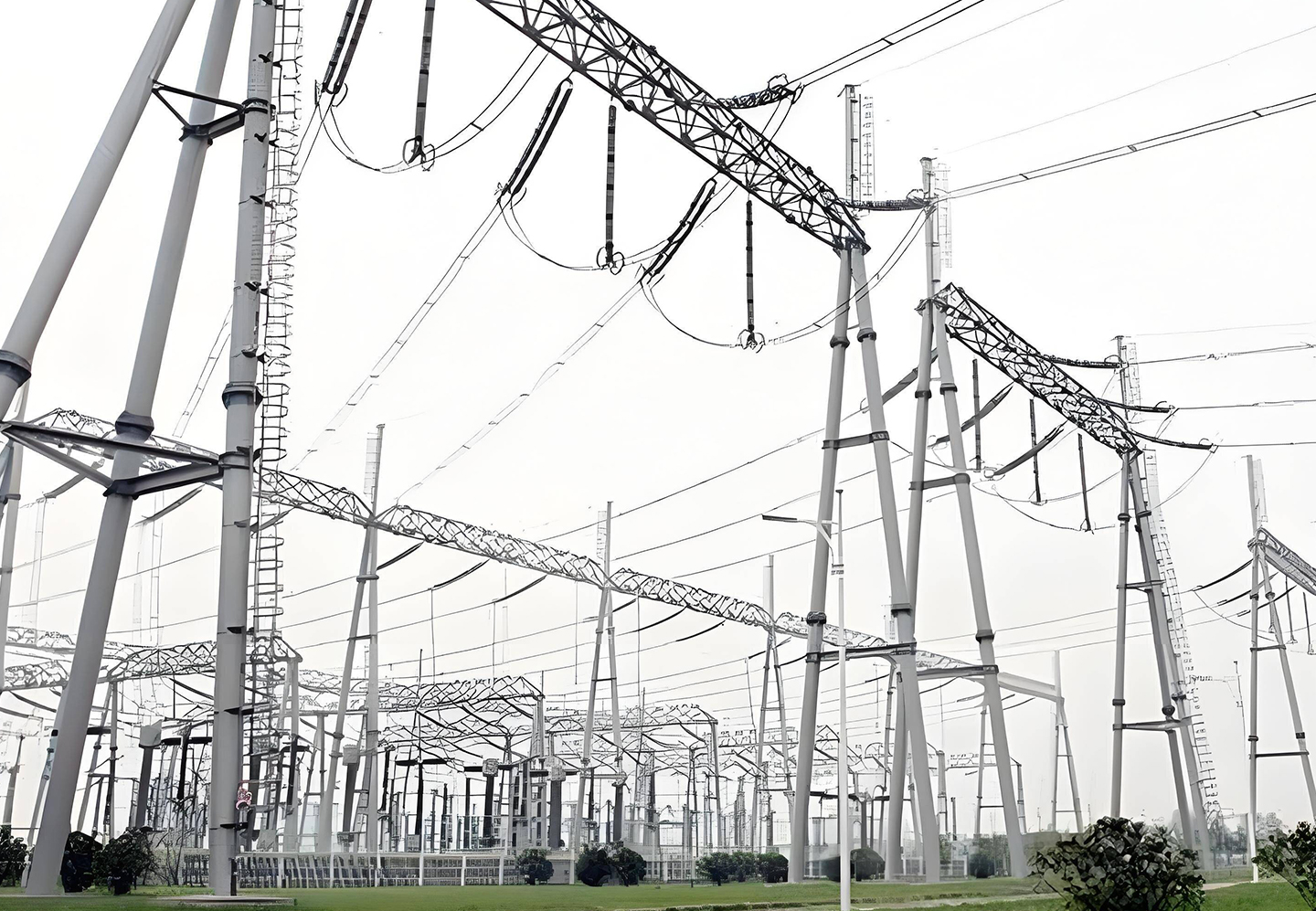

Power transmission lines	Bridges	Steel transmission towers	Substations

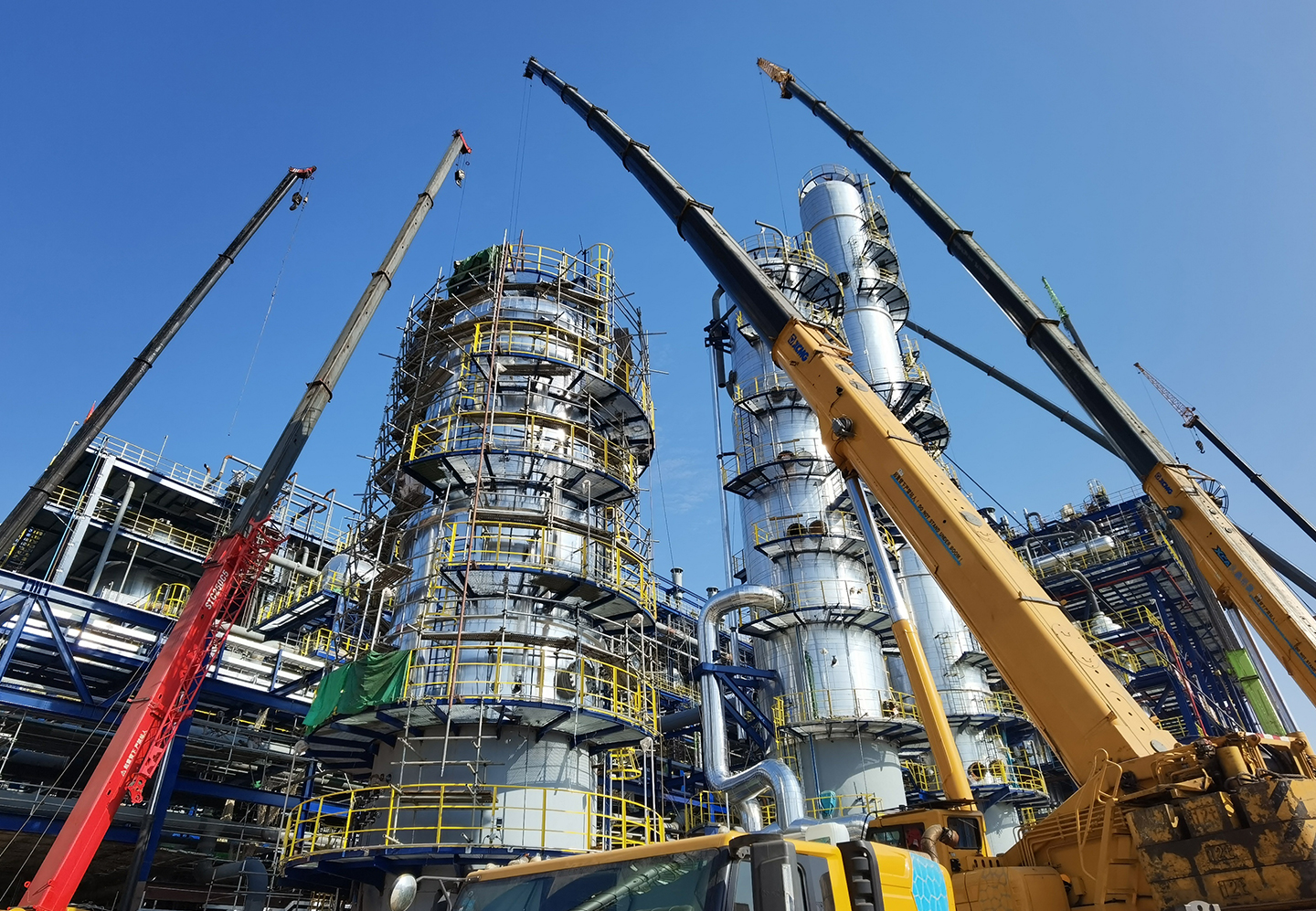

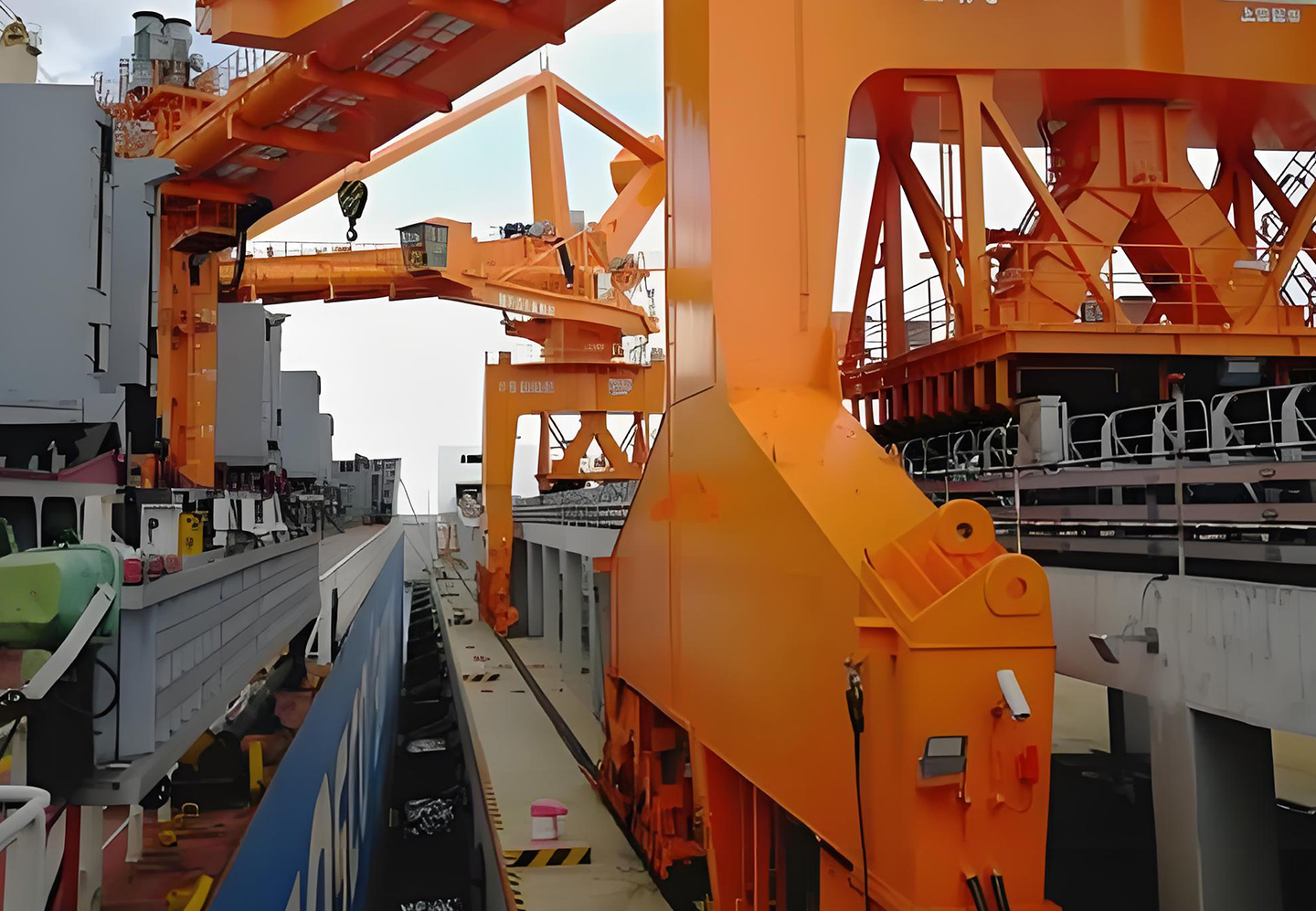

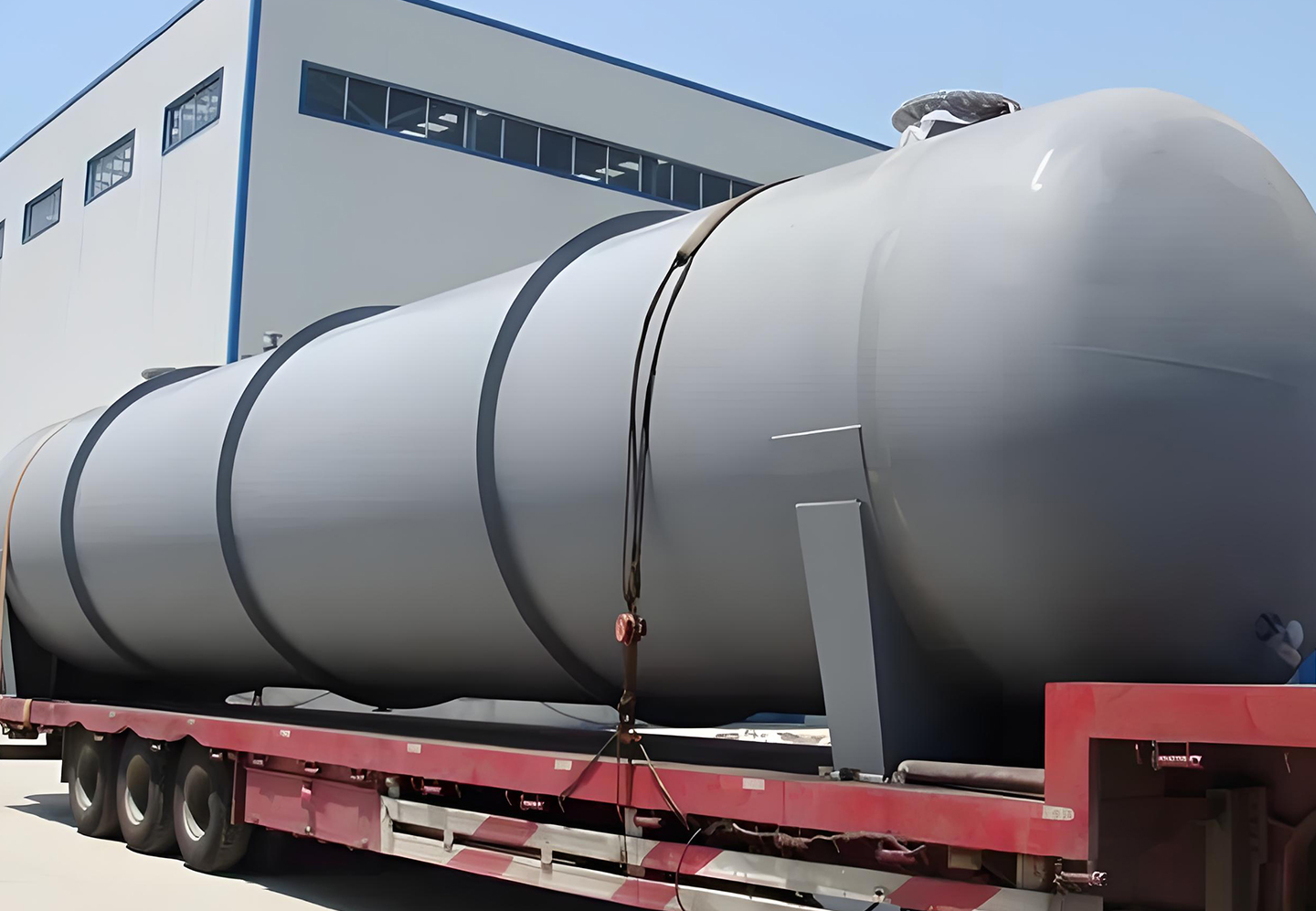

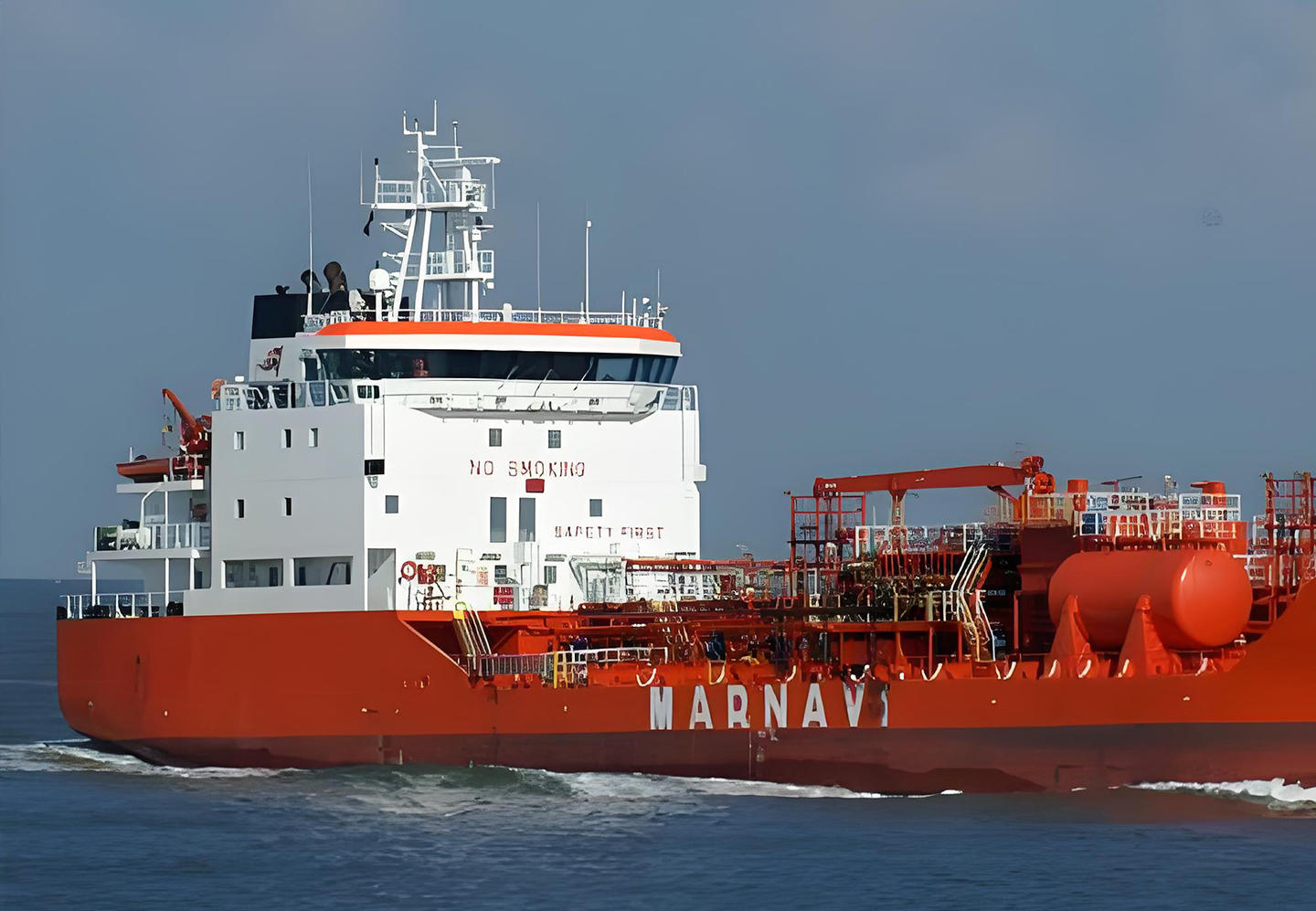

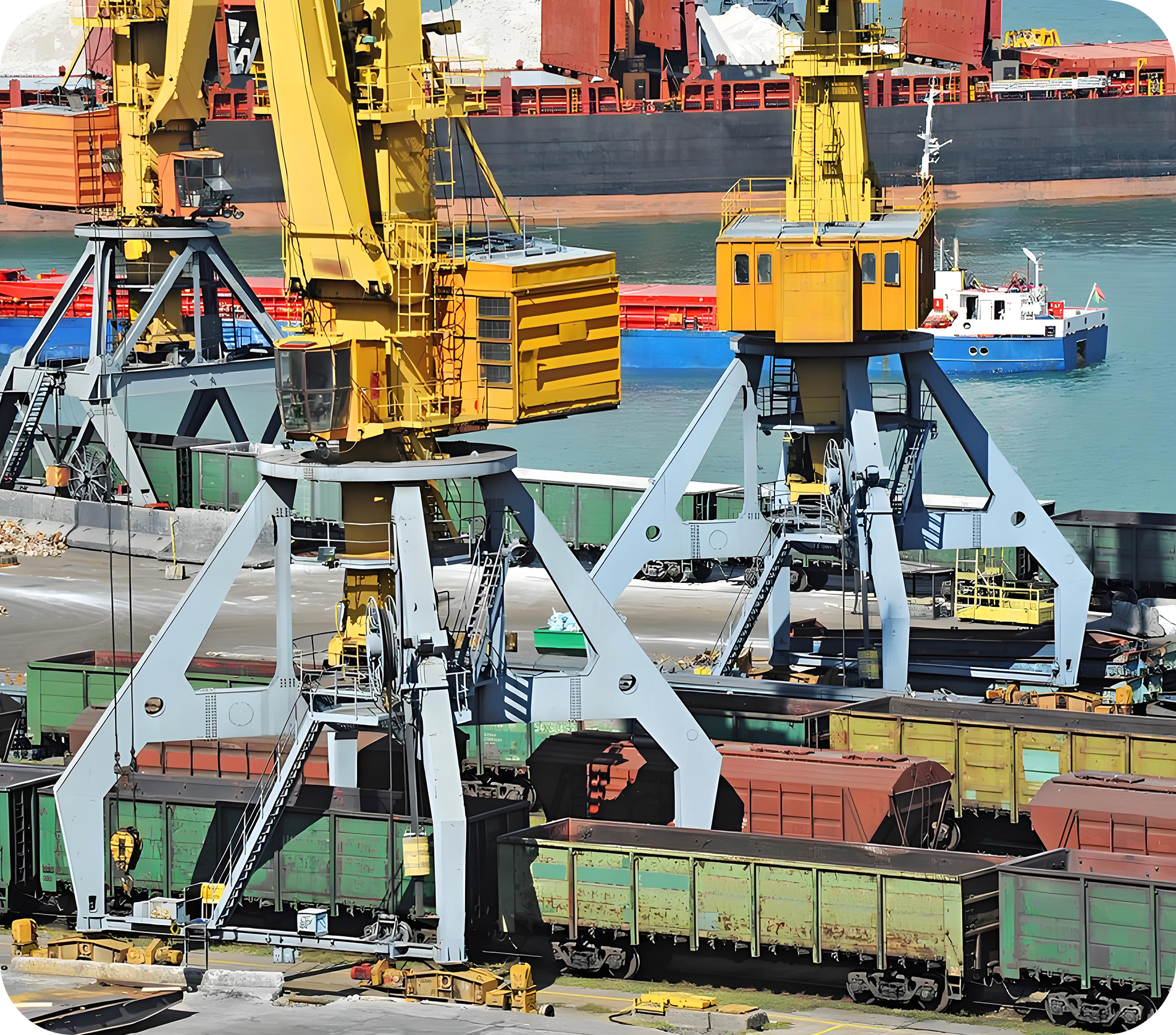

Petrochemical industry	Oil storage tanks	Port machinery	Ships

Anti-corrosive Primer/ Finish Compatibility

	Product	Thickness
Primer:	Anti-corrosive Primer	2*40 µm (dry film thickness)
Topcoat:	Anti-corrosive Finish	2*50 µm (dry film thickness)

Anti-corrosive Primer/ Finish Finished Projects

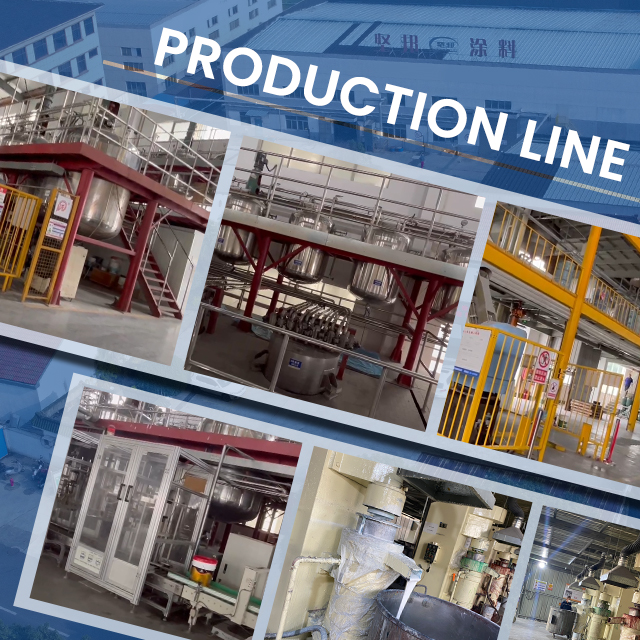

Anti-corrosive Primer/ Finish Production Process

Anti-corrosive Primer/ Finish Instructions For Use

Substrate Treatment：

All surface to be coated shall be clean and dry. The surface shall be evaluated and treated according to ISO8504 standard.

For bare steel, it shall be sandblasted to reach Sa2.5(iso8501-1:2007) standard. Depending on the environment of the non-immersed part, grinding with power tools is acceptable but shall at least reach St2(iso8501-1:2007) standard.

For shop primed steel, the shop primer shall be clean, dry and approved.

For surface painted coatings, this product can apply only to clean, dry and good compatible primer.

Instructions for Use:

• Mixing:

Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you get to mix well.

• Mixing ratio：

Part A: Part B= 5:1 (by weight)

• Thinner:

Exclusive thinner

• Application tools:

Spray gun, roller, brush
