E06-500 Inorganic Heat-resistant Primer

This two-component product is mainly composed of partially hydrolyzed alkyl silicate solution, superfine metal powder, pigments, additives and solvents, etc.It has the following characteristics：

Excellent heat resistance	Withstands sudden temperature changes	Strong adhesion
Fast drying	The cured film is not affected by substrate cutting or welding

E06-500 Inorganic Heat-resistant Primer Video

E06-500 Inorganic Heat-resistant Primer Basic Technical Datasheet

Color	Gray
Gloss	Matt
Density	~1.9Kg/L (after mixing)
Hardness	Exclusive curing agent
Solid Volume	(45±2 )%
Standard Film thickness	60um dry film thickness  (about 133um wet film thickness)
Theoretical spreading rate	3.94m²/Kg (80um dry film thickness)
Full Cure	(23±2℃ )7d
Flash Point	18℃

E06-500 Inorganic Heat-resistant Primer Product Packaging Packaging: part A：30 kg in a 20-liter iron bucket. part B：3 kg in a 4-liter iron bucket. Shelf Life: 12 months If exceeding shelf life, the products shall be tested before using.

E06-500 Inorganic Heat-resistant Primer Applicable Environment

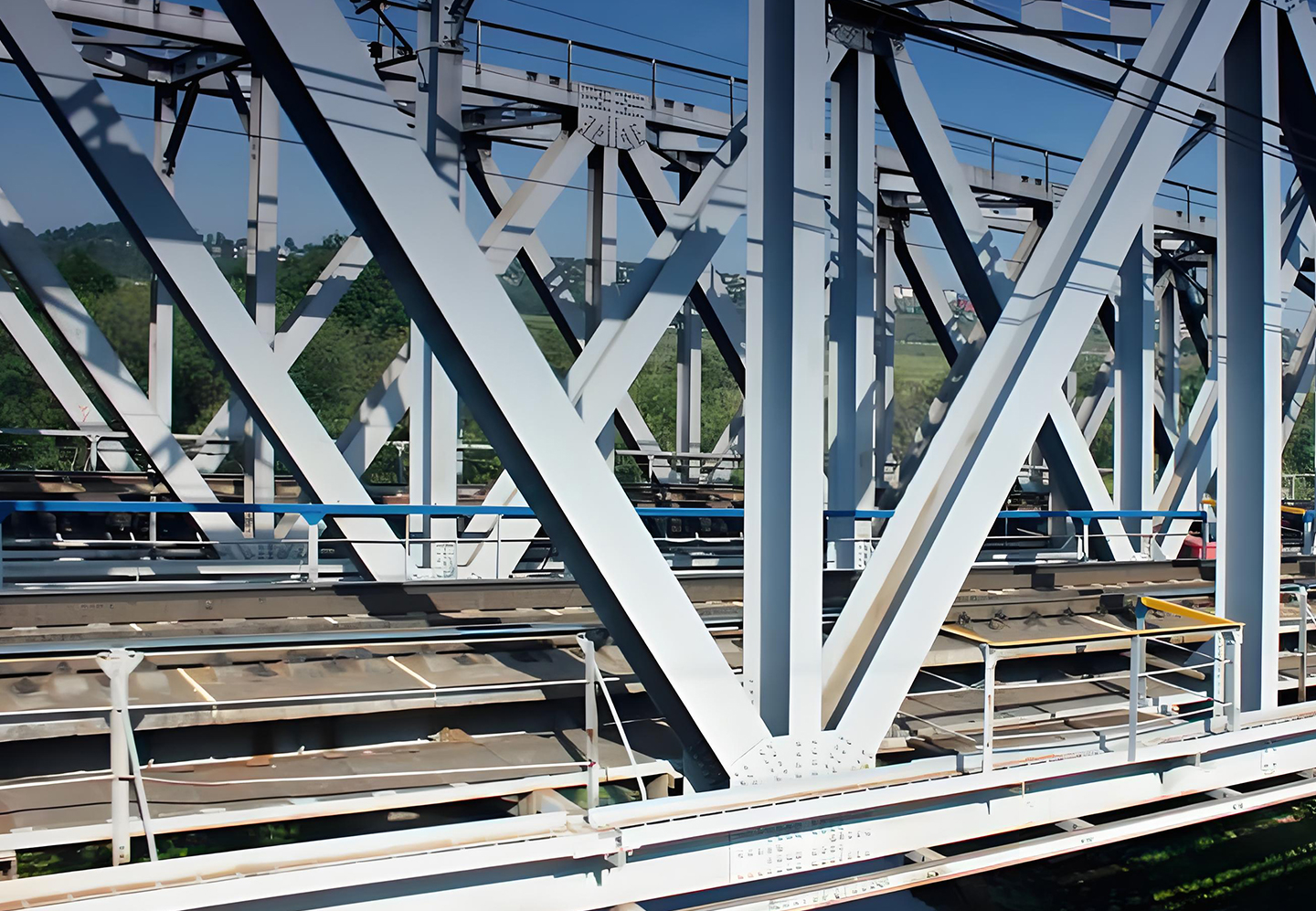

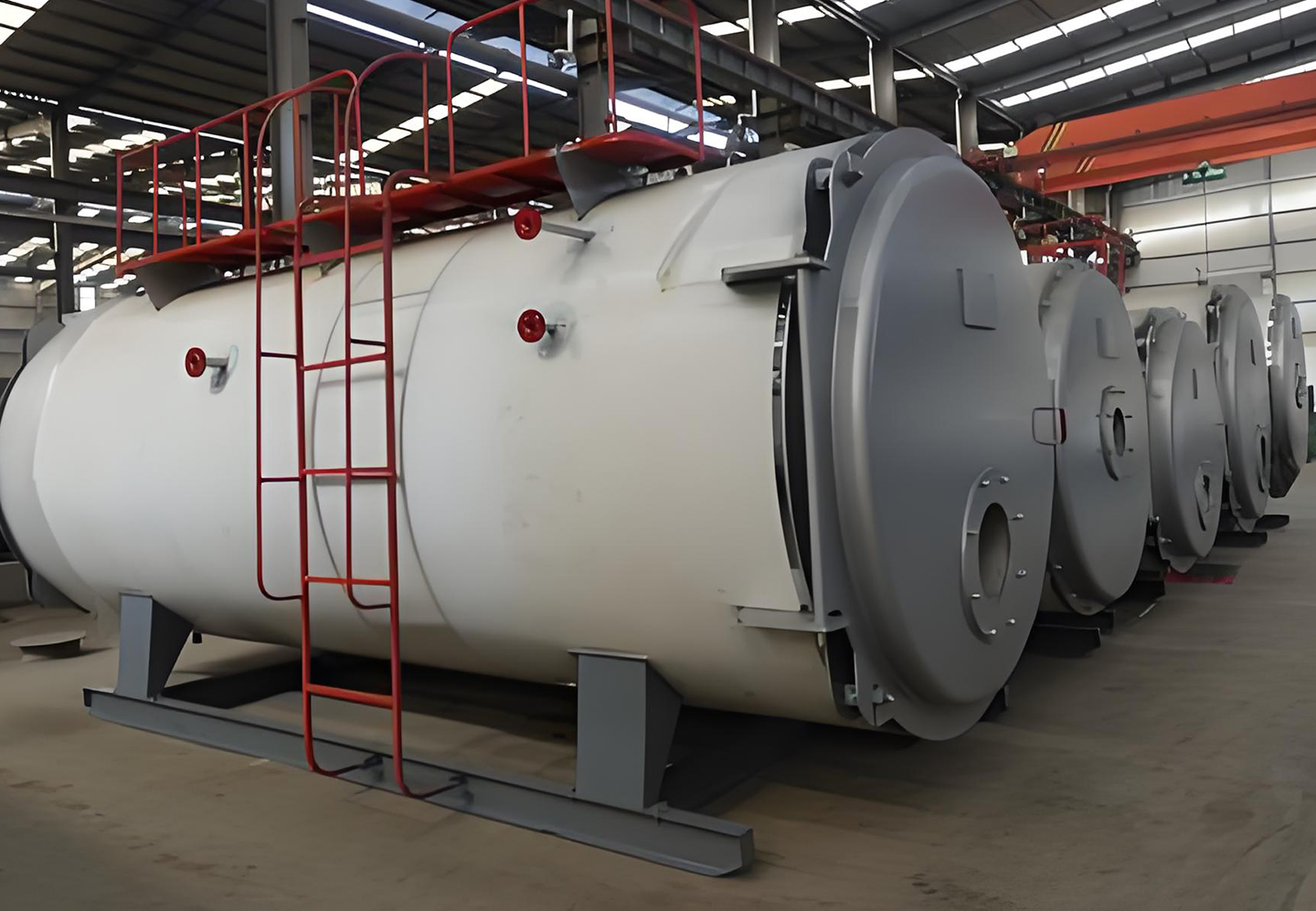

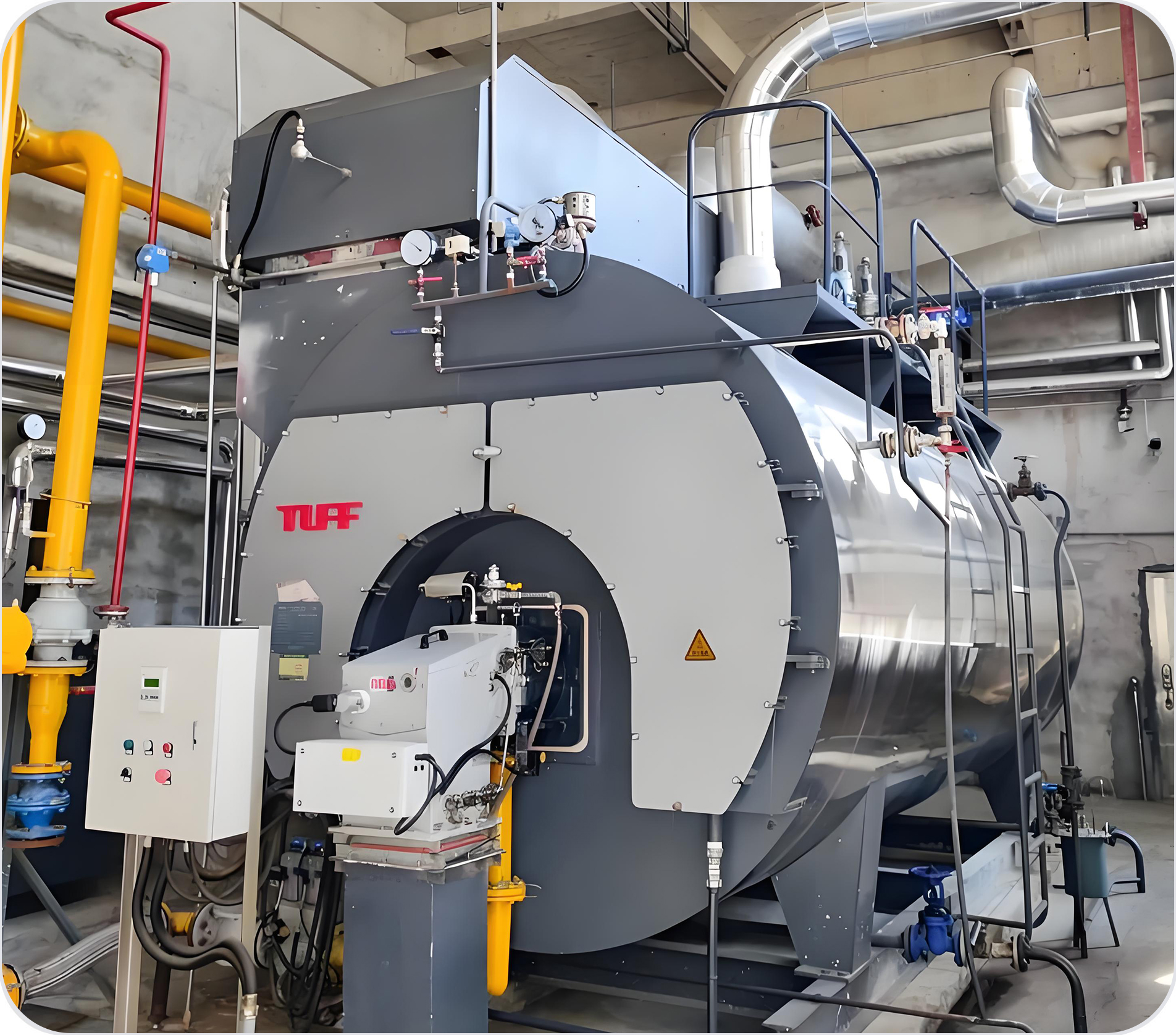

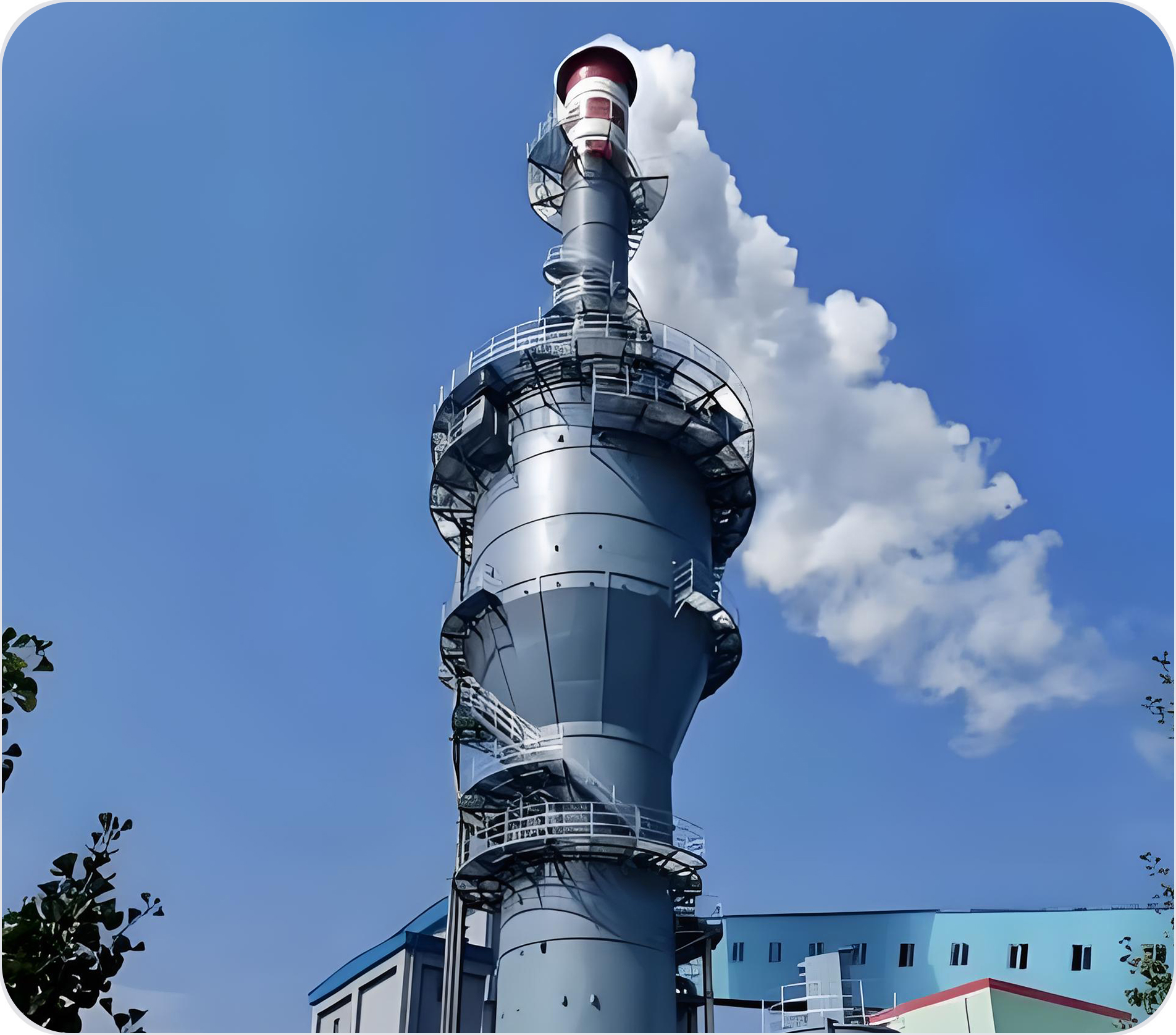

Cracking furnace	Chimney	Bridge	Boiler

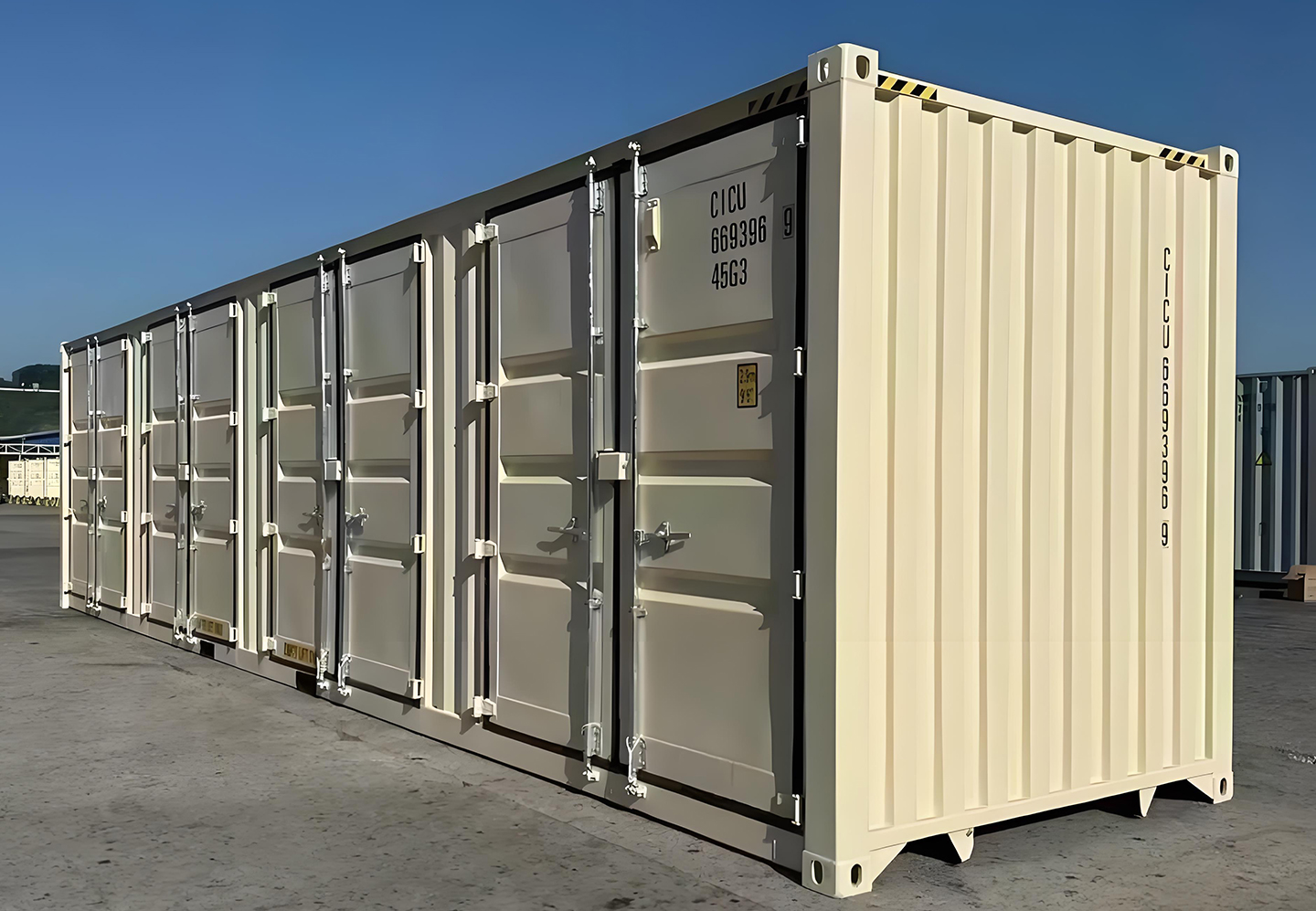

Storage tank	Steam pipeline	Sintering furnace	Container

E06-500 Inorganic Heat-resistant Primer Compatibility

	Product	Thickness
Primer:	E06-500 Inorganic Heat-resistant Primer	2*30 um (dry film thickness)
Topcoat:	W61-500 Silicone heat-resistant finish	2*25 um (dry film thickness)

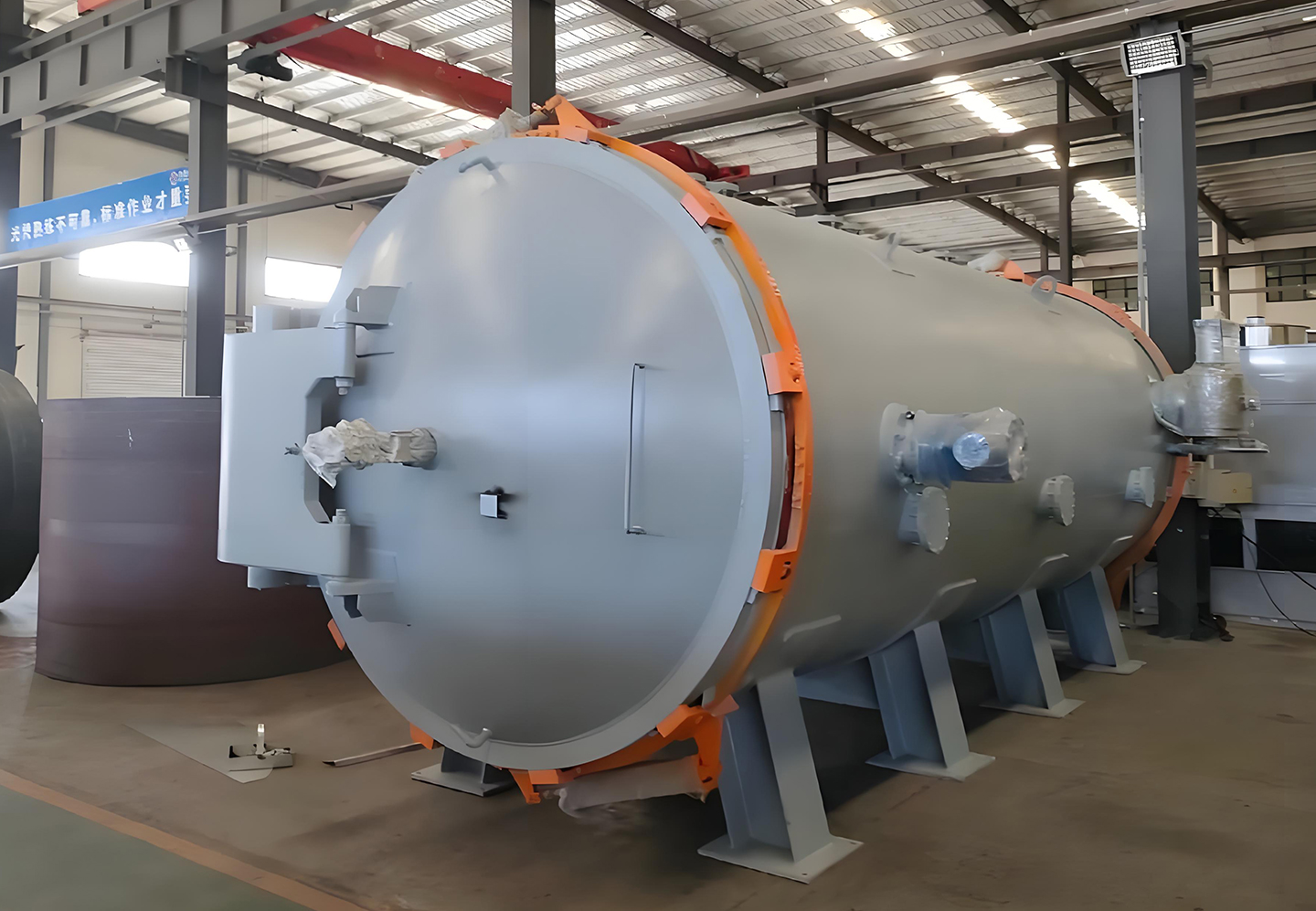

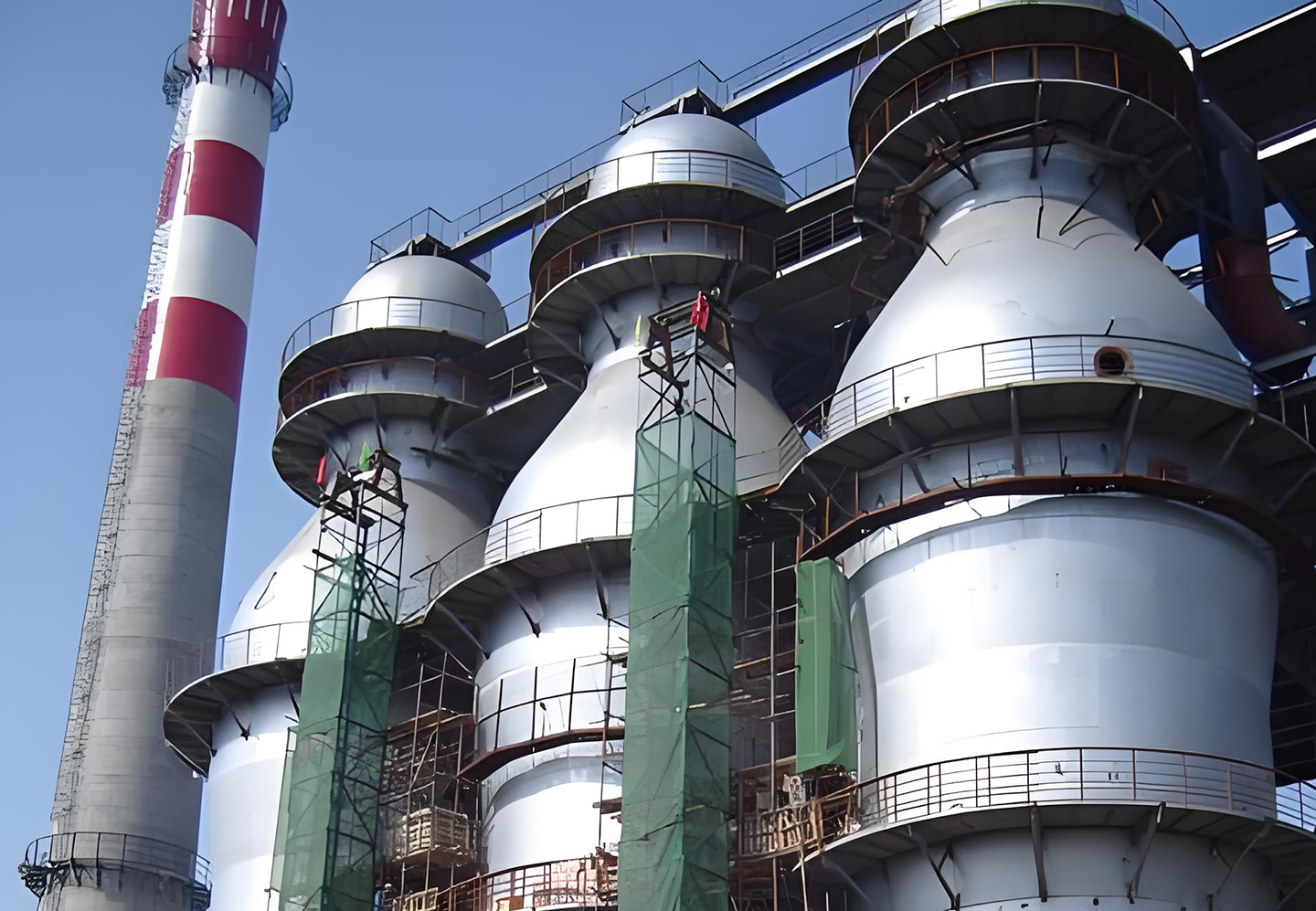

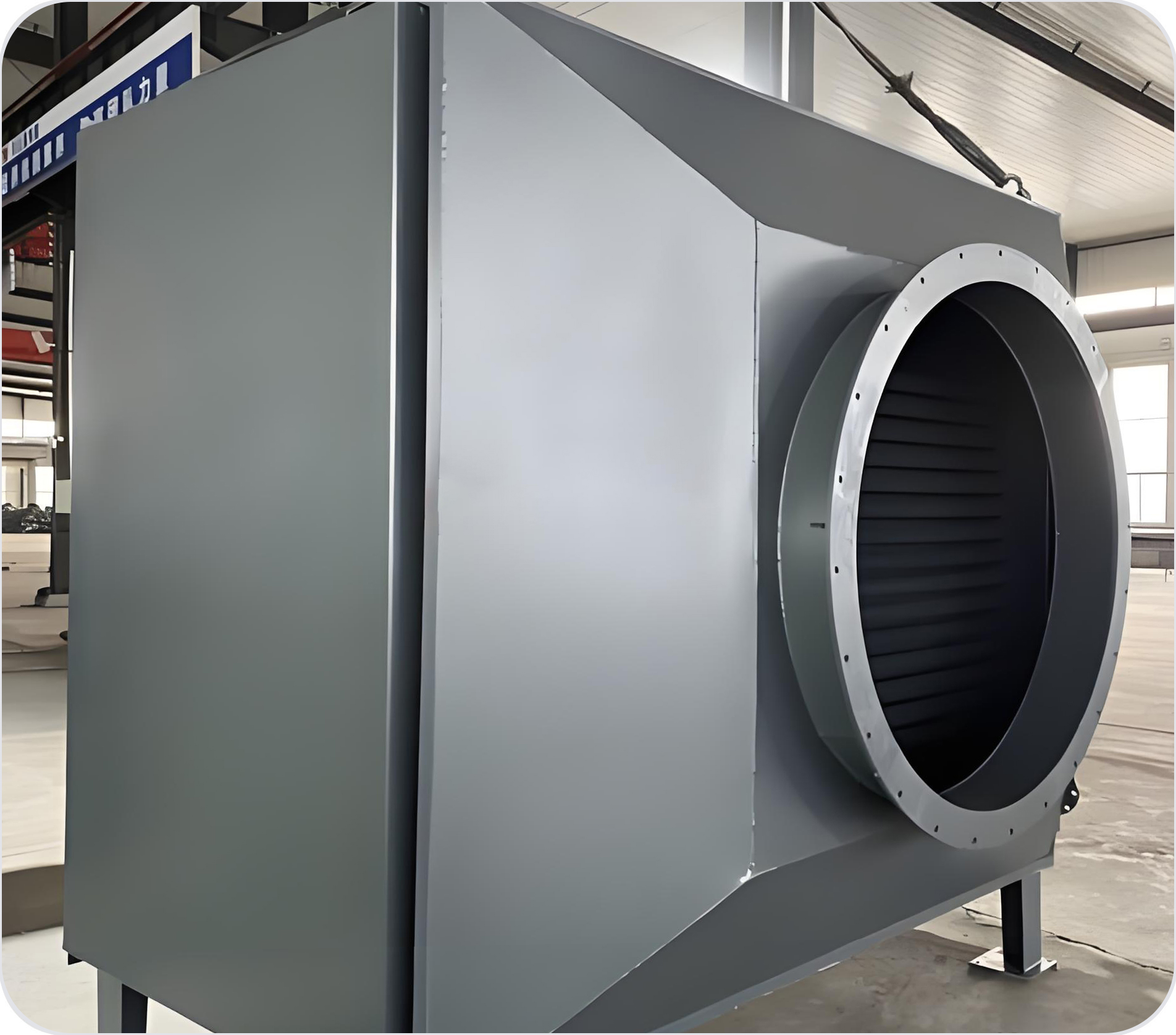

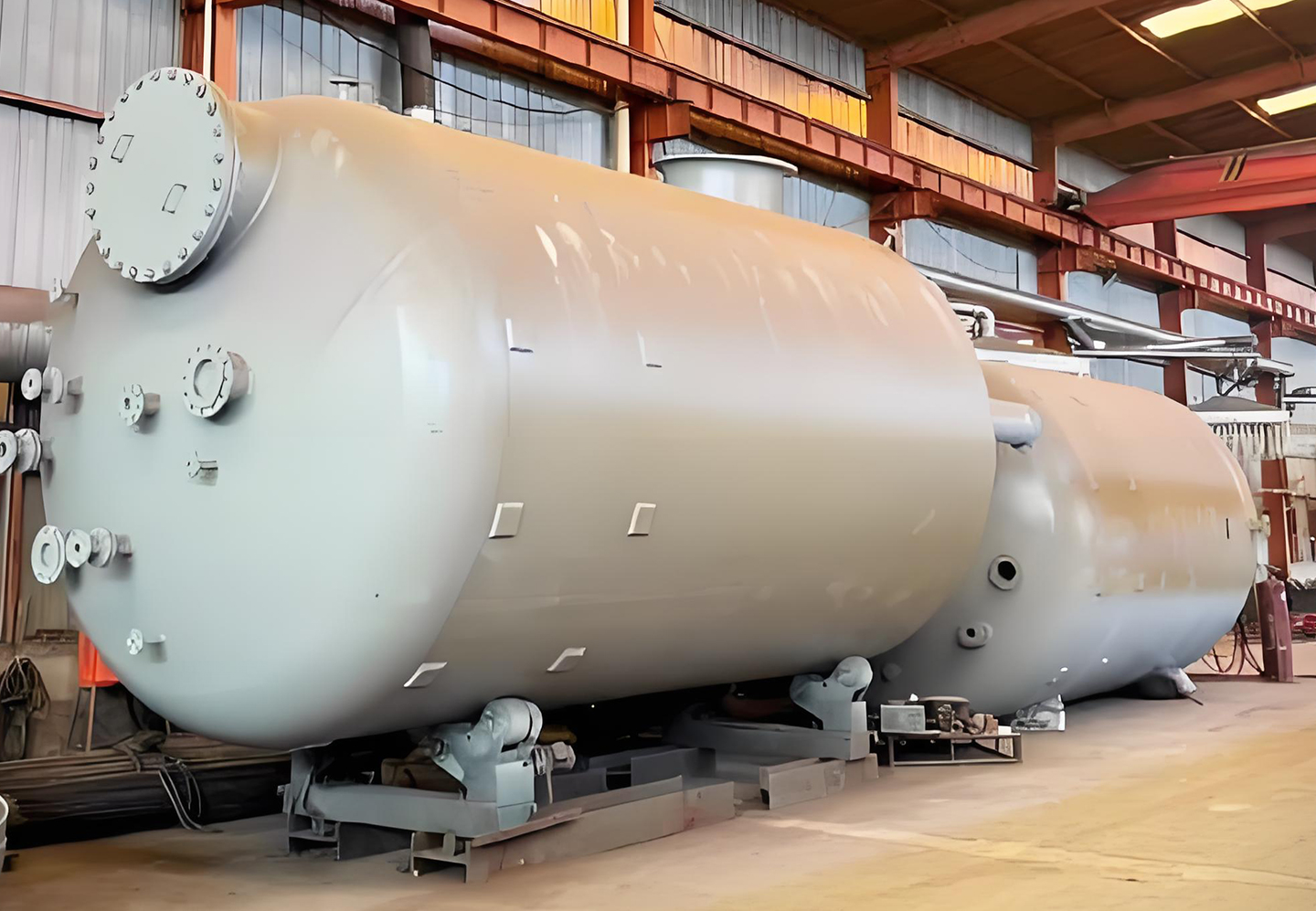

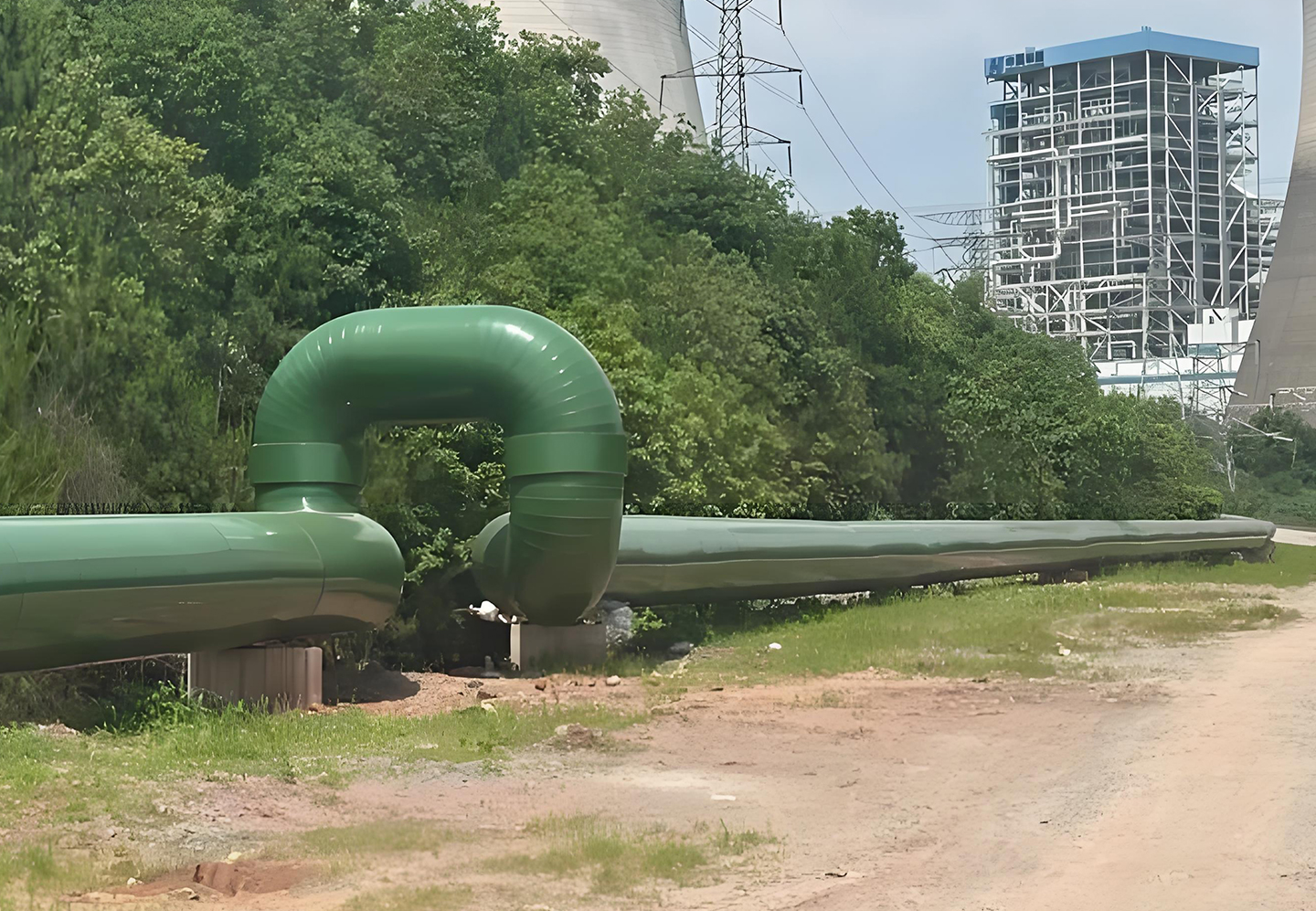

E06-500 Inorganic Heat-resistant Primer Finished Projects

E06-500 Inorganic Heat-resistant Primer Production Process

E06-500 Inorganic Heat-resistant Primer Instructions For Use

Substrate Treatment：

The surface to be coated shall be clean, dry and free from contaminations. Also, the surface shall be evaluated and handled according to ISO8504 standard.

Bare steel: sandblasting to Sa2.5(IOS8501-1:2007). For the non-soaking site, acceptable for power tool grinding, but at least reach St2(IOS8501-1:2007).

Instructions for Use:

• Mixing:

Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you to mix the paint well. The mixture was cured for 30 minutes no less than 10 ℃, while 15minutes over 10 ℃.

• Mixing ratio:

Part A: Part B= 30:3(by weight)

• Thinner:

Exclusive thinner for Inorganic Heat-resistant Paint

• Airless spray:

Nozzle tip: 0.025~0.031 inches

Spray pressure: 18~28Mpa

Thinner ratio: 5~15% (by weight of paint)

• BrushRoller:

Recommended for small areas only.  Must achieve required thickness.

• Roller coater

Not recommended.
