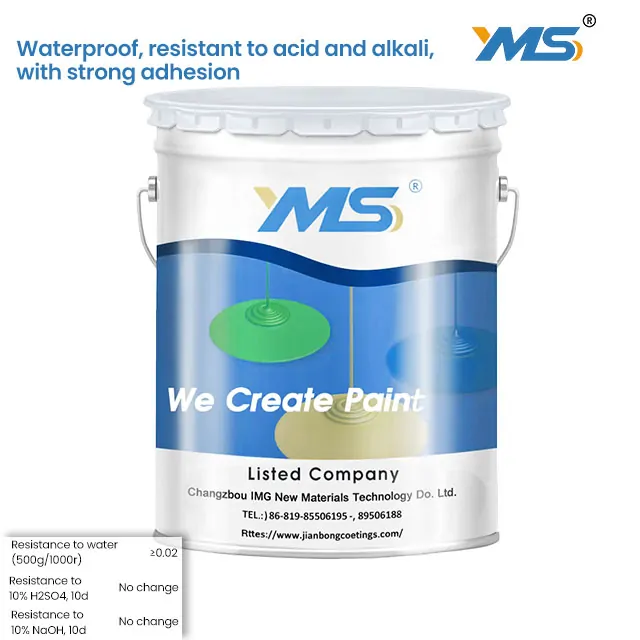

Epoxy Anti-Corrosive Finish | Durable Corrosion Protection Coating

Brand:
YMS


Availability:



Inquiry

Product Description

Epoxy Anti-corrosive Finish

This product is a two-component product based on epoxy resin, added with polyamide curing agent.It has the following resistance characteristics:

Strong Adhesion	Good Flexibility	Wear Resistance
Water Resistance	Oil Resistance	Chemical Resistance

Epoxy Anti-corrosive Finish Basic Technical Datasheet

Color	Customized
Gloss	Glossy
Density	~1.25Kg/L (after mixing)
Hardness	Epoxy paint curing agent
Solid Volume	(48±2 )%
Standard Film thickness	80um dry film thickness (about 160um wet film thickness)
Theoretical spreading rate	5m²/Kg (60um dry film thickness)
Full Cure	(23±2℃ )7d
Flash Point	27℃

Epoxy Anti-corrosive Finish Product Packaging

Packaging:

part A:20kg in a 20-liter iron bucket.

part B:5kg in a 6-liter iron bucket.

Shelf Life:

12 months If exceeding shelf life, the products shall be tested before using.

Epoxy Anti-corrosive Finish Applicable Environment


Separation Equipment	Offshore facilities	Bridges	Reactor

Pipeline	Paper Mill	Power Plant	De-NOₓ Equipment

Epoxy Anti-corrosive Finish Compatibility

Product

Thickness

Primer:

Epoxy Iron Oxide Red Primer or

Epoxy Zinc Phosphate Primer

2*50 µm (dry film thickness)

Paint:

Epoxy Anti-corrosive Finish

2*40 µm (dry film thickness)

Epoxy Anti-corrosive Finish Finished Projects

Epoxy Anti-corrosive Finish Production Process

Epoxy Anti-corrosive Finish Instructions For Use

Substrate Treatment：

The surface to be coated shall be clean, dry and free from contaminations. Also, the surface shall be evaluated and treated according to ISO8504 standard.

Bare steel: sandblasting to reach Sa2.5(IOS8501-1:2007). For the non-soaking site, acceptable for power tool grinding, at least reach St2(IOS8501-1:2007).

Instructions for Use:

Mixing:

Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you get to mix well. Generally, if the temperature is below 10℃, it needs 30 min induction time; If the temperature is over 10℃, it needs 15 min induction time.
