Epoxy Coal Tar Pitch Anti-corrosive Paint JC-23 is a two-component anti-rust paint based on epoxy resin and coal pitch. It has advantages of strong water and chemical resistance. In addition, this paint is also strongly adhesive, impact resistant and wear resistant.
JC-23
IMS
Black,Brown
Semi-gloss
~1.33Kg/L(after mixing)
27℃
(55±2 )%
150um dry film thickness (about 230um wet film thickness)
(23±2℃)7d
Part A: Part B= 22:22/ 20:4 (by weight)
2.75m²/Kg (150um dry film thickness)
| Availability: | |
|---|---|
Epoxy Coal Tar Pitch Anti-corrosive Paint JC-23
| Epoxy Coal Tar Pitch Anti-corrosive Paint JC-23 Description
Epoxy coal tar pitch anti corrosive paint JC-23 is mainly used to protect underwater steel structure facilities in long-term or frequent immersion state as well as buried concrete structure.
This product features:
● High hardness | ● Great adhesion |
● Great physical resistance to abrasion, impact | |
● Great resistance to sea water, moisture, sewage, mineral oil, rust | |
| Epoxy Coal Tar Pitch Anti-corrosive Paint JC-23 Typical Uses
|
|
|
|
|
|
| |
| |
| Epoxy Coal Tar Pitch Anti-corrosive Paint Product Packaging
A:22/20kg B：22/4kg
Part A: 22/20 kg in a 20-liter iron barrel
Part B: 22/4 kg in a 20-liter iron barrel
| Epoxy Coal Tar Pitch Anti-corrosive Paint Basic Technical Datasheet
Appearance | Black, Brown |
Density, kg/L | ~1.33Kg/L(after mixing) |
Flash point, ℃ | 27 |
Volume solids, % | 55 ± 2 |
Adhesion, MPa | ≥ 6 |
Impact resistance, kg.cm | ≥40 |
Flexibility, mm | ≤8 |
Resistance to salt water (3% NaCl), 168h | No change |
Theoretical spreading rate, kg/m2 @ 35µm dry film | 0.18 |
VOC, g/L | 250-300 |
Product | Thickness | |
Primer: | JC-23 Epoxy coal tar primer | 1mm |
Topcoat: | JC-23 Epoxy coal tar finish | 1mm |
About Us We are headquartered in Jiangsu, China, established in 2016, and our market reach extends to Southeast Asia (40.00%), Africa (15.00%), Eastern Europe (15.00%), Western Europe (10.00%), the Middle East (10.00%), North America (5.00%), and the Domestic Market (5.00%). Our team comprises approximately 51-100 dedicated professionals.
Ensuring the highest quality is our priority. We achieve this by: Conducting pre-production samples before mass production.
Carrying out thorough final inspections before shipment.
Our product range includes a variety of offerings such as Alkyd Paint, Polyurethane Paint, Epoxy Paint, Acrylic Paint, Organic Silicone Paint, and more.
There are several compelling reasons to opt for our products:We possess a rich 22-year history dedicated to the development, production, and sales of heavy anti-corrosion coatings.
We hold the prestigious designation as the developer for a military unit and are located within the Changzhou state high technology industrialization base for new paint.
Our commitment to quality is underscored by ISO9001, ISO14001, and OHSAS18001 certifications.
We offer the following services:Accepted Delivery Terms: FOB, EXW
Accepted Payment Currency: USD
Accepted Payment Type: T/T
Multilingual Support: English and Chinese
Feel free to reach out to us for all your coating needs, and we will be delighted to assist you.
ROHS
ISO 9001
SRC
CE

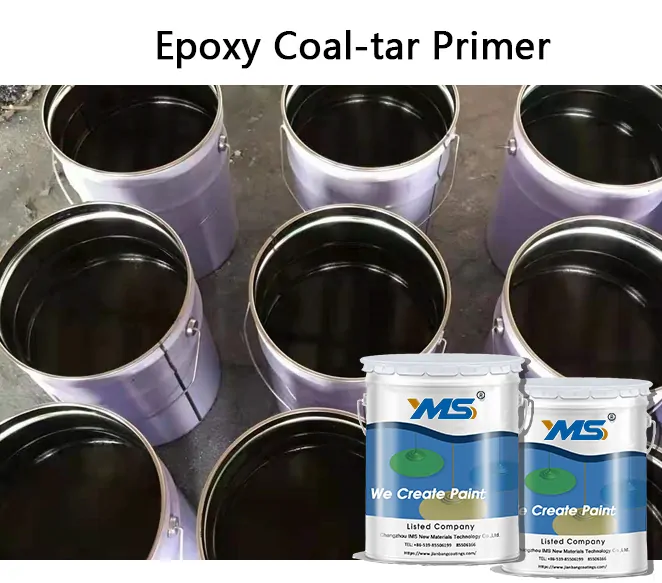

Epoxy Coal-tar Primer
Mixing
Mix part A and part B as 22:22 by weight. Slowly add part B into part A and ensure mixed completely.
Thinner:
X-7 Epoxy paint thinner ≤ 10 % w./w.
Cleaner:
X-7 Epoxy paint thinner
Application methods:
Airless spray (recommended)：Nozzle tip: 0.017-0.025 inch, minimum 3000 psi.
Brush: recommended for small areas only.
Roller: recommended for small areas only.
IMS Paint, one of famous trademarks in China, devotes to industrial paint research, production and sales since 2001.
Oriented by technology, we serve customers worldwide not only our high quality products, but also technical consultation and engineering scenarios. Cooperating with UNSW and BUCT, We invest millions to update our technology so that we can bring out better and cheaper products.
Our core products, including antirust paint, acid & alkali resisting paint, heat resisting paint, building & floor paint etc., help protect and extend substrate life for years.
