Epoxy Coal Tar Pitch Anti-corrosive Paint

This paint is a two-component anti-rust paint based on epoxy resin and coal pitch.It has the following characteristics：

Water resistance	Impact resistance	Wear resistance
Strong adhesion	Chemical corrosion resistance

Epoxy Coal Tar Pitch Anti-corrosive Paint Video

Epoxy Coal Tar Pitch Anti-corrosive Paint Basic Technical Datasheet

Color	Black, brown
Gloss	Semi-gloss
Density	~1.33Kg/L(after mixing)
Hardness	Epoxy paint curing agent
Solid Volume	(55±2 )%
Standard Film thickness	150um dry film thickness  (about 230um wet film thickness)
Theoretical spreading rate	2.75m²/Kg (150um dry film thickness)
Full Cure	(23±2℃ )7d
Flash Point	27℃

Epoxy Coal Tar Pitch Anti-corrosive Paint  Product Packaging Packaging: part A：20/22 kg in a 20-liter iron bucket. part B：22/4 kg in a 20/5-liter iron bucket. Shelf Life: 12 months If exceeding shelf life, the products shall be tested before using.

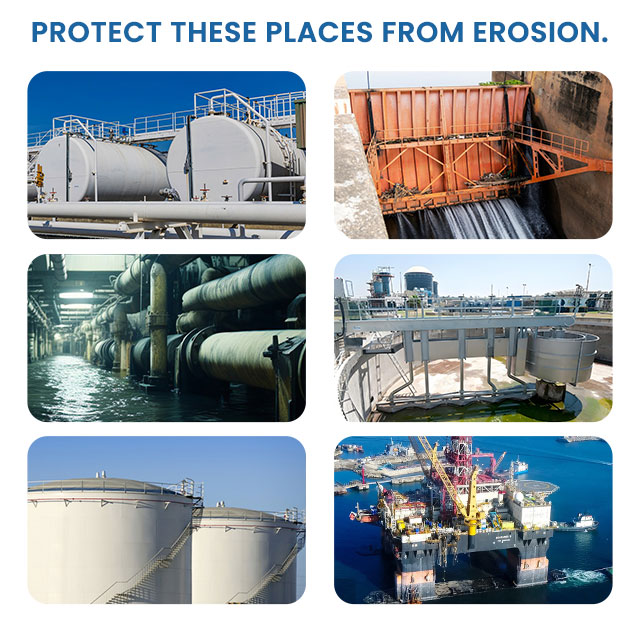

Epoxy Coal Tar Pitch Anti-corrosive Paint Applicable Environment

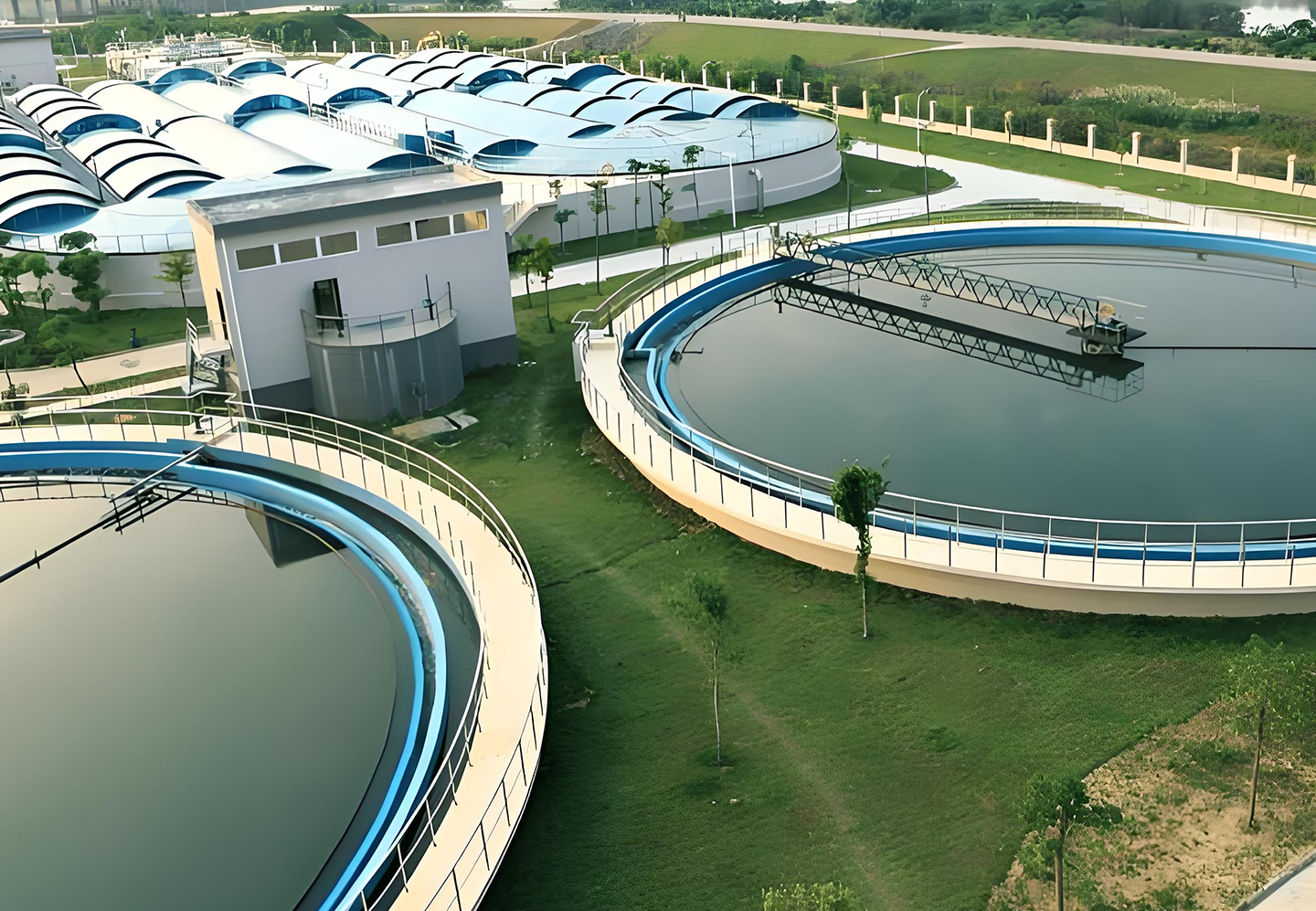

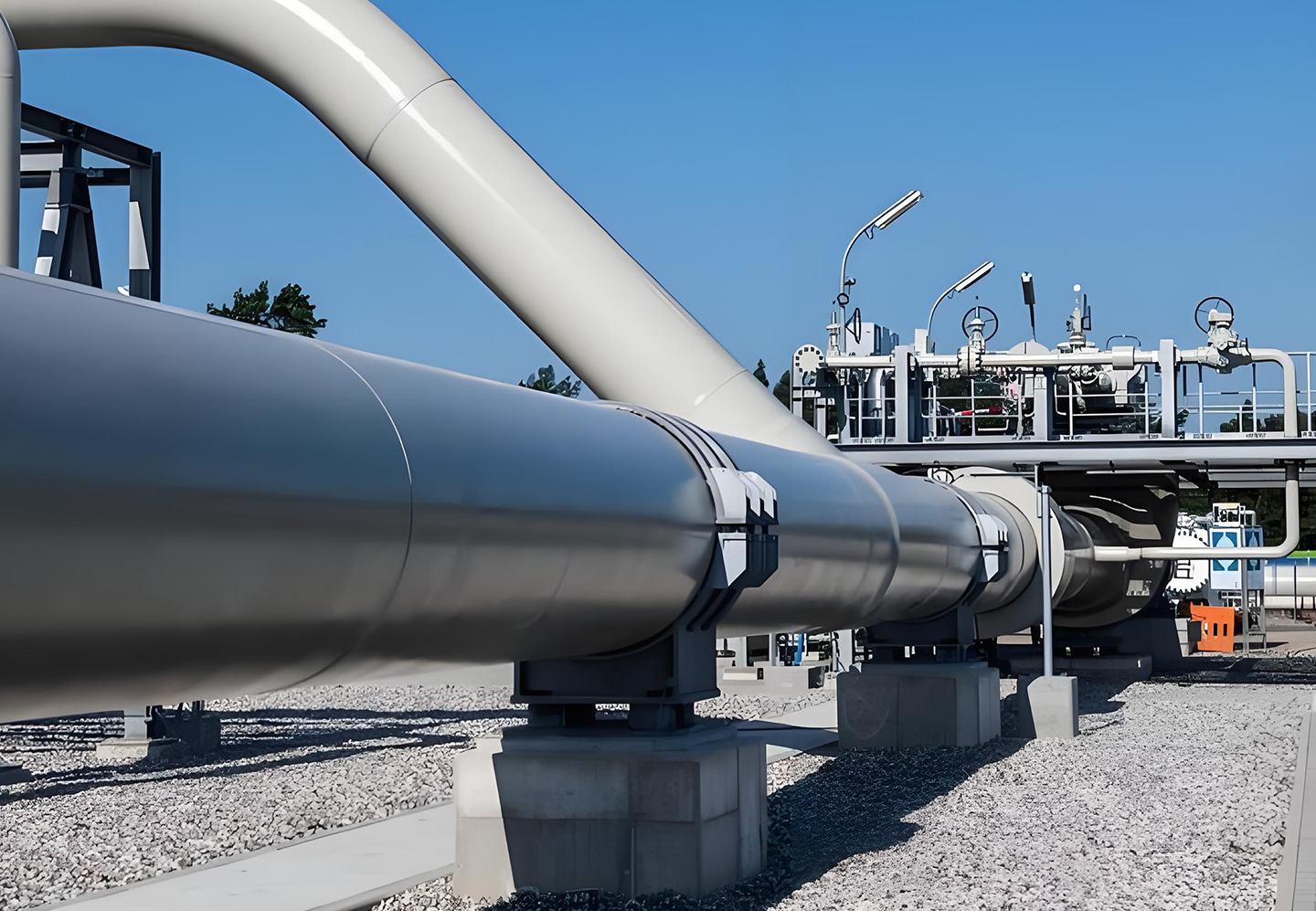

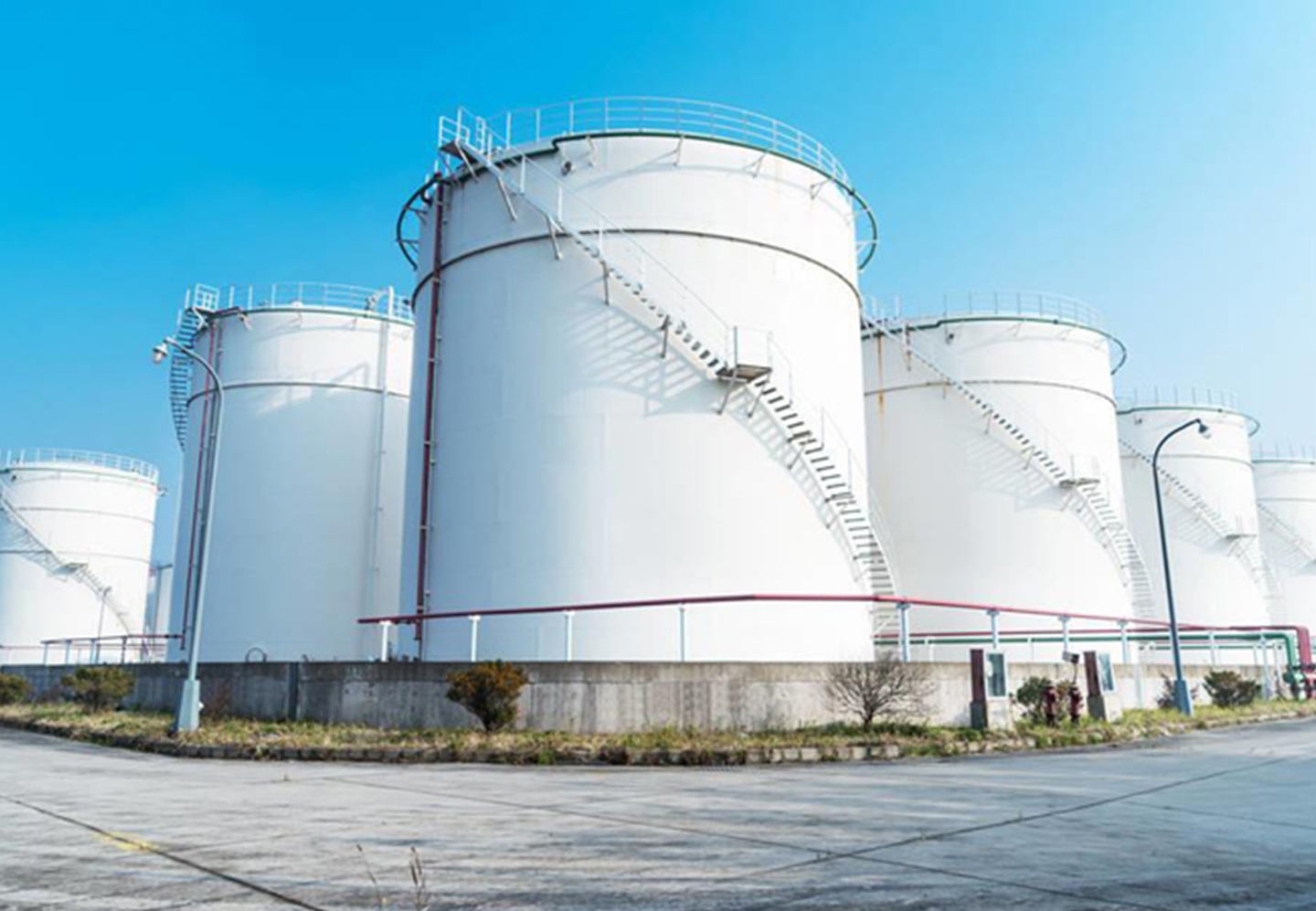

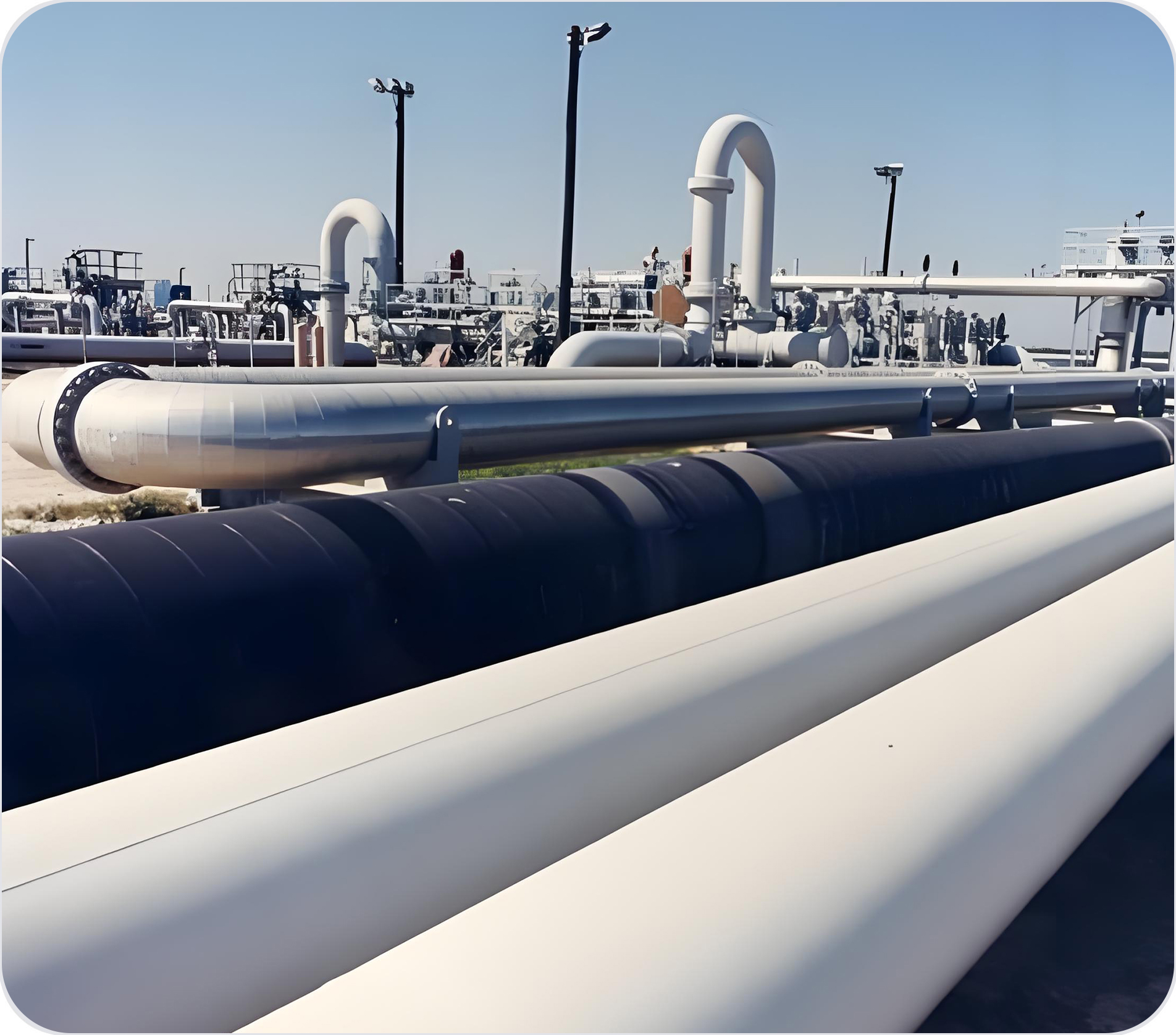

Storage tank exterior	Buried pipeline	Long-distance oil & gas pipeline	Sewage treatment plant

Epoxy Coal Tar Pitch Anti-corrosive Paint Classical coating system

Product	Thickness
Epoxy Coal Tar Pitch Anti-rust Paint	2*75 µm (dry film thickness)

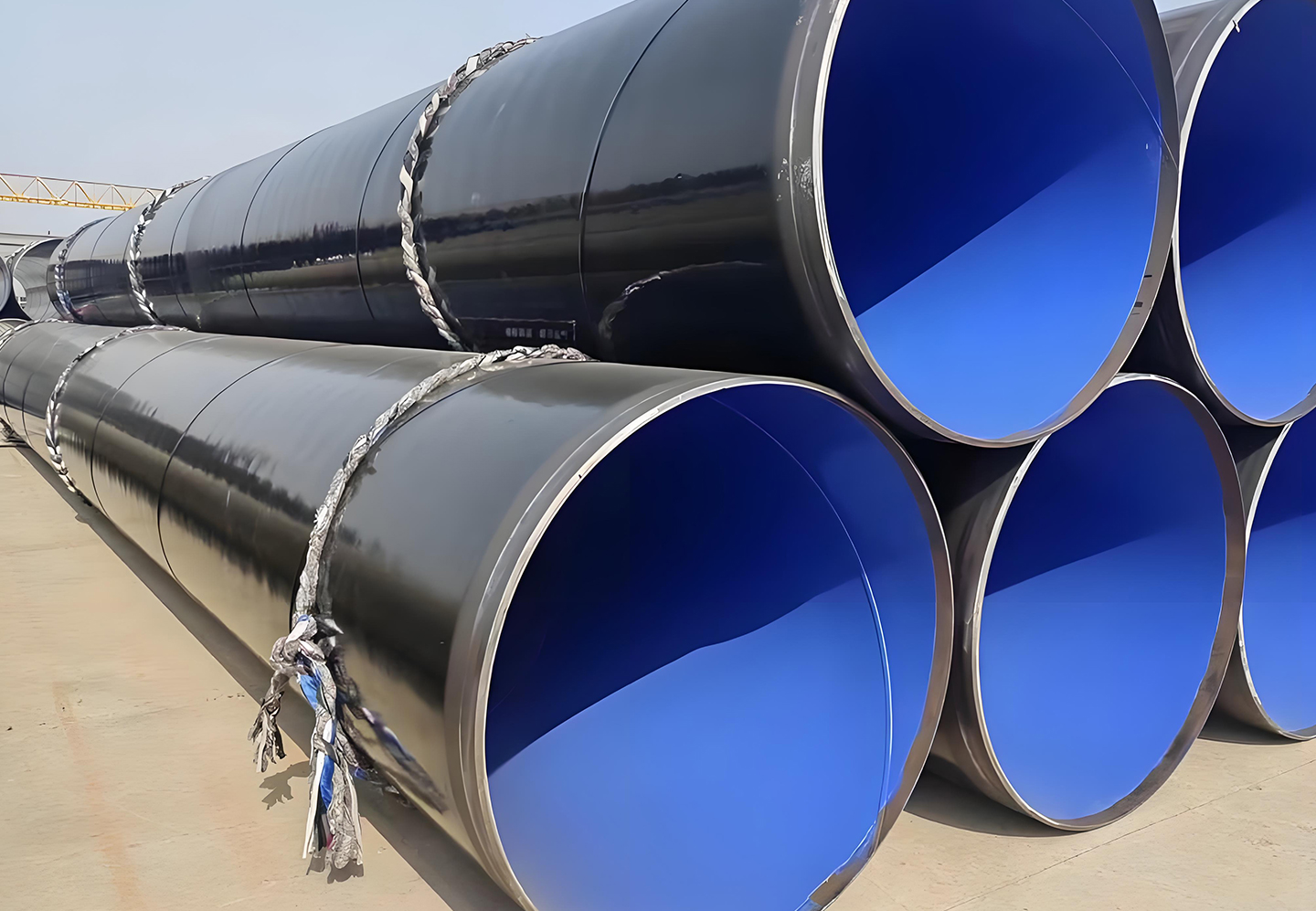

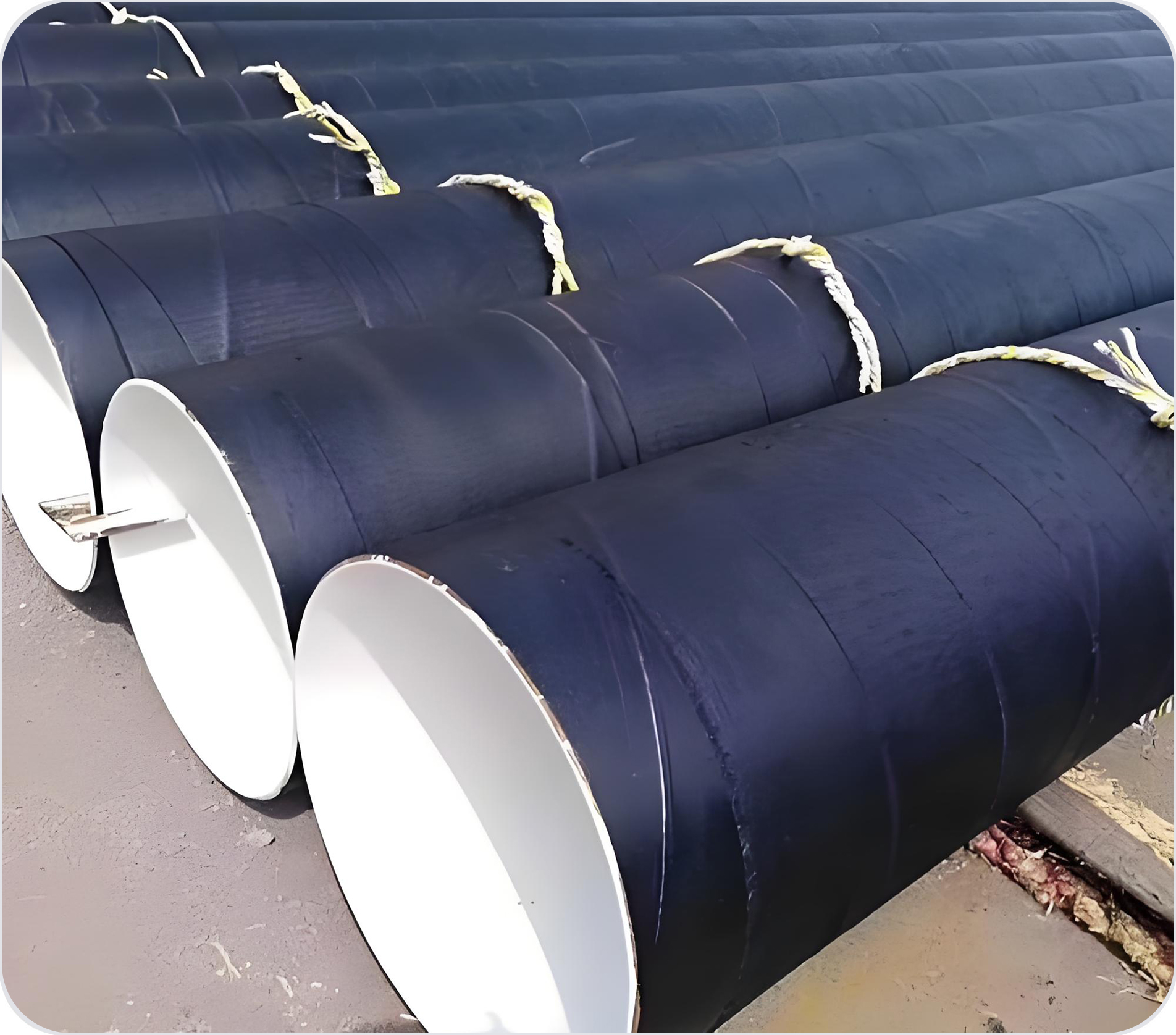

Epoxy Coal Tar Pitch Anti-corrosive Paint Finished Projects

Epoxy Coal Tar Pitch Anti-corrosive Paint Production Process

Epoxy Coal Tar Pitch Anti-corrosive Paint Instructions For Use

Substrate Treatment：

All surface to be coated shall be clean and dry. The surface shall be evaluated and treated according to ISO8504 standard.

For bare steel, it shall be sandblasted to reach Sa2.5(iso8501-1:2007) standard. Depending on the environment of the non-immersed part, grinding with power tools is acceptable but shall at least reach St2(iso8501-1:2007) standard.

For shop primed steel, the shop primer shall be clean, dry and approved.

For surface painted coatings, this product can apply only to clean, dry and good compatible primer.

Instructions for Use:

• Mixing:

Use the power mixer to mix the main paint evenly, and then add the hardener and stir until it is well mixed. Generally, if the temperature below 10℃, it needs 30 min induction time; if the temperature over 10℃, it needs 15 min induction time.

• Mixing ratio:

Part A: Part B= 22:22/ 20:4 (by weight)

• Thinner:

Epoxy thinner

• Airless spray:

Nozzle tip: 0.021~0.025 inches

Spray pressure: 15~18Mpa

Thinner ratio: 0~15% (by weight of paint)

• BrushRoller:

Recommended

Must achieve required thickness
