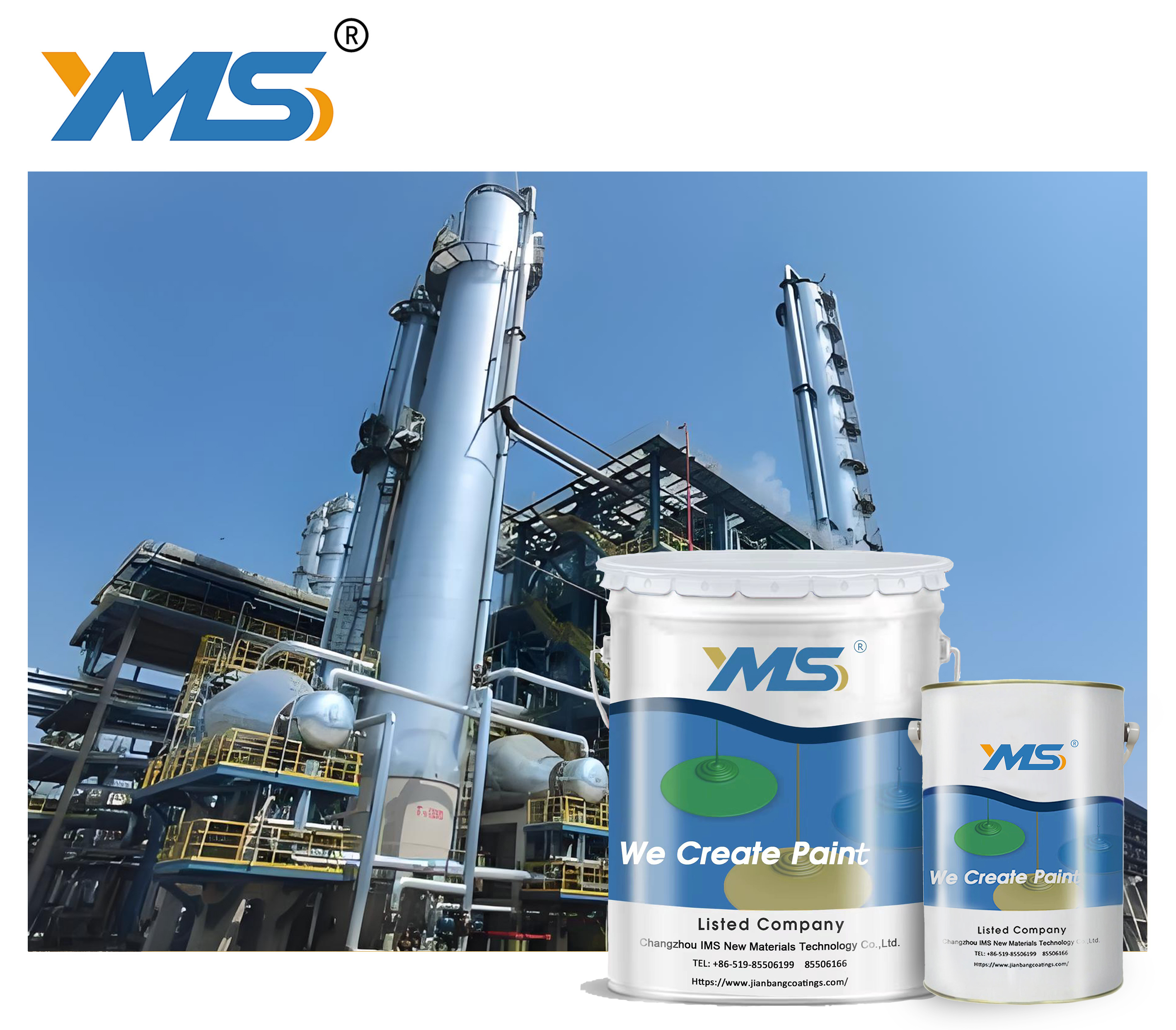

High-build Epoxy High Solid Volume Paint

This product is a two-component high solid volume thick paste coating based on epoxy resin and amine curing agent.It has the following resistance characteristics:

Wear Resistance	Seawater Resistance	Salt Spray Corrosion Resistance
Water Permeability Resistance

High-build Epoxy High Solid Volume Paint Video

High-build Epoxy High Solid Volume Paint Basic Technical Datasheet

Color	Customized(Iron red if used as primer)
Gloss	Flat
Density	~1.45Kg/L(after mixing)
Hardness	Epoxy paint curing agent
Solid Volume	(80±2 )%
Standard Film thickness	150um dry film thickness  (about 190um wet film thickness)
Theoretical spreading rate	3.68m²/Kg (150um dry film thickness)
Full Cure	(23±2℃ )7d
Flash Point	35℃

High-build Epoxy High Solid Volume Paint Product Packaging Packaging: Part A 20kg in a 20-liter iron bucket. Part B 5kg in a 6-liter iron bucket. Shelf Life: 12 months If exceeding shelf life, the products shall be tested before using.

High-build Epoxy High Solid Volume Paint Applicable Environment

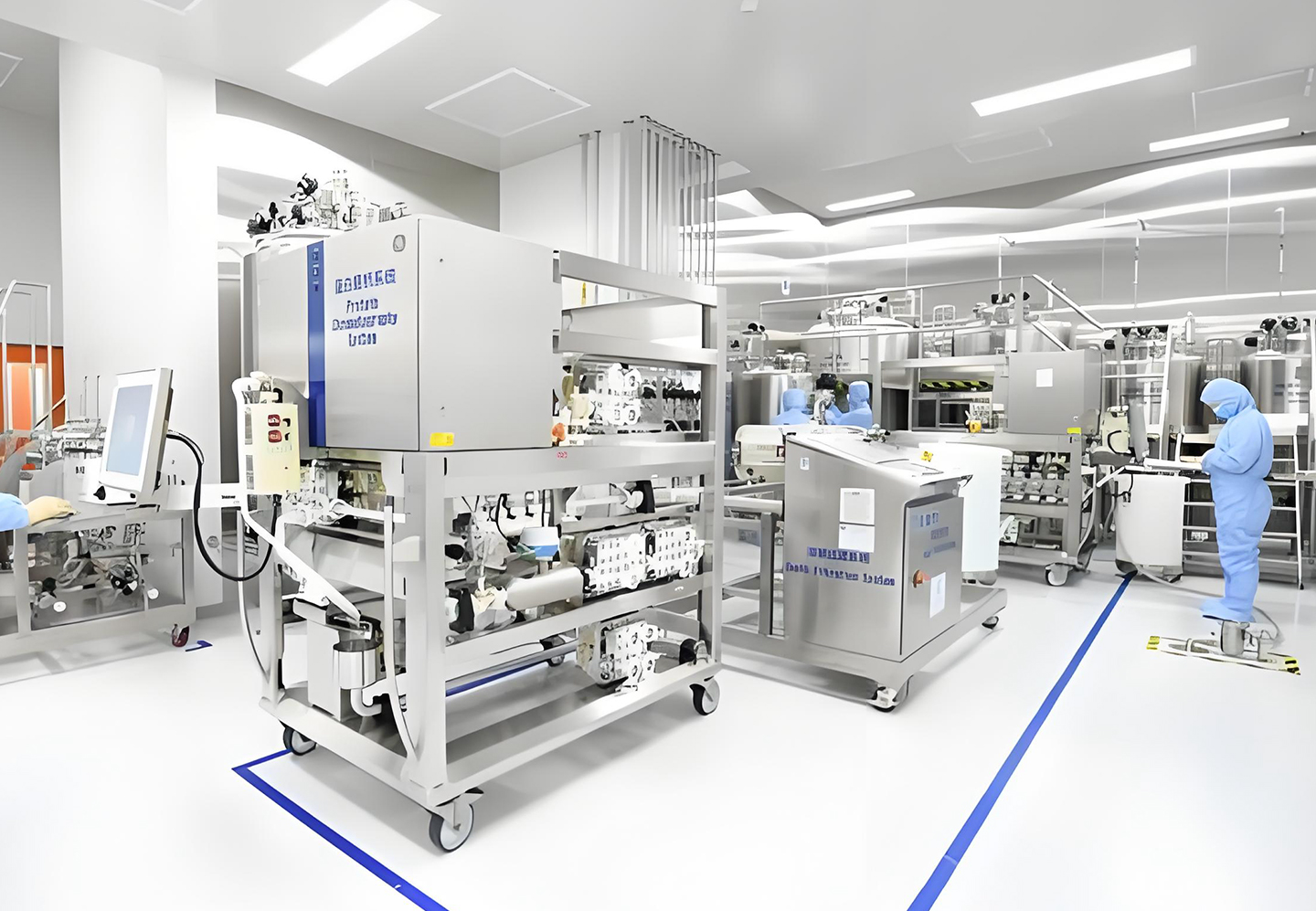

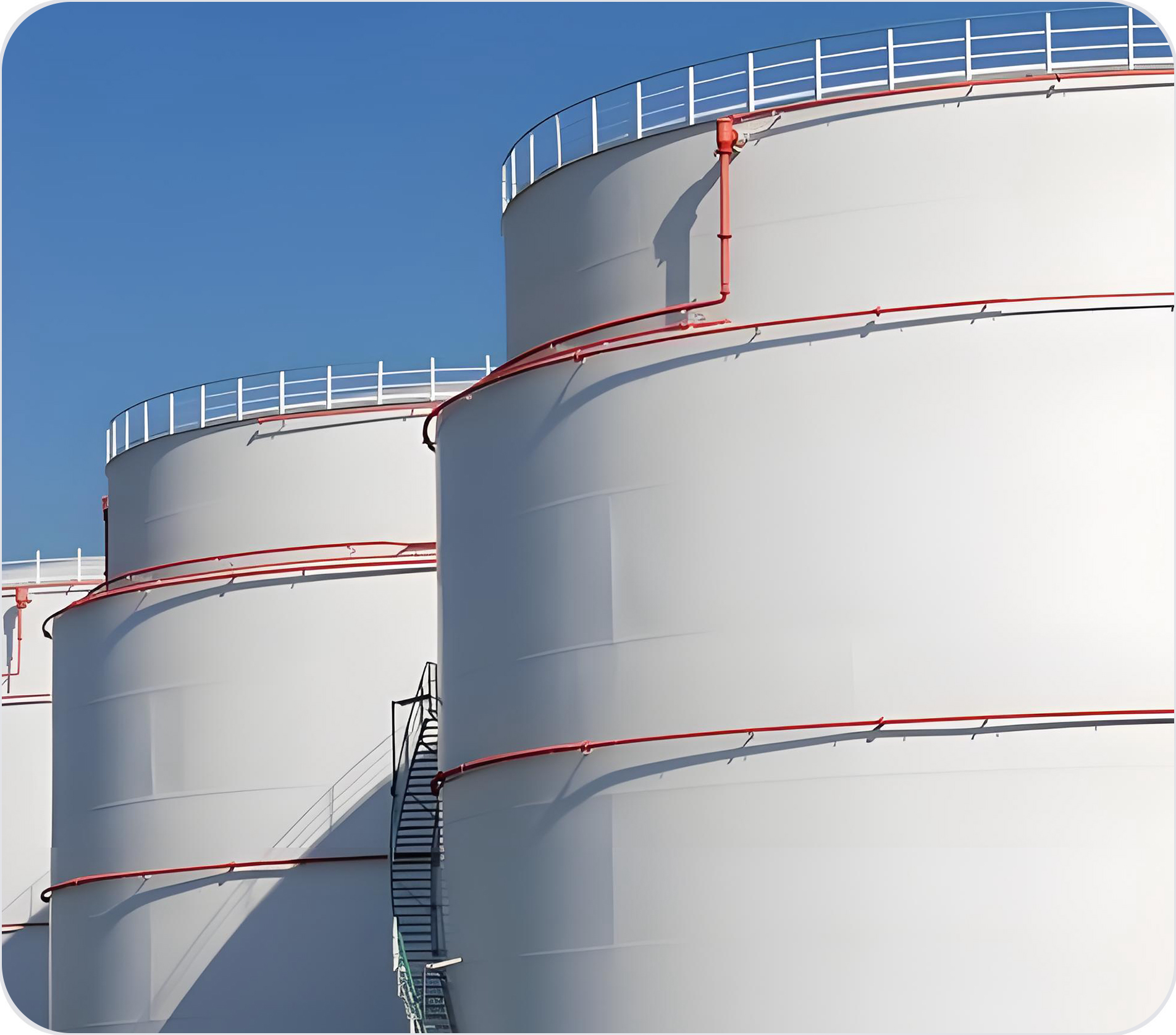

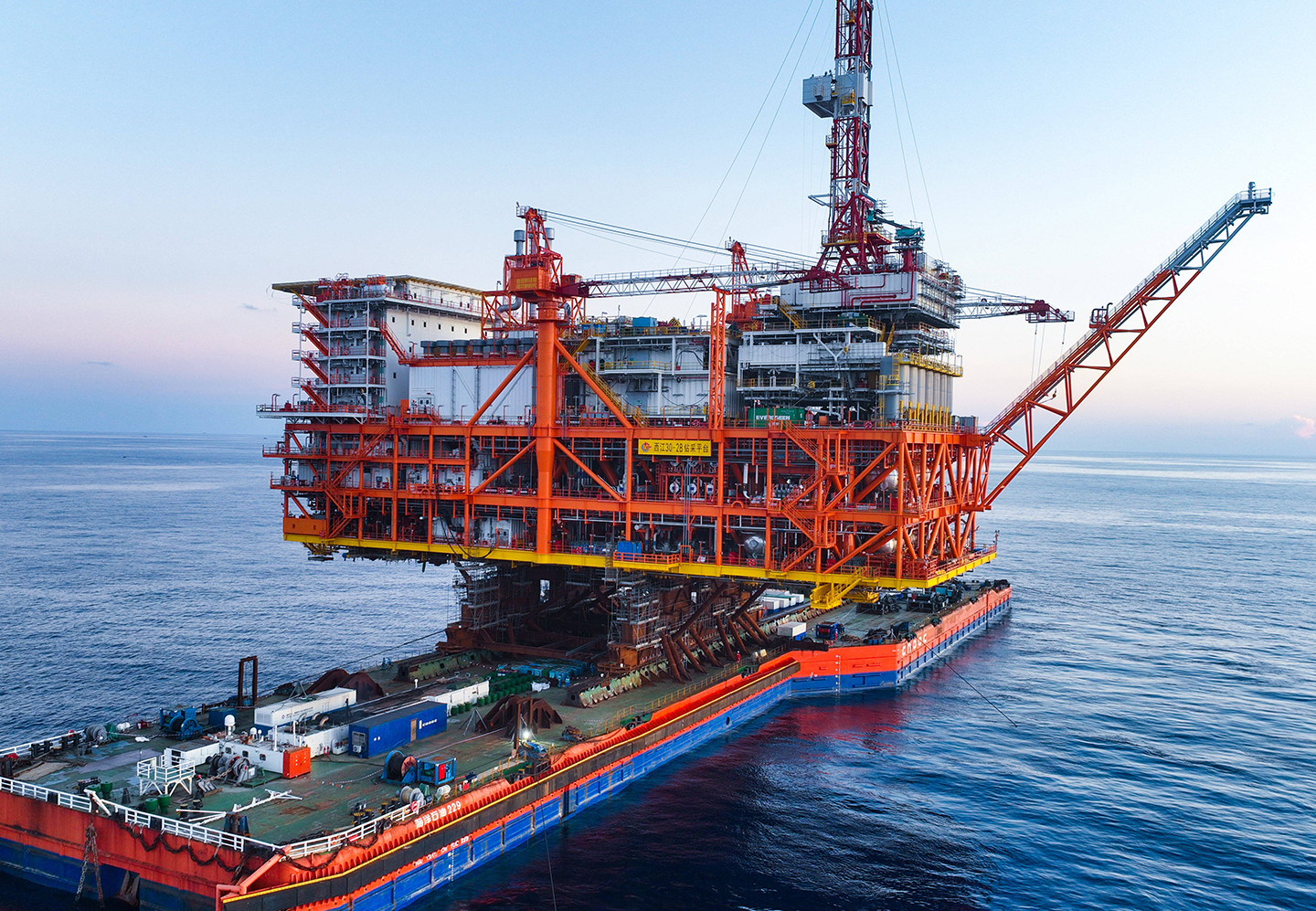

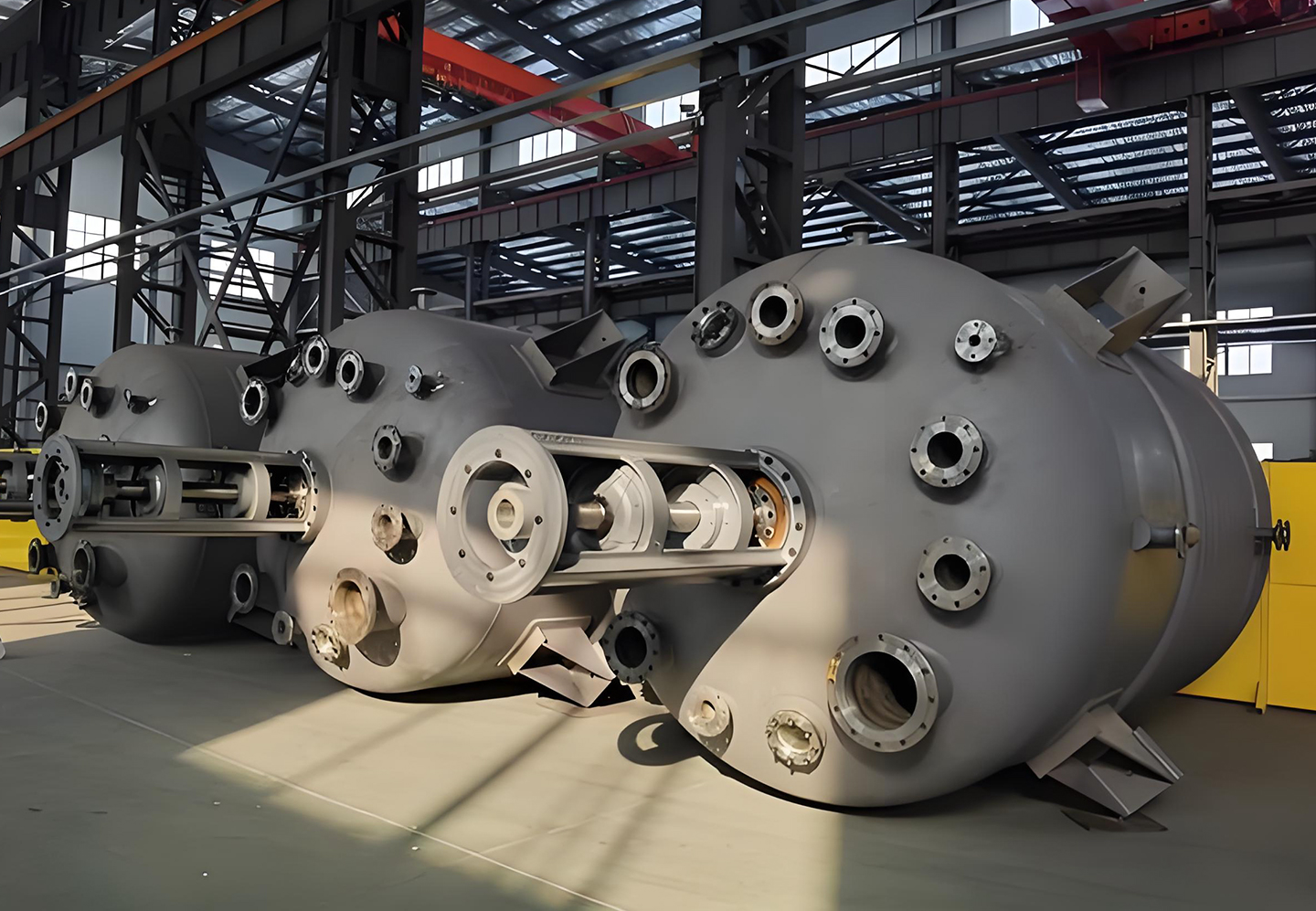

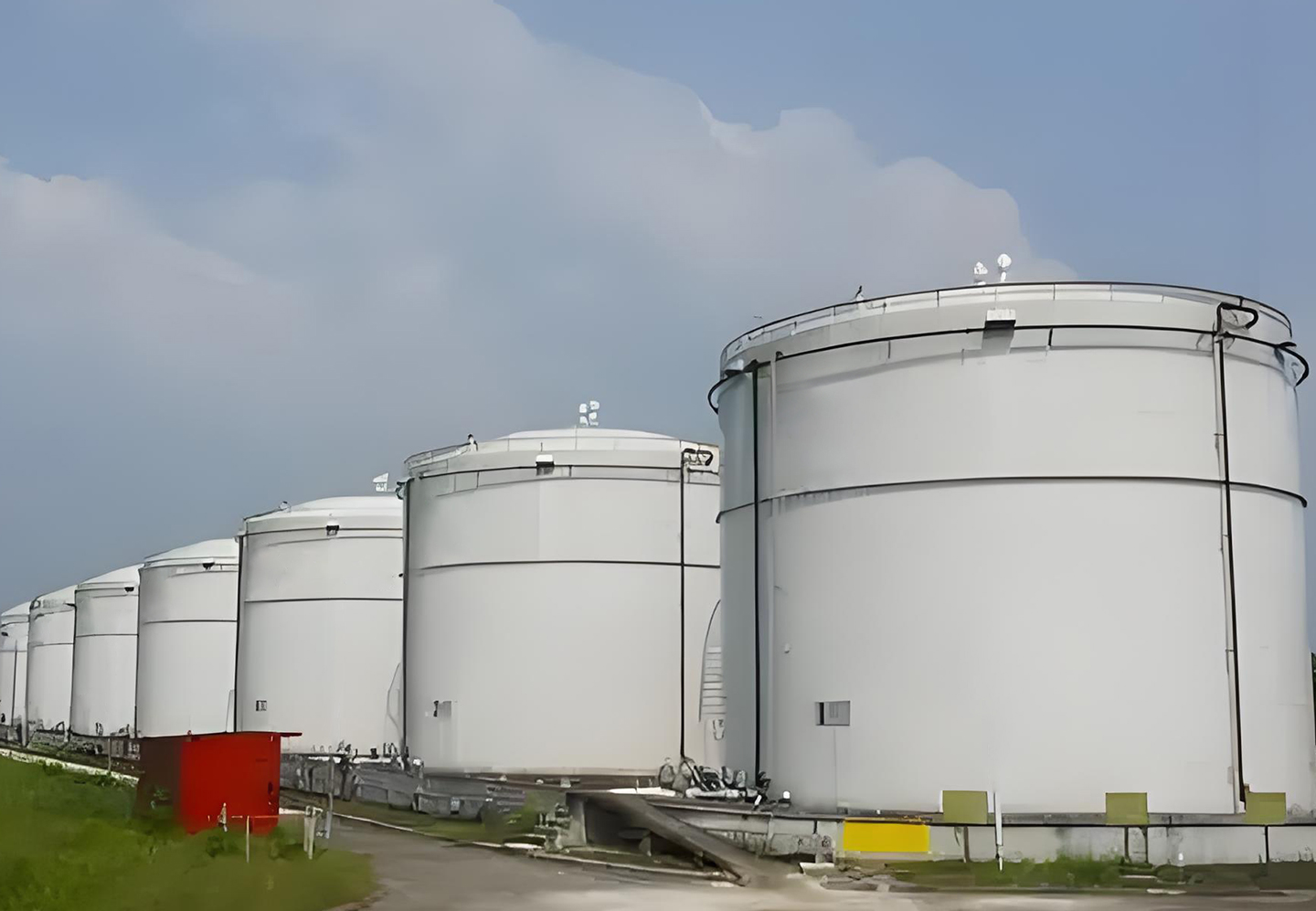

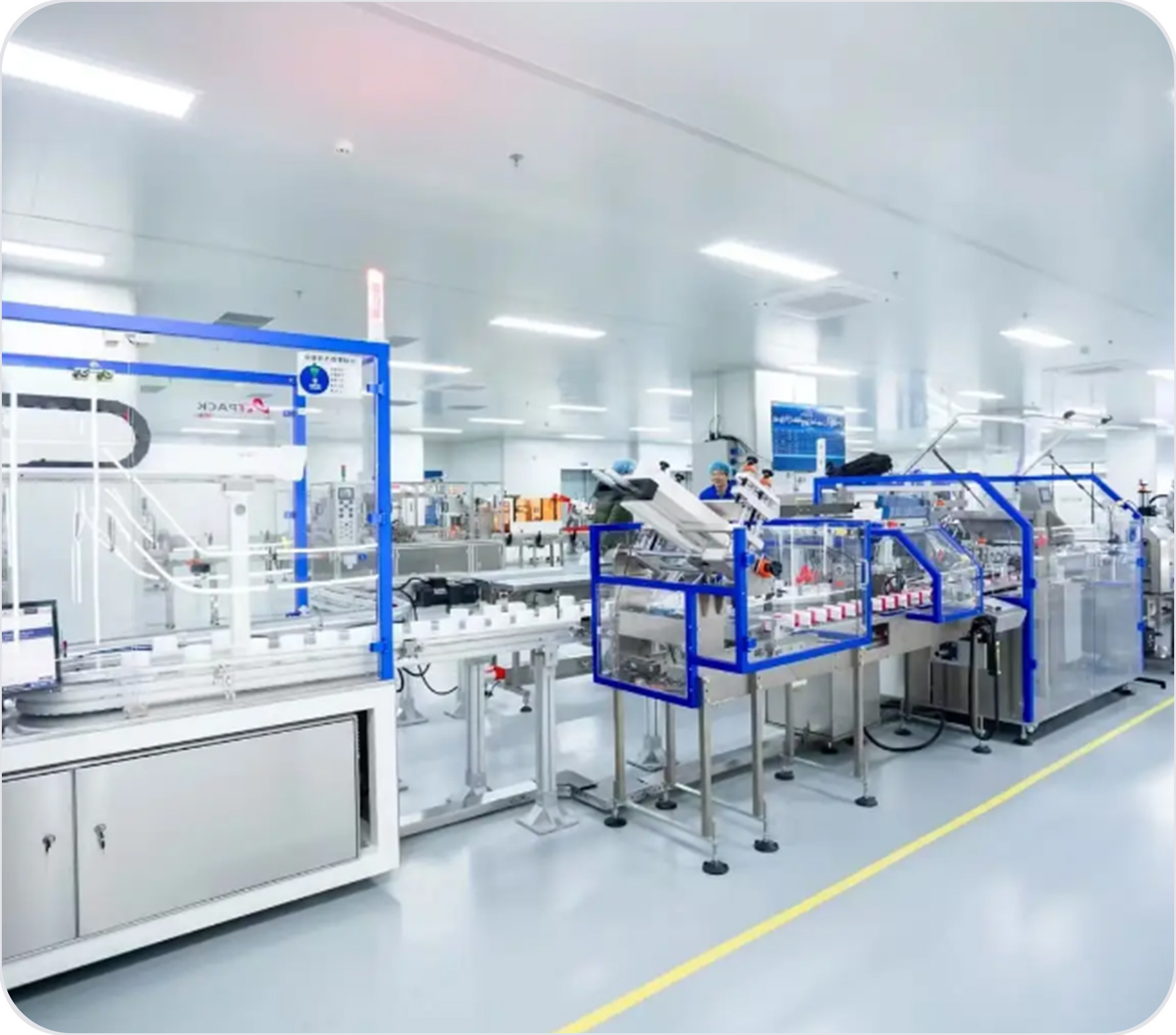

Offshore Platform	Pharmaceutical Workshop	Reactor	Crude Oil Storage Tank

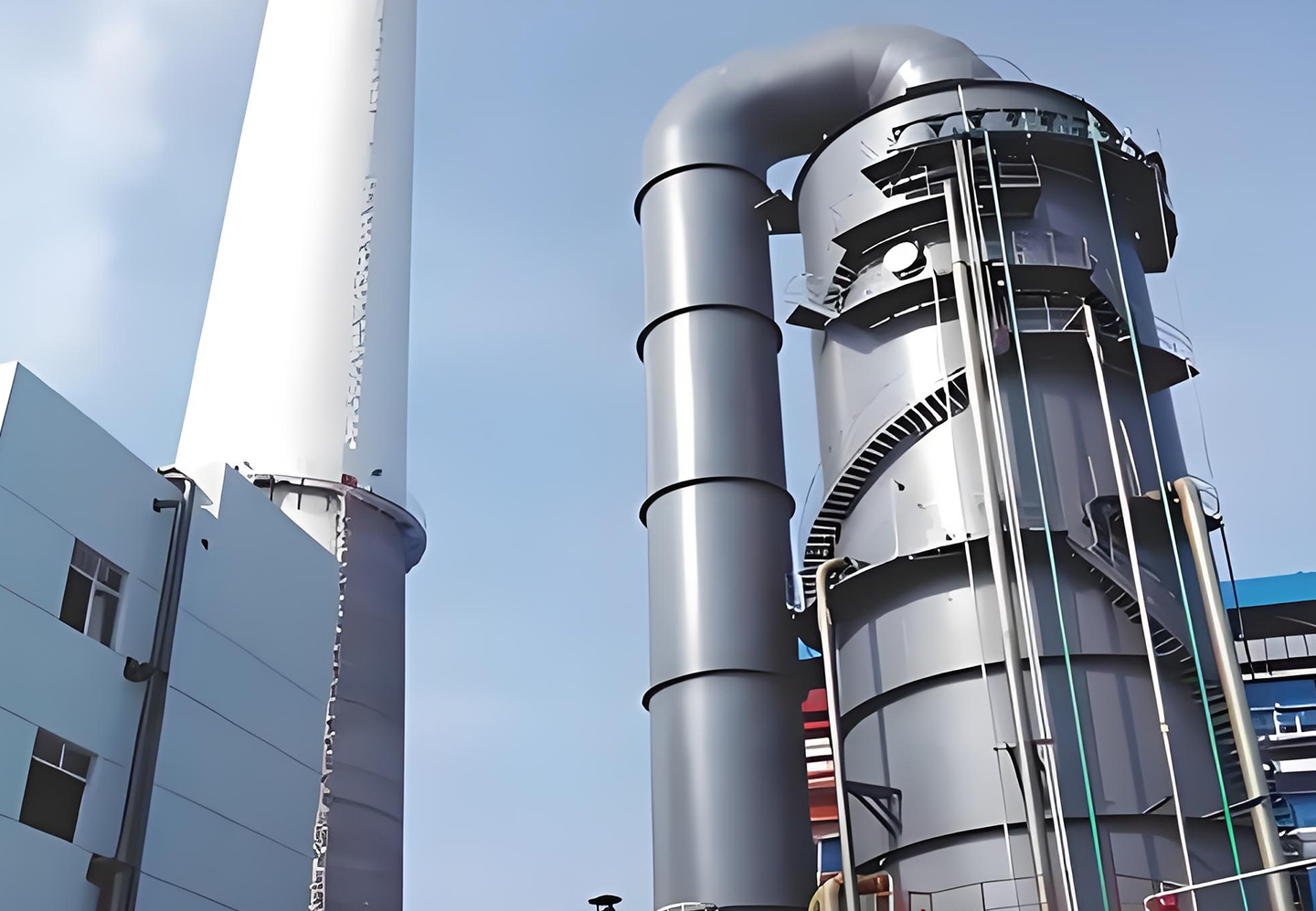

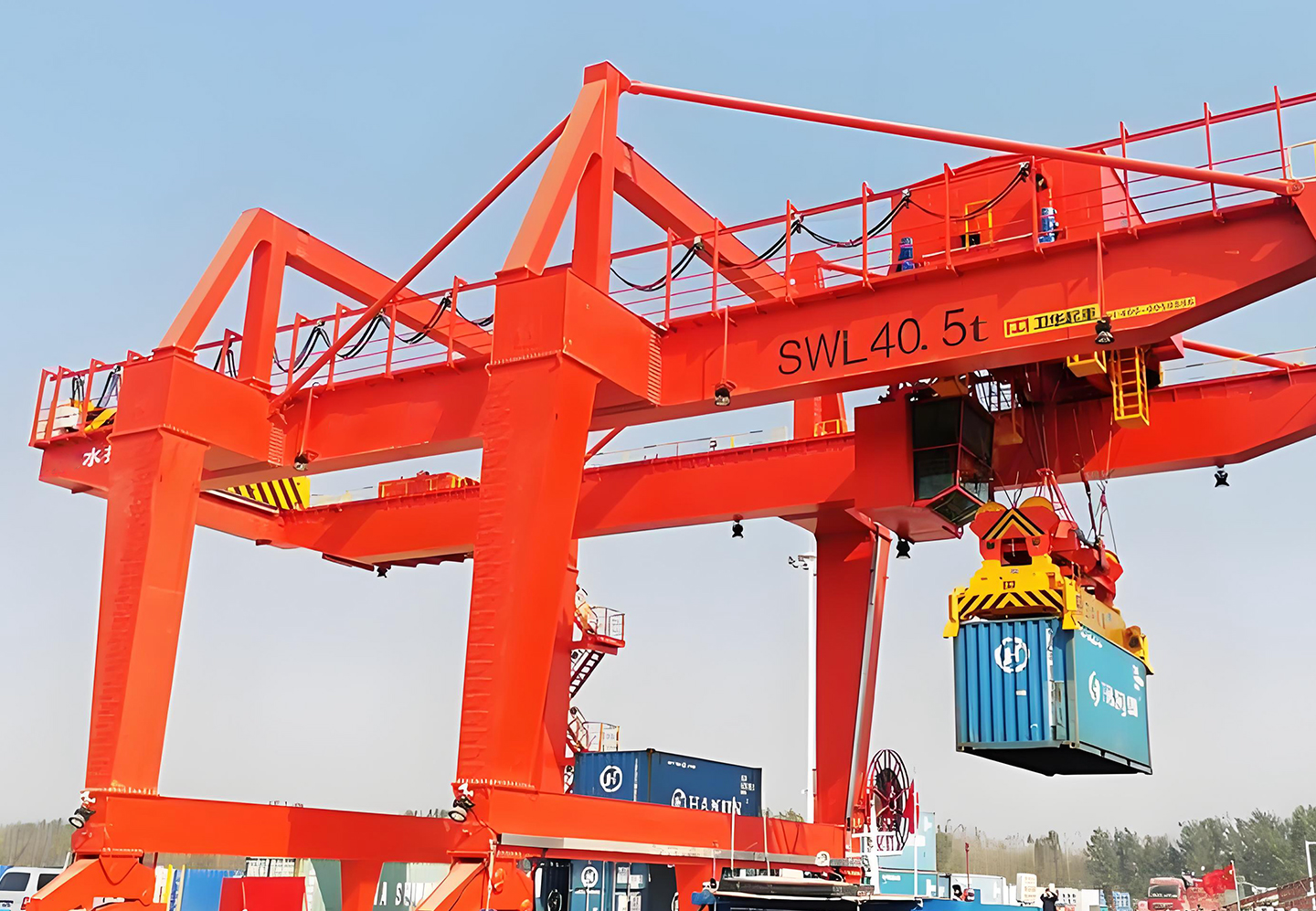

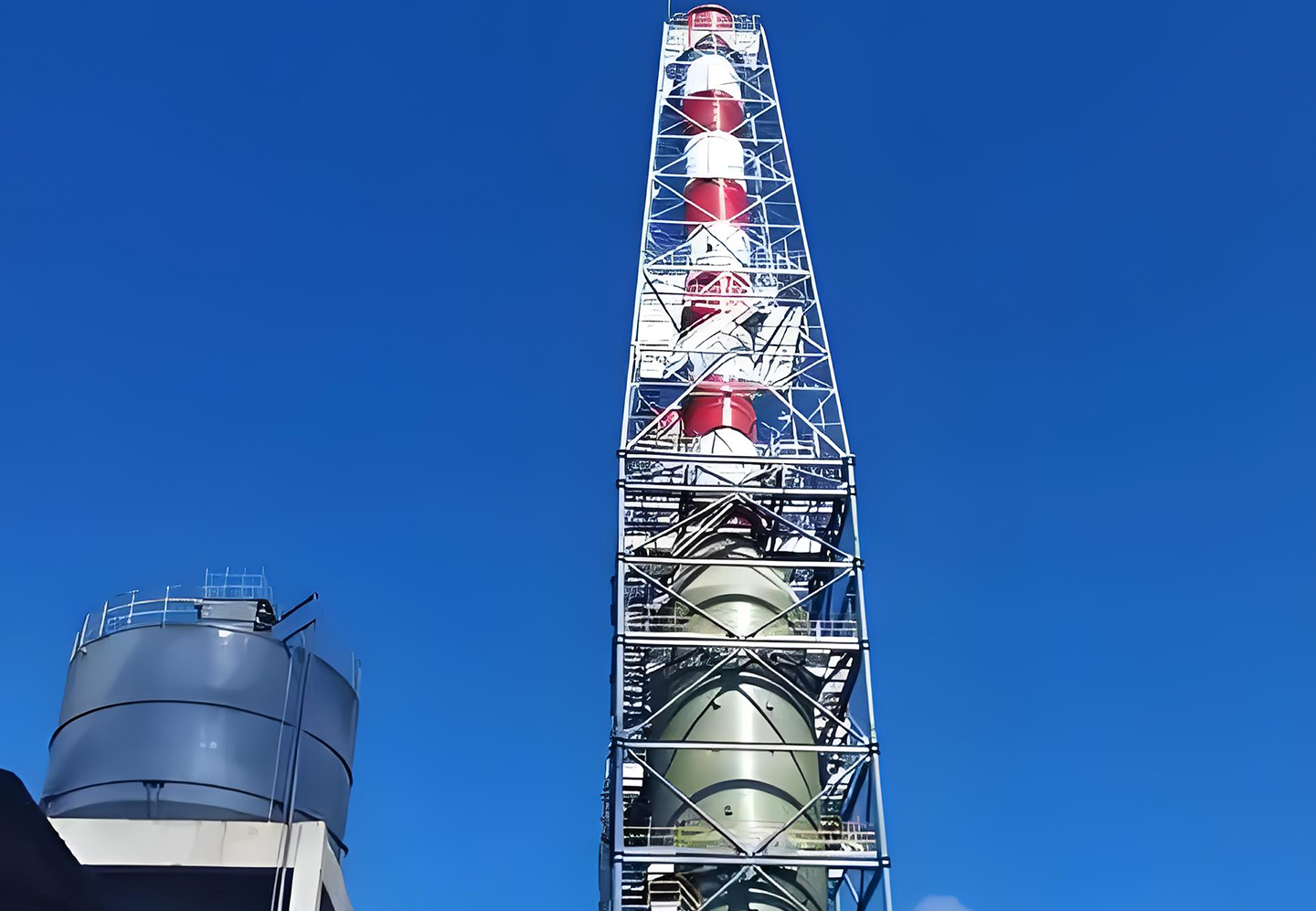

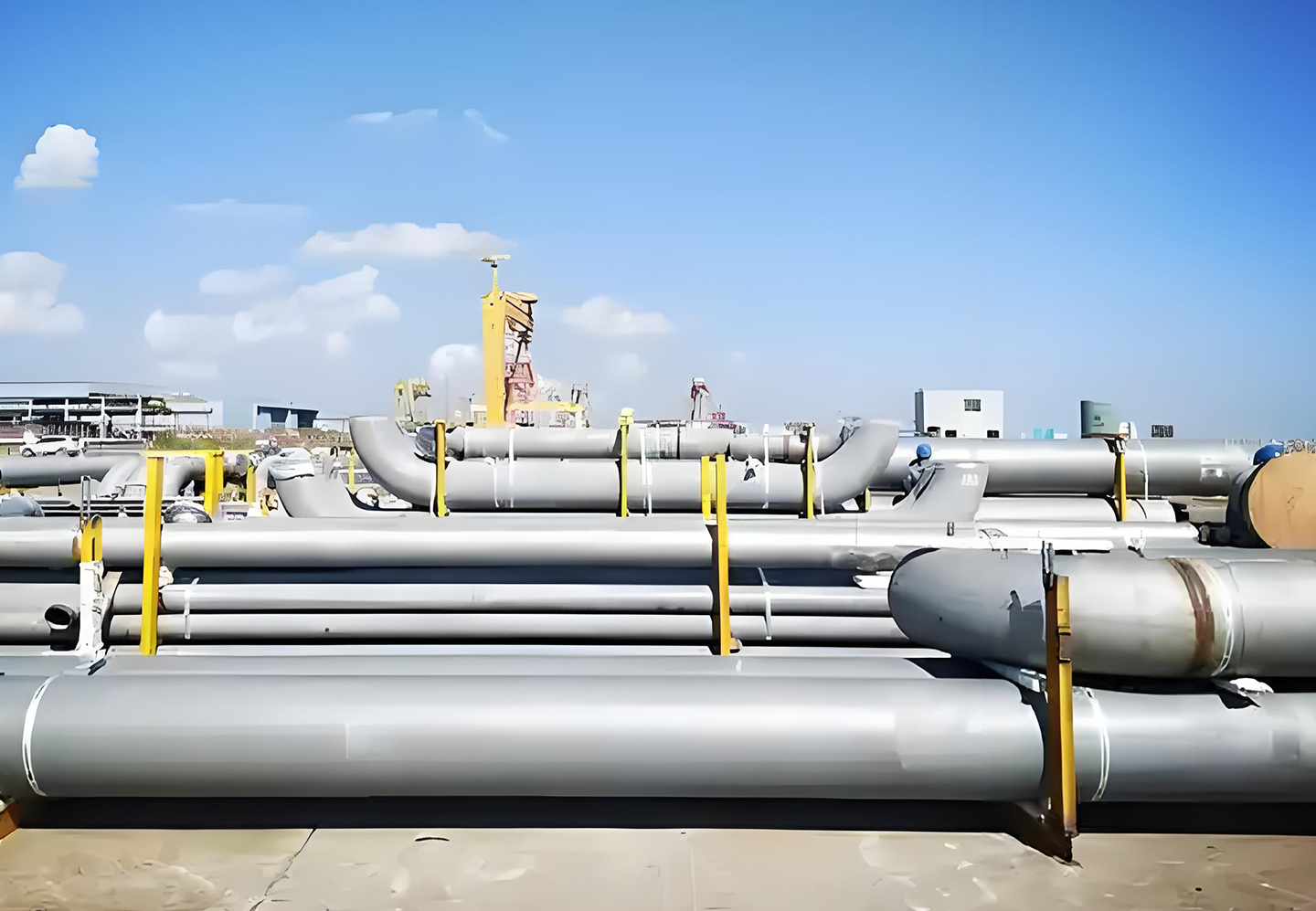

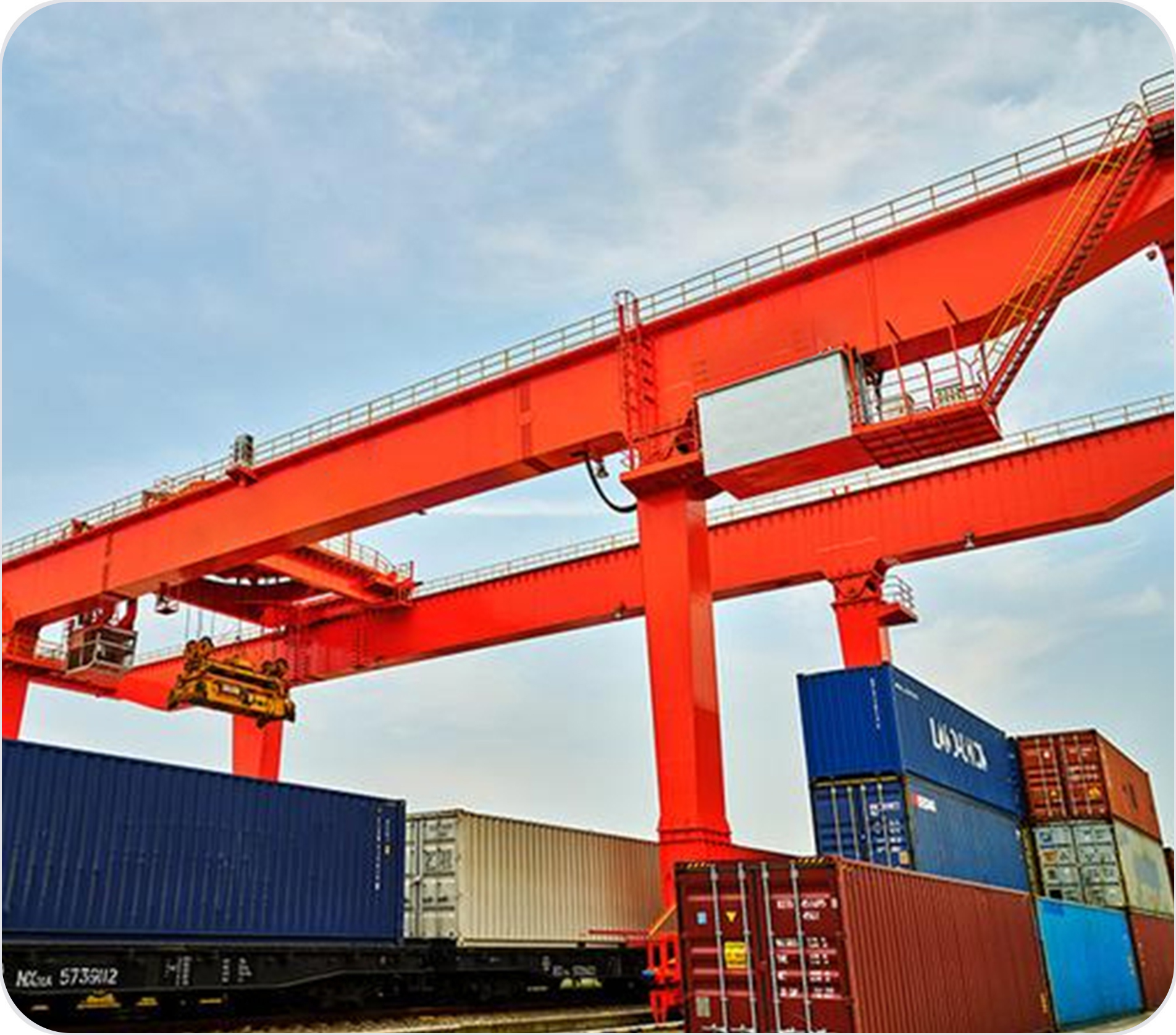

Pipeline	Wharf Facilities	Desulfurization Tower	Distillation Column

High-build Epoxy High Solid Volume Paint Compatibility

	Product	Thickness
Primer:	Epoxy Zinc Rich Primer	2*40 µm (dry film thickness)
Paint：	Epoxy Mica Iron Oxide Intermediate Paint	2*40 µm (dry film thickness)
Topcoat:	Epoxy High Solid Volume Thick Paste Paint	2*75 µm (dry film thickness)

High-build Epoxy High Solid Volume Paint Finished Projects

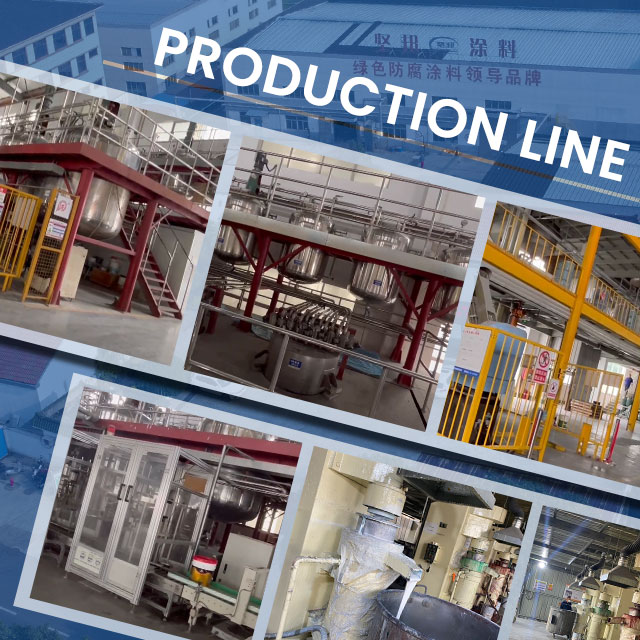

High-build Epoxy High Solid Volume Paint Production Process

High-build Epoxy High Solid Volume Paint Instructions For Use

Substrate Treatment：

All surfaces to be coated shall be clean and dry. The surface shall be evaluated and treated according to ISO8504 standard.

For bare steel, it shall be sandblasted to reach Sa2.5(iso8501-1:2007) standard. Depending on the environment of the non-immersed part, grinding with power tools is acceptable but shall at least reach St2(iso8501-1:2007) standard.

For shop primed steel, the shop primer shall be clean, dry and approved.

For surface painted coatings, this product can apply only to clean, dry and good compatible primer.

Instructions for Use:

• Mixing:

Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you get to mix well. Generally, if the temperature is below 10℃, it needs 30 min induction time; If the temperature is over 10℃, it needs 15 min induction time.

• Mixing Ratio：

Part A: Part B= 20:5 (by weight)

• Thinner

Epoxy paint thinner

• Airless spray

Nozzle tip: 0.017~0.025 inches

Spray pressure: 15~18Mpa

Thinner ratio: 0~15% (by weight of paint)

• Brush、Roller

Recommended

Must achieve required thickness
