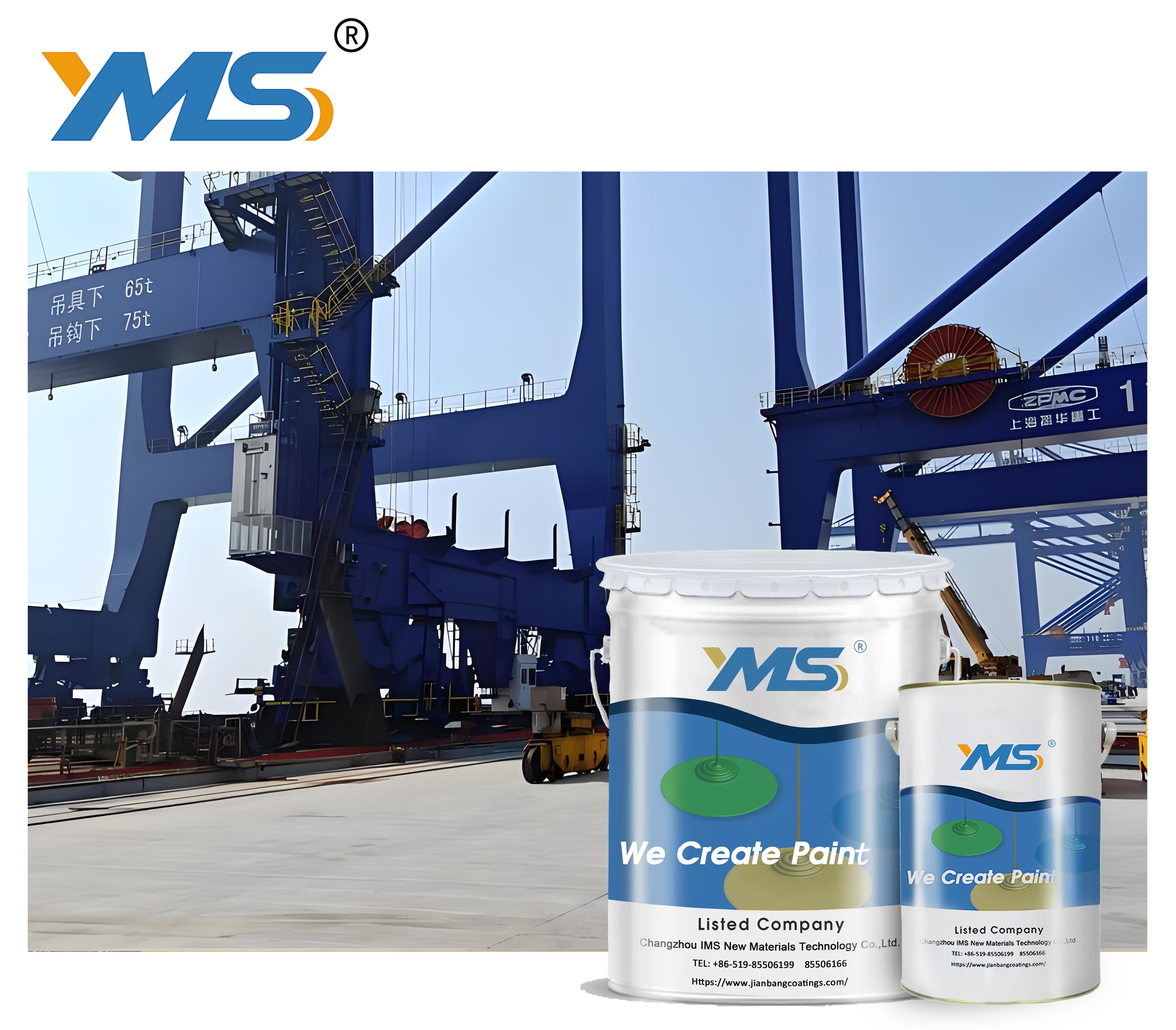

Epoxy Mica Iron Oxide Intermediate Paint

The two-component high-solid product is composed of epoxy resin and polyamie curing agent. It features great properties as：

Strong adhesion	Thick film property	Easy to apply
Good intercoat adhesion	Excellent barrier property

Epoxy Mica Iron Oxide Intermediate Paint Basic Technical Datasheet

Color	Gray, Bronzing
Gloss	Flat
Density	~1.6Kg/L (after mixing)
Hardness	Curing agent for epoxy paint
Solid Volume	(75±2 )%
Standard Film thickness	150um dry film thickness  (about 200um wet film thickness)
Theoretical spreading rate	3.13m²/Kg (150um dry film thickness)
Full cure	(23±2℃ )7d
Flash Point	39℃

Epoxy Mica Iron Oxide Intermediate Paint Product Packaging Packaging: Part A：24 kg in a 20-liter iron bucket. Part B：4 kg in a 5-liter iron bucket. Shelf Life: 12 months If exceeding shelf life, the products shall be tested before using.

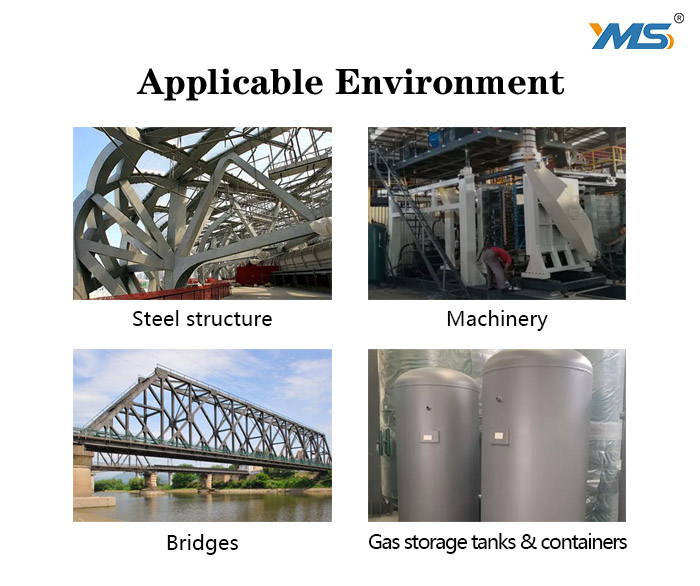

Epoxy Mica Iron Oxide Intermediate Paint Applicable Environment

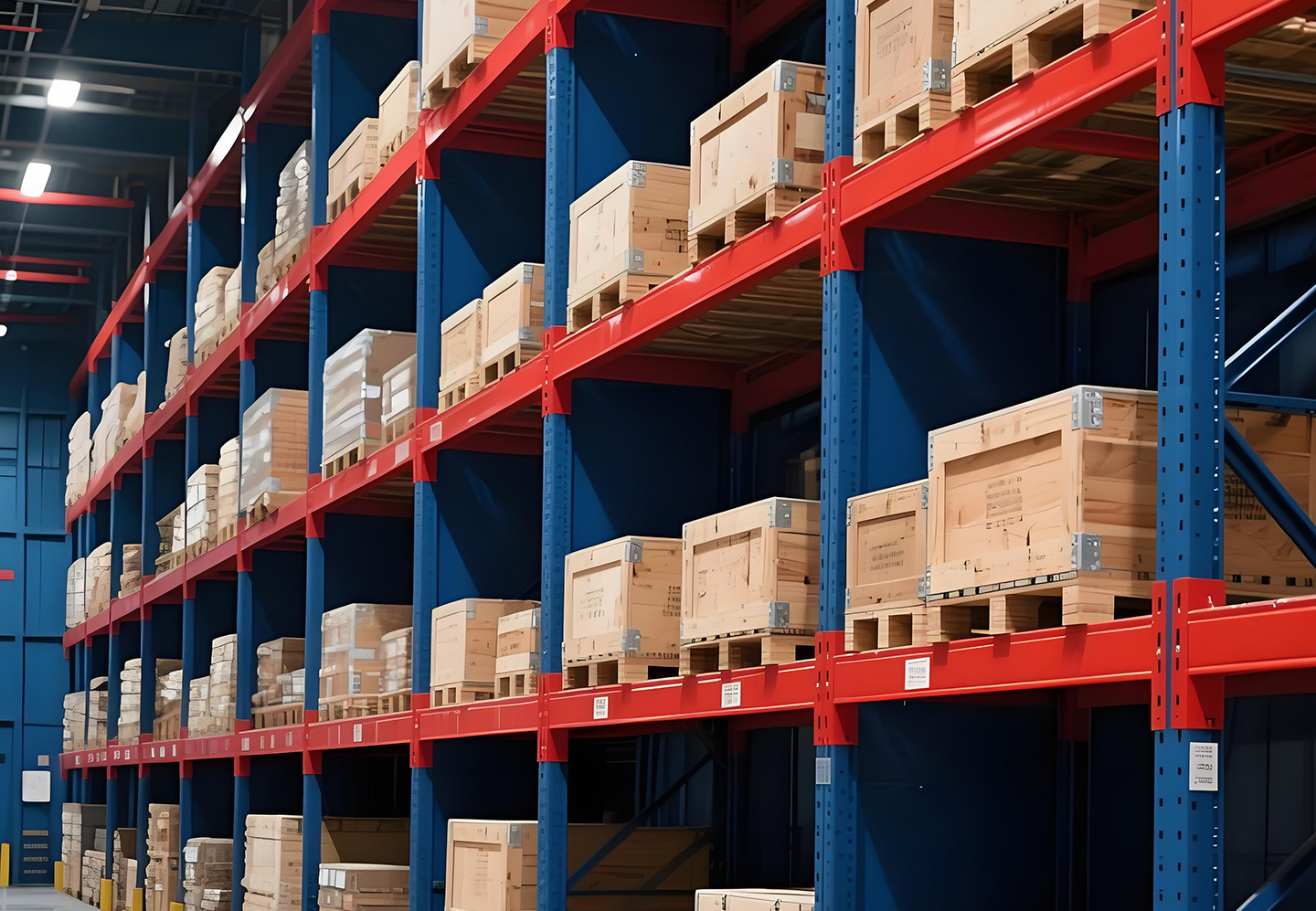

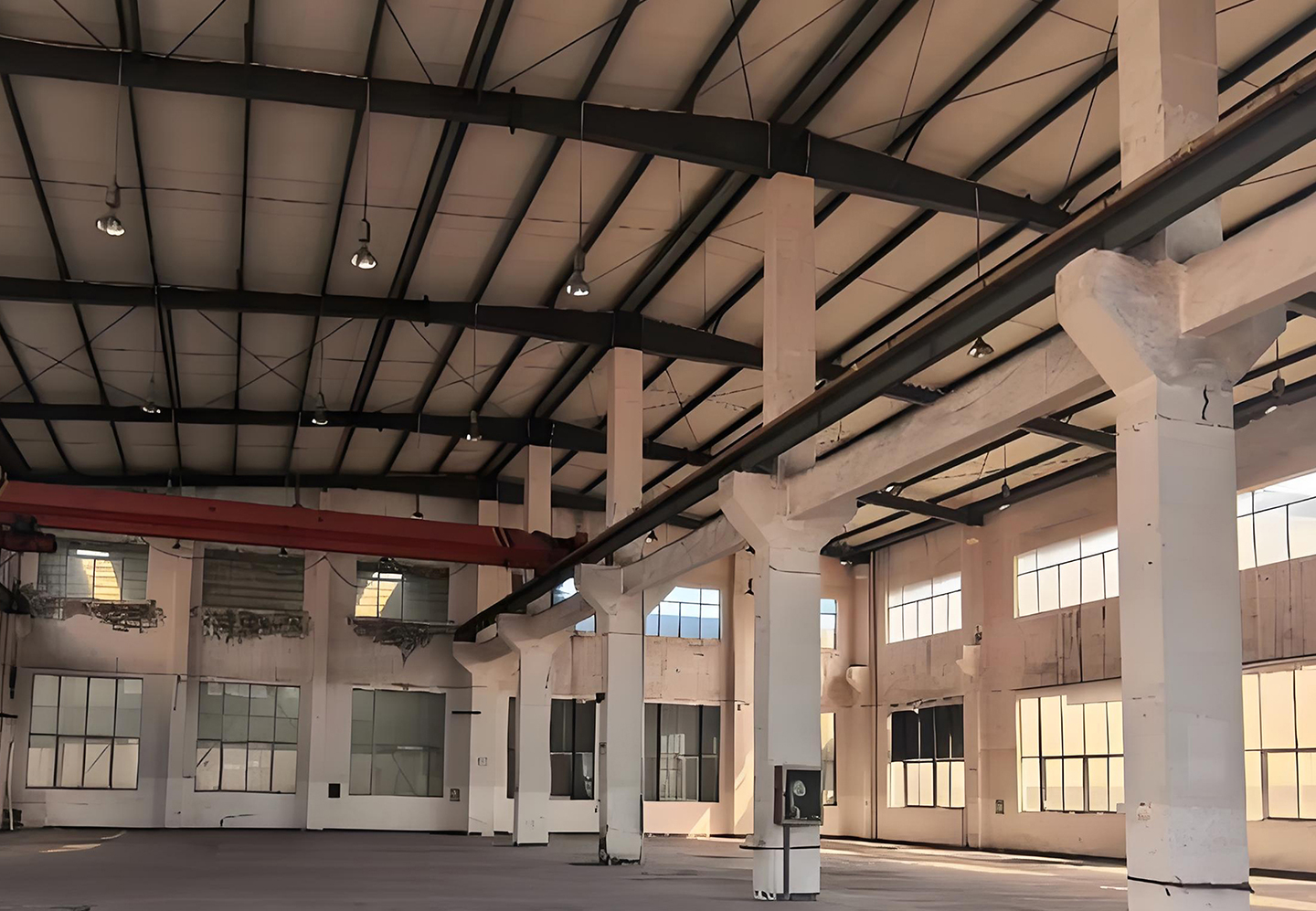

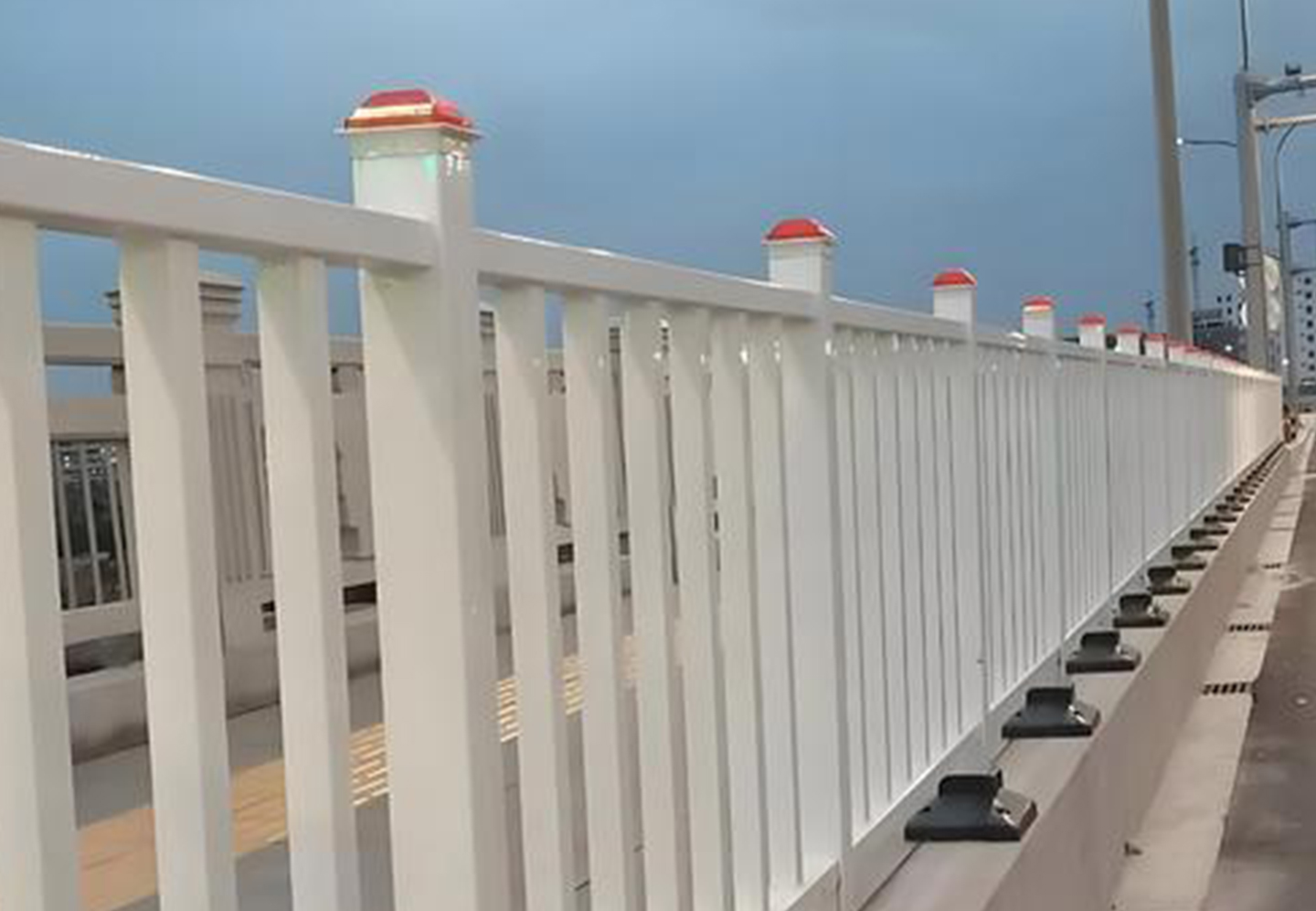

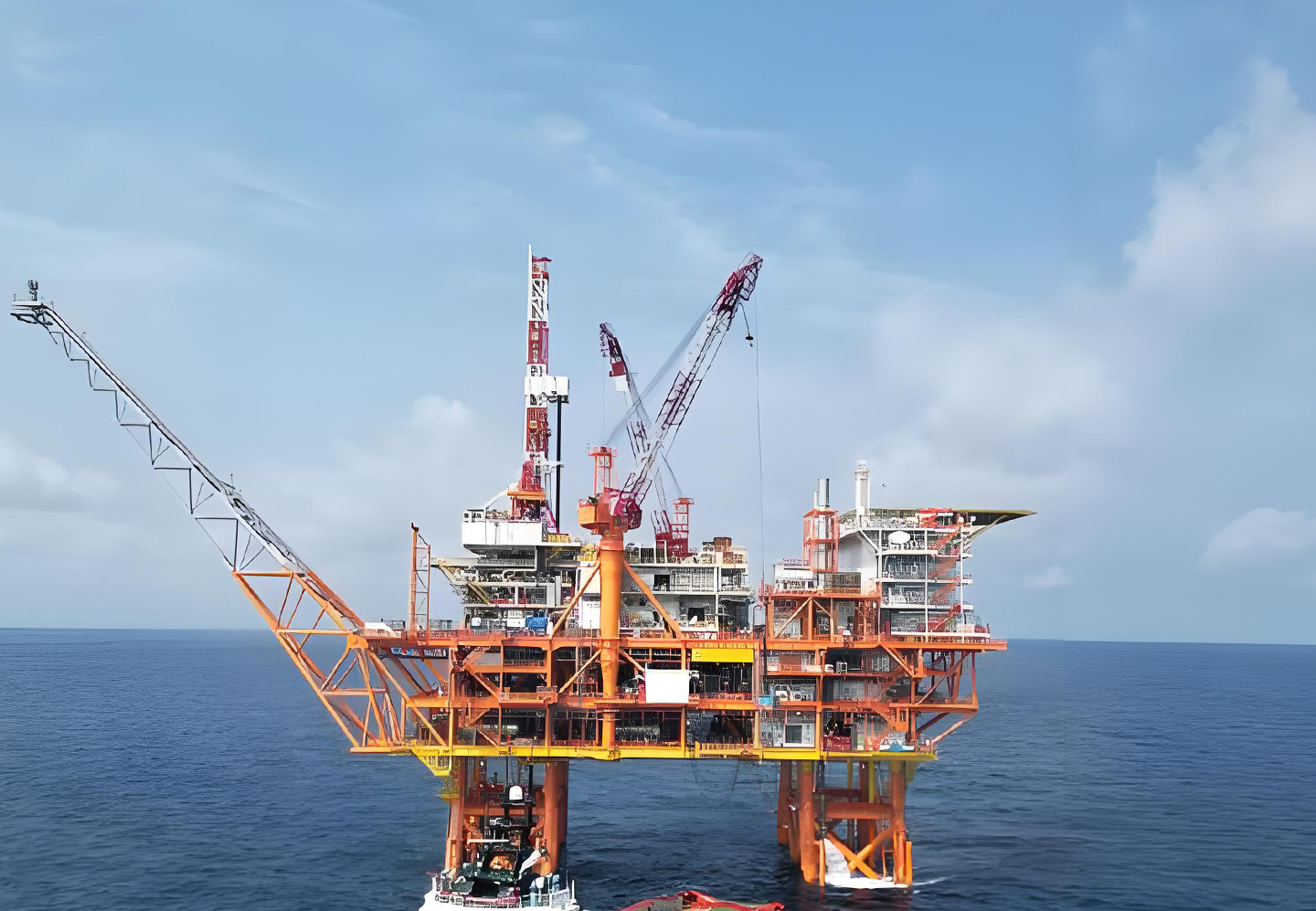

Municipal guardrail	Industrial workshop	Offshore platform	Storage rack

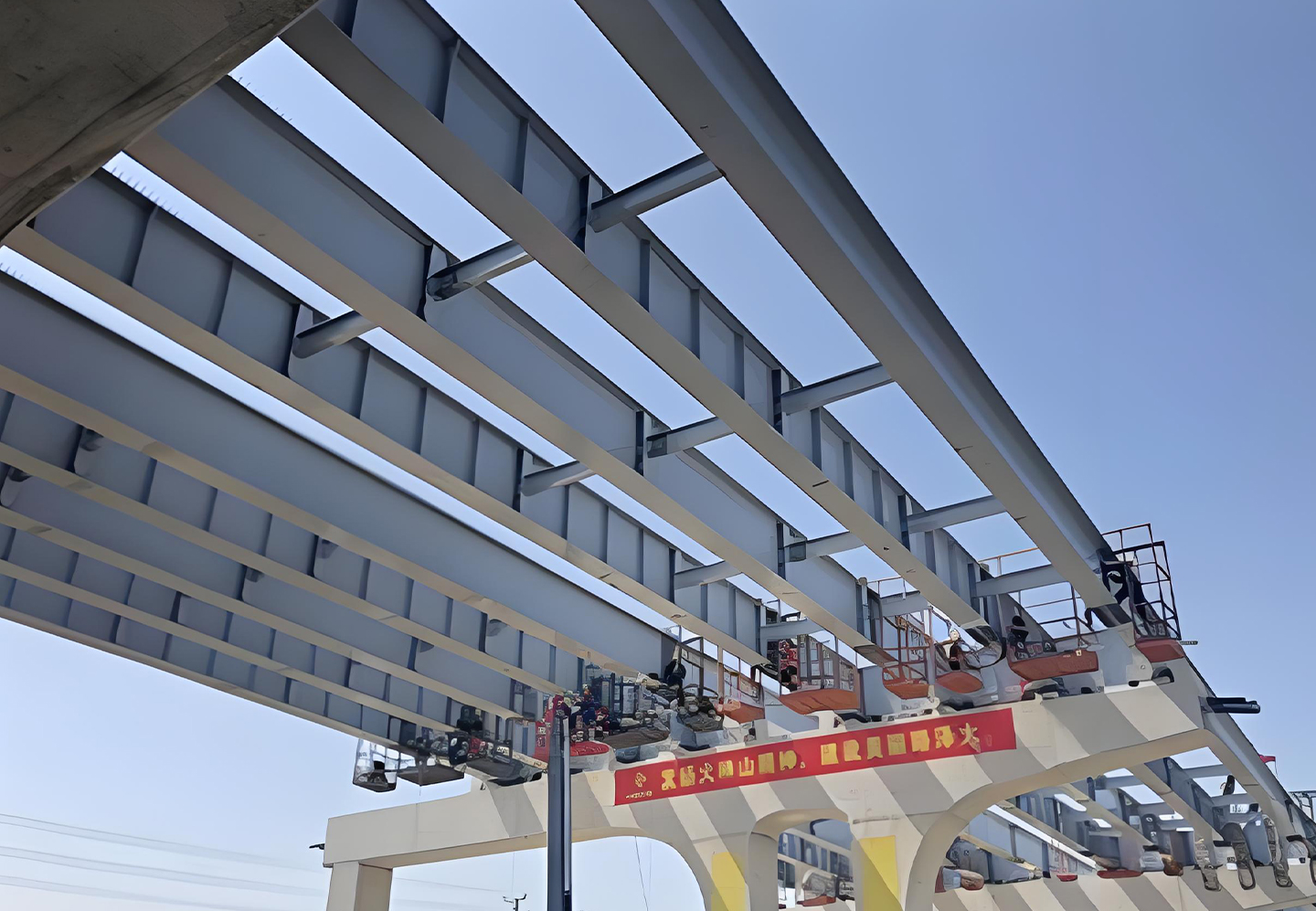

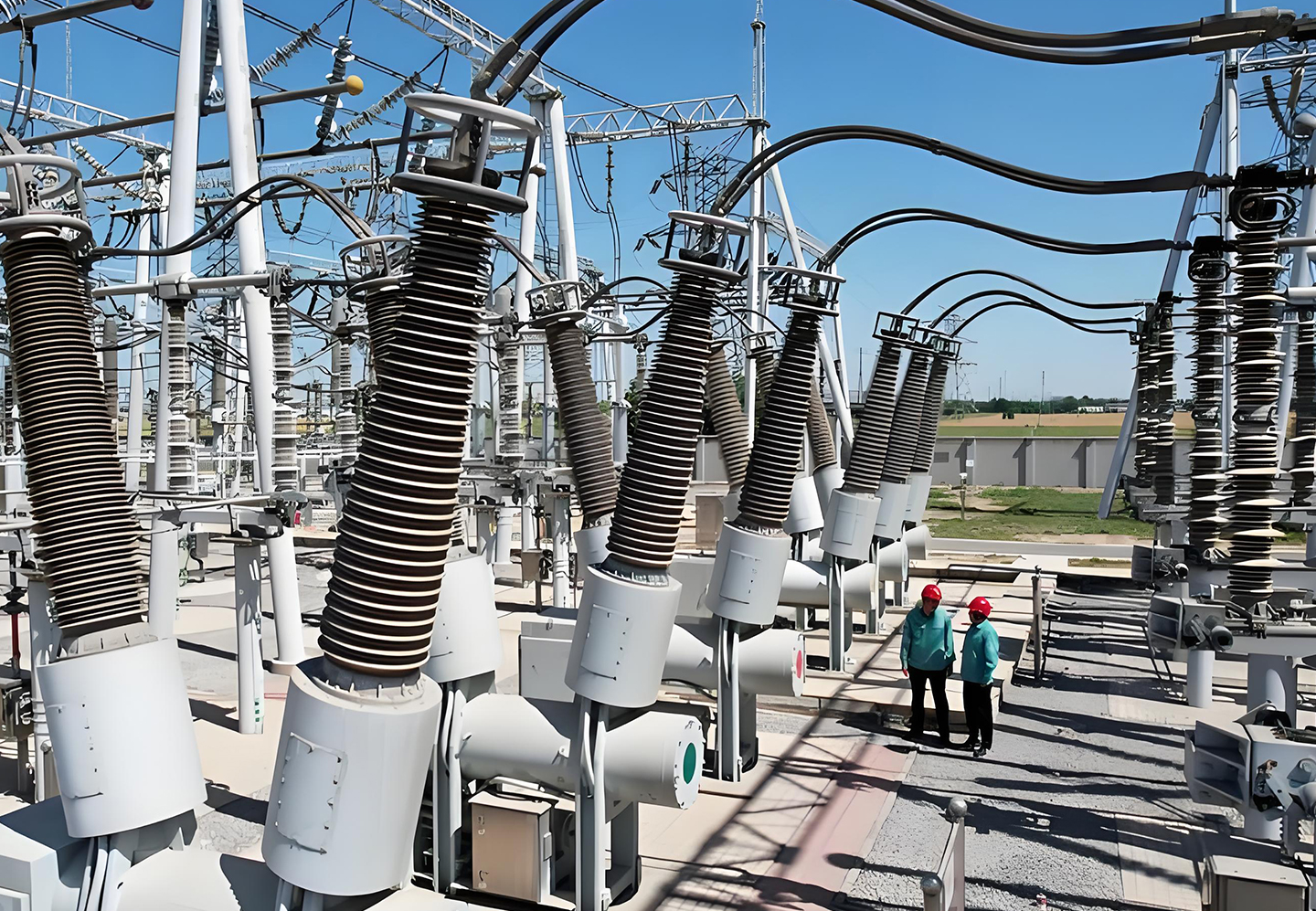

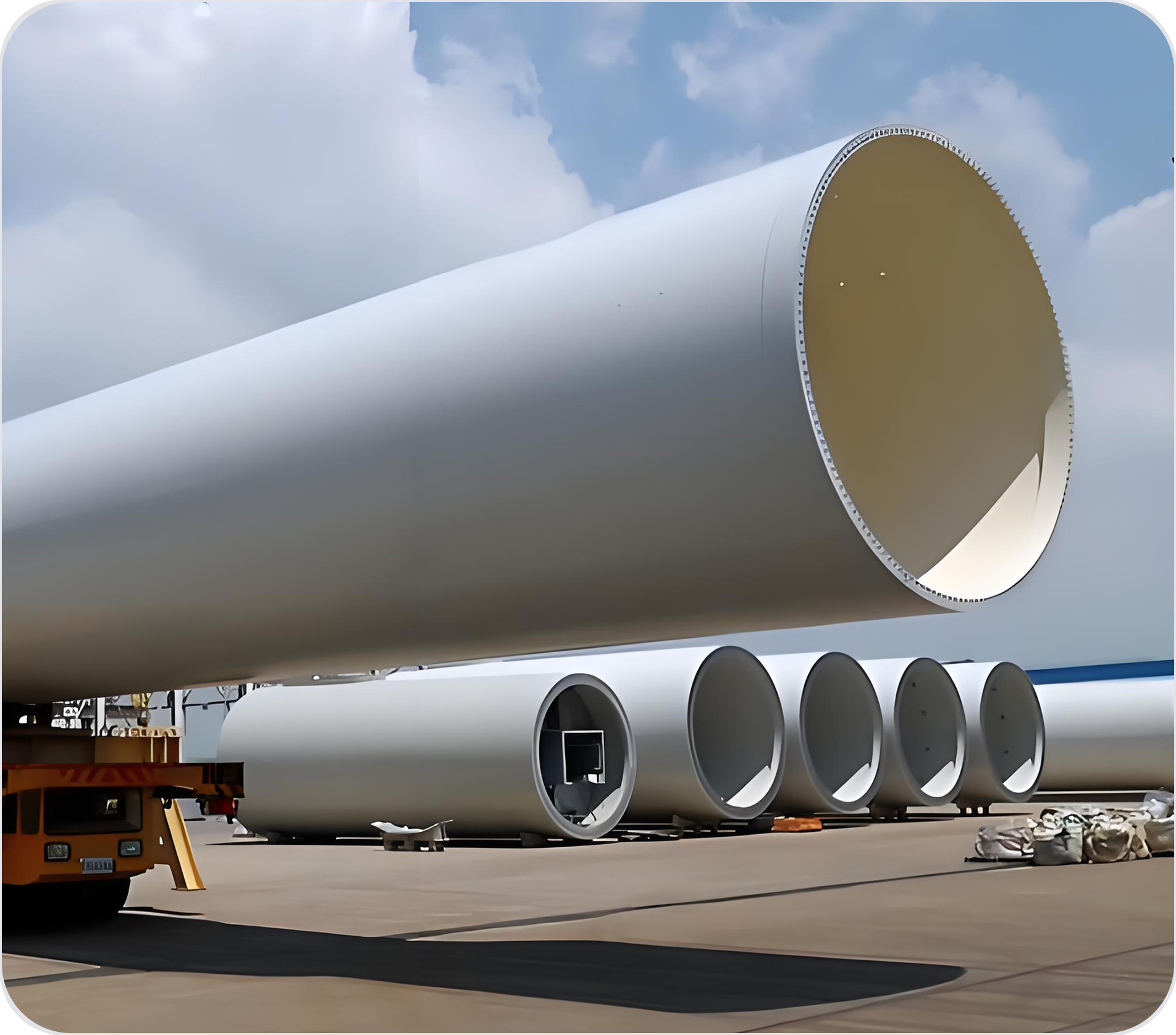

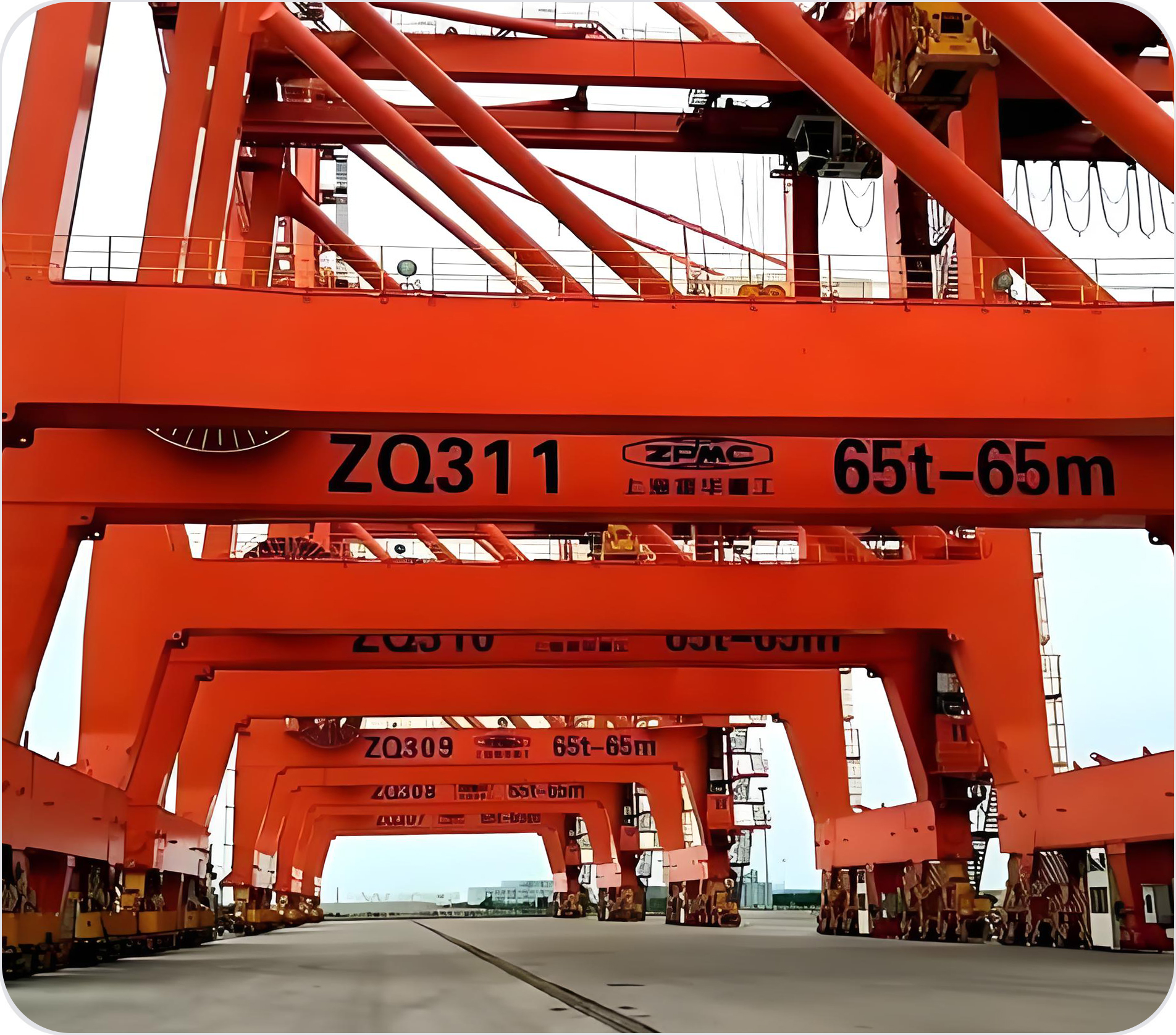

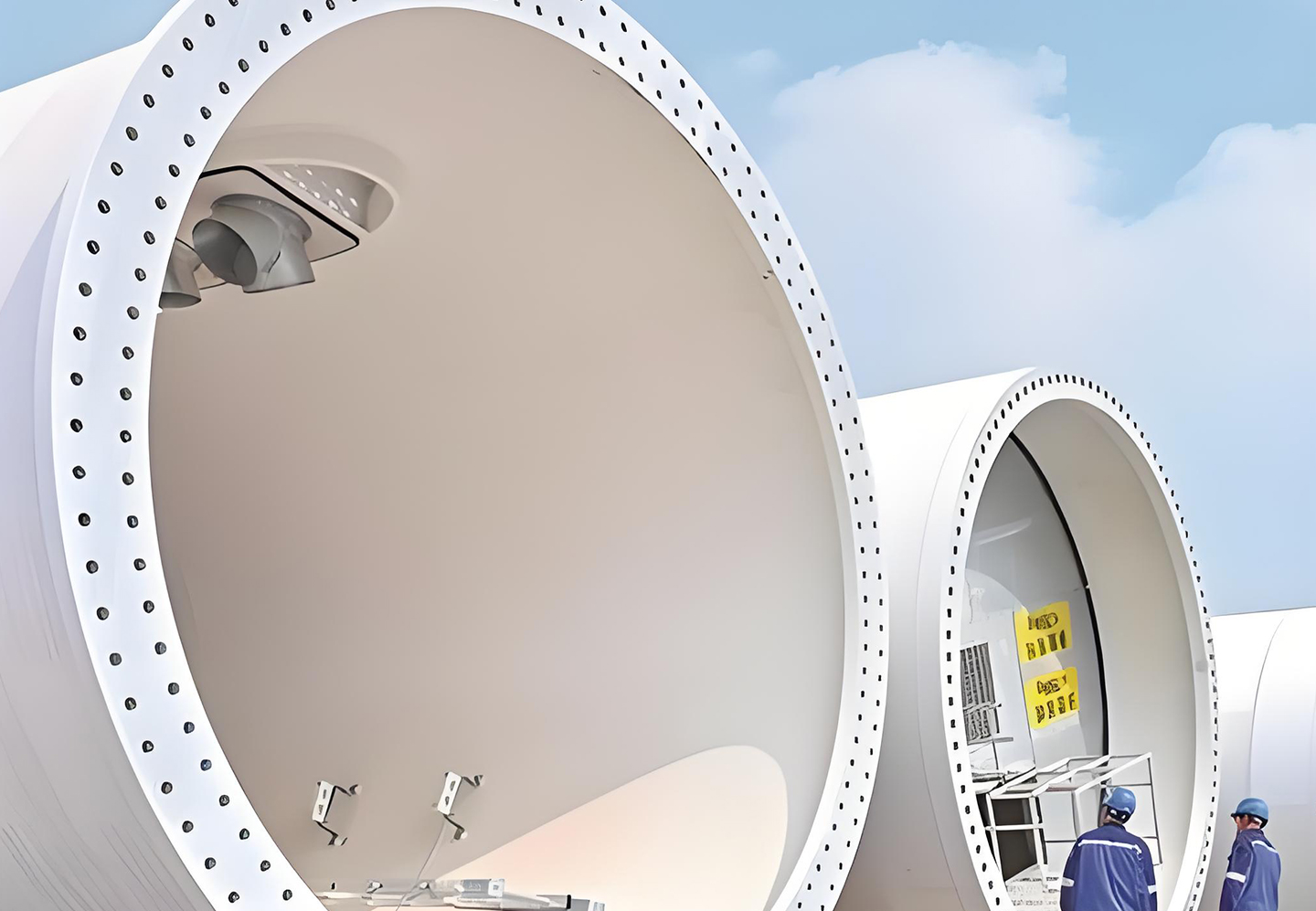

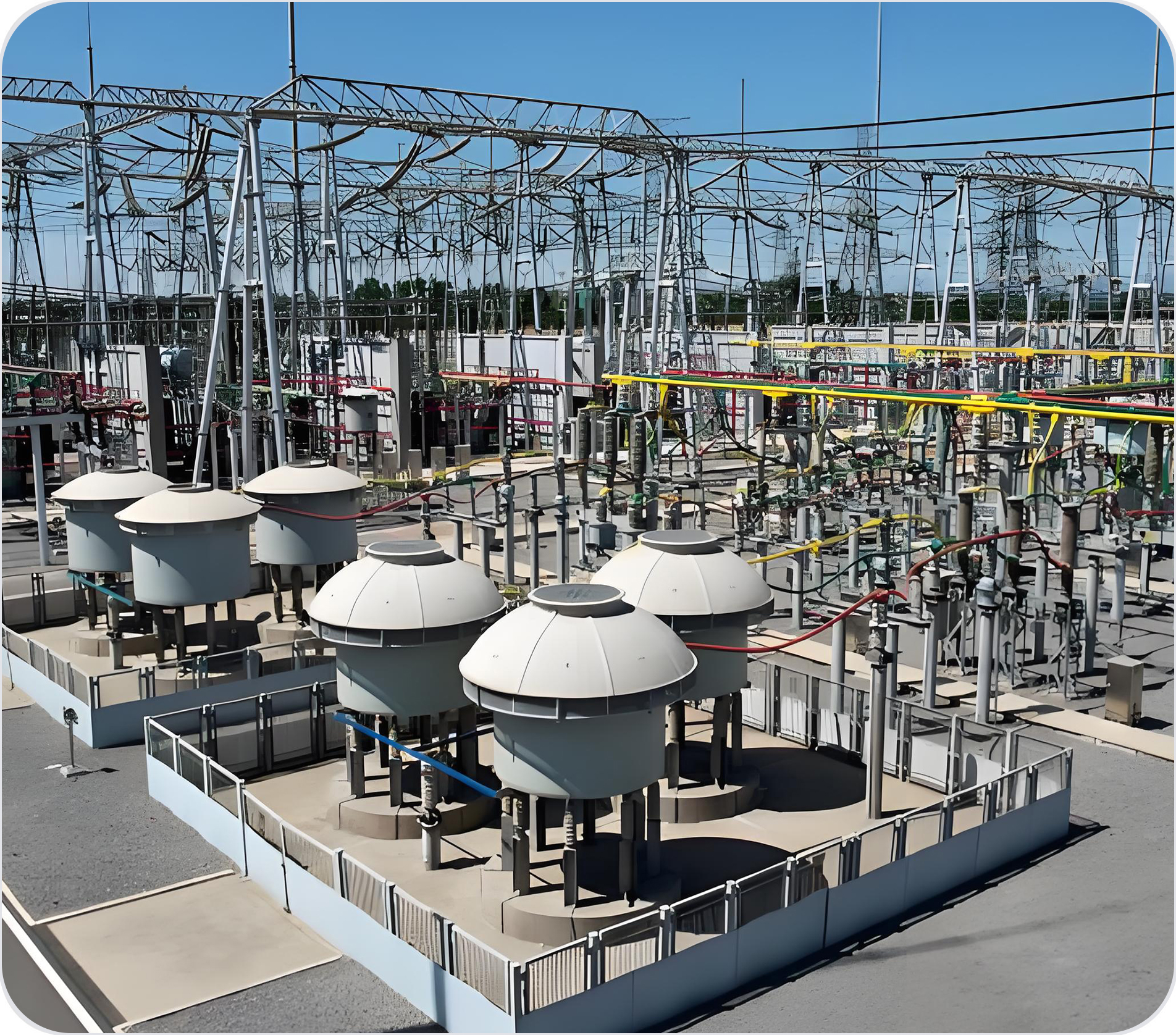

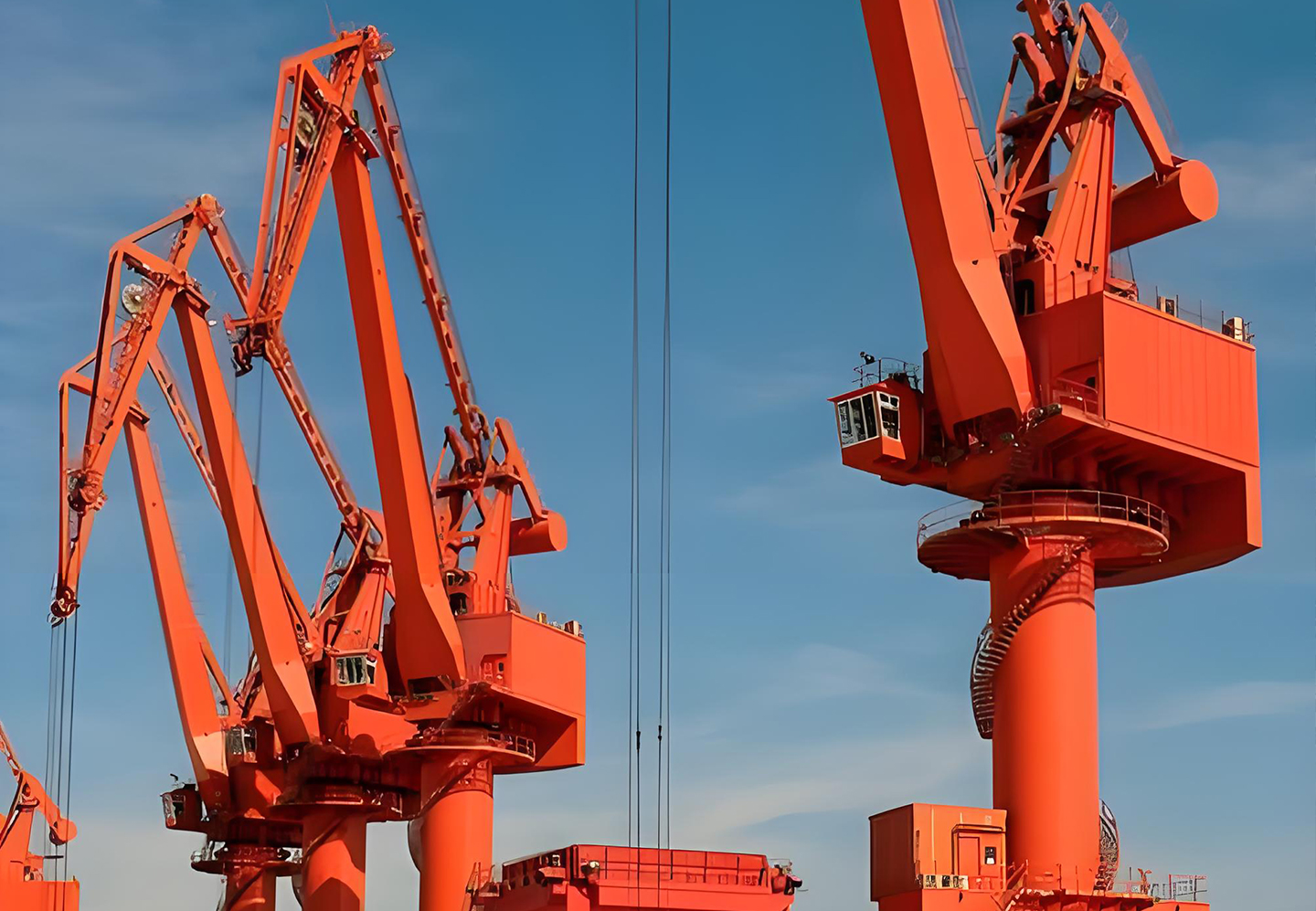

Substation	Port crane	Wind turbine tower	Viaduct steel component

Epoxy Mica Iron Oxide Intermediate Paint Finished Projects



Epoxy Mica Iron Oxide Intermediate Paint Production Process

Epoxy Mica Iron Oxide Intermediate Paint Instructions For Use

Substrate Treatment：

All surfaces to be coated shall be clean and dry. The surface shall be evaluated and treated according to ISO8504 standard.

Steel: Sanding to Sa2.5 (ISO8501-1:2007). It is acceptable to polish by power tools to meet at least St2.0 (ISO8501-1:2007).

Steel coated with workshop primer: make sure workshop primer surface is clean, dry and undamaged.

Coated surface: applied on clean, dry and undamaged primer only.

Instructions for Use:

Mixing：

Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you get to mix well. Generally, if the temperature below 10 ℃, it needs 30 min induction time; if the temperature over 10℃, it needs 15 min induction time.

Mixing Ratio：Part A: Part B= 24:4 (by weight)

Thinner: Epoxy paint thinner

Airless spray：

Nozzle tip: 0.018~0.027 inches

Spray pressure: 15~18 Mpa

Thinner ratio: 5~15% (by weight of paint)

Brush, Roller : Recommended Must achieve required thickness
