Acrylic Thick Film Finish
Fast-Drying Weather-Resistant Topcoat for Steel & Containers
Acrylic Thick Film Finish is a single-component physical drying coating based on acrylic resin, with great weather resistance as well as light and color retention. Beyond being a good choice for decoration, the film resists ocean water, aliphatic solvents and splashes of animal and plant oils. More importantly, it dries quickly and can be applied in low-temperature environments. Supplied ready to use at a standard 60 μm dry film (about 109 μm wet), it is the recommended topcoat for containers, steel structures and workshops — and is commonly seen on equipment and bridges.
Technical Parameters
Acrylic Thick Film Finish — key figures
| Color | Customized |
|---|---|
| Gloss / finish | High gloss, flat, matte |
| Composition | Single-component physical drying coating based on acrylic resin |
| Density | ~1.31 kg/L (after mixing) |
| Solid volume | (55 ± 2)% |
| Standard film thickness | 60 μm dry film thickness (about 109 μm wet film thickness) |
| Theoretical spreading rate | 6.99 m²/kg at 60 μm dry film thickness |
| Mixing | Ready to use — single component, no hardener and no mixing ratio required |
| Thinner | Acrylic thinner — 0–15% by weight of paint for airless spray |
| Application tools | Airless spray: nozzle tip 0.017–0.023 inch, spray pressure 15–18 MPa; brush and roller recommended — the required film thickness must be achieved in all cases |
| Drying schedule (10 / 20 / 30°C) | To touch (30 μm): 2 h / 1 h / 30 min; to handle (30 μm): 8 h / 4 h / 3 h |
| Min. recoating time | 8 h / 4 h / 3 h at 10 / 20 / 30°C — make sure there is no chalking or other contamination before recoating; actual drying and recoating times depend on temperature, dry film thickness, ventilation, humidity and mechanical strength |
| Flash point | 25°C — flammable, keep away from flame and fire, no smoking in the working area |
| Application conditions | Substrate temperature at least 3°C above dew point, relative humidity below 85%; measure temperature and humidity close to the substrate |
| Surface treatment | All surfaces to be coated shall be clean and dry, evaluated and treated according to ISO 8504; over painted coatings, apply only to a clean, dry and well-compatible primer |

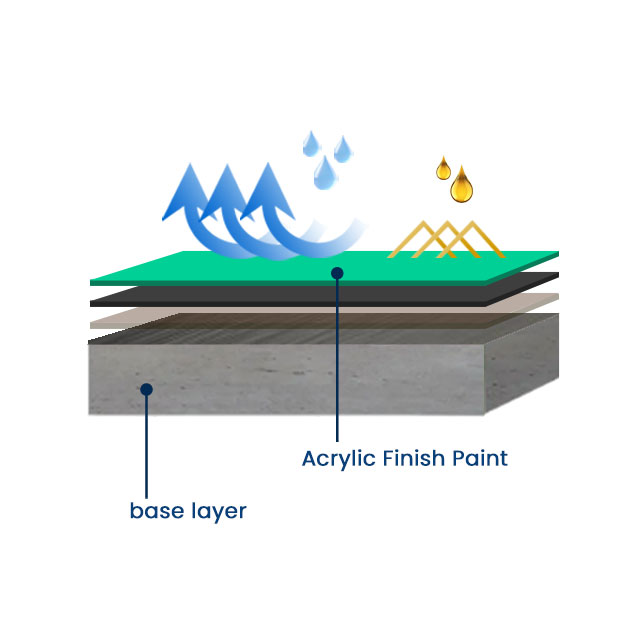

| Classic coating system | Epoxy Zinc Rich Primer 2 × 50 μm + Epoxy Mica Iron Oxide Intermediate Paint 2 × 50 μm + Acrylic Thick Film Finish 2 × 30 μm (dry film thickness) |
| Shelf life & storage | 12 months at room temperature in a shady, dry and ventilated warehouse; test the product before use if the shelf life is exceeded |
| Packing | 20 L container, 22 kg net weight |

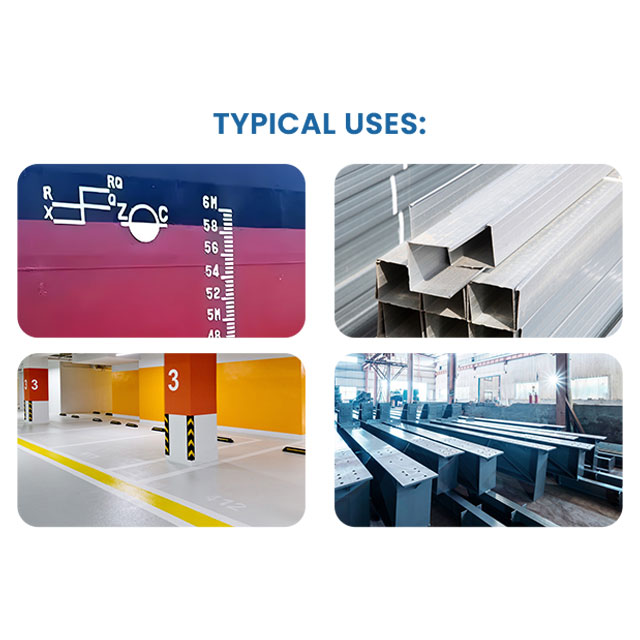

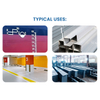

| Typical uses | Highly recommended as a topcoat for containers, steel structures and workshops; also commonly seen on equipment and bridges |
* Data from the YMS Acrylic Thick Film Finish technical datasheet. Full TDS, MSDS and test reports are available on request. Certificates: CE, ISO 9001, ISO 14001, OHSAS 18001, ROHS, SASO and SGS.
Product Packaging & Supply
Factory-direct supply, packed and shipped from the JIANBANG plant
- 20 L / 22 kg Standard PackSingle-component finish supplied ready to use — one 20 L container at 22 kg net, palletized and container-loaded at our Changzhou plant. No hardener to pair, no pot life to manage on site.
- 12-Month Shelf LifeStored in a shady, dry and ventilated warehouse at room temperature, the product keeps for 12 months. Batches beyond shelf life are tested before use, so maintenance stock stays reliable across seasons.
- Custom Colors & GlossColor is fully customized and the finish is available in high gloss, flat or matte — drum branding and private-label packing arranged per destination market.
- Full Project SupportWe advise on surface preparation to ISO 8504, thinner ratios, recoat timing and system matching — from epoxy zinc-rich primers to epoxy mica iron oxide intermediates.
- Safe HandlingFlash point 25°C — keep away from flame and fire, no smoking in the working area, and keep the site ventilated. Refer to the MSDS before use; dispose of used paint barrels correctly.
Core Functions
Why Acrylic Thick Film Finish keeps projects moving in cool weather
Quick Turnaround, Even in Low Temperatures
This product dries quickly and can be used in a low-temperature environment — at 10°C it is touch-dry in 2 h and handleable in 8 h, so outdoor steel and container work keeps its schedule when colder conditions would stall ordinary coatings.
Weather, Light & Color Retention
Based on acrylic resin, the film has great weather resistance and keeps both light and color over time — a good choice for decoration on structures that stay in public view through sun, rain and coastal exposure.
Ocean Water, Solvents & Oil Splashes
The film resists ocean water, aliphatic solvents and splashes of animal and plant oils — a practical barrier for container yards, port equipment and plant areas where washdown and oil splash are routine.
60 μm DFT in One Thick Coat
With (55 ± 2)% solid volume, a standard 60 μm dry film (about 109 μm wet) covers 6.99 m²/kg — the required thickness is reached efficiently by airless spray, brush or roller.
Single Component, Ready to Use
No hardener, no mixing ratio and no pot life — just stir, thin with acrylic thinner (0–15% for airless spray) and apply. Fewer on-site steps mean fewer mixing errors and less waste on maintenance jobs.
Three Gloss Levels, Any Color
Color is customized and the finish is offered in high gloss, flat or matte — match the corporate color on a container fleet or the subdued look of a workshop frame without changing the protective system.
Applications
Where Acrylic Thick Film Finish goes to work
Container fleets need a colorful, weather-resistant topcoat that dries fast between handling cycles — the single-component finish keeps its light and color through ocean air and strong sunlight.
Reach stackers and loading platforms see constant abrasion, washdown and oil splash — the film resists aliphatic solvents and animal and plant oil splashes while holding its corporate color.
Workshop steel is often coated indoors or in cool seasons — fast drying and low-temperature applicability keep the job moving, with a clean decorative finish in high gloss, flat or matte.
New-build steel frames need a topcoat that reaches 60 μm dry film efficiently — (55 ± 2)% solid volume gives 6.99 m²/kg coverage over the classic zinc-rich plus micaceous iron oxide system.

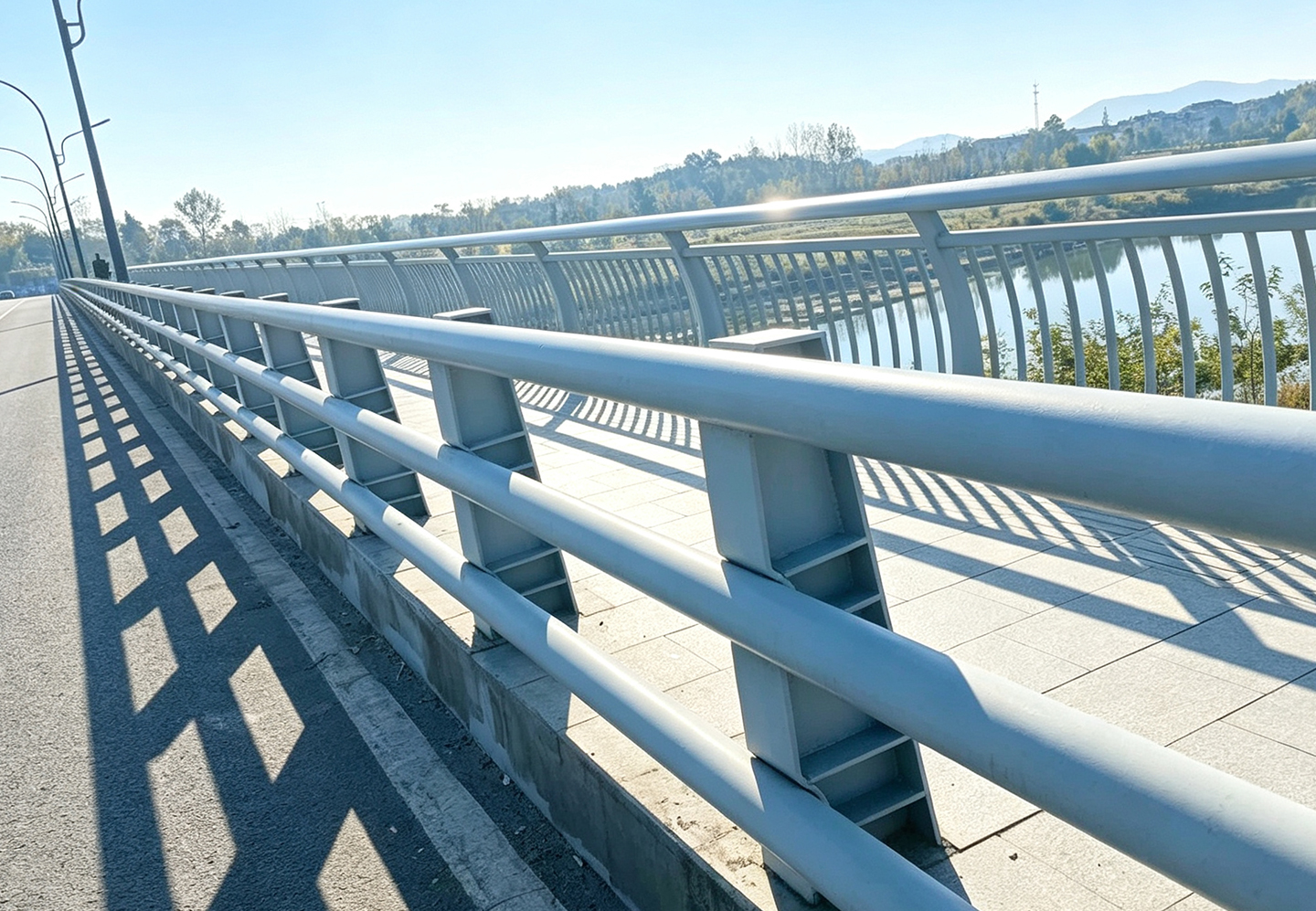

Bridge steel stays exposed to weather and ocean water in coastal crossings — great weather resistance plus light and color retention protect the structure and keep its appearance for years.

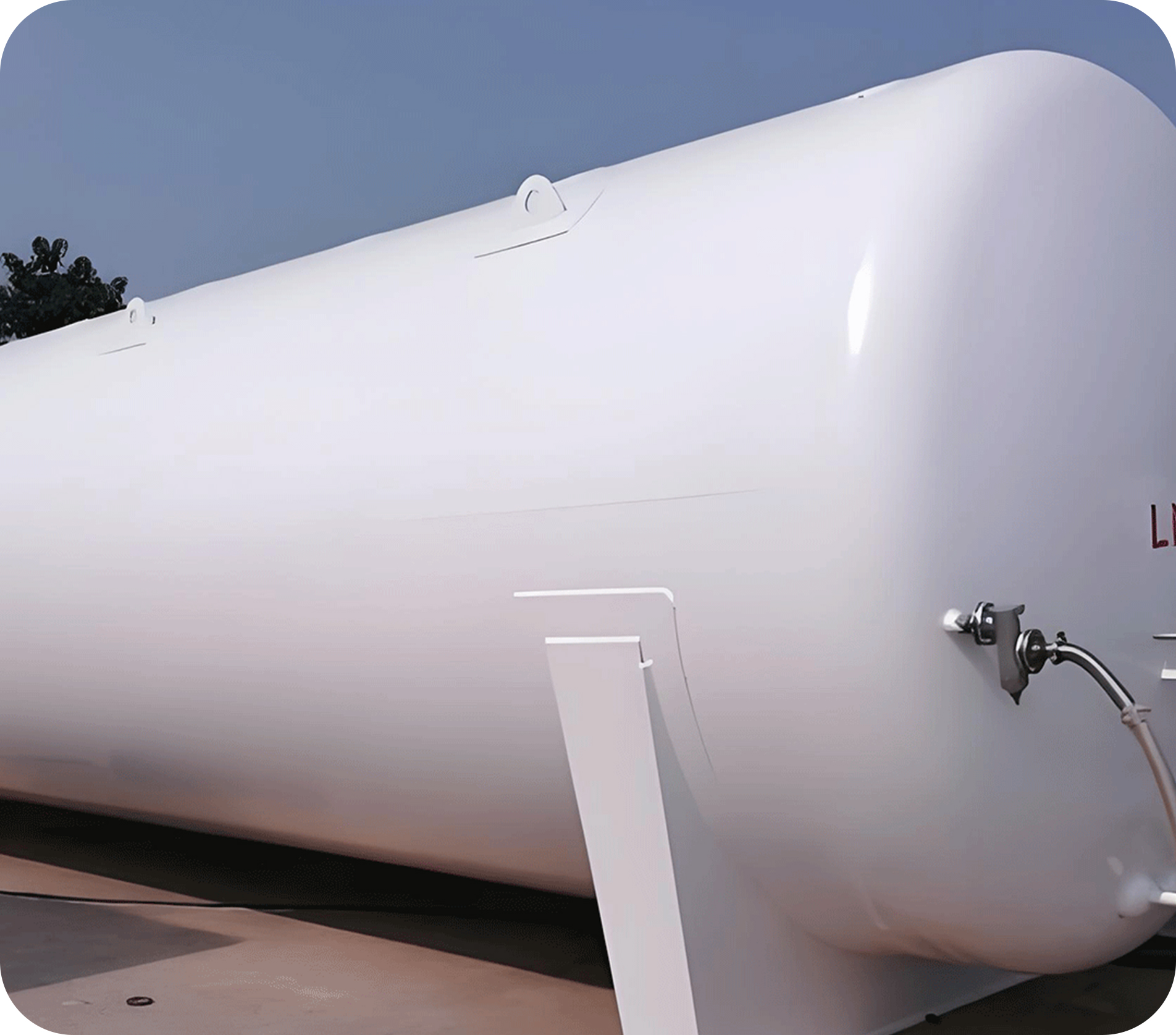

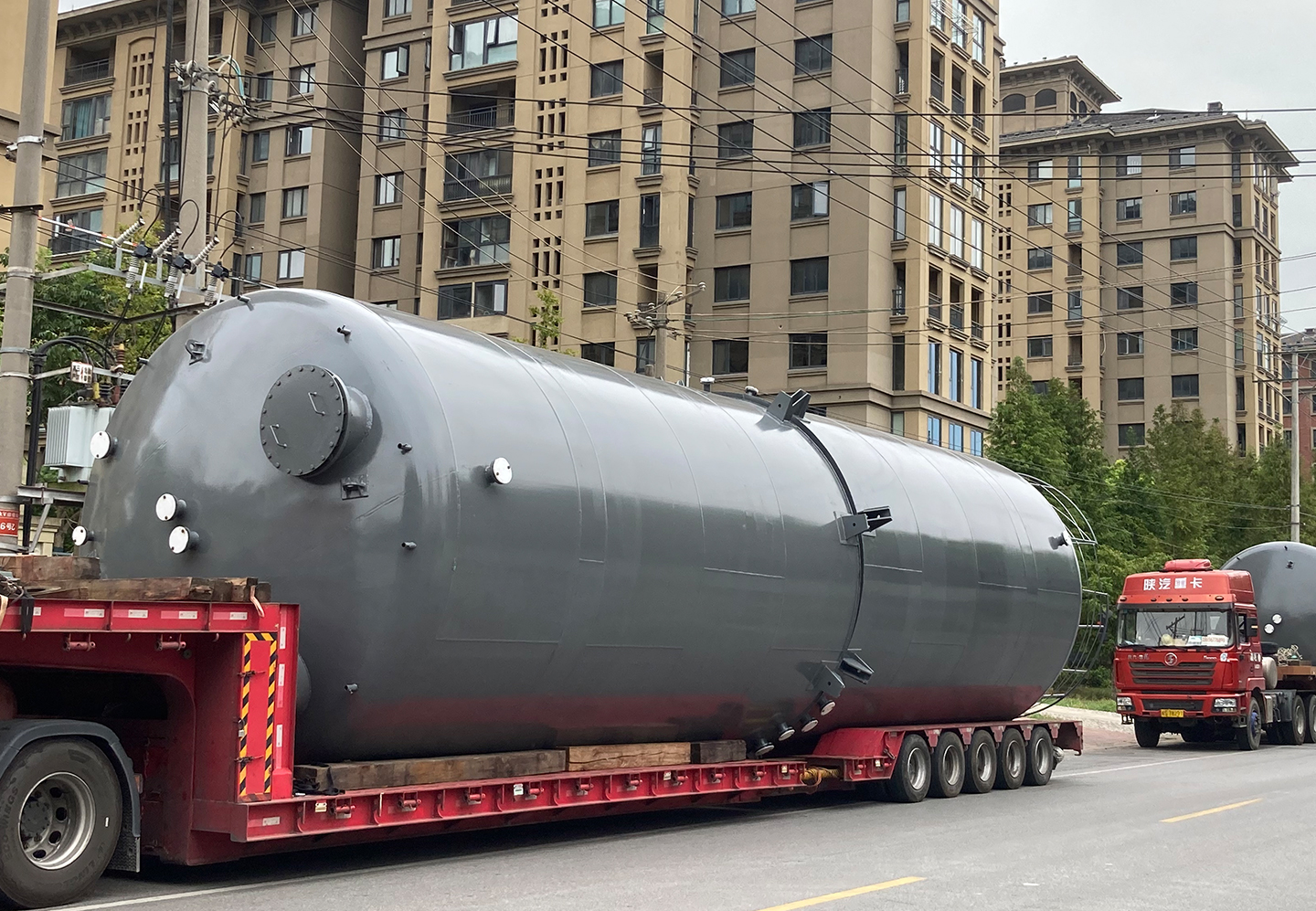

Equipment housings and plant machinery are commonly finished with this topcoat — resistance to ocean water, aliphatic solvents and oil splashes suits demanding service, with a customized color to match the site.
How to Use · 4-Step Operating Procedure
From surface preparation to the finished fast-drying film
Note: application parameters follow the YMS Acrylic Thick Film Finish datasheet — we match a dedicated system one-to-one based on your substrate, environment and service-life target. Classic system: epoxy zinc-rich primer 2 × 50 μm, epoxy mica iron oxide intermediate 2 × 50 μm, this finish 2 × 30 μm. Refer to the MSDS before use and dispose of packaging responsibly.
See It In Action
Application and quality-control moments on real projects
Surface preparation comes first — all surfaces to be coated must be clean and dry and treated according to ISO 8504, whether bare steel or a compatible primer.
Ready to use, the finish goes on by airless spray, brush or roller at 60 μm dry film — a smooth even coat that dries quickly, even in low-temperature conditions.
Film thickness and finish are verified before hand-over — the required 60 μm dry film in high gloss, flat or matte, checked on the completed surface.
Why Choose YMS Paint / JIANBANG Coatings
More than a paint supplier — your coatings partner
One Coating Platform, Four Metal Protection Systems
Match the metal protection coating to the substrate, corrosion load and environment
Acrylic Thick Film Finish
This product — single-component physical drying acrylic finish, 60 μm DFT in one coat, ready to use and applicable at low temperature for containers, steel structures and workshops.
Acrylic Polyurethane Finish
Two-component high-gloss weather-resistant finish based on aliphatic isocyanates and hydroxyl resins — salt spray ≥3000 h and aging ≥5000 h for severe marine and chemical service.
Epoxy Zinc Rich Primer
The first layer of the classic system at 2 × 50 μm dry film — anti-corrosion foundation under epoxy intermediates and weather-resistant finishes.
Epoxy Mica Iron Oxide Intermediate Paint
The build coat of the classic system at 2 × 50 μm dry film — shields the primer and gives the finish a sound, compatible base.
Frequently Asked Questions
What is Acrylic Thick Film Finish?
A single-component physical drying coating based on acrylic resin. It has great weather resistance as well as light and color retention, is a good choice for decoration, and resists ocean water, aliphatic solvents and splashes of animal and plant oils. It dries quickly and can be used in low-temperature environments.
Where should it be used?
It is highly recommended as a topcoat for containers, steel structures and workshops, and is also commonly seen on equipment and bridges. In the classic coating system it is applied at 2 × 30 μm dry film over epoxy zinc-rich primer and an epoxy mica iron oxide intermediate.
Why is it suitable for low-temperature work?
Because it is a fast-drying physical-drying acrylic coating that can be applied in low-temperature environments. Even at a 10°C substrate temperature it is touch-dry in 2 h and handleable in 8 h, with a minimum recoat interval of 8 h — so cool-season projects keep their schedule.
How well does it retain appearance outdoors?
The acrylic resin film has great weather resistance and keeps both light and color over time. It also resists ocean water, aliphatic solvents and splashes of animal and plant oils, which is why it is used on containers and port equipment as well as on buildings.
Is it single-component, and how is it applied?
Yes — it is ready to use with no hardener, no mixing ratio and no pot life. Thin only with acrylic thinner (0–15% by weight of paint for airless spray). Airless spray: nozzle tip 0.017–0.023 inch at 15–18 MPa; brush and roller are recommended too. The required film thickness must be achieved whatever the tool.
How fast does it dry and when can I recoat?
At 10 / 20 / 30°C: to touch (30 μm) 2 h / 1 h / 30 min; to handle (30 μm) 8 h / 4 h / 3 h; minimum recoating time 8 h / 4 h / 3 h. Make sure there is no chalking or other contamination before recoating. Actual times depend on temperature, film thickness, ventilation, humidity and mechanical strength.
What surface and application conditions are required?
All surfaces must be clean and dry and treated according to ISO 8504; over painted coatings, apply only to a clean, dry, well-compatible primer. Substrate temperature must be at least 3°C above the dew point and relative humidity below 85%, measured close to the substrate.
How is it packed, stored and what is the shelf life?
Standard packing is a 20 L container at 22 kg net weight. Store in a shady, dry and ventilated warehouse at room temperature; shelf life is 12 months, and product beyond shelf life should be tested before use. Flash point is 25°C — keep away from flame and fire, no smoking in the working area.
