Silane Impregnating Agent · Penetrating · Non-Film

Isooctyl Triethoxysilane Impregnating Agent
Deep-Penetrating Hydrophobic Protection for Concrete

Isooctyl Triethoxysilane Impregnating Agent is a high-purity (≥98%) alkyl-alkoxysilane penetrant for concrete structures. The small silane molecules penetrate 3–6 mm into the capillary pores, hydrolyze in the alkaline environment and chemically bond to the pore walls, forming a permanent hydrophobic silicone network inside the concrete — not a film on top of it. Water absorption drops by ≥90% and chloride ion absorption by ≥90%, while the concrete stays breathable, keeps its natural color and texture, and resists seawater, salt spray, de-icing salts and freeze-thaw for 20+ years. The specified material for harbors, cross-sea bridges, tunnels, highways and hydraulic structures.

Isooctyltriethoxysilane ≥98%Penetration 3–6 mmWater absorption ≤0.01 mm/min0.5Chloride uptake ↓≥90%Colorless · breathable

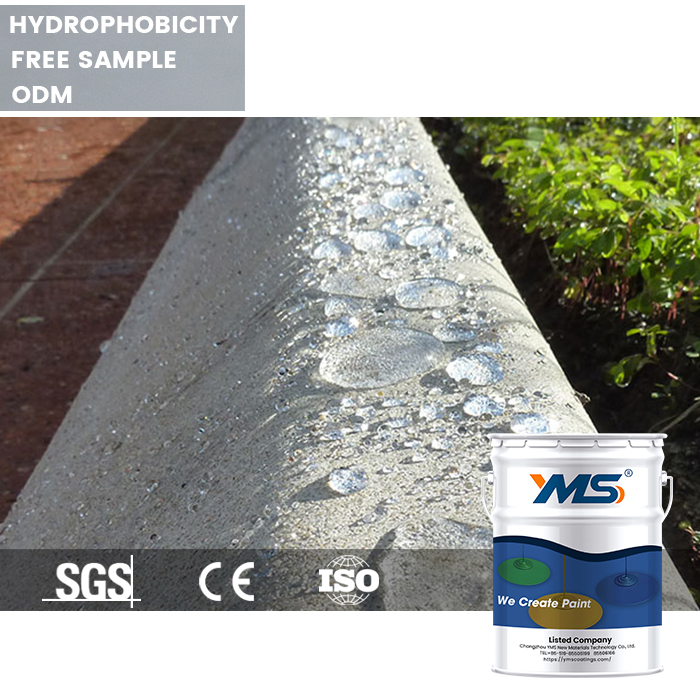

Isooctyl triethoxysilane impregnating agent — YMS Paint bucket with water beading on protected concrete
26-year source factory · local plant in Indonesia ≥98% active isooctyltriethoxysilane · ready to spray 3–6 mm penetration · protects inside the concrete ↓≥90% water & chloride absorption Exported to 87 countries

Technical Parameters

Isooctyl Triethoxysilane Impregnating Agent — key figures

AppearanceColorless to slightly yellow transparent liquid
Main componentIsooctyltriethoxysilane (IO-TEOS, CAS 35435-21-3), C14H32O3Si
Active content≥98% (typical ≥99%)
Siloxane impurity≤0.3%
Hydrolyzable chloride≤0.01% (≤100 ppm)
Density (25°C)0.87–0.89 g/cm³
Flash point~96°C (closed cup)
Boiling point~216°C
Penetration depth≥3–4 mm (typical 4–6 mm on C40 concrete)
Water absorptionReduced by ≥90% — ≤0.01 mm/min0.5 per JTJ 275
Chloride ion absorptionReduced by ≥90% (typical ≥95%); water contact angle ≥110°
DurabilityUV aging 1000 h no degradation; 168 h in saturated Ca(OH)2 no abnormality; freeze-thaw ≥300 cycles; designed service life 20+ years
Recommended dosage≥400 g/m² in two flood coats (wet-on-wet); final dosage per project design per JTJ 275-2001 / JTG/T B07-01 / TB/T 3228
Application methodLow-pressure airless spray / flood coat for horizontal and large areas; brush for edges and details. Apply until surface saturation
Application conditions5–45°C, concrete cured (≥28 days), surface clean and dry; do not apply in rain or onto standing water
Packaging20 kg net in plastic drum
Shelf life12 months sealed, stored at 5–45°C away from rain and heat sources

* Data from published isooctyltriethoxysilane technical datasheets and the JTJ 275 / JTG/T B07-01 / TB/T 3228 test standards. Full TDS, MSDS and test reports are available on request.

Not sure whether silane impregnation fits your structure? Send us the concrete grade, area, exposure condition (marine / salt spray / de-icing salt) and design life — free one-to-one system recommendation from our technical team.
WhatsApp Enquiry

Packaging & Supply

Factory-direct supply, packed and shipped from the JIANBANG plant

JIANBANG factory, packed paint kits and container loading for export
  • 20 kg Plastic Drum20 kg net per drum, single-component liquid — ready to spray straight from the drum, no mixing, no dilution. 200 kg barrels and IBC totes available for large projects.
  • Low VOC, Solvent-Free SystemNo added solvents, low odor — suitable for use on occupied infrastructure, inside tunnels and near traffic with normal ventilation.
  • Custom PackingDrum sizes, labels and packing can be customized to your destination market requirements.
  • Shelf Life & Storage12 months in sealed original packaging at 5–45°C, in a cool, dry, ventilated store away from rain, heat and ignition sources. Test before use if shelf life is exceeded.
Request a Sample & Quote

Core Functions

Why silane impregnation outlasts surface coatings

Deep Penetration

3–6 mm Into the Concrete

Small-molecule silane (<1 nm) penetrates 3–6 mm into the capillary pore system — protection forms inside the substrate, so surface wear, foot traffic or abrasion does not remove it.

Chemical Bonding

Permanent Hydrophobic Network

In the alkaline concrete the ethoxy groups hydrolyze to silanols and form Si-O-Si covalent bonds with the pore-wall hydroxyls — a permanent silicone network, not a removable film. Designed service life 20+ years.

Water Repellency

Contact Angle ≥110°

The outward-facing isooctyl chains create a strong hydrophobic surface: water absorption drops by ≥90% to ≤0.01 mm/min0.5, and water simply beads off the structure.

Chloride Barrier

Chloride Uptake ↓≥90%

Chloride ion absorption is reduced by ≥90% (typical ≥95%) and electric flux by ≥80% — the key defense against seawater, salt spray and de-icing salt induced rebar corrosion.

Breathable

Non-Film, No Blistering

The pores are lined, not blocked — water vapor still escapes from inside. No film to peel, blister or flake, which is why silane keeps working where coatings fail.

Invisible

Zero Change to Appearance

Colorless, transparent, non-glossy: the natural color and texture of fair-faced concrete are fully preserved — the specified protection for exposed architectural concrete.

Durability

C8 Chain vs. Isobutyl Silane

The long branched isooctyl (C8) group gives stronger UV and weather resistance, better alkali stability and longer hydrophobic life than isobutyl silane — built for marine and severe exposure.

Applications

Where Isooctyl Triethoxysilane Impregnating Agent protects structures

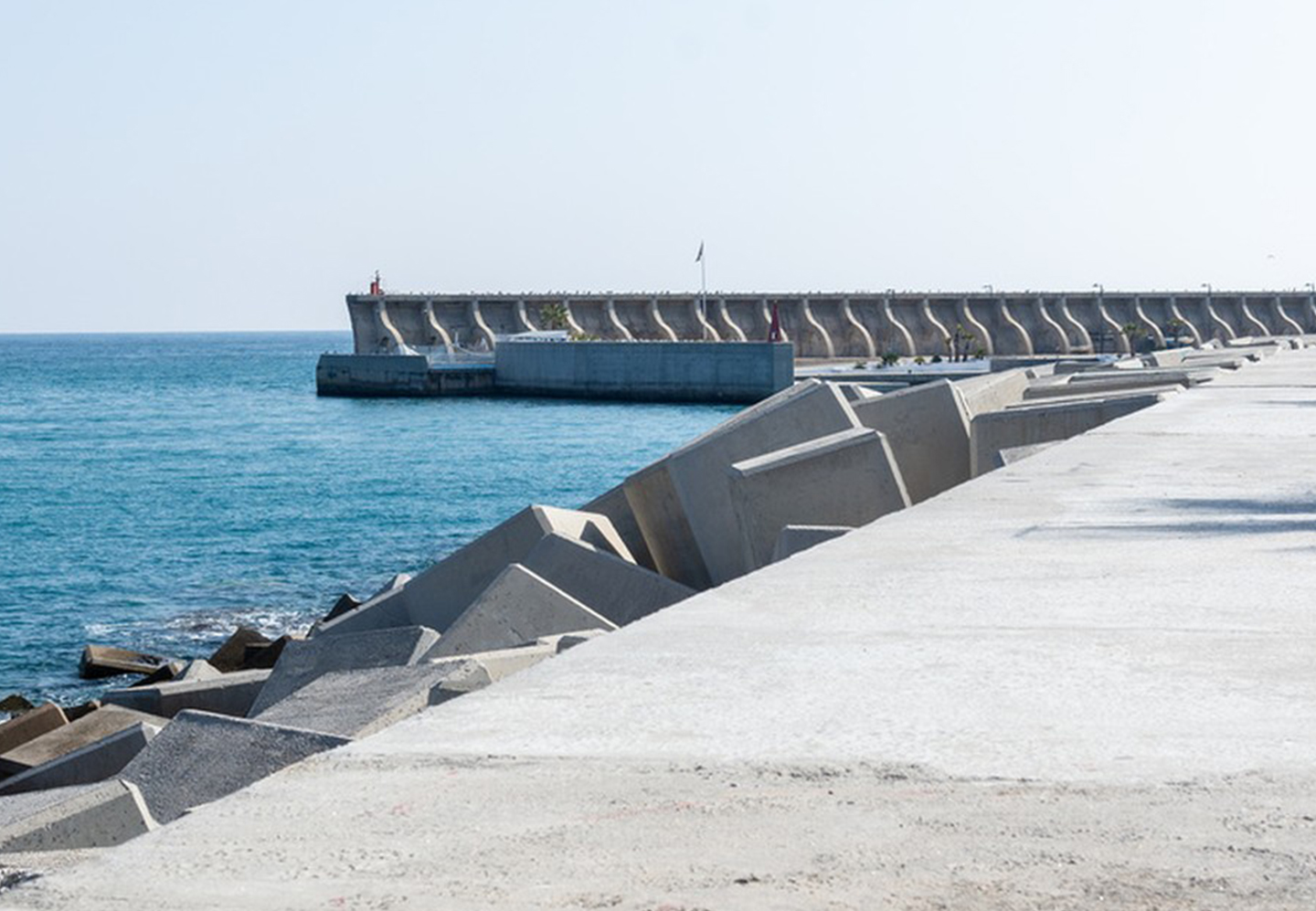

Harbor Wharves & Splash Zones protected with isooctyl triethoxysilane impregnating agent
Harbor Wharves & Splash Zones

The specified protection for dock walls, berths and breakwaters in the splash and tidal zone — JTJ 275 marine concrete protection.

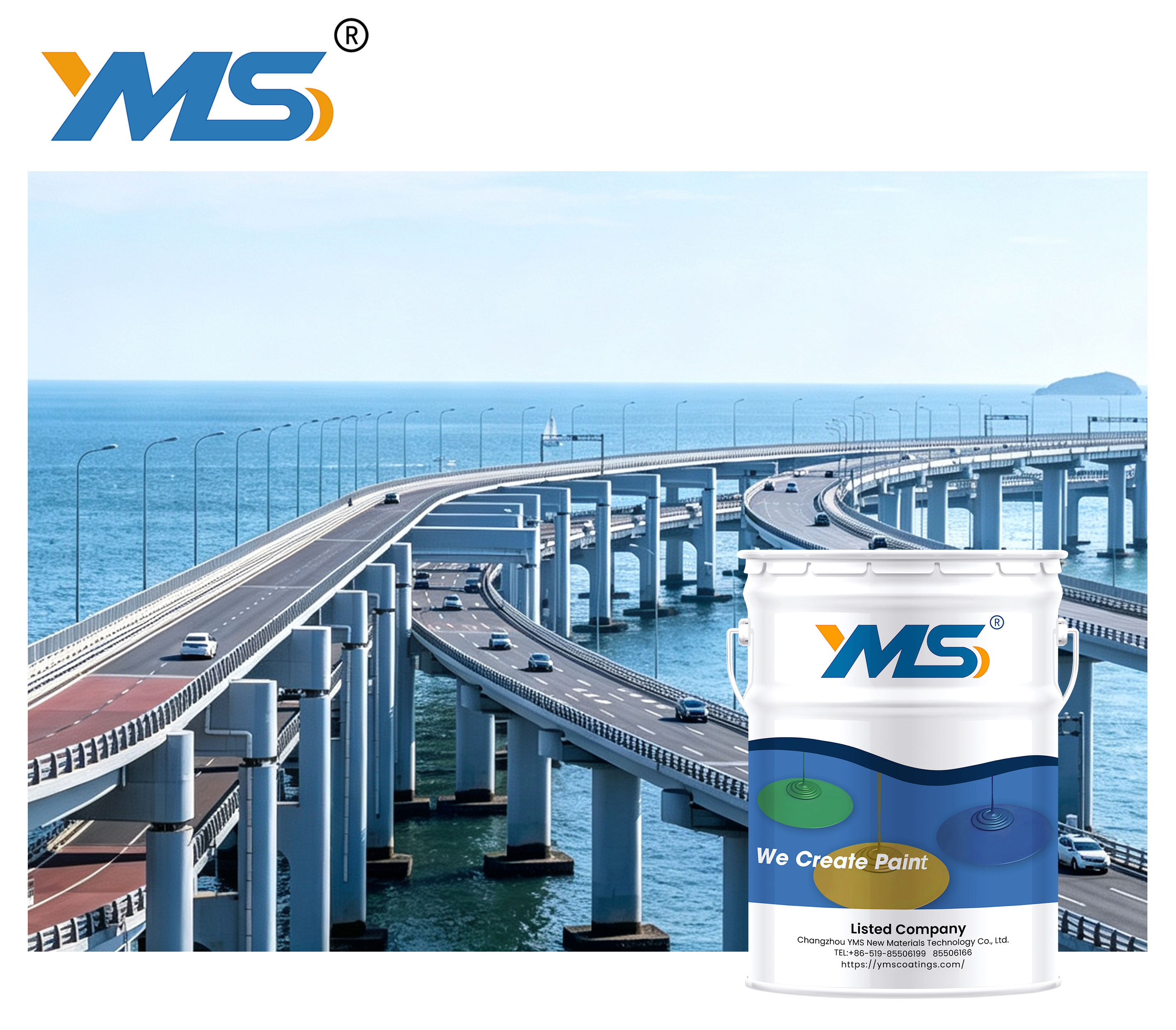

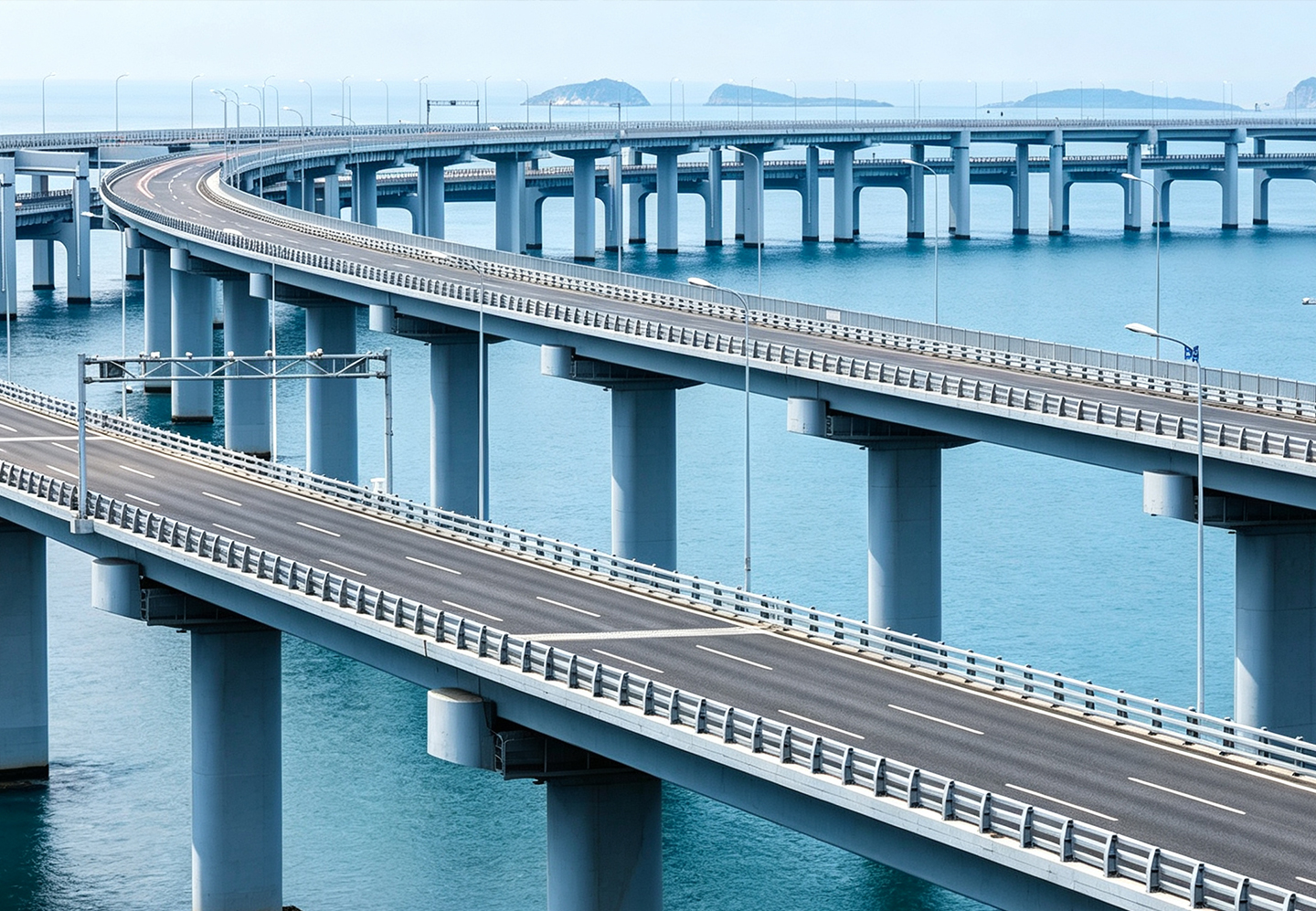

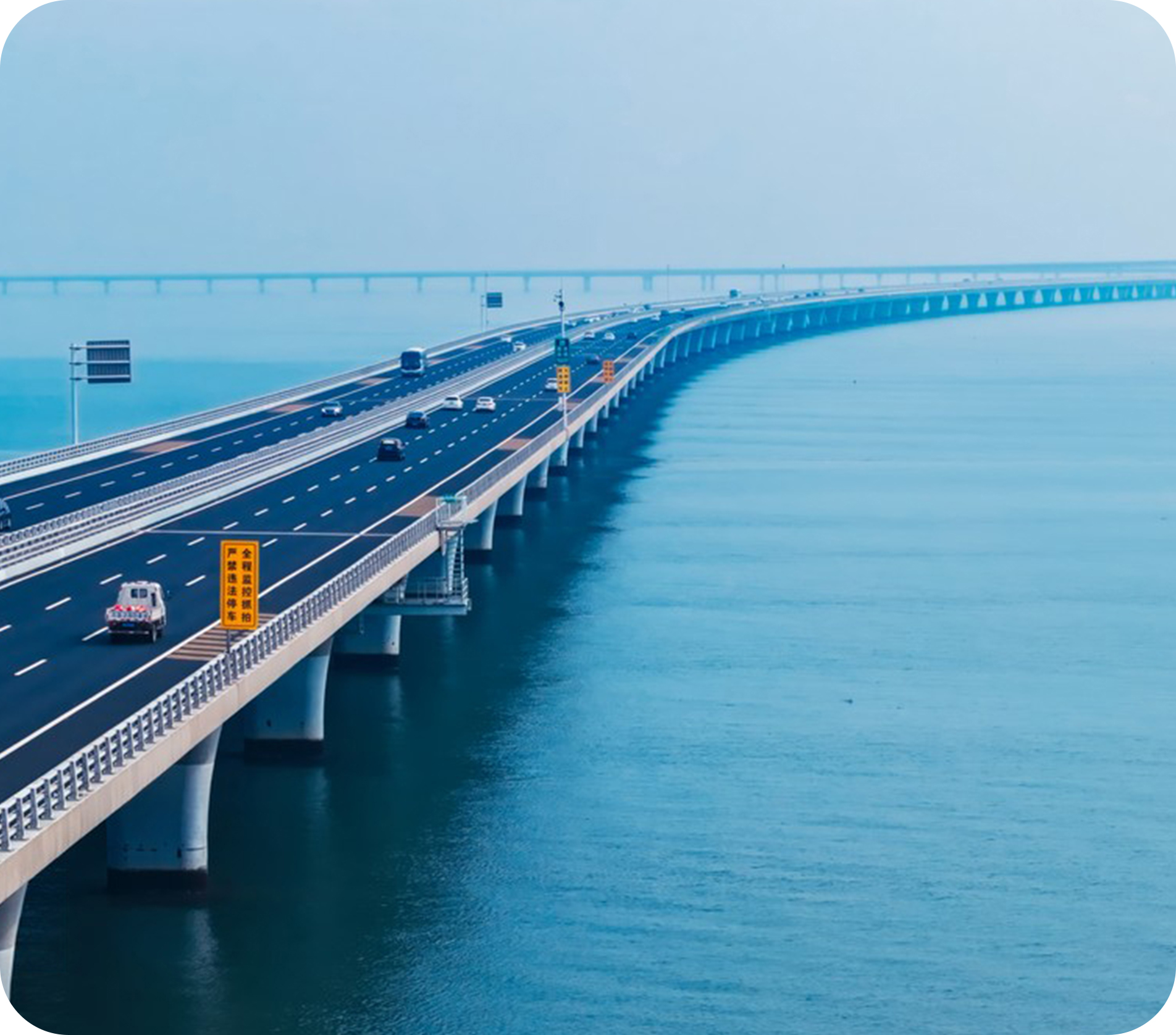

Cross-Sea & Highway Bridge Piers protected with isooctyl triethoxysilane impregnating agent
Cross-Sea & Highway Bridge Piers

Pier columns, box girders and deck slabs of coastal and river bridges exposed to salt spray and wet-dry cycling.

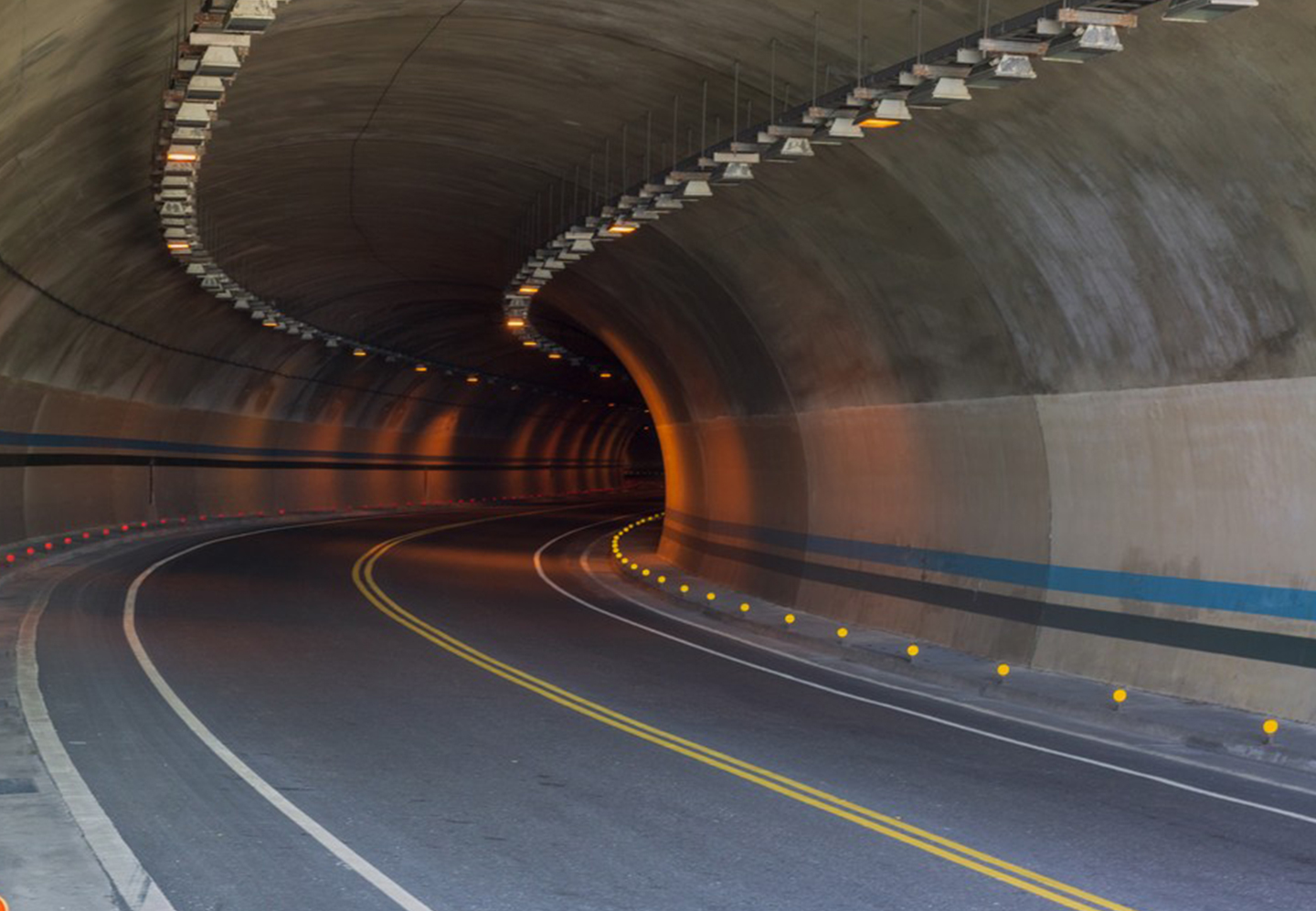

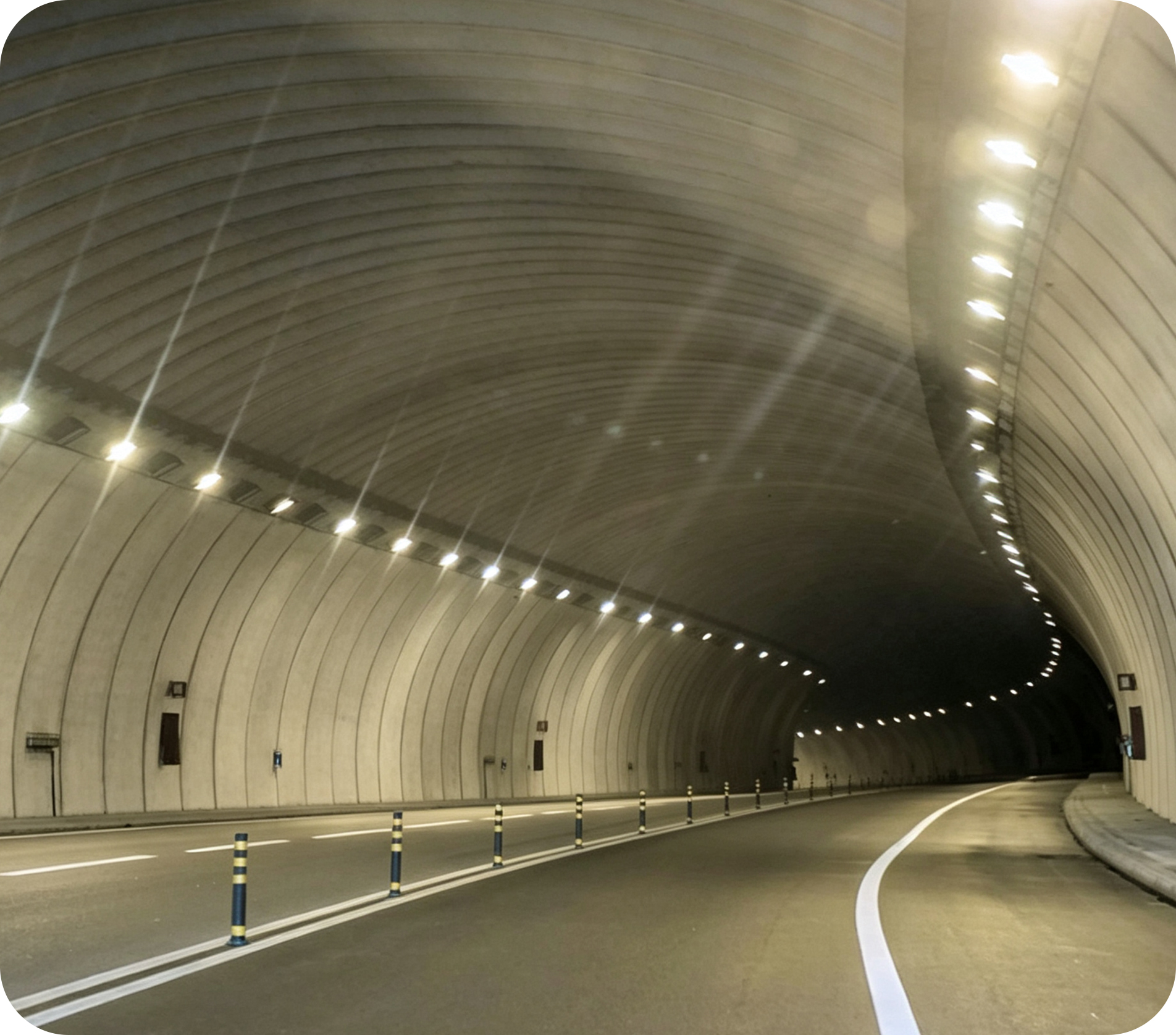

Tunnel Linings & Metro Structures protected with isooctyl triethoxysilane impregnating agent
Tunnel Linings & Metro Structures

Low-odor, solvent-free treatment for tunnel linings, metro stations and utility tunnels with traffic and passengers nearby.

Highway Barriers & De-Icing Salt Areas protected with isooctyl triethoxysilane impregnating agent
Highway Barriers & De-Icing Salt Areas

Median barriers, parapets and bridge decks on salted roads — blocking chloride ingress that triggers rebar corrosion.

Railway Viaducts & Precast Segments protected with isooctyl triethoxysilane impregnating agent
Railway Viaducts & Precast Segments

High-speed railway viaducts, precast box girders and sleepers protected before and after erection.

Dams & Hydraulic Structures protected with isooctyl triethoxysilane impregnating agent
Dams & Hydraulic Structures

Upstream faces, spillways and aqueduct concrete in permanent contact with water and freeze-thaw cycling.

How to Use · 4-Step Operating Procedure

From substrate preparation to a fully hydrophobized surface

1
Prepare the SubstrateConcrete cured (≥28 days), sound, clean and dry — remove laitance, dust, oil, form-release agents and old coatings. Repair cracks and defects first; check surface absorption on a trial area.
2
Flood Apply the First CoatSpray or flood-apply low-viscosity silane at ~200 g/m², keeping the surface wet and saturated for several minutes so the pores absorb the maximum amount of active silane.
3
Apply the Second Coat Wet-on-WetApply the second flood coat while the first is still wet, to a total dosage ≥400 g/m². On vertical faces, work from bottom up; use silane paste where run-off is a concern.
4
Cure & VerifyProtect from rain, washing and traffic for 24 h. Hydrolysis and bonding complete in about 7 days depending on temperature and humidity; verify by the water-beading and site absorption tests.

Note: specific surface preparation, dosage and acceptance criteria follow JTJ 275-2001 / JTG/T B07-01 / TB/T 3228 — we match a dedicated system one-to-one based on your substrate and working condition. Apply at 5–45°C on dry concrete; keep away from eyes and skin; dispose of empty drums responsibly.

See It In Action

Application and quality-control moments on real projects

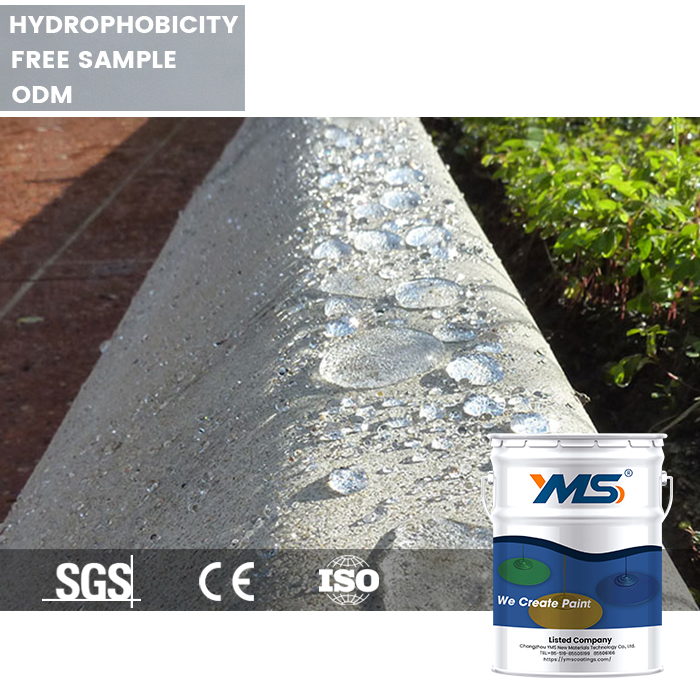

Water droplets beading tightly on concrete surface treated with isooctyl triethoxysilane impregnating agent

Water beads and rolls off — contact angle ≥110° on treated concrete.

Laboratory water absorption test on concrete specimen treated with silane impregnating agent

Every batch is verified — water absorption reduced ≥90% per JTJ 275.

Concrete foundation piles in the tidal splash zone protected with silane impregnating agent

Splash-zone foundations stay protected against seawater for 20+ years.

Why Choose YMS Paint / JIANBANG Coatings

More than a chemical supplier — your concrete protection system partner

26 YearsSource factory specialized in concrete protection, waterproofing and anticorrosion coatings.
87 CountriesExported worldwide with a local plant and service in Indonesia.
Full Protection LineSilane impregnation, rubber asphalt, acrylic, crystalline and PU systems cover every structure.
Full DocumentsTDS, MSDS, test reports and certificates supplied with every order.
Free MatchingCondition survey and free sample testing before bulk orders.
Custom PackingDrum sizes, labels and packing arranged per destination market.

One Protection Platform, Four Silane & Waterproofing Systems

Match the protection system to the exposure and the substrate

Isooctyl Silane

Isooctyl Triethoxysilane Impregnating Agent

This product — C8 branched-chain silane, ≥98% active, deepest UV and alkali resistance for marine and severe exposure.

Isobutyl Silane

Isobutyl Triethoxysilane Impregnating Agent

Cost-effective C4 penetrating silane for road, bridge and general concrete protection in moderate exposure.

Silane Paste

Silane Cream (~80% Active)

Thixotropic paste that stays on vertical faces without run-off — ideal for piers, walls and columns in wind or heat.

Elastic Membrane

Rubber Asphalt Waterproof Coating

Single-component elastic waterproof membrane where a sealed film is required — roofs, basements and bridge joints.

Frequently Asked Questions

What is Isooctyl Triethoxysilane Impregnating Agent?

A high-purity (≥98%) penetrating sealer based on isooctyltriethoxysilane (CAS 35435-21-3). Applied to concrete, it penetrates 3–6 mm into the capillaries, hydrolyzes and chemically bonds to the pore walls, forming a permanent hydrophobic silicone network that reduces water and chloride absorption by ≥90% without forming a film.

How is it different from film-forming waterproof coatings?

Coatings sit on the surface and can peel, blister and wear away; silane impregnates and reacts inside the concrete. Pores stay open so water vapor can escape — no blistering, no flaking, and the natural color and texture of the concrete are unchanged. Surface abrasion does not remove the protection because most of it is inside the substrate.

Why isooctyl (C8) silane instead of isobutyl (C4)?

The long branched C8 chain gives stronger UV and weather resistance, better stability in the alkaline concrete pore solution and a longer hydrophobic service life. That is why isooctyl triethoxysilane is the preferred grade for marine structures, salt spray zones, de-icing salt exposure and other severe environments.

Liquid or paste — which form should I use?

Liquid (≥98% active) penetrates fastest and suits horizontal and large surfaces applied by spray. Silane paste (~80% active, thixotropic) is used on vertical faces, columns and tops where liquid run-off is a concern or in hot and windy conditions. We supply both — tell us your structure and orientation.

How is it applied and how much per square meter?

Clean, dry, cured concrete (≥28 days) is flood-coated by low-pressure airless spray in two coats applied wet-on-wet, keeping the surface saturated — total dosage ≥400 g/m², confirmed by project design per JTJ 275-2001 / JTG/T B07-01 / TB/T 3228. Apply at 5–45°C, not in rain or onto standing water.

When does it become effective and how do I verify it?

Beading appears within hours, while full hydrophobization develops as hydrolysis and bonding complete — about 7 days depending on temperature and humidity. Verification uses the water-beading test, contact-angle measurement and site water-absorption testing against the ≤0.01 mm/min0.5 criterion.

Does it change the appearance of the concrete?

No — it is colorless, transparent and non-glossy. Fair-faced and architectural concrete keep their natural color and texture, which makes silane impregnation the standard protection for exposed structural concrete.

What standards and packing apply?

Performance is specified and tested per JTJ 275-2001 (Harbour Engineering Concrete Structures Anti-corrosion Technical Specifications), JTG/T B07-01 and TB/T 3228. Packed in 20 kg plastic drums, shelf life 12 months sealed at 5–45°C; 200 kg barrels and IBC totes available for large projects.
