W61-200 Silicone Heat Resistant Paint

This two components paint is composed of organosilicon resin, heat-resistant and anti-corrosive pigments, fillers, additives and curing agent, etc.It has the following characteristics：

Excellent heat resistance	High corrosion resistance	Resistance to chemical atmospheres
Aging resistance	Water resistance	Fast drying
Good insulation properties	Withstands long-term high temperature up to 200℃

W61-200 Silicone Heat Resistant Paint Video

W61-200 Silicone Heat Resistant Paint Basic Technical Datasheet

Color	Customized
Gloss	Glossy
Density	~1.25Kg/L (after mixing)
Hardness	Curing agent heat-resistant paint
Solid Volume	(45±2 )%
Standard Film thickness	50um dry film thickness  (about 111um wet film thickness)
Theoretical spreading rate	7.2m²/Kg (80um dry film thickness)
Full Cure	(23±2℃ )24h
Flash Point	27℃

W61-200 Silicone Heat Resistant Paint Product Packaging Packaging: part A：20 kg in a 20-liter iron bucket. part B：2 kg in a 4-liter iron bucket. Shelf Life: 12 months If exceeding shelf life, the products shall be tested before using.

W61-200 Silicone Heat Resistant Paint Applicable Environment

Boiler	Steam pipeline	Sintering furnace	Exhaust pipe
Hot blast stove	High-temperature chimney	Drying tunnel	Cracking furnace

W61-200 Silicone Heat Resistant Paint Compatibility

	Product	Thickness
Primer:	Inorganic Heat Resistant Primer 500℃	2*40 um (dry film thickness)
Topcoat:	Silicone Heat Resistant Paint 200℃	2*25 um (dry film thickness)

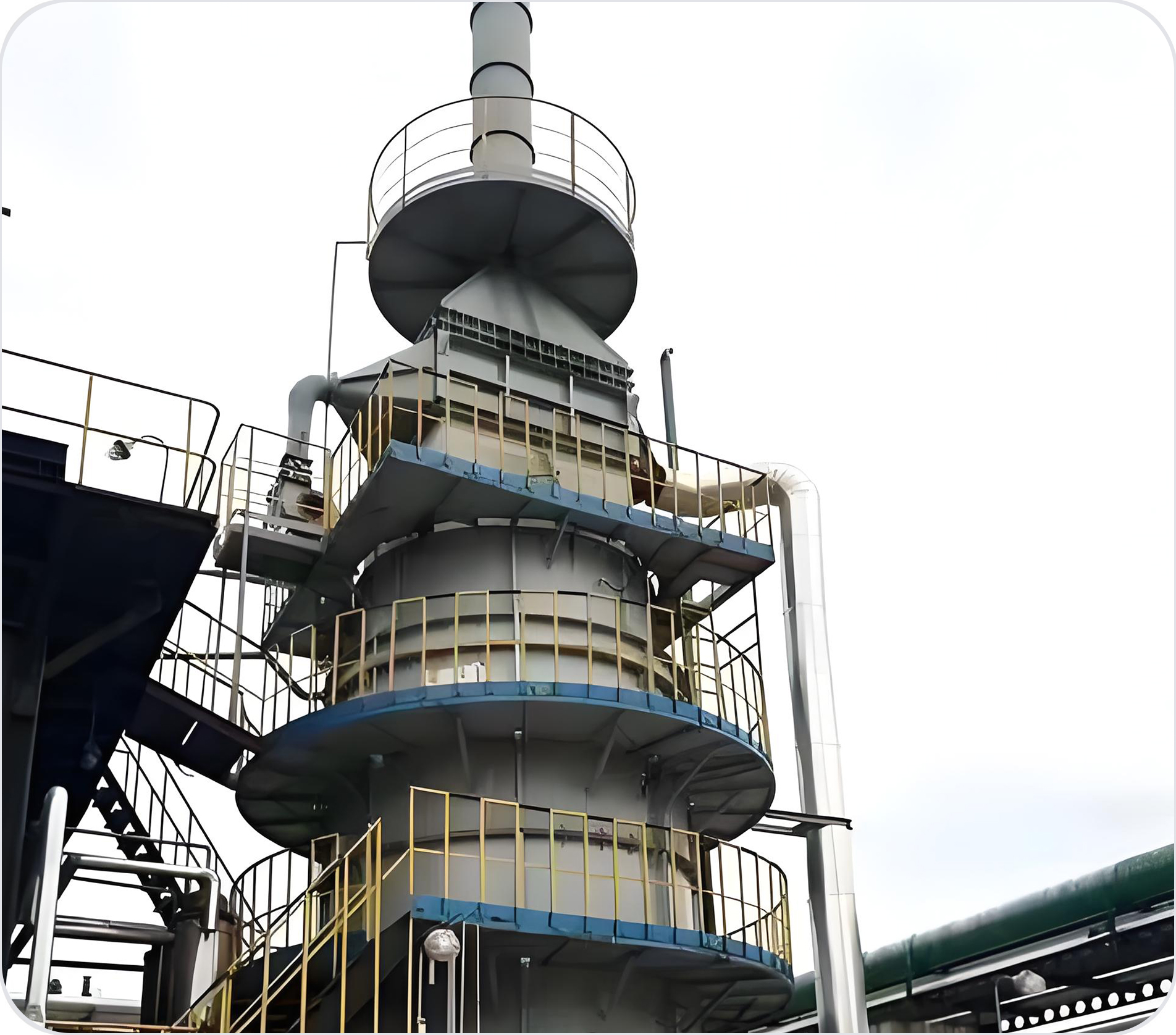

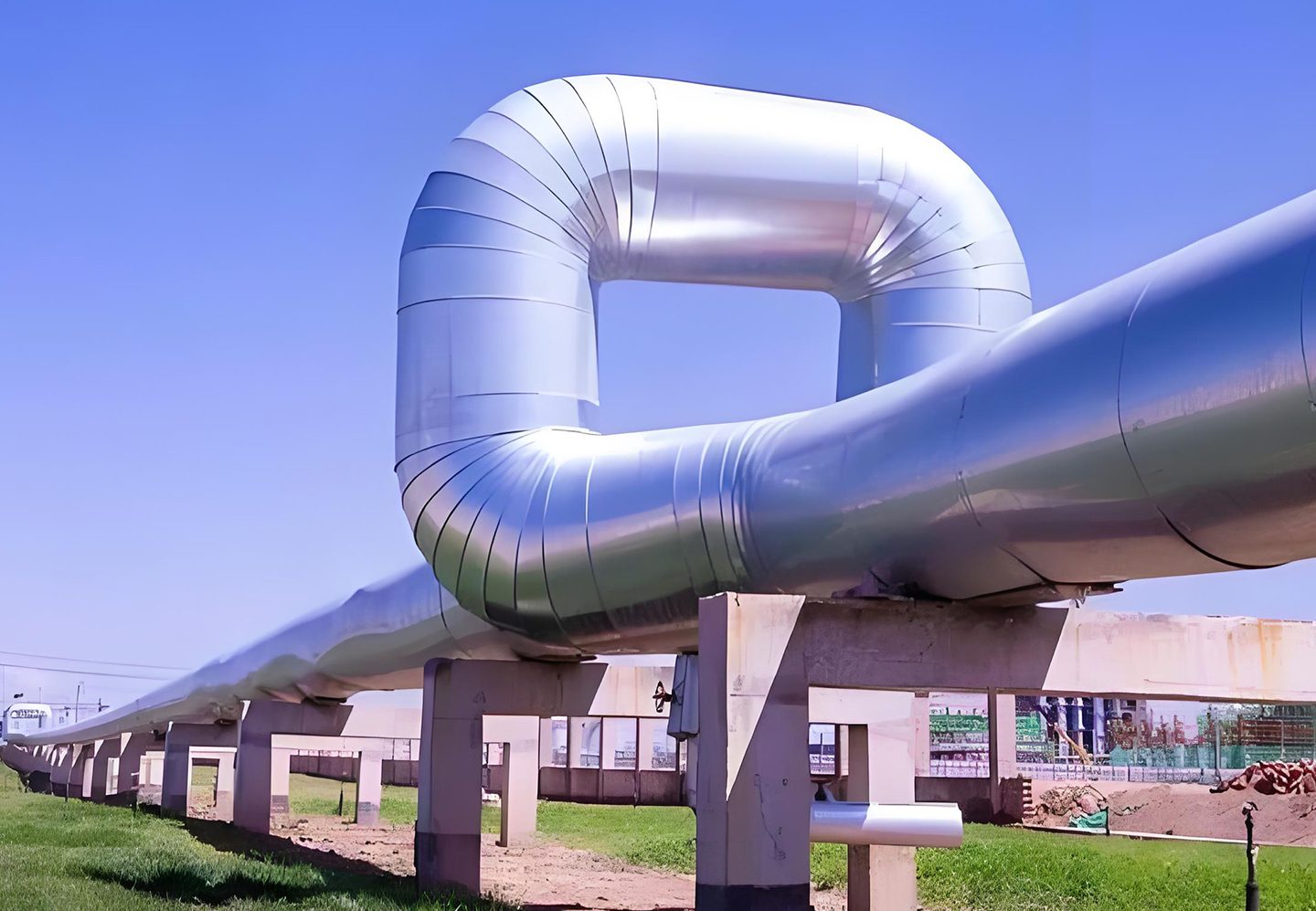

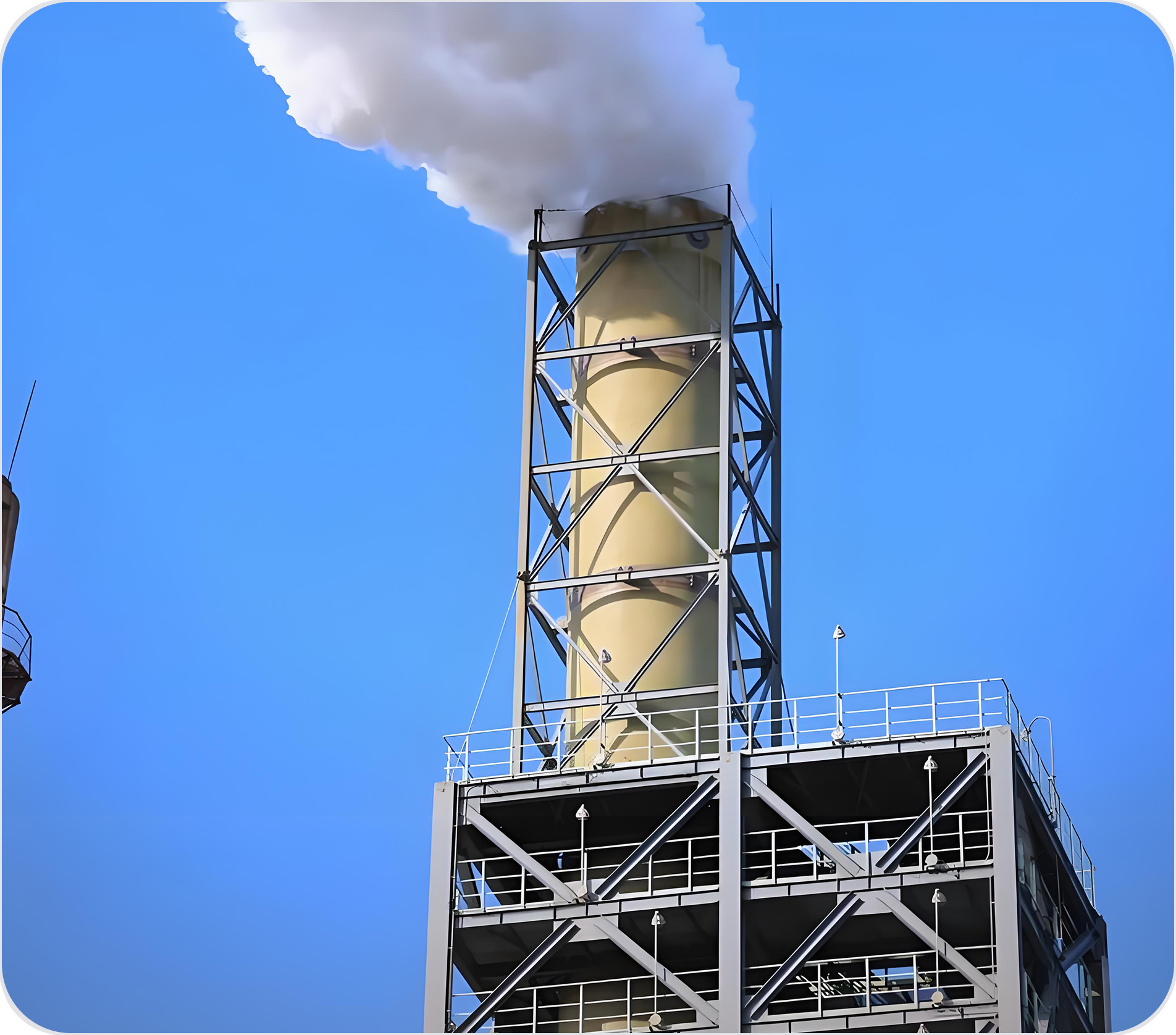

W61-200 Silicone Heat Resistant Paint Finished Projects

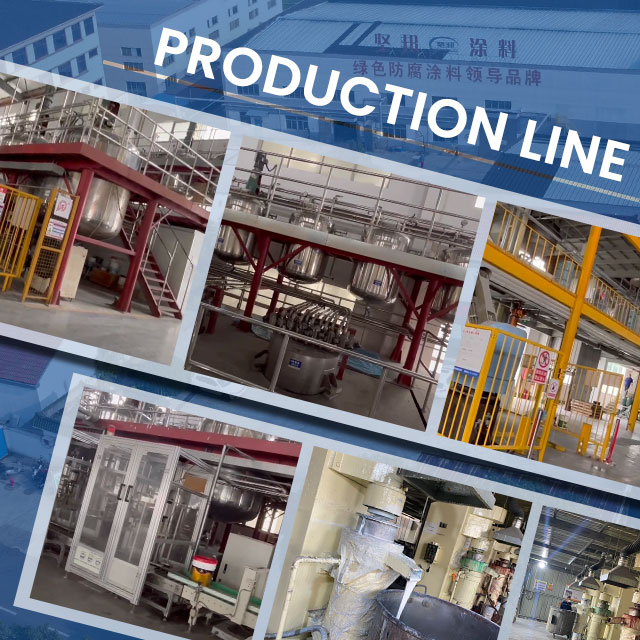

W61-200 Silicone Heat Resistant Paint Production Process

W61-200 Silicone Heat Resistant Paint Instructions For Use

Substrate Treatment：

The surface to be coated shall be clean, dry and free from contaminations. Also, the surface shall be evaluated and handled according to ISO8504 standard.

Bare steel: sandblasting to Sa2.5(IOS8501-1:2007). For the non-soaking site, acceptable for power tool grinding, but at least reach St2(IOS8501-1:2007).

Steel painted shop primer: apply to clean, dry, intact and approved primer.

Painted surface: only apply to clean, dry and intact compatible primer.

Instructions for Use:

• Mixing:

Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you to mix the paint well.

• Mixing ratio:

Part A: Part B= 20:2(by weight)

• Thinner:

Exclusive thinner for heat-resistant paint

• Airless spray:

Nozzle tip: 0.017~0.023 inches

Spray pressure: 15~18Mpa

Thinner ratio: 5~15% (by weight of paint)

• BrushRoller:

Recommended for small areas only.  Must achieve required thickness.

• Roller coater

Not recommended.
