W61-400 Silicone Heat Resistant Paint

This two components paint is composed of organosilicon resin, heat-resistant and anti-corrosive pigments, fillers, additives and curing agent, etc., and it has the following outstanding characteristics:

Can withstand 400°C long-term.	Corrosion-resistant	Anti-aging
Waterproof	Quick-drying	Easy to apply

W61-400 Silicone Heat Resistant Paint Video

W61-400 Silicone Heat Resistant Paint Basic Technical Datasheet

Color	Customized
Gloss	Flat
Density	~1.36Kg/L(after mixing)
Hardness	Silicone curing agent
Solid Volume	(44±2 )%
Standard Film thickness	50um dry film thickness  (about 114um wet film thickness)
Theoretical spreading rate	6.47m²/Kg (50um dry film thickness)
Full cure	(23±2℃) 7d
Flash Point	27℃

W61-400 Silicone Heat Resistant Paint Product Packaging Packaging: part A：20kg in a 20-liter iron bucket. part B：2kg in a 4-liter iron bucket. Shelf Life: Part A：12 months，Part B：6 months If exceeding shelf life, the products shall be tested before using.

W61-400 Silicone Heat Resistant Paint Applicable Environment

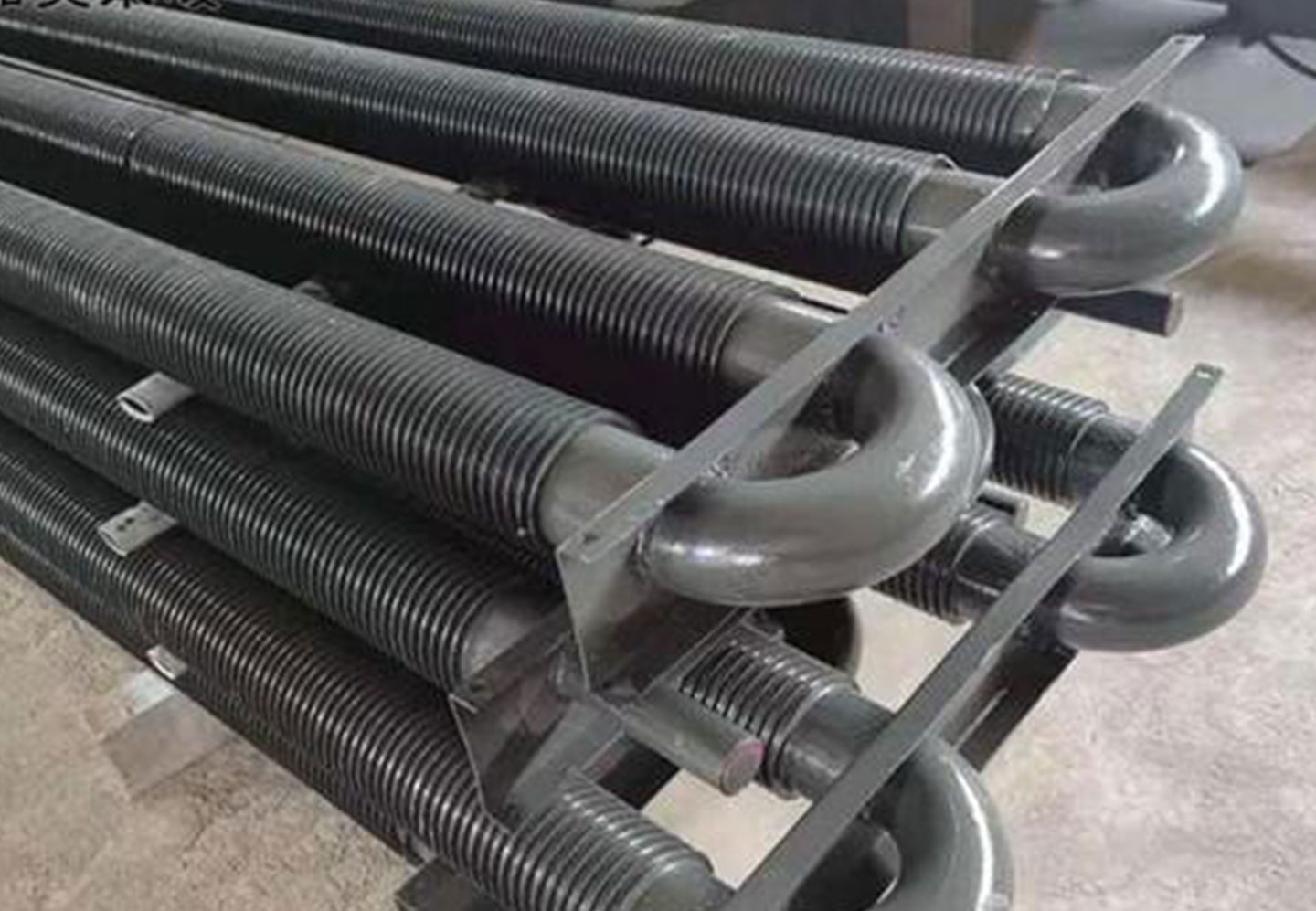

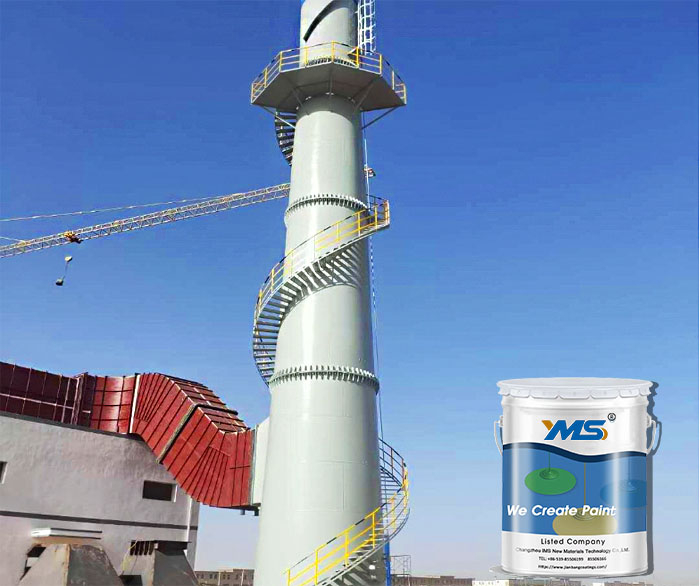

Chimney	Drying passage	Exhaust pipe	Heating pipeline

W61-400 Silicone Heat Resistant Paint Compatibility

	Product	Thickness
Primer:	Inorganic Heat Resistant Primer 500℃	2*30 µm (dry film thickness)
Topcoat:	Silicone Heat Resistant Paint 400℃	2*25um (dry film thickness)

W61-400 Silicone Heat Resistant Paint Finished Projects



W61-400 Silicone Heat Resistant Paint Production Process

W61-400 Silicone Heat Resistant Paint

Instructions For Use

Substrate Treatment：

The surface to be coated shall be clean, dry and free from contaminations. Also, the surface shall be evaluated and handled according to ISO8504 standard.

Bare steel: sandblasting to Sa2.5(IOS8501-1:2007). For the non-soaking site, acceptable for power tool grinding, but at least reach St2(IOS8501-1:2007).

Steel painted shop primer: apply to clean, dry, intact and approved primer.

Painted surface: only apply to clean, dry and intact compatible primer.

Instructions for Use:

• Mixing:

Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you to mix the paint well.

• Mixing ratio:

Part A: Part B= 20:2 (by weight)

• Thinner:

Exclusive thinner for heat-resistant paint

• Airless spray:

Nozzle tip: 0.017~0.023 inches

Spray pressure: 15~18Mpa

Thinner ratio: 5~15% (by weight of paint)

• Brush、Roller:

Recommended for small areas only.  Must achieve required thickness.

• Roller coater

Not recommended.
