W61-800 Silicone Heat Resistant Paint | High-Temperature Coating for Metal & Industrial Surfaces

  • W61-800

  • YMS

  • Gray, Black

  • Glossy

  • ~1.37Kg/L (after mixing)

  • 27℃

  • (45±2 )%

  • Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you to mix the paint well. The mixture is cured 30minutes no less than 10℃ while15 minutes over 10 ℃.

  • Part A: Part B= 20:2(by weight)

  • 5.47m²/Kg (60um dry film thickness)

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button



W61-800 Silicone Heat Resistant Paint


This ambient curing two components paint is composed of organosilicon resin, special heat-resistant and anti-corrosive pigments, fillers, additives and curing agent, etc., and it has the following outstanding characteristics:

  • Can withstand 800°C long-term.

  • Anti-corrosion

  • Resistant to chemical atmosphere

  • Anti-aging

  • Waterproof

  • Rapidly adapt to temperature differences




W61-800 Silicone Heat Resistant Paint Video








W61-800 Silicone Heat Resistant Paint

Basic Technical Datasheet



Color

Gray, Black

Gloss

Glossy

Density

~1.37Kg/L(after mixing)

Hardness

Heat-resistant curing agent

Solid Volume

(45±2 )%

Standard Film thickness

60um dry film thickness  (about 133um wet film thickness)

Theoretical spreading rate

5.47m²/Kg (60um dry film thickness)

Full cure

(23±2) 24h

Flash Point

27℃
1




W61-800 Silicone Heat Resistant Paint Product Packaging

Packaging:

part A:20kg in a 20-liter iron bucket.

part B:2kg in a 4-liter iron bucket.

Shelf Life:

Part A:12 months,Part B:6 months

If exceeding shelf life, the products shall be tested before using.




W61-800 Silicone Heat Resistant Paint

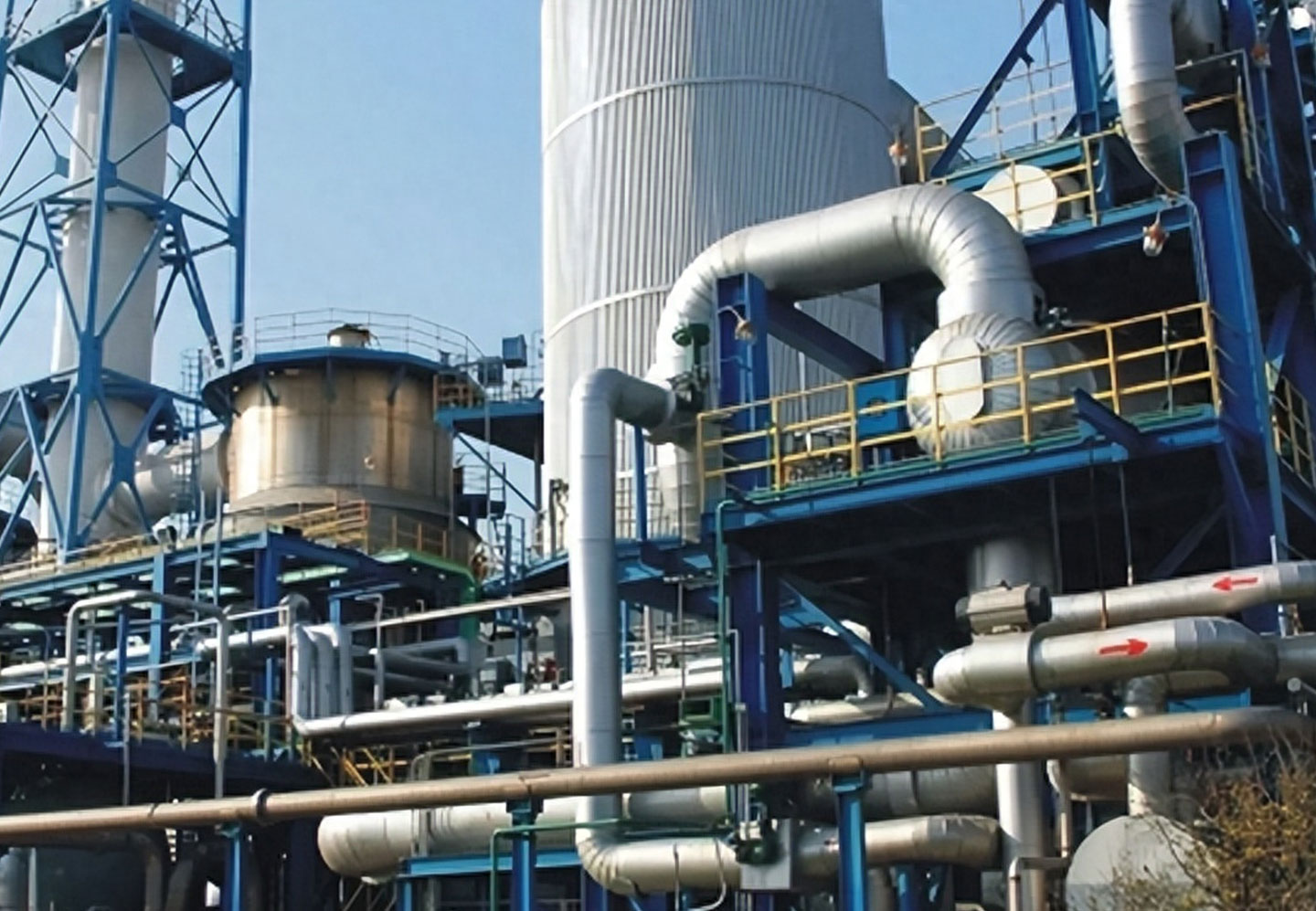

Applicable Environment



2 3 4 5
Metallurgy

Aerospace

Petroleum industry

High-temperature pipeline



W61-800 Silicone Heat Resistant Paint Compatibility




Product Thickness

Primer:

Silicone Heat Resistant Primer 800℃

2*40 µm (dry film thickness)

Topcoat:

Silicone Heat Resistant Paint 800℃

2*30um (dry film thickness)



W61-800 Silicone Heat Resistant Paint Finished Projects



6 7 8




W61-800 Silicone Heat Resistant Paint Production Process



4-1 4-2 4-3




W61-800 Silicone Heat Resistant Paint

Instructions For Use



Substrate Treatment:

The surface to be coated shall be clean, dry and free from contaminations. Also, the surface shall be evaluated and handled according to ISO8504 standard.

Bare steel: sandblasting to Sa2.5(IOS8501-1:2007). For the non-soaking site, acceptable for power tool grinding, but at least reach St2(IOS8501-1:2007).

Steel painted shop primer: apply to clean, dry, intact and approved primer.

Painted surface: only apply to clean, dry and intact compatible primer.

Instructions for Use:

  • Mixing:

Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you to mix the paint well. The mixture is cured 30minutes no less than 10℃ while15 minutes over 10 ℃.

  • Mixing ratio:

Part A: Part B= 20:2 (by weight)

  • Thinner:

Exclusive thinner for heat-resistant paint

  • Airless spray:

Nozzle tip: 0.017~0.023 inches

Spray pressure: 15~18Mpa

Thinner ratio: 5~15% (by weight of paint)

  • Brush、Roller:

Recommended for small areas only.  Must achieve required thickness.

  • Roller coater

Not recommended.
