Epoxy Acetal Rust Tolerant Primer
This product is composed of film-forming solution and conversion solution. Film-forming solution contains epoxy resin, butyral resin, anti-rust pigment, plasticizer auxiliaries and organic solvent while conversion solution contains phosphate, auxiliaries, and organic solvent.It has the following resistance characteristics:
|
|
|
Epoxy Acetal Rust Tolerant Primer Video
Epoxy Acetal Rust Tolerant Primer
Basic Technical Datasheet
Color | Iron-red |
Gloss | No gloss |
Density | ~1.43Kg/L (after mixing) |
Hardness | Exclusive curing agent for epoxy paint |
Solid Volume | (50±2 )% |
Standard Film thickness | 80um dry film thickness (about 160um wet film thickness) |
Theoretical spreading rate | 4.37m²/Kg (80um dry film thickness) |
Flash Point | 33℃ |

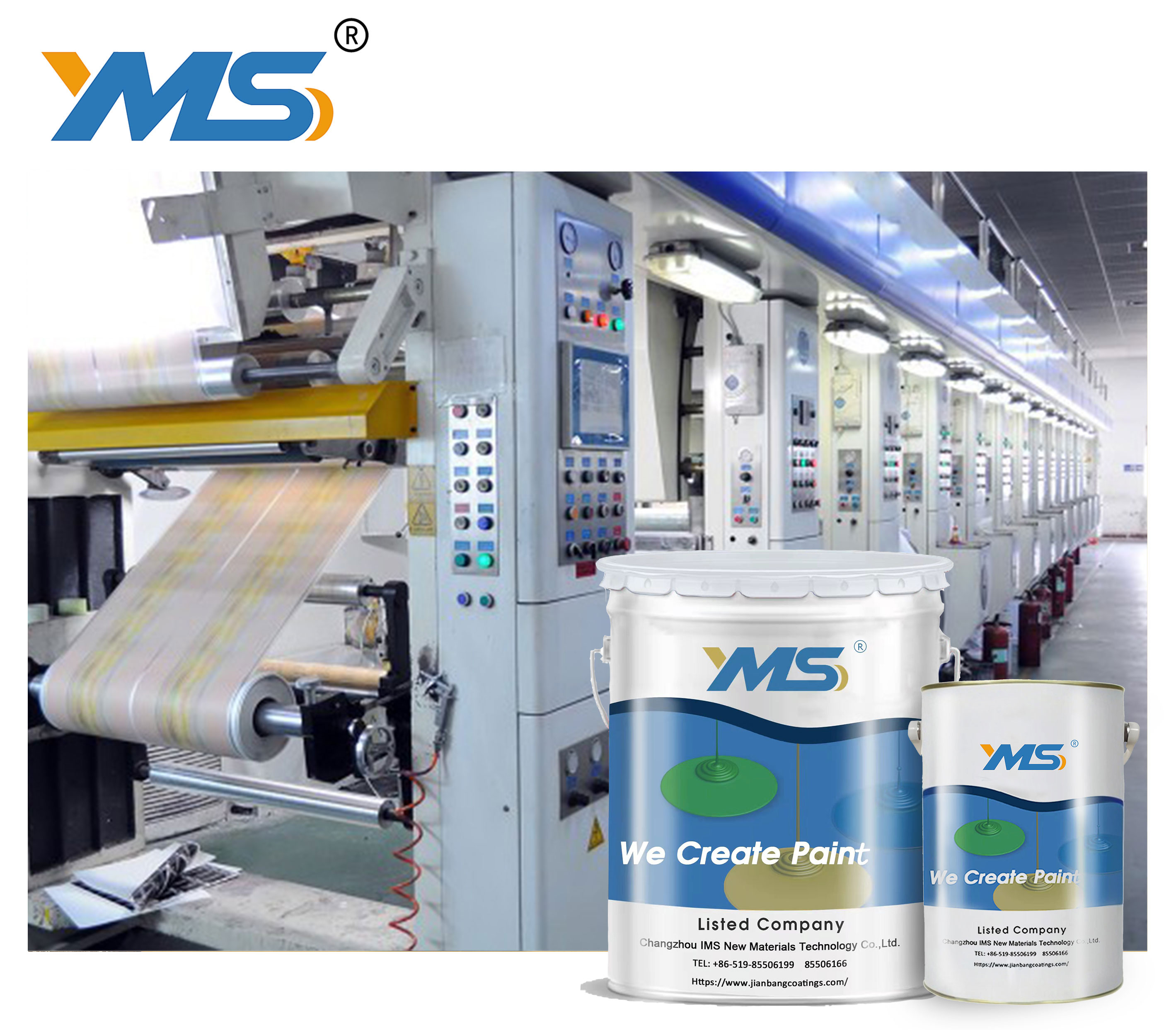

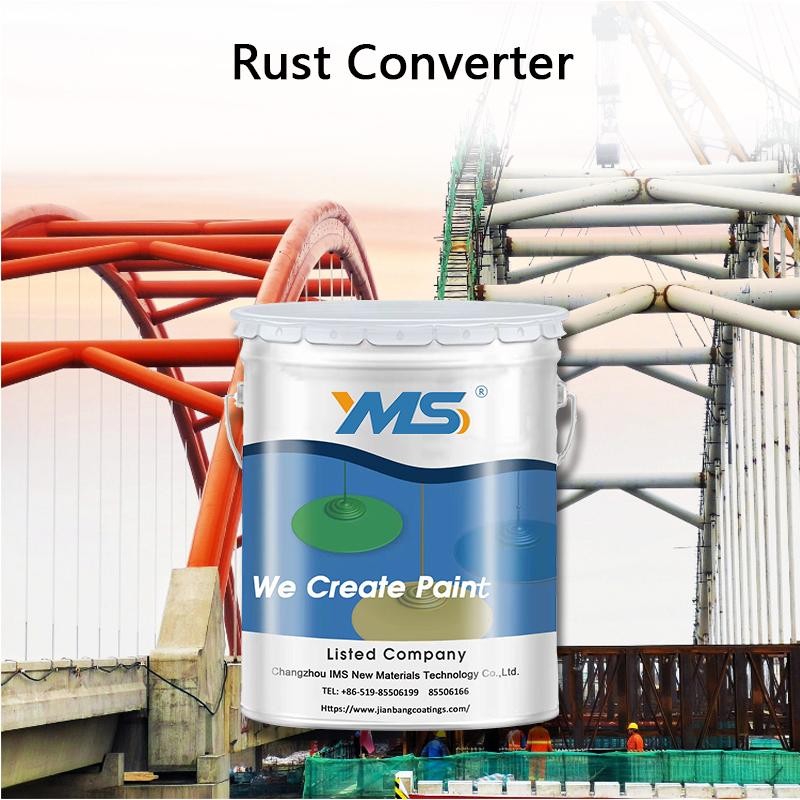

![]() | Epoxy Acetal Rust Tolerant Primer Product PackagingPackaging: part A:24kg in a 20-liter iron bucket. part B:6kg in a 8-liter iron bucket. Shelf Life: 12 months If exceeding shelf life, the products shall be tested before using. |
![]() | ![]() | ![]() | ![]() |

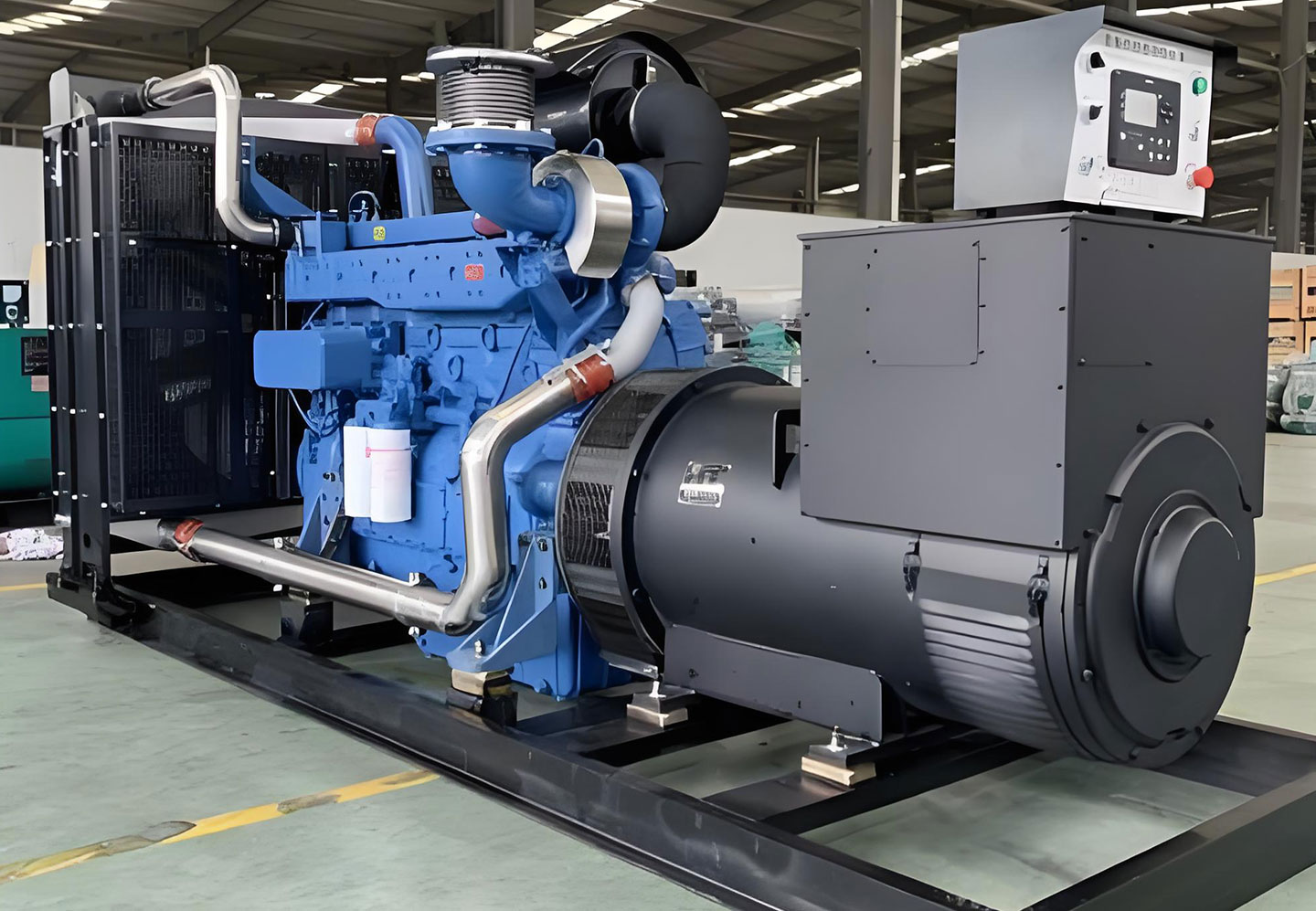

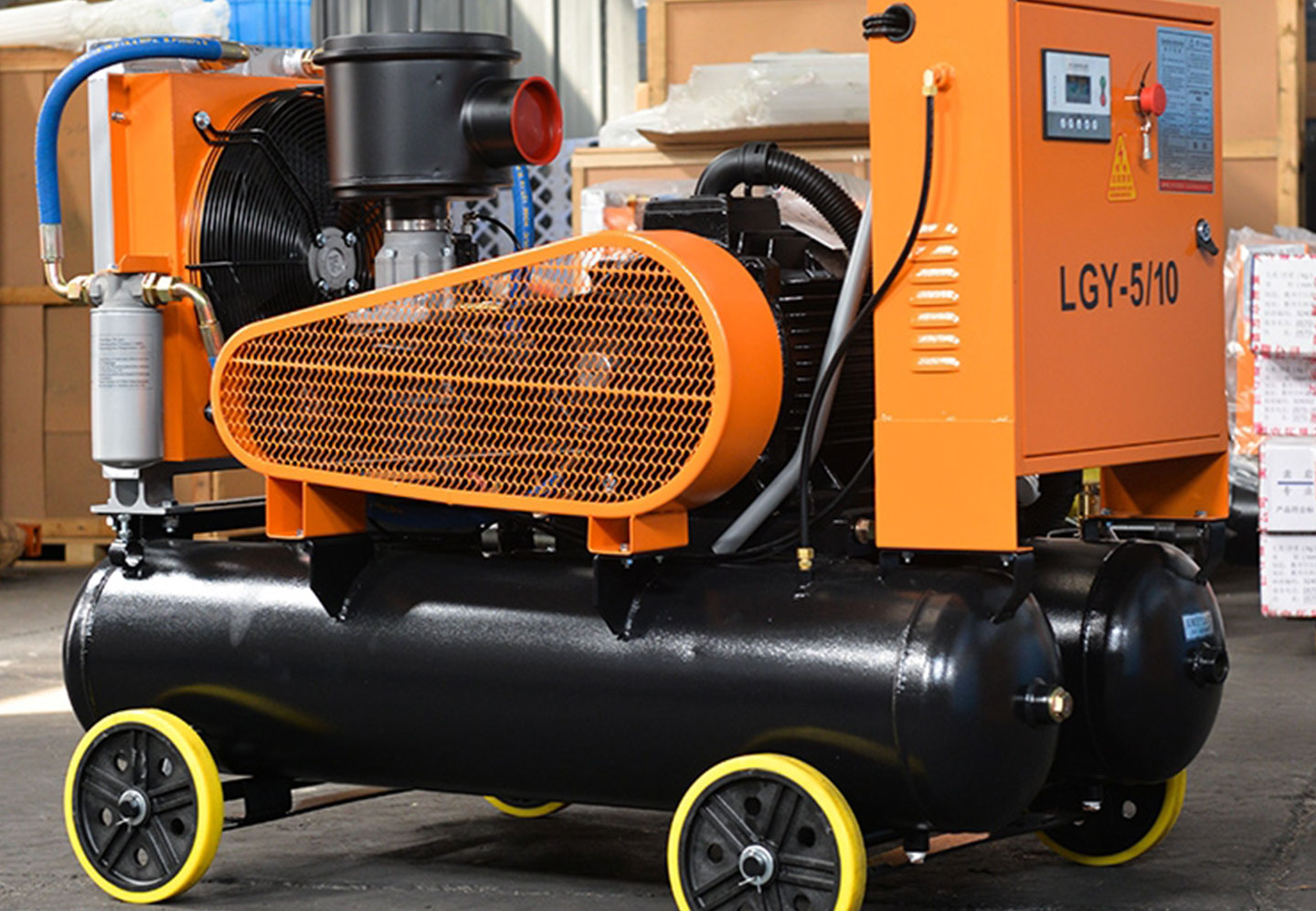

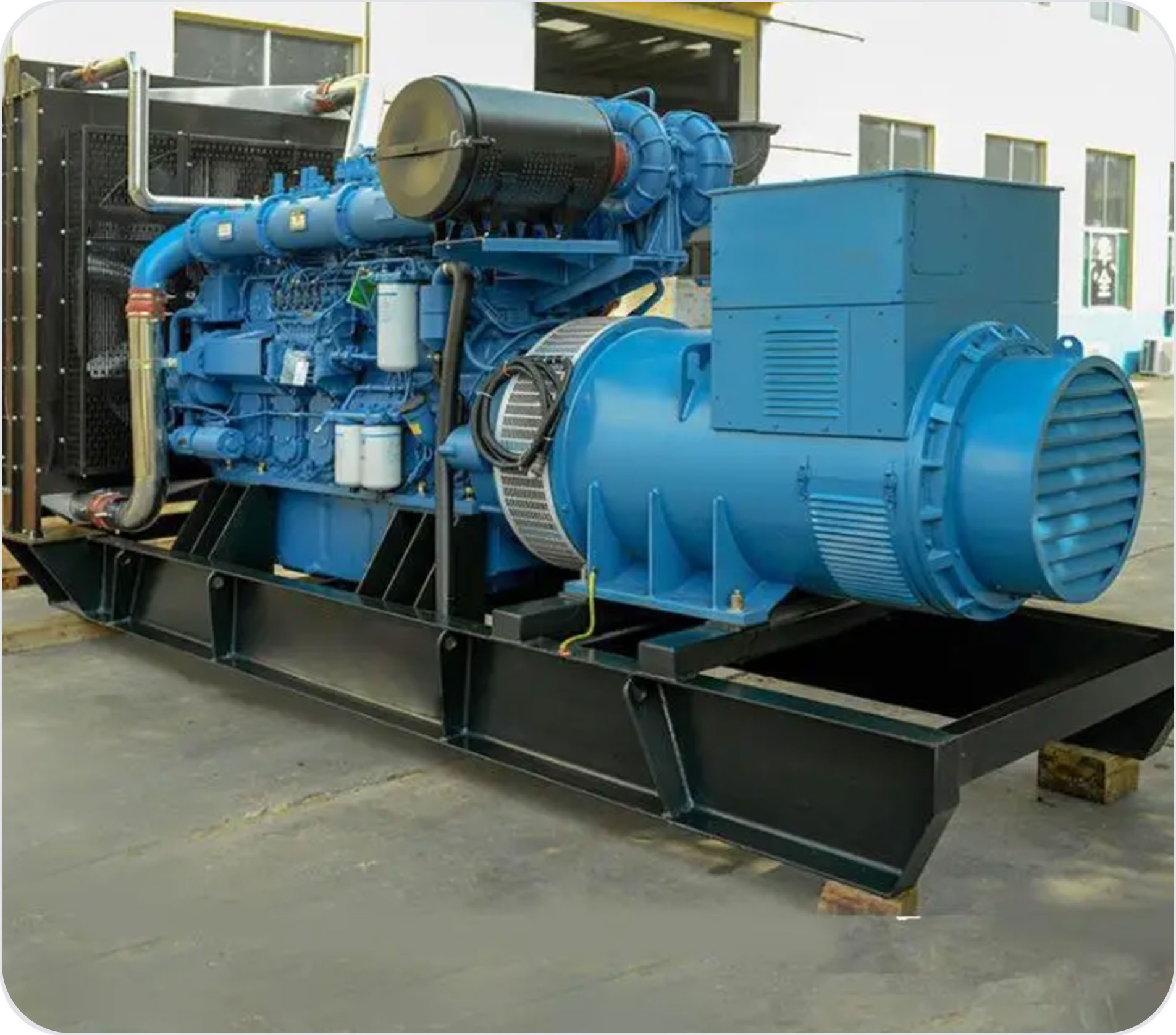

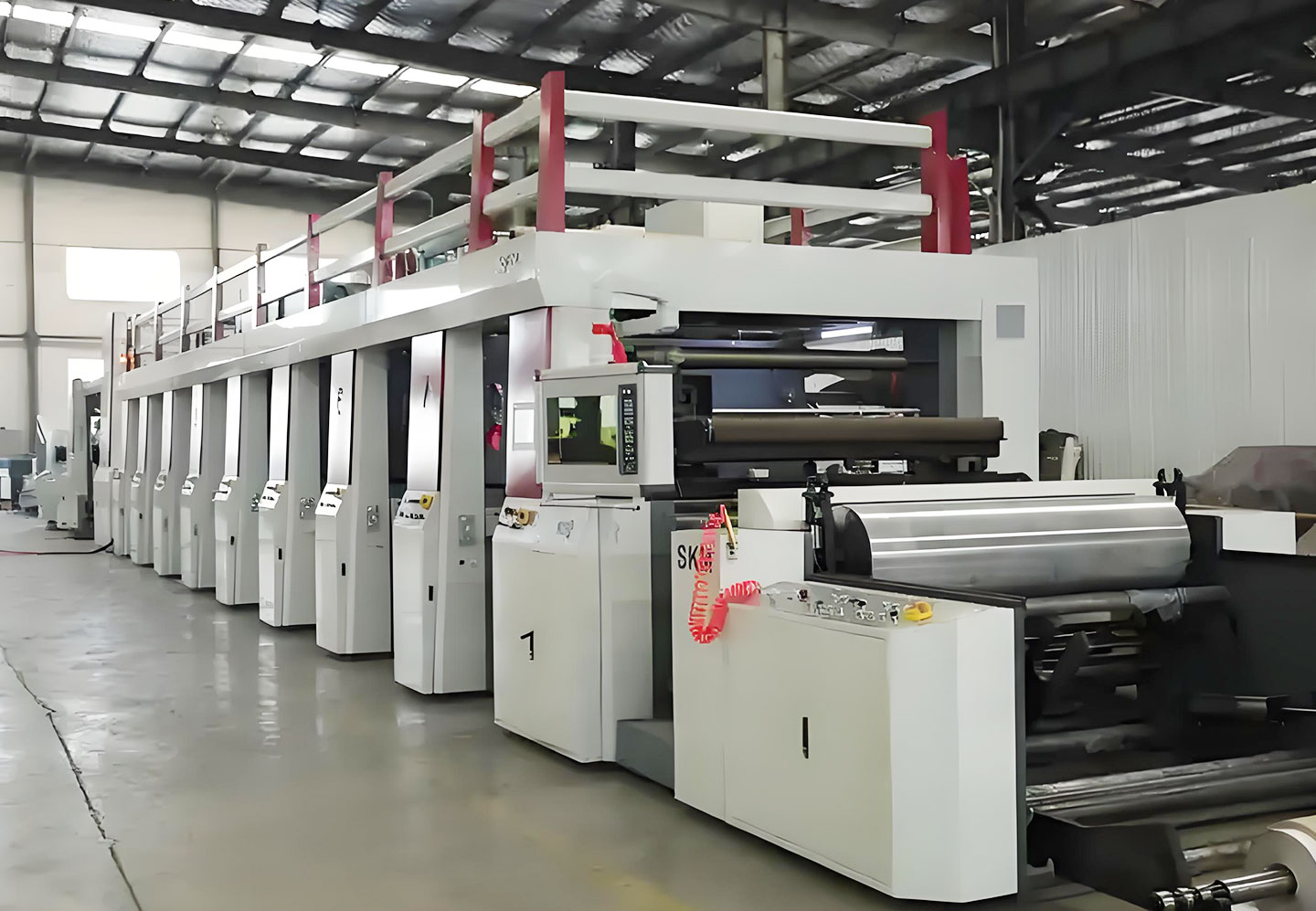

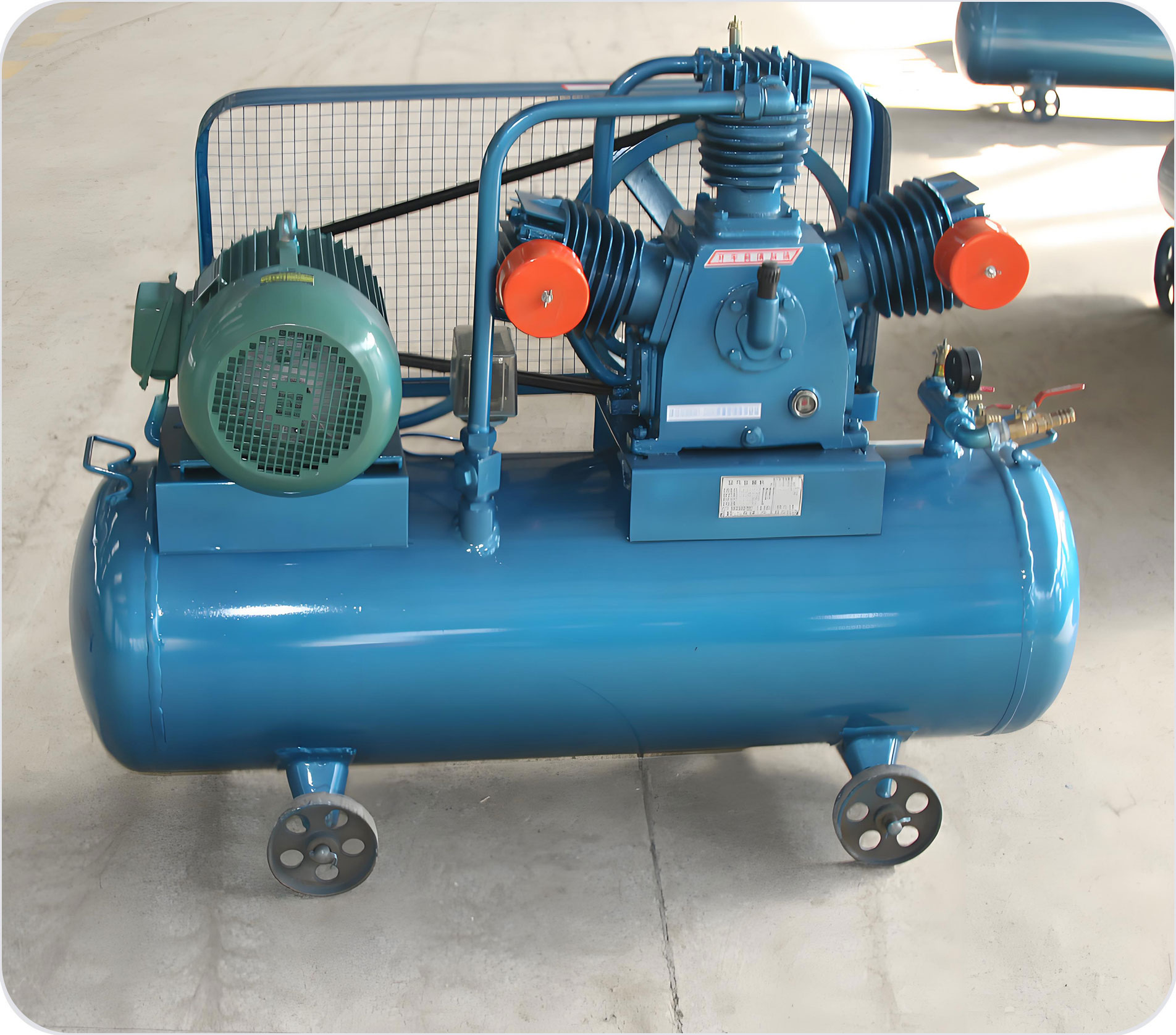

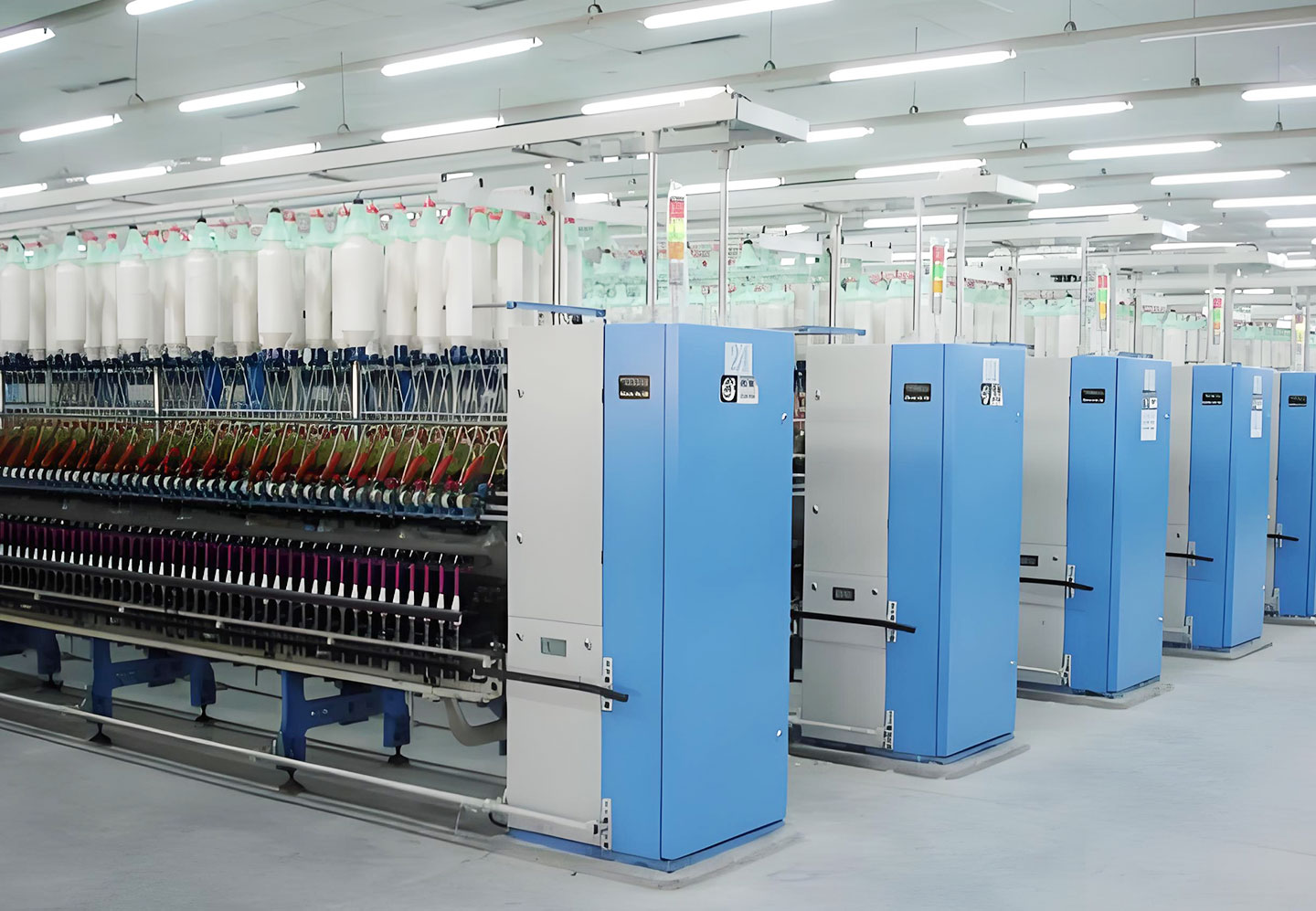

Generator | Textile machine | Air compressor | Printing machine |
Product | Thickness | |
Primer: | Epoxy Acetal Rust Tolerant Primer | 2*40 um (dry film thickness) |
Paint: | Epoxy Mica Iron Oxide Intermediate Paint | 2*60 um (dry film thickness) |
Finish: | Epoxy Finish Paint | 2*40um (dry film thickness) |
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
Substrate Treatment:
The surface to be coated shall be clean, dry and free from contaminations. Also, the surface shall be evaluated and treated according to ISO8504 standard.
Bare steel: sandblasting to reach Sa2.5(IOS8501-1:2007). For the non-soaking site, acceptable for power tool grinding, at least reach St2(IOS8501-1:2007).
Instructions for Use:
Mixing:
Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you get to mix well.
Thinner:
Exclusive thinner
Airless spray:
Nozzle tip: 0.025~0.031 inches
Spray pressure: 18~28Mpa
Thinner ratio: 5~15% (by weight of paint)
Brush, Roller:
Recommended for small areas only. Must achieve required thickness
![]() | |||
![]() | ![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
