Epoxy Anti-corrosive Rust Tolerant Primer

This two-component product is composed of  epoxy resin, anti-rust pigment, penetration agent, curing agent, auxiliaries, etc.It has the following resistance characteristics:

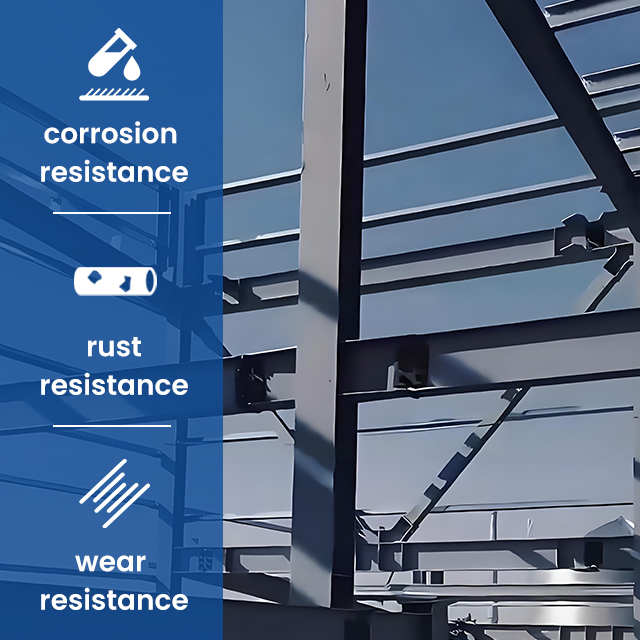

Corrosion resistance

Abrasion resistance

Good adhesion

Epoxy Anti-corrosive Rust Tolerant Primer Video

Epoxy Anti-corrosive Rust Tolerant Primer Basic Technical Datasheet

Color	Iron-red
Gloss	No gloss, Flat
Density	~1.43Kg/L (after mixing)
Hardness	Exclusive curing agent for epoxy paint
Solid Volume	(50±2 )%
Standard Film thickness	80um dry film thickness  (about 160um wet film thickness)
Full cure	(23±2℃ ) 7d
Theoretical spreading rate	4.37m²/Kg (80um dry film thickness)
Flash Point	27℃

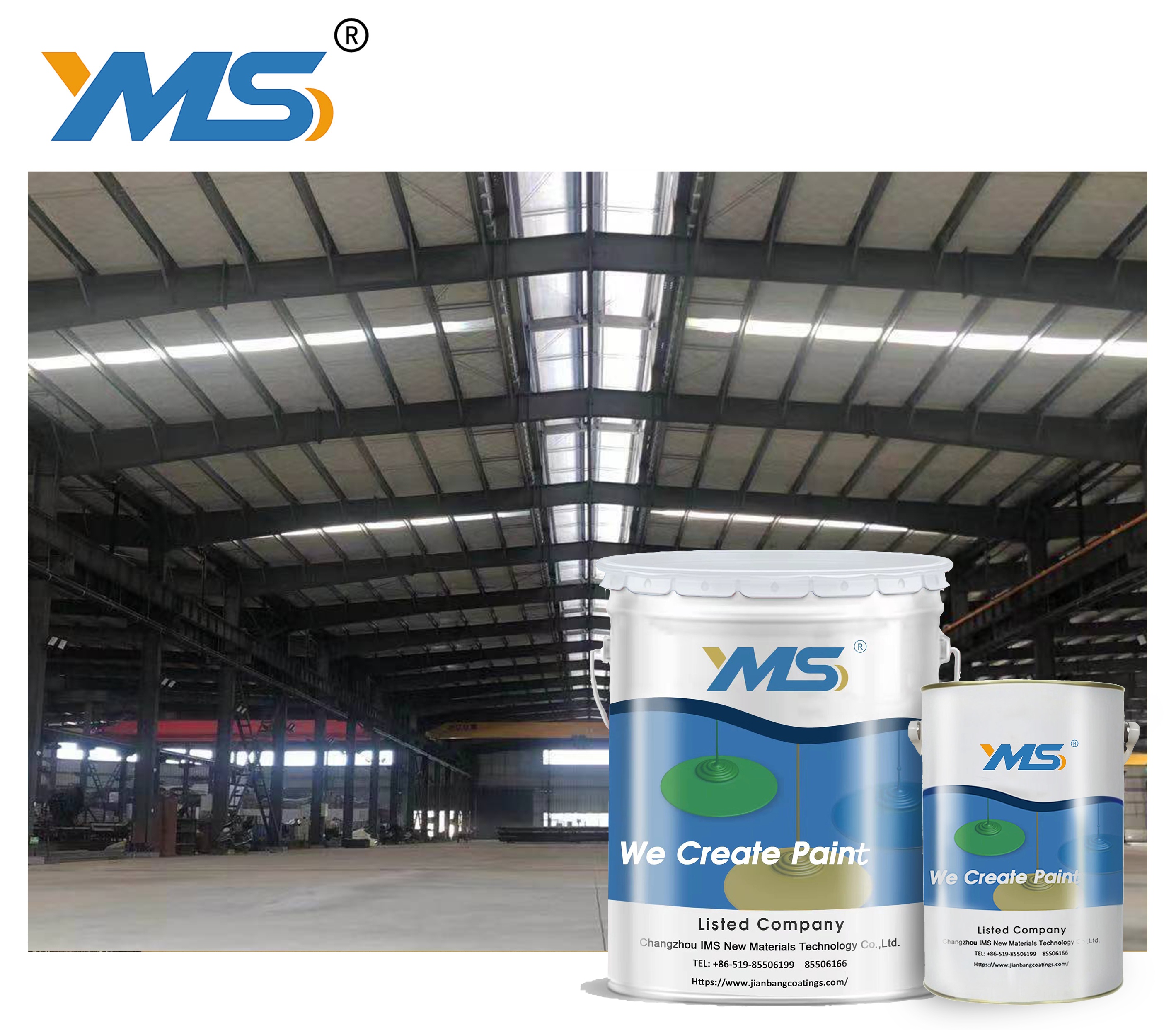

Epoxy Anti-corrosive Rust Tolerant Primer Product Packaging Packaging: Part A 25kg in a 20-liter iron bucket. Part B 3kg in a 4-liter iron bucket. Shelf Life: 12 months If exceeding shelf life, the products shall be tested before using.

Epoxy Anti-corrosive Rust Tolerant Primer Applicable Environment

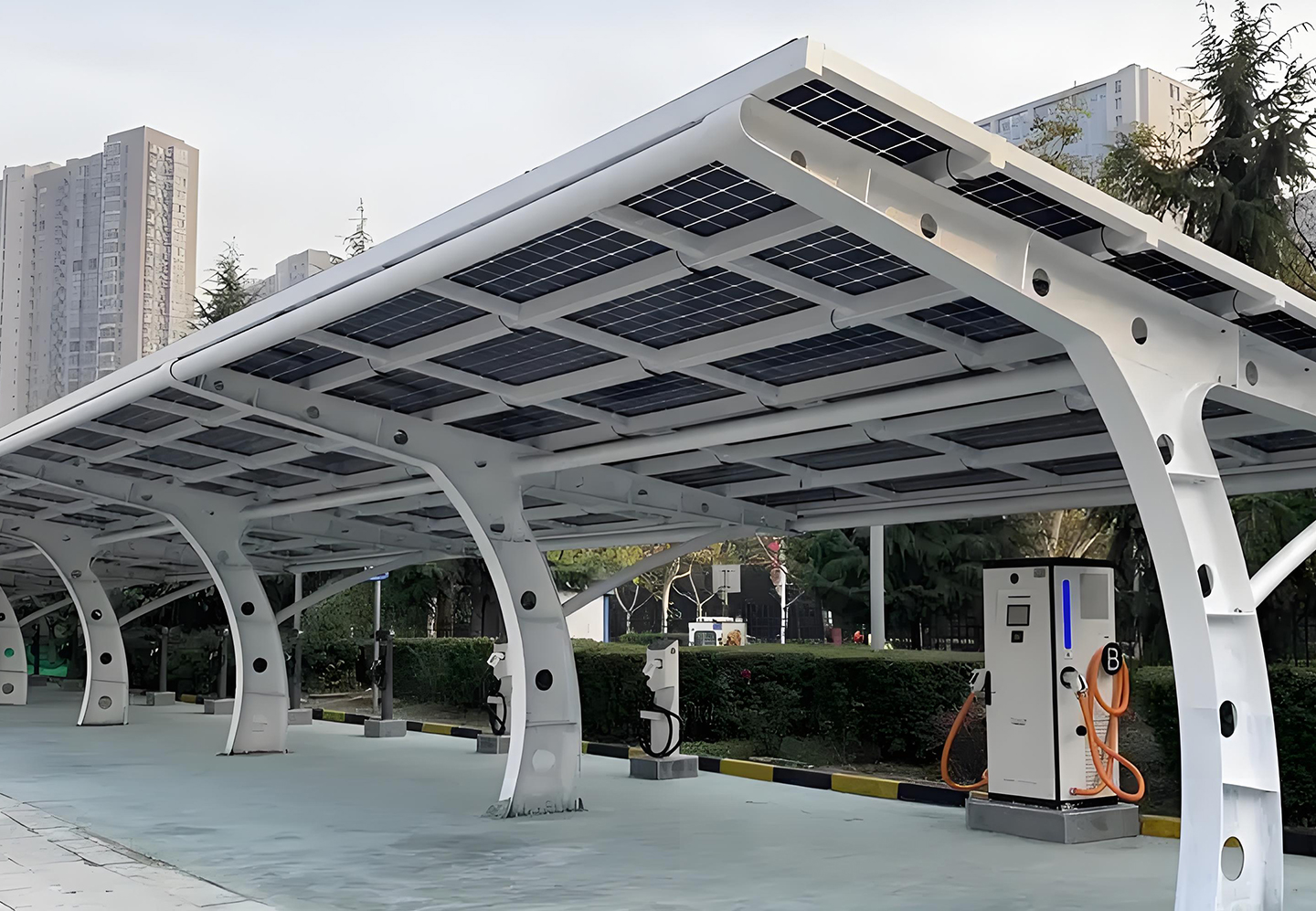

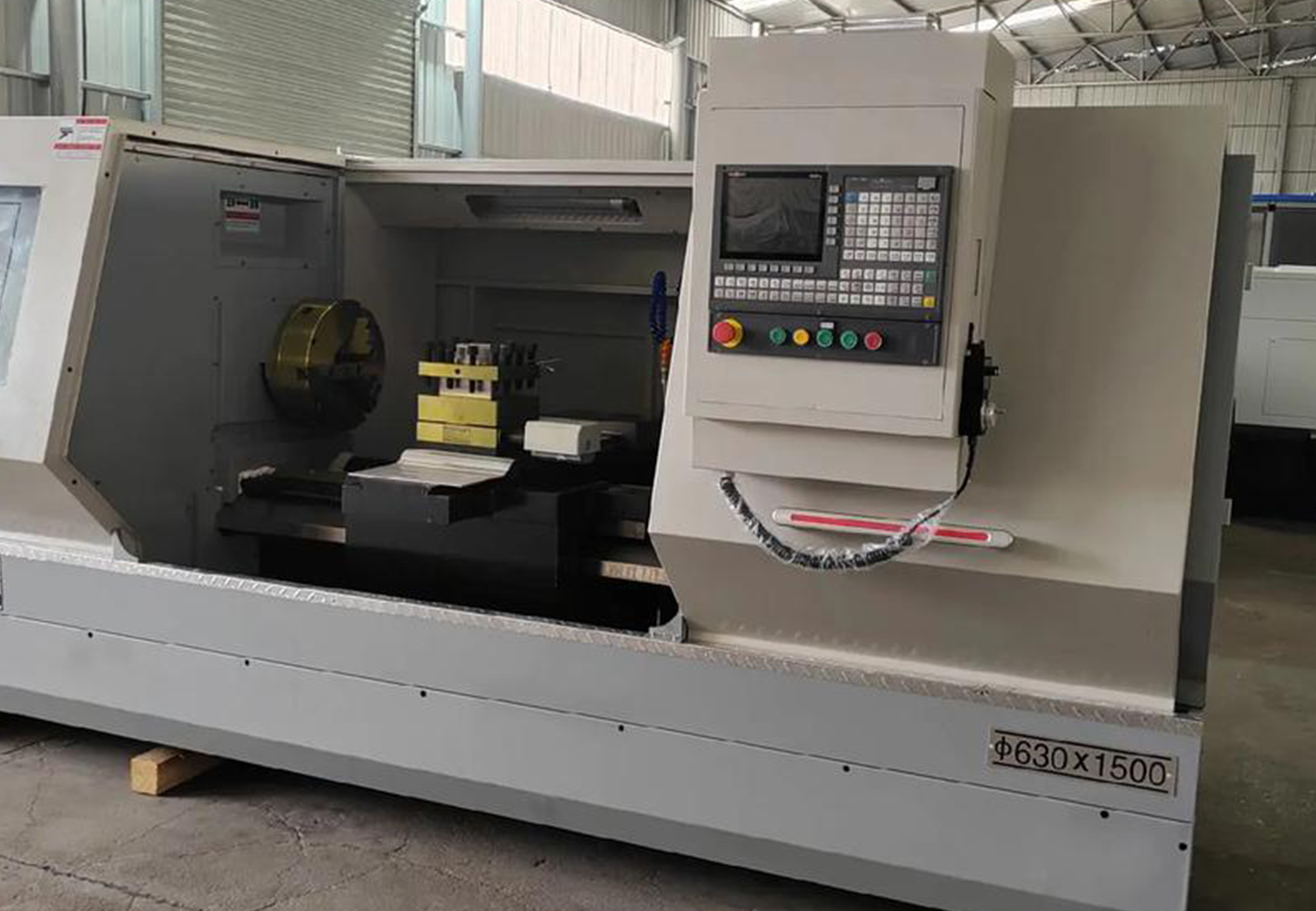

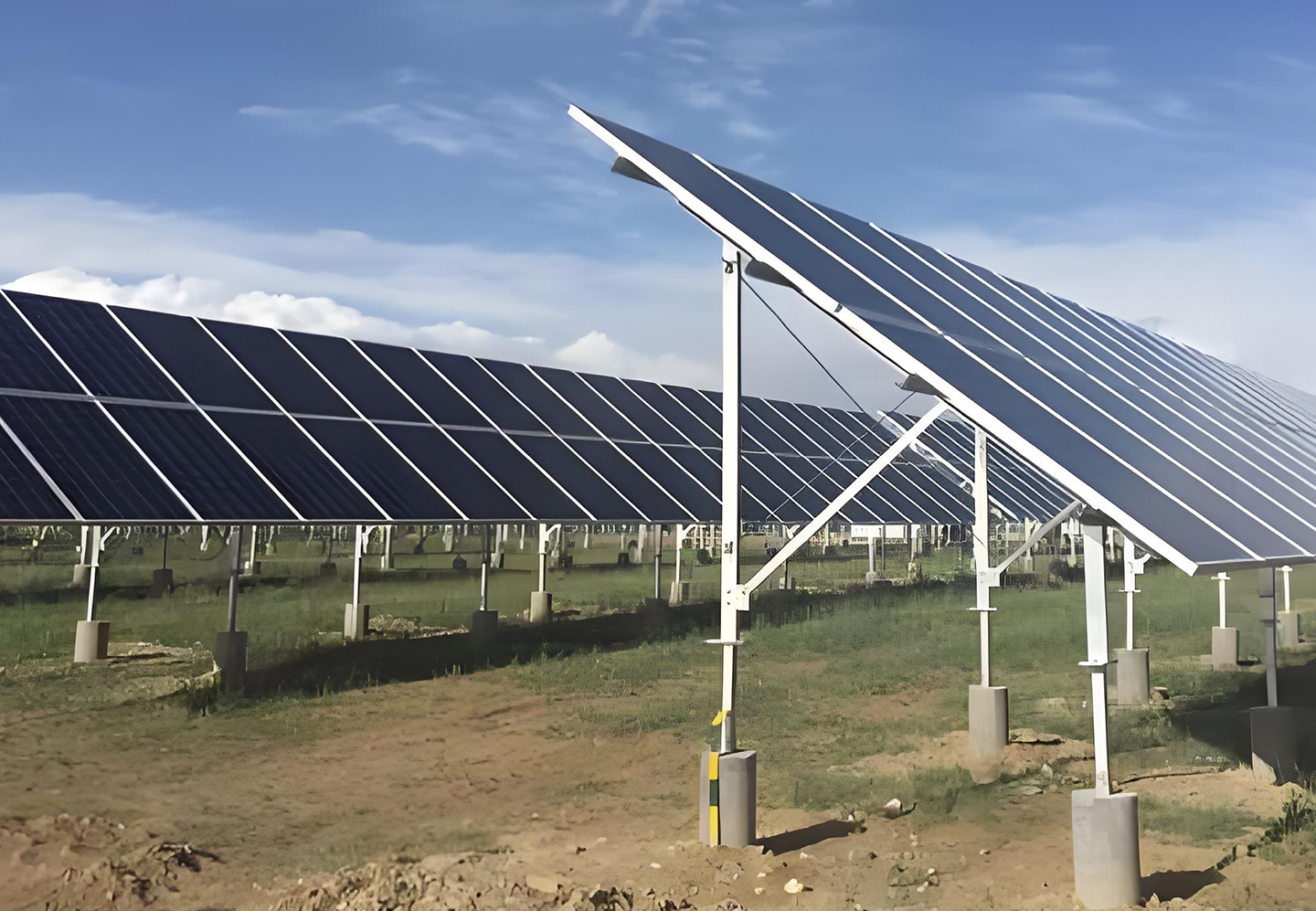

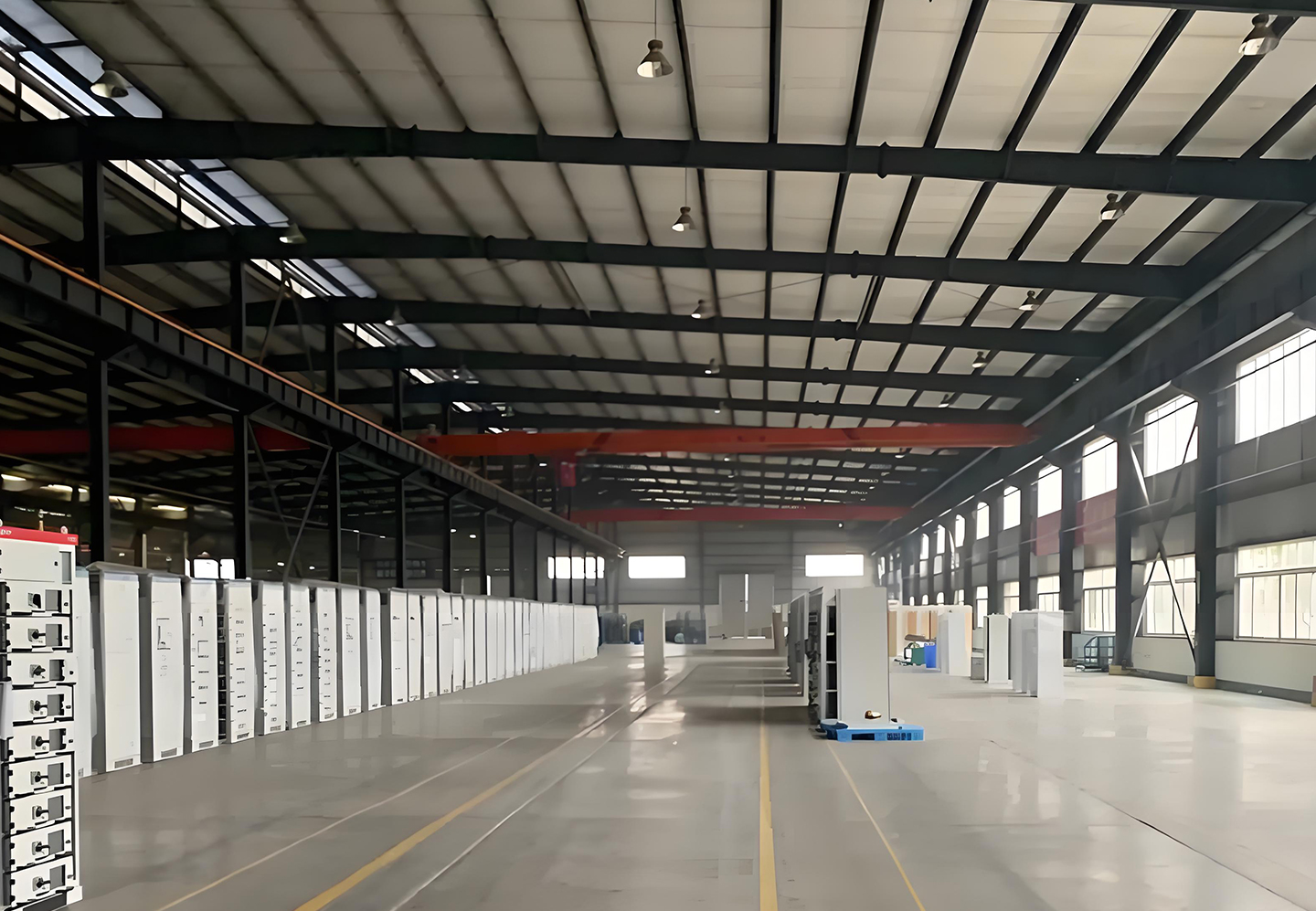

Machine tool	Parking shed	Photovoltaic steel structure	Workshop steel support

Epoxy Anti-corrosive Rust Tolerant Primer

 Compatibility

	Product	Thickness
Primer:	Epoxy Anti-corrosive Rust Tolerant Primer	2*40 µm (dry film thickness)
Paint:	Epoxy Mica Iron Oxide Intermediate Paint	2*40um (dry film thickness)
Topcoat:	Epoxy Anti-corrosive Finish	2*50 um (dry film thickness)

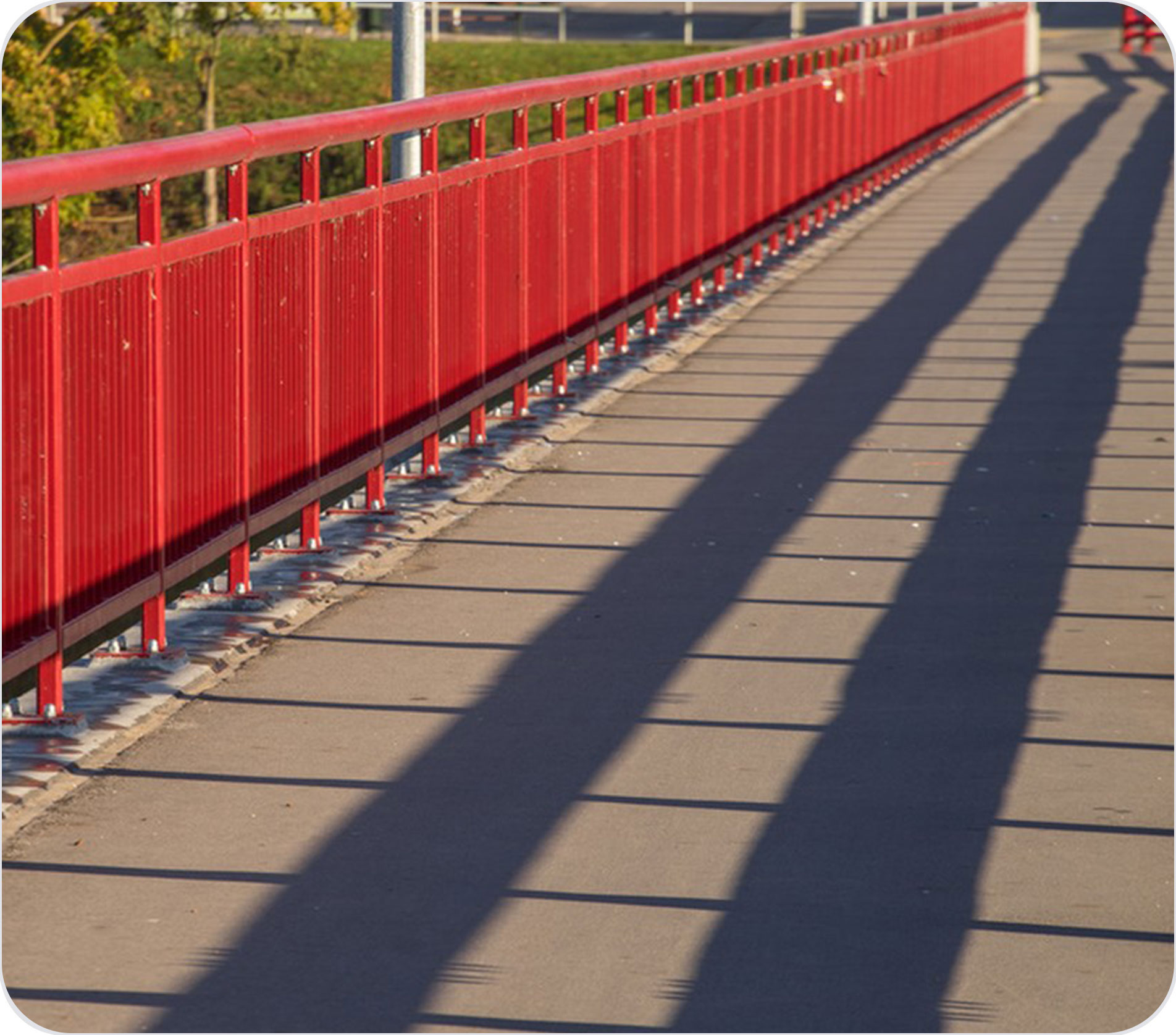

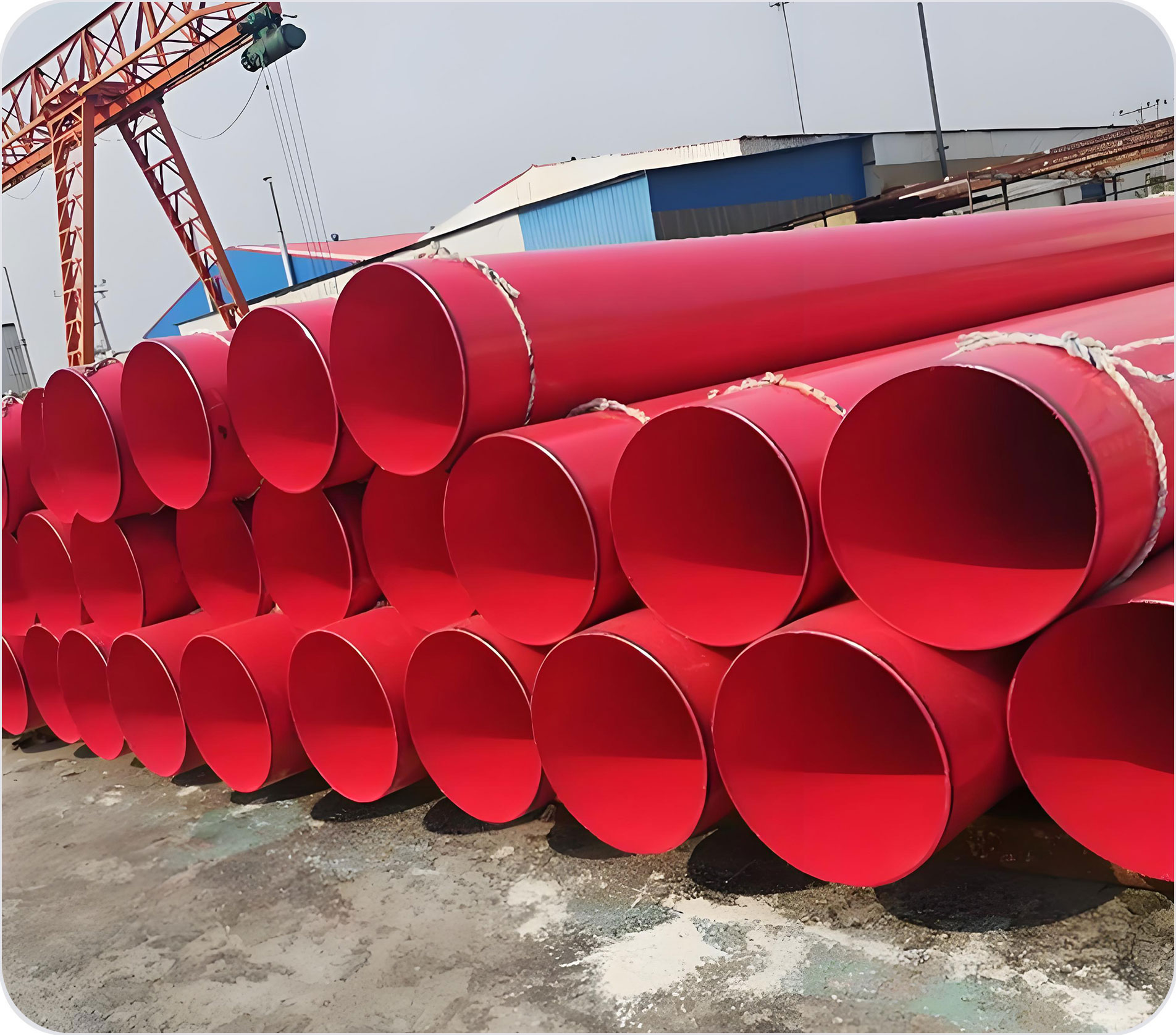

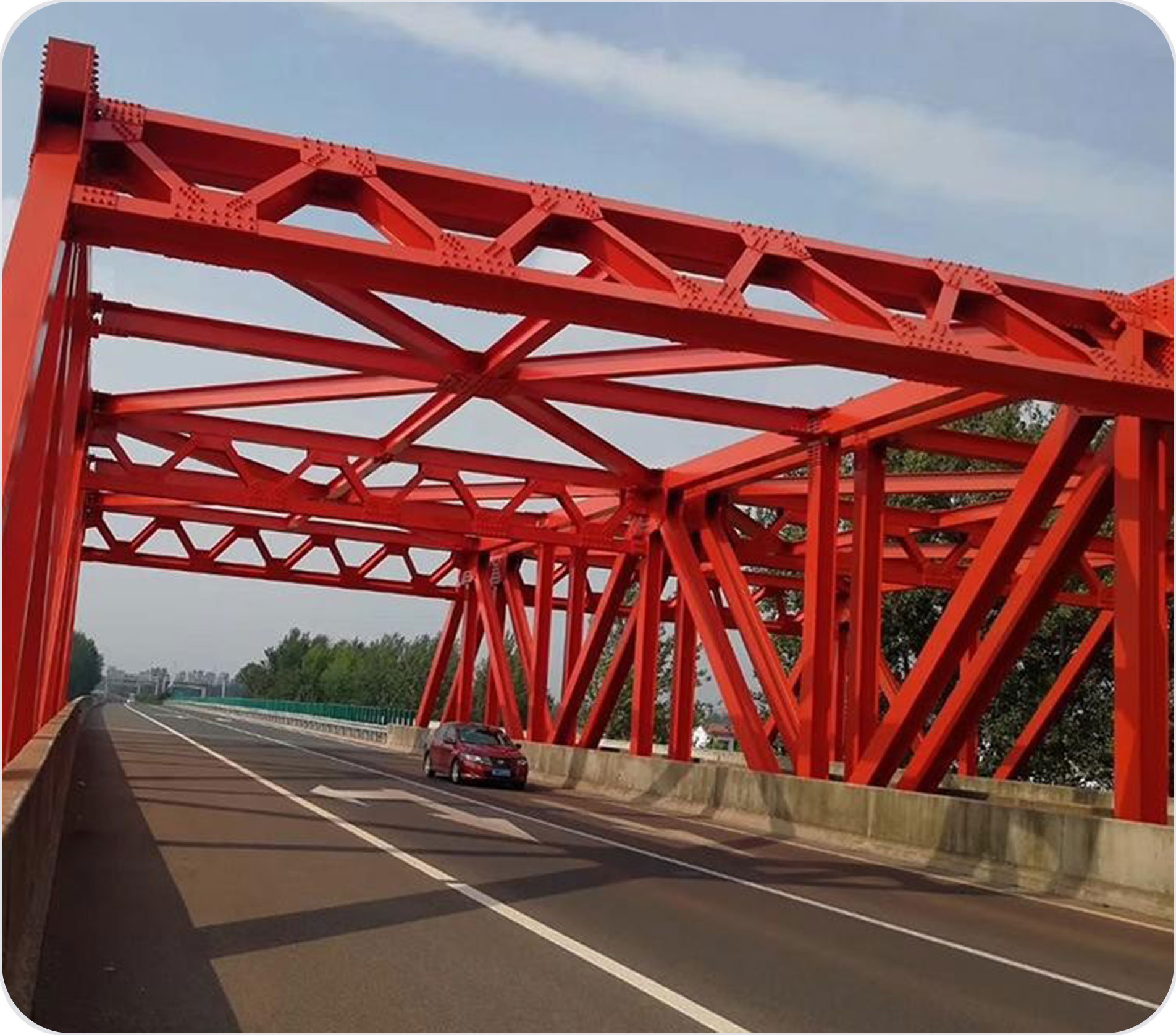

Epoxy Anti-corrosive Rust Tolerant Primer Finished Projects

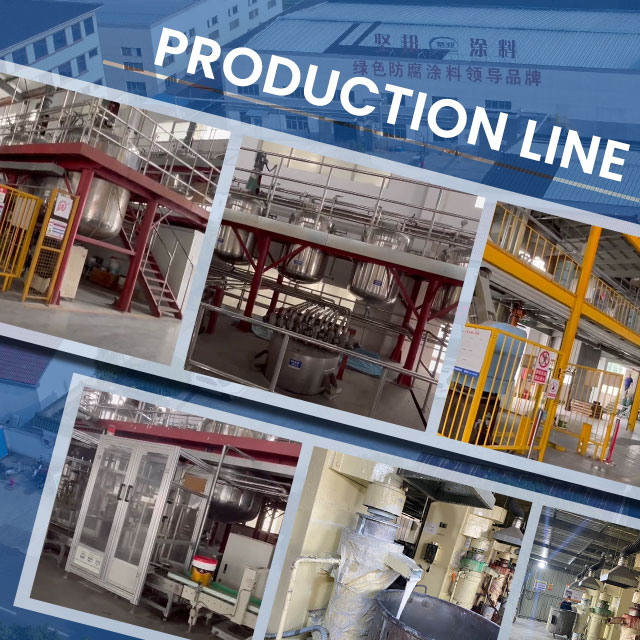

Epoxy Anti-corrosive Rust Tolerant Primer Production Process

Epoxy Anti-corrosive Rust Tolerant Primer Instructions For Use

Substrate Treatment：

The surface to be coated shall be clean, dry and free from contaminations. Also, the surface shall be evaluated and treated according to ISO8504 standard.

Bare steel: sandblasting to reach Sa2.5(IOS8501-1:2007). For the non-soaking site, acceptable for power tool grinding, at least reach St2(IOS8501-1:2007).

Painted surface: only apply to clean, dry and intact compatible primer.

Instructions for Use:

• Mixing:

Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you get to mix well. Generally, if the temperature is below 10℃, it needs 30 min induction time; if the temperature is over 10 ℃, it needs 15 min induction time.‘

• Mixing ratio

Part A: Part B = 25:3 (by weight)

• Thinner:

Thinner for epoxy paint

• Airless spray:

Nozzle tip: 0.021~0.025 inches

Spray pressure: 15~18Mpa

Thinner ratio: 5~15% (by weight of paint)

• BrushRoller:

Recommended
