Gray, reddish gray
No gloss
~1.72Kg/L(after mixing)
27℃
(50±2 )%
Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you get to mix well. Generally, if the temperature is below 10℃, it needs 30 min induction time; if the temperature is over 10 ℃, it needs 15 min induction time.
11.6m²/Kg (25um dry film thickness)
Availability: | |
---|---|
Epoxy Zinc Workshop Primer
This two-component product is mainly composed of epoxy resin by adding superfine zinc powder, anti-rust pigment, polyamide adduct curing agent, etc.It has the following resistance characteristics:
|
|
|
|
|
|
Color | Gray, reddish gray |
Gloss | No gloss |
Density | ~1.72Kg/L (after mixing) |
Hardness | Curing agent for epoxy paint |
Solid Volume | (50±2 )% |
Standard Film thickness | 25um dry film thickness (about 50um wet film thickness) |
Full cure | (23±2℃ ) 7d |
Theoretical spreading rate | 11.6m²/Kg (25um dry film thickness) |
Flash Point | 27℃ |
![]() | Epoxy Zinc Workshop Primer Product PackagingPackaging: Part A 30kg in a 20-liter iron bucket. Part B 3kg in a 3.7-liter iron bucket. Shelf Life: 12 months If exceeding shelf life, the products shall be tested before using. |
![]() | ![]() | ![]() | ![]() |

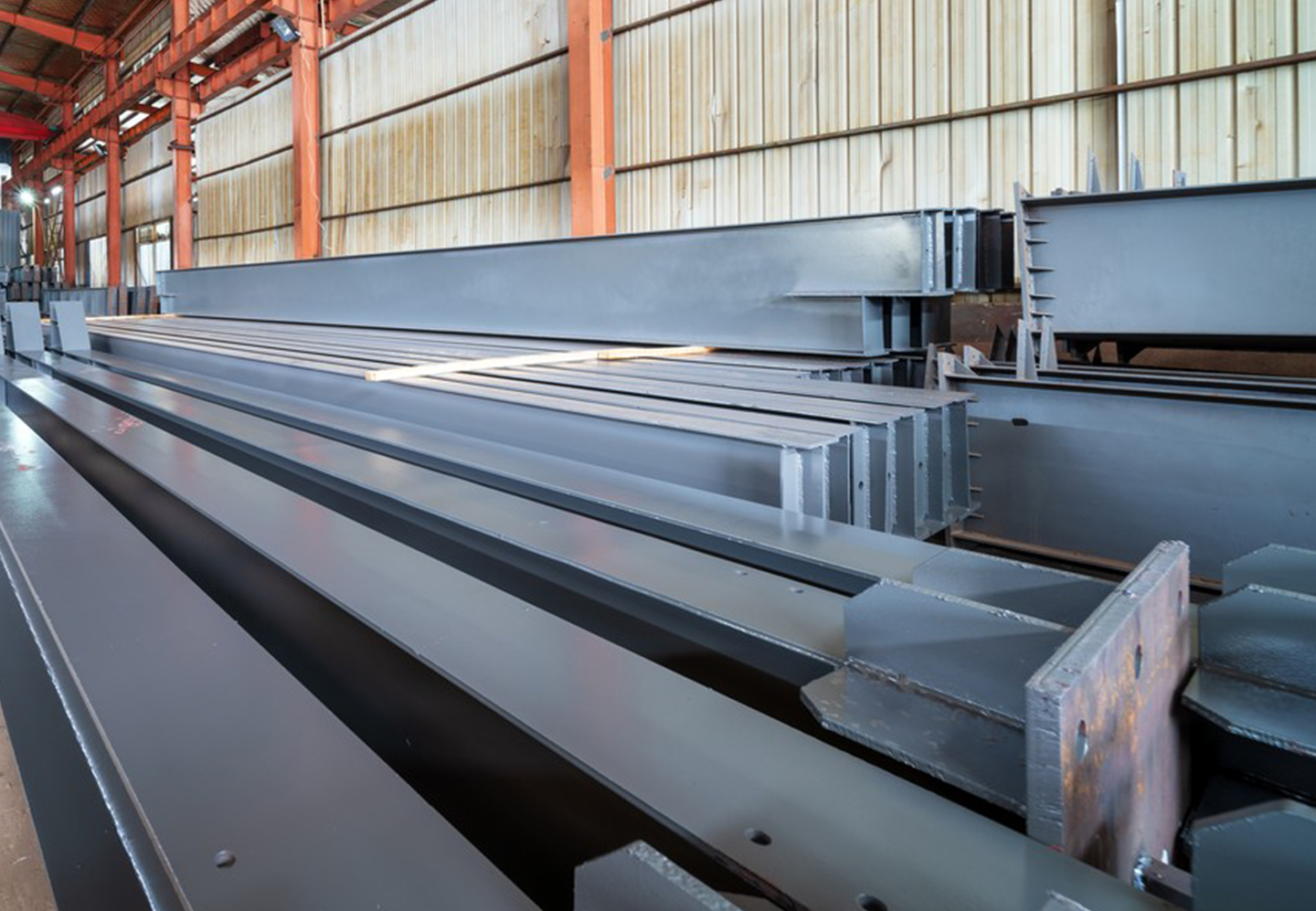

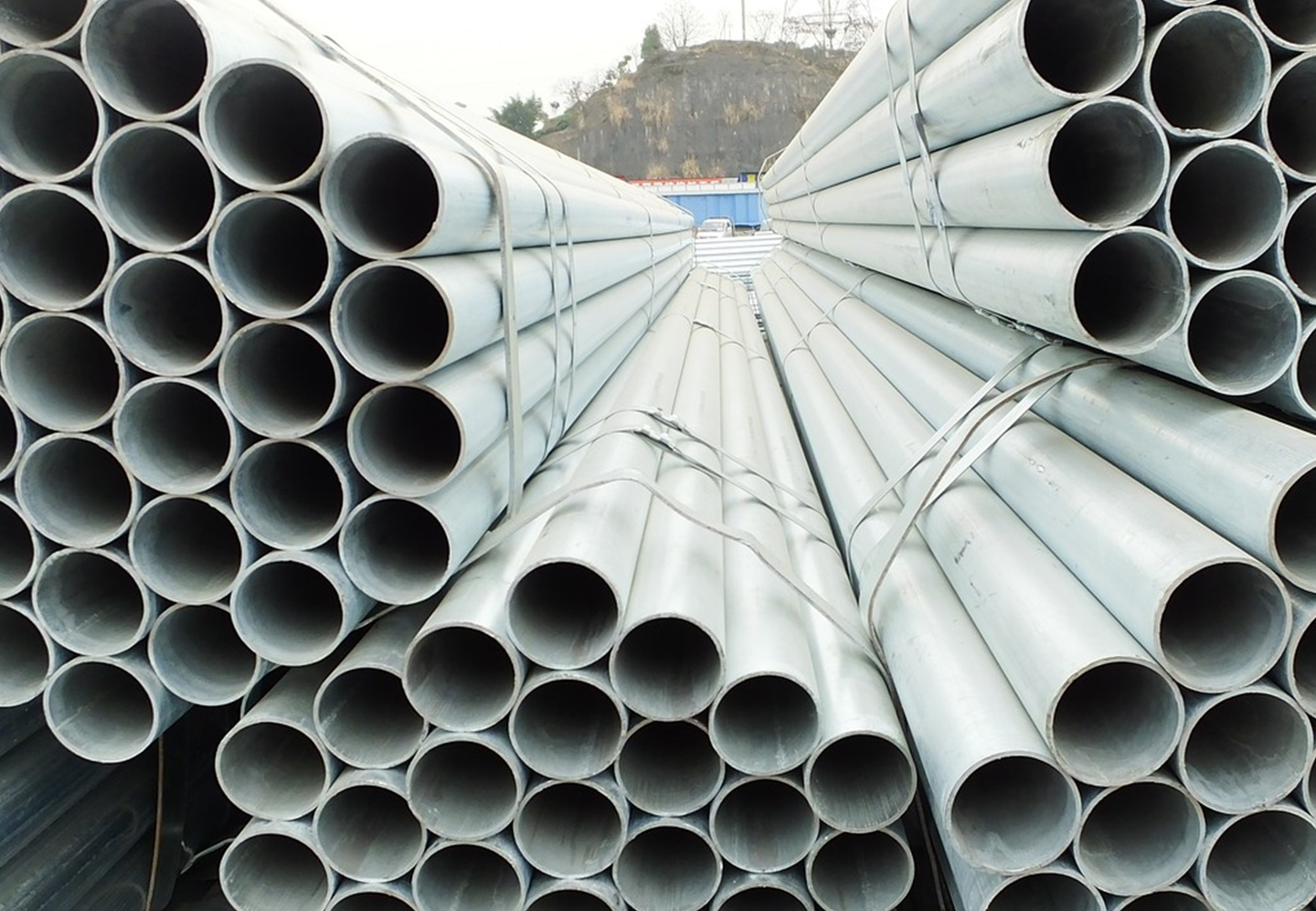

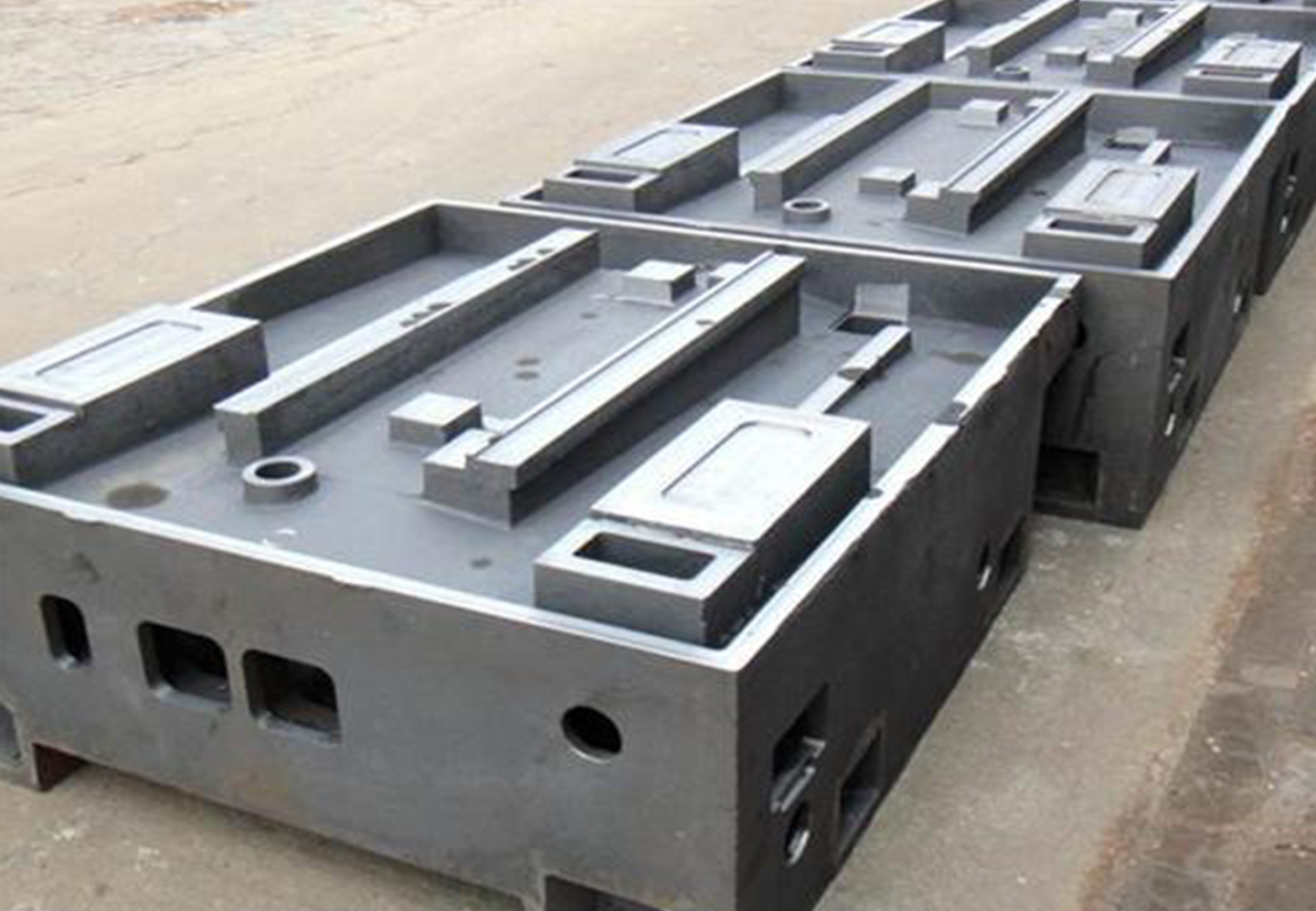

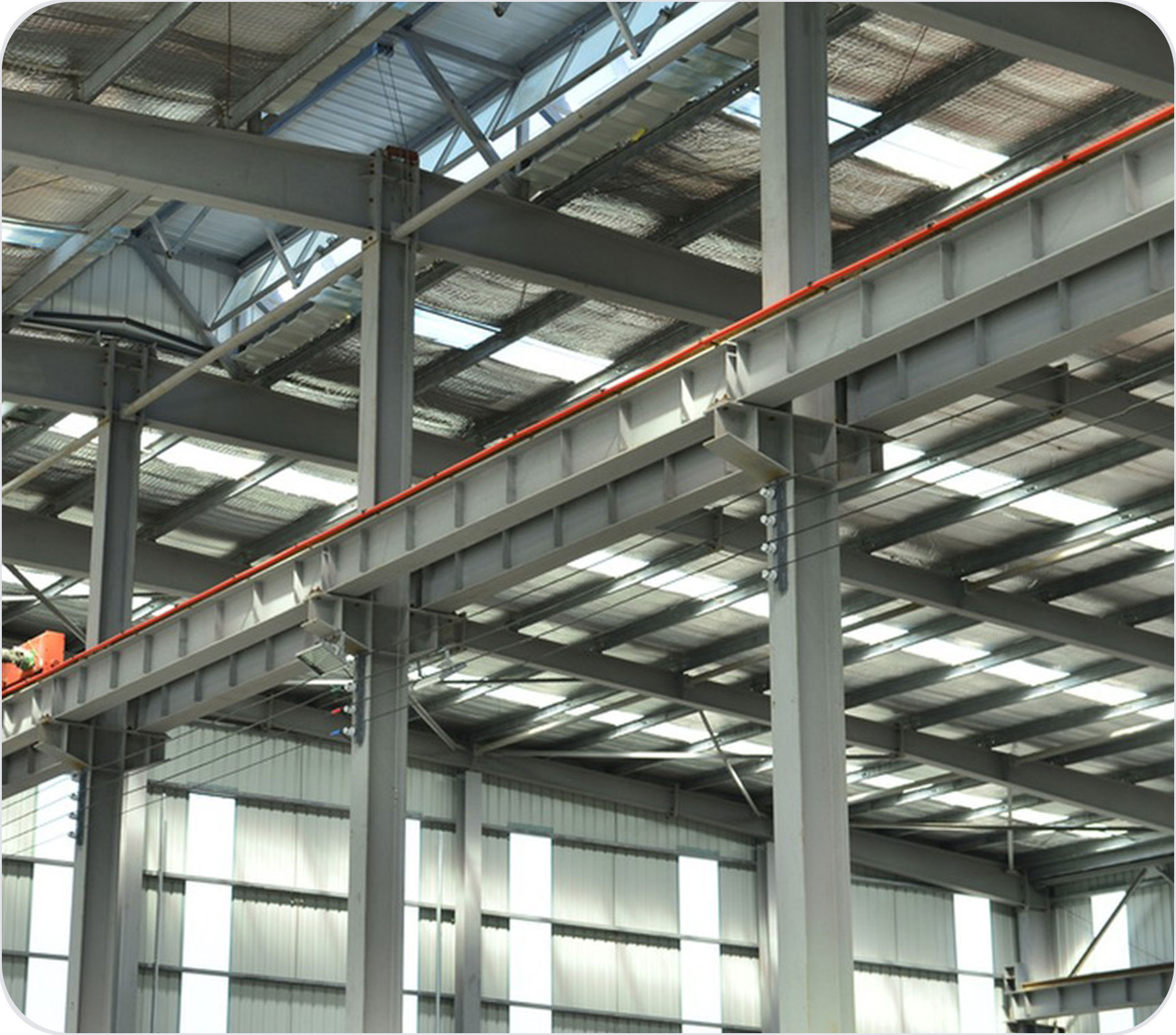

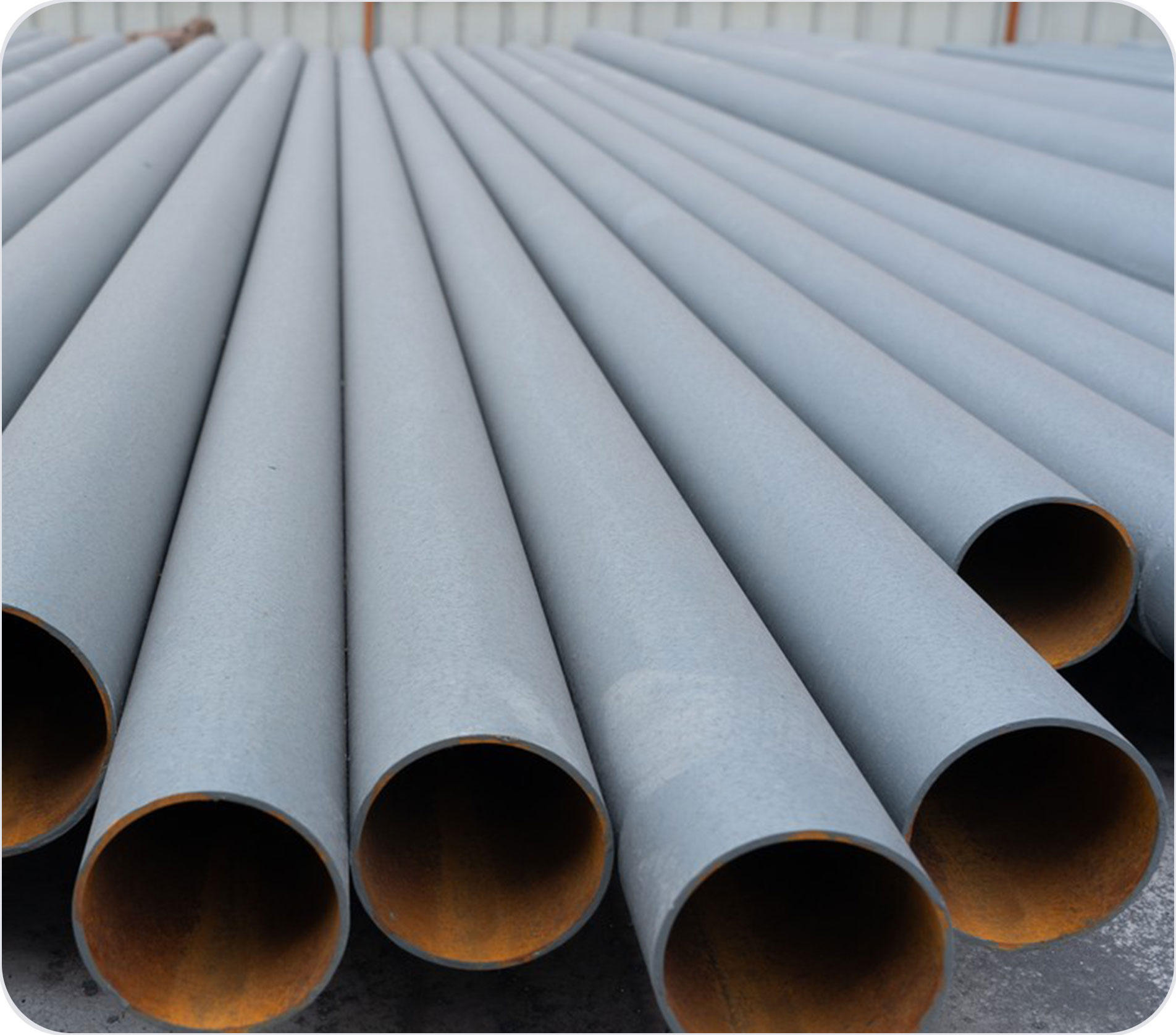

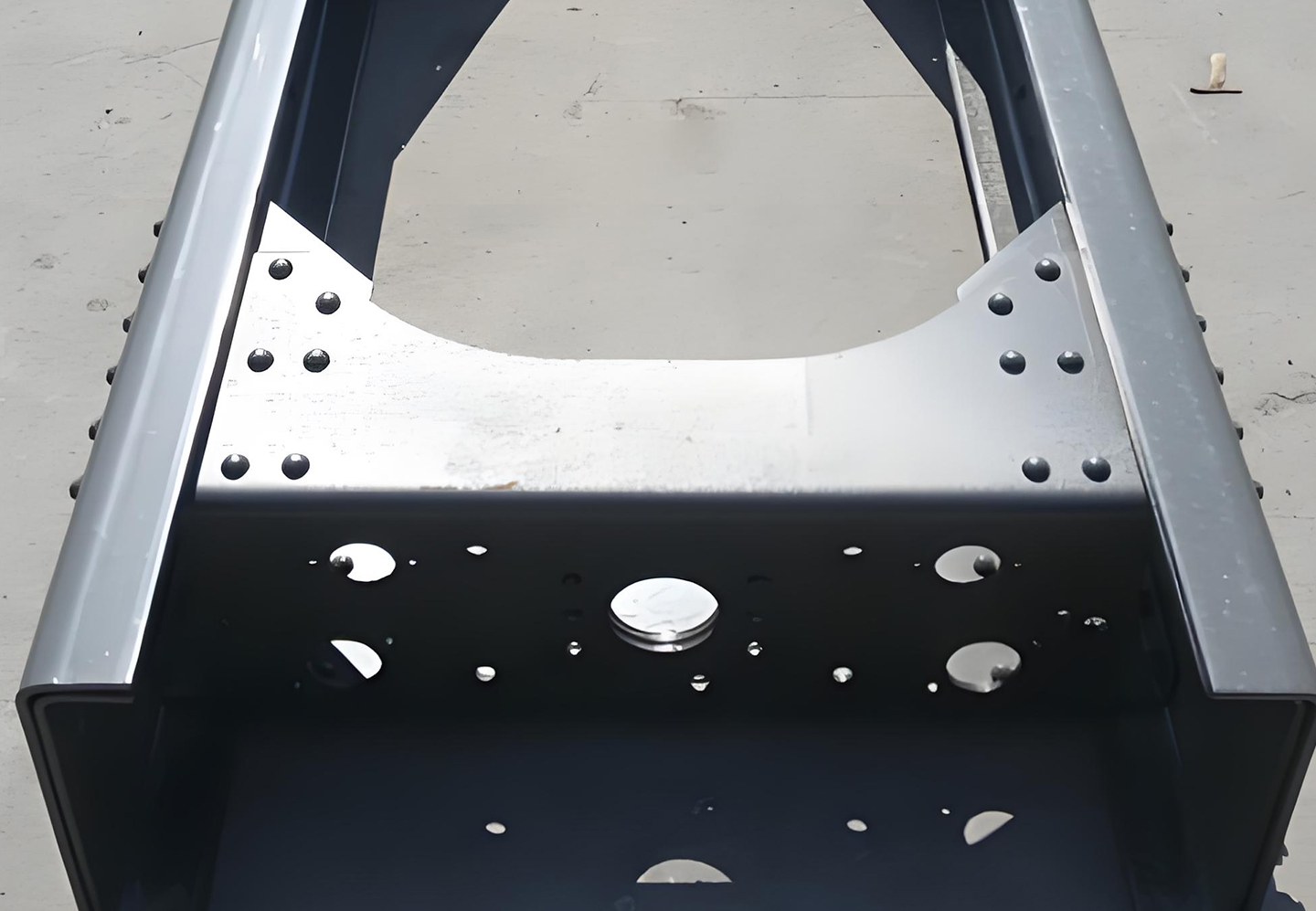

Steel pipe | Lathe base | Frame | Steel beam |
Product | Thickness | |
Primer: | Epoxy Zinc Workshop Primer | 25 µm (dry film thickness) |
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
Substrate Treatment:
The surface to be coated shall be clean, dry and free from contaminations. Also, the surface shall be evaluated and treated according to ISO8504 standard.
Bare steel: sandblasting to reach Sa2.5(IOS8501-1:2007). For the non-soaking site, acceptable for power tool grinding, at least reach St2(IOS8501-1:2007).
Painted surface: only apply to clean, dry and intact compatible primer.
Instructions for Use:
Mixing:
Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you get to mix well. Generally, if the temperature is below 10℃, it needs 30 min induction time; if the temperature is over 10 ℃, it needs 15 min induction time.
Thinner:
Thinner for epoxy paint
Airless spray:
Nozzle tip: 0.025~0.031 inches
Spray pressure: 18~28Mpa
Thinner ratio: 5~15% (by weight of paint)
BrushRoller:
Recommended
![]() | |||
![]() | ![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
