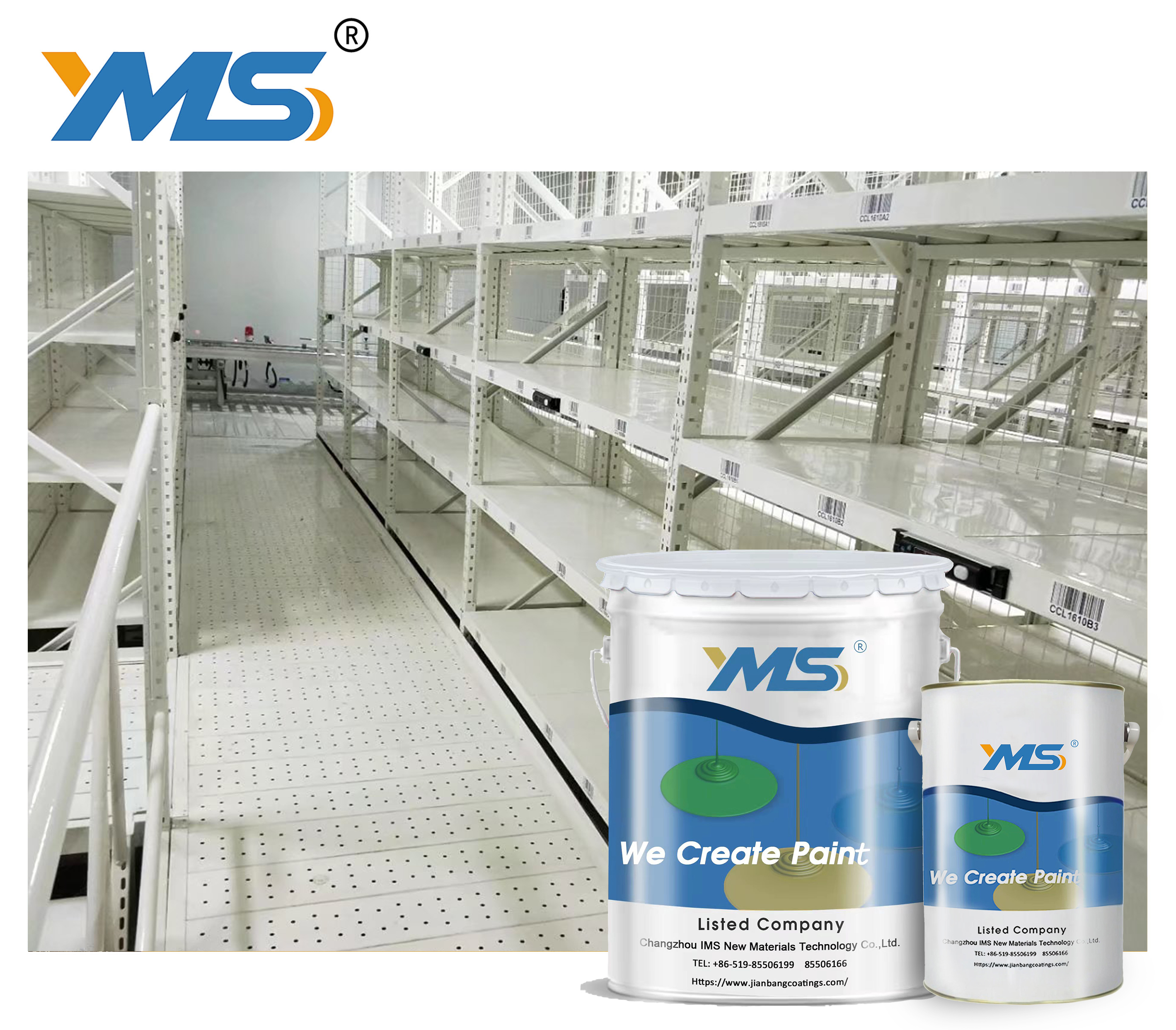

Ethylene Phosphating  Primer

This two-component product is composed of polyvinyl butyral, anti-rust pigment, solvent and phosphating solution.It features great properties as：

Low derusting requirement

High penetration

Fast drying

Ethylene Phosphating  Primer  Basic Technical Datasheet

Color	Light yellow
Gloss	No gloss
Density	~1.2Kg/L(after mixing)
Hardness	Ethylene curing agent
Solid Volume	(45±2 )%
Standard Film thickness	30um dry film thickness  (about 67um wet film thickness)
Theoretical spreading rate	12.5m²/Kg (100um dry film thickness)
Full cure	(23±2 ℃) 24h
Flash Point	15℃

Ethylene Phosphating  Primer Product Packaging Packaging: Part A 18 kg in a 20-liter iron bucket. Part B 4 kg in a 5-liter iron bucket. Shelf Life: 12 months If exceeding shelf life, the products shall be tested before using.

Ethylene Phosphating  Primer Applicable Environment

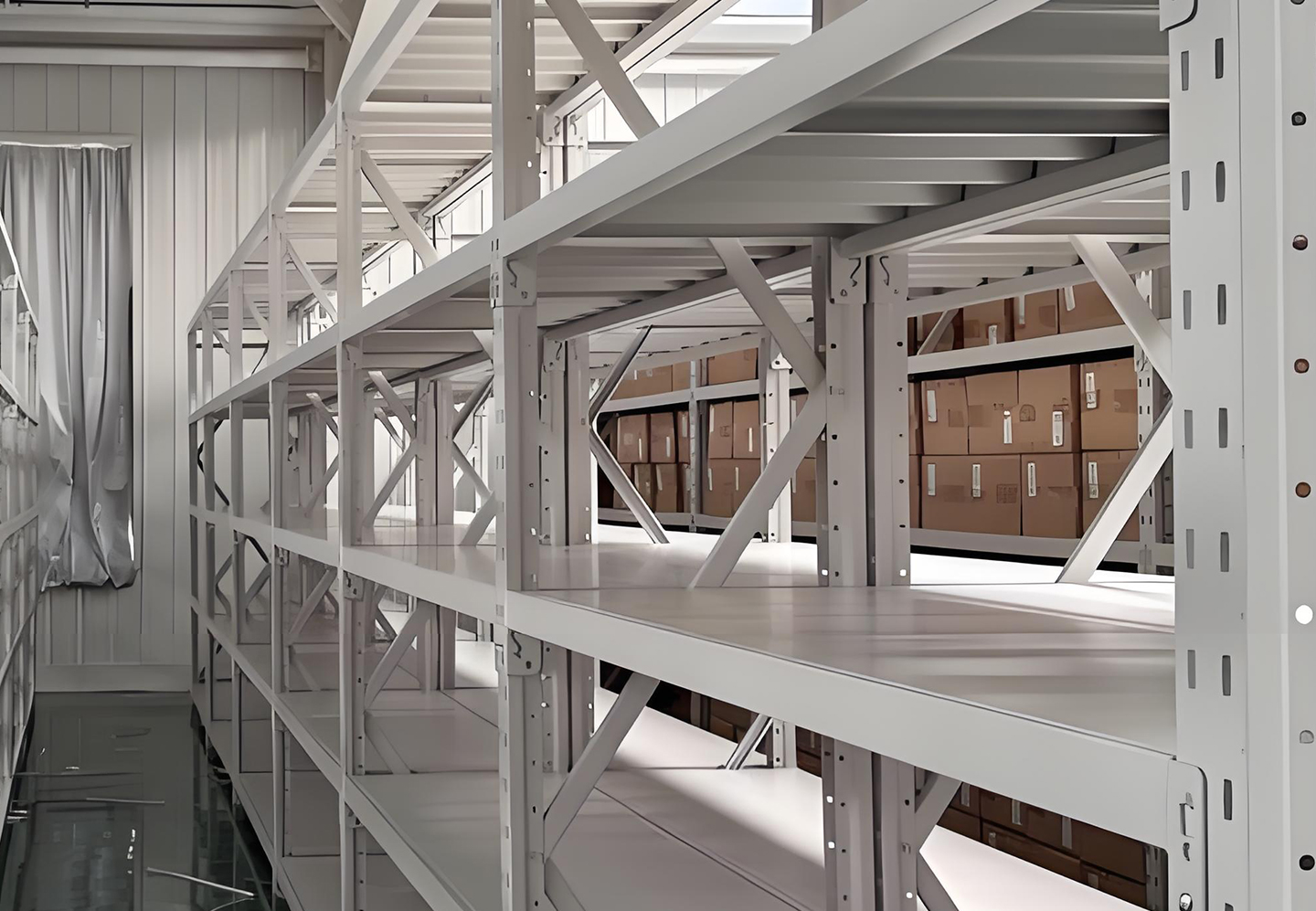

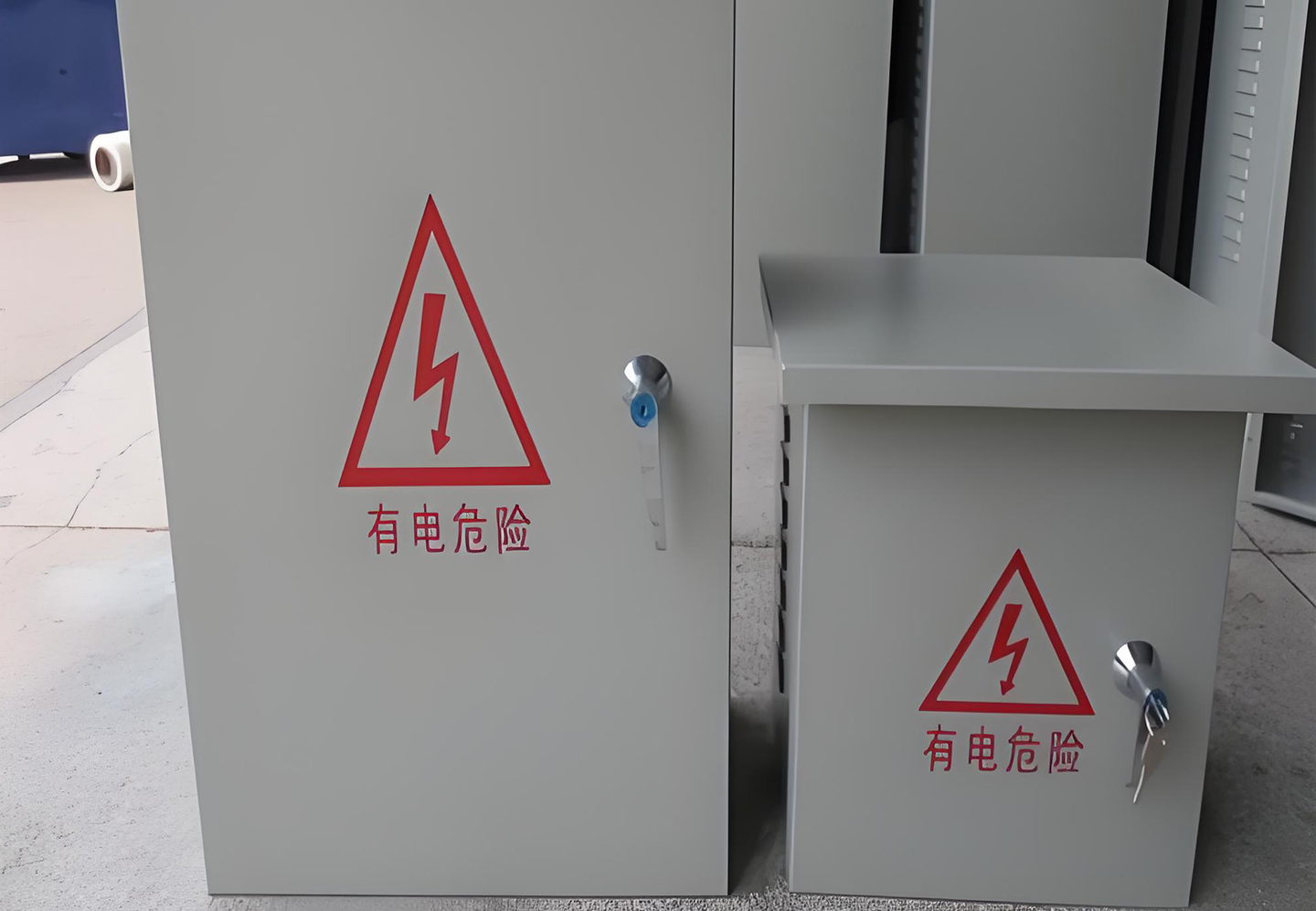

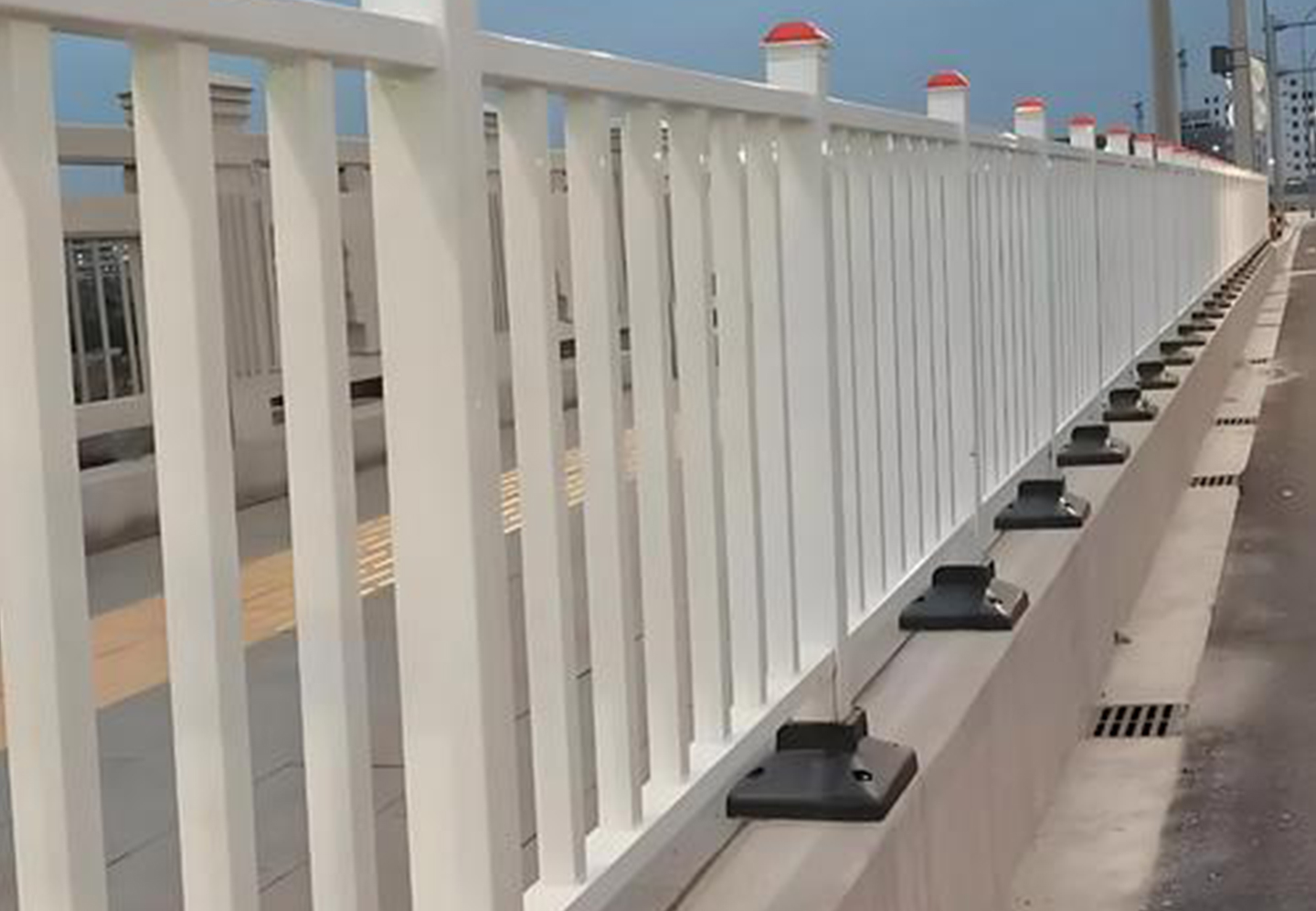

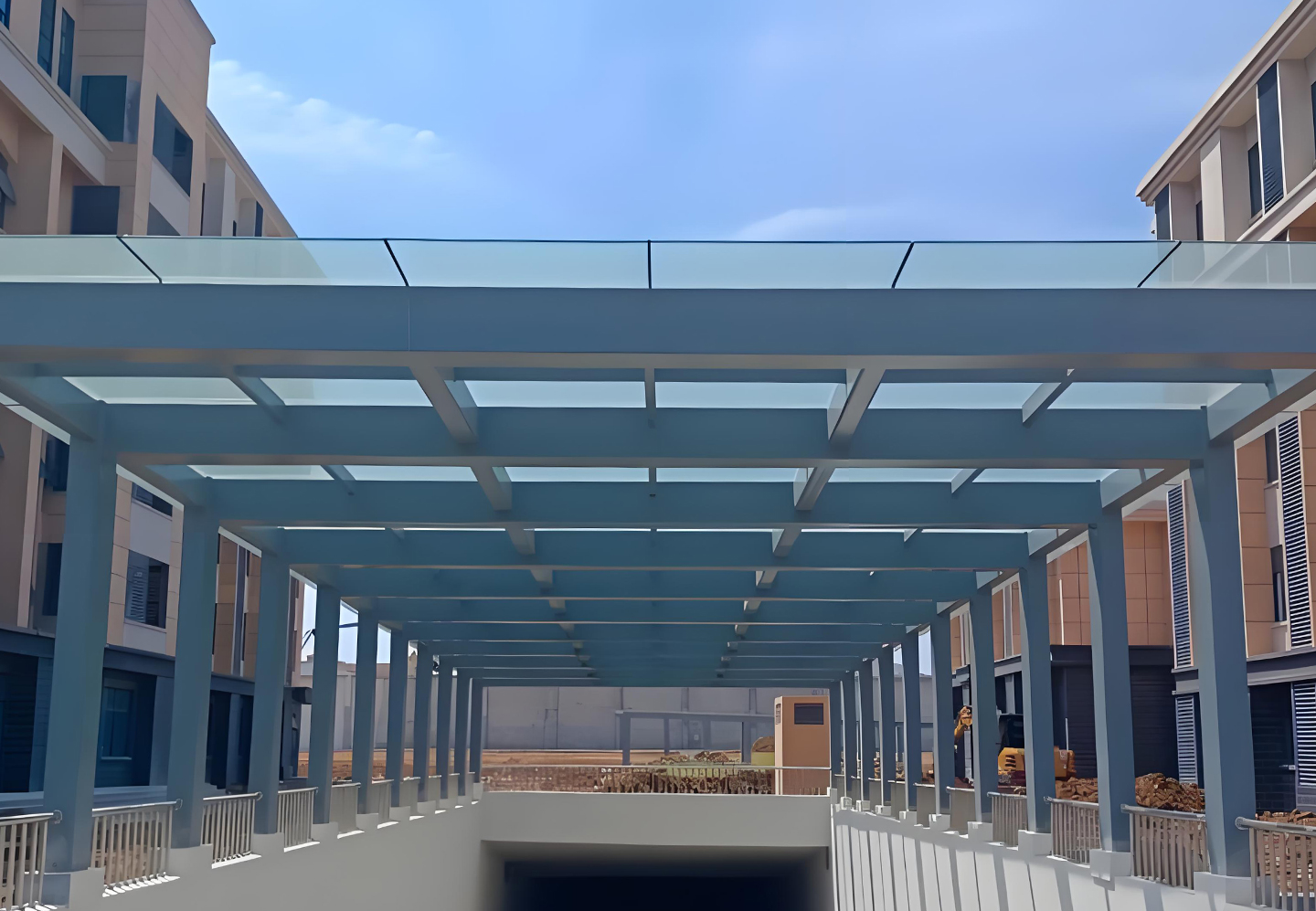

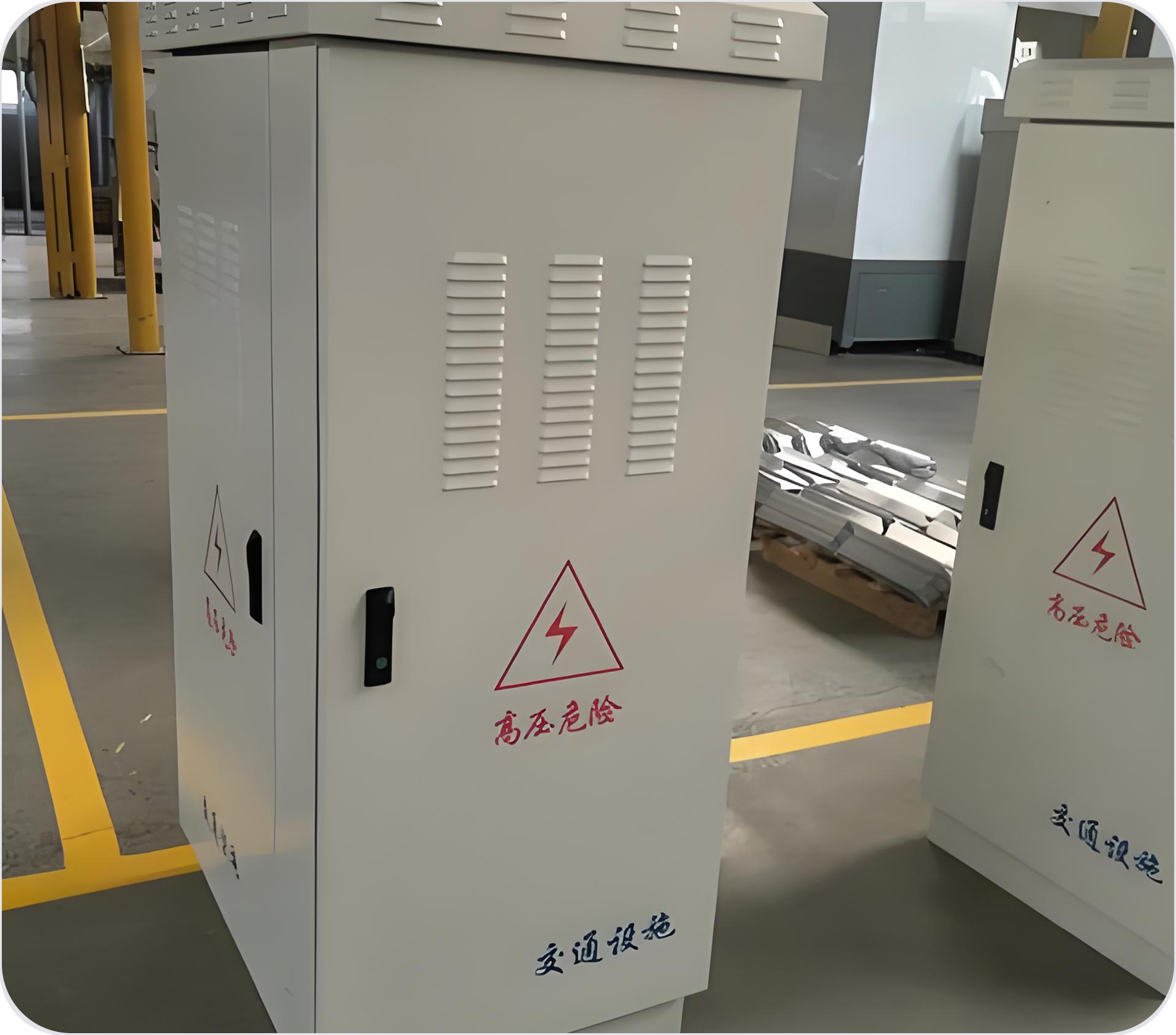

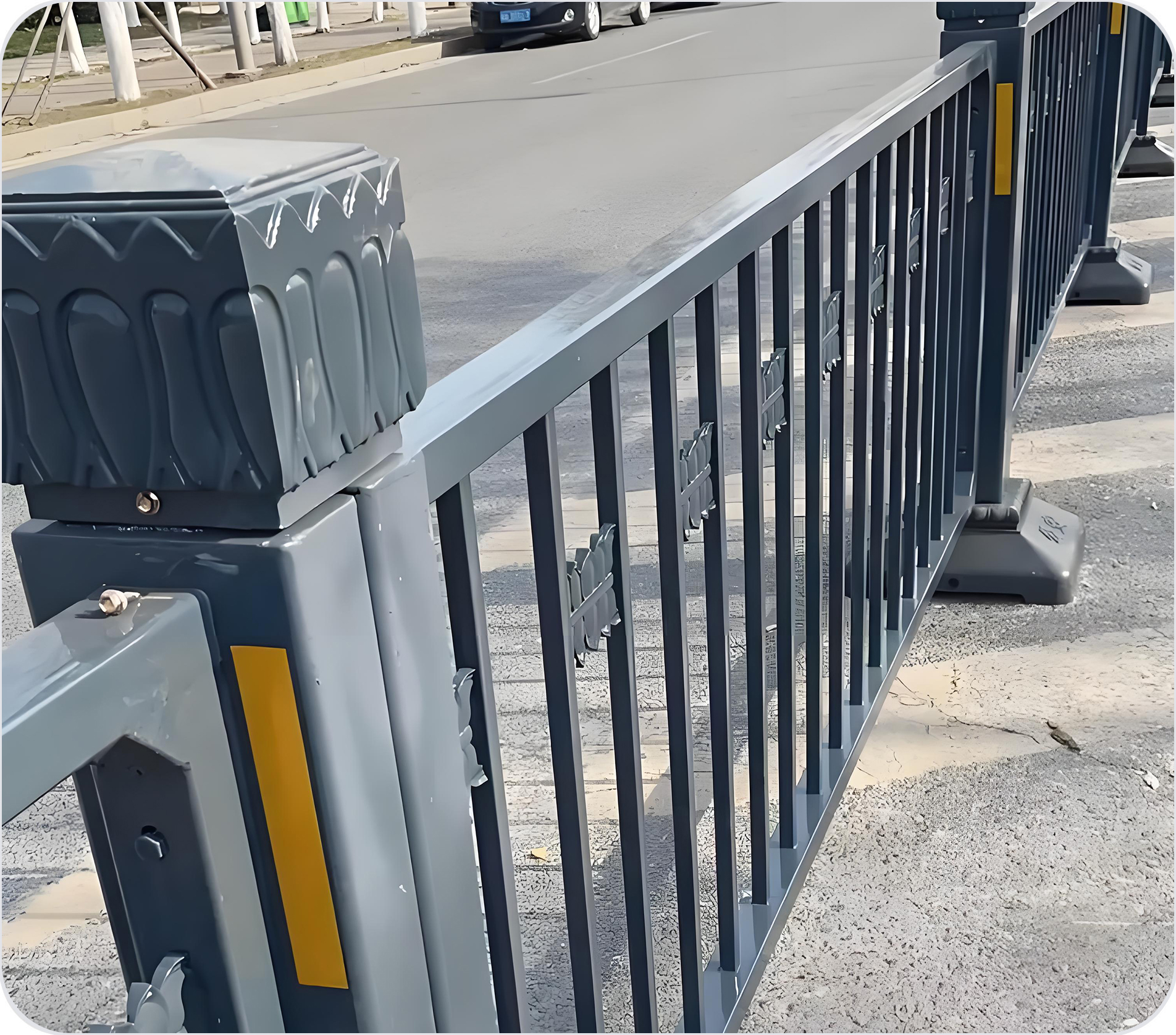

Steel structure awning	Storage rack	Small distribution box	Guardrail

Ethylene Phosphating  Primer Finished Projects

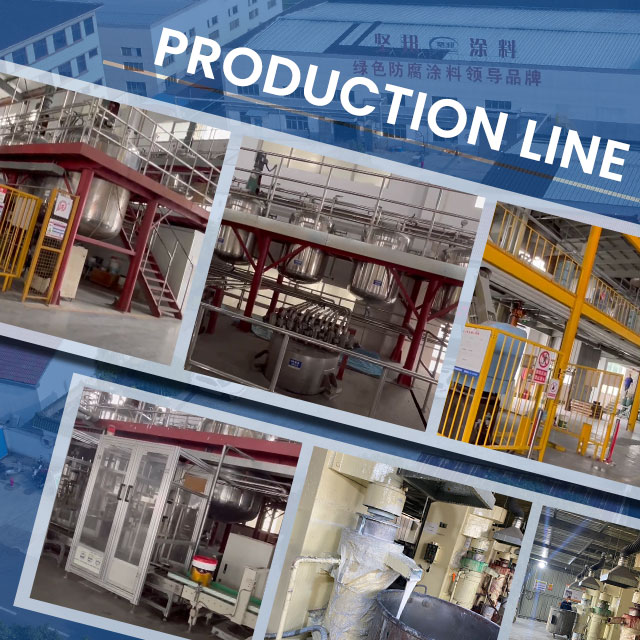

Ethylene Phosphating  Primer Production Process

Ethylene Phosphating  Primer Instructions For Use

Substrate Treatment：

The surface to be coated shall be clean, dry and free from contaminations. Also, the surface shall be evaluated and treated according to ISO8504 standard.

Bare steel: sandblasting to reach Sa2.5(IOS8501-1:2007). For the non-soaking site, acceptable for power tool grinding, at least reach St2(IOS8501-1:2007).

Instructions for Use:

Mixing：

Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you get to mix well.

Mixing ratio：

Part A: Part B = 18:4 (by weight)

Thinner: Exclusive thinner

Airless spray：

Nozzle tip: 0.017~0.023inches

Spray pressure: 15~18Mpa

Thinner ratio: 0~15% (by weight of paint)

Brush, Roller : Recommended Must achieve required thickness
