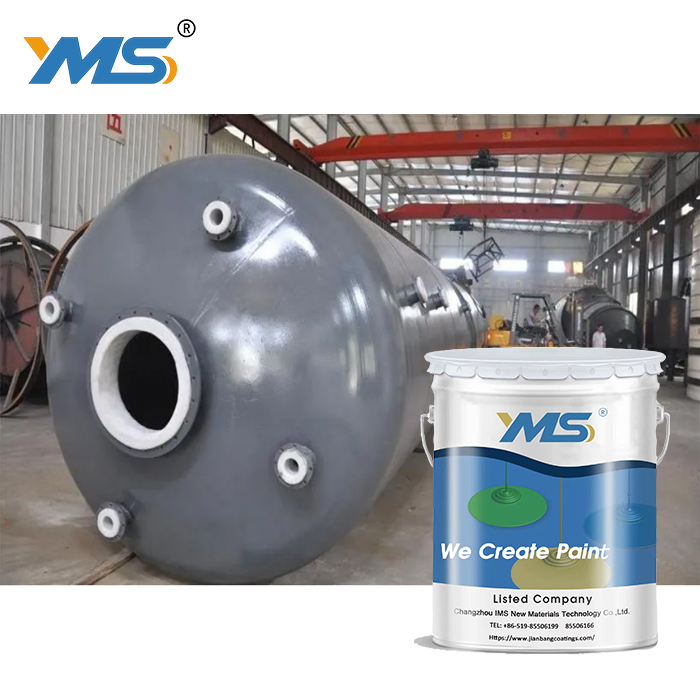

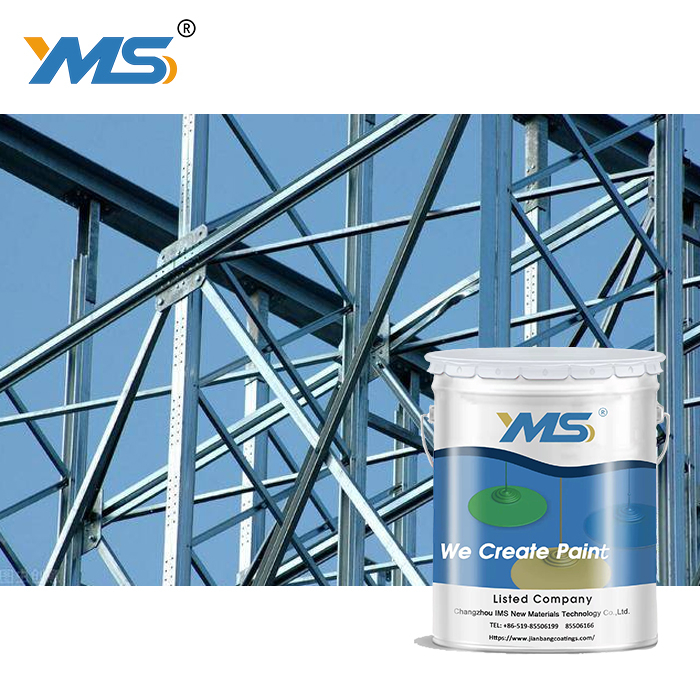

H06- 1 Epoxy Zinc-rich Primer

This two-component product is mainly prepared by epoxy resin, ultra-fine zinc powder, and polyamide as curing agent. This product features:

Acid and alkaline	Good adhesion	Fast drying
oil & water-proof	dust & stain-proof	anti-static

H06- 1 Epoxy Zinc-rich Primer Video

H06- 1 Epoxy Zinc-rich Primer

Basic Technical Datasheet

Appearance	Grey, matt
Density, kg/L	~2.30
Flash point, ℃	Part A: 24   Part B: 27
Zinc content	≥ 60 %
Impact resistance, cm	50
Adhesion, MPa	≥6
Pot life, h @ 23 ± 2 ℃	≥5
Theoretical spreading rate, kg/m2 @ 80 µm dry film	0.3
VOC, g/L	420

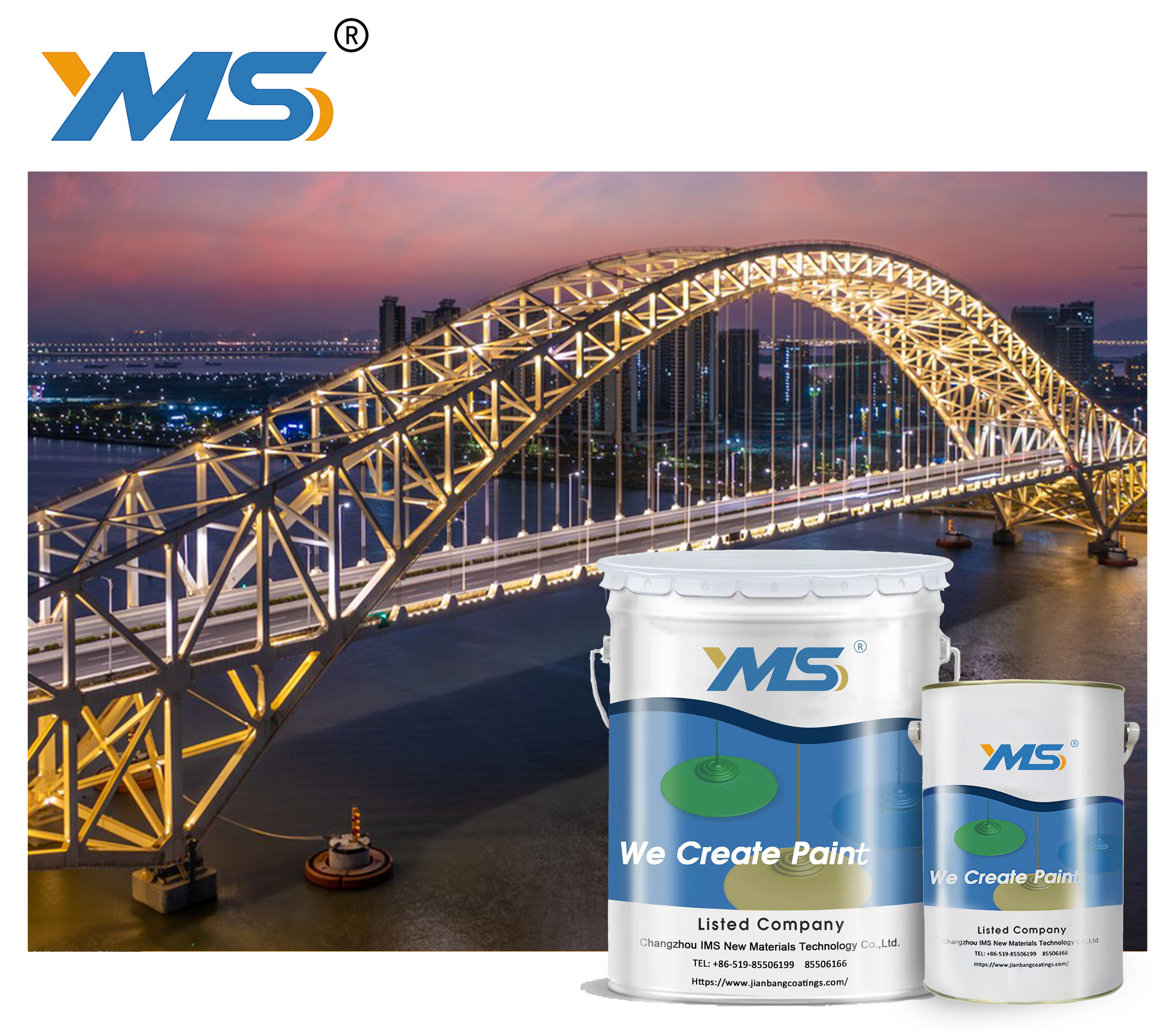

H06- 1 Epoxy Zinc-rich Primer Product Packaging Packaging: Part A: 30 kg in a 20-liter iron barrel Part B: 3 kg in a 5-liter iron barrel. Shelf Life: Part A: 12 months    Part B: 12 months If exceeding shelf life,  the products shall be tested before using.

H06- 1 Epoxy Zinc-rich Primer

Applicable Environment

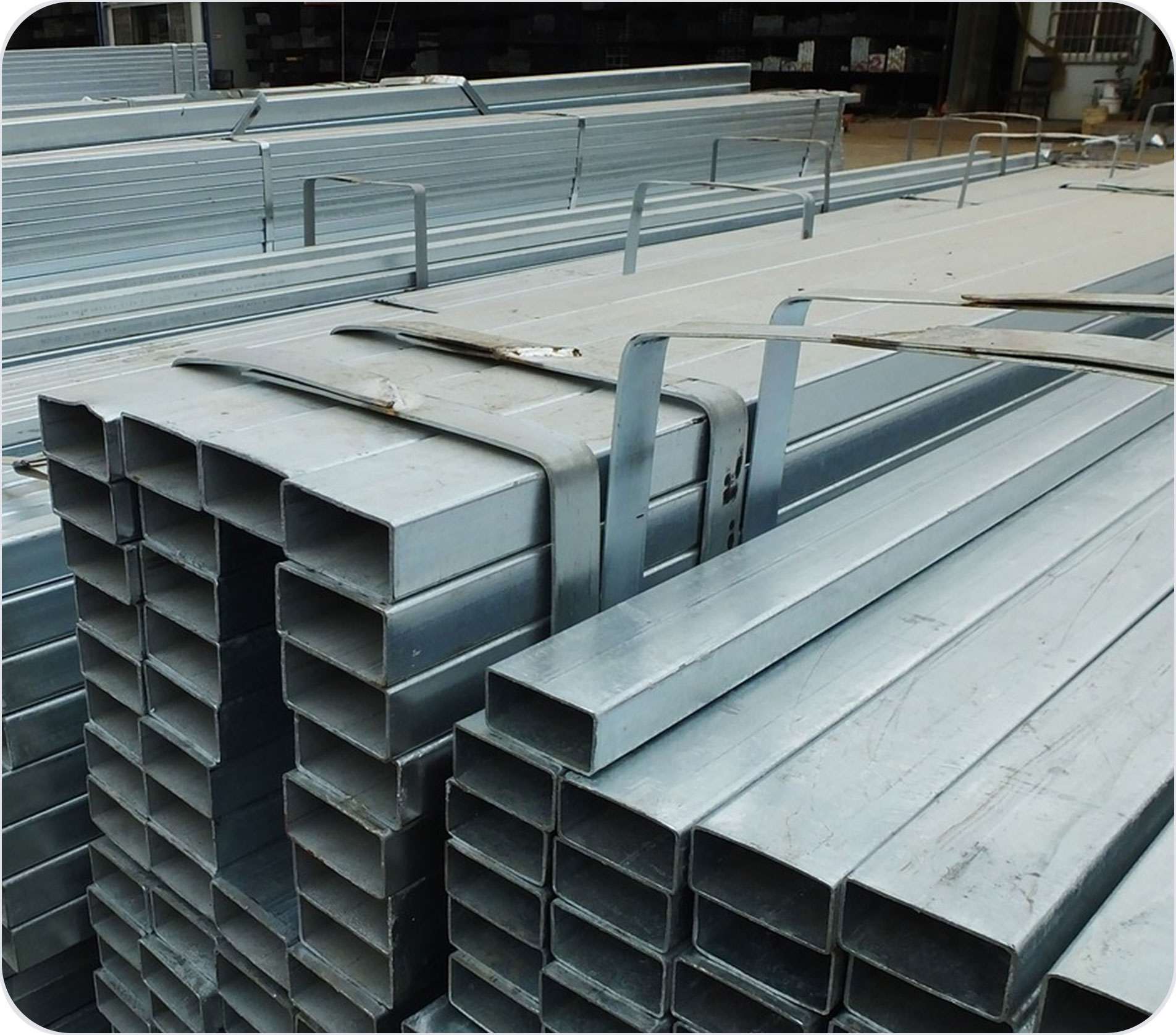

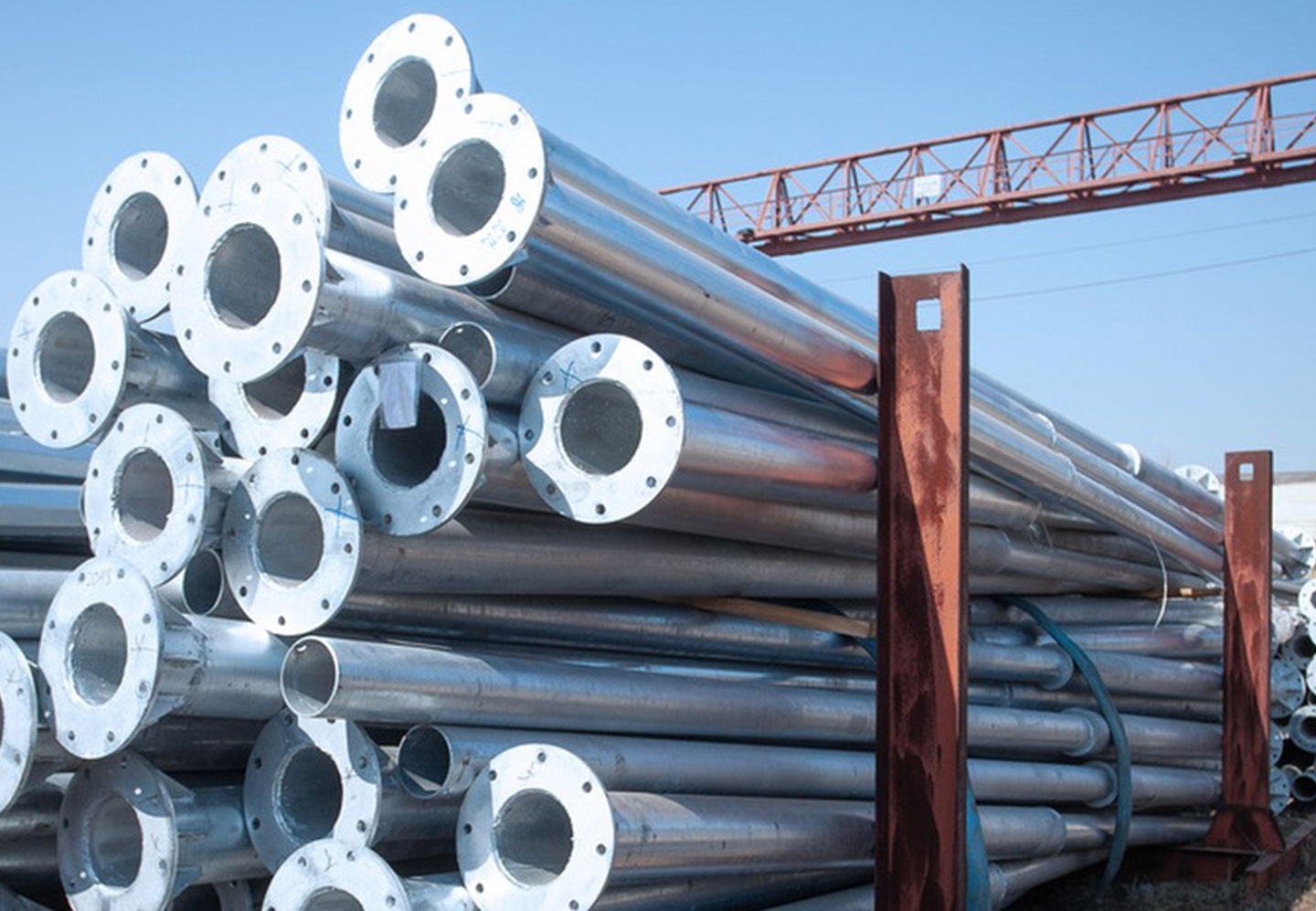

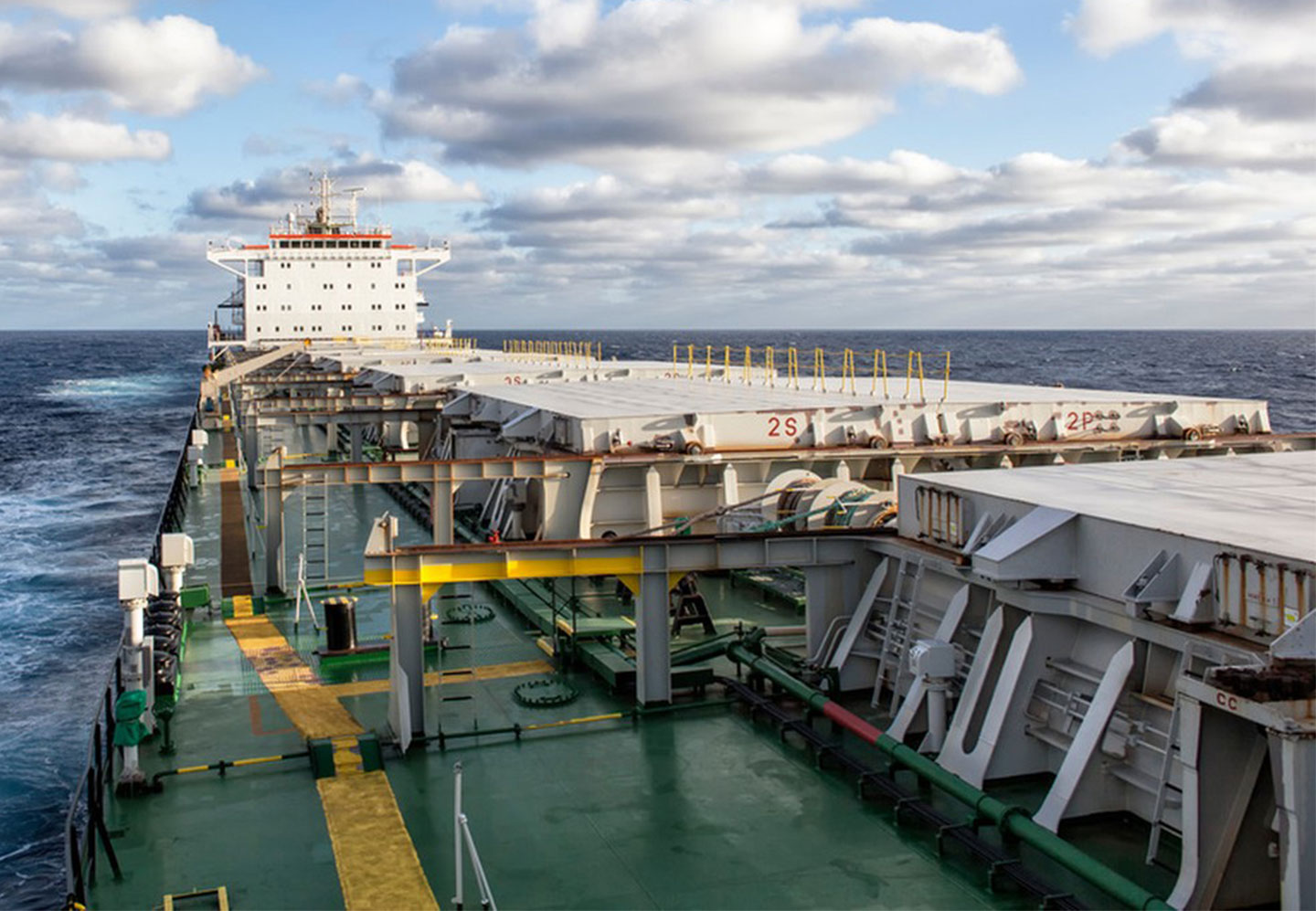

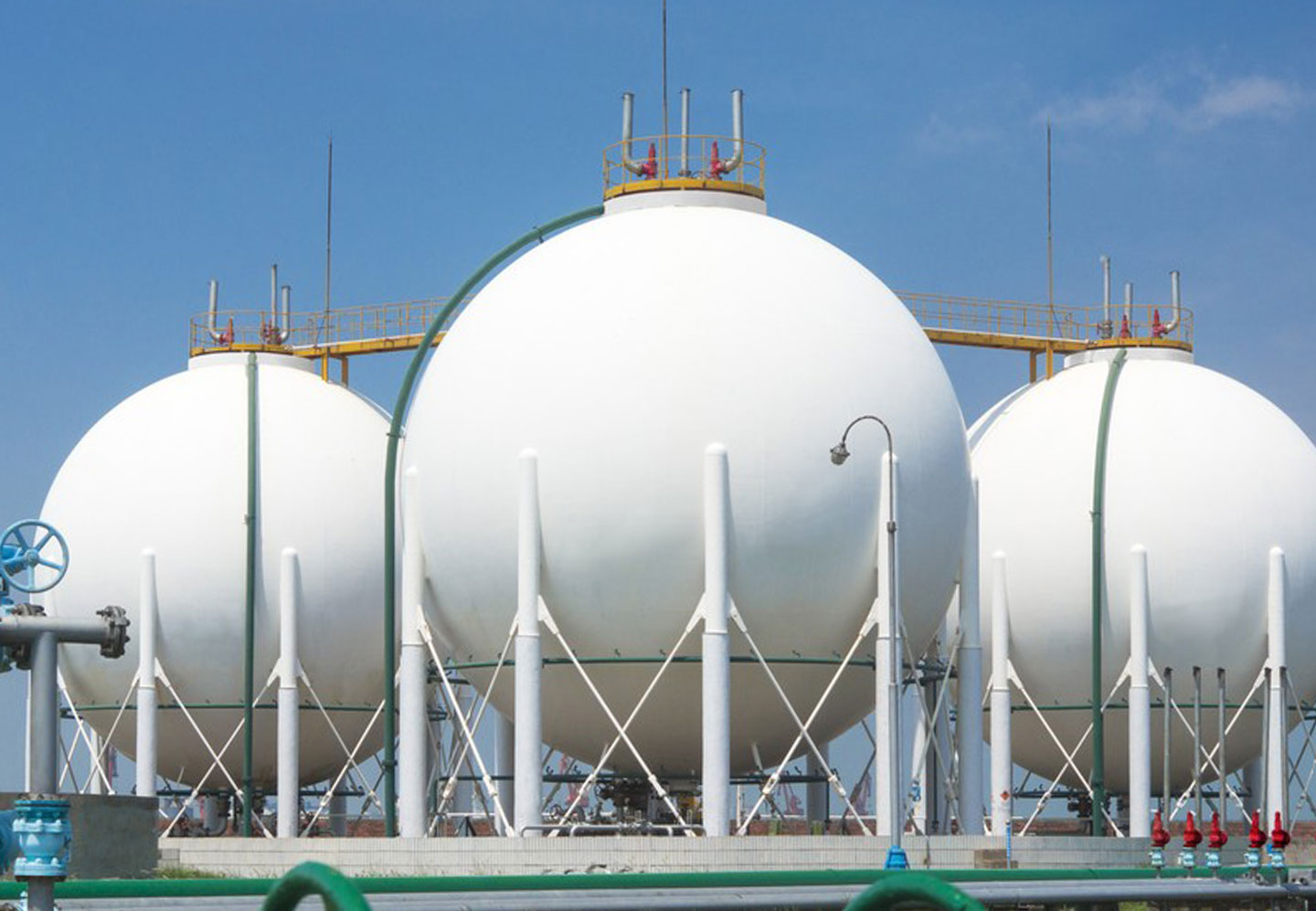

Boat	gas storage tank	oil storage tank	galvanized workpiece

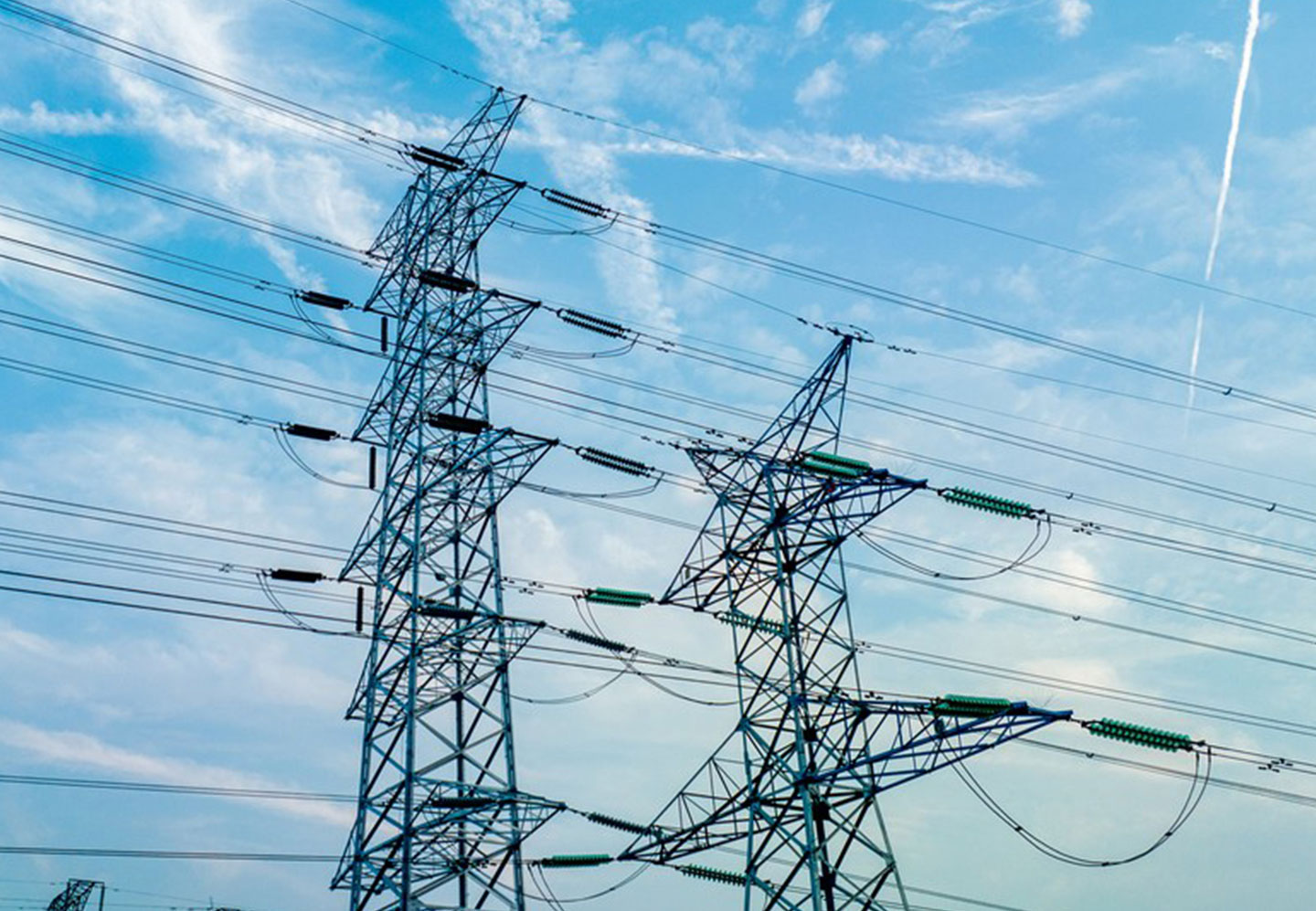

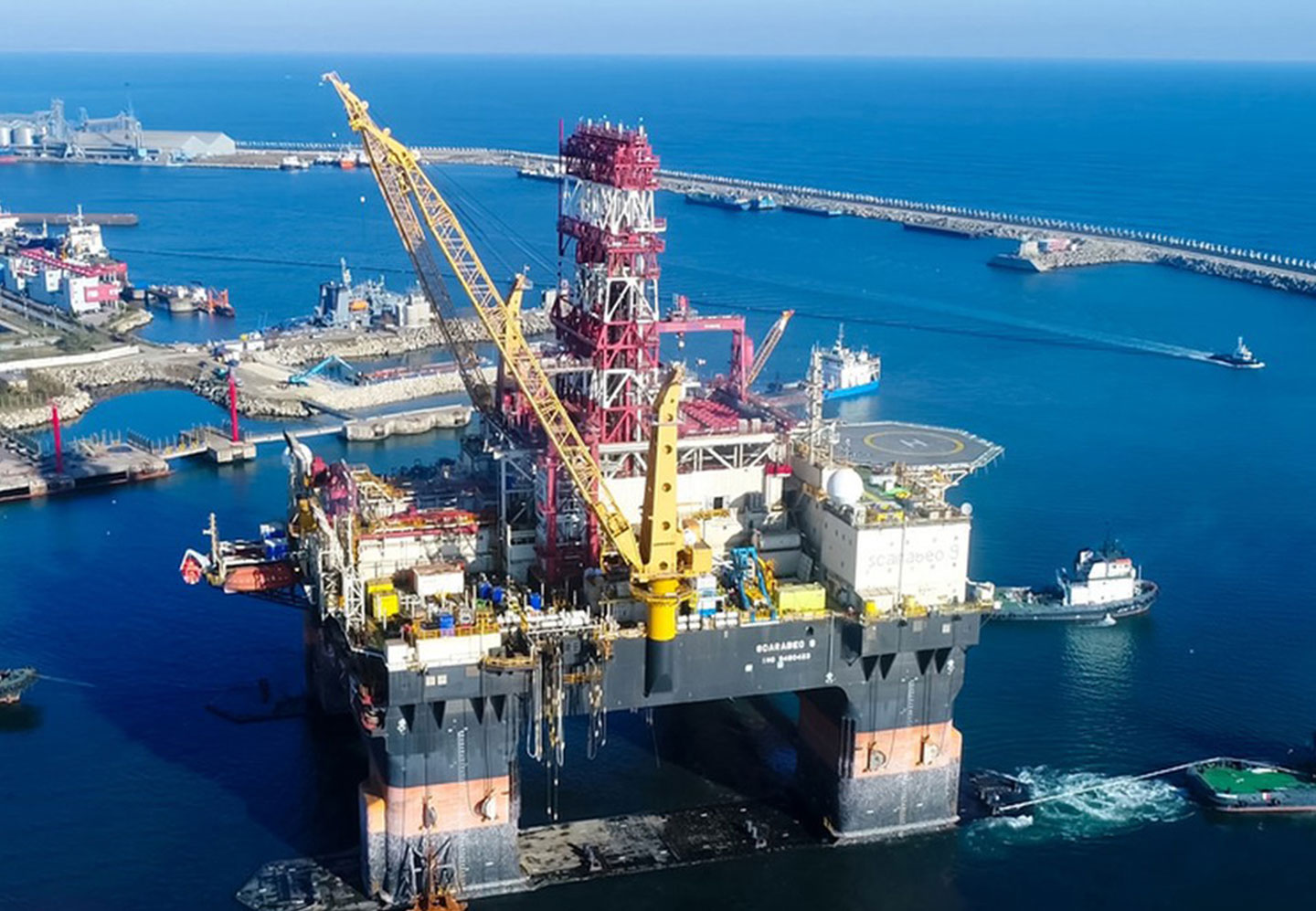

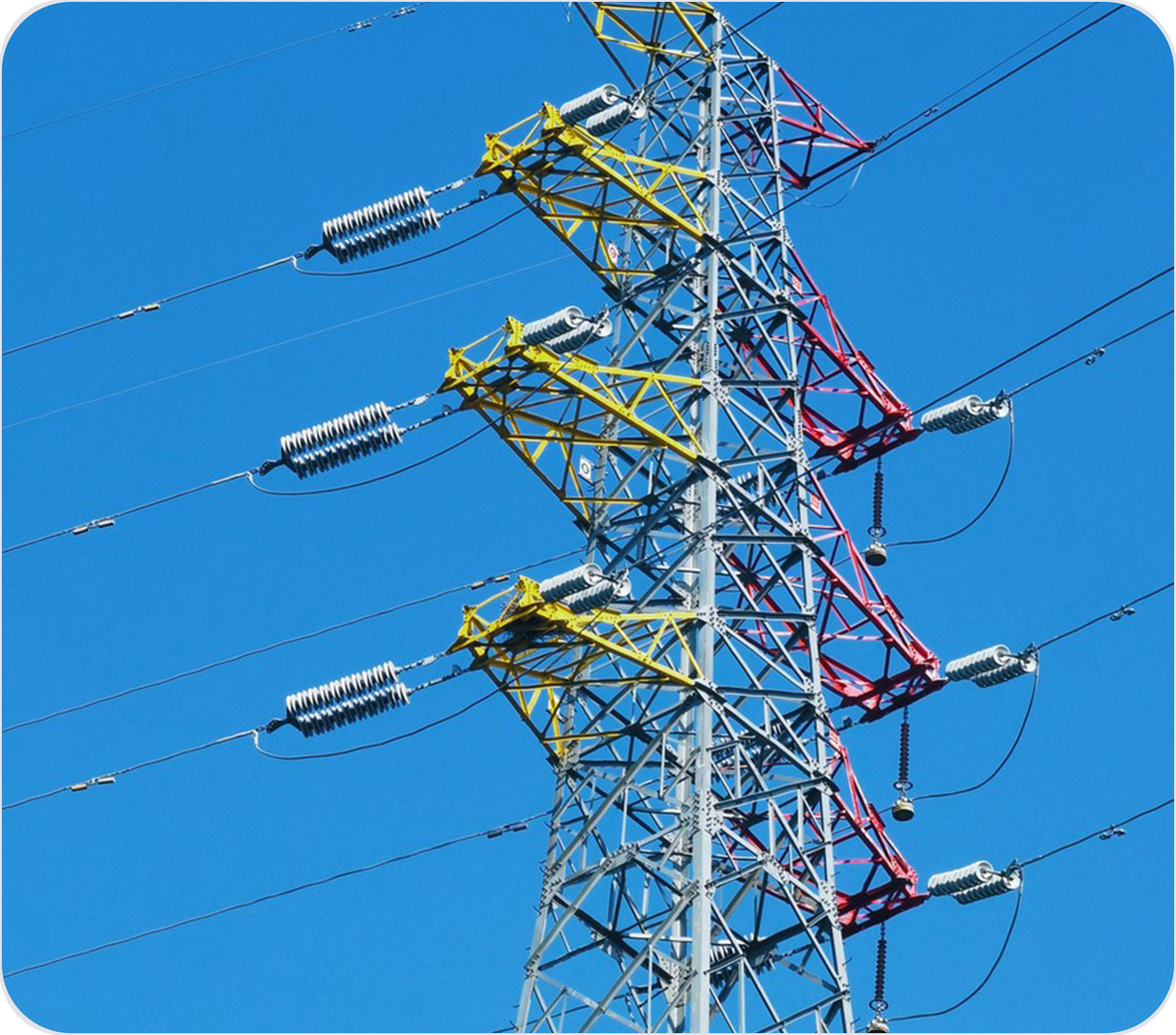

Offshore platform	Iron tower	Shipyard	Bridge

H06- 1 Epoxy Zinc-rich Primer

Compatibility

	Product	Thickness
Primer:	H06- 1 Epoxy Zinc Rich Primer	2*40 µm
Midcoat:	H53-6 Epoxy Mica Iron Oxide Paint	150 µm
Topcoat:	BS52-10 Acrylic Polyurethane Finish Paint	2*40 µm

H06- 1 Epoxy Zinc-rich Primer

Finished Projects

H06- 1 Epoxy Zinc-rich Primer

Production Process

H06- 1 Epoxy Zinc-rich Primer

Instructions For Use

Substrate Treatment：

All surface shall be clean, dry and free from any contaminations to achieve long lasting function.

       Carbon Steel

Minimum St 3 (ISO 8501-1)

Optimum Sa 2½ (ISO 8501- 1)

       Primed steel

Blasted to Sa 2 (ISO 8501- 1)

Instructions for Use:

Mixing

Mix part A and part B as 30:3 by weight. Slowly add part B into part A and ensure mixed completely.

Thinner

X-7 Epoxy paint thinner ≤ 10 % w./w.

Cleaner

X-7 Epoxy paint thinner

Application methods:

Airless spray (recommended): Nozzle tip: 0.015-0.021 inch, minimum 150 bar/2100 psi

Brush: recommended for small areas only.

Roller: recommended for small areas only.
