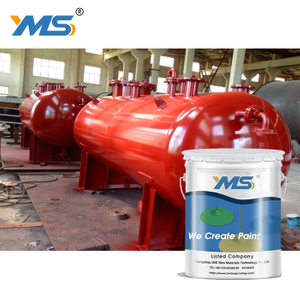

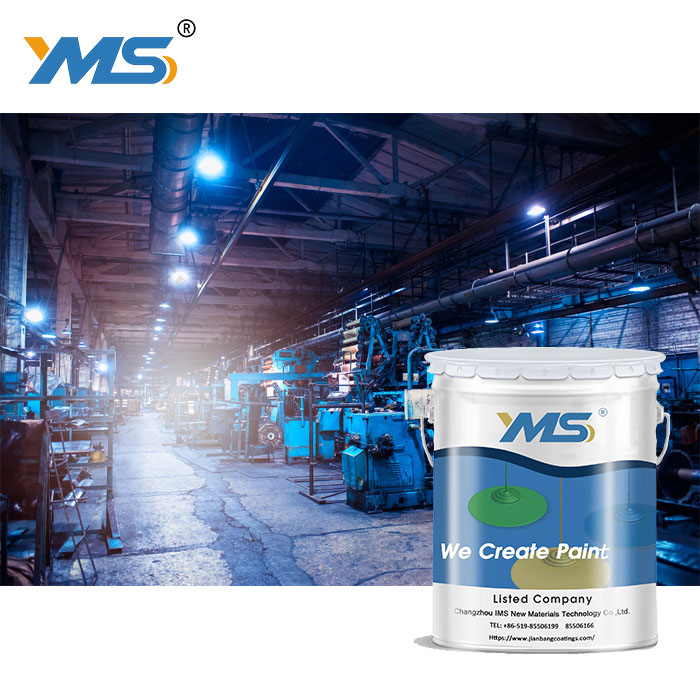

H53-30 Epoxy Zinc Phosphate Primer

This two-component product is mainly prepared by epoxy resin, ultra-fine zinc powder, and polyamide as curing agent. This product features:

Sealing property	High adhesion	Extending substrate using life
heat-resistant	rust-inhibiting	corrosion-inhibiting

H53-30 Epoxy Zinc Phosphate Primer Video

H53-30 Epoxy Zinc Phosphate Primer

Basic Technical Datasheet

Appearance	Grey, Rusty red,green,custom made
Density, kg/L	~1.6
Flash point, ℃	23
Zinc content	≥ 60 %
Impact resistance, cm	50
Adhesion, MPa	≥6
Pot life, h @ 23 ± 2 ℃	8
Theoretical spreading rate, kg/m2 @ 80 µm dry film	0.32
VOC, g/L	420

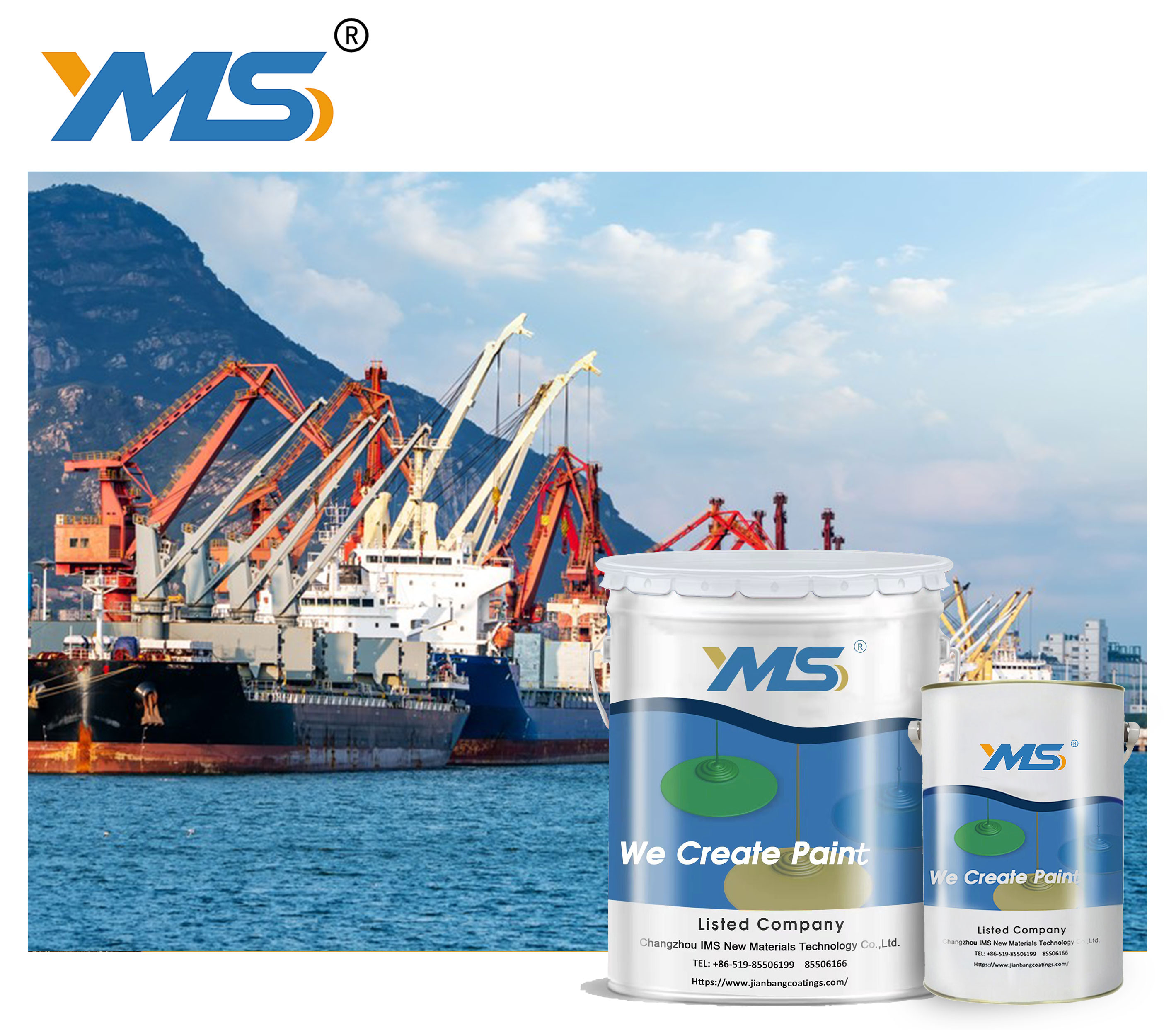

H53-30 Epoxy Zinc Phosphate Primer Product Packaging Packaging: Part A: 30 kg in a 20-liter iron barrel Part B: 3 kg in a 5-liter iron barrel. Shelf Life: Part A: 12 months    Part B: 12 months If exceeding shelf life,  the products shall be tested before using.

H53-30 Epoxy Zinc Phosphate Primer

Applicable Environment

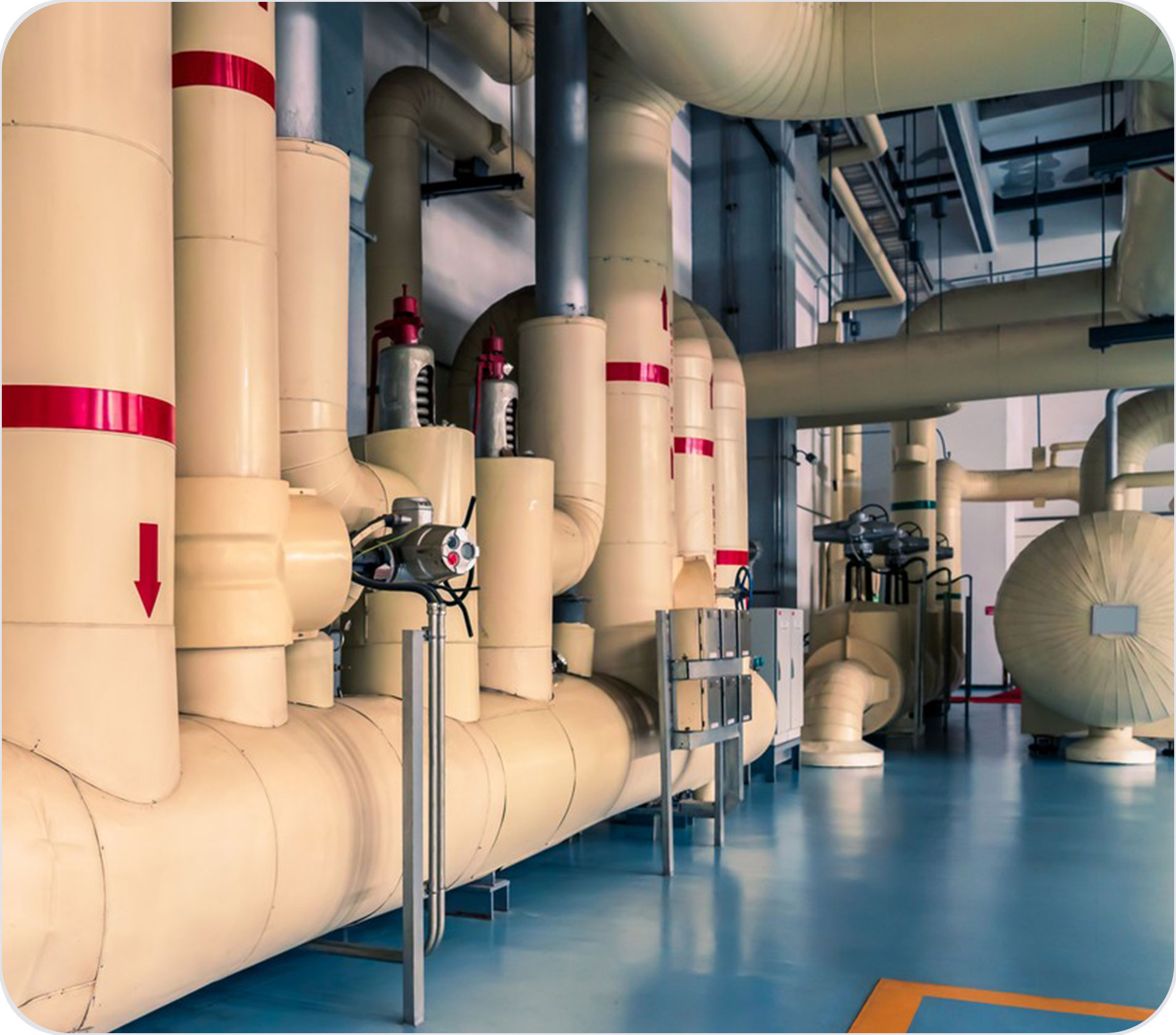

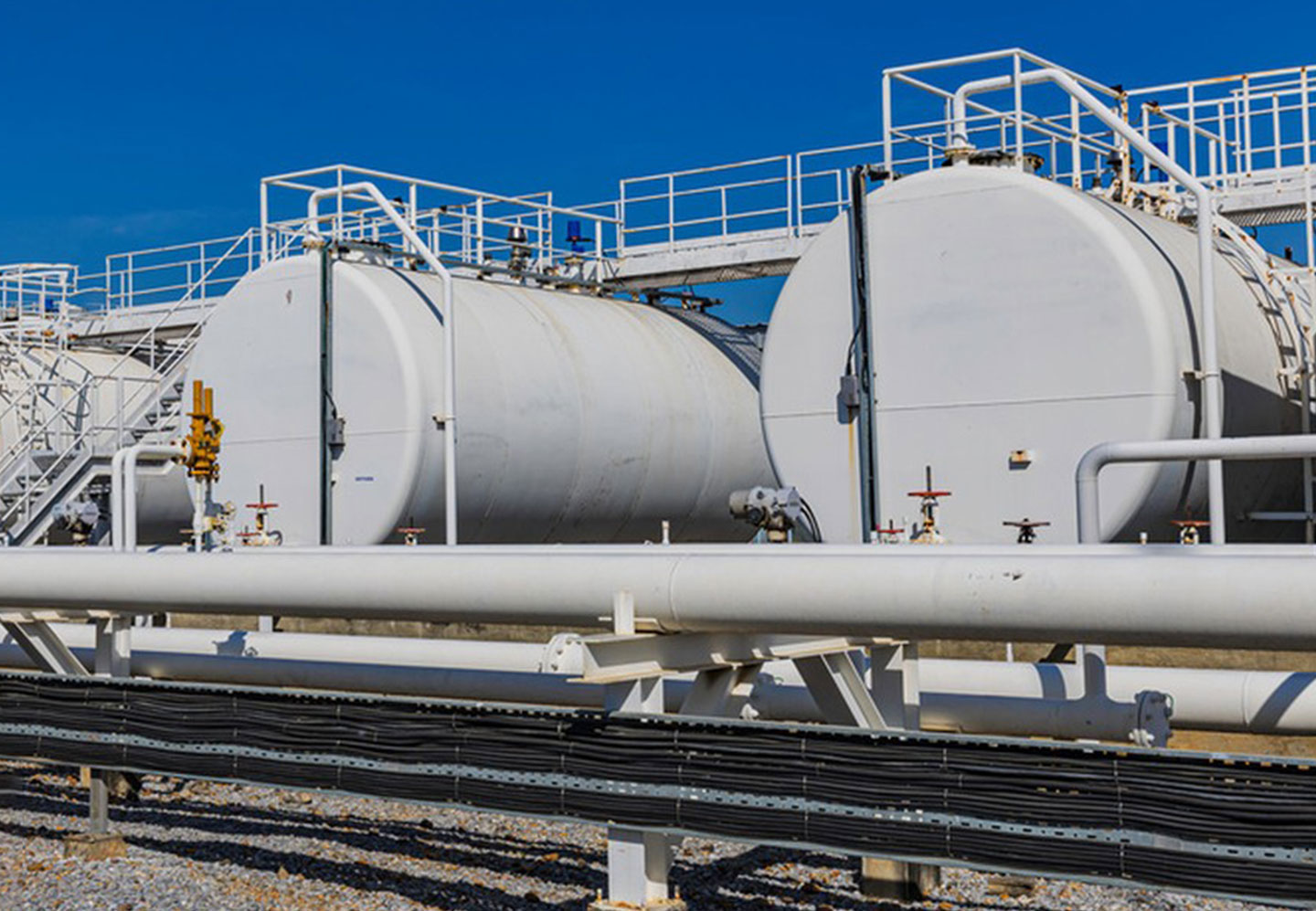

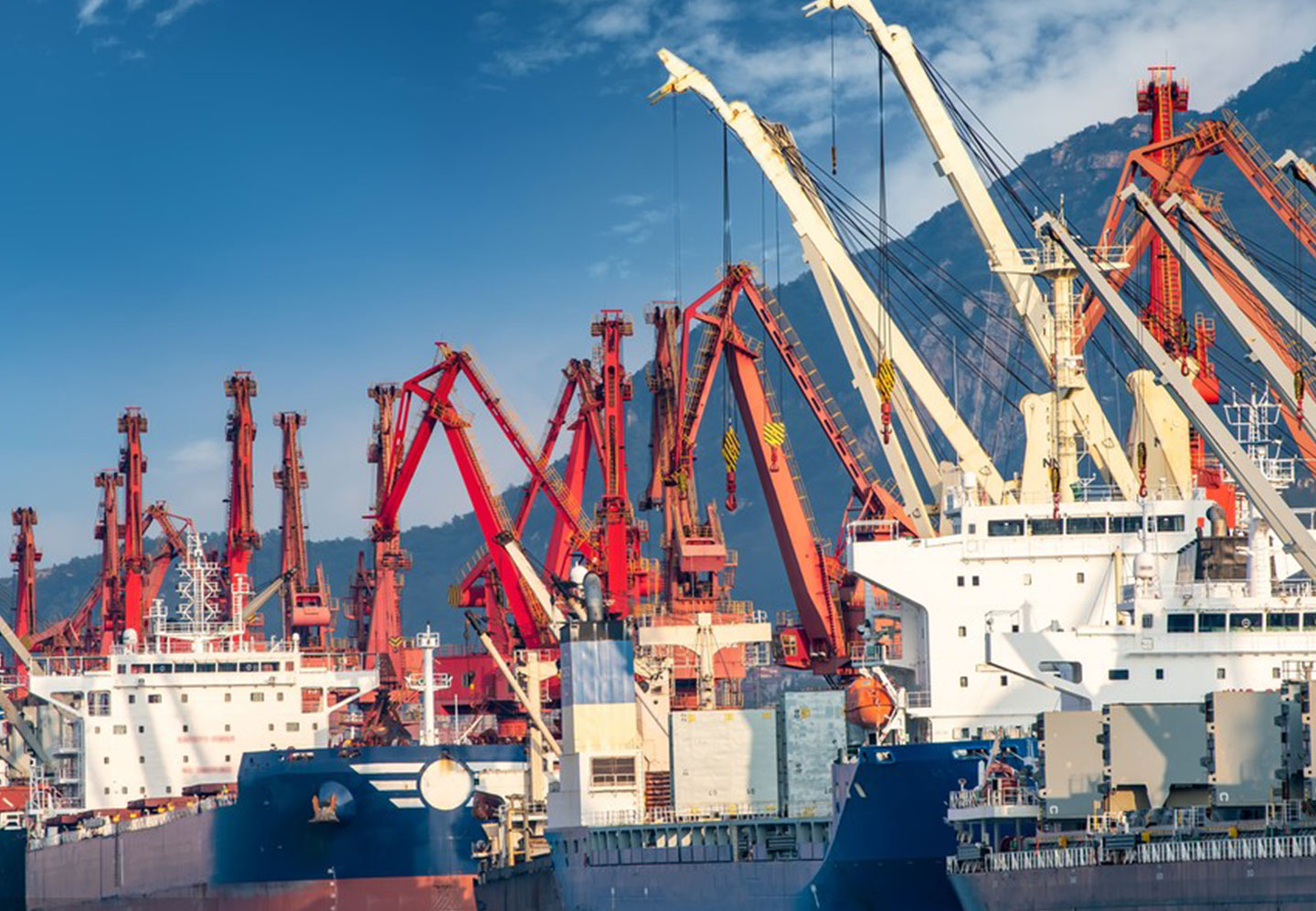

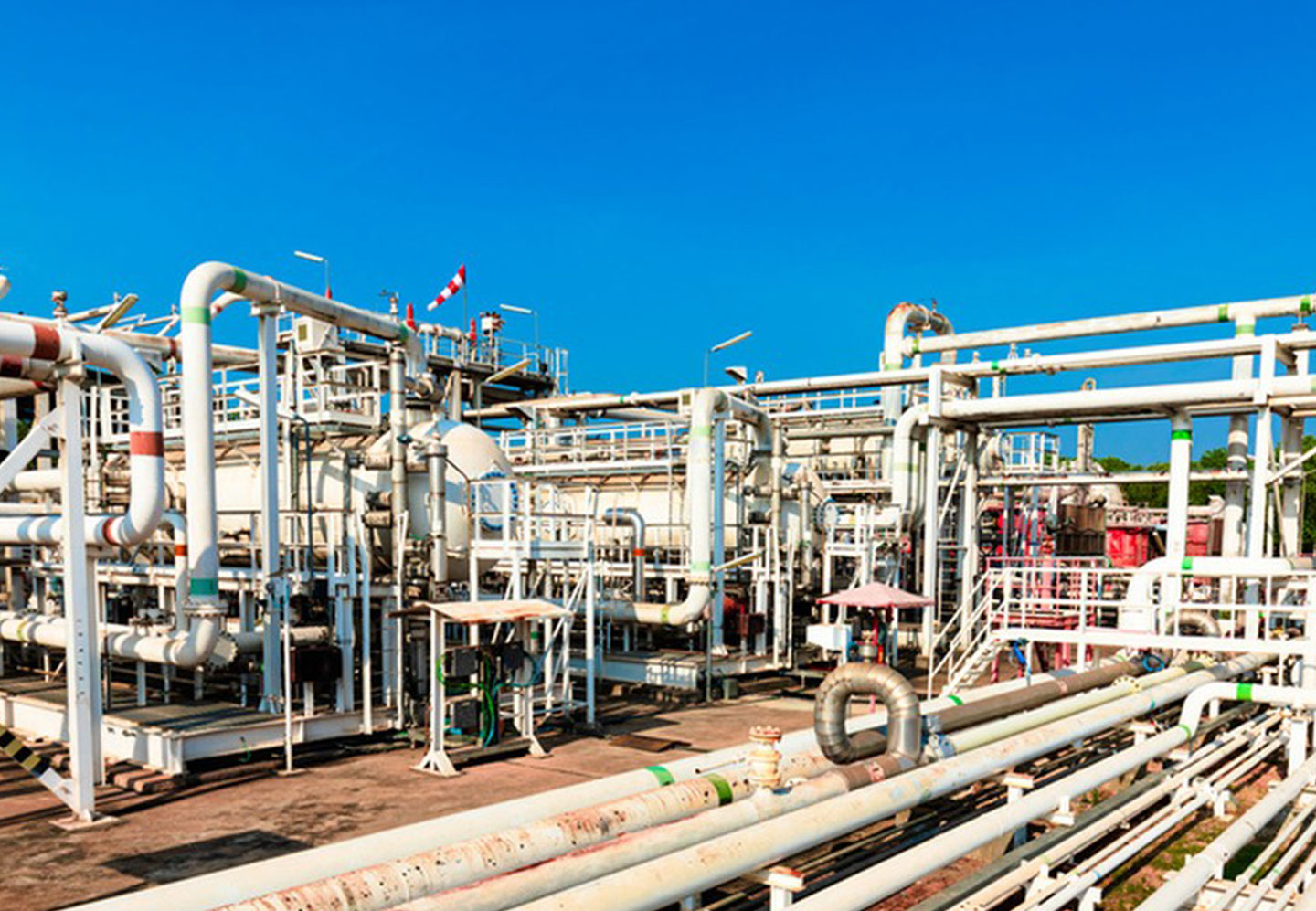

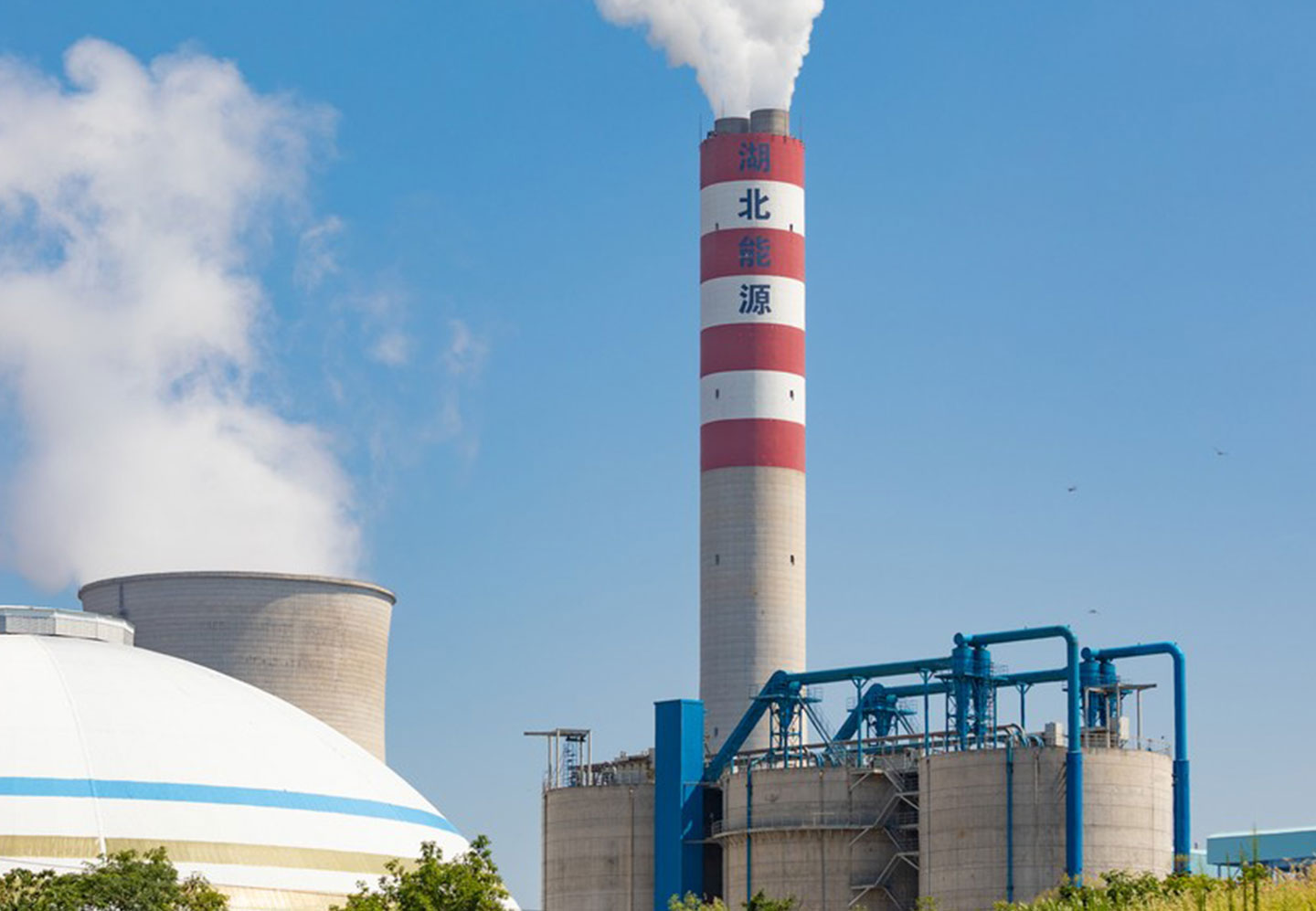

Power plant	Port facilities	Storage tanks	Pipeline

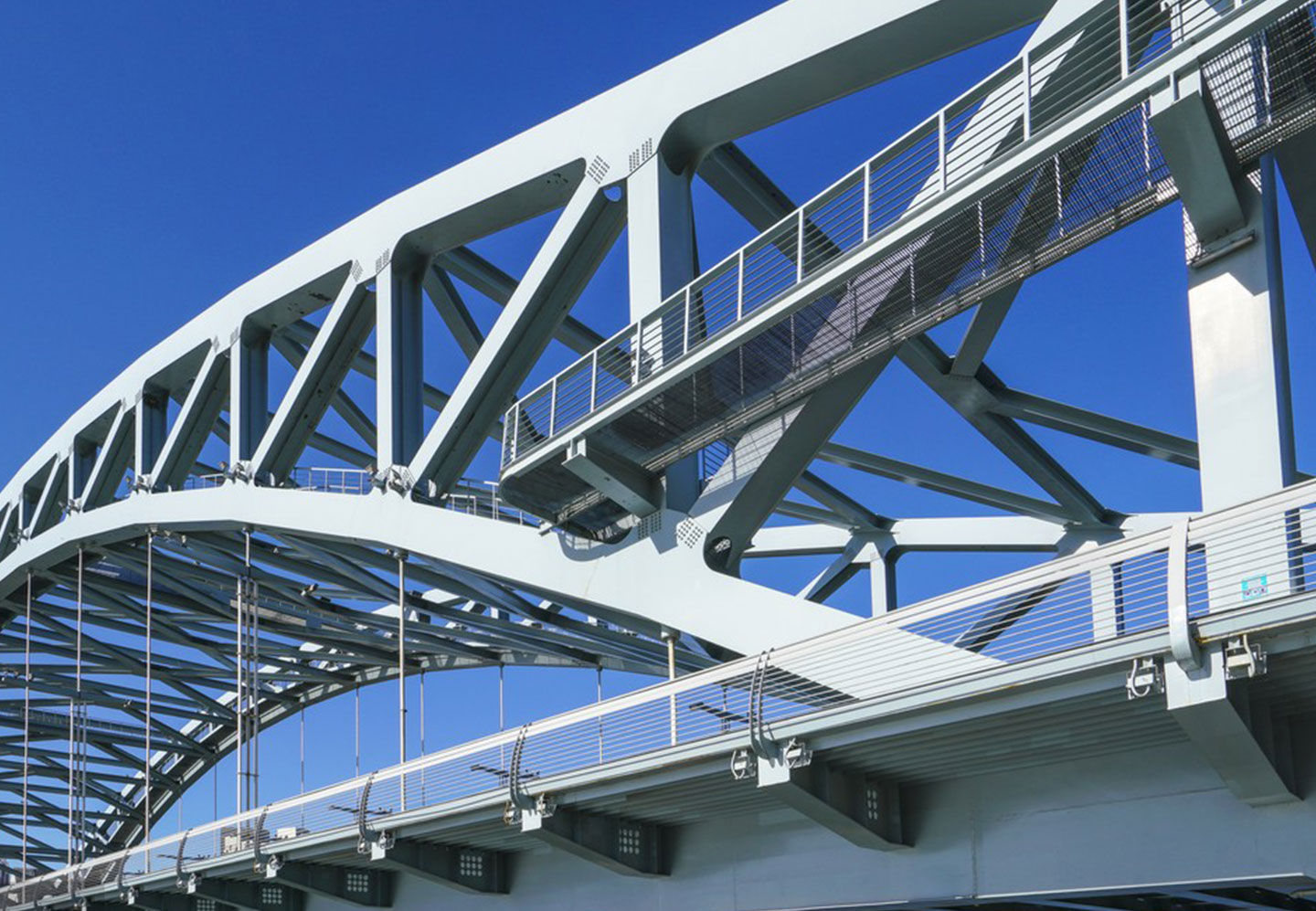

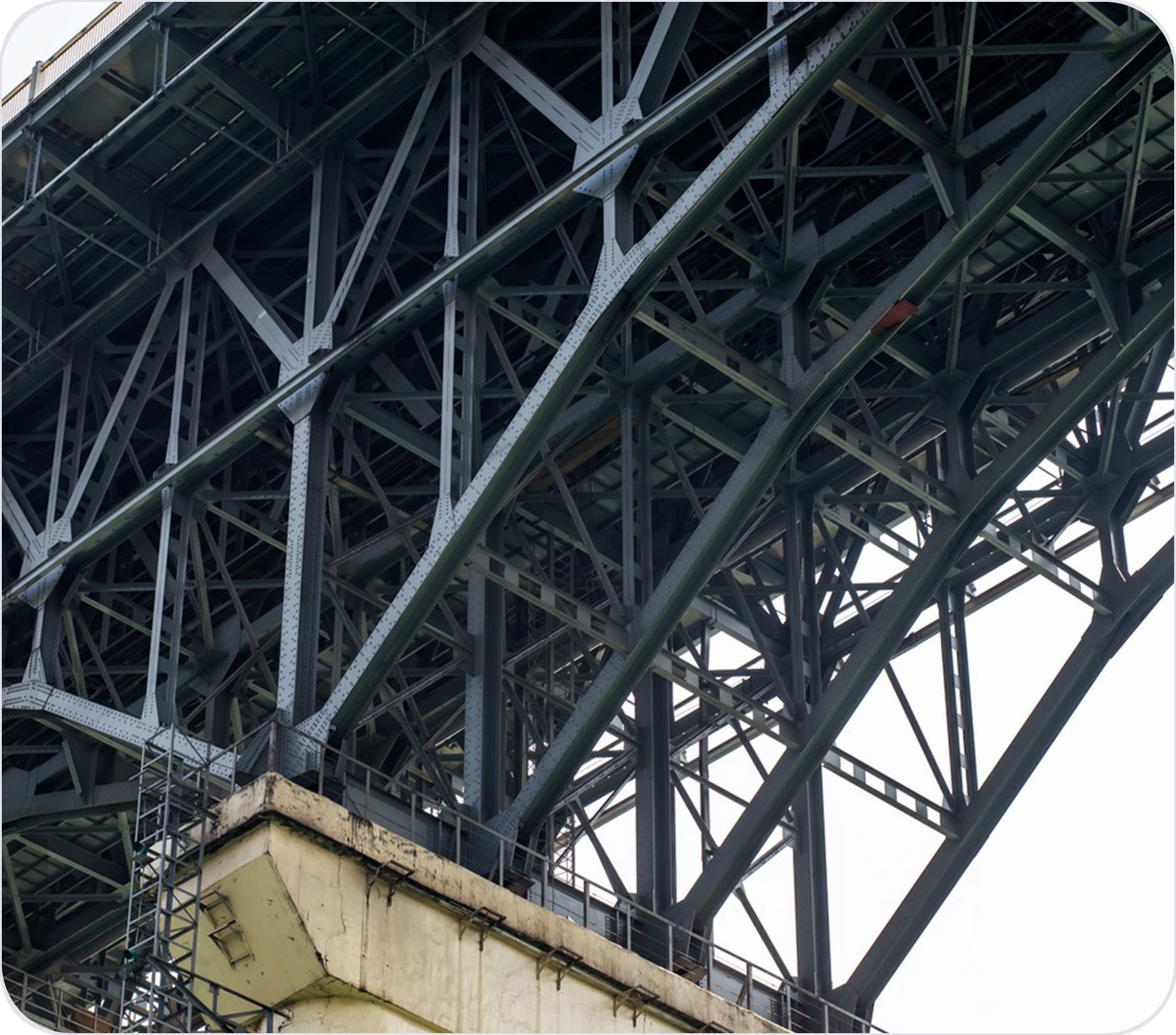

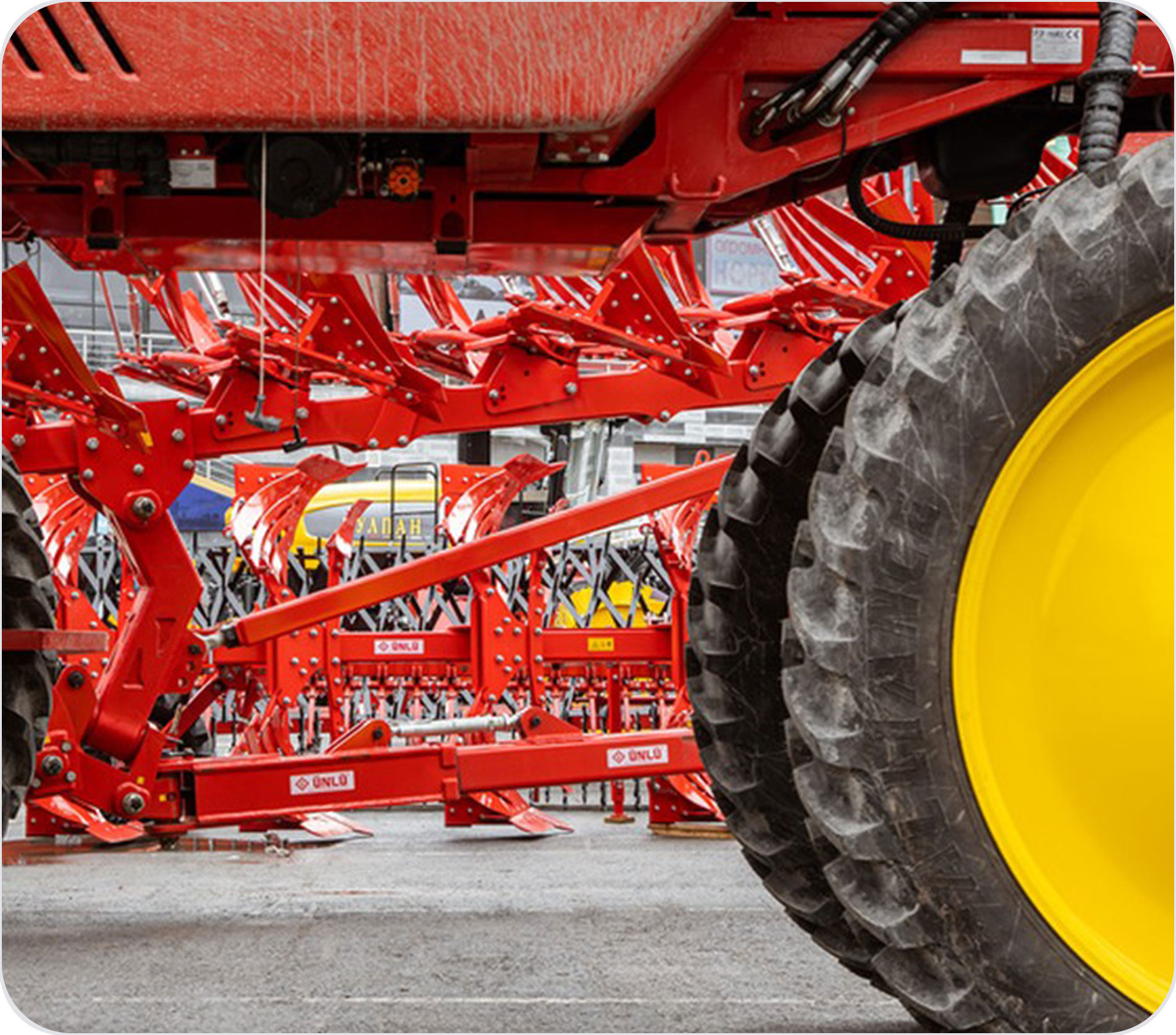

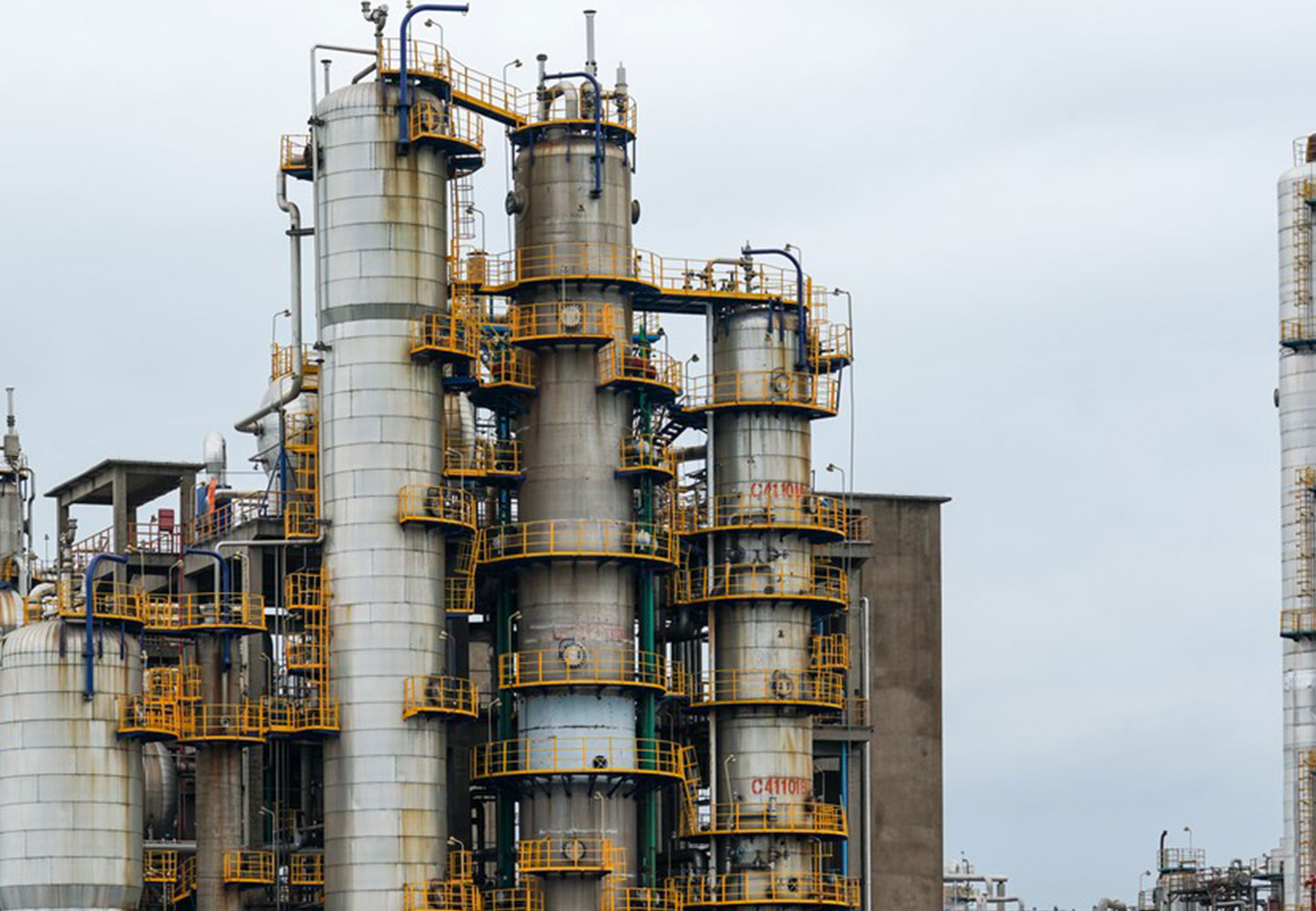

Agricultural machinery	Chemical plants	Shipbuilding	Bridges

H53-30 Epoxy Zinc Phosphate Primer

Compatibility

	Product	Thickness
Primer:	H06-5 Epoxy Zinc Rich Primer	2*40 µm
Midcoat:	H53-6 Epoxy Mica Iron Oxide Paint	150 µm
Topcoat:	BS52-10 Acrylic Polyurethane Finish Paint	2*40 µm

H53-30 Epoxy Zinc Phosphate Primer

Finished Projects

H53-30 Epoxy Zinc Phosphate Primer

Production Process

H53-30 Epoxy Zinc Phosphate Primer

Instructions For Use

Substrate Treatment：

All surface shall be clean, dry and free from any contaminations to achieve long lasting function.

       Carbon Steel

Minimum St 3 (ISO 8501-1)

Optimum Sa 2½ (ISO 8501- 1)

       Primed steel

Blasted to Sa 2 (ISO 8501- 1)

Instructions for Use:

Mixing

Mix part A and part B as 30:3 by weight. Slowly add part B into part A and ensure mixed completely.

Thinner

X-7 Epoxy paint thinner ≤ 10 % w./w.

Cleaner

X-7 Epoxy paint thinner

Application methods:

Airless spray (recommended): Nozzle tip: 0.015-0.021 inch, minimum 150 bar/2100 psi

Brush: recommended for small areas only.

Roller: recommended for small areas only.
