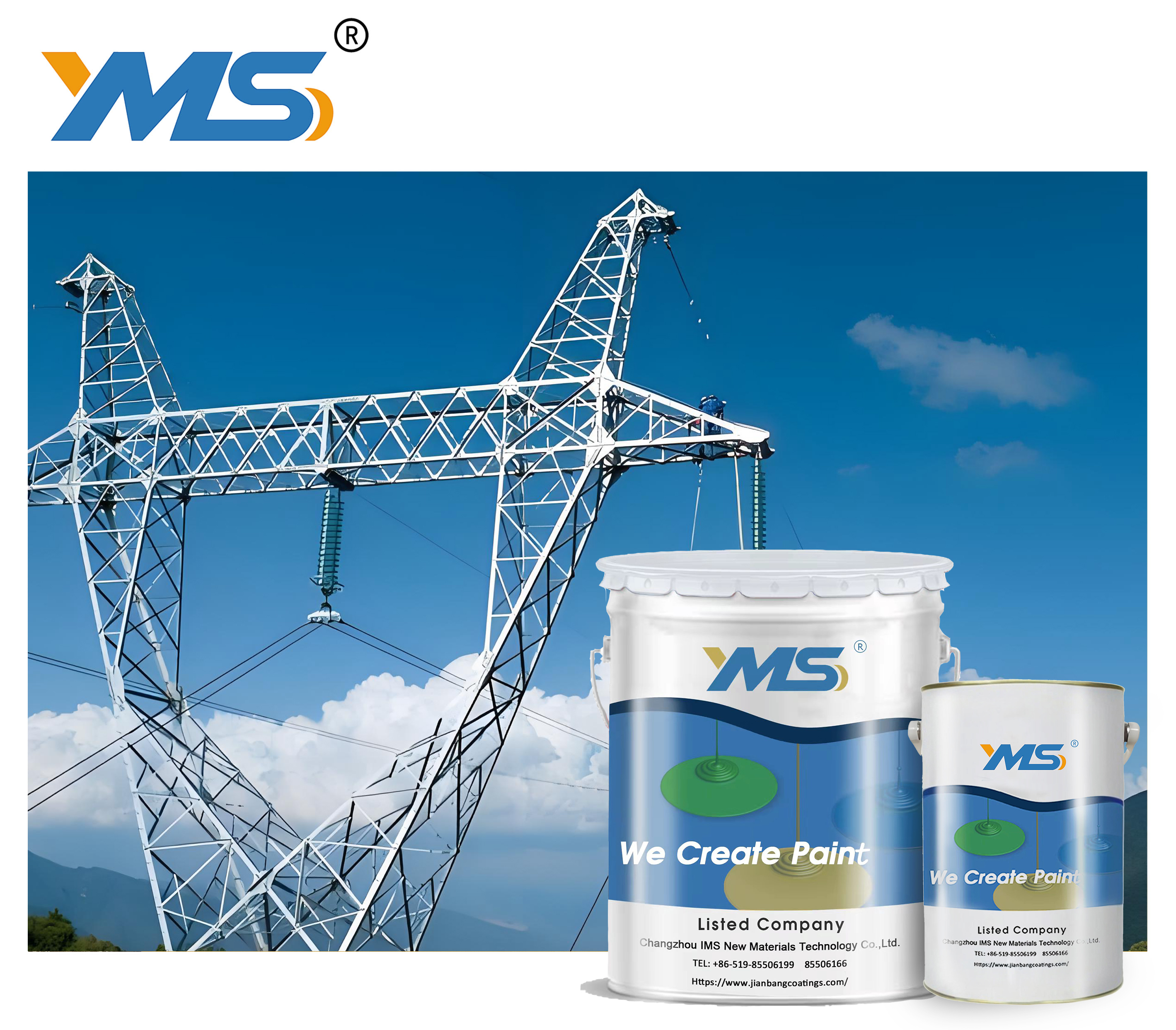

Polyurethane Polyethylene Interpenetrating Network Paint (Primer)

It is a two-component coating composed of diisocyanate (s group), castor oil resin, organic solvent, polyethylene modified resin (x group), accelerant, pigments, etc.It has the following resistance characteristics:

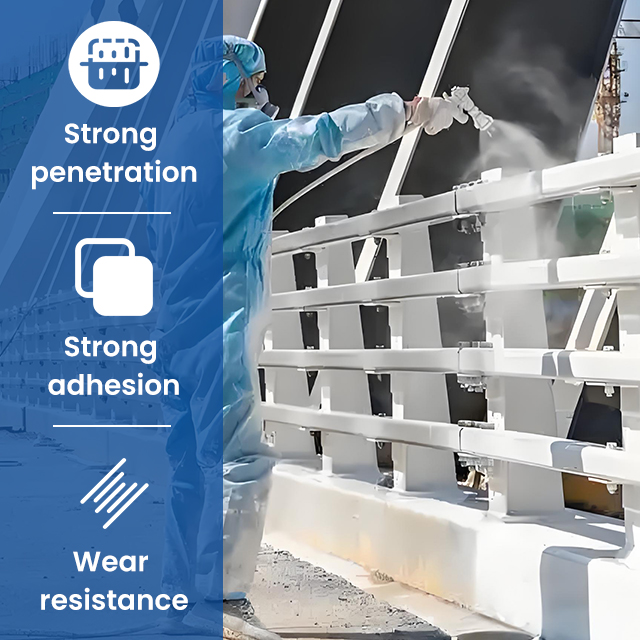

Strong Penetrability	High Strength	High Toughness
Excellent Abrasion Resistance	Outstanding Insulation Property



Polyurethane Polyethylene Interpenetrating Network Paint (Primer) Video

Polyurethane Polyethylene Interpenetrating Network Paint (Primer) Basic Technical Datasheet

Color	Iron-red, Brown
Gloss	Glossy
Density	~1.43Kg/L (after mixing)
Hardness	Polyurethane curing agent
Solid Volume	(55±2 )%
Standard Film thickness	100um dry film thickness  (about 180um wet film thickness)
Theoretical spreading rate	3.85m²/Kg (100um dry film thickness)
Flash Point	27℃

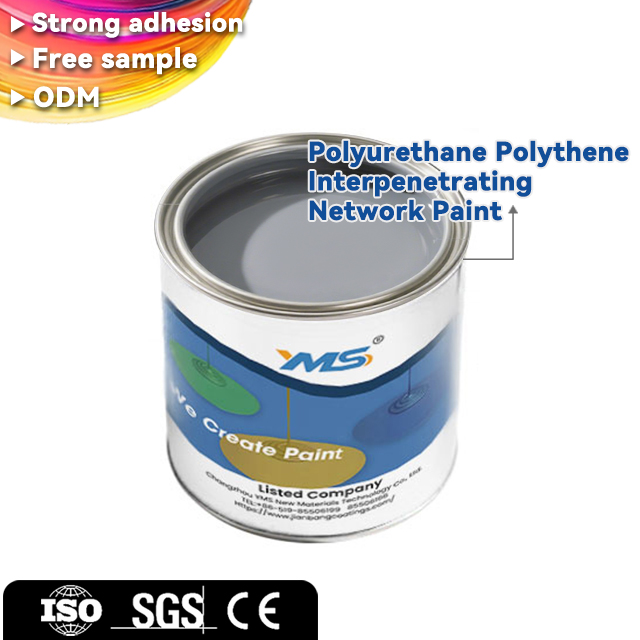

Polyurethane Polyethylene Interpenetrating Network Paint (Primer) Product Packaging Packaging: Part A 20kg in a 20-liter iron bucket. Part B 4kg in a 5-liter iron bucket. Shelf Life: 12 months If exceeding shelf life, the products shall be tested before using.

Polyurethane Polyethylene Interpenetrating Network Paint (Primer) Applicable Environment

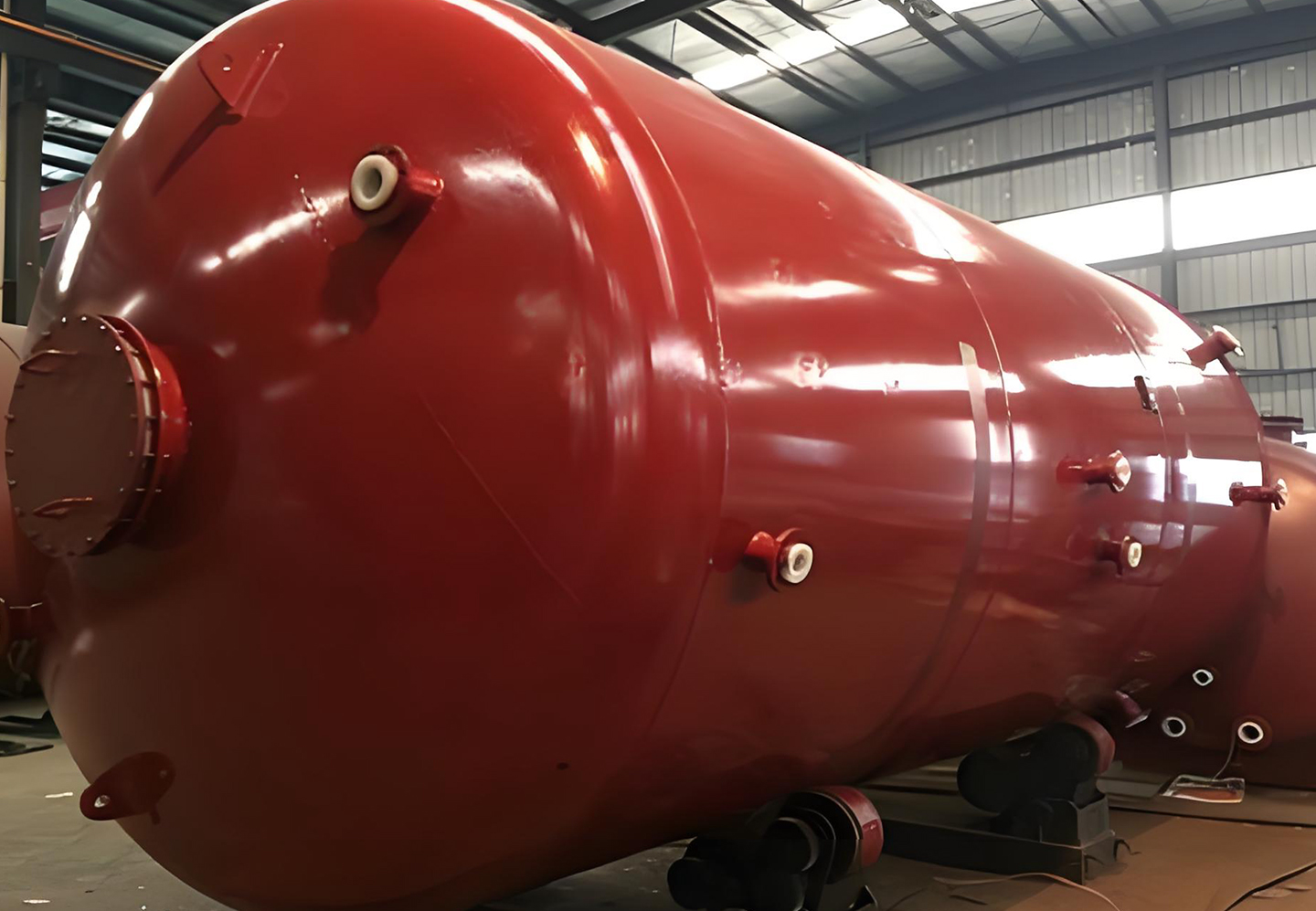

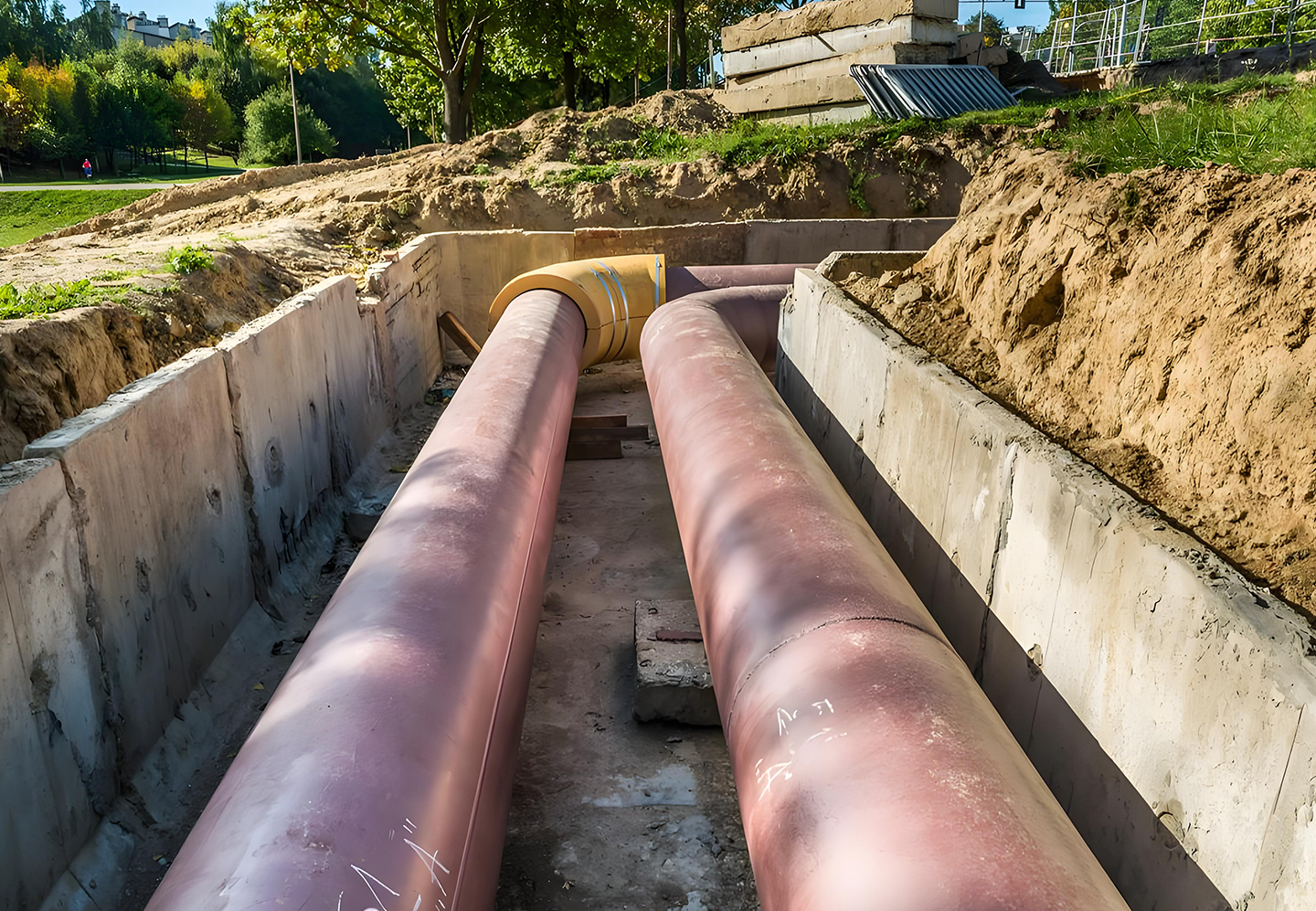

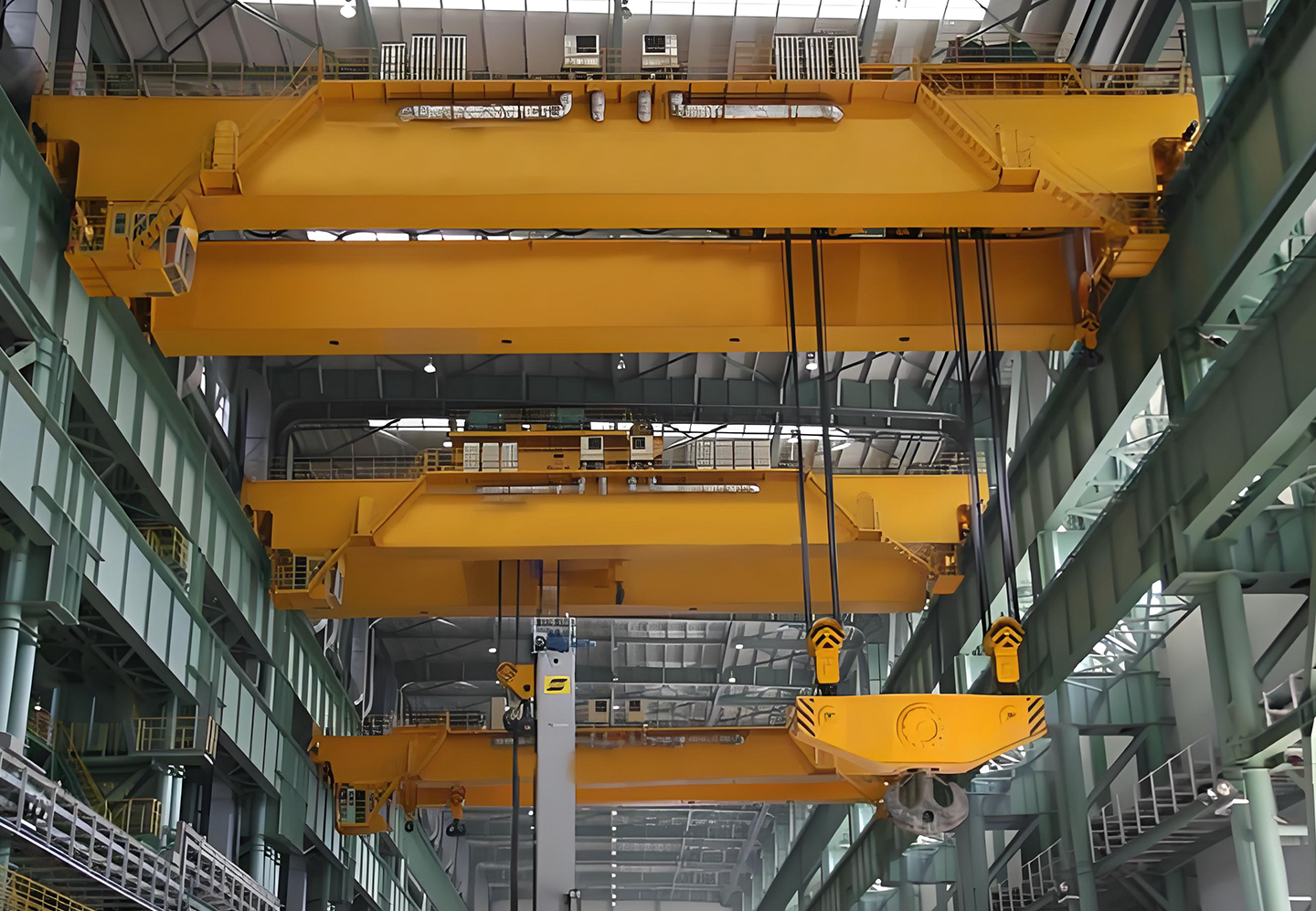

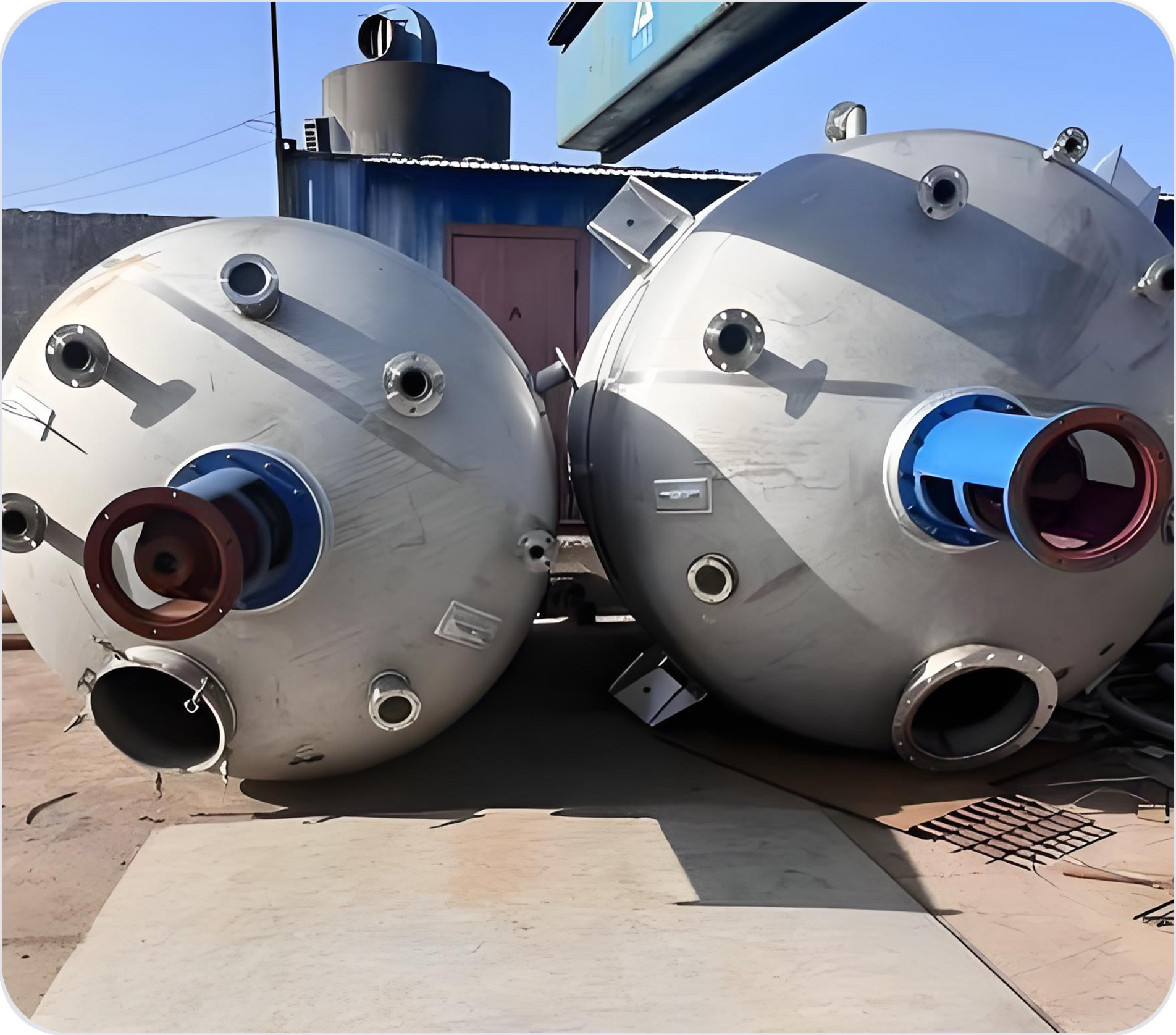

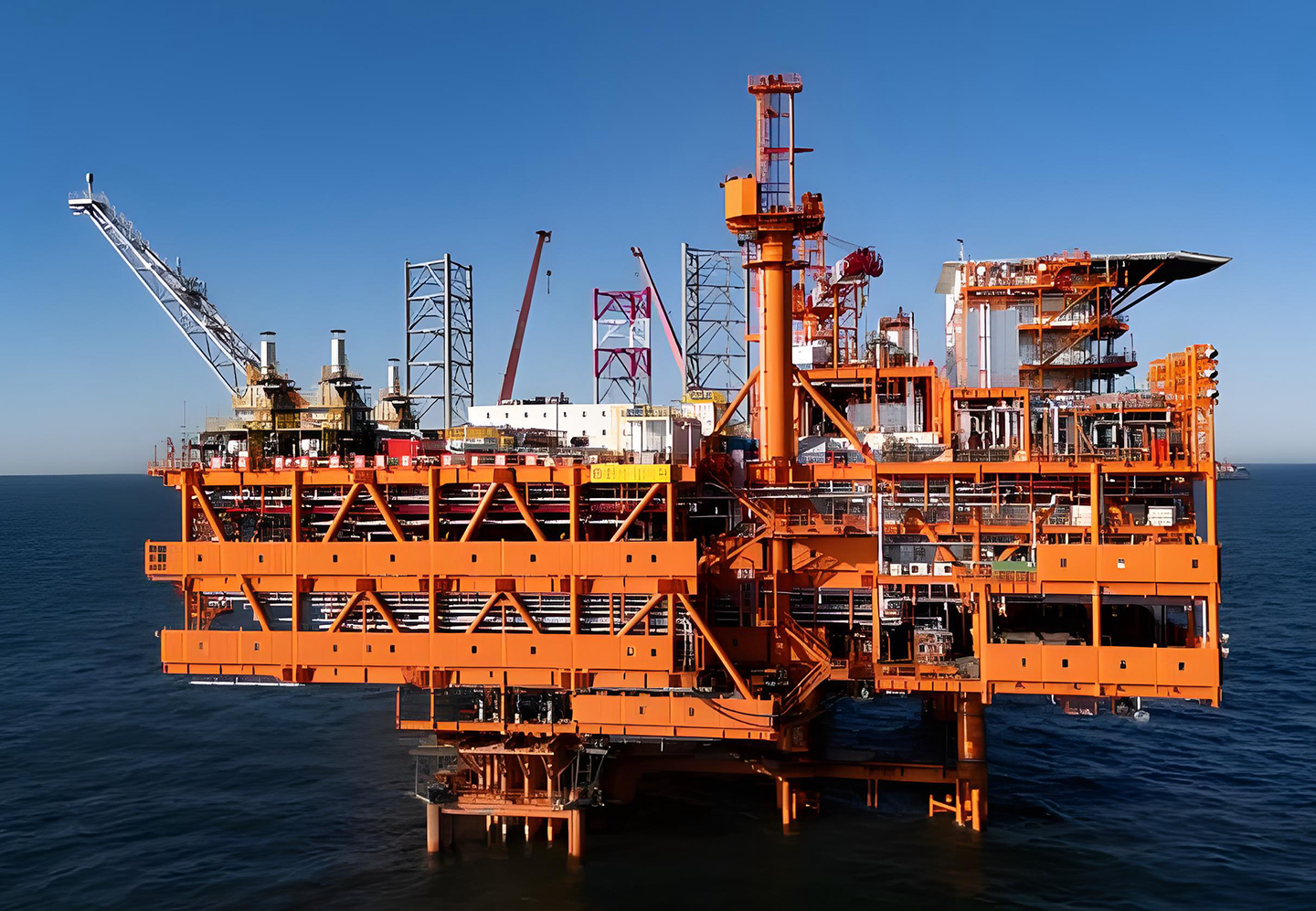

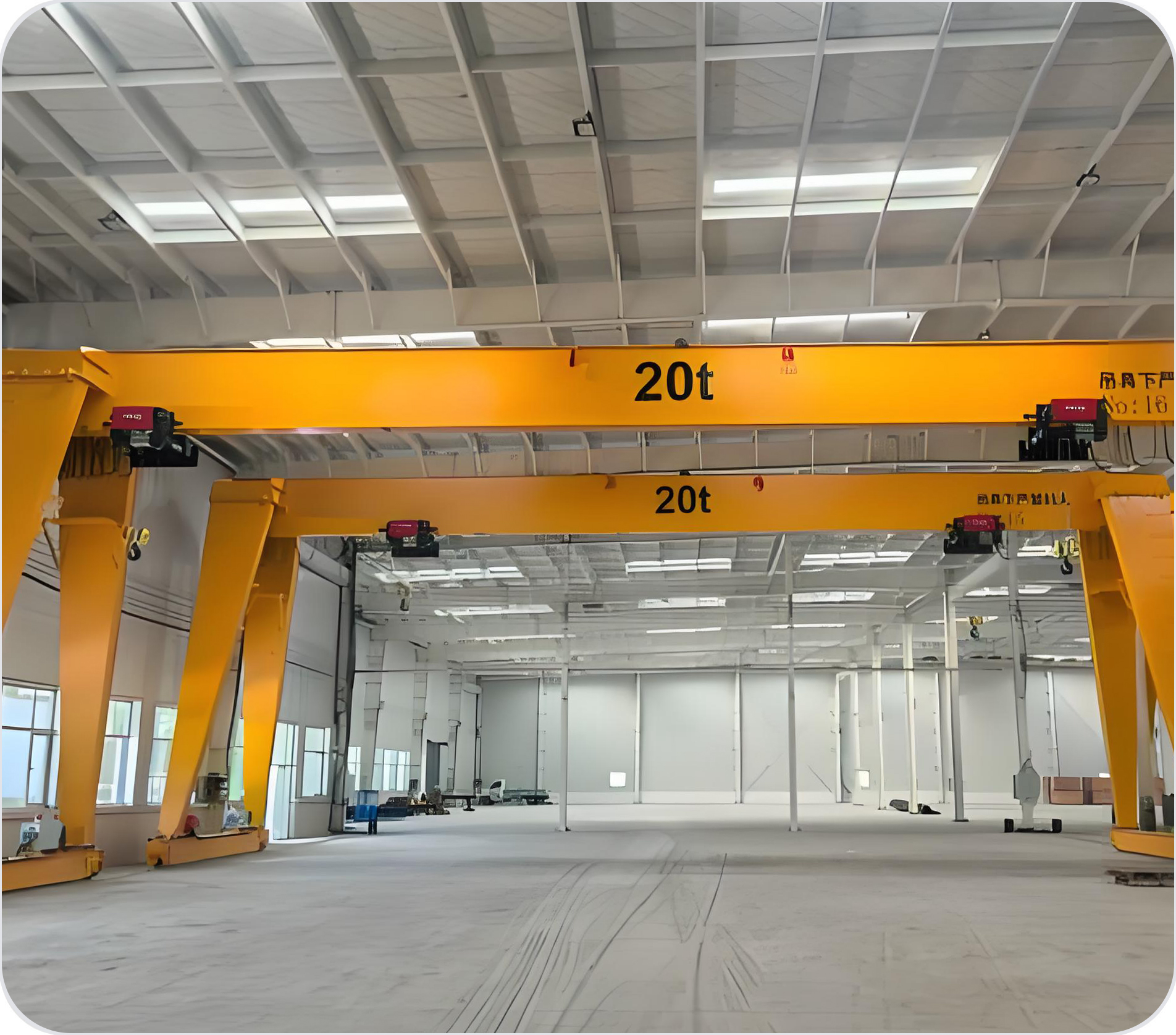

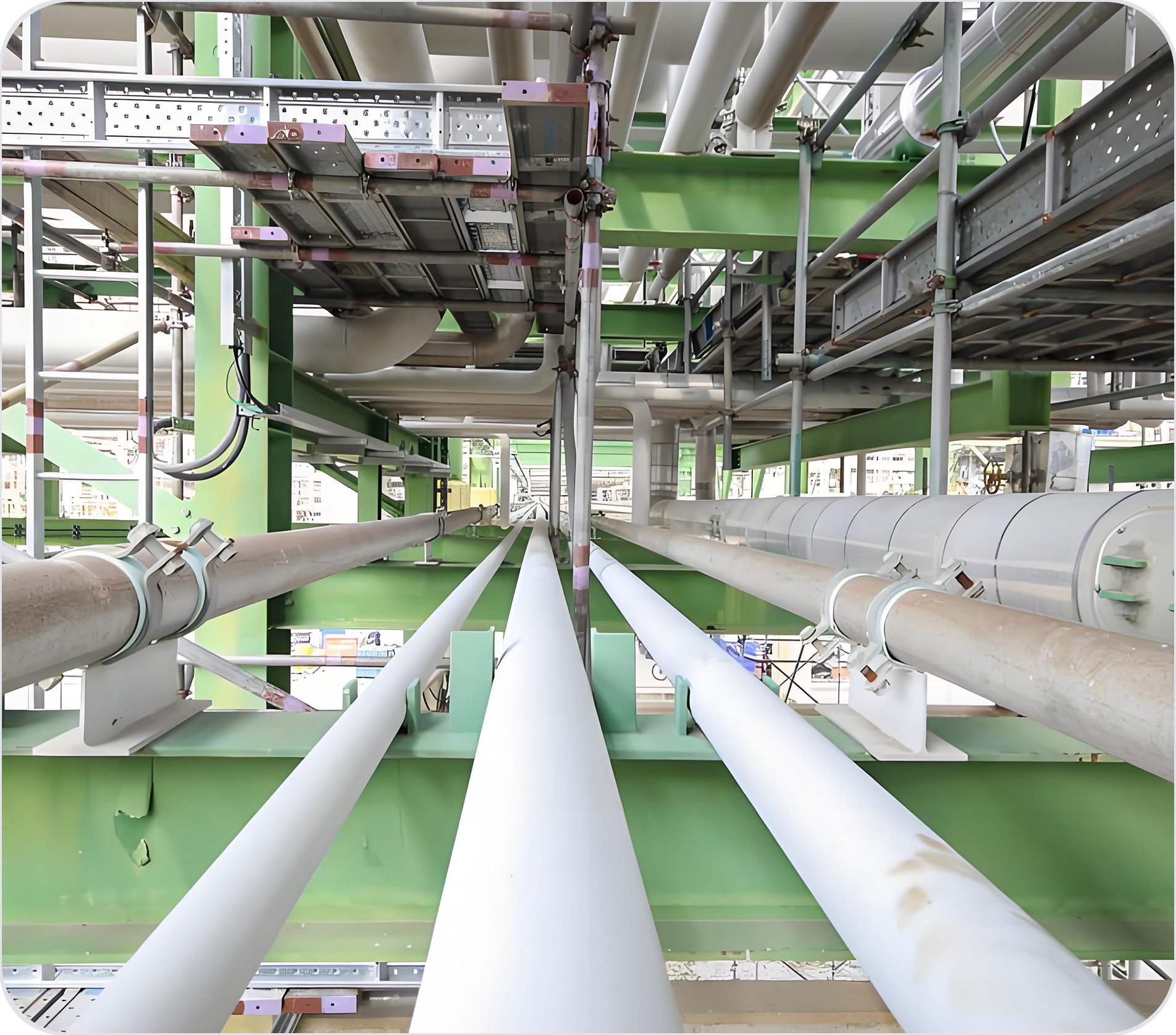

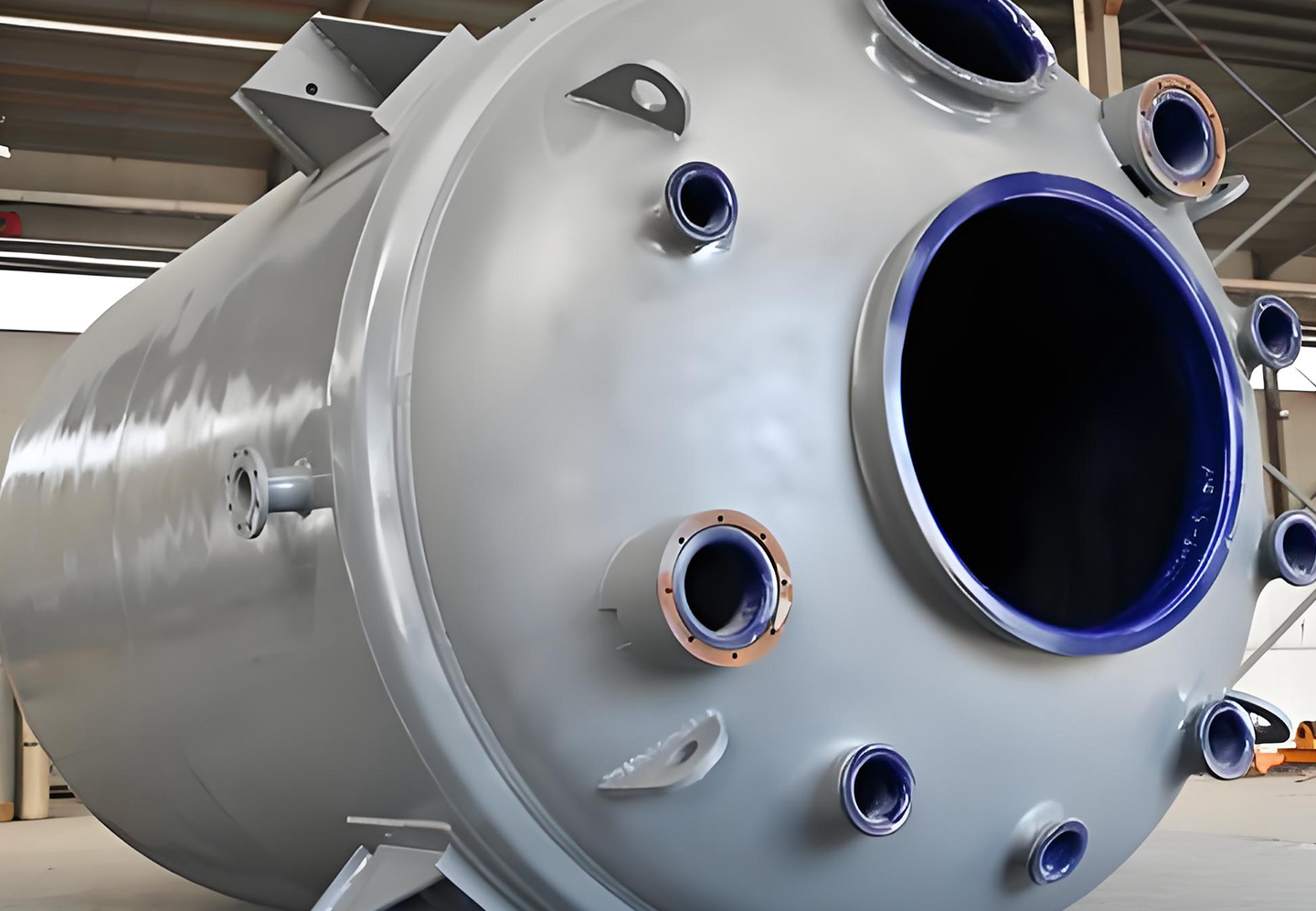

Offshore Steel Structure	Reactor	Drainage Pipeline	Crane

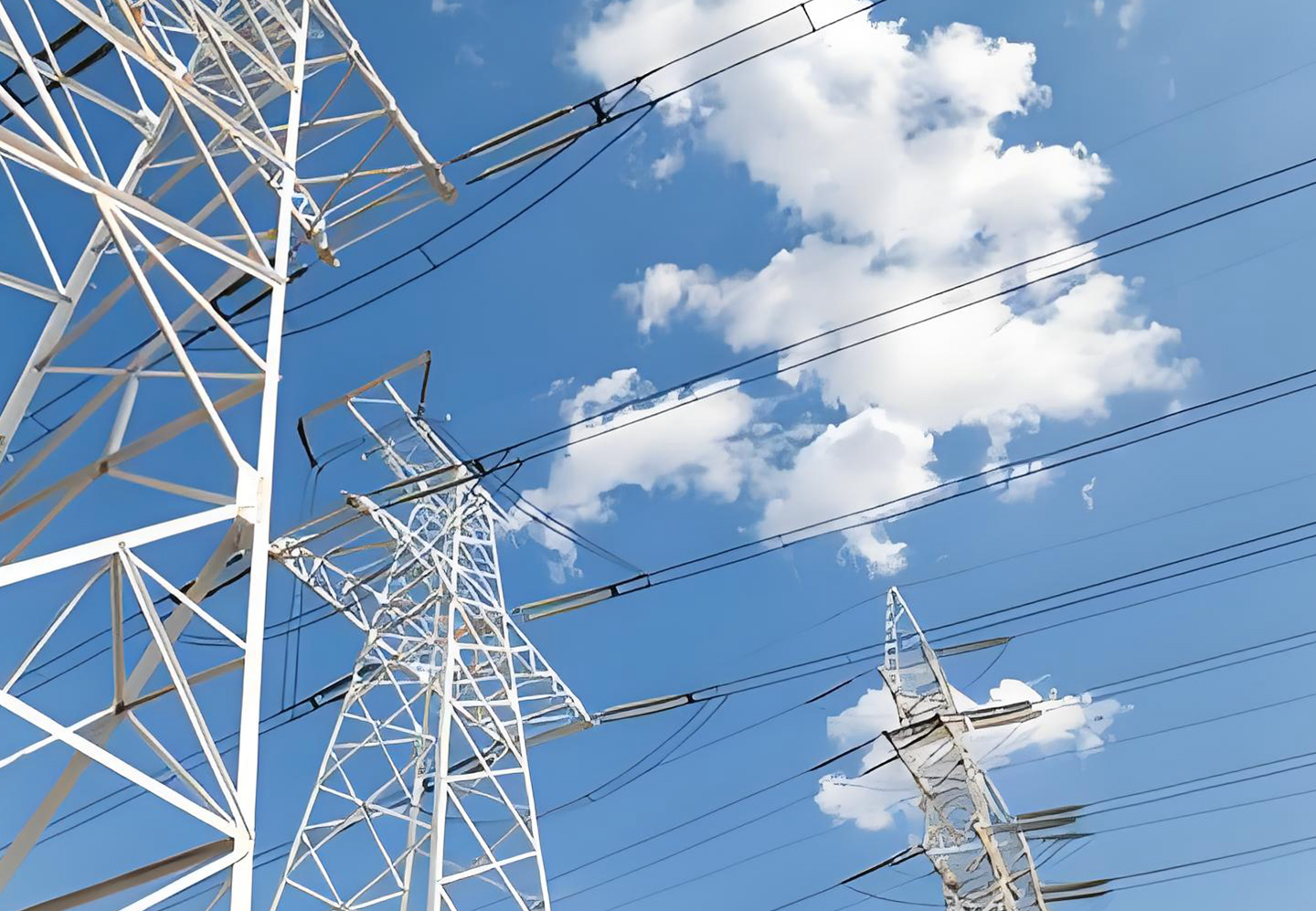

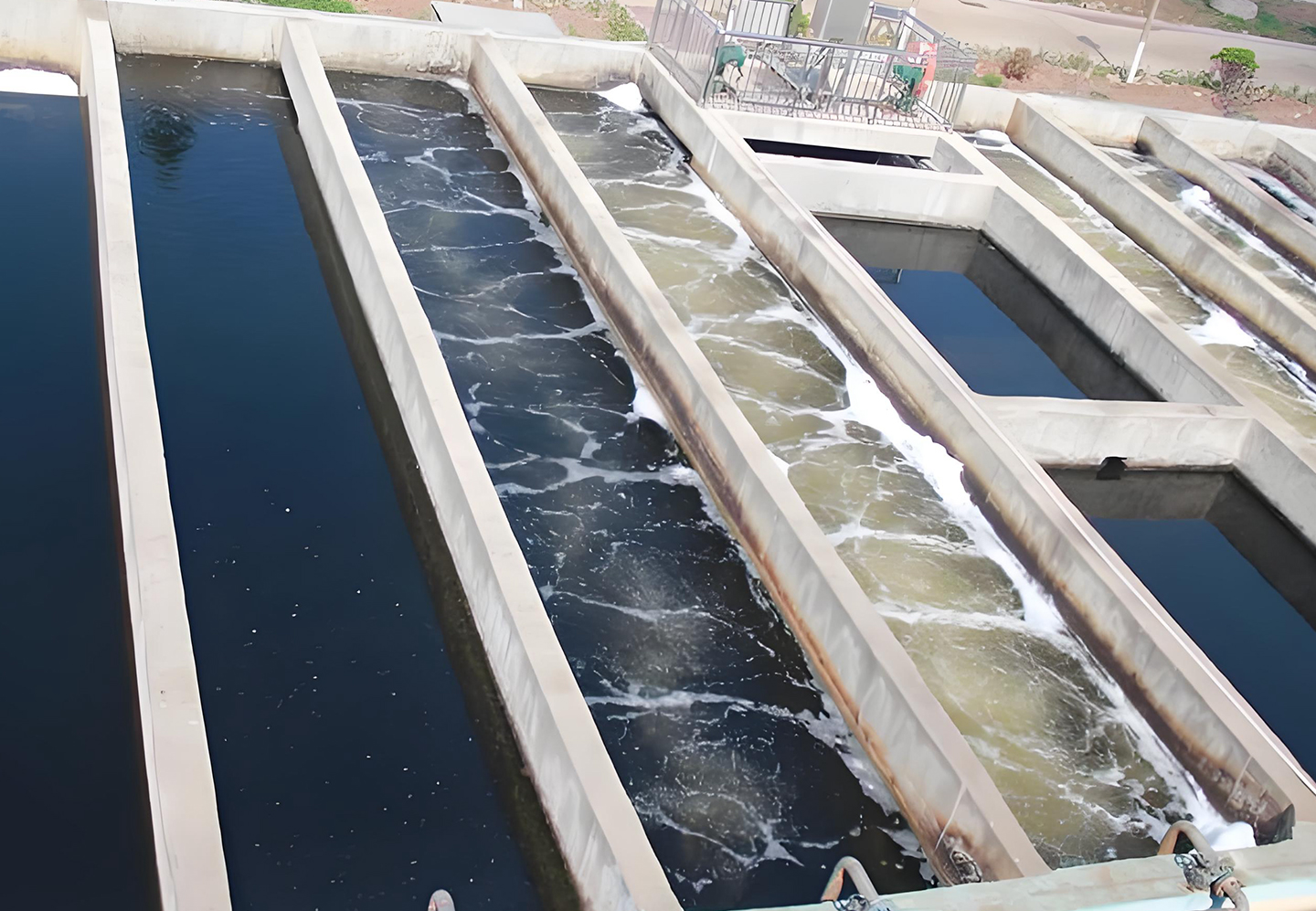

Solvent Storage Tank	Transmission Tower	Sewage Treatment Plant	Oil-Gas Separation Equipment

Polyurethane Polyethylene Interpenetrating Network Paint (Primer) Compatibility

	Product	Thickness
Primer:	Polyurethane Polyethylene Interpenetrating Network Coating	2*50um  (dry film thickness)
Paint：	Polyurethane Polyethylene Intermediate Paint	2*50um  (dry film thickness)
Topcoat:	Polyurethane Topcoat	2*40um  (dry film thickness)

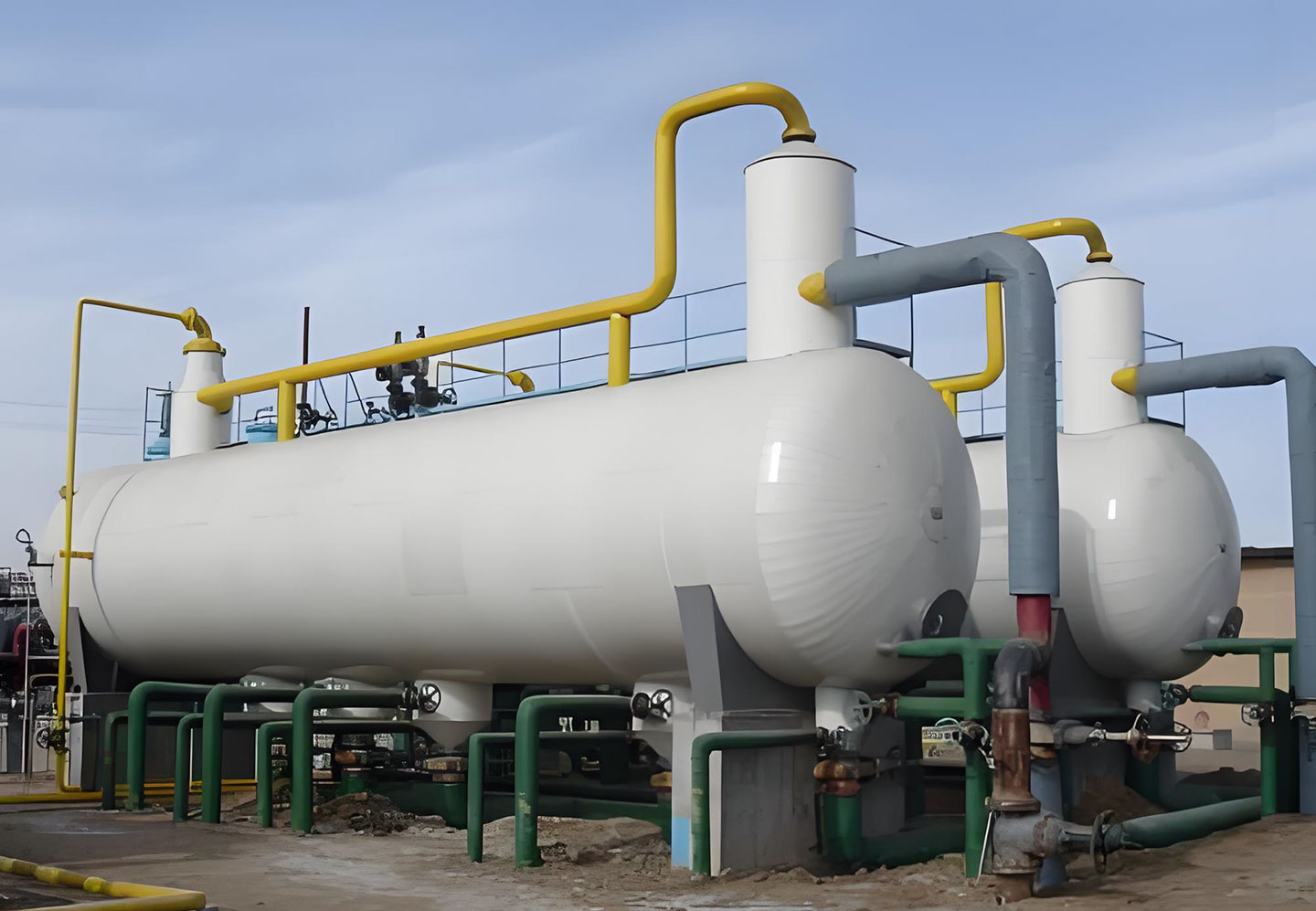

Polyurethane Polyethylene Interpenetrating Network Paint (Primer) Finished Projects

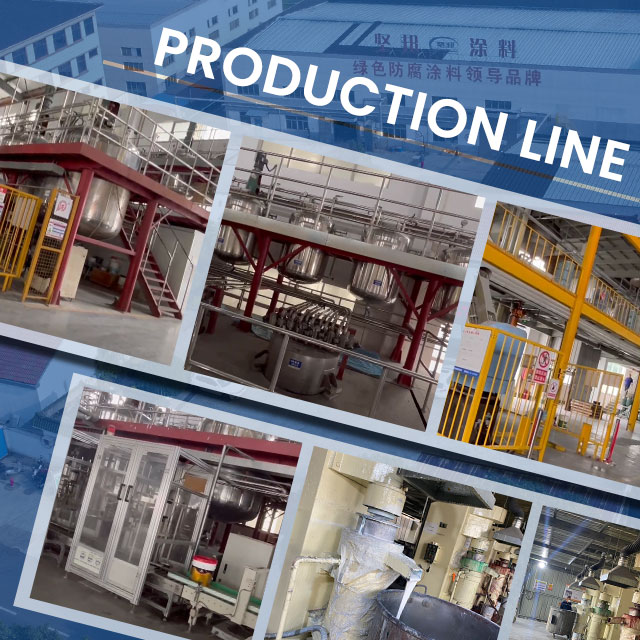

Polyurethane Polyethylene Interpenetrating Network Paint (Primer) Production Process

Polyurethane Polyethylene Interpenetrating Network Paint (Primer) Instructions For Use

Substrate Treatment：

The surface to be coated shall be clean, dry and free from contaminations. Also, the surface shall be evaluated and treated according to ISO8504 standard.

Bare steel: sandblasting to reach Sa2.5(IOS8501-1:2007). For the non-soaking site, acceptable for power tool grinding, at least reach St2(IOS8501-1:2007).

Instructions for Use:

• Mixing:

Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you get to mix well.

• Mixing Ratio：

Part A: Part B= 20:4 (by weight)

• Thinner

Polyurethane thinner

• Airless spray

Nozzle tip: 0.017~0.023inches

Spray pressure: 15~18Mpa

Thinner ratio: 5~15% (by weight of paint)

• Brush

Recommended

Must achieve required thickness
