Vinyl Resin Glass Flake Cement | High-Performance Anti-Corrosion Coating

Brand:
YMS
Color:
Iron-red, Gray, Black
Gloss:
Matte, Flat
Density:
~1.4Kg/L (after mixing)
Flash Point:
38℃
Volume solid:
(60±2 )%
Mixing:
Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you get to mix well. Generally, if the temperature below 10℃, it needs 30 min induction time; if the temperature over 10 ℃, it needs 15 min induction time.
Mixing Ratio:
Part A: Part B = 25:3
Theoretical spreading rate, kg/m2 :
4.28m²/Kg (100um dry film thickness)


Availability:



Inquiry

Product Description

Vinyl Resin Glass Flake Cement

This product is composed of vinyl resin, glass flake, thixotropic agent, auxiliary agent, pigment, filler, etc.It has the following resistance characteristics:

Chemical corrosion resistance

High temperature resistance

Solvent resistance

Vinyl Resin Glass Flake Cement Video

Vinyl Resin Glass Flake Cement Basic Technical Datasheet

Color	Grayish white
Gloss	No gloss, flat, glossy
Density	1.1Kg/L(after mixing)
Hardness	Cobalt naphthenate (blue water, accelerator) Methyl ethyl ketone peroxide (white water, initiator)
Solid Volume	100%
Standard Film thickness	1 mm dry film thickness (about 1 mm wet film thickness)
Theoretical spreading rate	0.91m²/Kg (1 mm dry film thickness)
Full Cure	(23±2℃)24h
Flash Point	27℃

Vinyl Resin Glass Flake Cement Product Packaging

Packaging:

part A:20kg in a 20-liter iron bucket.

Accelerator 0.4kg Initiator 0.4kg

Shelf Life:

12 months If exceeding shelf life, the products shall be tested before using.

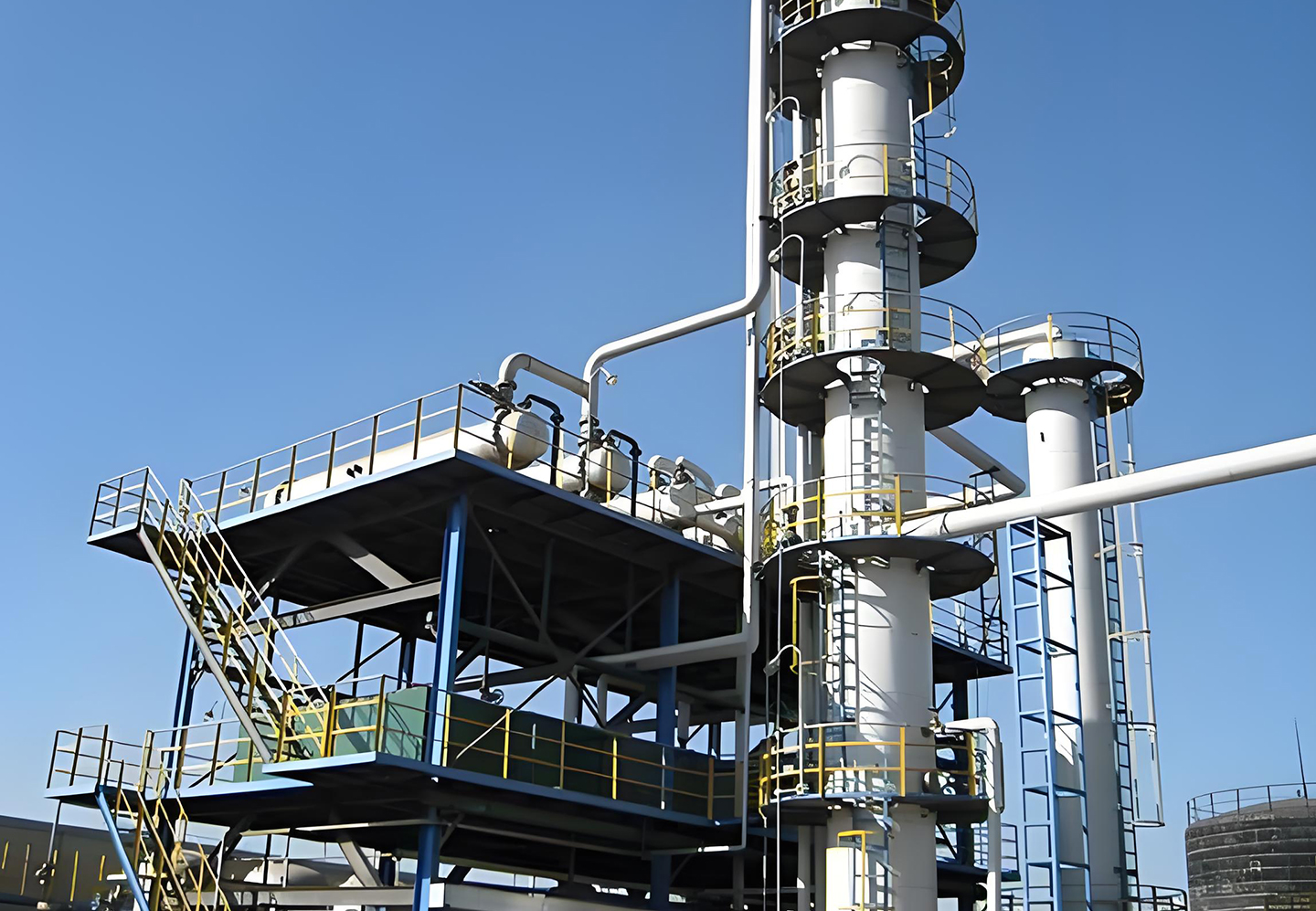

Vinyl Resin Glass Flake Cement Applicable Environment

Drainage Treatment Device

Flue Duct

Flue Gas Desulfurization (FGD) Unit

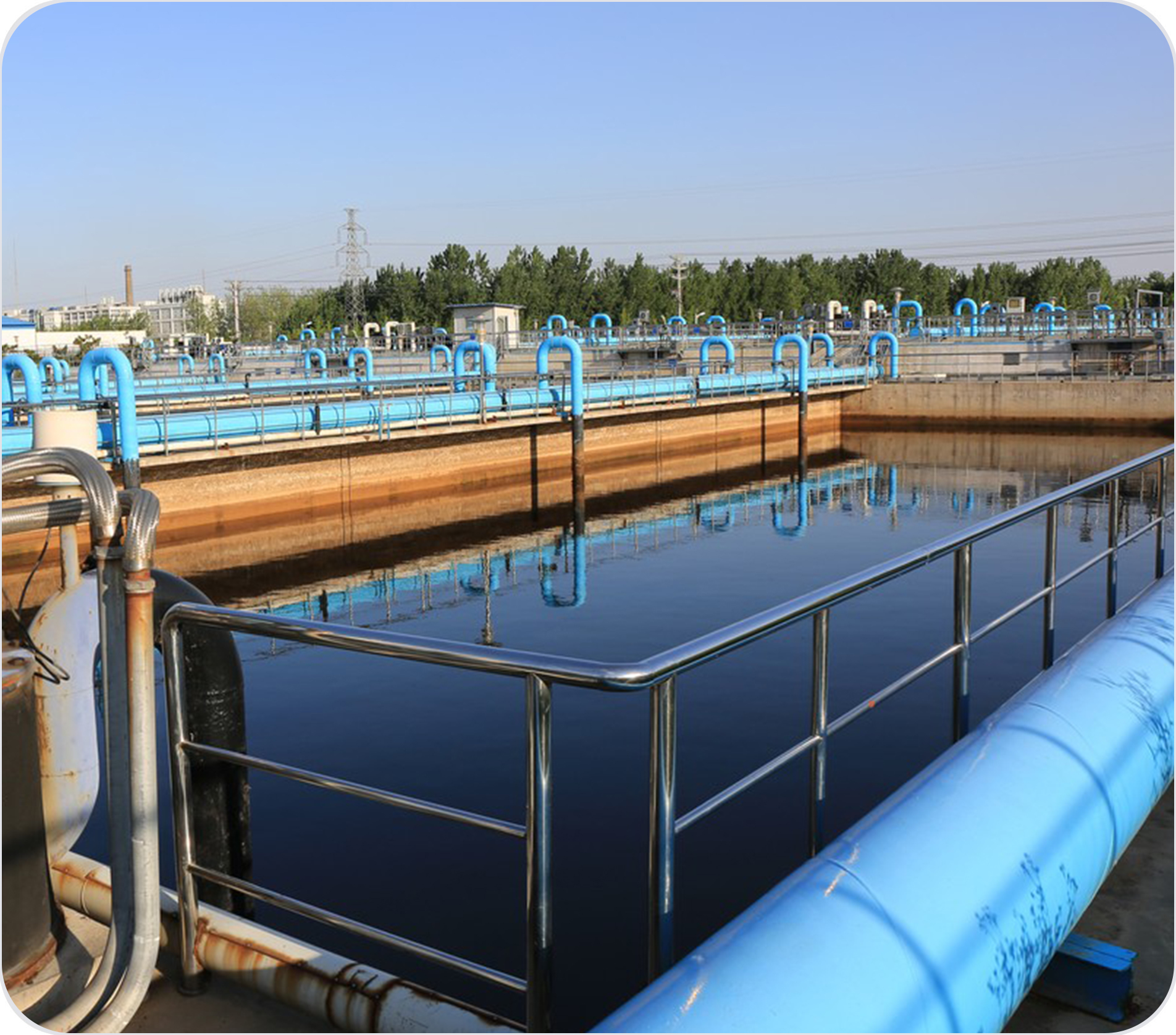

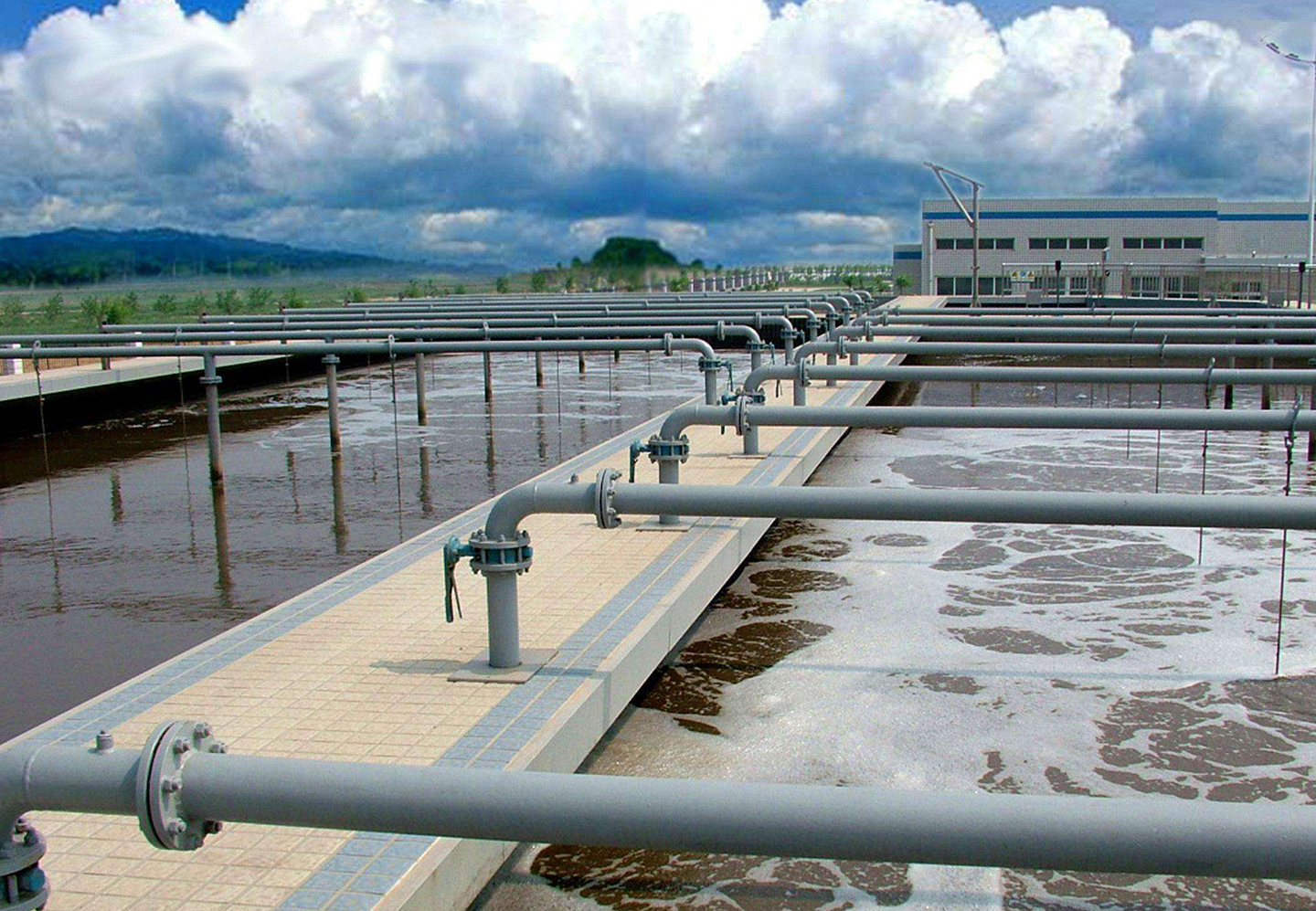

Wastewater Treatment Pool

Vinyl Resin Glass Flake Cement Compatibility

	Product	Thickness
Primer:	Vinyl Resin Primer	30 µm (dry film thickness)
Paint:	Vinyl Resin Glass Flake Cement	1mm (dry film thickness)
Topcoat:	Vinyl Resin Finish	200 µm (dry film thickness)

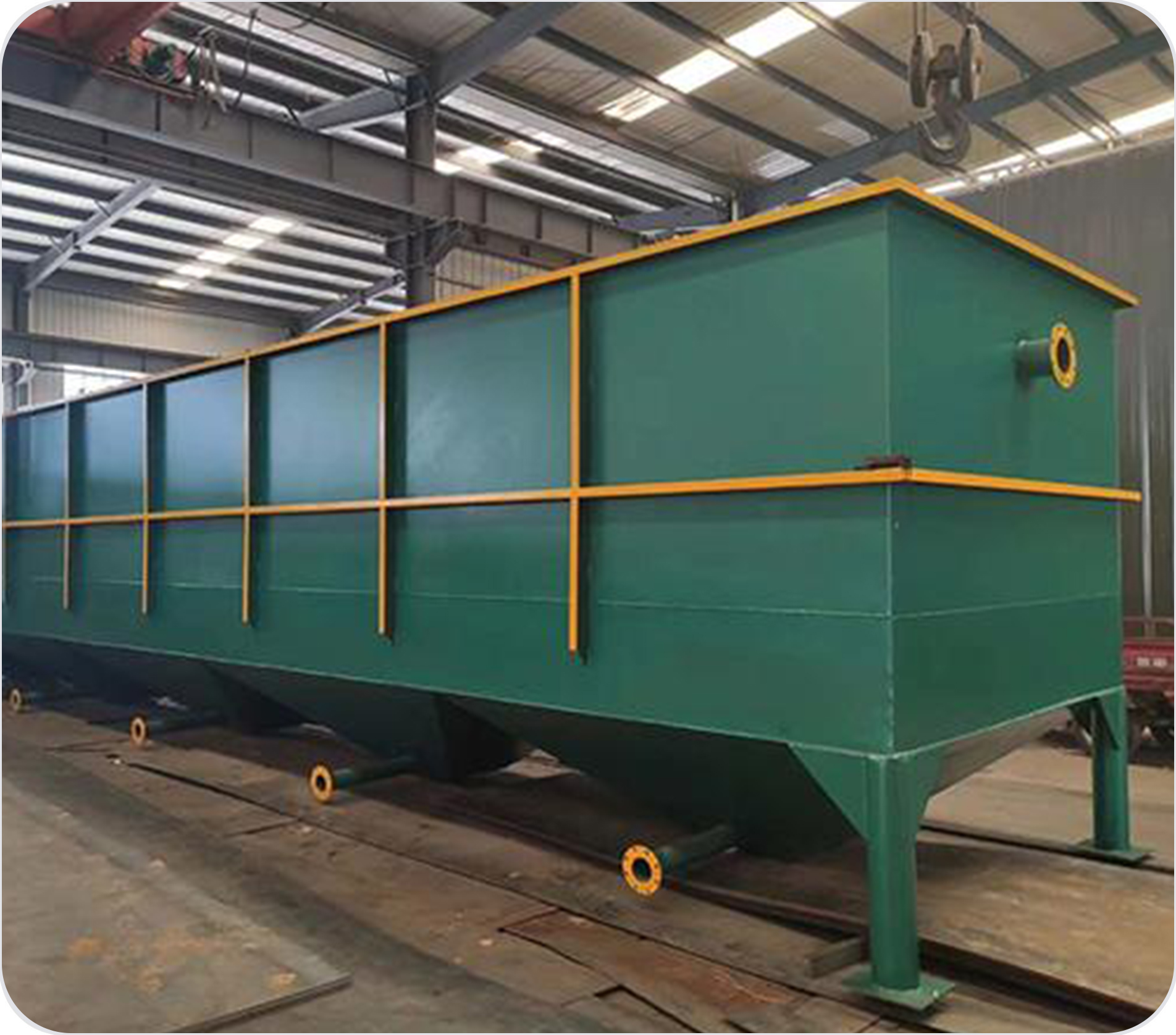

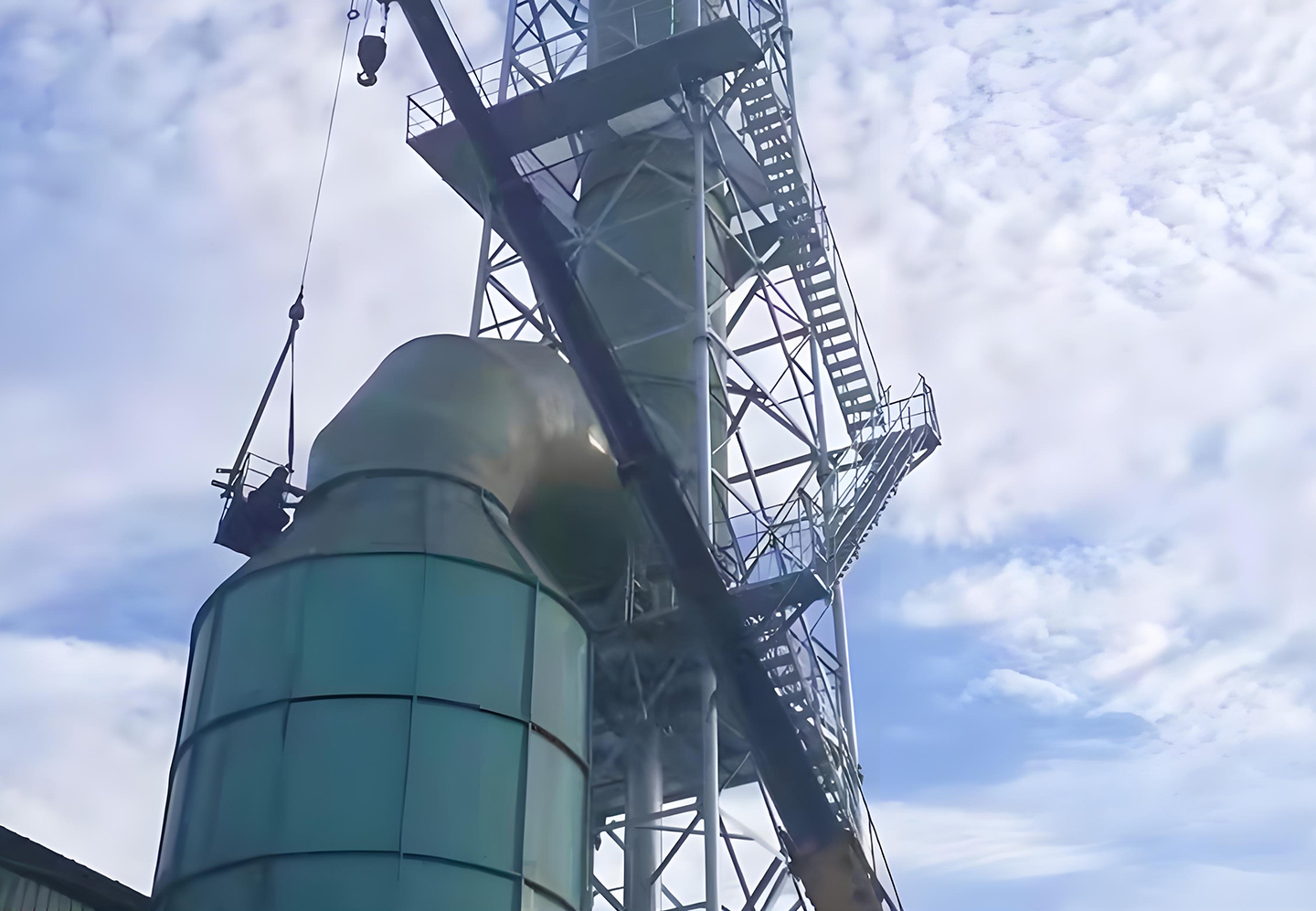

Vinyl Resin Glass Flake Cement Finished Projects

Vinyl Resin Glass Flake Cement Production Process

Vinyl Resin Glass Flake Cement Instructions For Use

Substrate Treatment：

All surfaces to be coated shall be clean and dry. The surface shall be evaluated and treated according to ISO8504 standard.

For bare steel, it shall be sandblasted to reach Sa2.5(iso8501-1:2007) standard. Depending on the environment of the non-immersed part, grinding with power tools is acceptable but shall at least reach St2(iso8501-1:2007) standard.

For shop primed steel, the shop primer shall be clean, dry and approved.

For surface painted coatings, this product can apply only to clean, dry and good compatible primer.

Instructions for Use:

Mixing:

First add the white water and stir it evenly, then add blue water and stir.

Caution: Do not add blue and white water at the same time to avoid burning.

Mixing Ratio

Part A: Accelerator: Initiator=20:0.4:0.4 (by weight)

Thinner:

Exclusive thinner (It is recommended to add small amount or not add thinner.)

Scraping:

Scrap it to form a uniform and flat putty film. After the surface is dry, roll it back and forth with a ceramic roller (moistened with toluene) to form a flat and compact fish scale structure (scales in the same direction)
