JF-5D
YMS
Customized
Flat, High Gloss, Matte
~1.25Kg/L
(43±2 )%
Ready to use
5.7m²/Kg (60um dry film thickness)
Availability: | |
---|---|
Waterborne Alkyd Finish
This one component product is mainly composed of waterborne acrylic modified alkyd resin by adding titanium dioxide, waterborne auxiliaries, water etc.and it has the following outstanding characteristics:
|
|
|
Color |
Customized |
Gloss |
Flat, High Gloss, Matte |
Density |
~1.25Kg/L |
Solid Volume |
(43±2 )% |
Standard Film thickness |
60um dry film thickness (about 140um wet film thickness) |
Theoretical spreading rate |
5.7m²/Kg (60um dry film thickness) |
Adhesion |
Level 1 |
![]() |
Waterborne Alkyd Finish Product PackagingPackaging: 22kg in a 20-liter iron bucket. Shelf Life: 12 months If exceeding shelf life, the products shall be tested before using. |
![]() |
![]() |
![]() |
![]() |

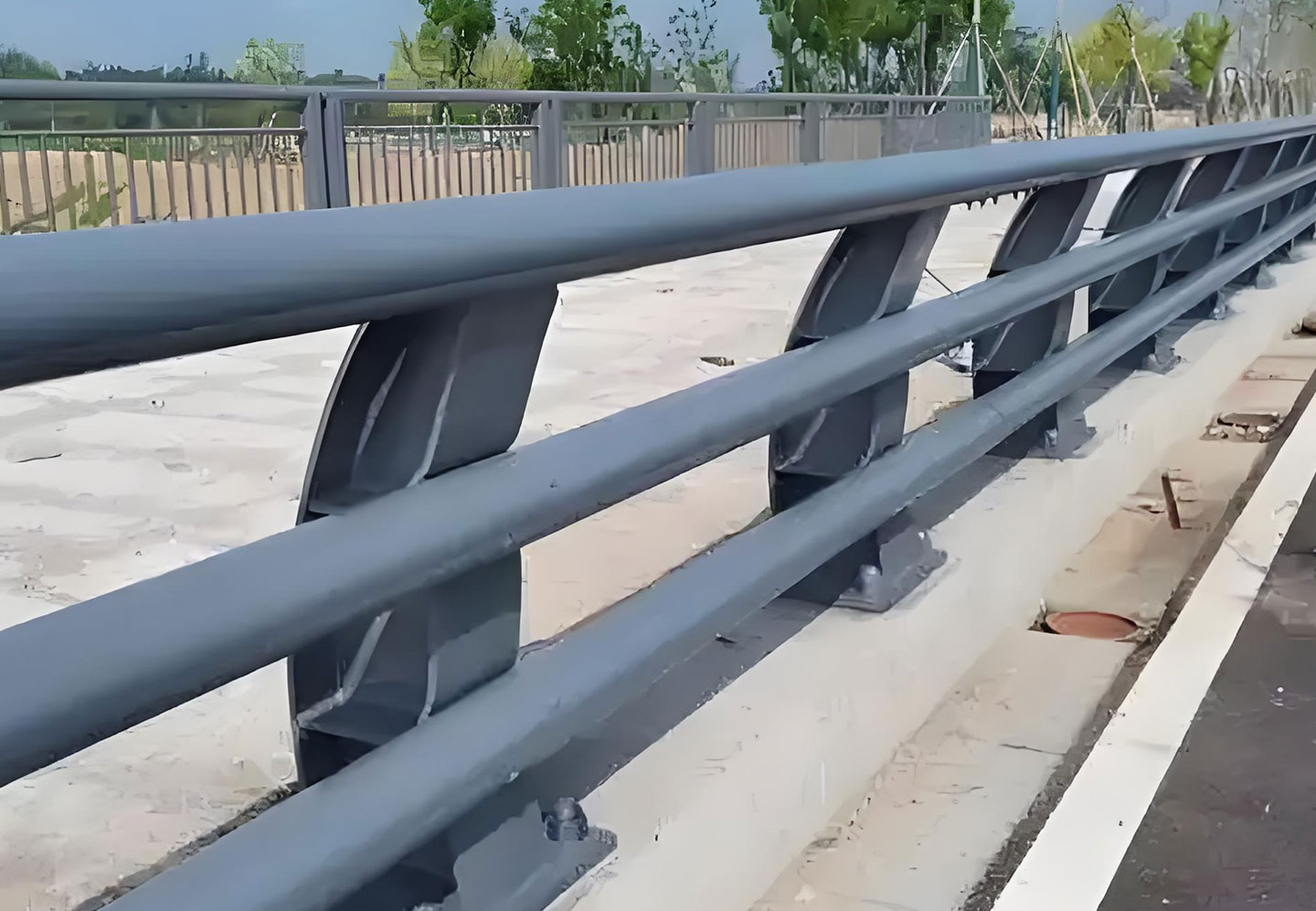

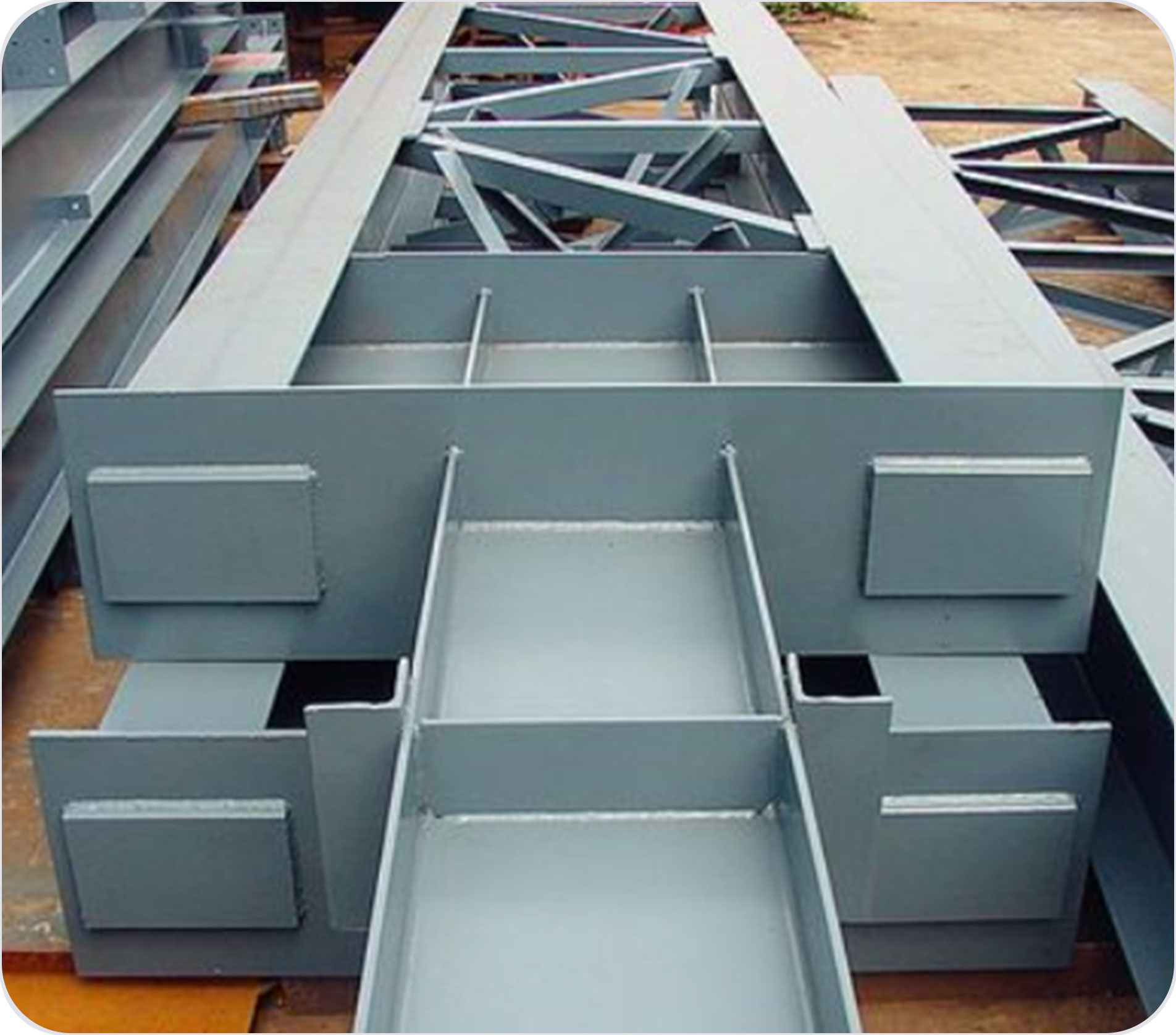

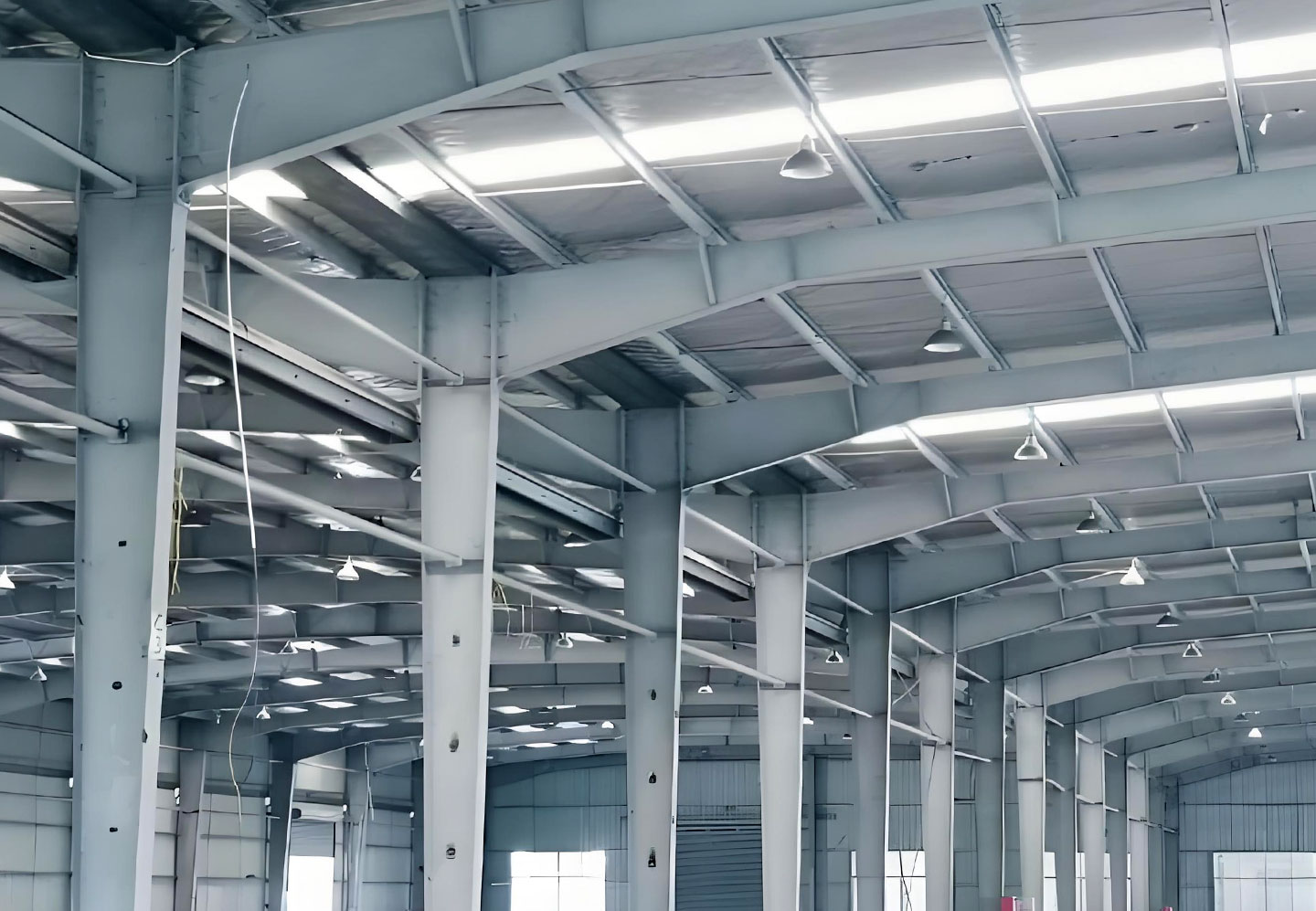

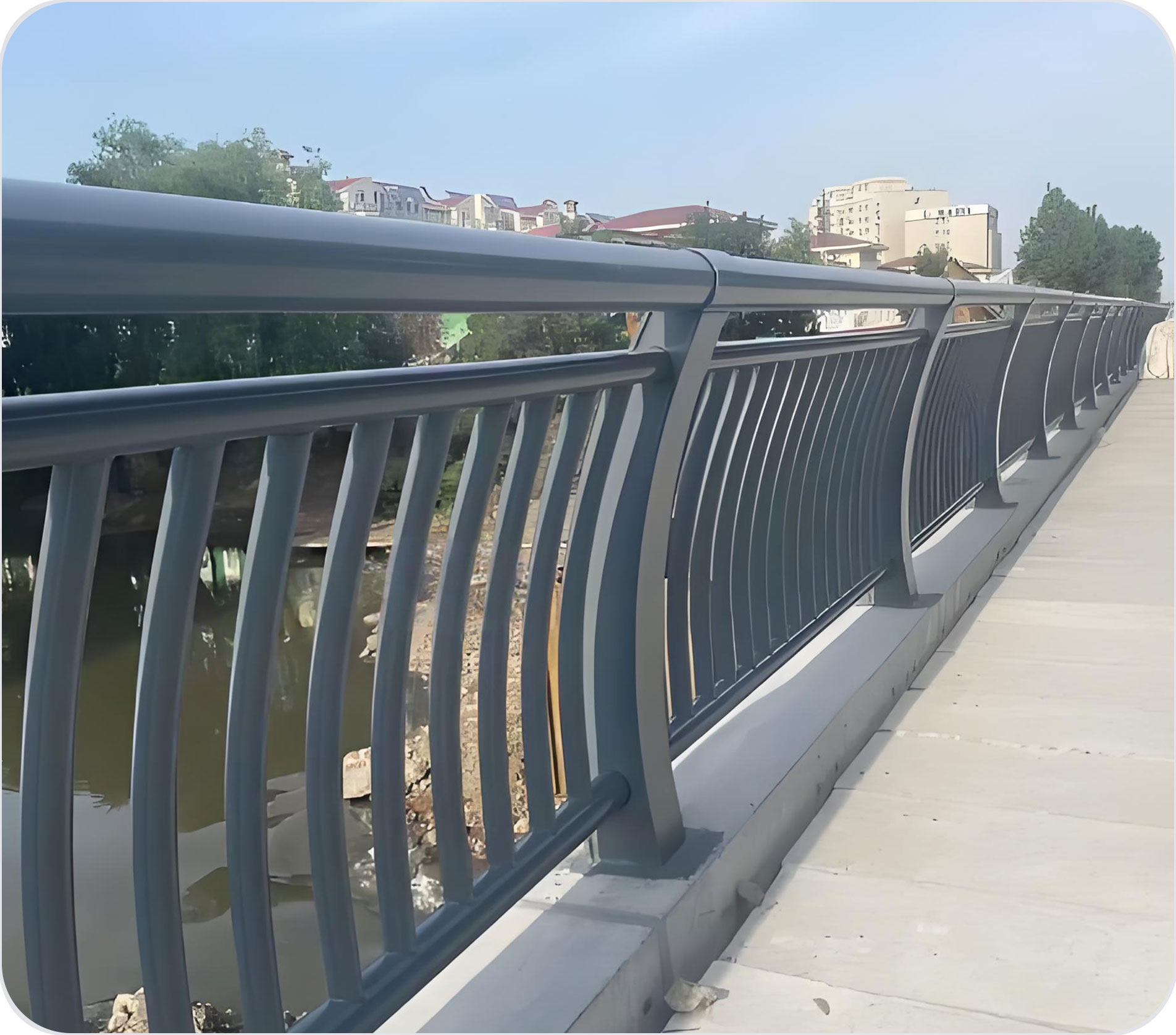

Guardrail | Steel structure |

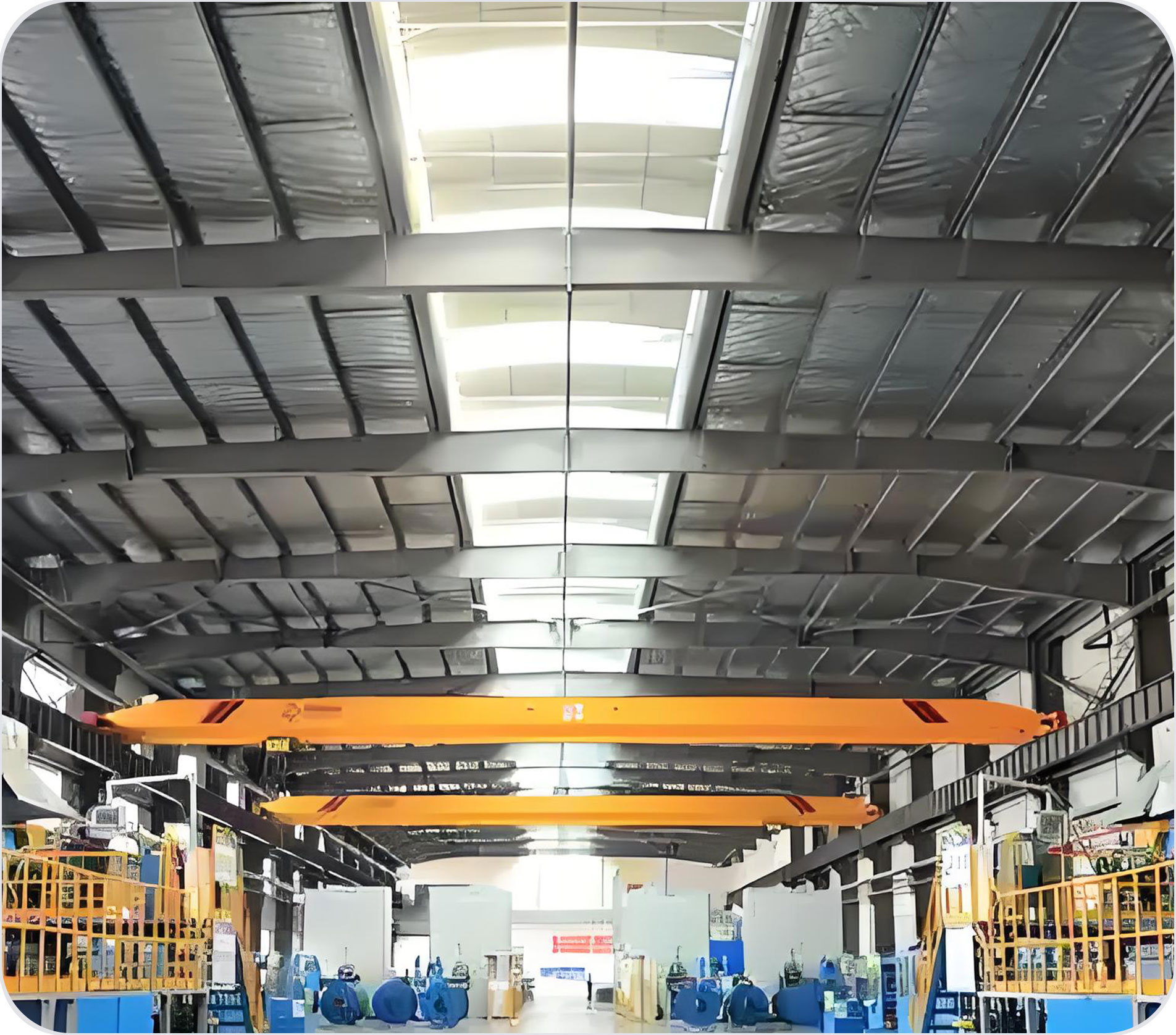

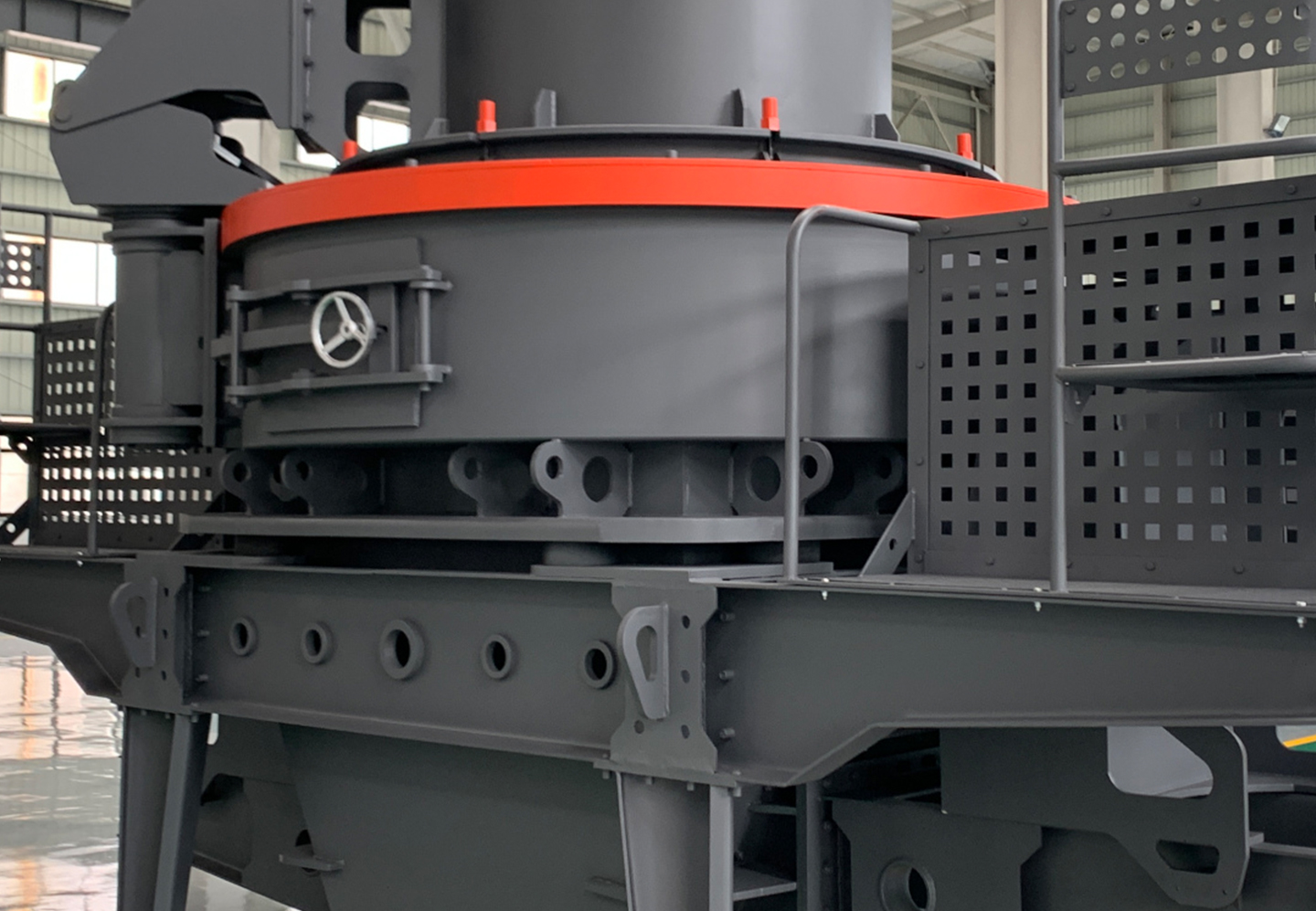

Workshop | Mechanical equipment |

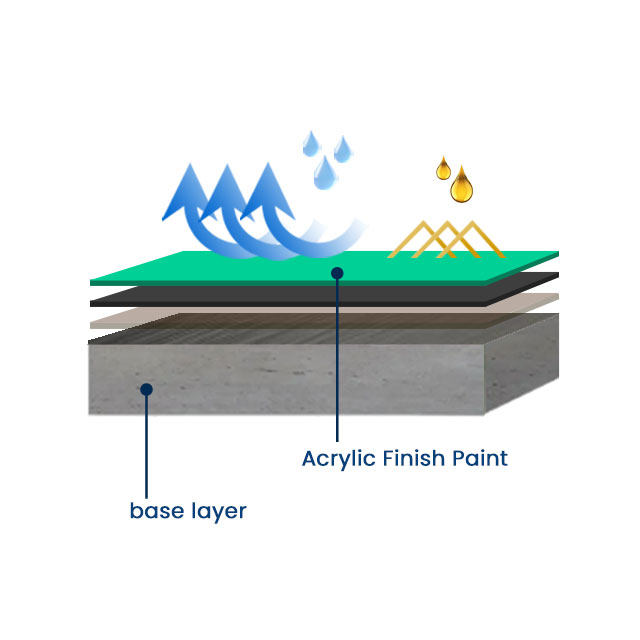

Product | Thickness | |
Primer: |
Waterborne Alkyd Primer |
2*40 µm (dry film thickness) |
Paint: |
Waterborne Alkyd Intermediate Paint |
2*30um (dry film thickness) |
Topcoat: | Waterborne Alkyd Finish | 2*30um (dry film thickness) |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Substrate Treatment:
The surface to be coated shall be clean, dry and free from contaminations. Also, the surface shall be evaluated and handled according to ISO8504 standard.
Painted surface: only apply to clean, dry and intact compatible primer.
Mixing:
Ready to use
Thinner:
Clean water
Thinner ratio:
Add 10% water by weight of paint, or make adjustment according to specific condition but maximum should not exceed 20%.
Airless spray:
Nozzle tip: 0.017~0.023 inches
Spray pressure: 15~18Mpa
Thinner ratio: 5~15% (by weight of paint)
Spray viscosity:
60-80 secs
Brush viscosity:
70-100 secs. (viscosity cup 4, 23±2℃)
Brush、Roller:
Use soft wool brush or roller
Recommended
Must achieve required thickness
![]() |
|||
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Waterborne Alkyd Finish
This one component product is mainly composed of waterborne acrylic modified alkyd resin by adding titanium dioxide, waterborne auxiliaries, water etc.and it has the following outstanding characteristics:
|
|
|
Color |
Customized |
Gloss |
Flat, High Gloss, Matte |
Density |
~1.25Kg/L |
Solid Volume |
(43±2 )% |
Standard Film thickness |
60um dry film thickness (about 140um wet film thickness) |
Theoretical spreading rate |
5.7m²/Kg (60um dry film thickness) |
Adhesion |
Level 1 |
![]() |
Waterborne Alkyd Finish Product PackagingPackaging: 22kg in a 20-liter iron bucket. Shelf Life: 12 months If exceeding shelf life, the products shall be tested before using. |
![]() |
![]() |
![]() |
![]() |
Guardrail | Steel structure |
Workshop | Mechanical equipment |
Product | Thickness | |
Primer: |
Waterborne Alkyd Primer |
2*40 µm (dry film thickness) |
Paint: |
Waterborne Alkyd Intermediate Paint |
2*30um (dry film thickness) |
Topcoat: | Waterborne Alkyd Finish | 2*30um (dry film thickness) |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Substrate Treatment:
The surface to be coated shall be clean, dry and free from contaminations. Also, the surface shall be evaluated and handled according to ISO8504 standard.
Painted surface: only apply to clean, dry and intact compatible primer.
Mixing:
Ready to use
Thinner:
Clean water
Thinner ratio:
Add 10% water by weight of paint, or make adjustment according to specific condition but maximum should not exceed 20%.
Airless spray:
Nozzle tip: 0.017~0.023 inches
Spray pressure: 15~18Mpa
Thinner ratio: 5~15% (by weight of paint)
Spray viscosity:
60-80 secs
Brush viscosity:
70-100 secs. (viscosity cup 4, 23±2℃)
Brush、Roller:
Use soft wool brush or roller
Recommended
Must achieve required thickness
![]() |
|||
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
