Waterborne Epoxy Anti-corrosive Finish

This two-component waterborne paint is composed of water-soluble modified epoxy resin with high-performance, imported waterborne amine curing agent, titanium dioxide,corrosion-resistant agent and various additives.It has the following resistance characteristics:

Low VOC

Excellent adhesion

Good physical and mechanical properties

Waterborne Epoxy Anti-corrosive Finish Video

Waterborne Epoxy Anti-corrosive Finish Basic Technical Datasheet

Color	Customized
Gloss	Flat, High gloss, Matt
Density	~1.2 Kg/L
Solid Volume	(40±2 )%
Standard Film thickness	60um dry film thickness  (about 150um wet film thickness)
Theoretical spreading rate	5.33m²/Kg (60um dry film thickness)
Adhesion	Level 1

Waterborne Epoxy Anti-corrosive Finish Product Packaging Packaging: Part A：20kg in a 20-liter iron bucket. Part B：5kg in a 6-liter iron bucket. Shelf Life: 12 months If exceeding shelf life, the products shall be tested before using.

Waterborne Epoxy Anti-corrosive Finish Applicable Environment

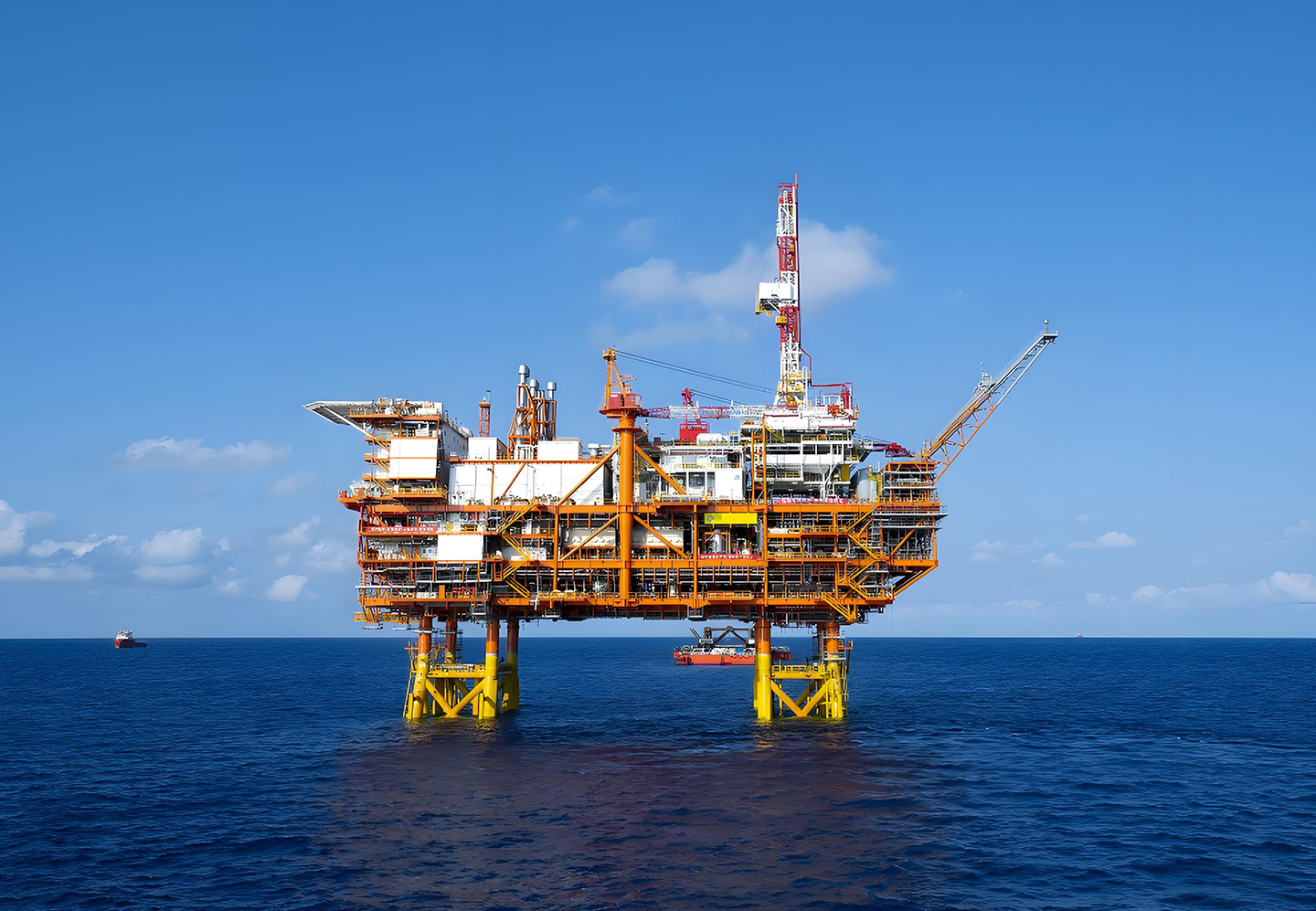

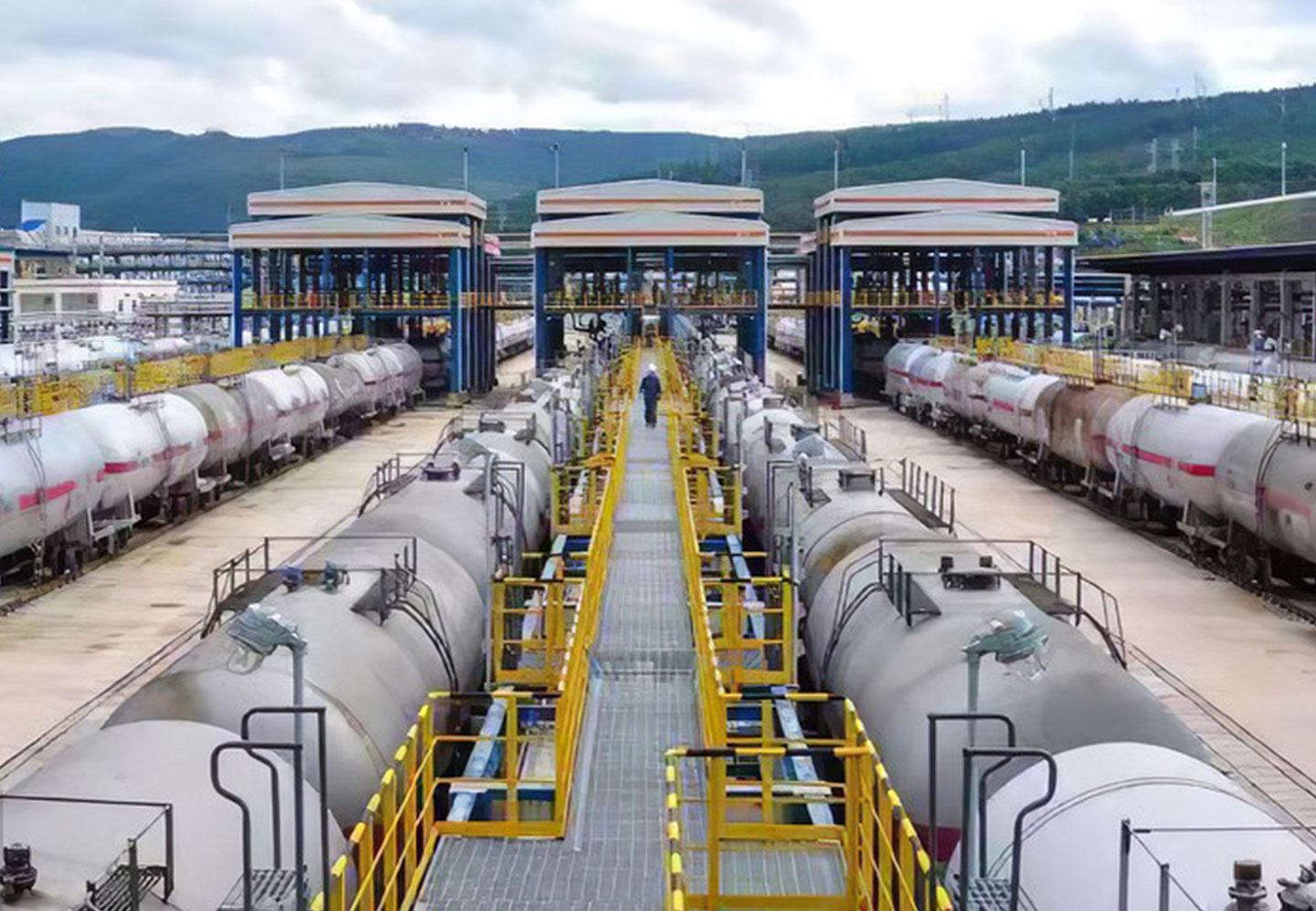

Storage tank	Offshore Platform	Bridges	Mechanical equipment

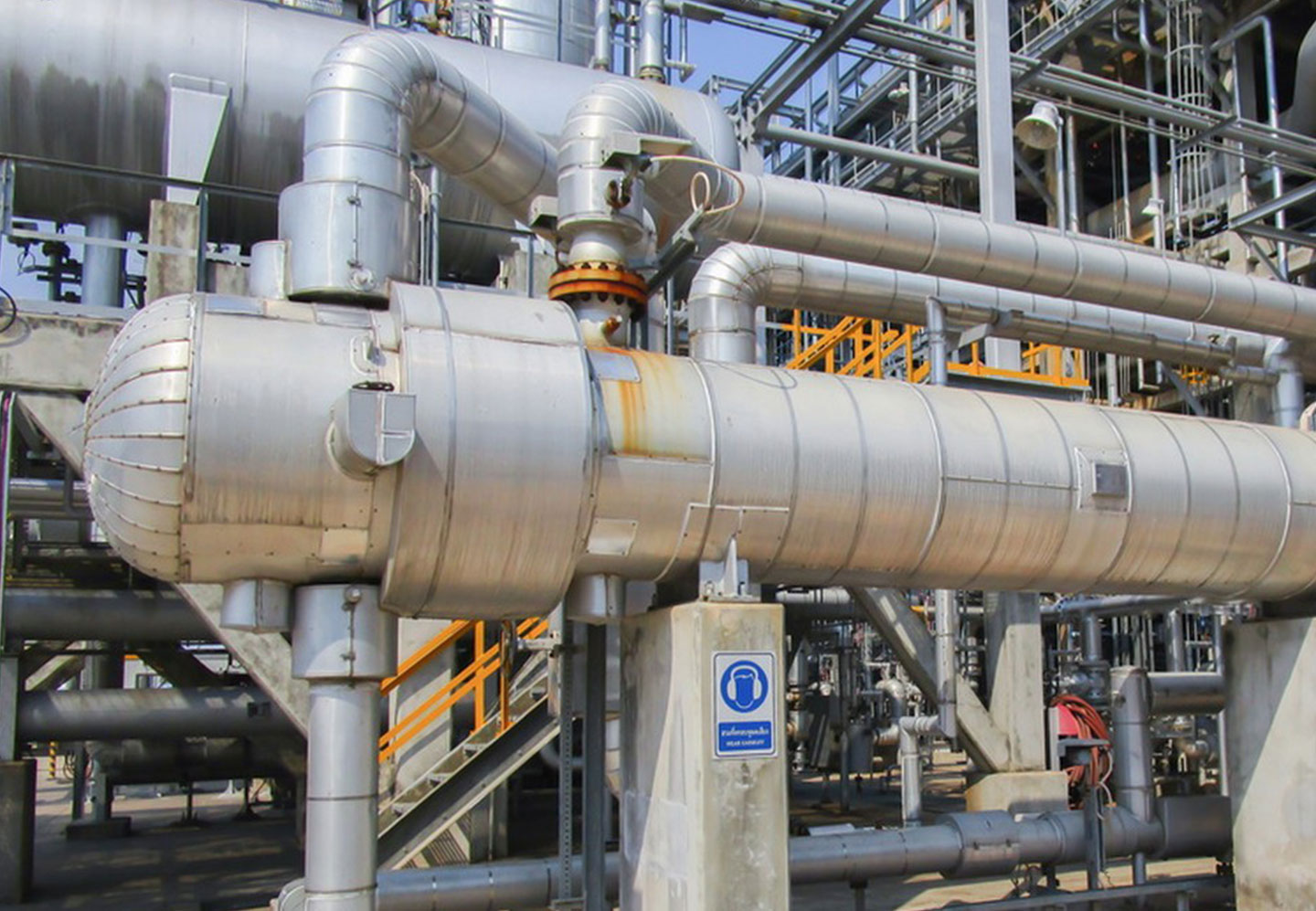

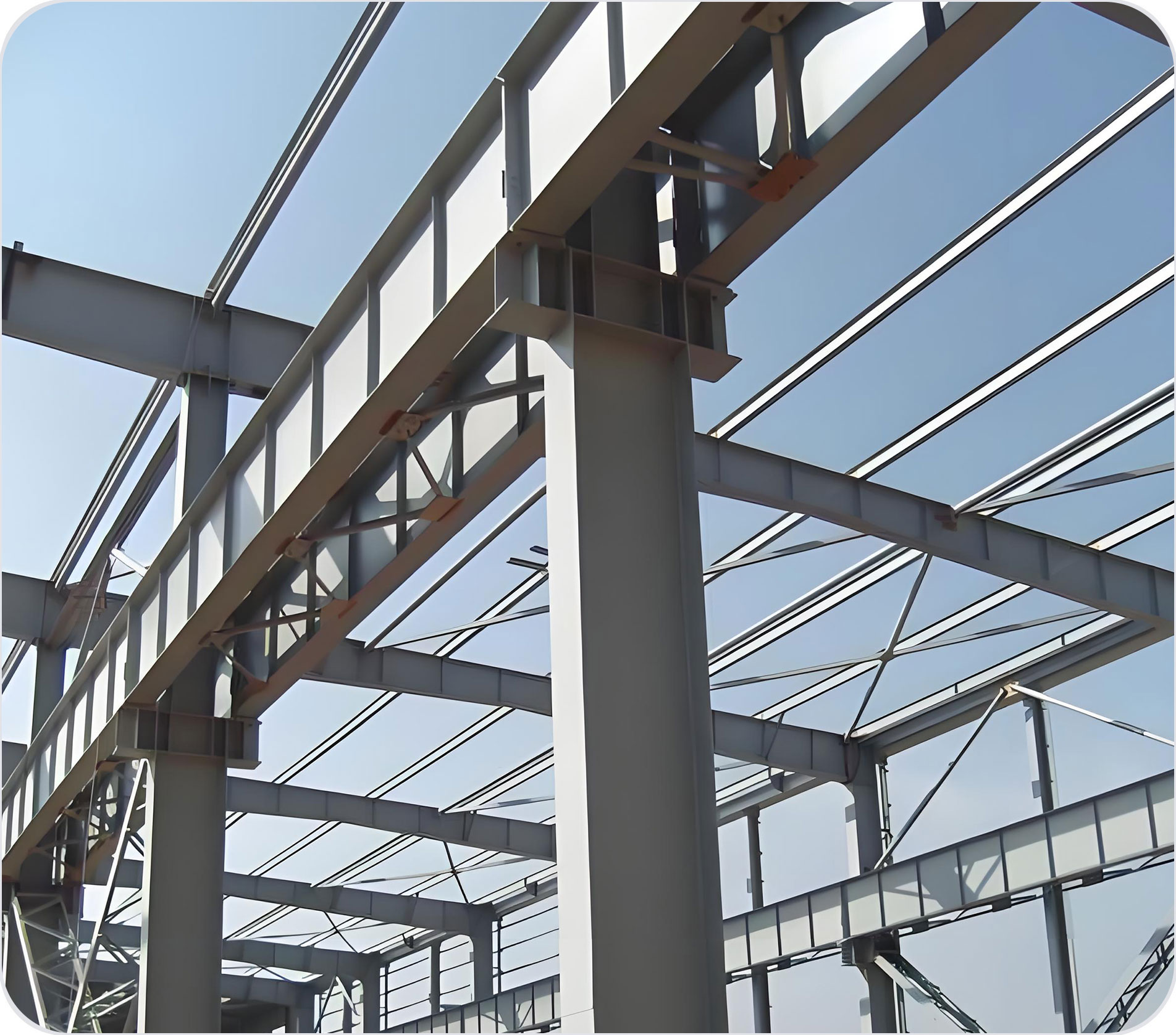

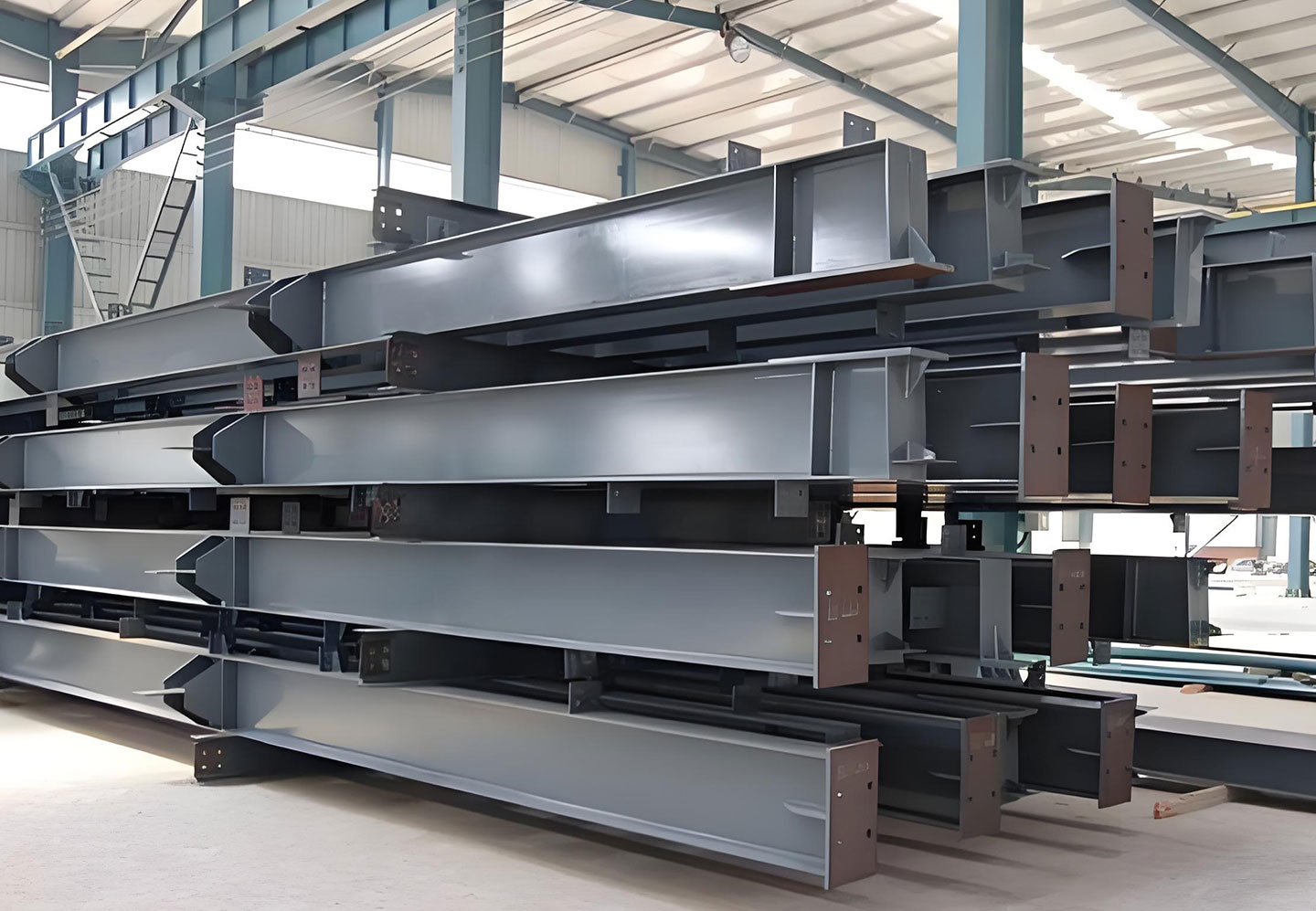

Petrochemical pipeline	Steel structure	Gas holder	Container

Waterborne Epoxy Anti-corrosive Finish Compatibility

	Product	Thickness
Primer:	Waterborne Zinc-rich Epoxy Primer	2*40 µm (dry film thickness)
Midcoat:	Waterborne Epoxy Intermediate Paint	2*40 µm (dry film thickness)
Topcoat:	Waterborne Epoxy Anti-corrosive Finish	2*30um (dry film thickness)

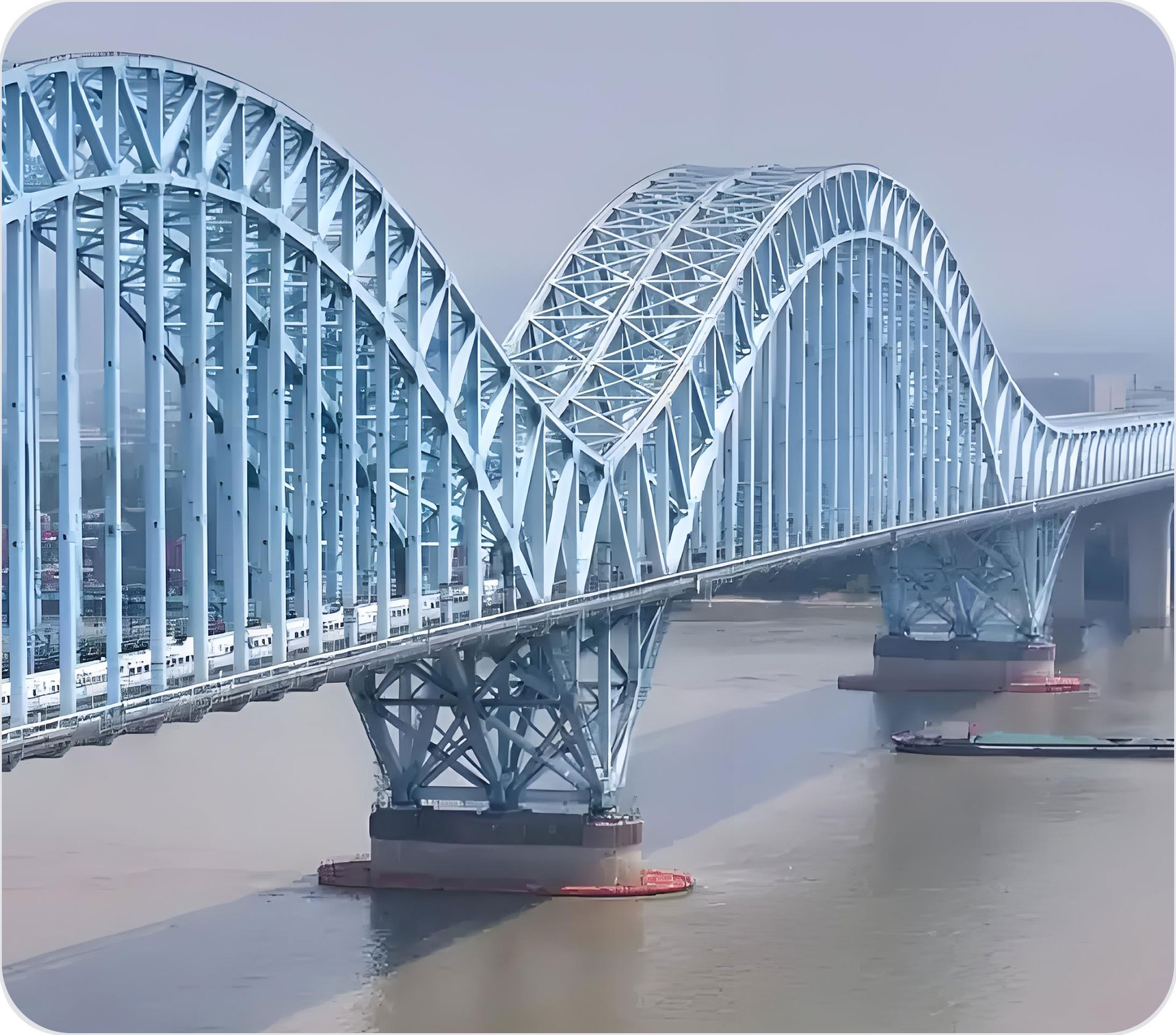

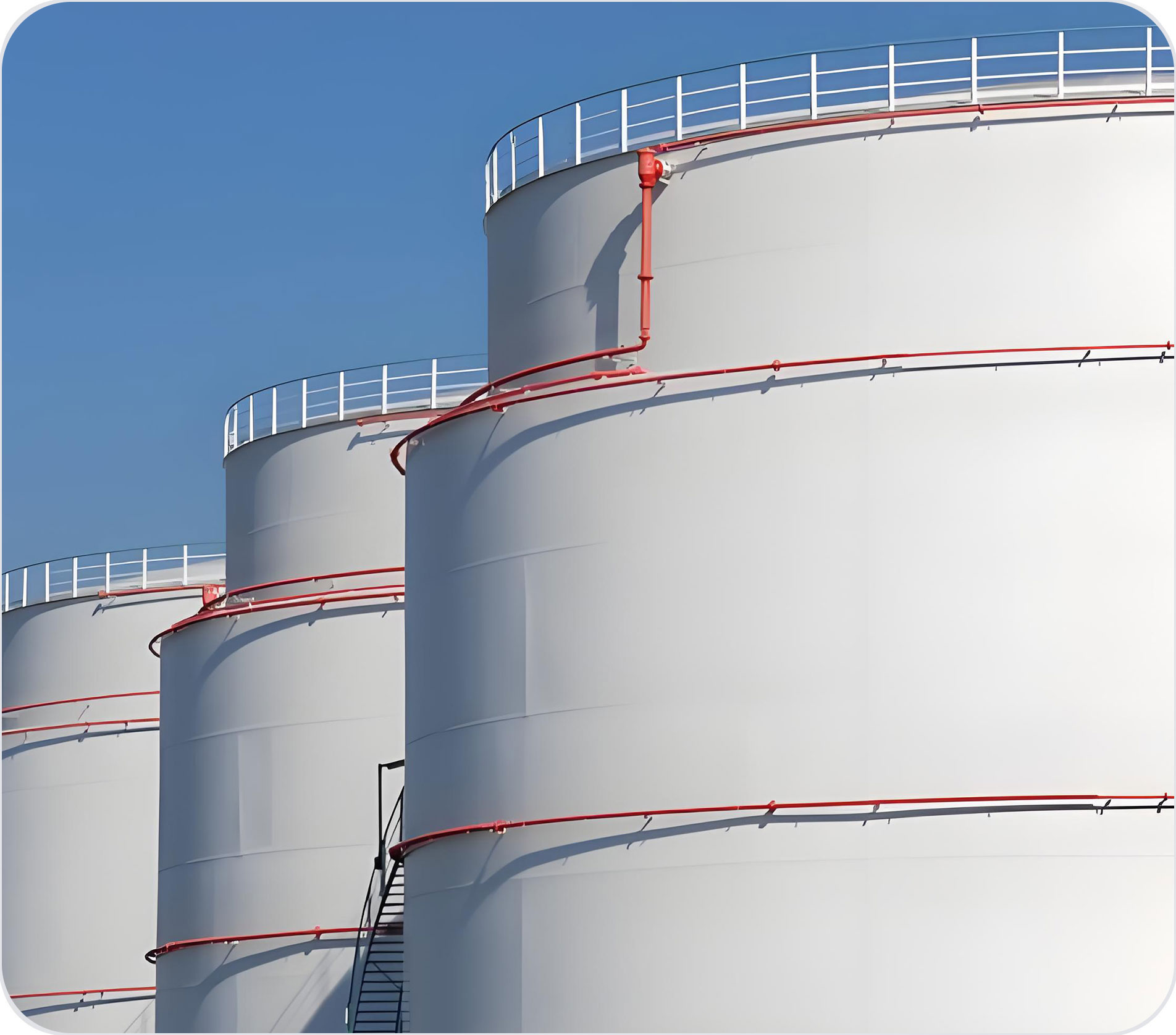

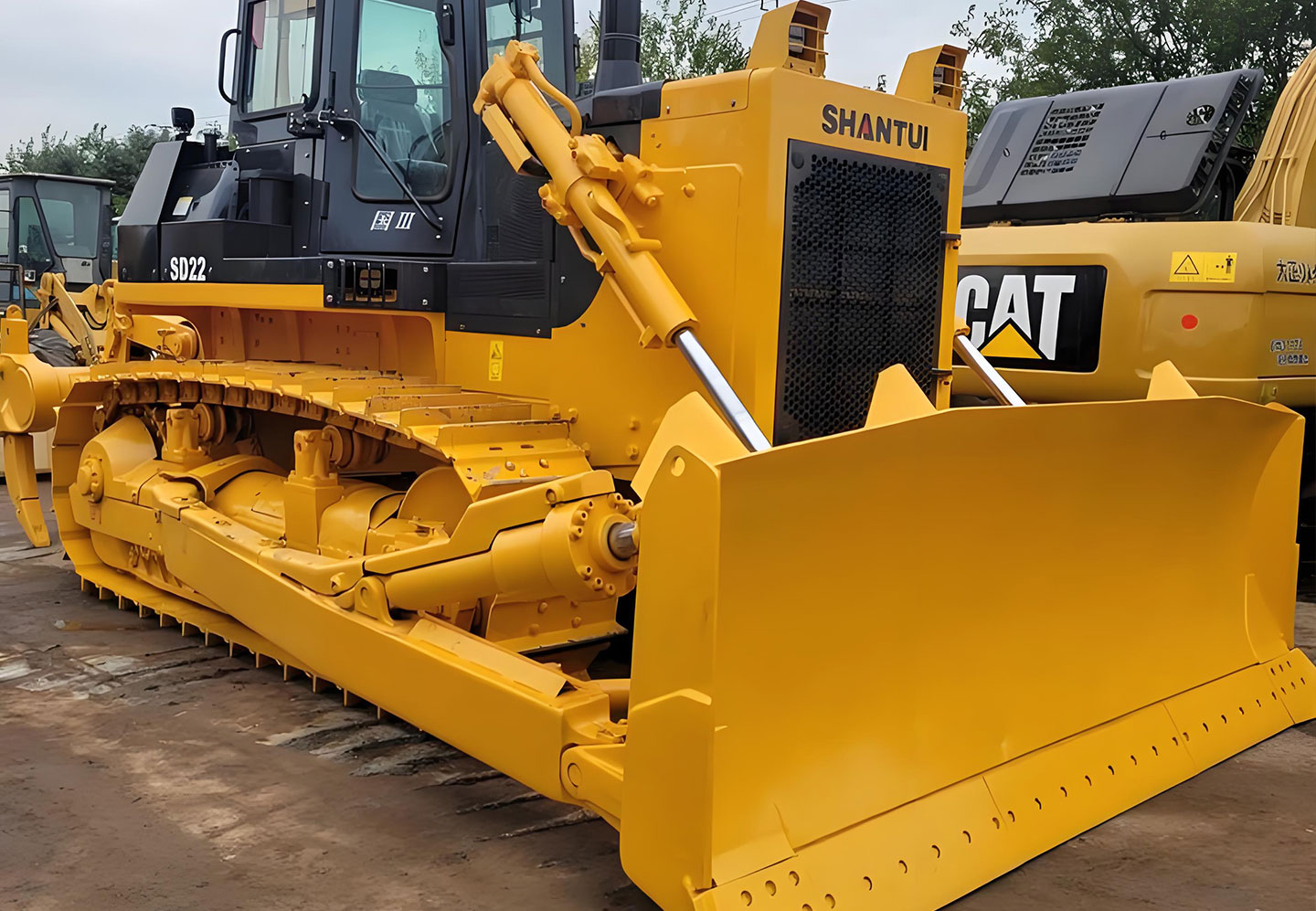

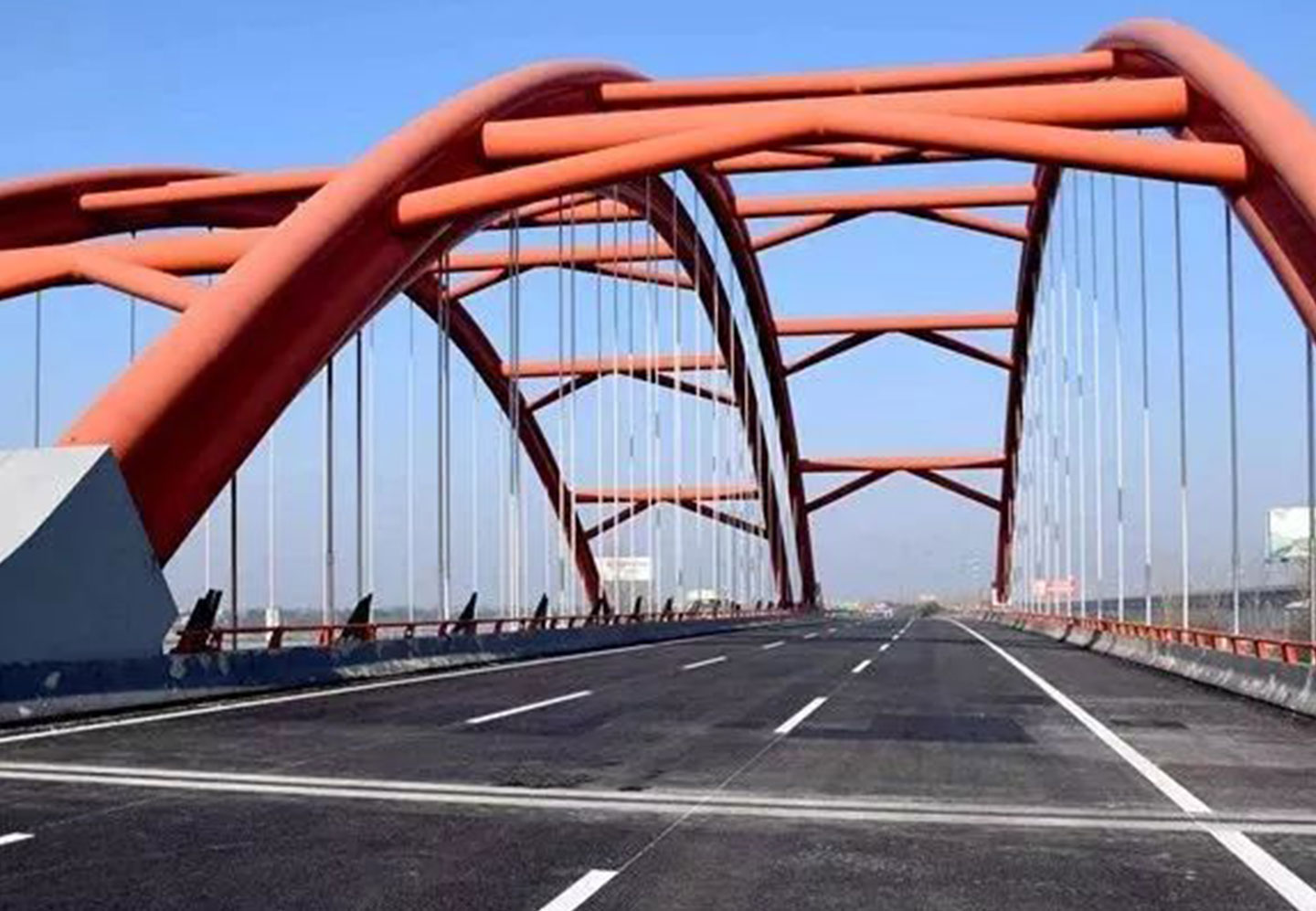

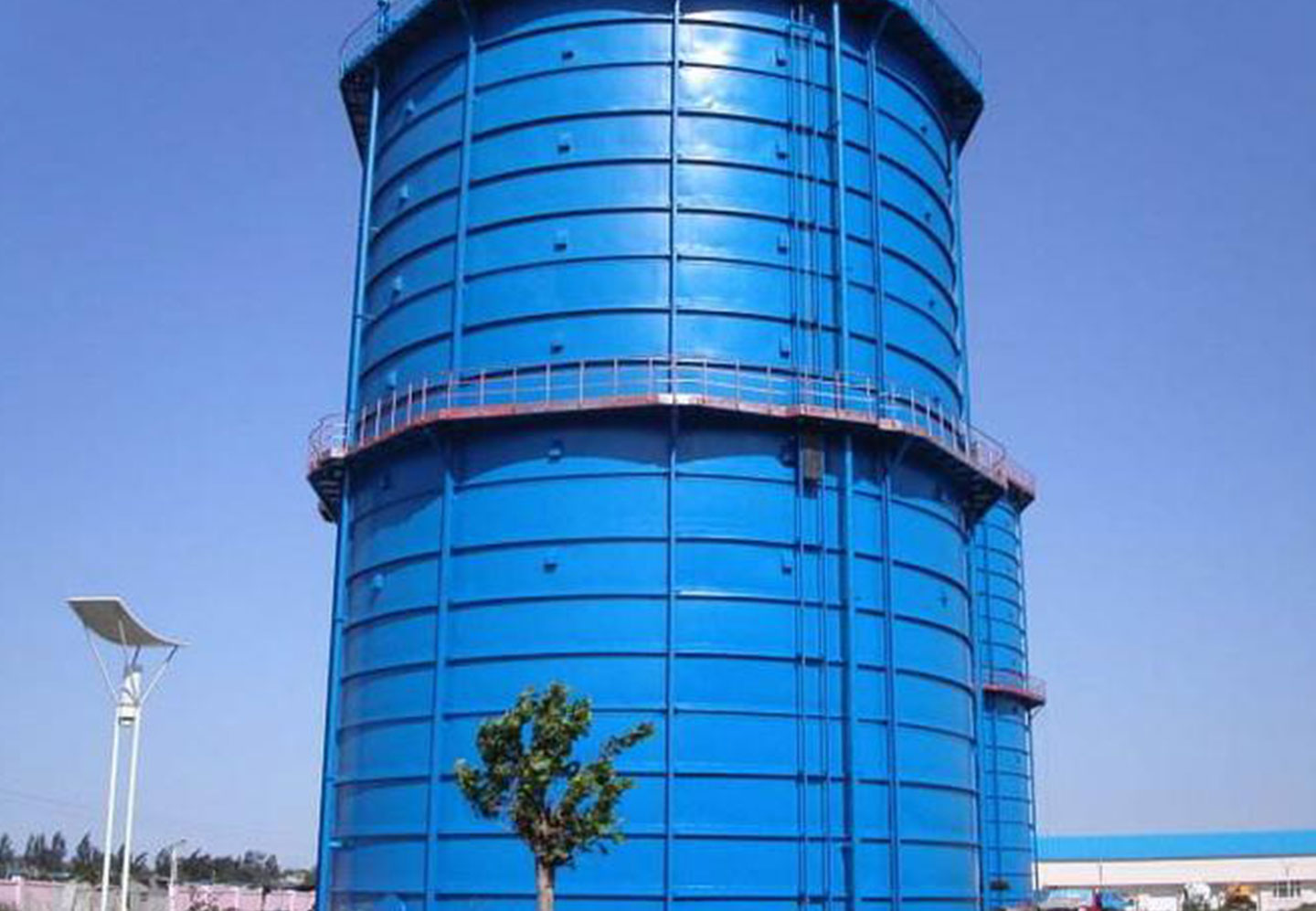

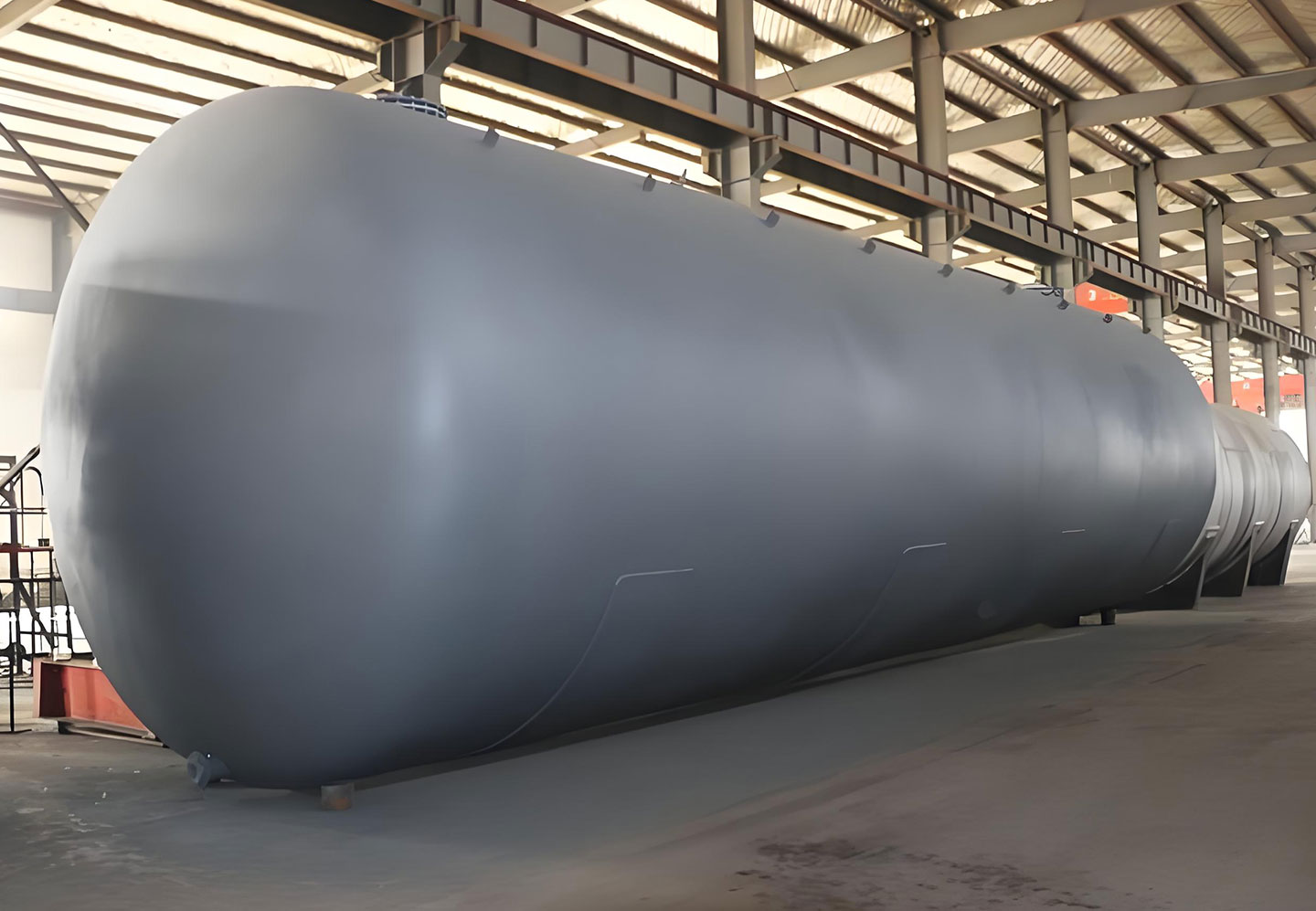

Waterborne Epoxy Anti-corrosive Finish Finished Projects

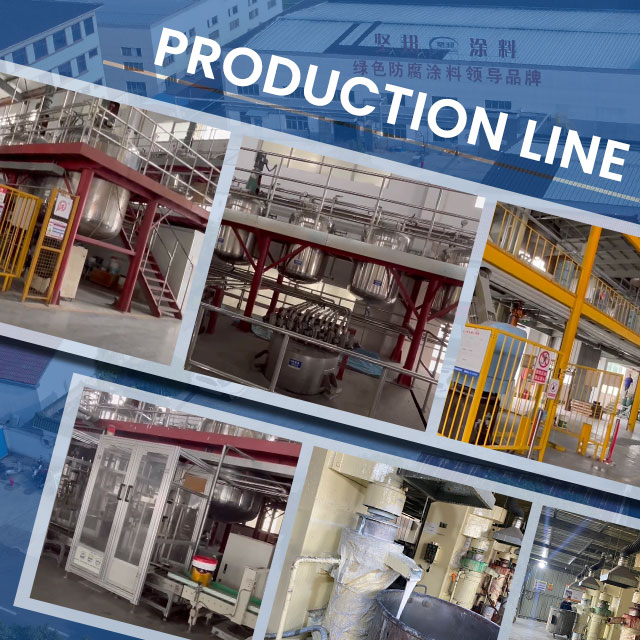

Waterborne Epoxy Anti-corrosive Finish Production Process

Waterborne Epoxy Anti-corrosive Finish Instructions For Use

Substrate Treatment：

All the impurities such as the floating dust, dust, oil contaminations shall be removed to keep the surface clean and dry.

Instructions for Use:

• Mixing:

Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you get to mix well.

• Mixing ratio：

Part A: Part B = 20:5

• Thinner:

Clean water

• Airless spray:

Nozzle tip: 0.017~0.023 inches

Spray pressure: 15~18Mpa

Thinner ratio: 0~10% (by weight of paint)

• BrushRoller:

Recommended

Must achieve required thickness
