WH54-33 Heat-Resistant, Oil-Resistant & Anti-Static Primer & Paint | High-Performance Coating

WH54-33 Heat-Resistant, Oil-Resistant & Anti-Static Primer & Paint | High-Performance Coating

Model:
WH54-33
Brand:
YMS
Color:
Light Gray
Gloss:
Matt
Density:
~1.32Kg/L (after mixing)
Flash Point:
27℃
Volume solid:
(45±2 )%
Mixing:
Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you to mix the paint well.
Mixing Ratio:
Part A: Part B= 20:5(by weight)
Theoretical spreading rate, kg/m2 :
5.68m²/Kg (60um dry film thickness)


Availability:



Inquiry

Product Description

WH54-33 Heat-resistant Oil-resistant Anti-static Primer

This two-component product is mainly composed of epoxy resin, amino resin, non-carbon conductive mica powder, anti-static agents, etc.It has the following resistance characteristics:

Strong adhesion	Flexibility	Great resistance to impact
Oil resistance	Corrosion resistance	Antistatic

WH54-33 Heat-resistant Oil-resistant Anti-static Primer Video

WH54-33 Heat-resistant Oil-resistant Anti-static Primer Basic Technical Datasheet

Color

Light Gray

Gloss

Matt

Density

~1.32Kg/L (after mixing)

Hardness

Epoxy curing agent

Solid Volume

(45±2 )%

Standard Film thickness

60um dry film thickness (about 135um wet film thickness)

Theoretical spreading rate

5.68m²/Kg (60um dry film thickness)

Full Cure

(23±2℃)24h

Flash Point

27℃

WH54-33 Heat-resistant Oil-resistant Anti-static Primer Product Packaging

Packaging:

part A:20kg in a 20-liter iron bucket.

part B:5kg in a 6-liter iron bucket.

Shelf Life:

12 months If exceeding shelf life, the products shall be tested before using.

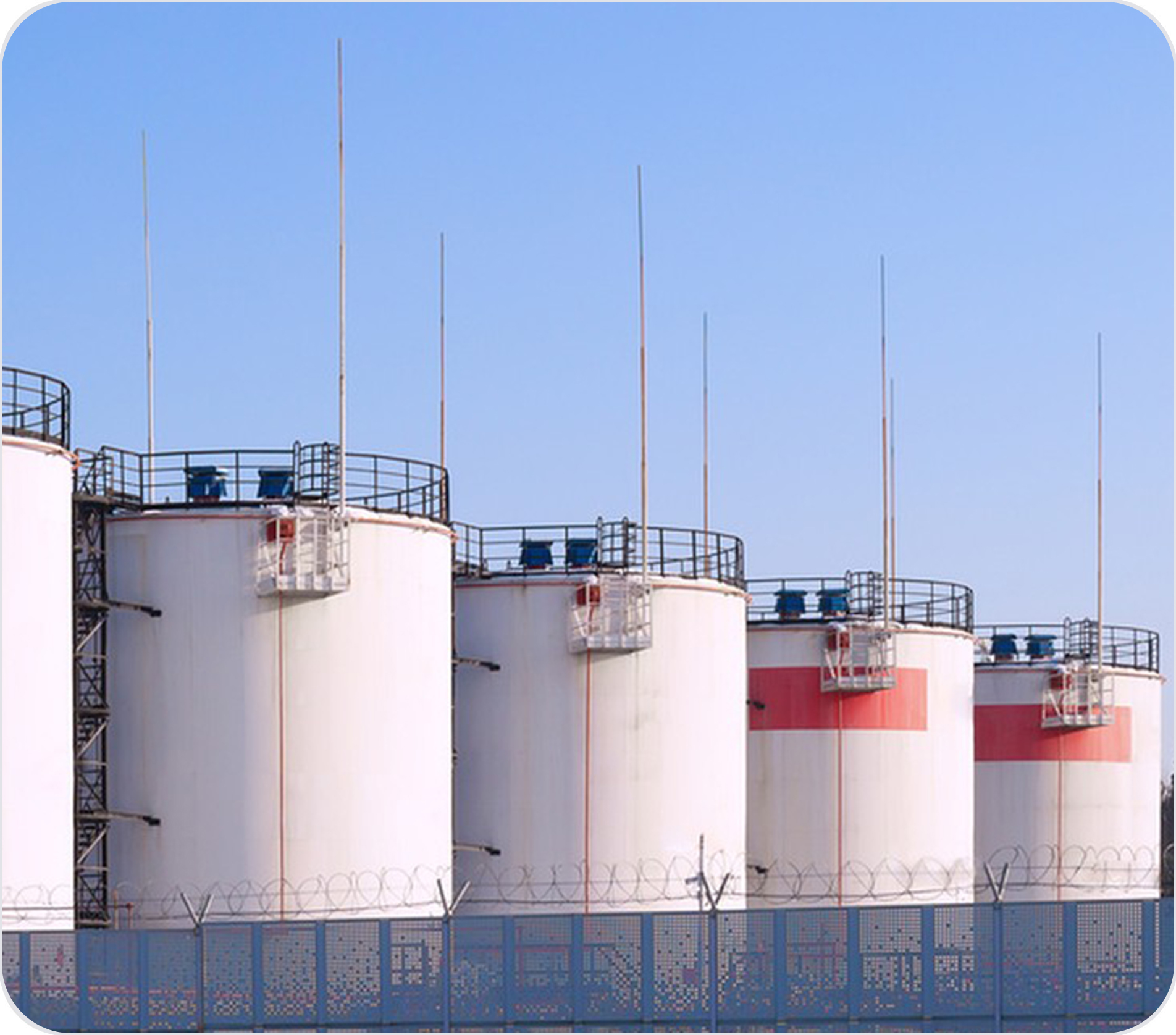

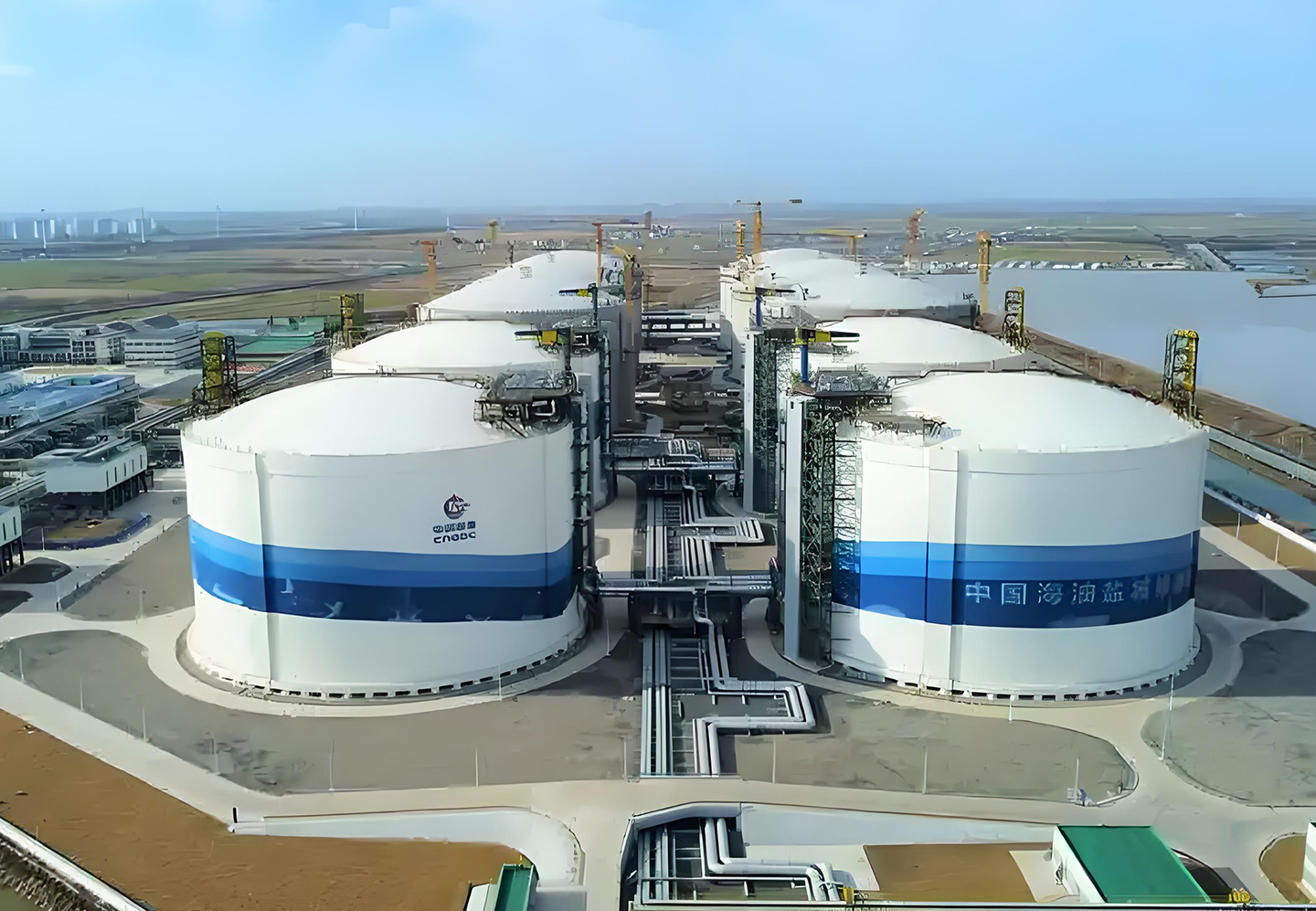

WH54-33 Heat-resistant Oil-resistant Anti-static Primer Applicable Environment

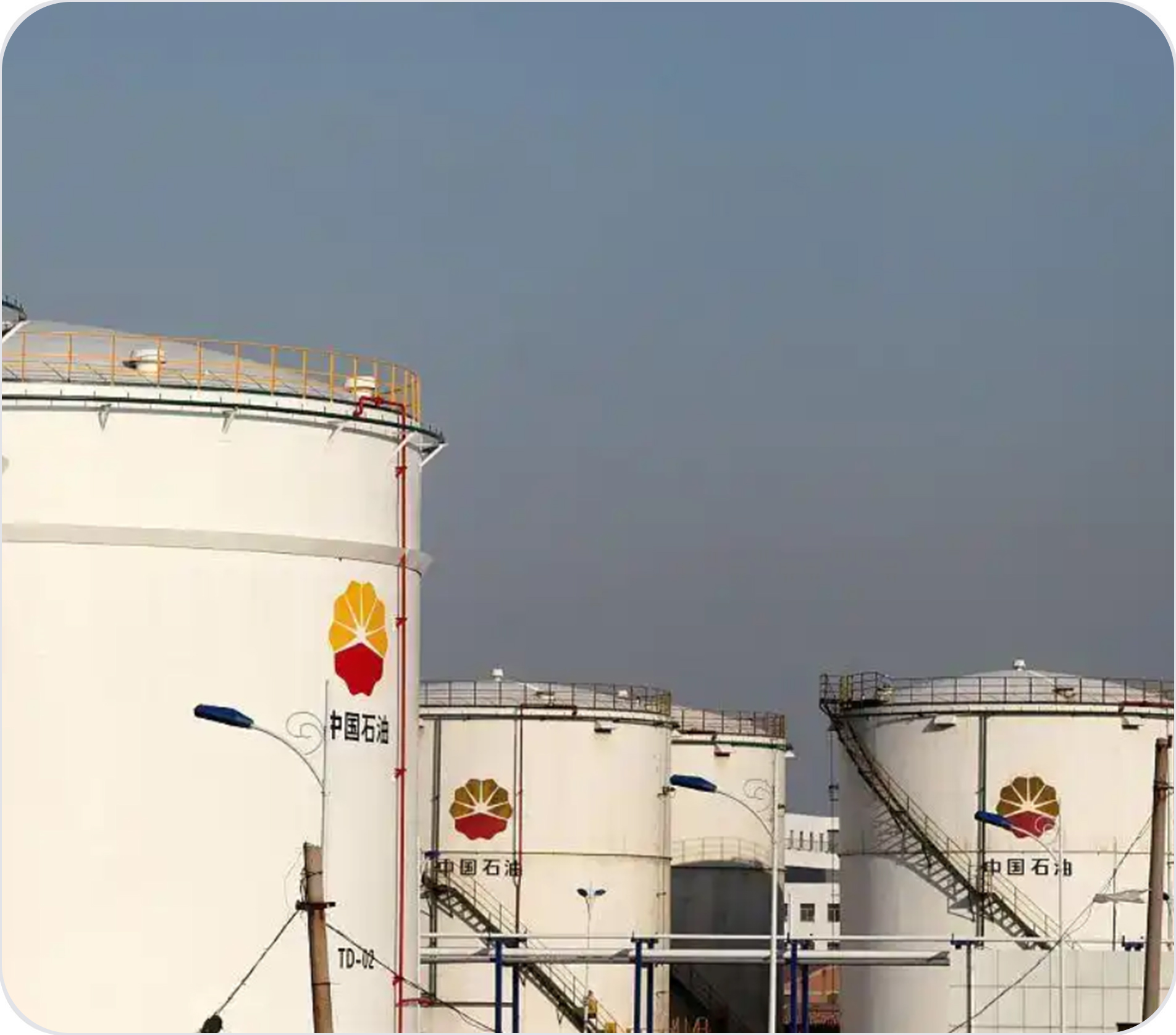

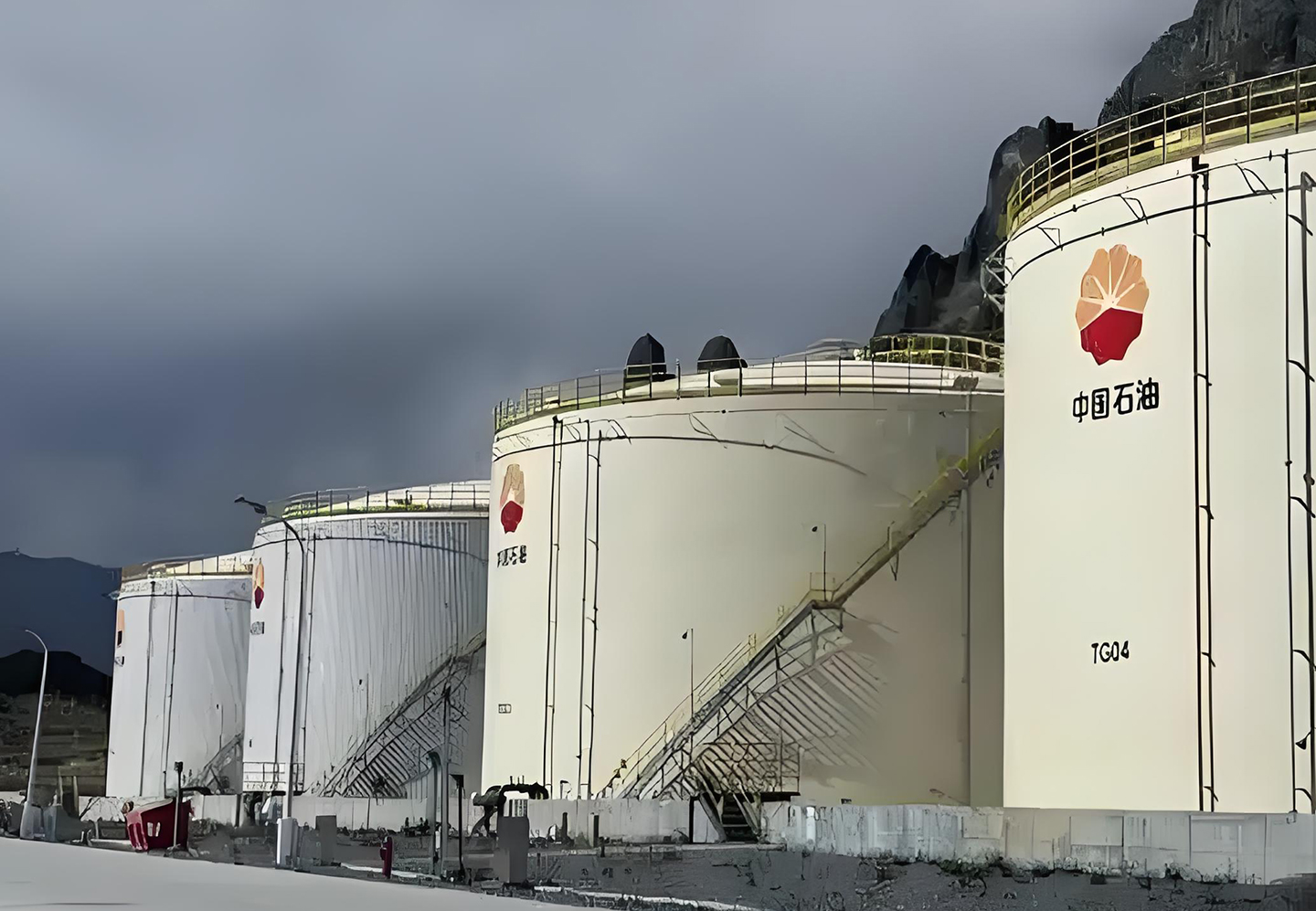

Aviation Fuel Storage Tank

Crude Oil Storage Tank

Gasoline Storage Tank

Kerosene Storage Tank

WH54-33 Heat-resistant Oil-resistant Anti-static Primer Compatibility

Product

Thickness

Primer:

Heat-resistant Oil-resistant Anti-static Primer

2*60 um (dry film thickness)

Paint:

Heat-resistant Oil-resistant Anti-static Paint

2*30 um (dry film thickness)

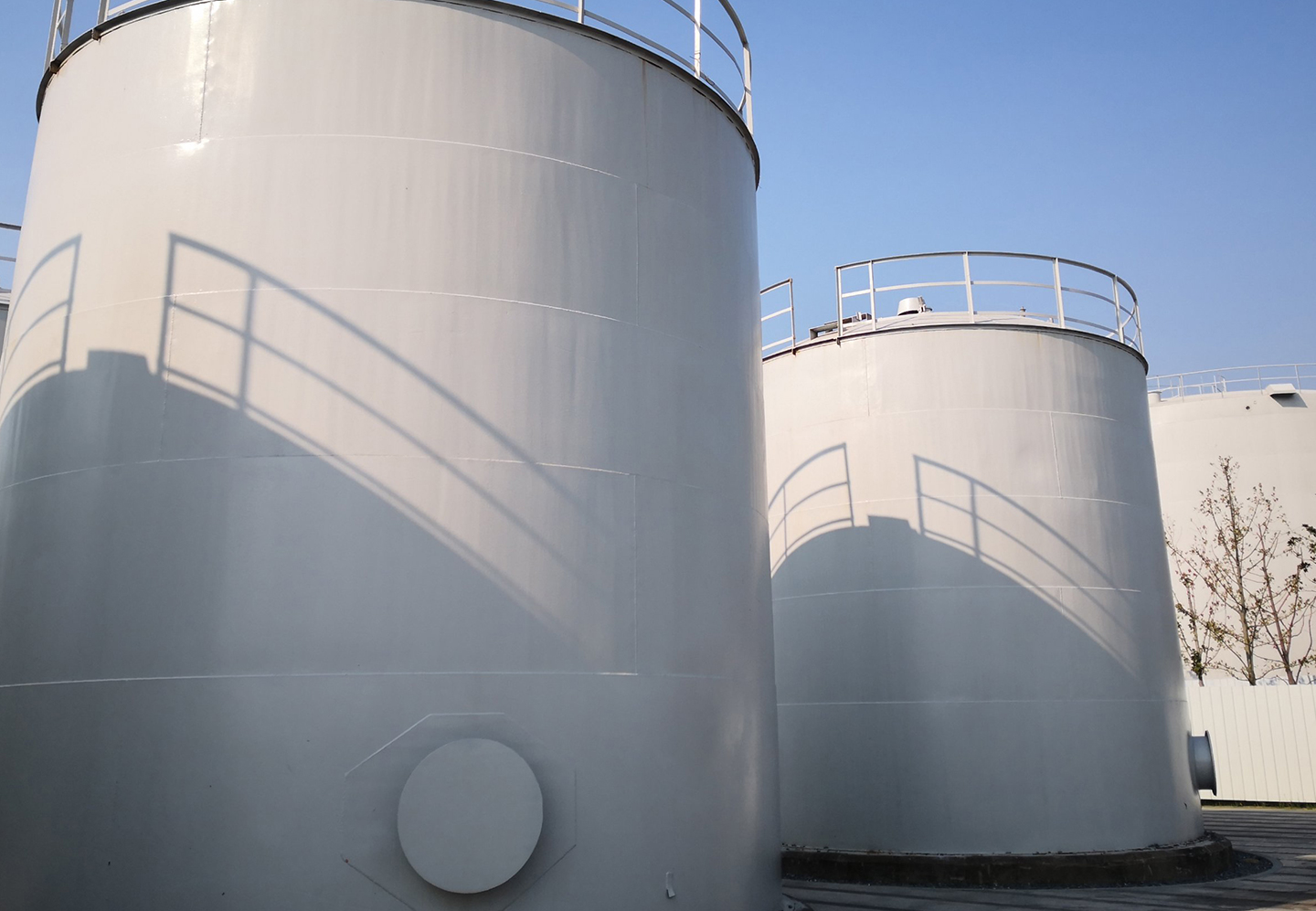

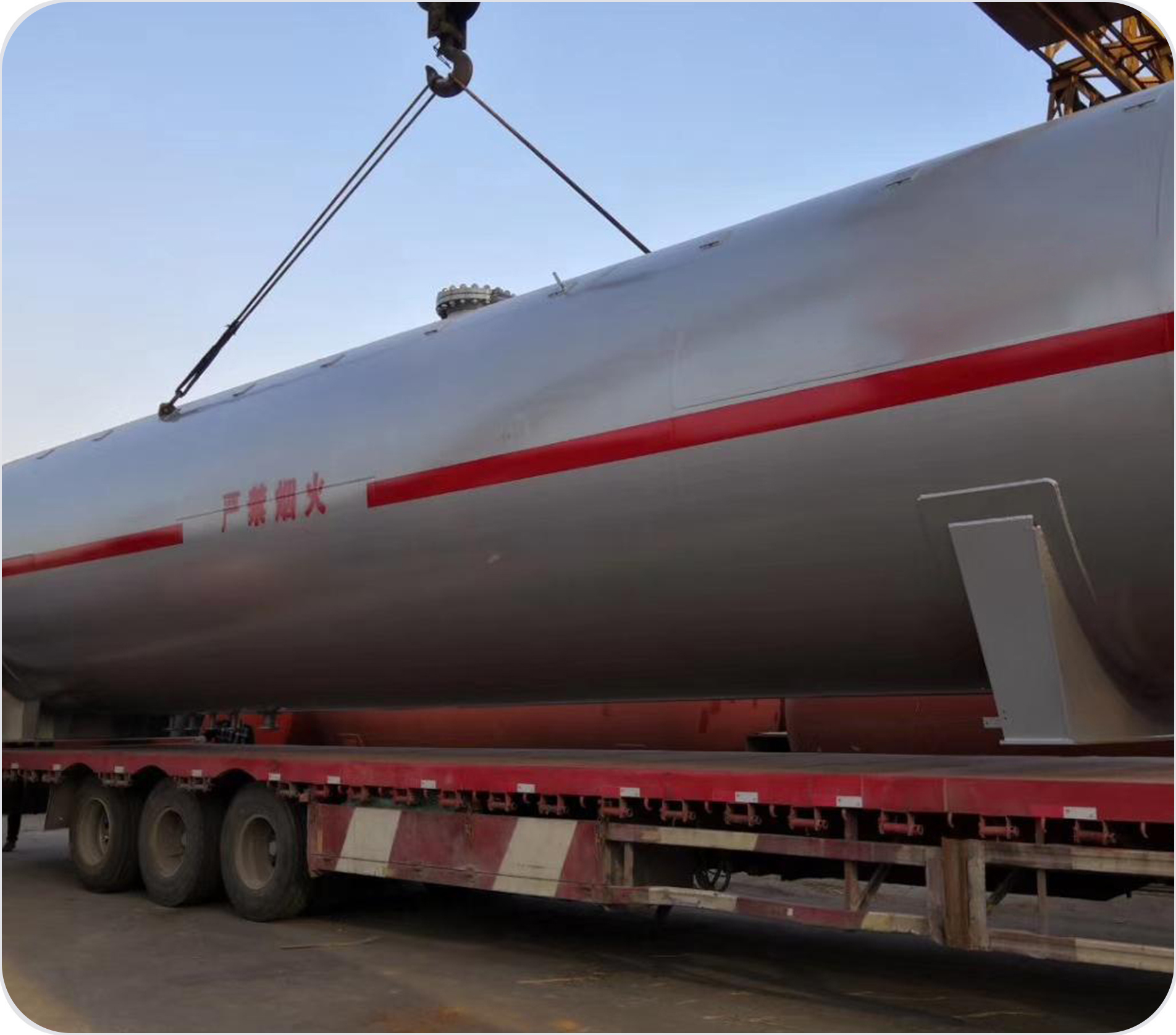

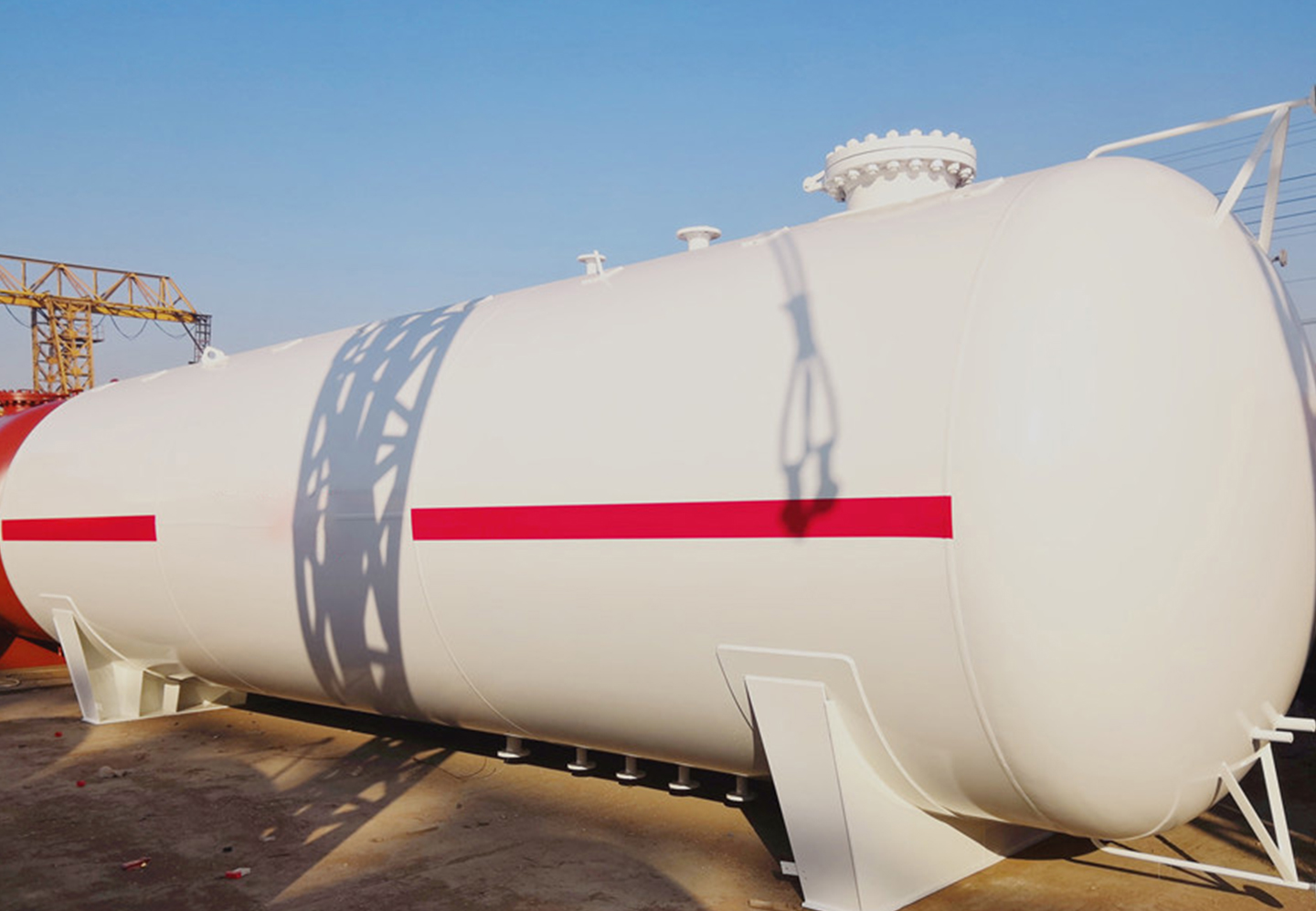

WH54-33 Heat-resistant Oil-resistant Anti-static Primer Finished Projects

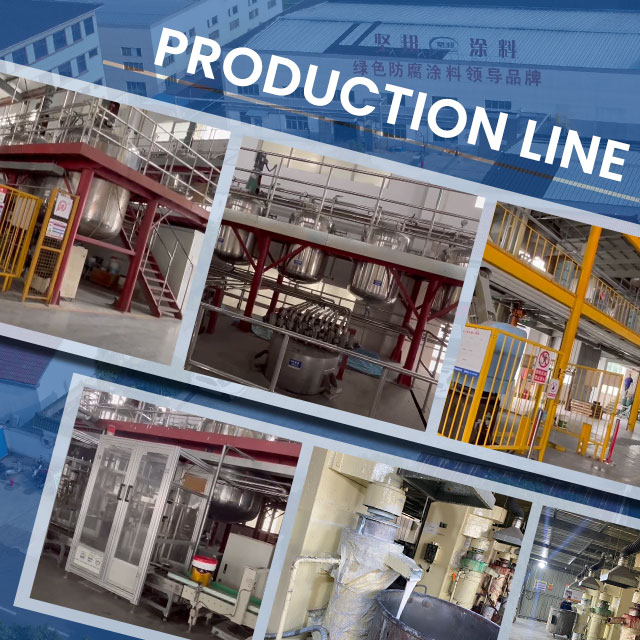

WH54-33 Heat-resistant Oil-resistant Anti-static Primer Production Process

WH54-33 Heat-resistant Oil-resistant Anti-static Primer Instructions For Use

Substrate Treatment：

The surface to be coated shall be clean, dry and free from contaminations. Also, the surface shall be evaluated and handled according to ISO8504 standard.

Bare steel: sandblasting to Sa2.5(IOS8501-1:2007). For the non-soaking site, acceptable for power tool grinding, but at least reach St2(IOS8501-1:2007).

Steel painted shop primer: apply to clean, dry, intact and approved primer.

Painted surface: only apply to clean, dry and intact compatible primer.

Instructions for Use:
