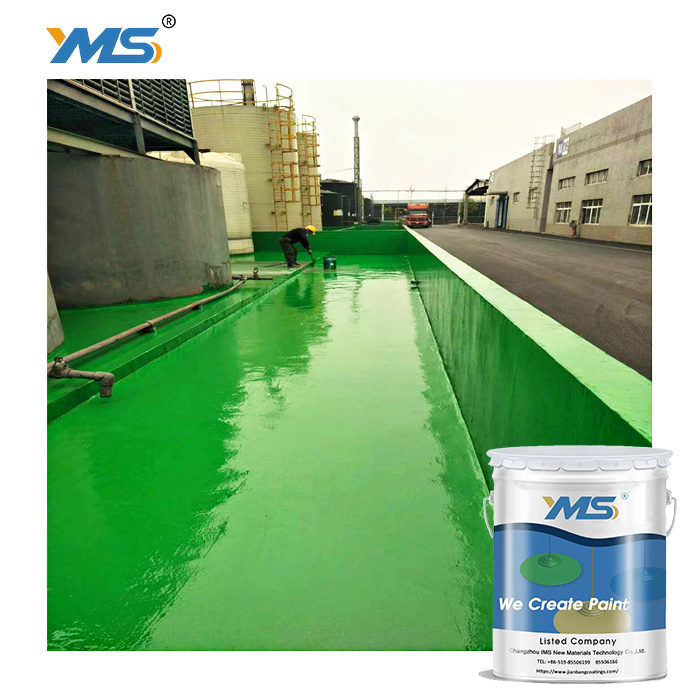

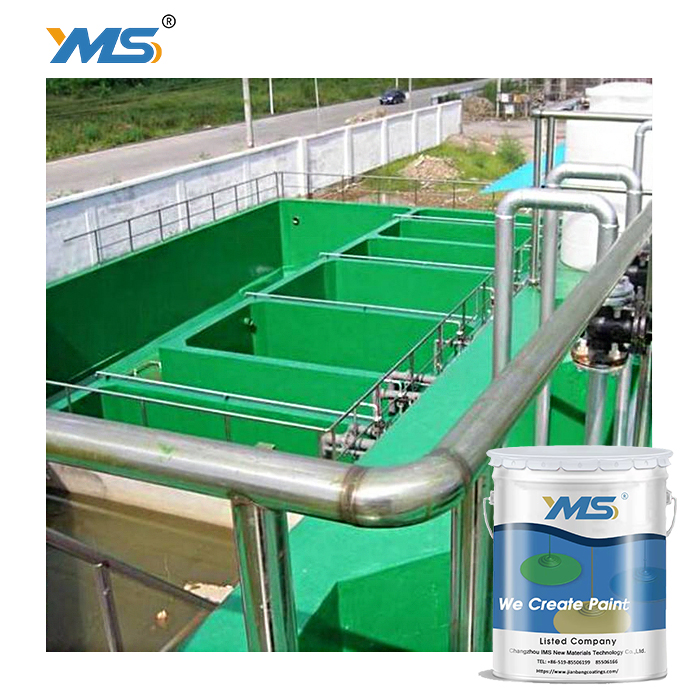

H53-11 Epoxy Glass Flake Paint

This two-component product is mainly prepared by epoxy resin, glass flake, pigment, additives and polyamide as curing agent. This product features:

Good adhesion	High mechanical properties	Shielding effect
High hardness	Long durability	Impact resistance
Waterproof	Shockproof	Oil resistance

H53-11 Epoxy Glass Flake Paint Video

H53-11 Epoxy Glass Flake Paint

Basic Technical Datasheet

Appearance	Semi-gloss
Color	Red oxide, black, white, etc
Adhesion, level	1
Flexibility, mm	≤4
Flash point, ℃	Part A: 24   Part B: 27
Impact resistance, cm	50
Volume solid, %	76 ± 2
Weight solid, %	87 ± 2
Pot life, h	3
Theoretical spreading rate, kg/m2 @ 80 µm dry film	0.16
VOC, g/L	250 ~ 276

H53-11 Epoxy Glass Flake Paint Product Packaging Packaging: Part A: 25 kg in a 20-liter iron barrel Part B: 4 kg in a 5-liter iron barrel. Shelf Life: Part A: 12 months    Part B: 12 months If exceeding shelf life,  the products shall be tested before using.

H53-11 Epoxy Glass Flake Paint

Applicable Environment

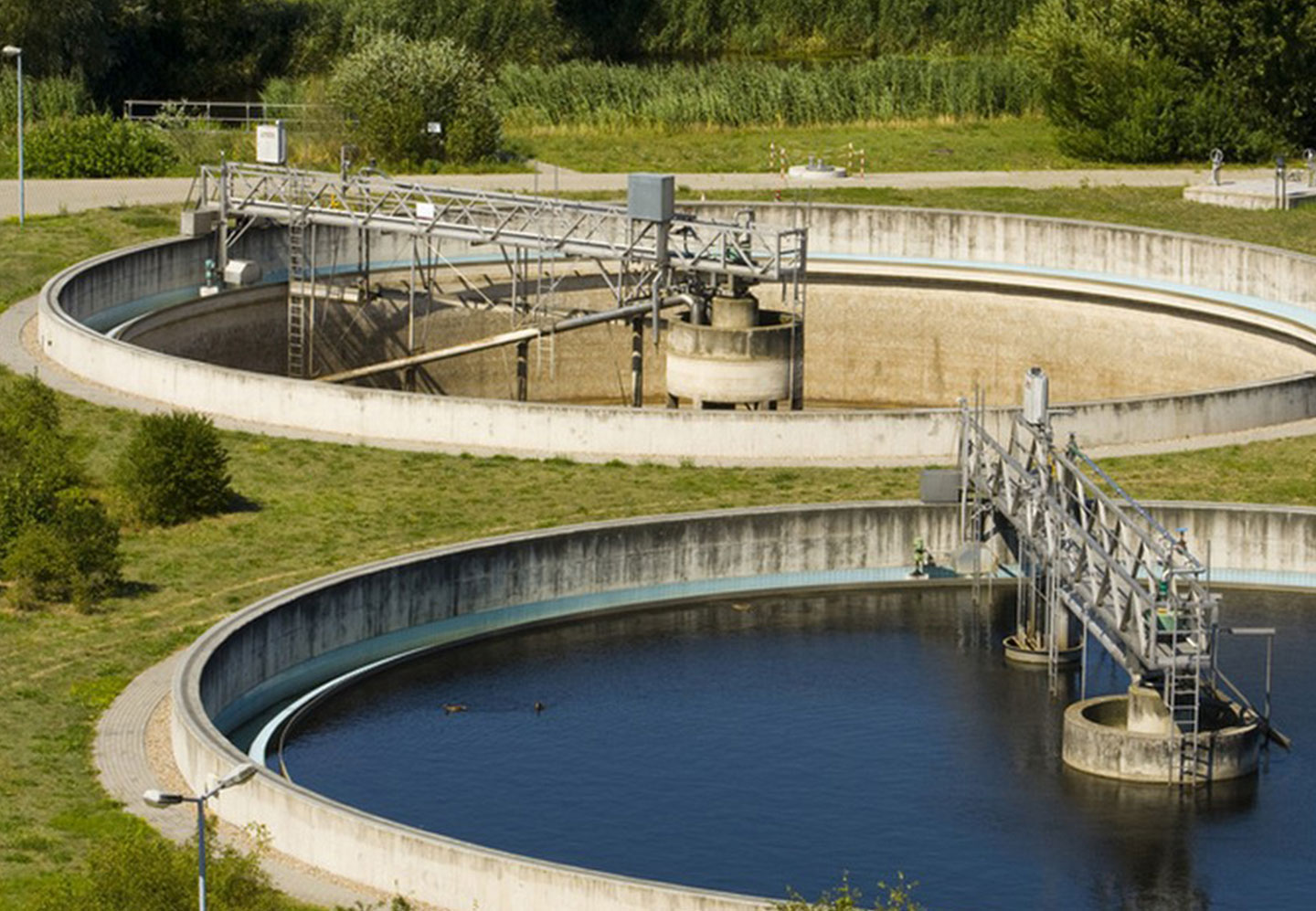

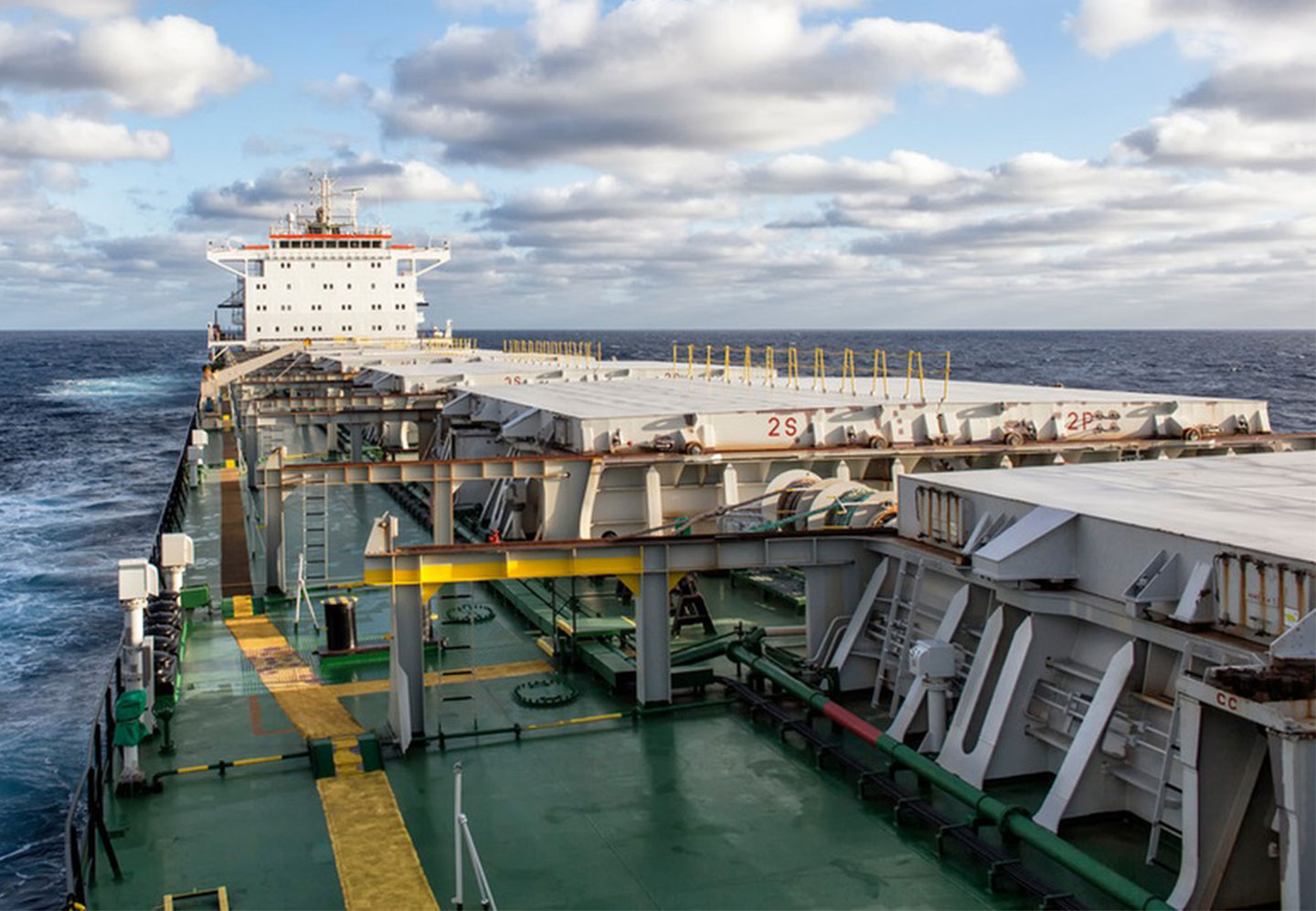

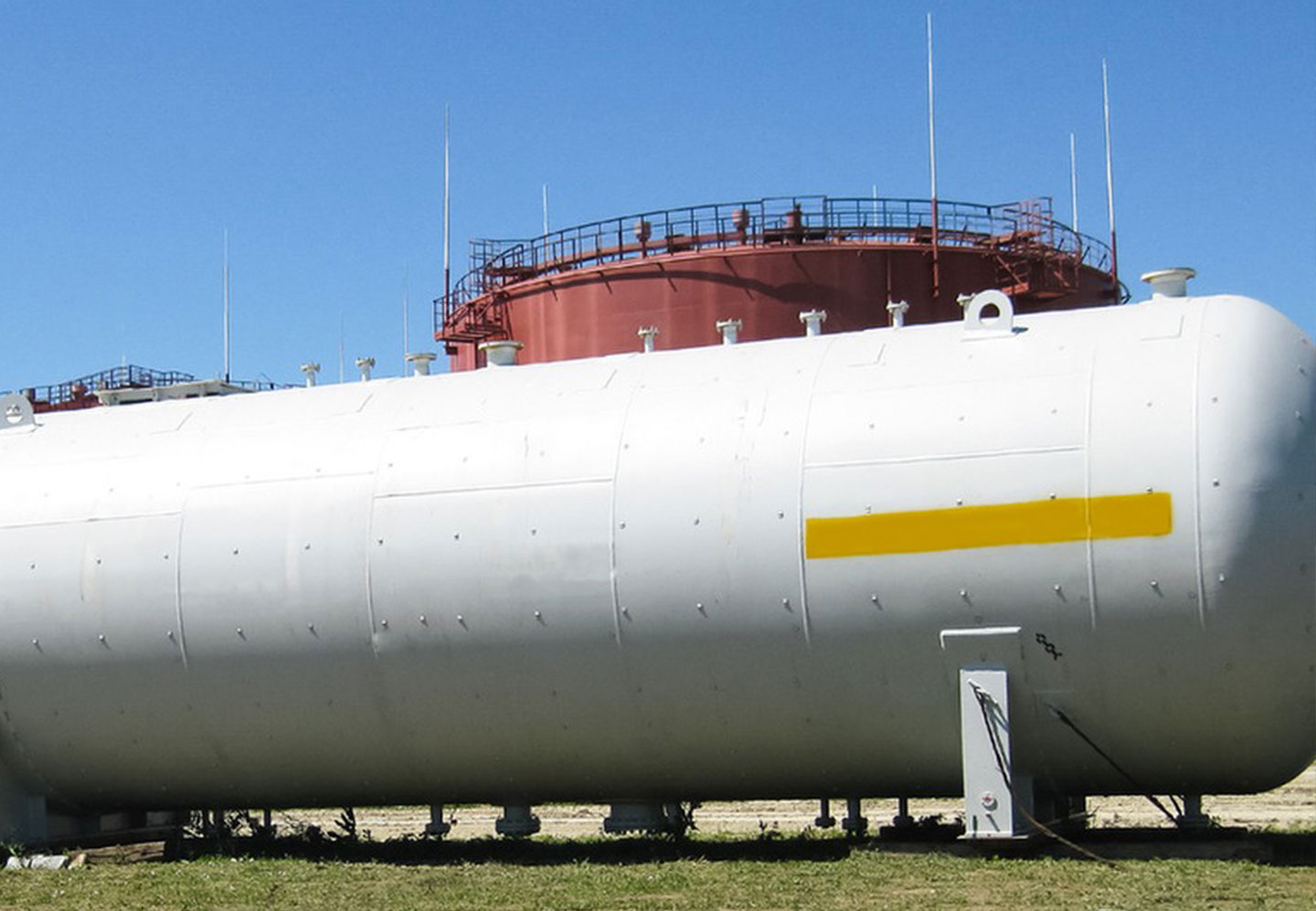

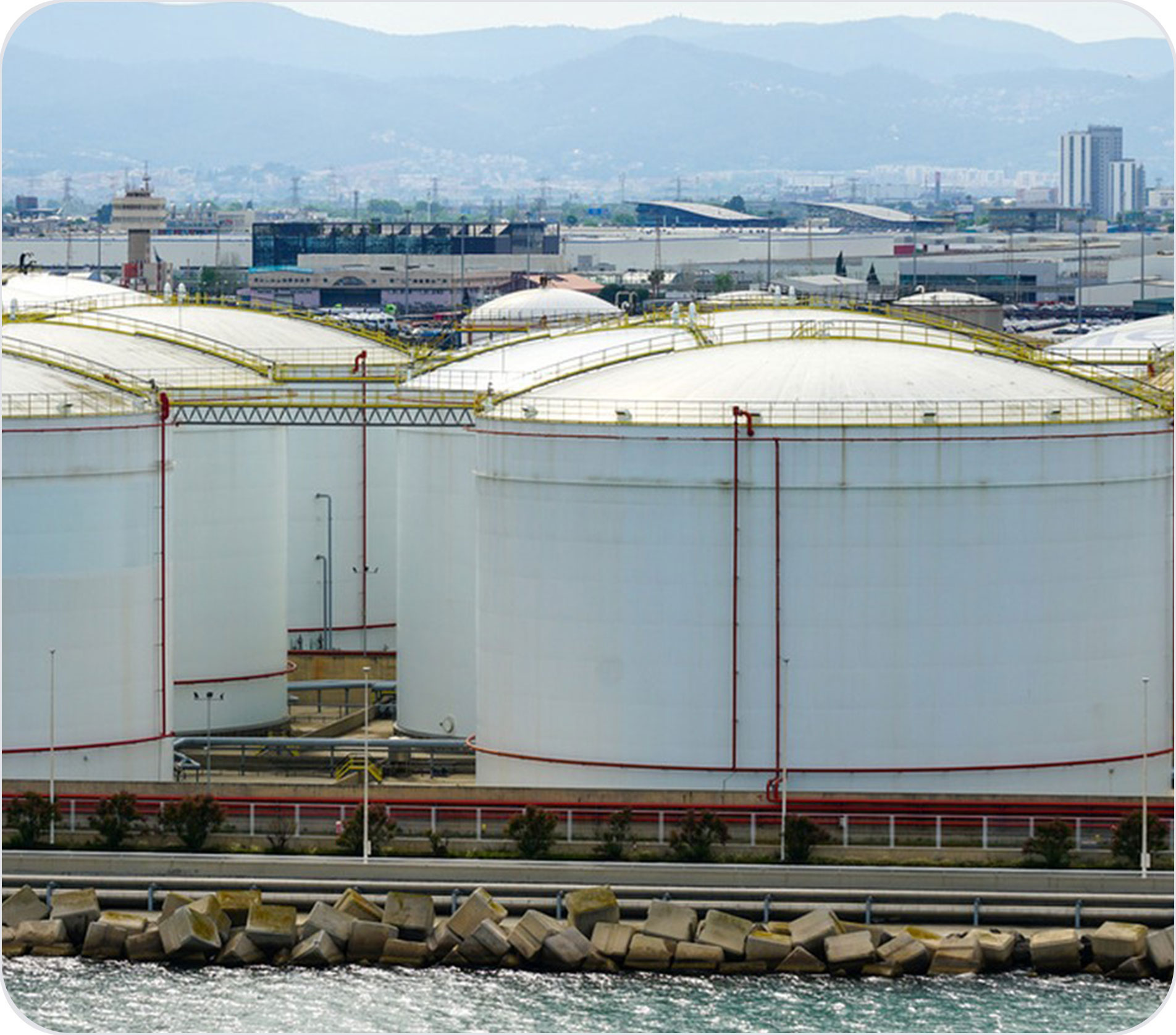

Oil tanks	Waste water facilities	Storage tanks	Ships

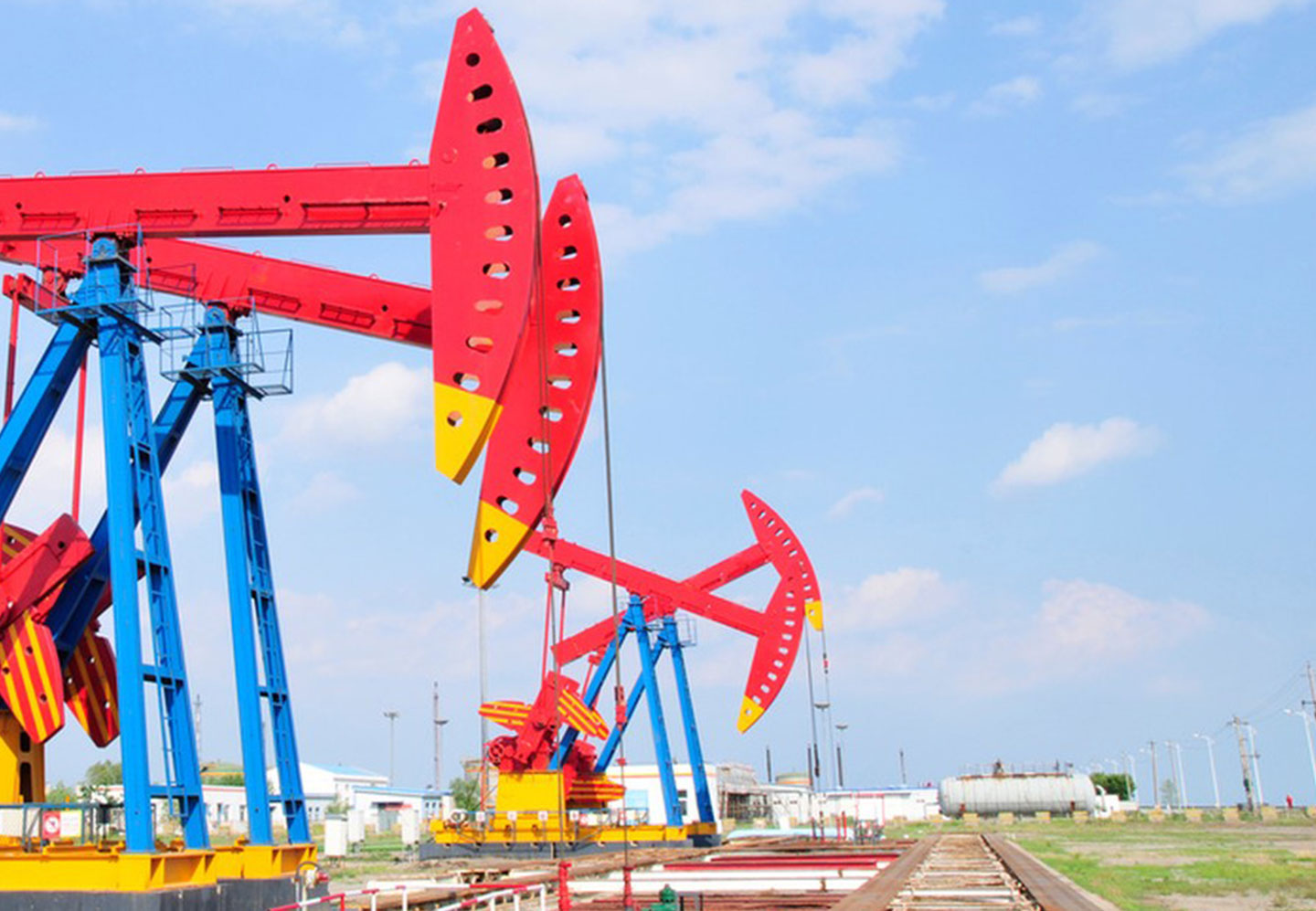

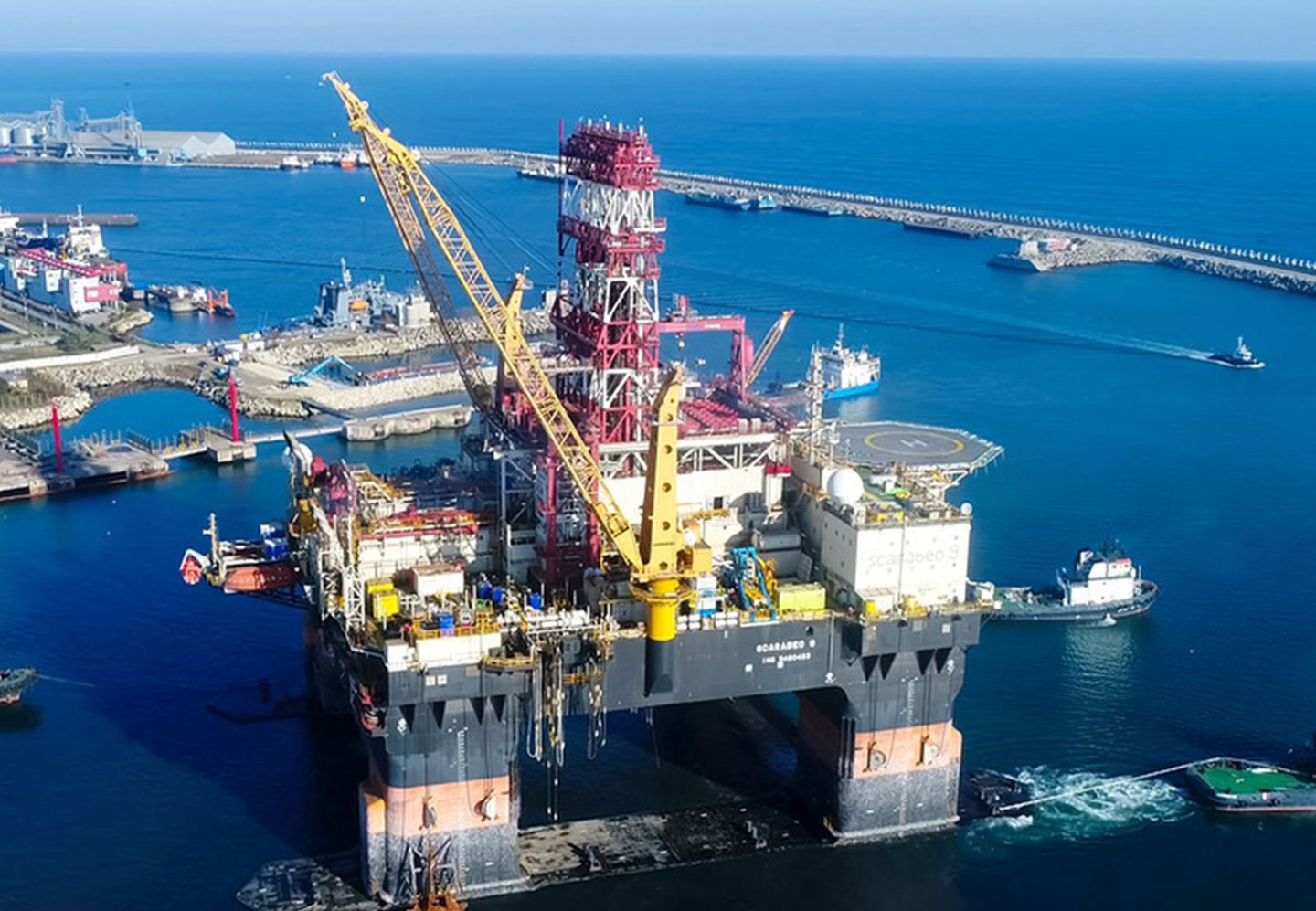

Offshore structures	chemical plants	Areas of high H2S	Bridges

H53-11 Epoxy Glass Flake Paint

Compatibility

	Product	Thickness
Primer:	H06- 1 Epoxy Zinc Rich Primer	2*40 µm
Midcoat:	H53-11 Epoxy Glass Flake Paint	200 µm
Topcoat:	BS52-10 Acrylic Polyurethane Finish Paint	2*40 µm

H53-11 Epoxy Glass Flake Paint

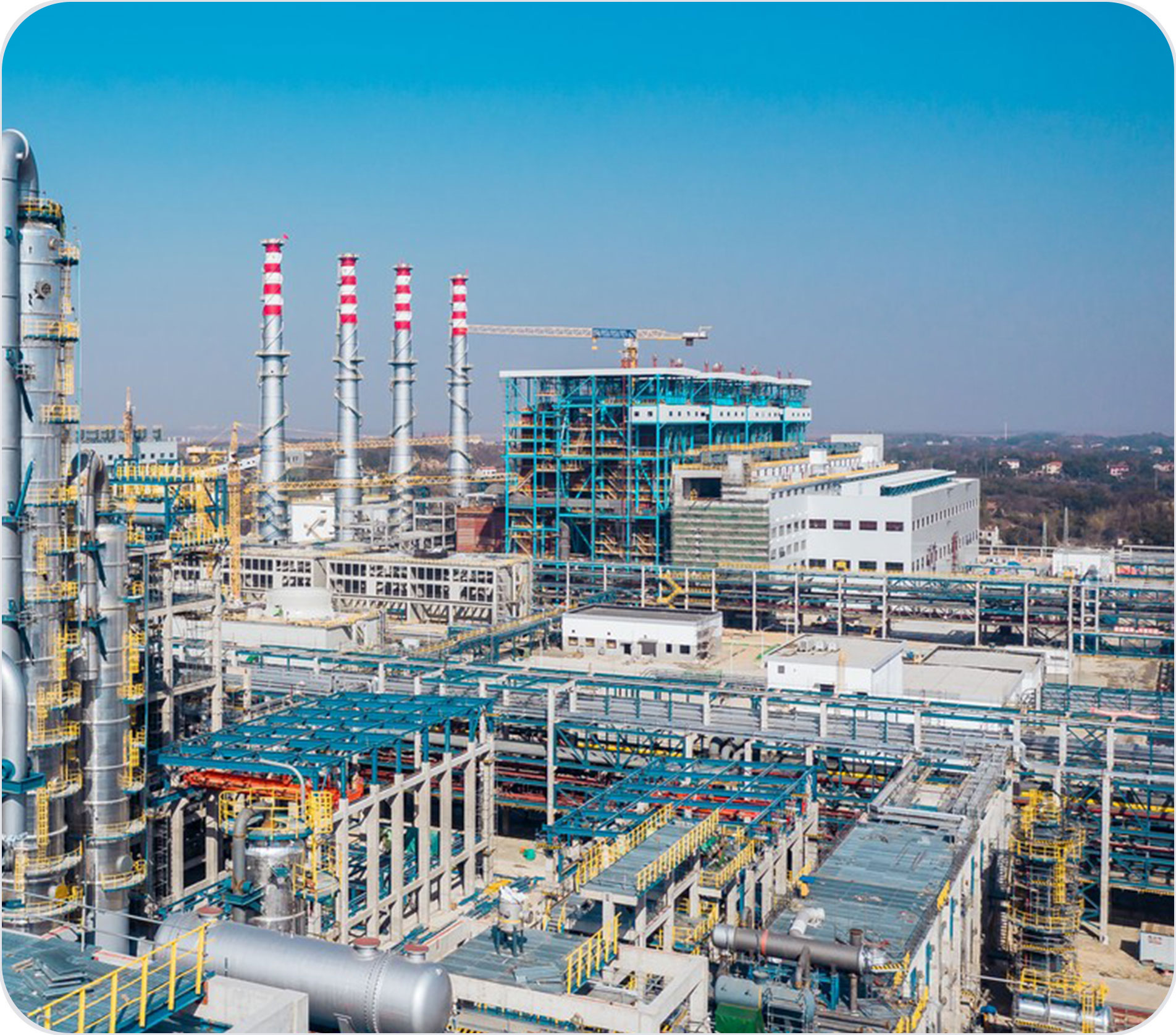

Finished Projects

H53-11 Epoxy Glass Flake Paint

Production Process

H53-11 Epoxy Glass Flake Paint

Instructions For Use

Substrate Treatment：

All surface shall be clean, dry and free from any contaminations to ensure adequate adhesion.

       Iron & Steel

Atmospheric: SSPC-SP3 or SSPC-SP2

Immersion: SSPC-SP10, 50 -75 microns profile

    Concrete & Masonry

Atmospheric: SSPC-SP13

Immersion: SSPC-SP13

Instructions for Use:

Mixing

Mix part A and part B as 25:4 by weight. Slowly add part B into part A and ensure mixed completely.

Thinner

X-7 Epoxy paint thinner ≤ 10 % w./w.

Cleaner

X-7 Epoxy paint thinner

Application methods:

Airless  spray  (recommended)：  Nozzle  tip:  0.031-0.041  inch,  pump:  45:1, pressure :  3600 psi minimum.

Brush:  Nylon/ Polyester natural bristle.

Roller:  3/8’’- 1/2’’ woven with solvent resistant core.
