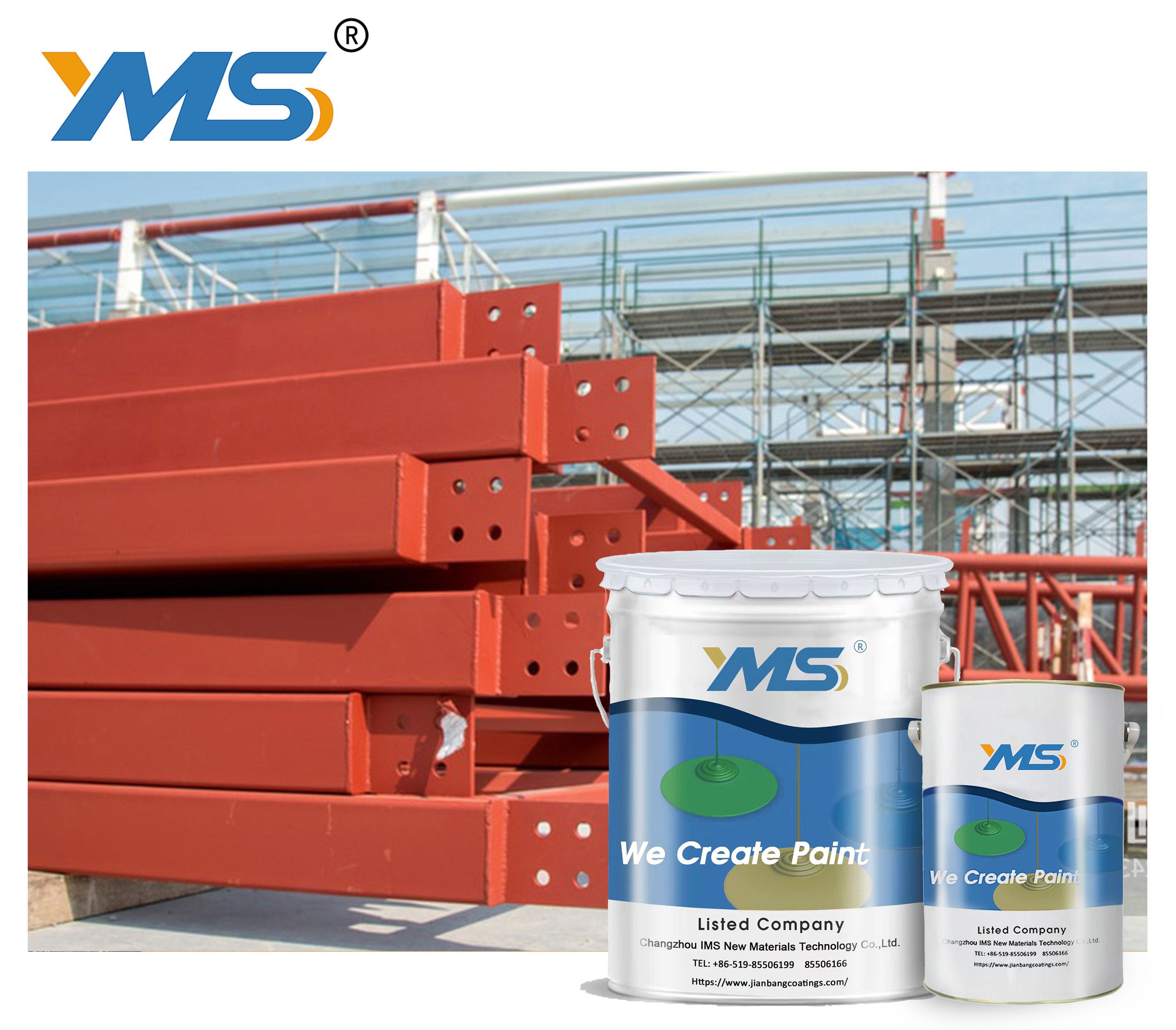

H53-5 Epoxy Red Oxide Primer

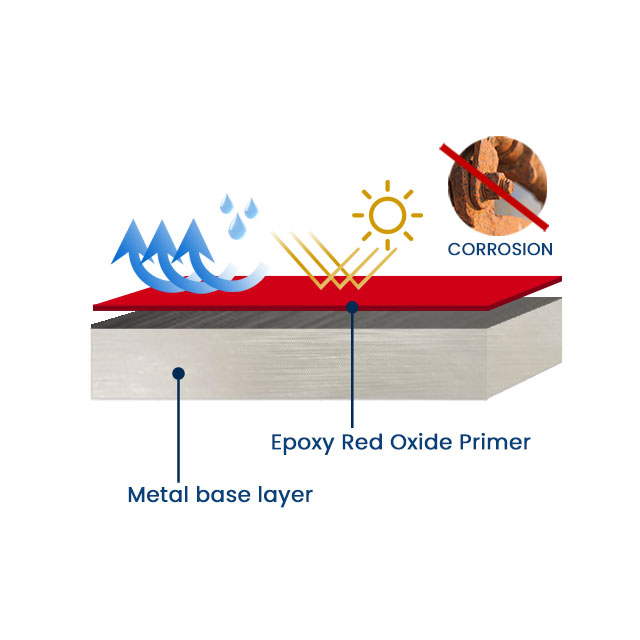

This two-component primer is mainly prepared with epoxy resin, antirust pigment and curing agent. This product features:

Rust resistance	Quick drying	Water resistance
Chemical resistance	Excellent adhesion	Mechanical properties

H53-5 Epoxy Red Oxide Primer Video

H53-5 Epoxy Red Oxide Primer

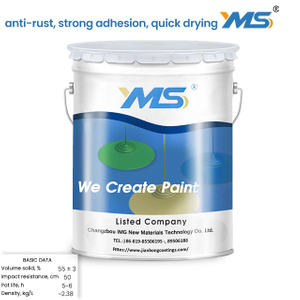

Basic Technical Datasheet

Color	Iron oxide red, semi-gloss
Density, kg/L	~2.38
Flash point, ℃	Part A: 24   Part B: 27
Volume solid, %	55 ± 3
Impact resistance, cm	50
Pot life, h	5~6
Theoretical spreading rate, kg/m2 @ 80 µm dry film	0.27
Theoretical spreading rate, kg/m2 @ 80 µm dry film	0.3
VOC, g/L	420

H53-5 Epoxy Red Oxide Primer Product Packaging Packaging: Part A: 25 kg in a 20-liter iron barrel Part B: 3 kg in a 5-liter iron barrel. Shelf Life: Part A: 12 months    Part B: 12 months If exceeding shelf life,  the products shall be tested before using.

H53-5 Epoxy Red Oxide Primer

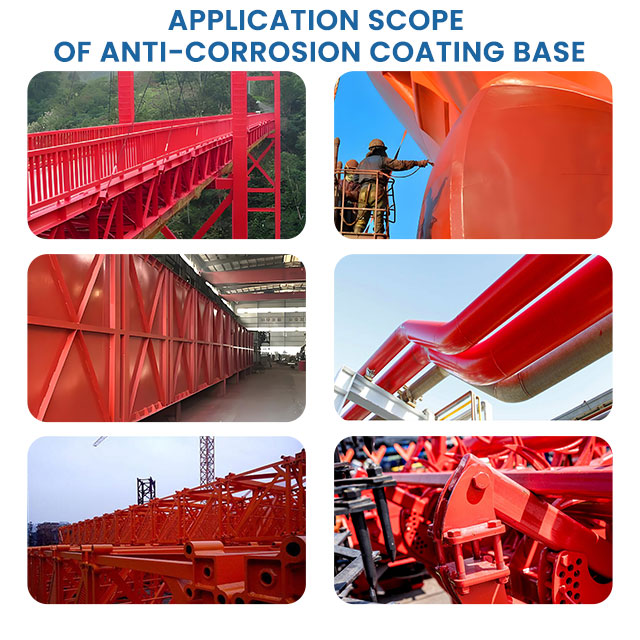

Applicable Environment

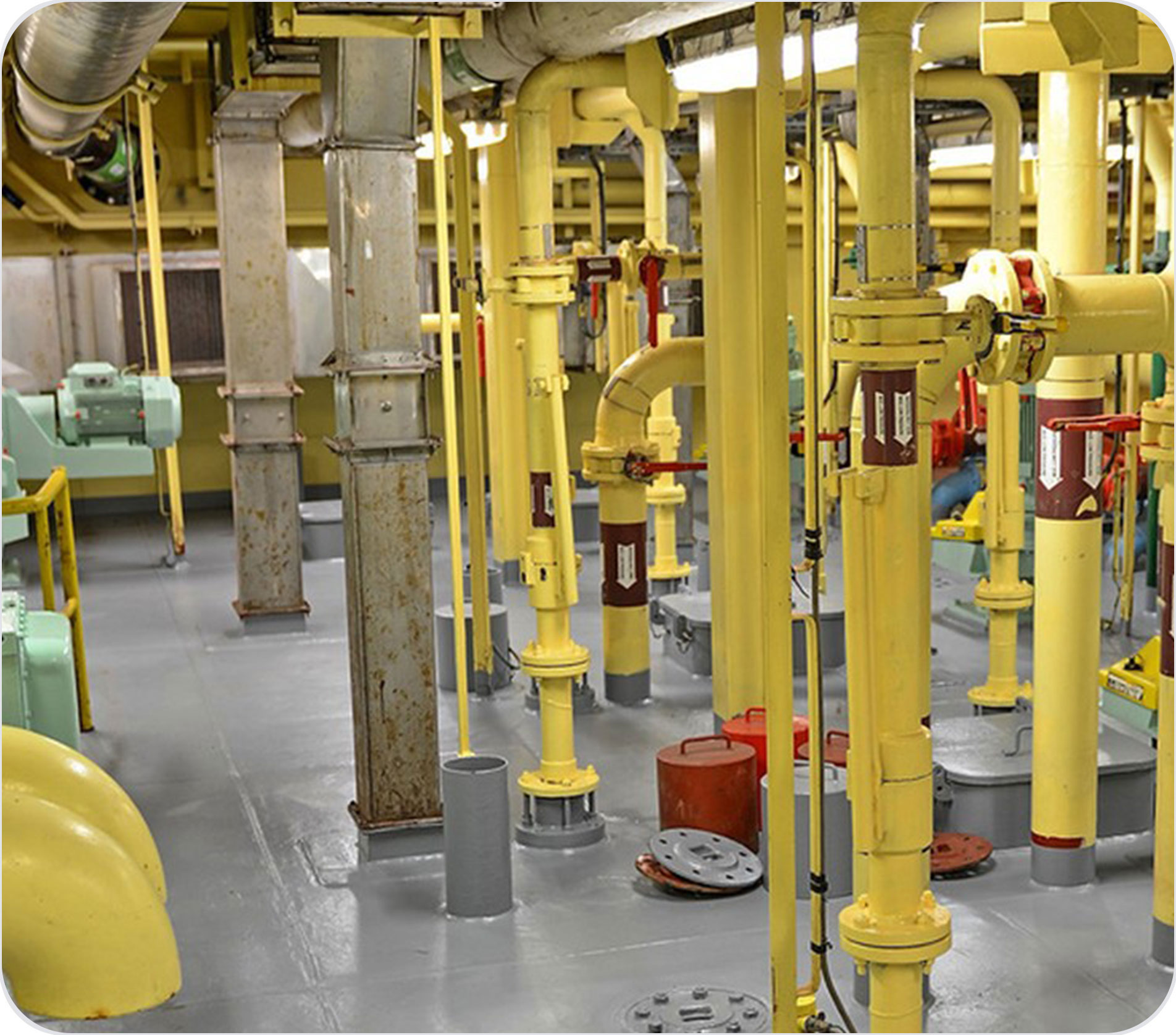

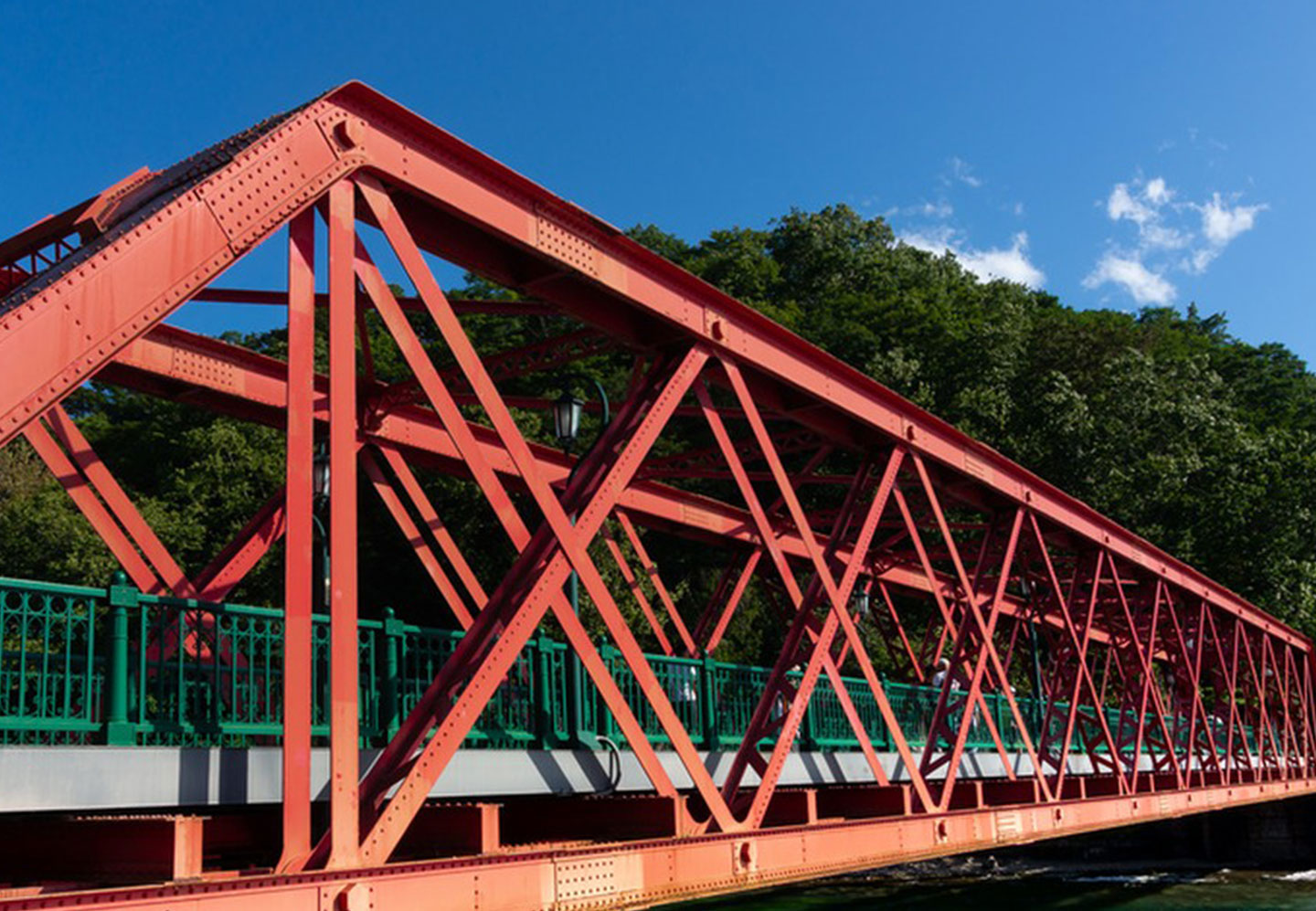

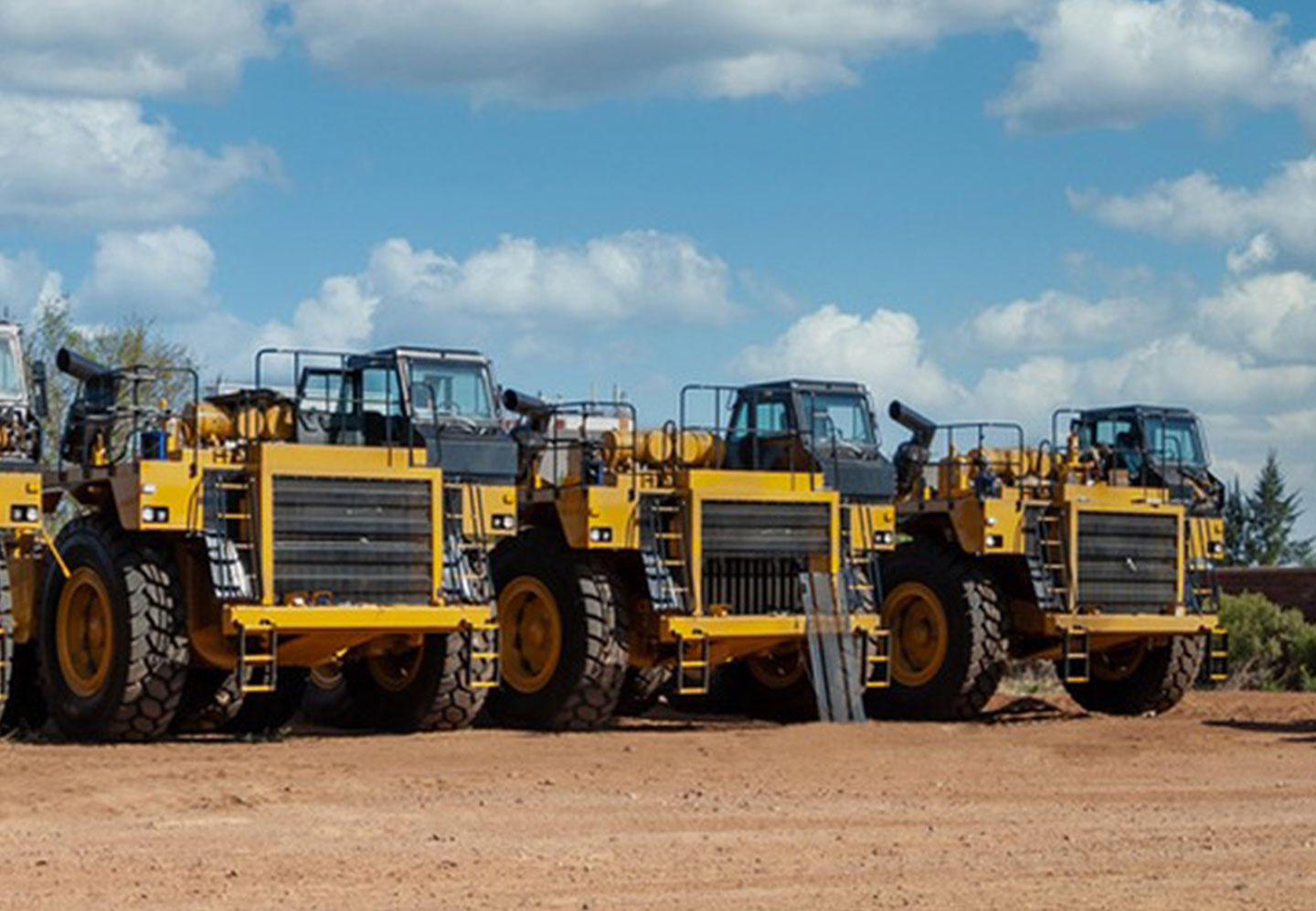

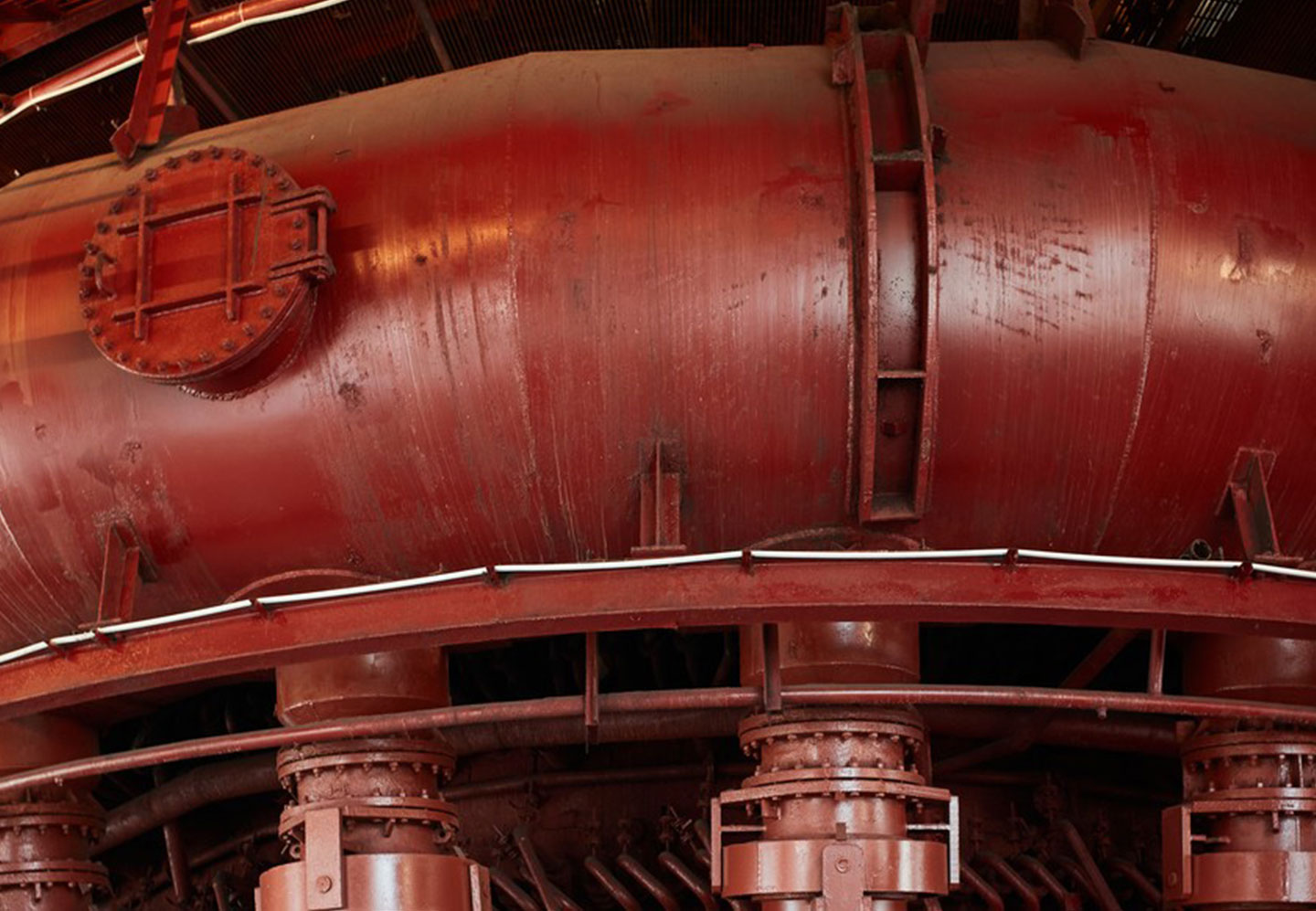

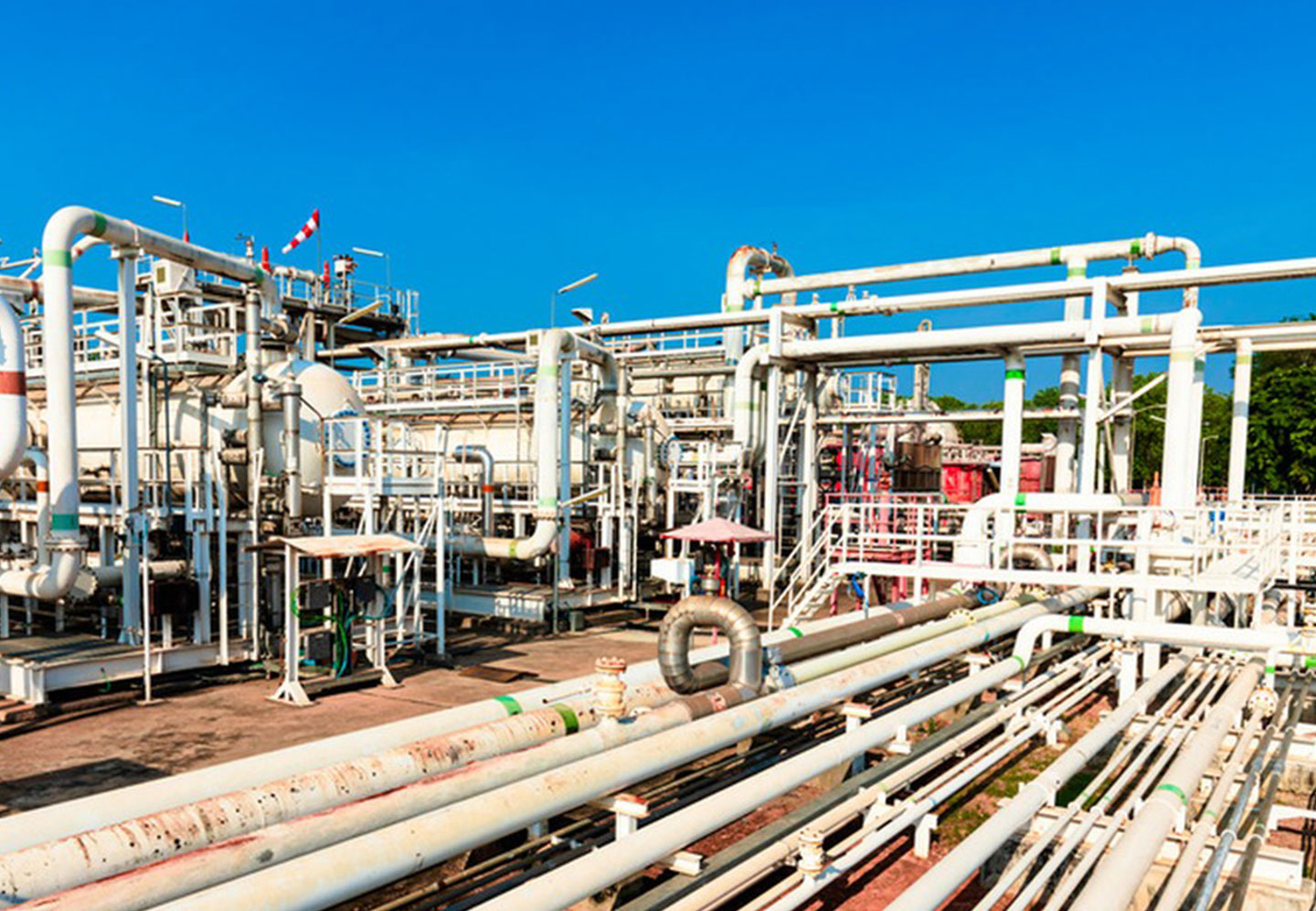

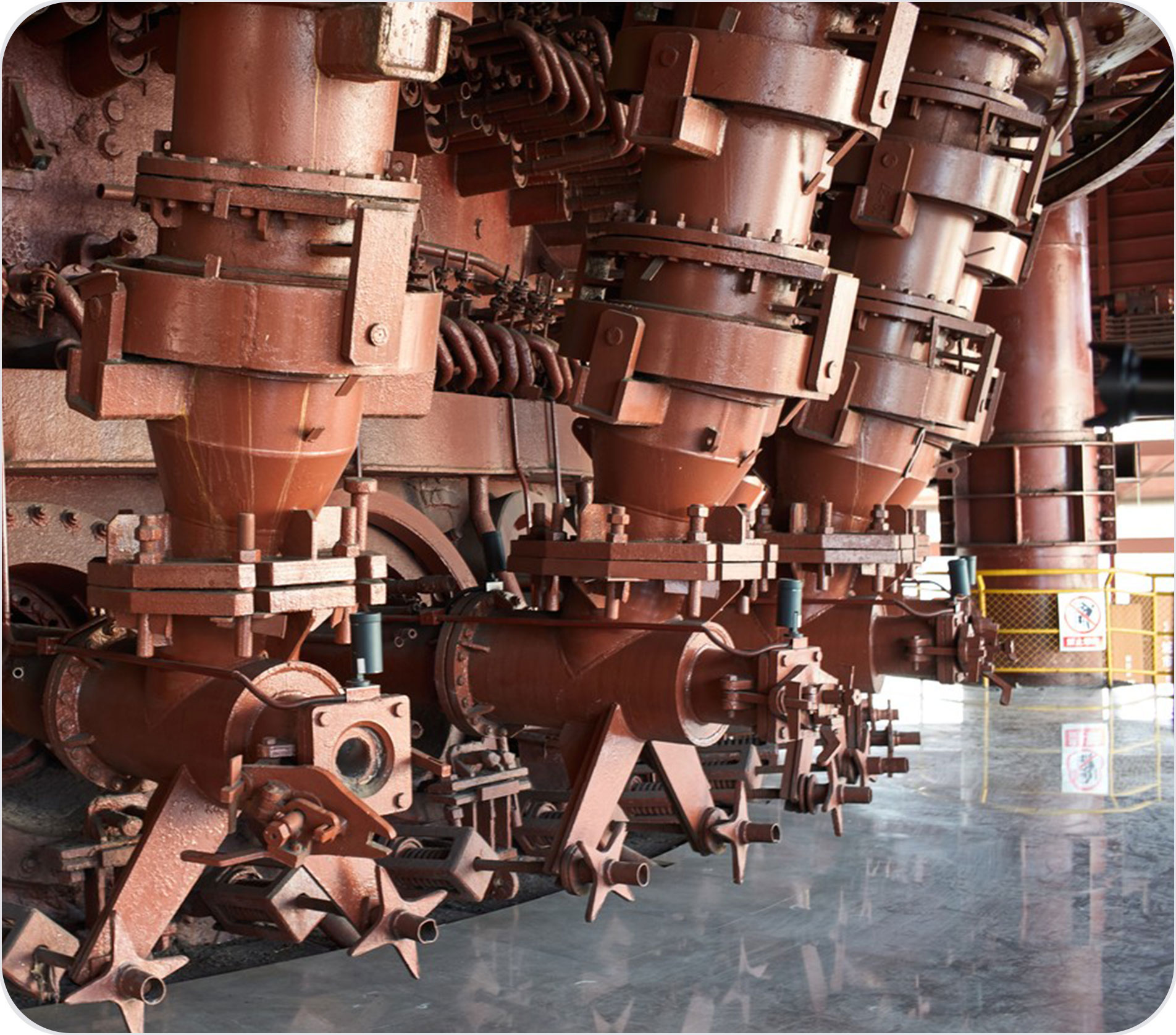

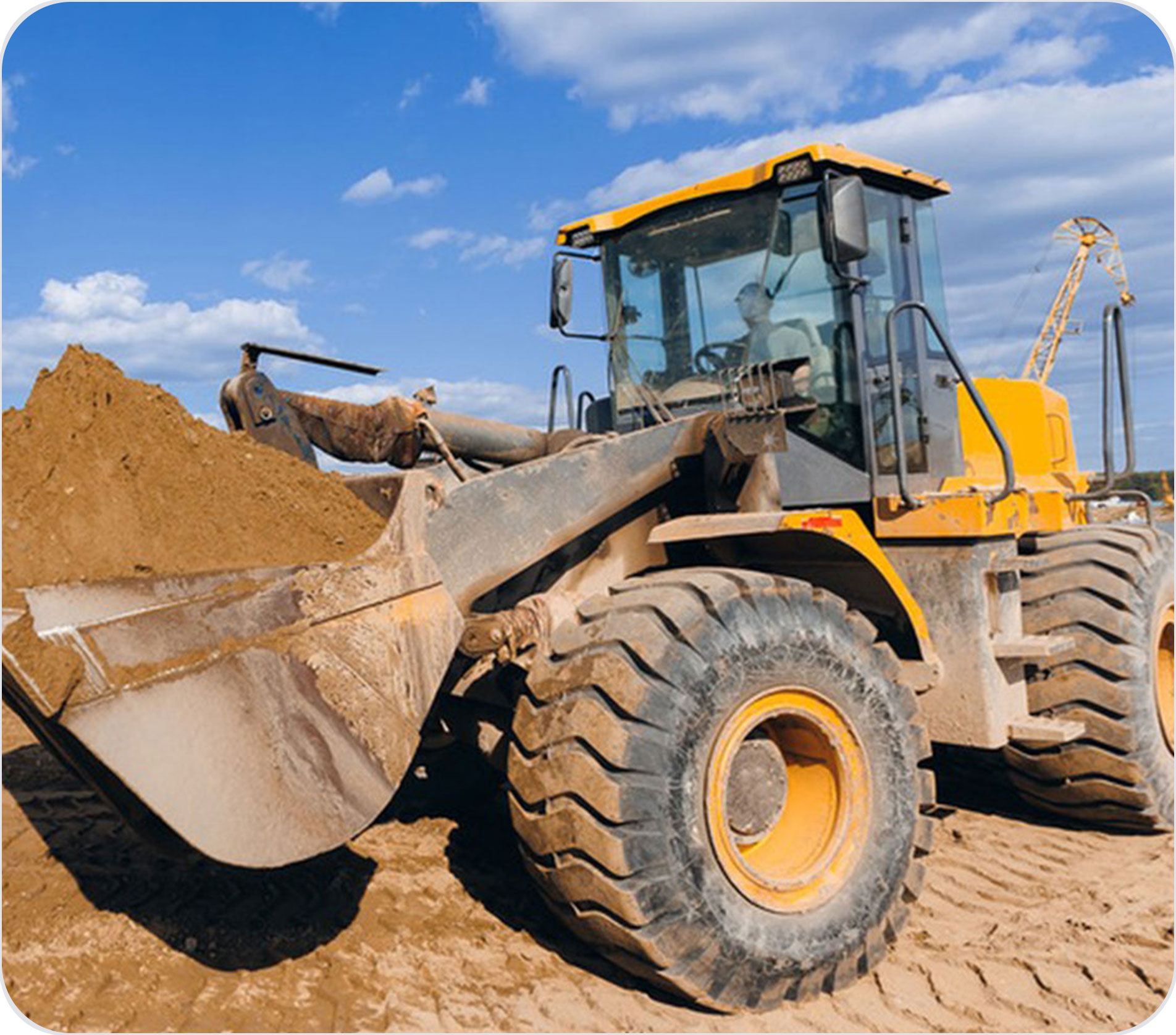

Chemical plant pipelines	metallurgical equipment	Bridge	Engineering machinery

H53-5 Epoxy Red Oxide Primer

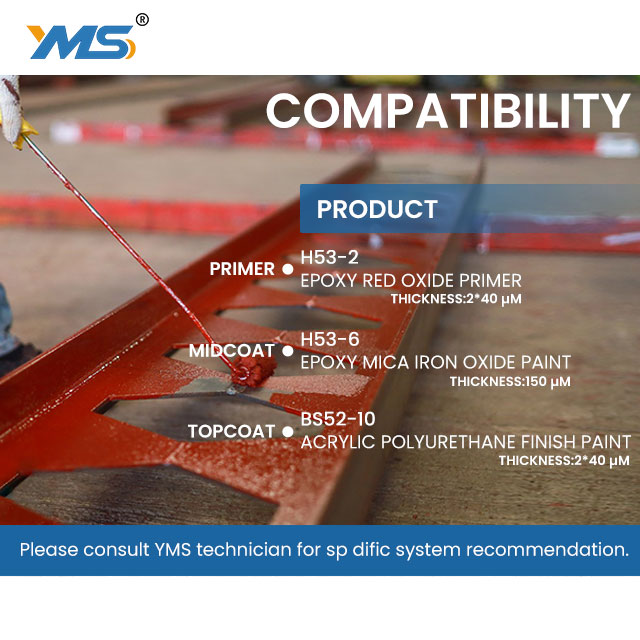

Compatibility

	Product	Thickness
Primer:	H53-2 Epoxy Red Oxide Primer	2*40 µm
Midcoat:	H53-6 Epoxy Mica Iron Oxide Paint	150 µm
Topcoat:	BS52-10 Acrylic Polyurethane Finish Paint	2*40 µm

H53-5 Epoxy Red Oxide Primer

Finished Projects

H53-5 Epoxy Red Oxide Primer

Production Process

H53-5 Epoxy Red Oxide Primer

Instructions For Use

Substrate Treatment：

All surface shall be clean, dry and free from any contaminations.

       Steel with oxide scale

It should achieve the level of Sa2.5 by sand or shot blasting.

       Steel without oxide scale

It should achieve the level of St3 by mechanical derusting.

Instructions for Use:

Mixing

Mix part A and part B as 25:3 by weight. Slowly add part B into part A and ensure mixed completely.

Thinner

X-7 Epoxy paint thinner ≤ 10 % w./w.

Cleaner

X-7 Epoxy paint thinner

Application methods:

Airless  spray  (recommended):  Nozzle  tip:  0.031-0.041  inch,  pump:  45:1,

pressure: 3600 psi minimum.

Brush: Nylon / Polyester natural bristle.

Roller: 3/8’’ – 1/2’’ woven with solvent resistant core.
