Polyurethane Iron Oxide Red Primer

This product is a two-component coating. The two-component S53-81A paint is composed of hydroxyl-containing epoxy resin, anti-rust pigments and fillers, organic solvents, and PAPI polyisocyanate curing agent. The two-component S53-81B paint is composed of hydroxyl resin, anti-rust pigments and fillers, organic solvents, and TDI isocyanate curing agent. It has the following protective characteristics:

Excellent adhesion	Outstanding water resistance	Oil resistance
Rust resistance	It can be used at temperatures below 0℃

Polyurethane Iron Oxide Red Primer Video

Polyurethane Iron Oxide Red Primer Basic Technical Datasheet

Color	Iron-red
Gloss	Flat, Glossy
Density	~1.43Kg/L(after mixing)
Hardness	Polyurethane curing agent
Solid Volume	(55±2 )%
Standard Film thickness	80um dry film thickness  (about 145um wet film thickness)
Theoretical spreading rate	3.85m²/Kg (100um dry film thickness)
Flash Point	27℃

Polyurethane Iron Oxide Red Primer Product Packaging Packaging: part A：25kg in a 20-liter iron bucket. part B：3kg in a 3.7-liter iron bucket. Shelf Life: Part A：12 months，Part B：6 months If exceeding shelf life, the products shall be tested before using.

Polyurethane Iron Oxide Red Primer Applicable Environment

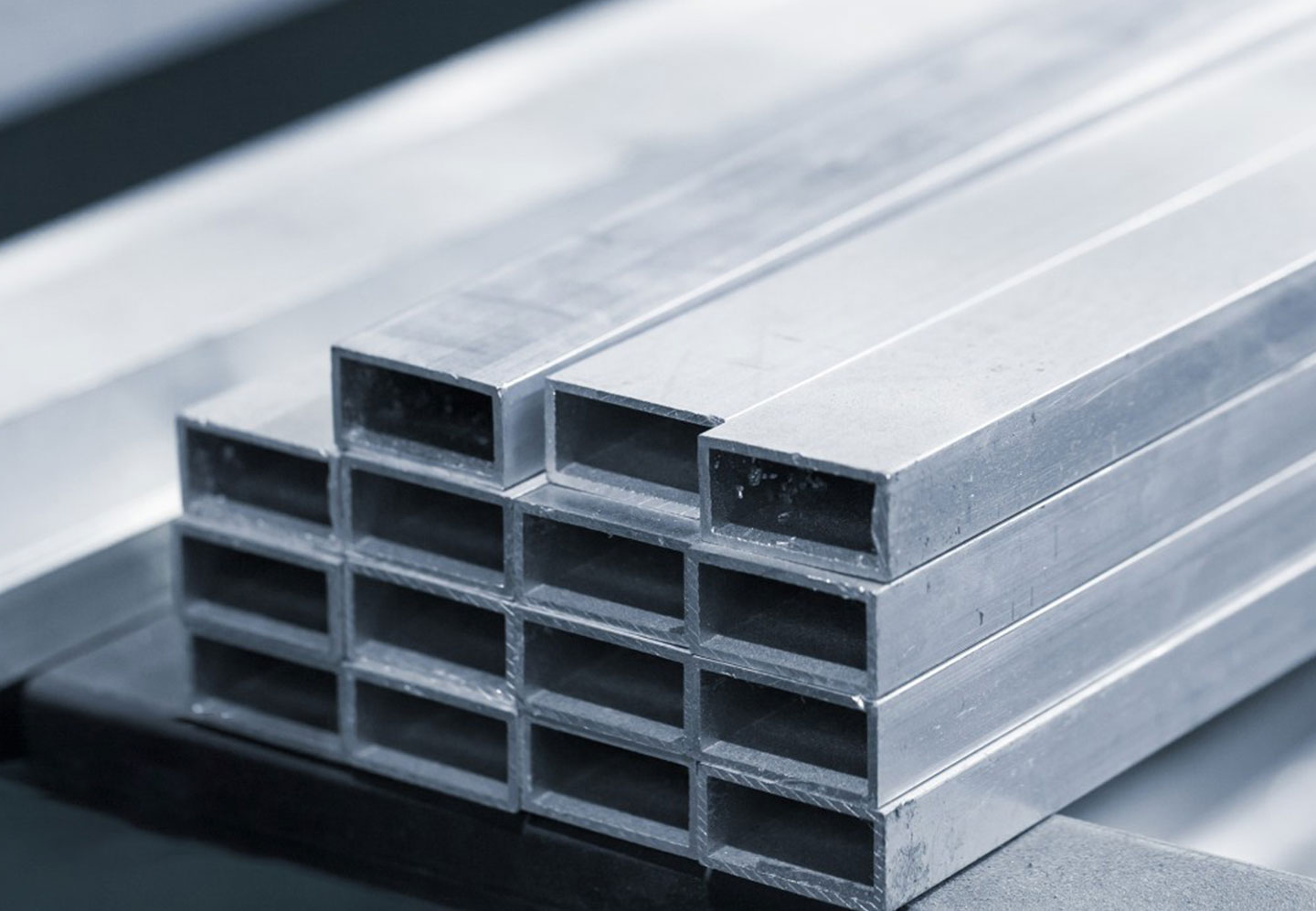

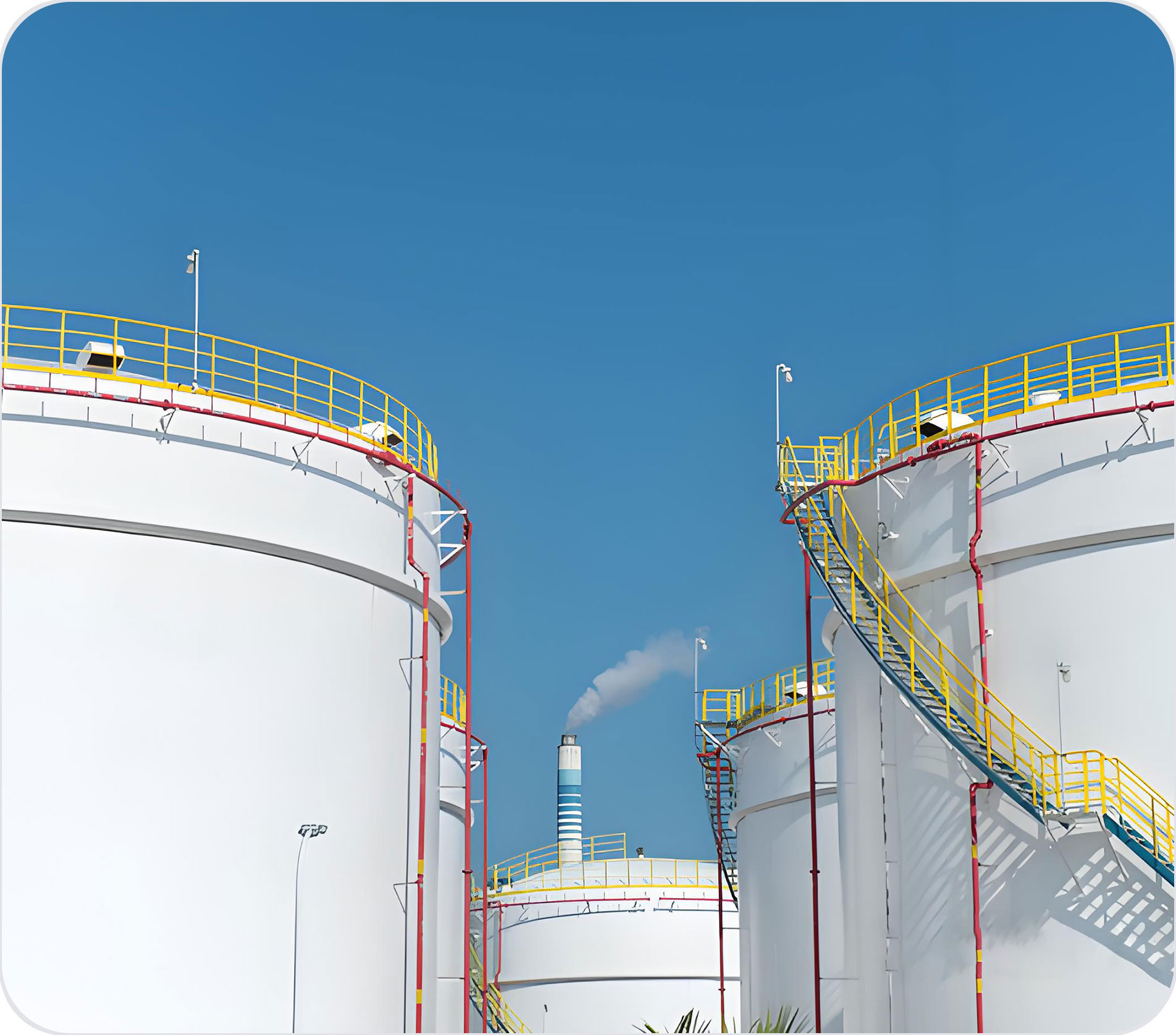

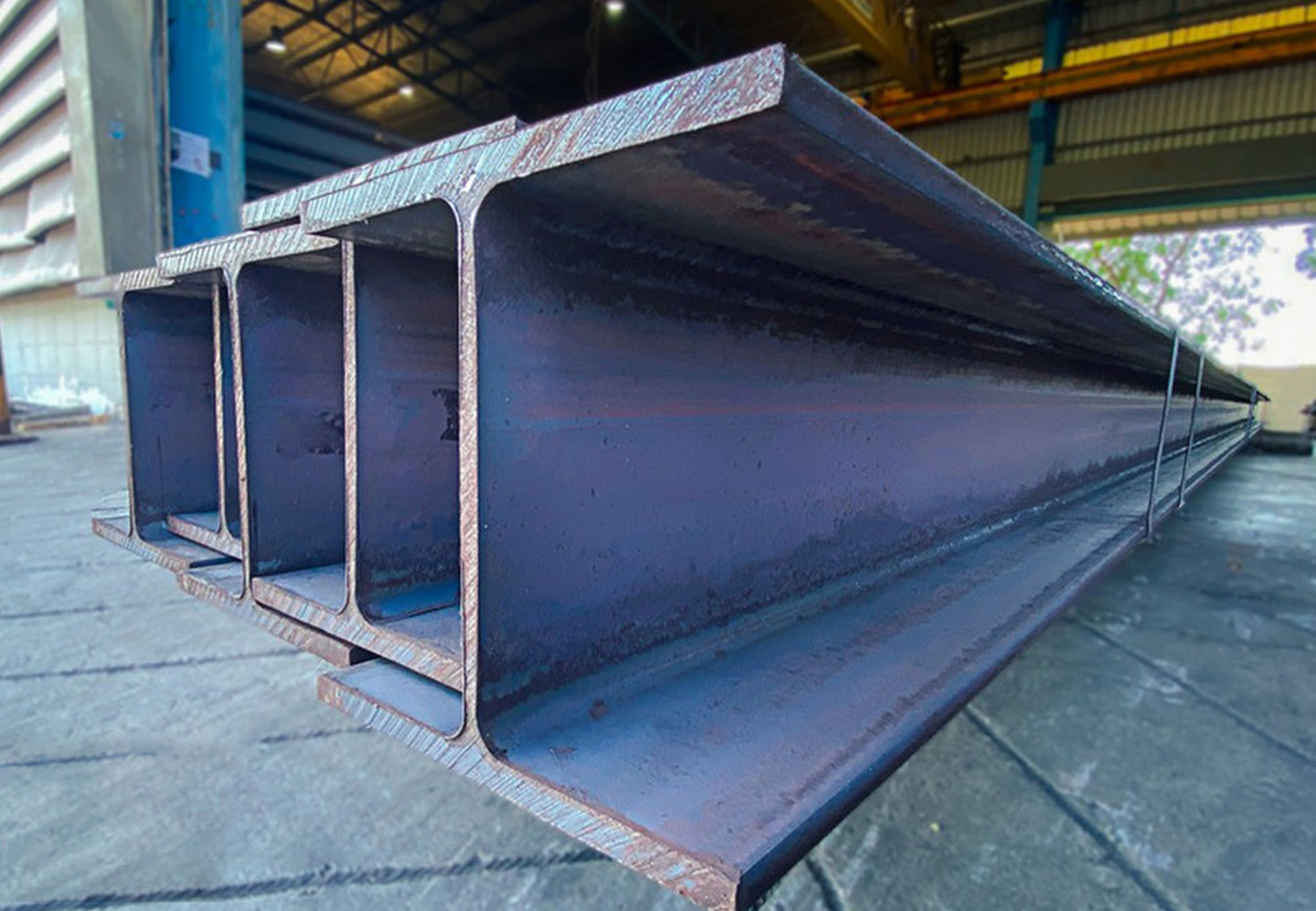

Metal products	Oil compartment	Oil tank	Aluminum alloy

Polyurethane Iron Oxide Red Primer Compatibility

	Product	Thickness
Primer:	Polyurethane Iron-red Primer	2*40 µm (dry film thickness)
Midcoat:	Polyurethane Mica Iron Oxide Intermediate Pain	2*60 µm (dry film thickness)
Topcoat:	Polyurethane Topcoat	2*40um (dry film thickness)

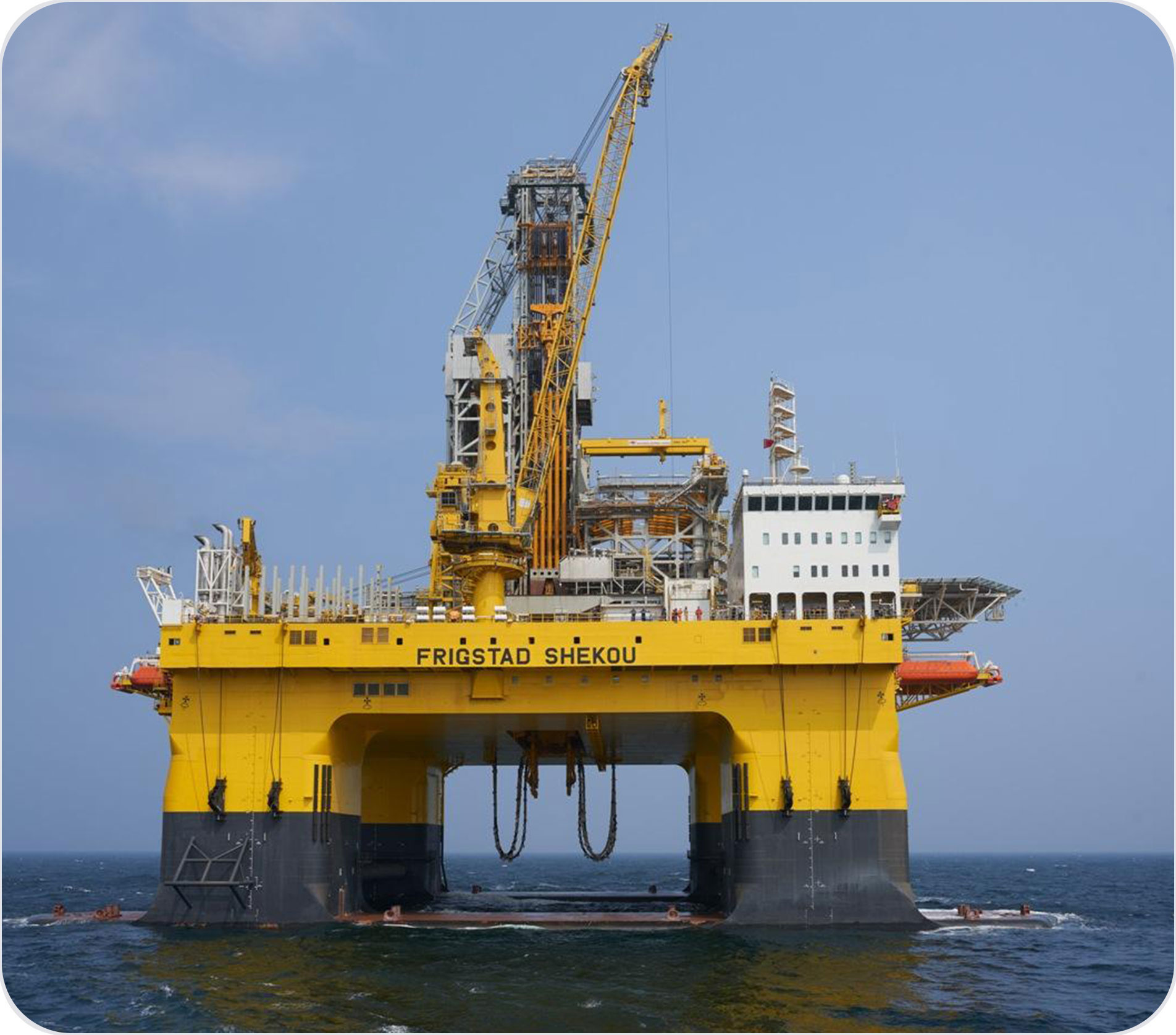

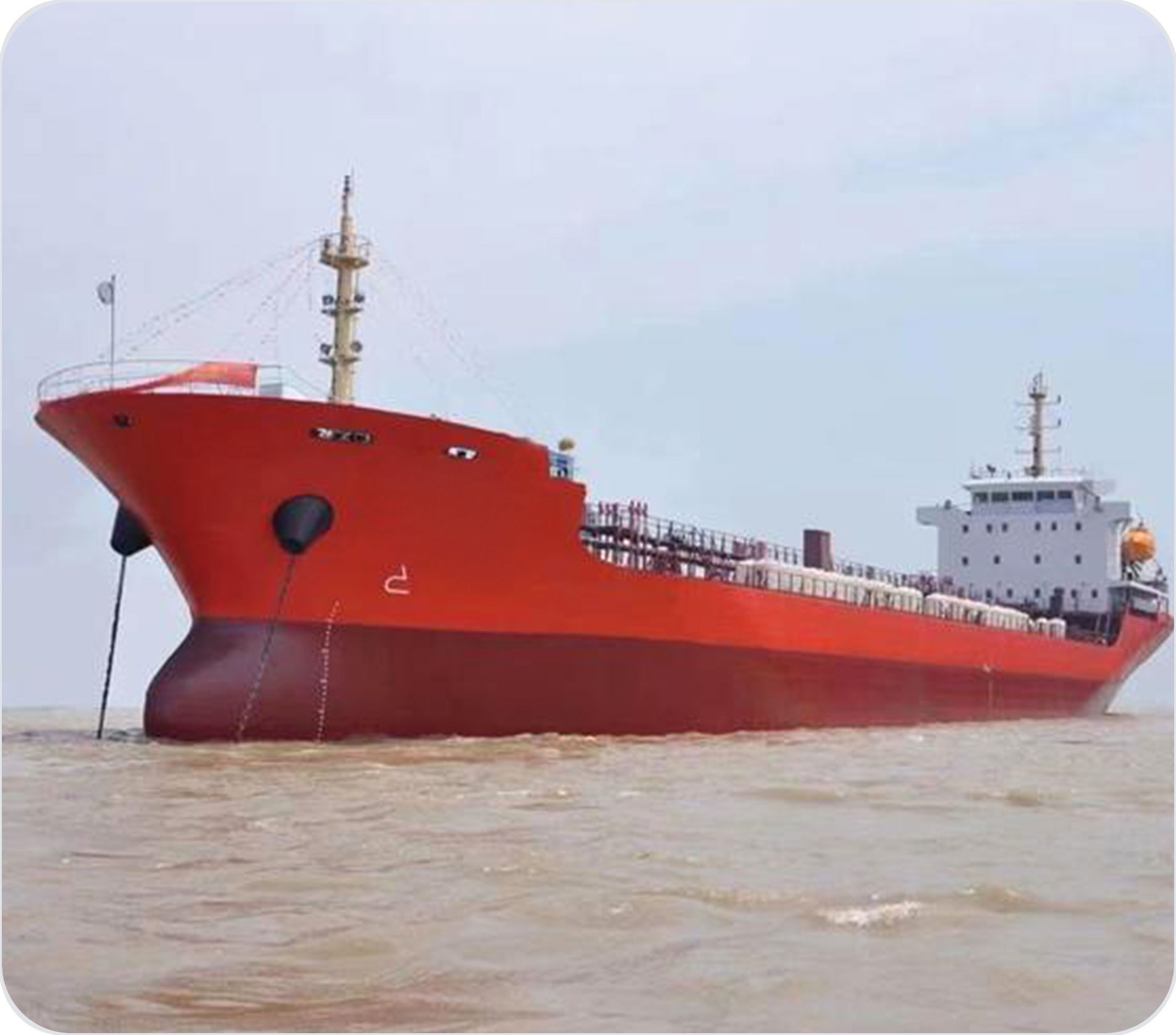

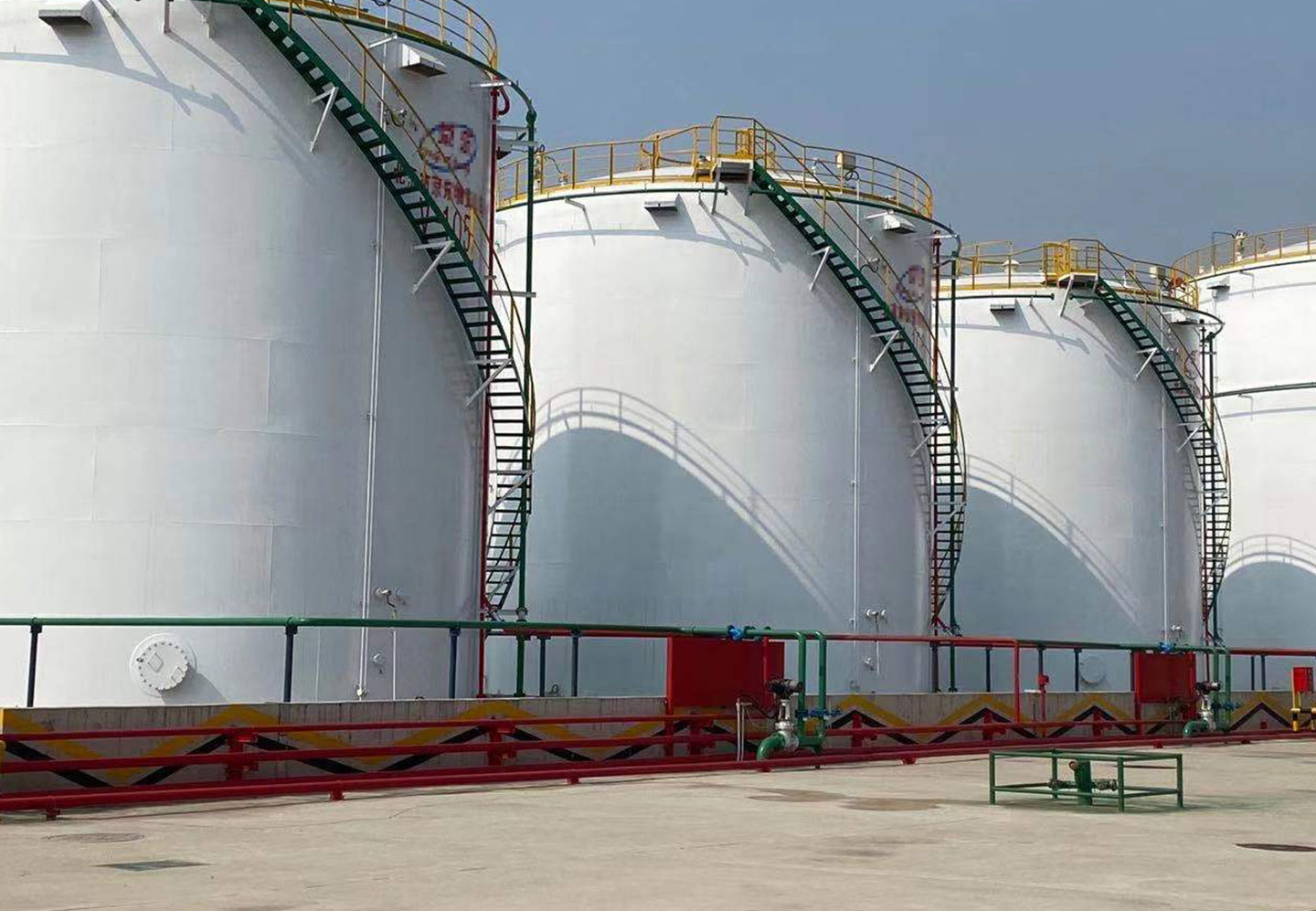

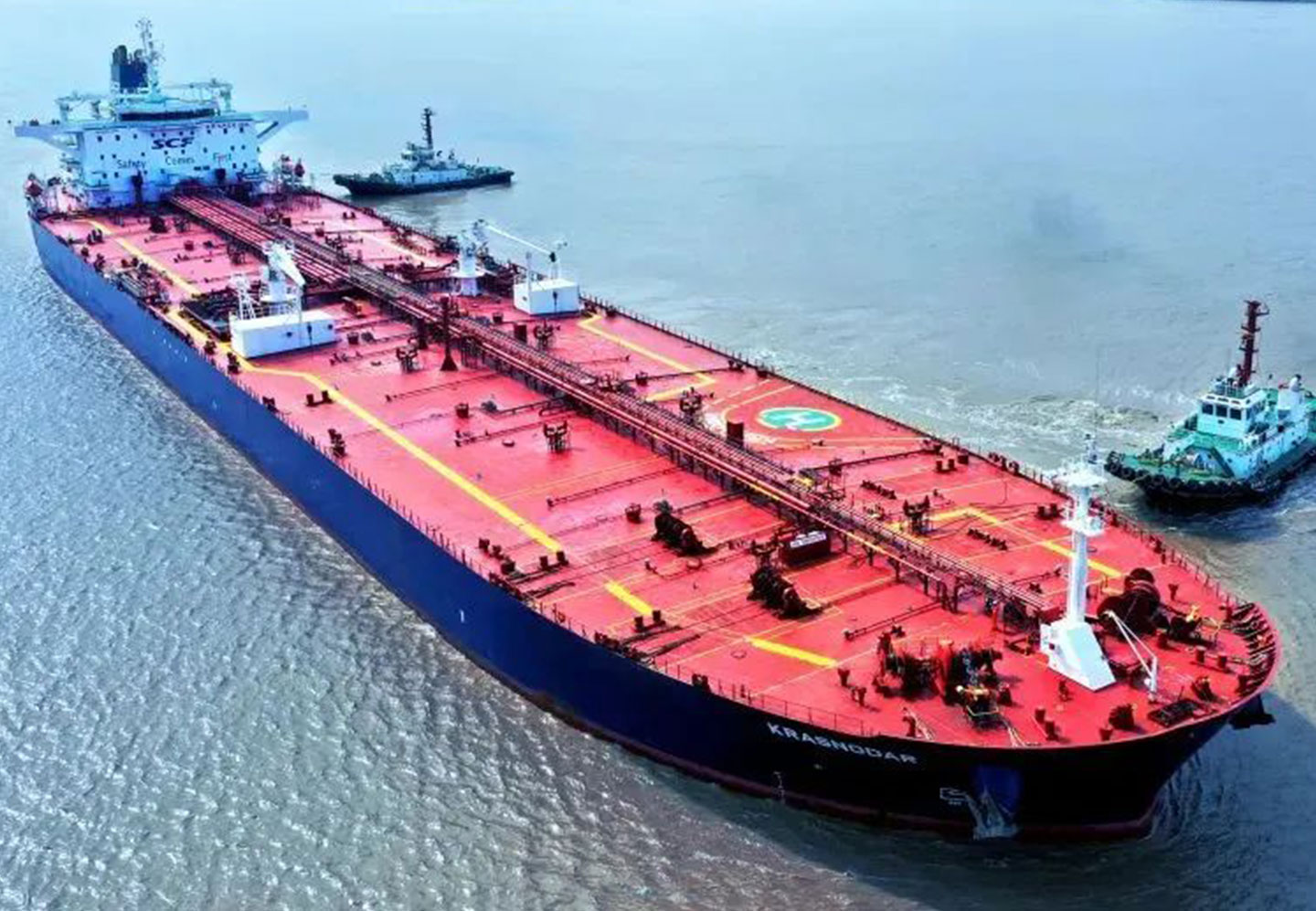

Polyurethane Iron Oxide Red Primer Finished Projects



Polyurethane Iron Oxide Red Primer Production Process

Polyurethane Iron Oxide Red Primer

Instructions For Use

Substrate Treatment：

The surface to be coated shall be clean, dry and free from contaminations. Also, the surface shall be evaluated and treated according to ISO8504 standard.

Bare steel: sandblasting to reach Sa2.5(IOS8501-1:2007). For the non-soaking site, acceptable for power tool grinding, at least reach St2(IOS8501-1:2007).

Instructions for Use:

• Mixing:

Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you get to mix well.

• Mixing ratio:

Part A: Part B = 25:3 (by weight)

• Thinner:

Polyurethane thinner

• Airless spray:

Nozzle tip: 0.018~0.025 inches

Spray pressure: 18~25Mpa

Thinner ratio: 5~15% (by weight of paint)

• Brush、Roller:

Recommended Must achieve required thickness
