Reflective Heat Resistant Paint

This product is composed of polymer synthetic resin, special resin, heat-insulating and rust-proof filler, organic solvents, etc. It has the following characteristics:

Thermal insulation property

Reflection of sunlight

Anti-corrosion and decorative property

Reflective Heat Resistant Paint Video

Reflective Heat Resistant Paint Basic Technical Datasheet

Color	White, aluminum silver
Gloss	Glossy
Density	~0.8Kg/L(after mixing)
Hardness	Polyurethane curing agent
Solid Volume	(66±2 )%
Standard Film thickness	100um dry film thickness  (about 152um wet film thickness)
Theoretical spreading rate	8.25m²/Kg (100um dry film thickness)
Full cure	(23±2oC) 24h
Flash Point	27℃

Reflective Heat Resistant Paint Product Packaging Packaging: part A：20kg in a 20-liter iron bucket. part B：4kg in a 5-liter iron bucket. Shelf Life: Part A：12 months，Part B：12 months If exceeding shelf life, the products shall be tested before using.

Reflective Heat Resistant Paint Applicable Environment

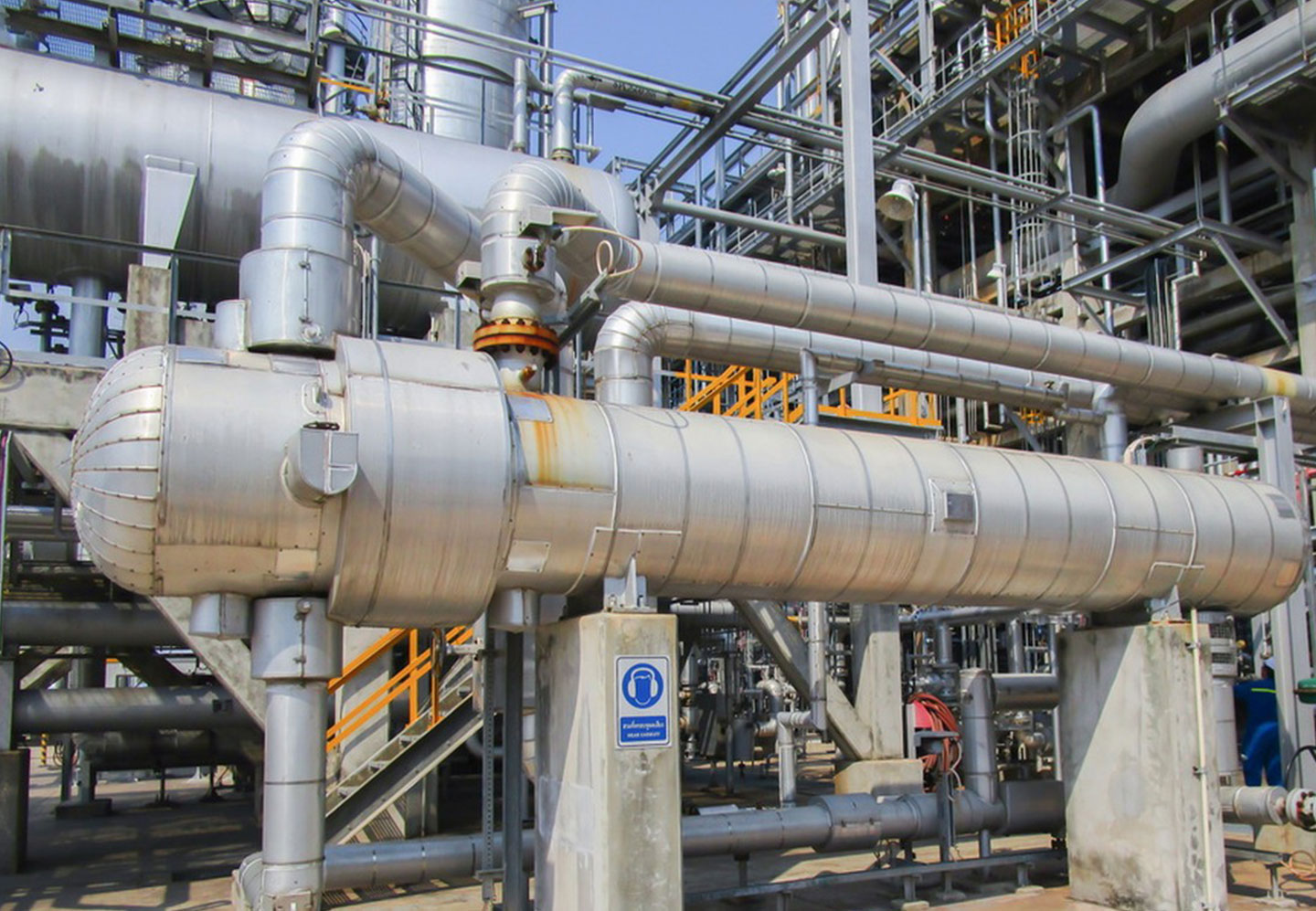

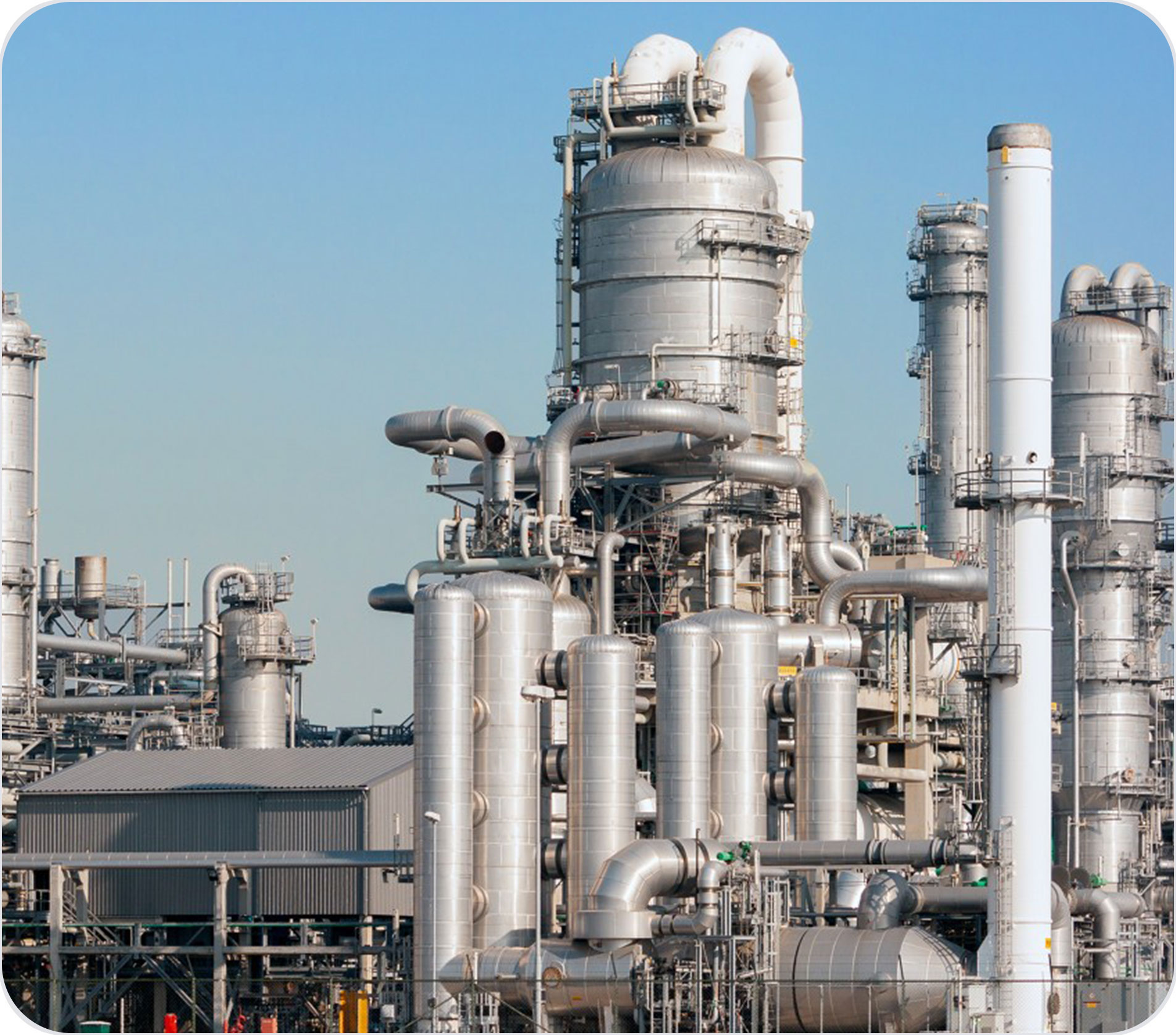

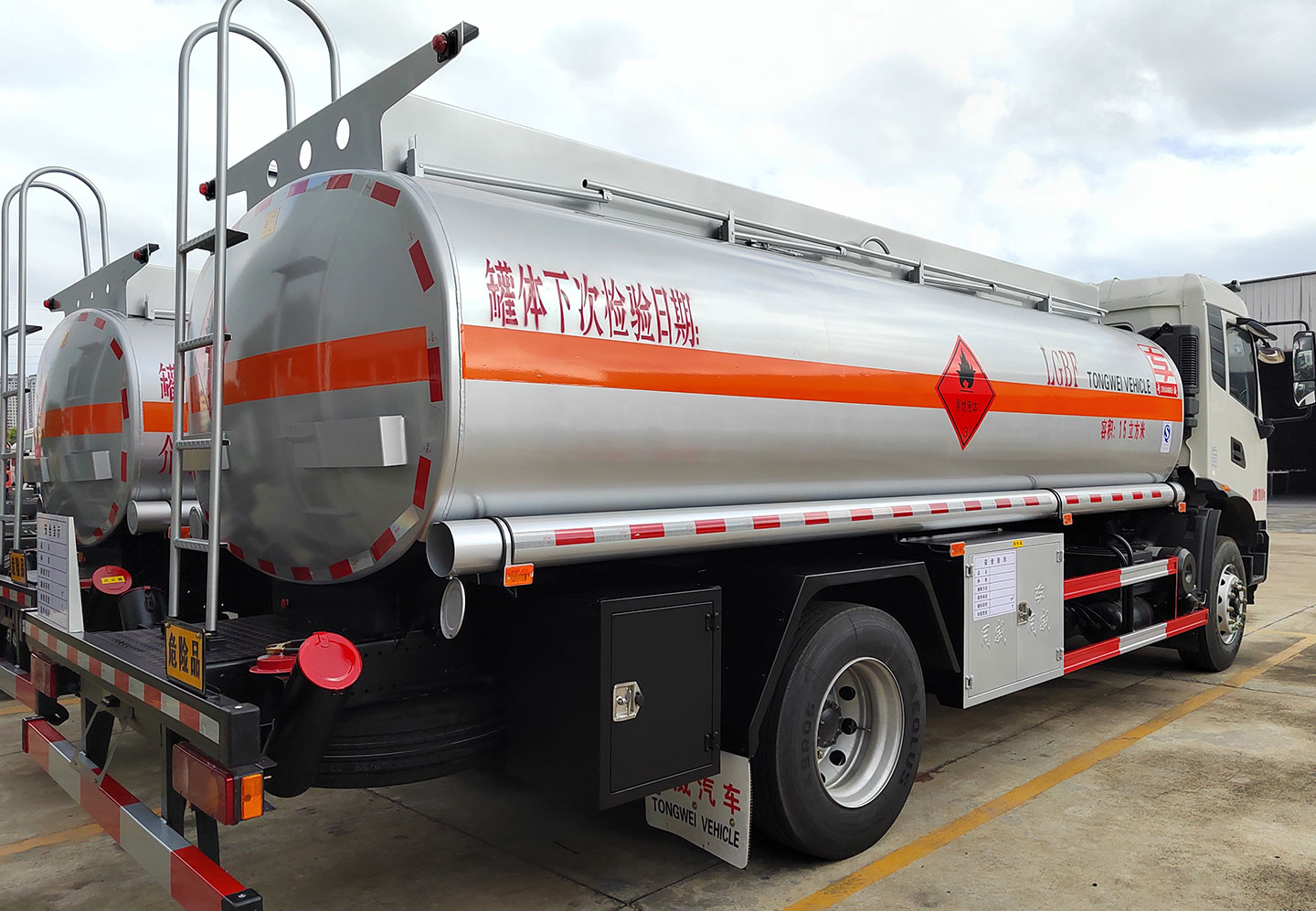

Metal products	Oil compartment	Oil tank	Aluminum alloy

Reflective Heat Resistant Paint Compatibility

	Product	Thickness
Primer:	Epoxy Zinc Rich Primer	2*40 µm (dry film thickness)
Topcoat:	Reflective Heat Resistant Paint	2*50um (dry film thickness)

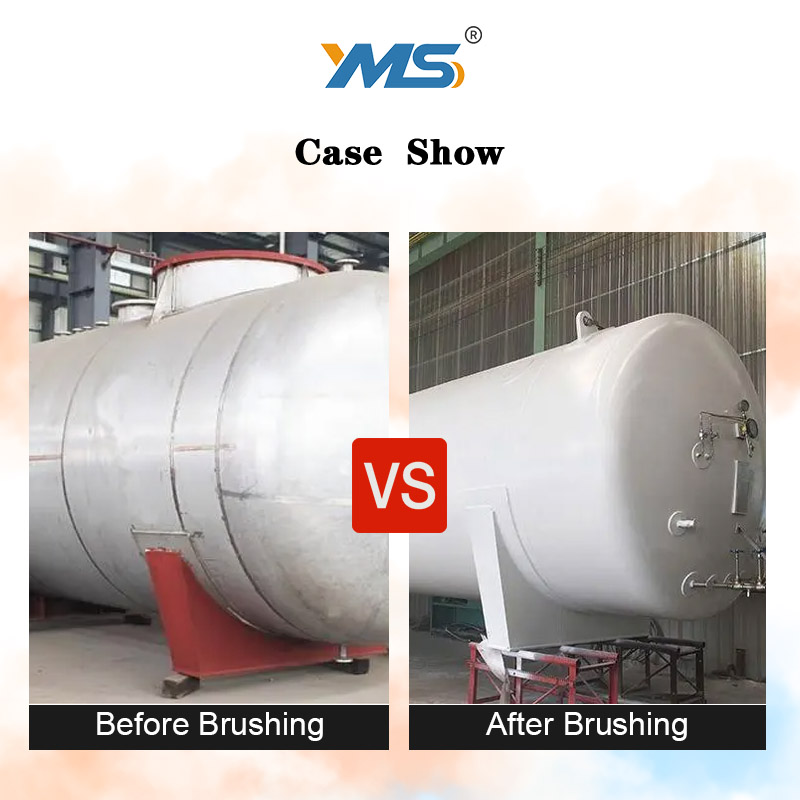

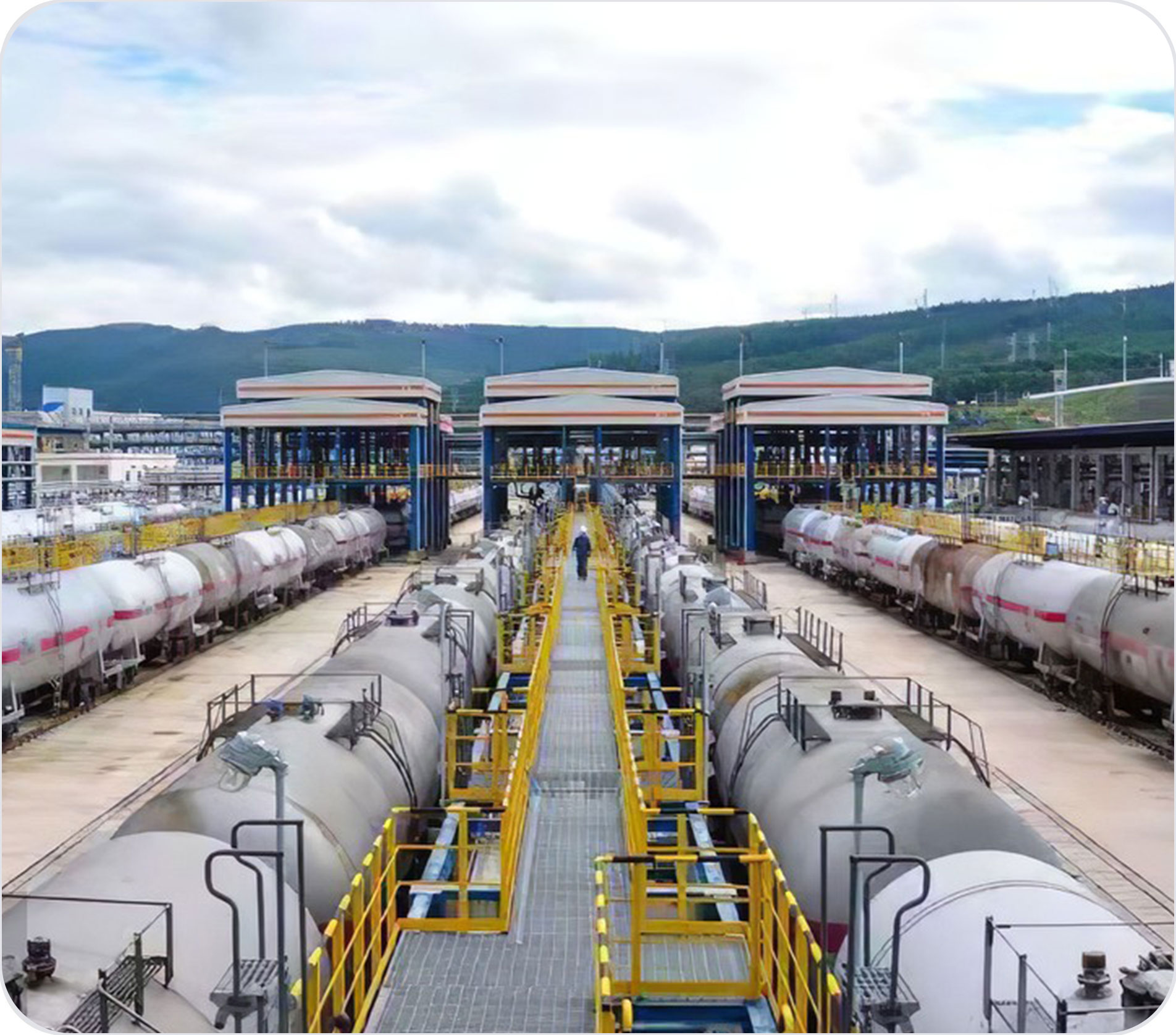

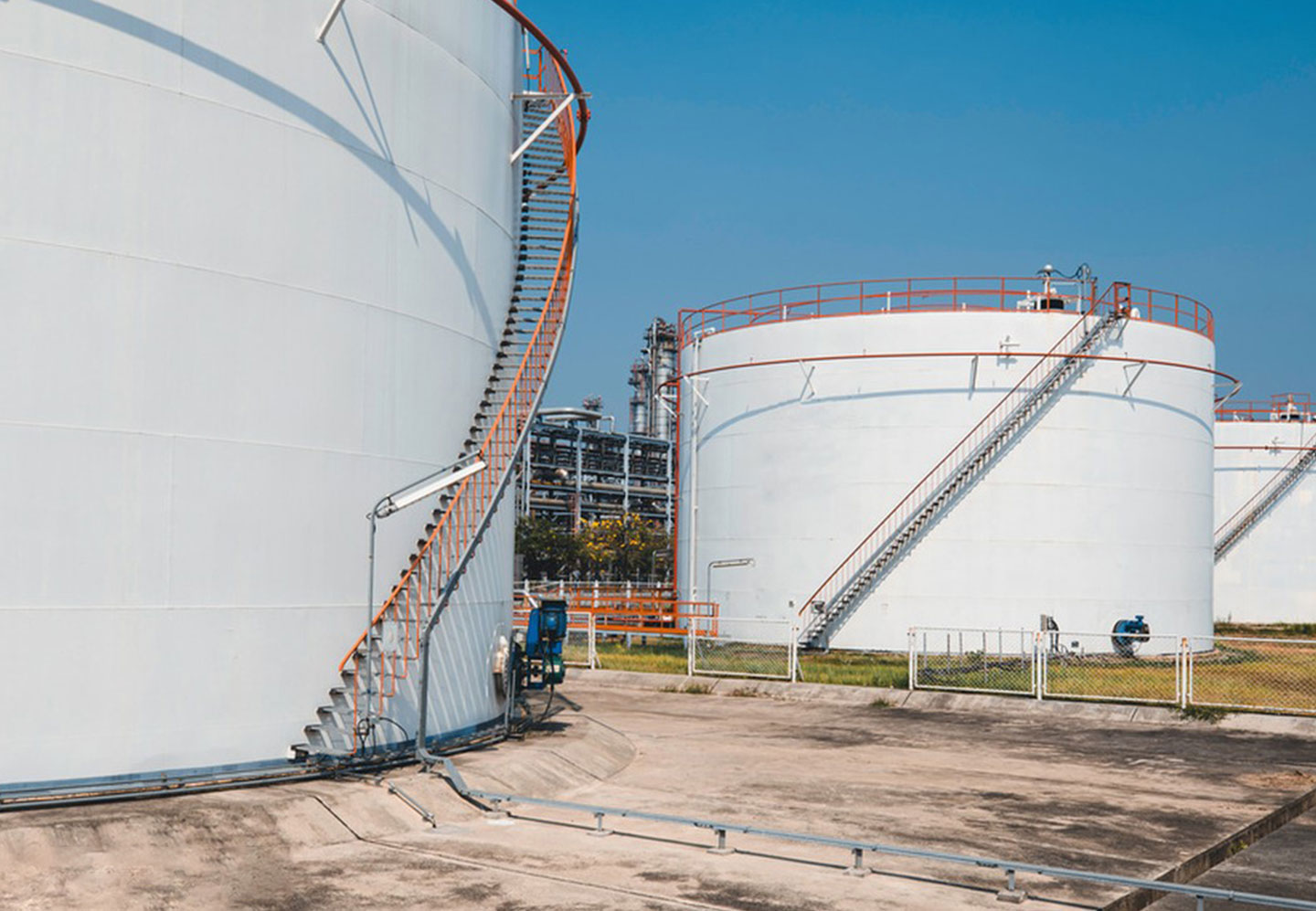

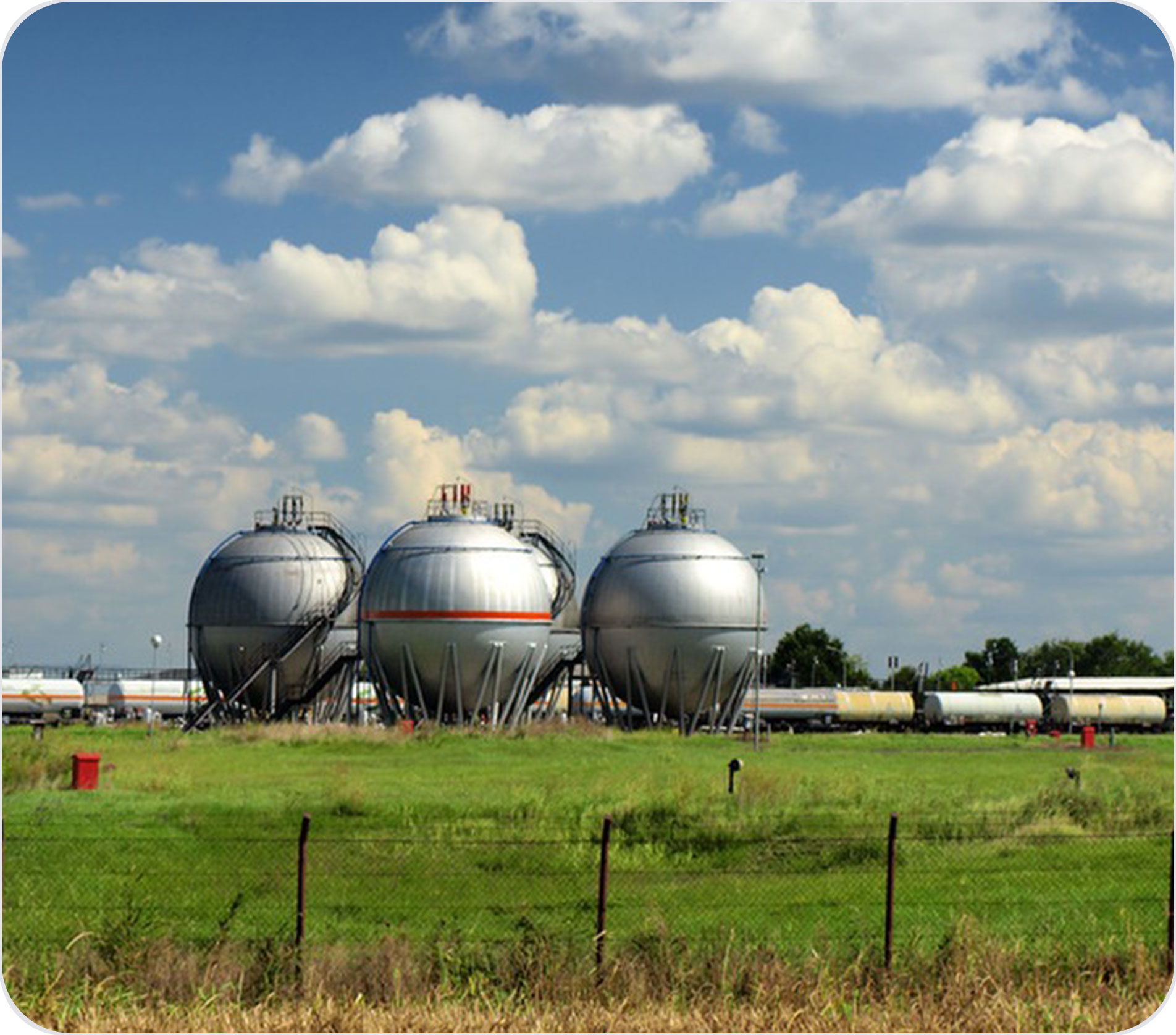

Reflective Heat Resistant Paint Finished Projects



Reflective Heat Resistant Paint Production Process

Reflective Heat Resistant Paint

Instructions For Use

Substrate Treatment：

All surfaces to be coated shall be clean and dry. The surface shall be evaluated and treated according to ISO8504 standard.

Steel: Sanding to Sa2.5 (ISO8501-1:2007). It is acceptable to polish by power tools to meet at least St2.0 (ISO8501-1:2007).

Steel coated with workshop primer: make sure workshop primer surface is clean, dry and undamaged.

Coated surface: applied on clean, dry and undamaged primer only.

Instructions for Use:

• Mixing:

Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you get to mix well.

• Mixing ratio:

Part A: Part B= 20:4 (by weight)

• Thinner:

Exclusive thinner

• Airless spray:

Nozzle tip: 0.018~0.025 inches

Spray pressure: 18~25Mpa

Thinner ratio: 5~15% (by weight of paint)

• Brush、Roller:

Recommended Must achieve required thickness
