ED-31
Gray
Flat
~1.45Kg/L
(40±2 )%
Level 1
Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you get to mix well.
Part A: Part B = 20:5
3.45m²/Kg (80um dry film thickness)
Availability: | |
---|---|
Waterborne Epoxy Mica Iron Oxide Intermediate Paint
It is a two-component waterborne product composed of water-soluble modified epoxy resin with high-performance, imported waterborne amine curing agent, anti-rust pigment, micaceous iron oxide, anti-corrosive agent and various additives.It has the following resistance characteristics:
|
|
|
|
|
|
Color | Iron red |
Gloss | Flat |
Density | ~1.3Kg/L |
Solid Volume | (40±2 )% |
Standard Film thickness | 80um dry film thickness (about 200um wet film thickness) |
Theoretical spreading rate | 3.85m²/Kg (80um dry film thickness) |
Adhesion | Level 1 |
![]() | Waterborne Epoxy Mica Iron Oxide Intermediate Paint Product PackagingPackaging: part A:20kg in a 20-liter iron bucket. part B:5kg in a 6-liter iron bucket. Shelf Life: Part A:12 months,Part B:12 months If exceeding shelf life, the products shall be tested before using. |
![]() | ![]() | ![]() | ![]() |

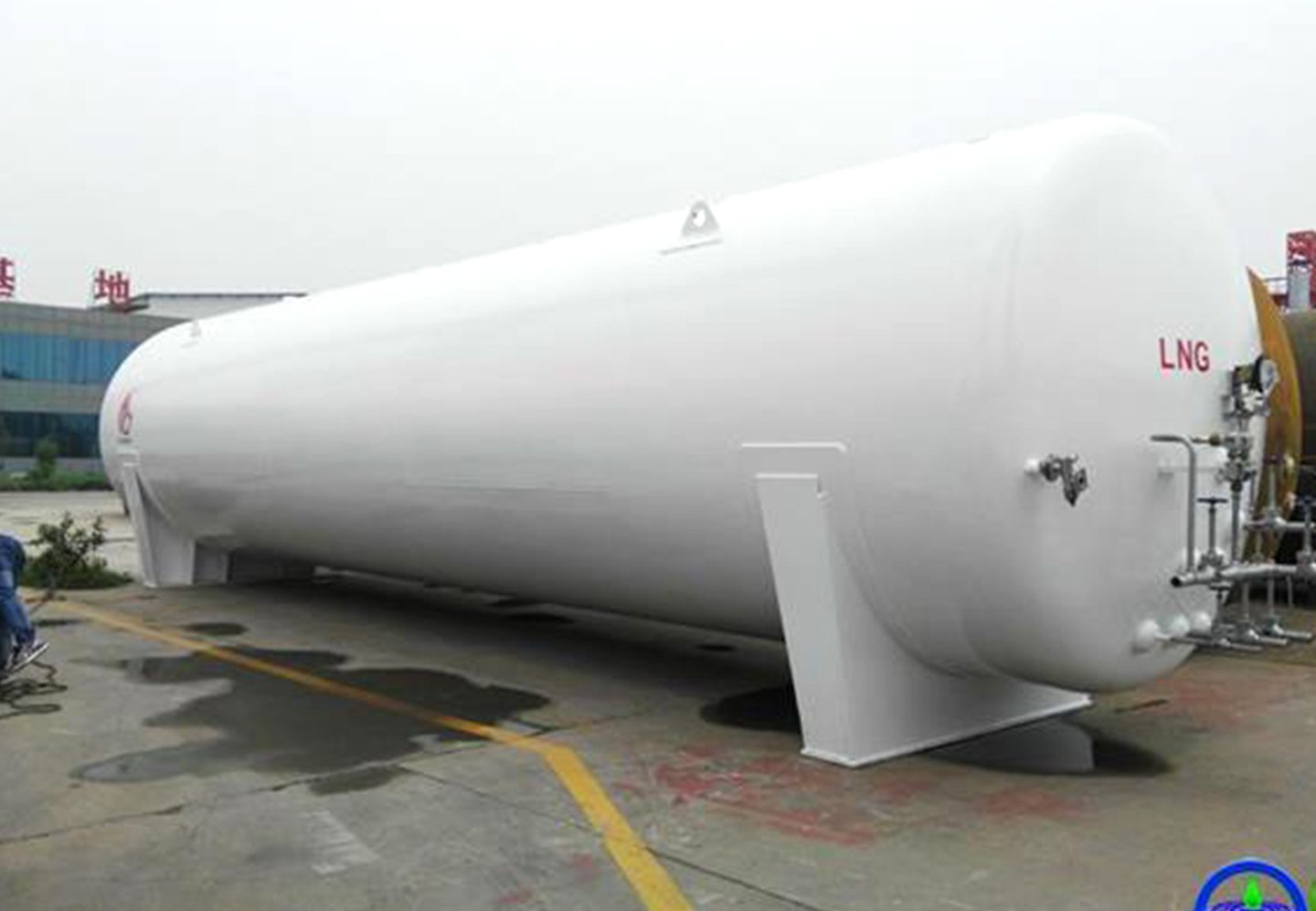

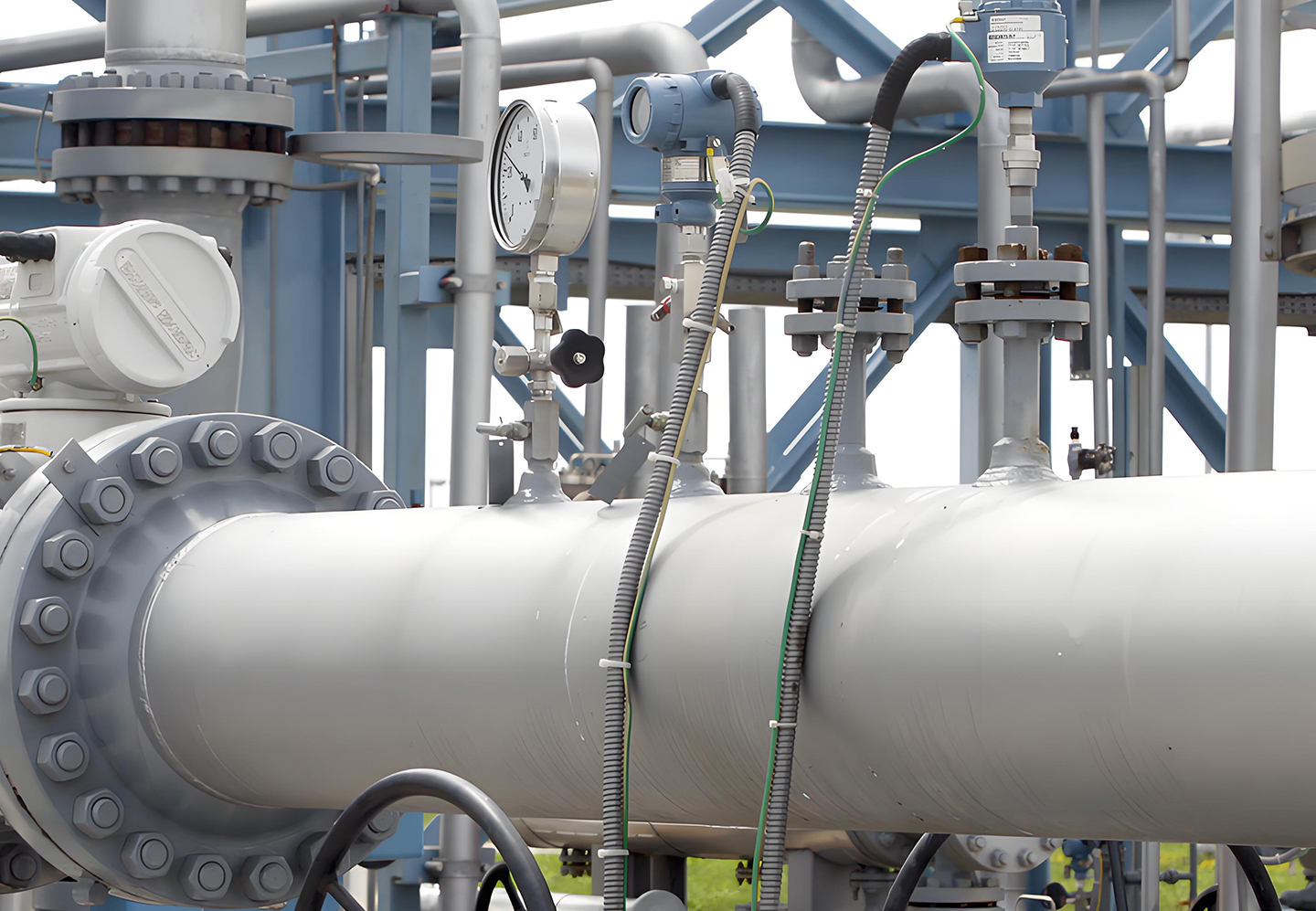

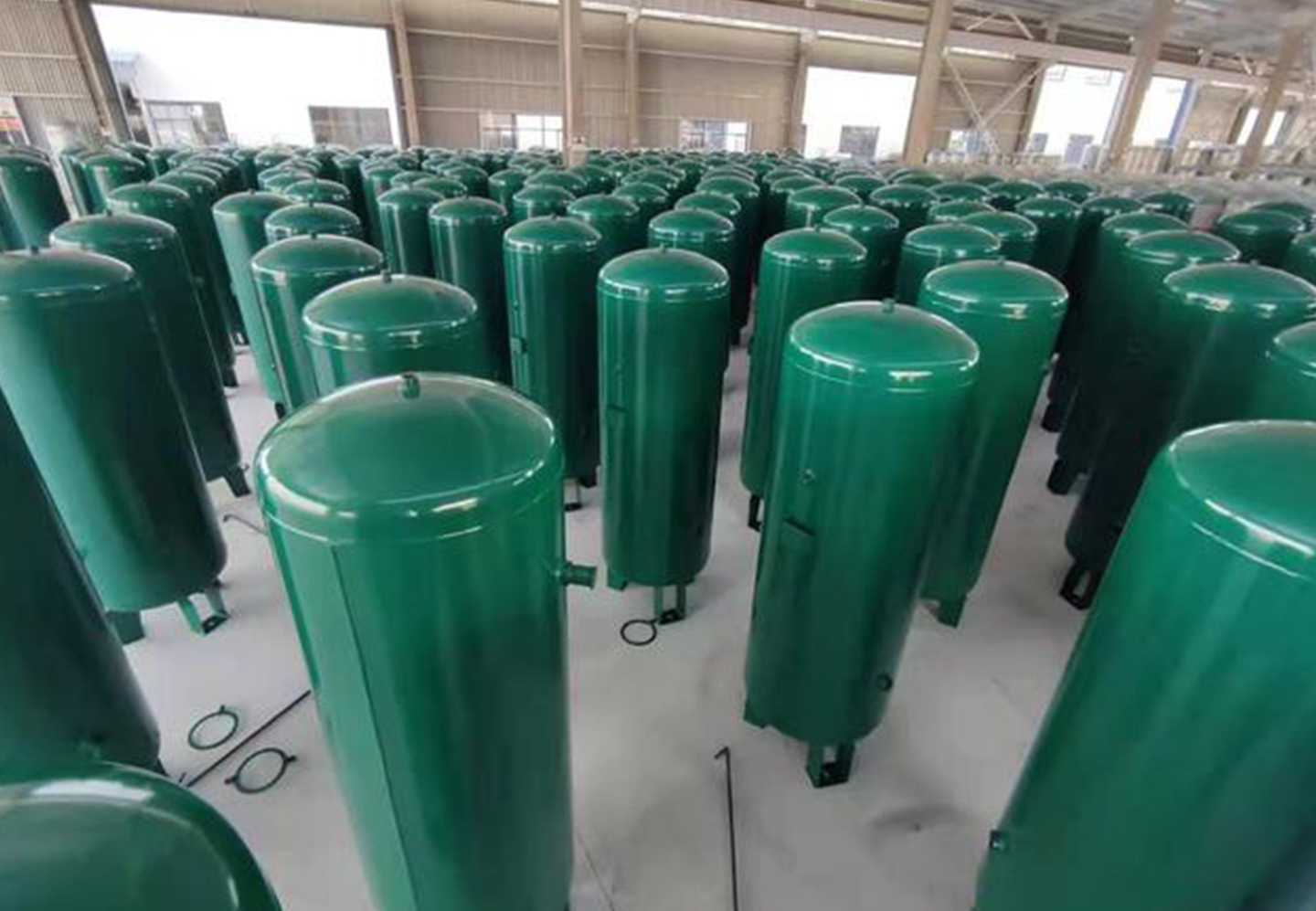

Storage tank | Pipe rack | Chemical pipeline | Container |
![]() | ![]() | ![]() | ![]() |

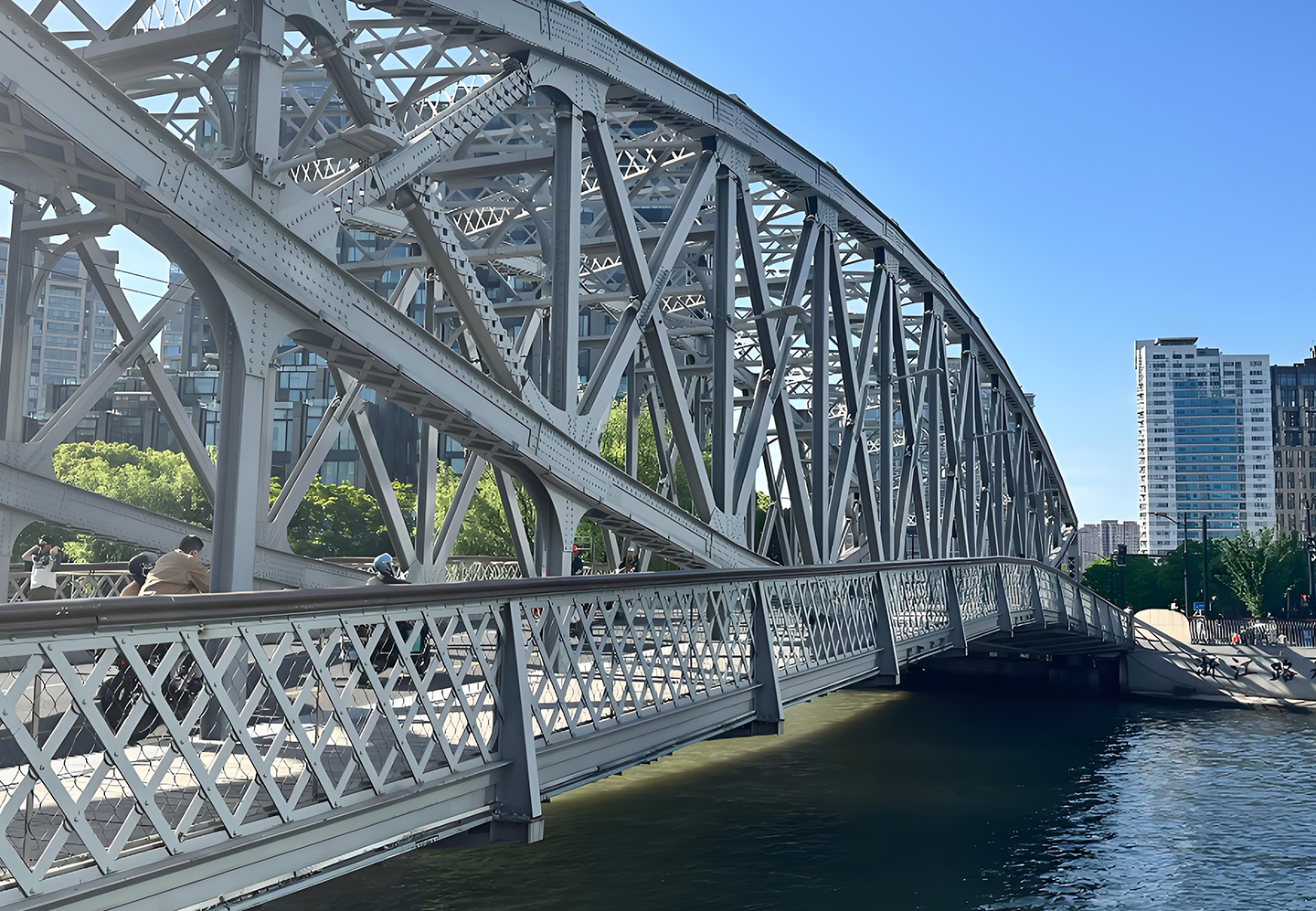

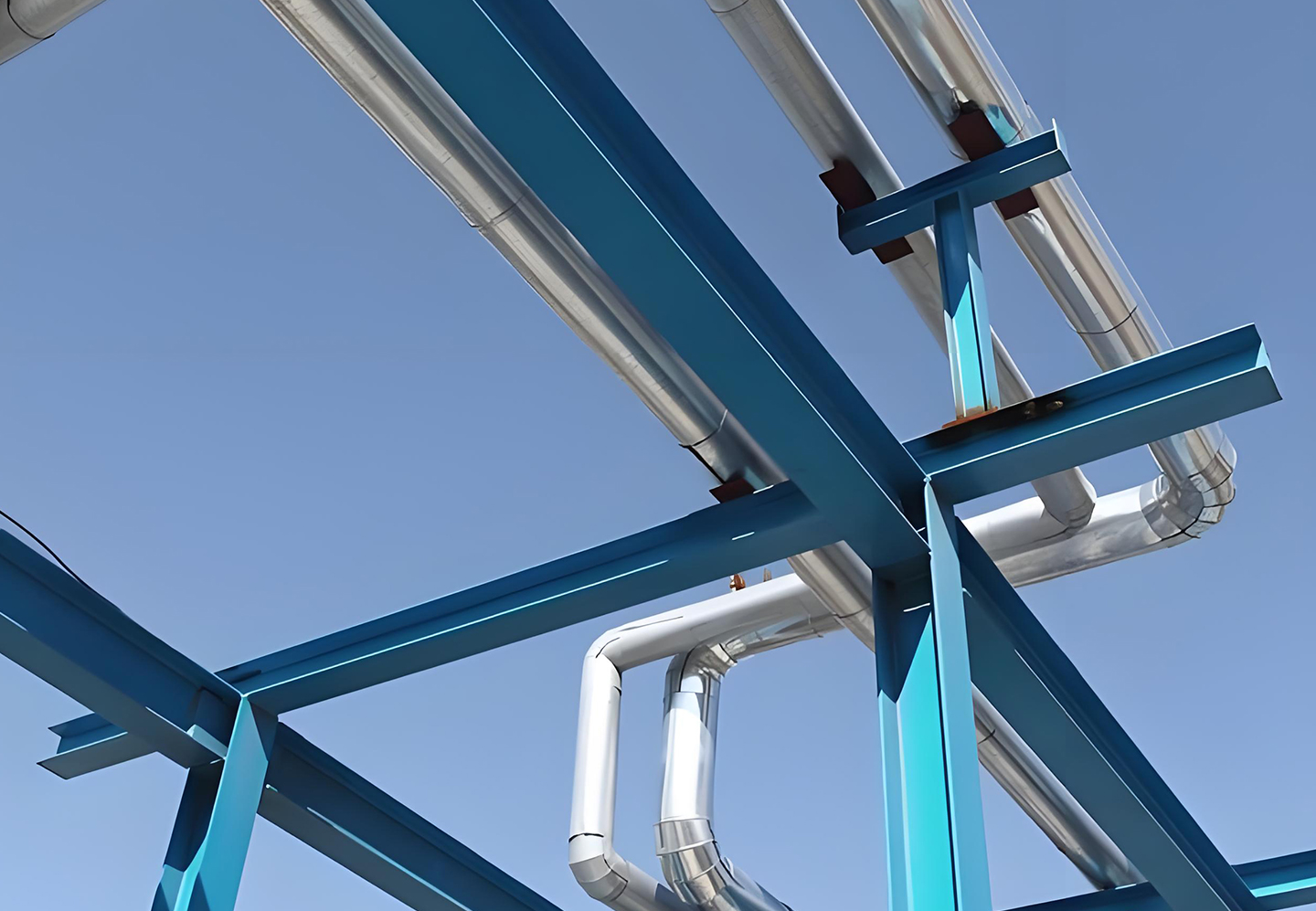

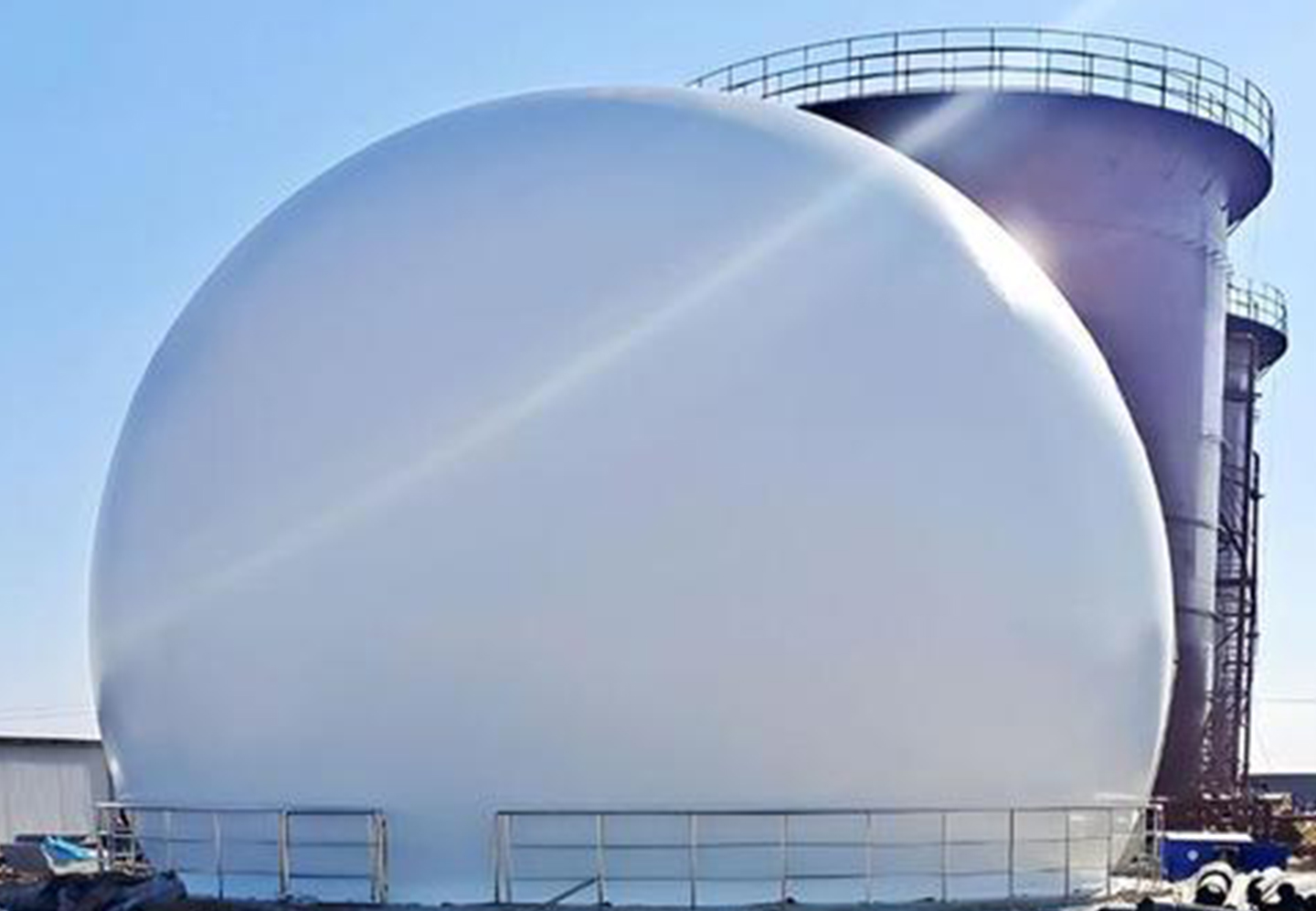

Gas holder | Steel structure | Mechanical equipment | Bridge |
Product | Thickness | |
Primer: | Waterborne Epoxy Iron-red Primer | 2*40 µm (dry film thickness) |
Midcoat: | Waterborne Epoxy Mica Iron Oxide Intermediate Paint | 2*40 µm (dry film thickness) |
Topcoat: | Waterborne Epoxy Anti-corrosive Finish | 2*40um (dry film thickness) |
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
Substrate Treatment:
All surface to be coated shall be clean and dry. The surface shall be evaluated and treated according to ISO8504 standard.
For bare steel, it shall be sandblasted to reach Sa2.5(iso8501-1:2007) standard. Depending on the environment of the non-immersed part, grinding with power tools is acceptable but shall at least reach St2(iso8501-1:2007) standard.
For shop primed steel, the shop primer shall be clean, dry and approved.
For surface painted coatings, this product can apply only to clean, dry and good compatible primer.
Instructions for Use:
Mixing:
Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you get to mix well.
Thinner:
Clean water
Airless spray:
Nozzle tip: 0.017~0.023 inches
Spray pressure: 15~18Mpa
Thinner ratio:0~10% (by weight of paint)
BrushRoller:
Recommended
Must achieve required thickness
![]() | |||
![]() | ![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
