Thick Film Epoxy Floor Paint

This product is a high solid two-component coating composed of modified epoxy resin, tinting filler, auxiliary agent and elastic polyacyl curing agent.It has the following resistance characteristics:

Oil resistance	Corrosion resistance	Dust resistance
Impact resistance	High gloss	Durability

Thick Film Epoxy Floor Paint Video

Thick Film Epoxy Floor Paint Basic Technical Datasheet

Color	Customized
Gloss	Glossy
Density	~1.32Kg/L (after mixing)
Hardness	Epoxy paint curing agent
Solid Volume	(70±2 )%
Standard Film thickness	100um dry film thickness  (about 143um wet film thickness)
Theoretical spreading rate	5.3m²/Kg (100µm dry film thickness)
Full Cure	(23±2℃) 7~15d
Flash Point	31℃

Thick Film Epoxy Floor Paint Product Packaging Packaging: Part A 20kg in a 20-liter iron bucket. Part B 5kg in a 6-liter iron bucket. Shelf Life: 12 months If exceeding shelf life, the products shall be tested before using.

Thick Film Epoxy Floor Paint Applicable Environment

Parts Workshop	Chemical Workshop	Pharmaceutical Workshop	Food Workshop
Underground Garage	Hospital	Warehouse	Laboratory

Thick Film Epoxy Floor Paint Compatibility

	Product	Thickness
Primer:	Epoxy Sealing Primer	1*30 µm (dry film thickness)
Paint：	Epoxy Putty Intermediate Paint	1~2 mm (dry film thickness)
Topcoat:	Thick Film Industrial Floor Paint	100 µm (dry film thickness)

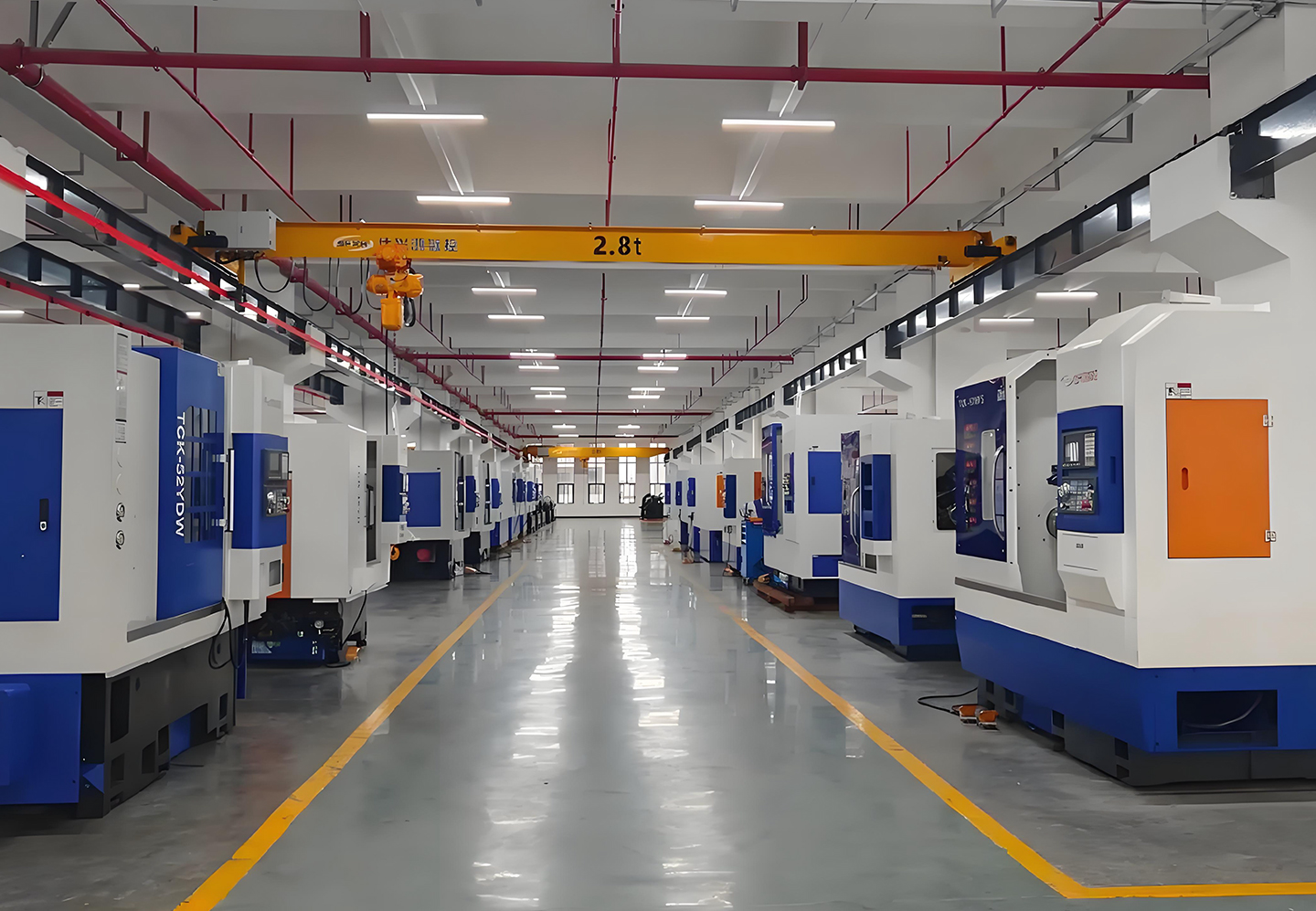

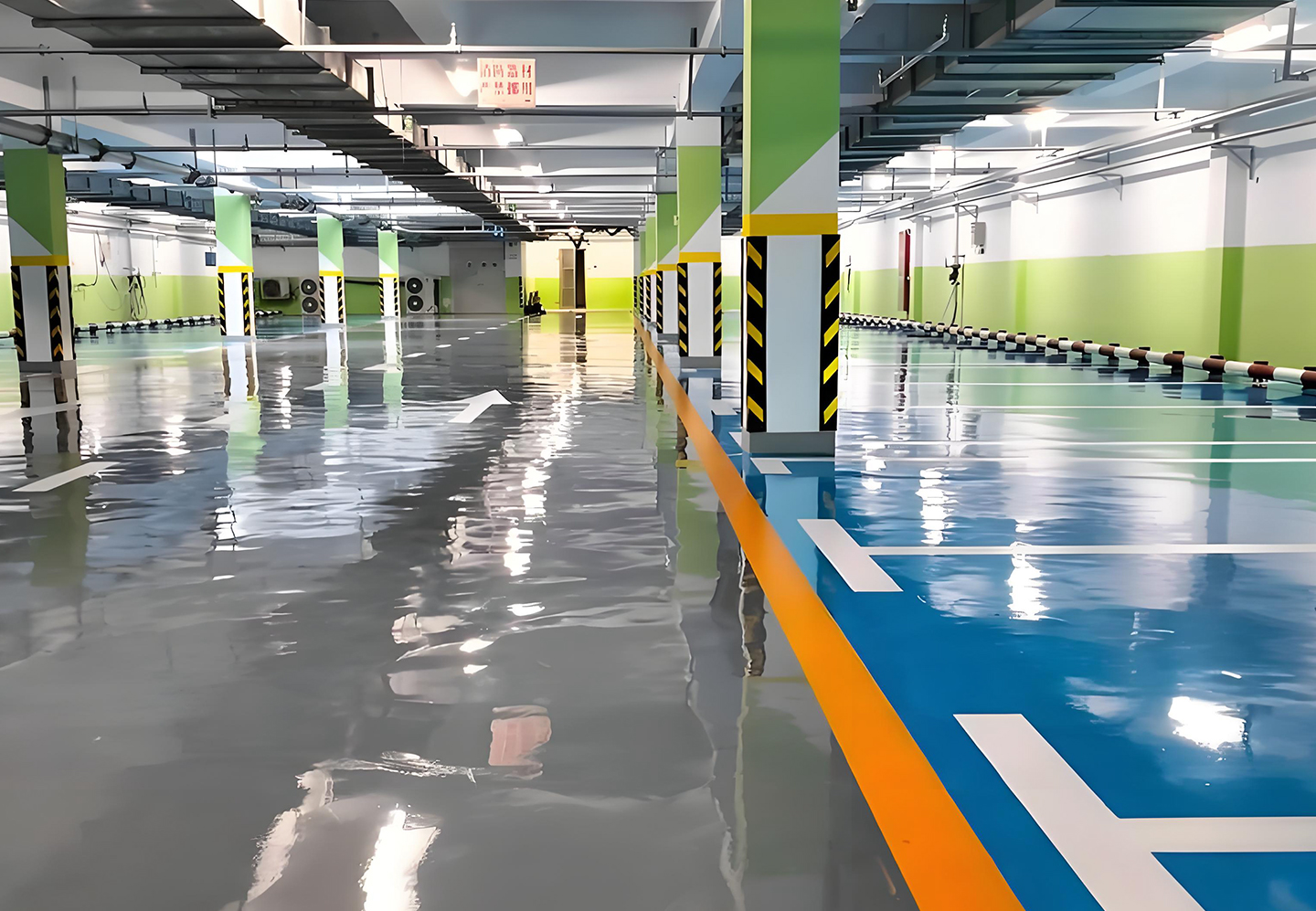

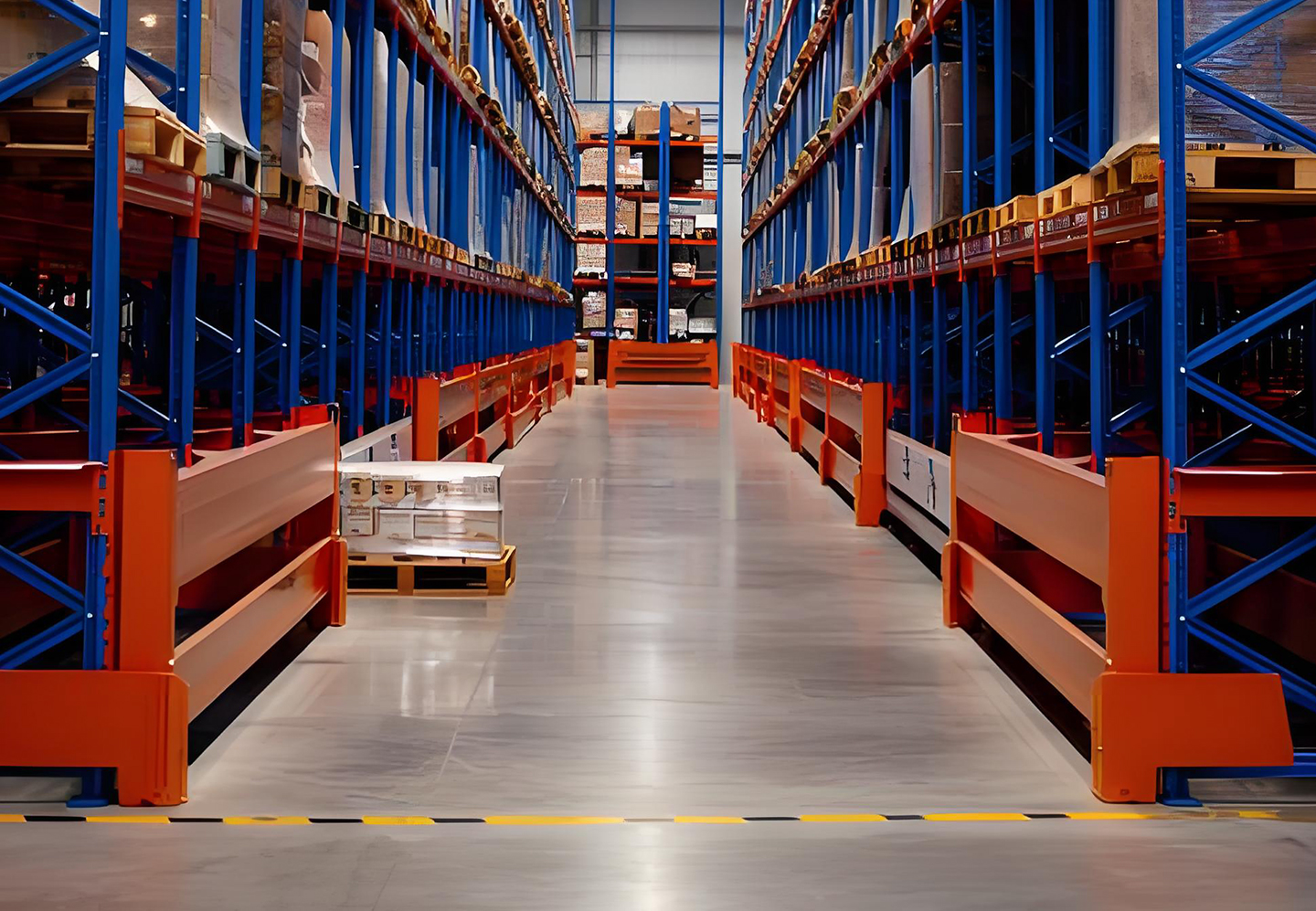

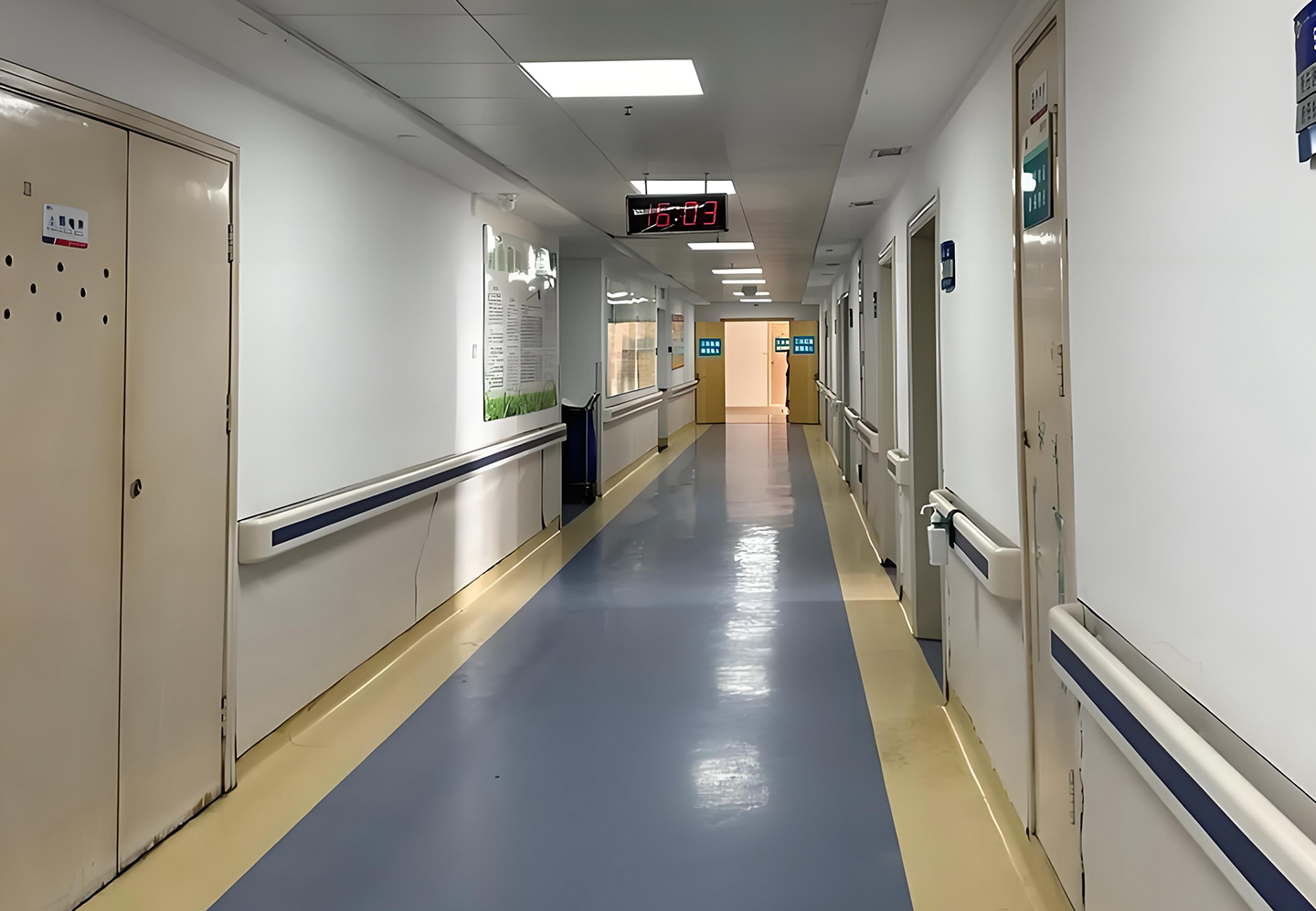

Thick Film Epoxy Floor Paint Finished Projects



Thick Film Epoxy Floor Paint Production Process

Thick Film Epoxy Floor Paint Instructions For Use

Substrate Treatment：

a. Concrete grass-roots floor, first of all, must confirm whether the base surface concrete below whether there is a reliable moisture-proof facilities. New concrete or cement base at least 28 days of maintenance time, and its water content should not exceed 5%, using empirical methods to assess the water content of the base.

b. The grass-roots floor surface should be clean, solid and free of contaminants, such as mortar and paint sputtering, maintenance agents, grease, etc. For too much floating pulp, it is best to use light roughing, grinding. Oily ground, using electric angle grinder grinding.

c. The surface of the ground cracks, empty drums and other defects should be repaired and flat.

d. No matter what method is used to treat the surface, it must eventually be clean, solid and dry on the grass-roots surface. It is particularly important that the grass-roots level must not be in a state of rising moisture.

e. Grassroots clean-up, polished with a polishing machine.

Instructions for Use:

• Mixing:

Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you get to mix well. Generally, if the temperature is below 10 ℃, it needs 20 min induction time; if the temperature is over 10℃, it needs 15 min induction time.

• Mixing Ratio：

Part A: Part B= 20:5 (by weight)

• Thinner

Special thinner

• Airless spray

Nozzle tip: 0.017~0.023 inches

Spray pressure: 15~18Mpa

Thinner ratio: 0~15% (by weight of paint)

• Brush、Roller

Recommended

Must achieve required thickness
