Epoxy Zinc Phosphate Anti-Rust Paint | High-Performance Corrosion Protection

Epoxy Zinc Phosphate Anti-Rust Paint | High-Performance Corrosion Protection

Color:
Gray, Iron red
Gloss:
Flat
Density:
~1.42Kg/L (after mixing)
Flash Point:
25℃
Volume solid:
(50±2 )%
Mixing:
Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you get to mix well. Generally speaking, if the temperature is below 10 ℃, it needs 30 min induction time; if the temperature is over 10℃, it needs 15 min induction time
Mixing Ratio:
Part A: Part B = 25:3 (by weight)
Theoretical spreading rate, kg/m2 :
3.52m²/Kg (100µm dry film thickness)


Availability:



Inquiry

Product Description

Epoxy Zinc Phosphate Anti-rust Paint

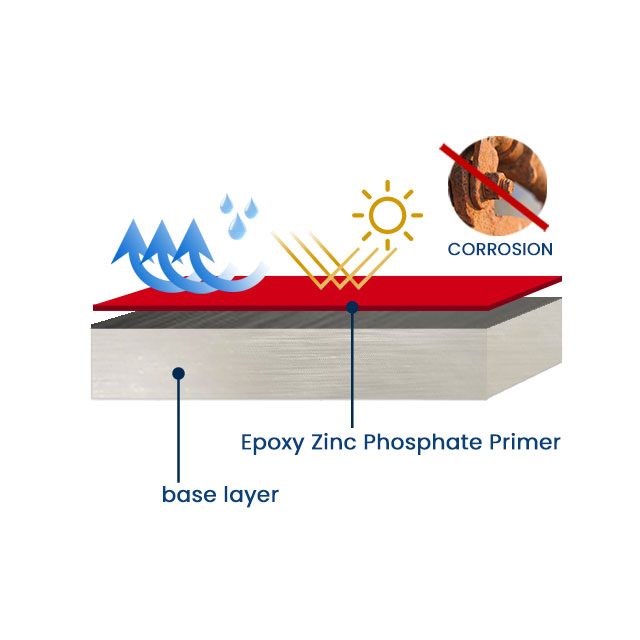

This product is a two-component epoxy paint composed of epoxy resin and polyamide curing agent. Meanwhile, the paint contains zinc phosphate corrosion inhibitor pigment.It has the following resistance characteristics:

Excellent corrosion resistance

Impact resistance

Wear resistance

Epoxy Zinc Phosphate Anti-rust Paint Video

Epoxy Zinc Phosphate Anti-rust Paint

Basic Technical Datasheet

Color

Gray, Iron red

Gloss

Flat

Density

~1.42Kg/L (after mixing)

Hardness

Epoxy zinc phosphate curing agent

Solid Volume

(50±2 )%

Standard Film thickness

100µm dry film thickness (about 200µm wet film thickness)

Theoretical spreading rate

3.52m²/Kg (100µm dry film thickness)

Full Cure

(23±2℃) 7d

Flash Point

25℃

Epoxy Zinc Phosphate Anti-rust Paint Product Packaging

Packaging:

part A:25kg in a 20-liter iron bucket.

part B:3kg in a 4-liter iron bucket.

Shelf Life:

12 months If exceeding shelf life, the products shall be tested before using.

Epoxy Zinc Phosphate Anti-rust Paint Applicable Environment

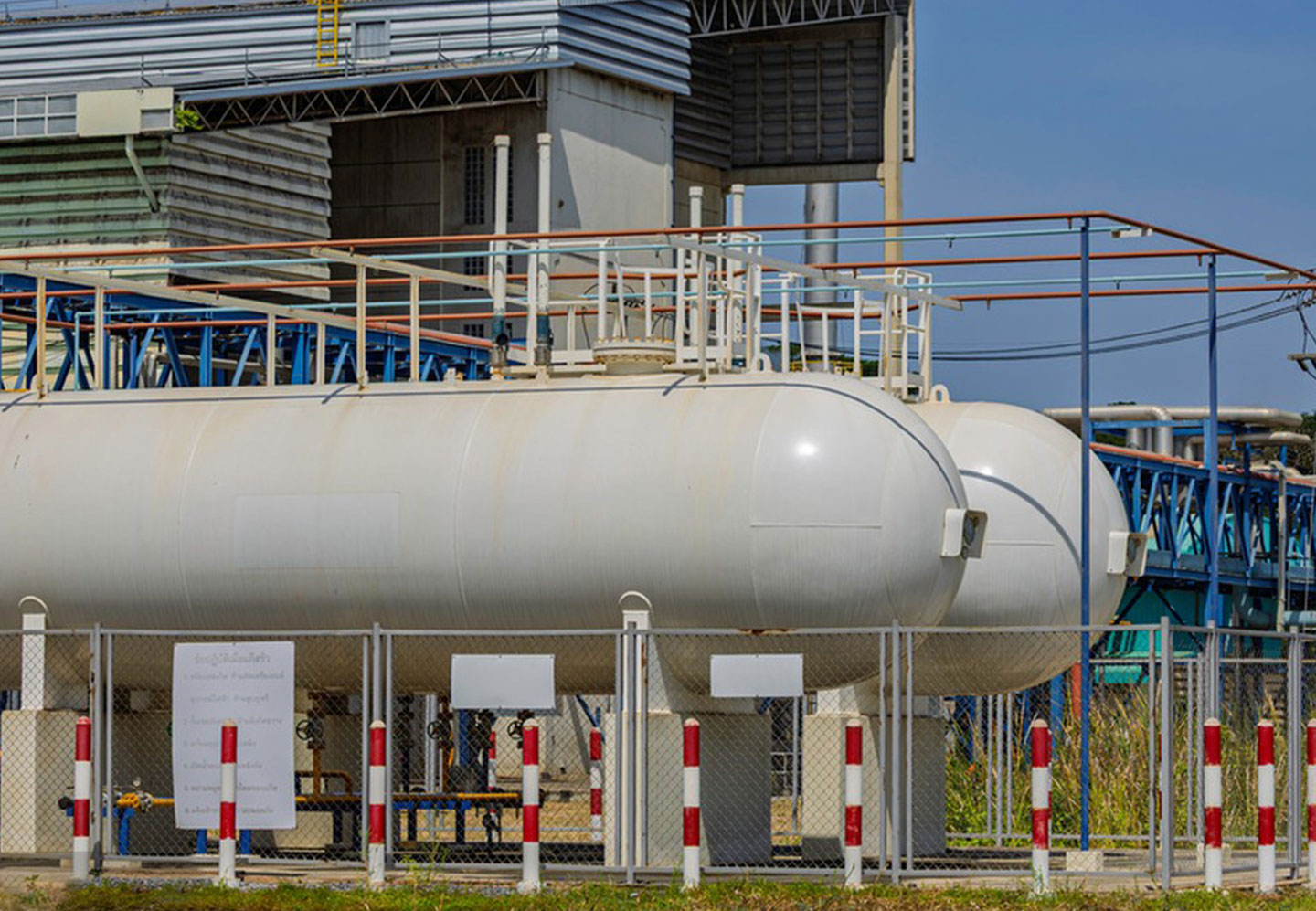

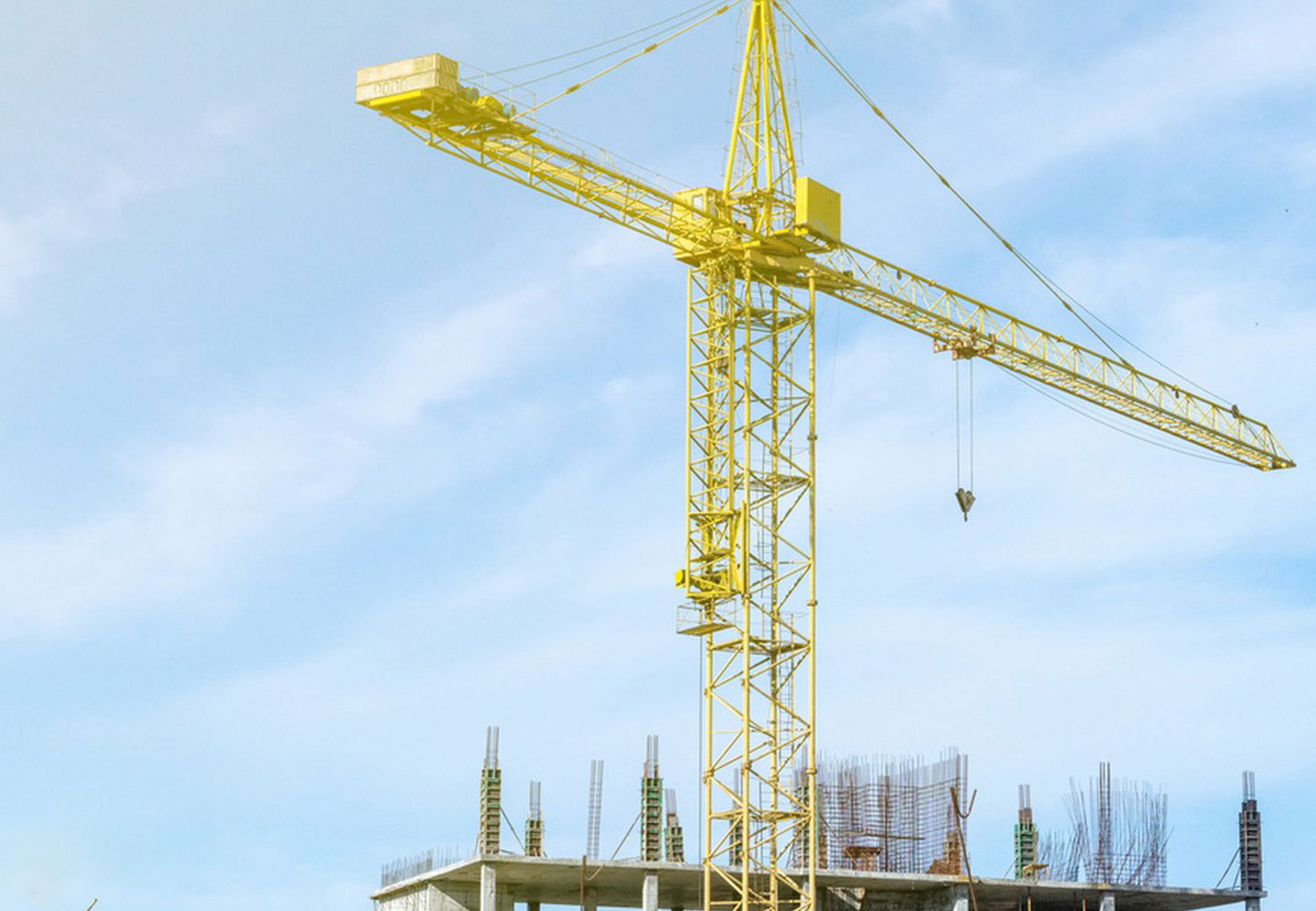

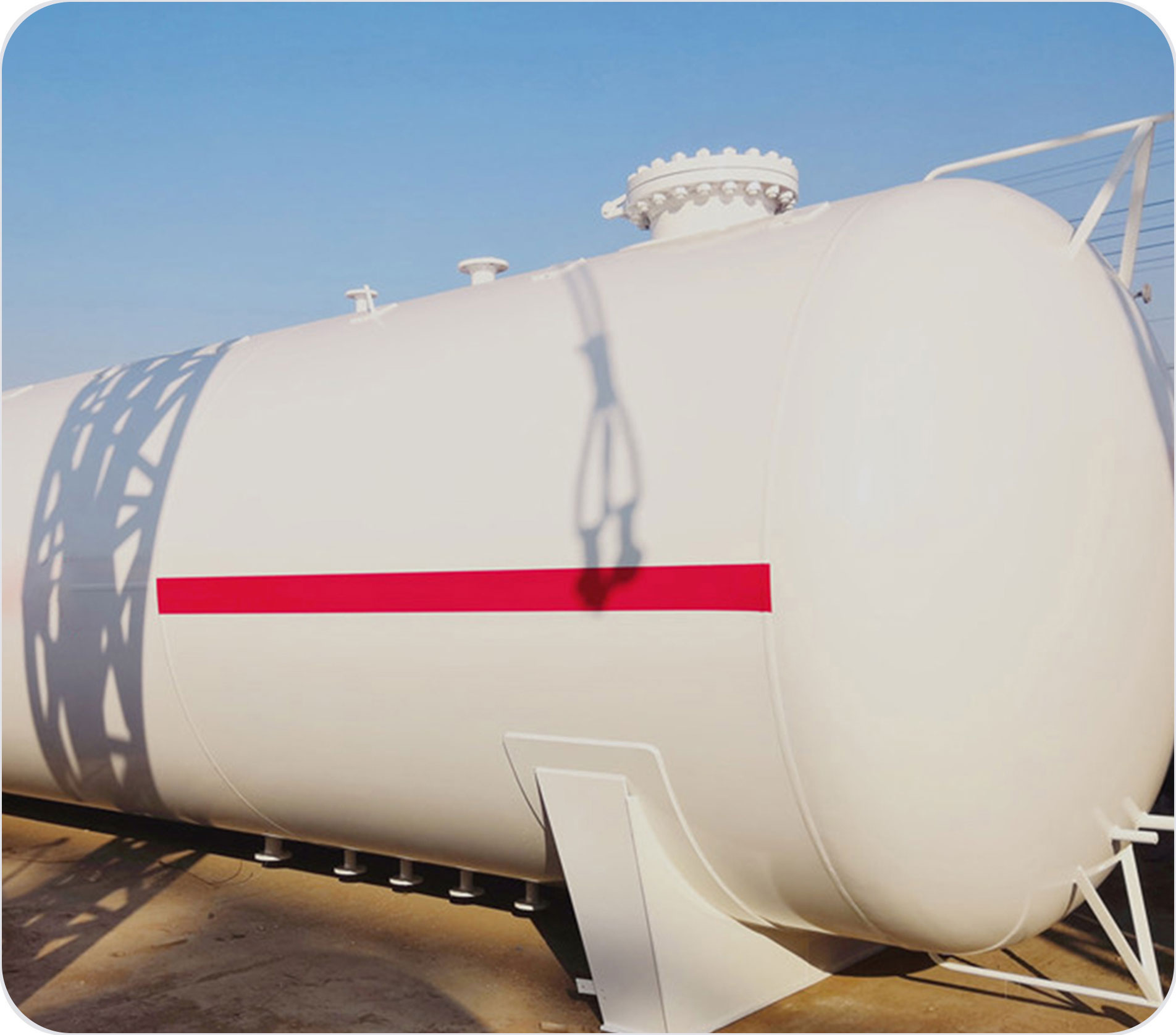

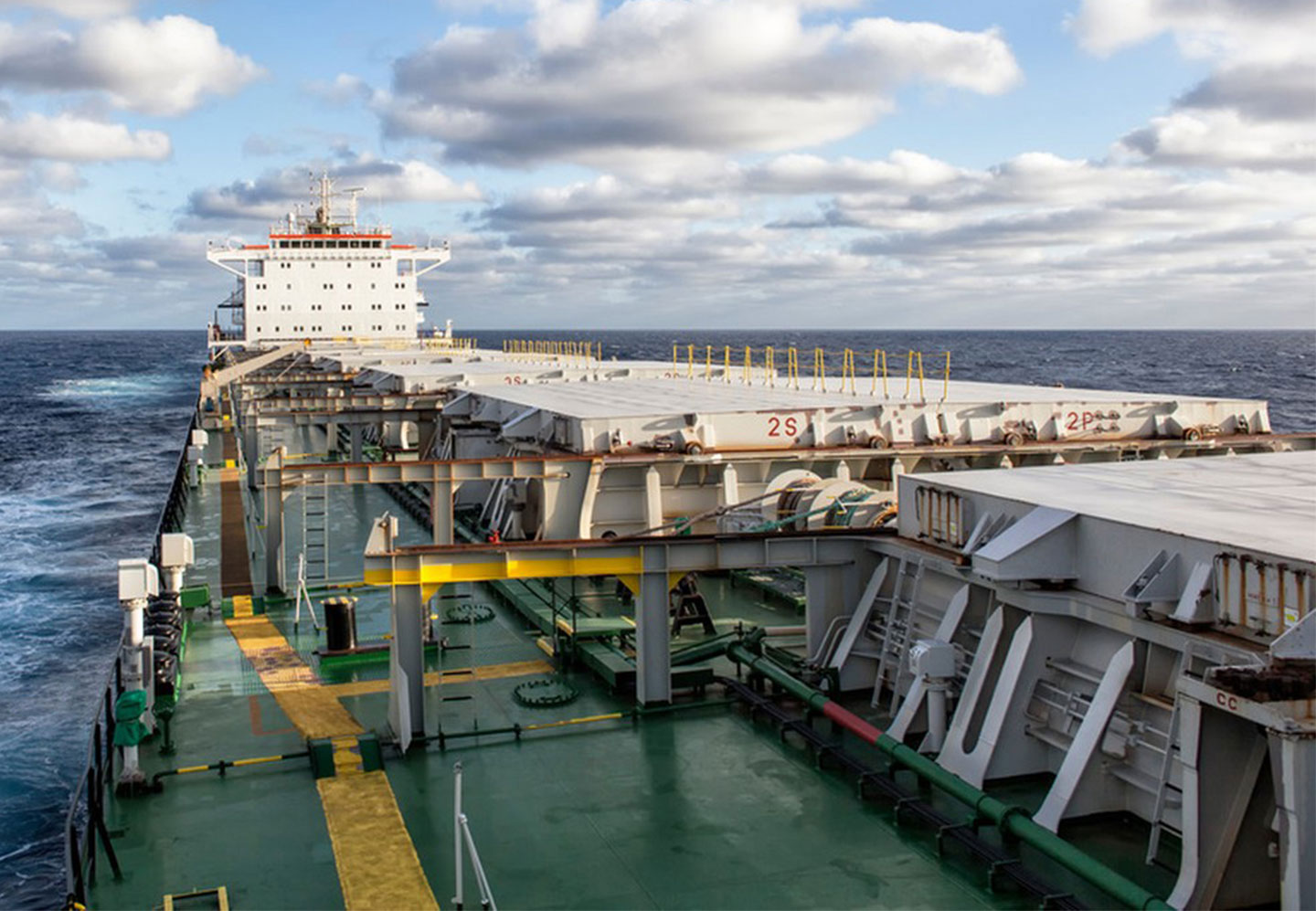

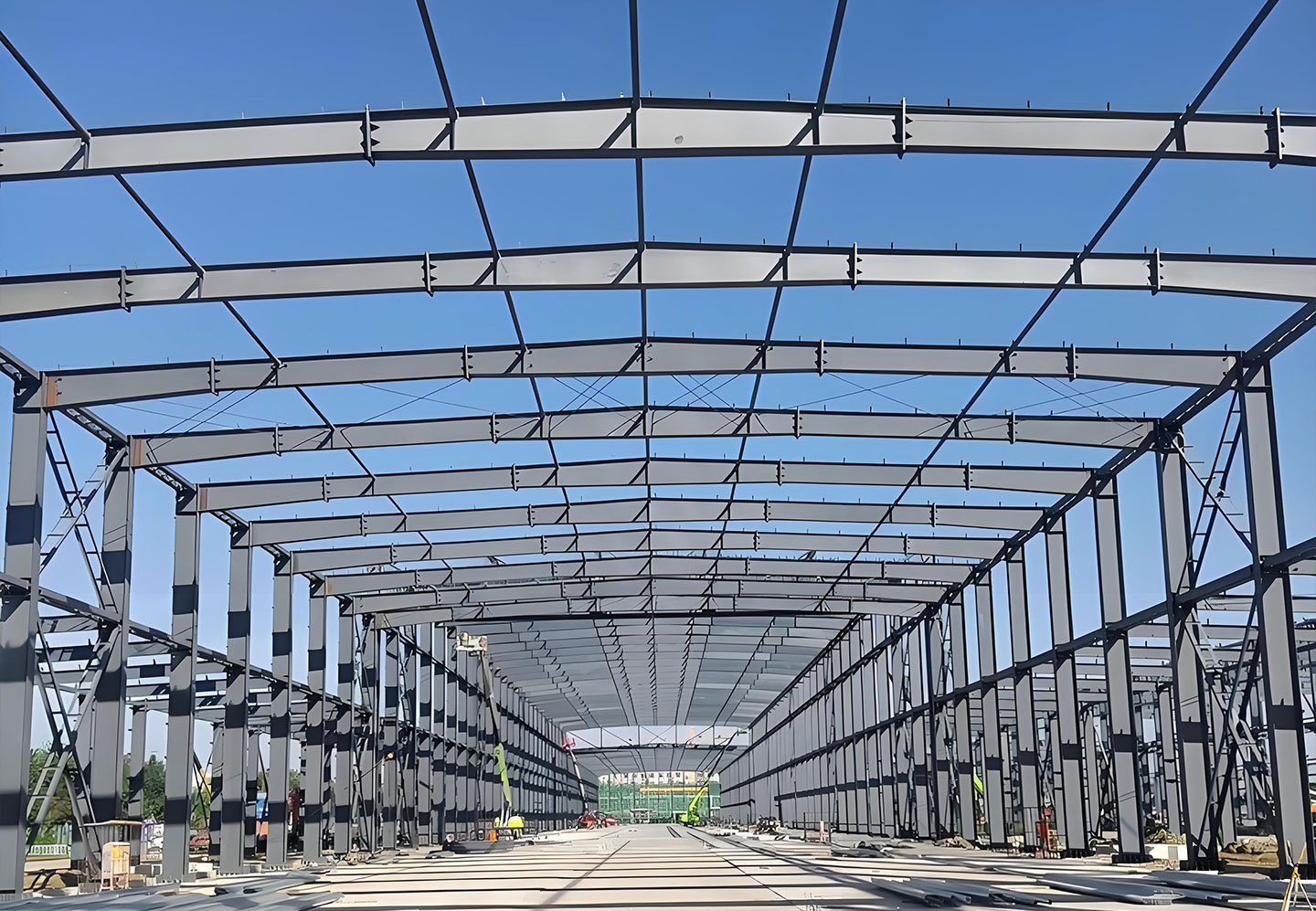

Tower crane	Pressure vessel	Steel structure	Ship

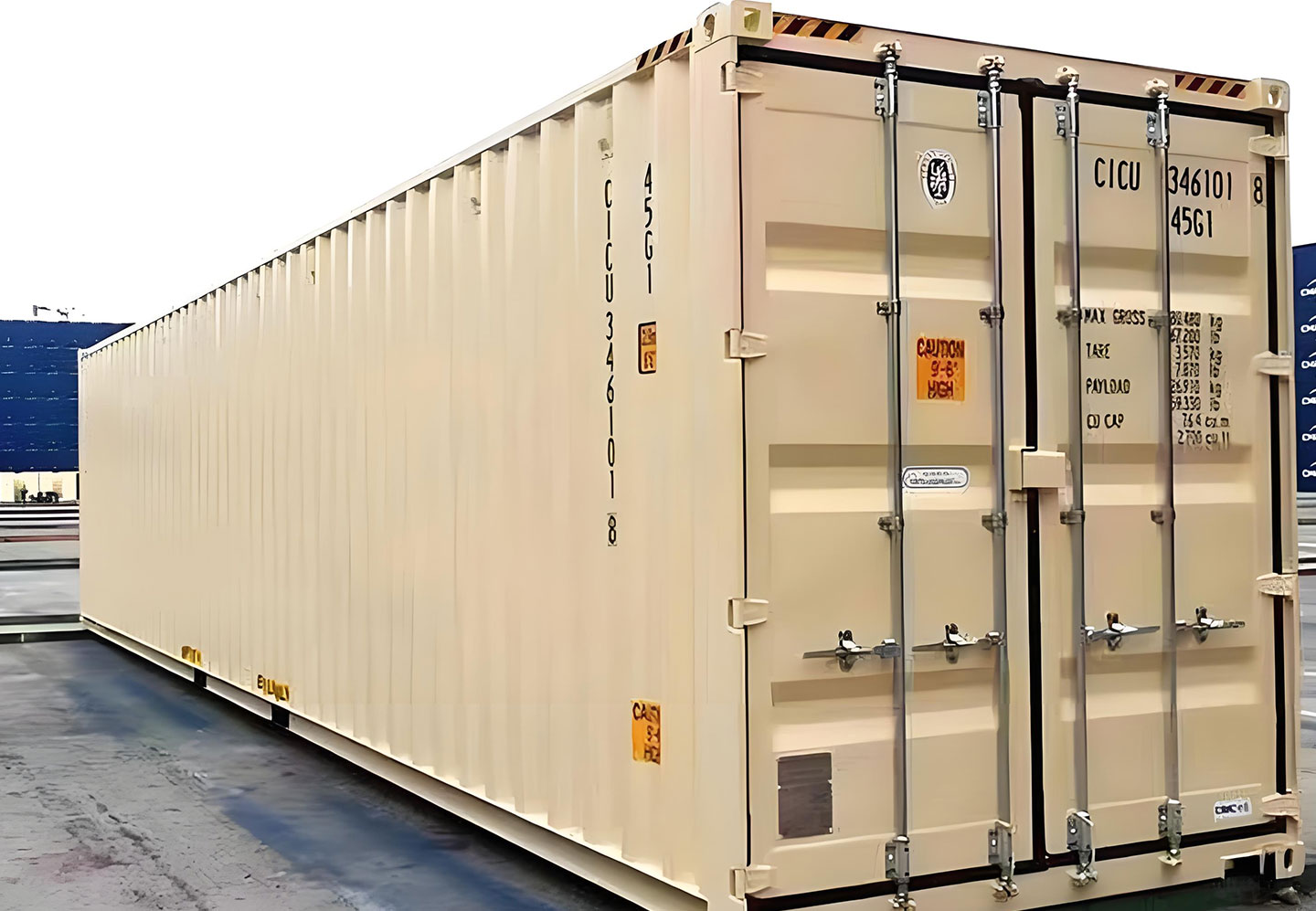

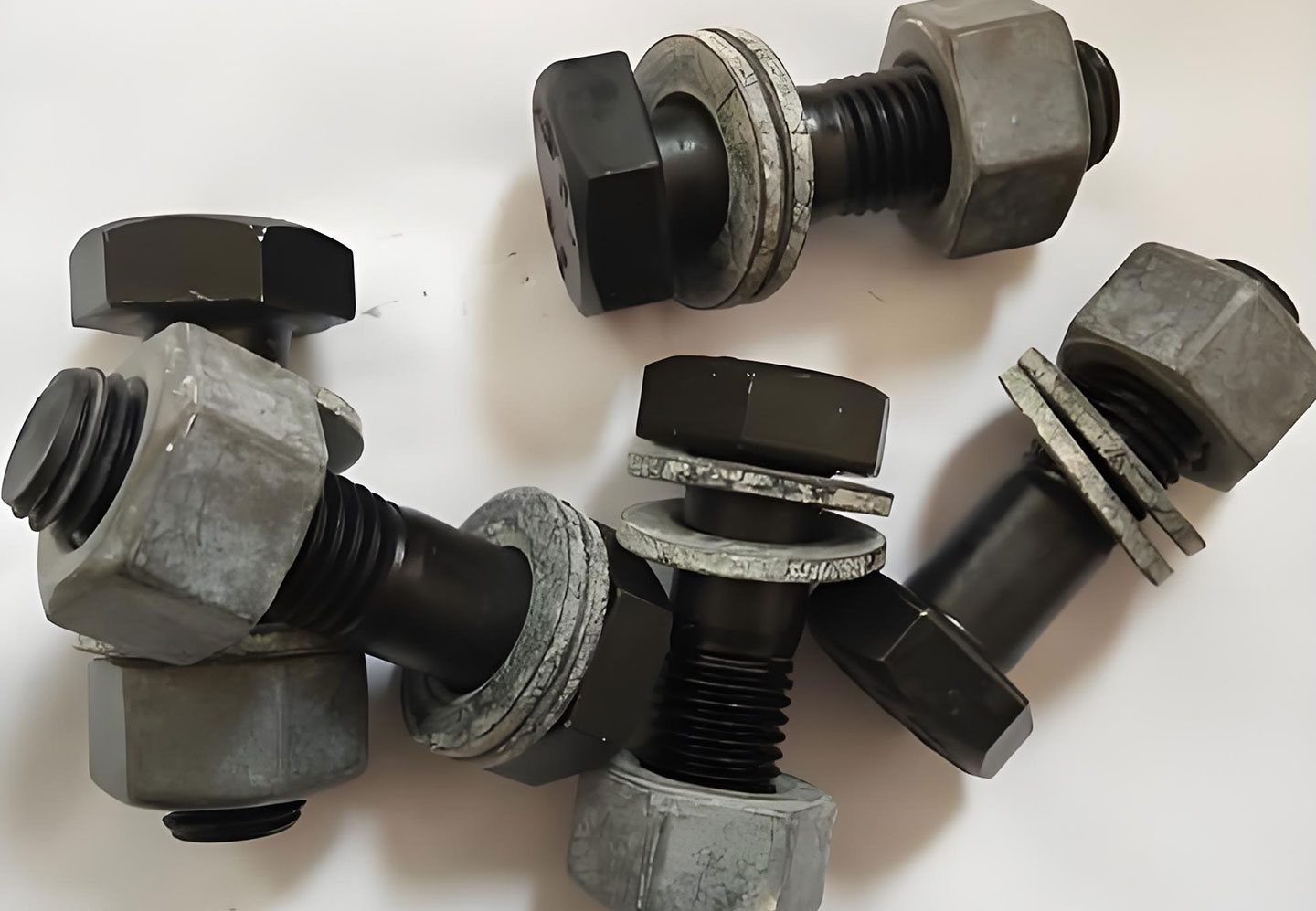

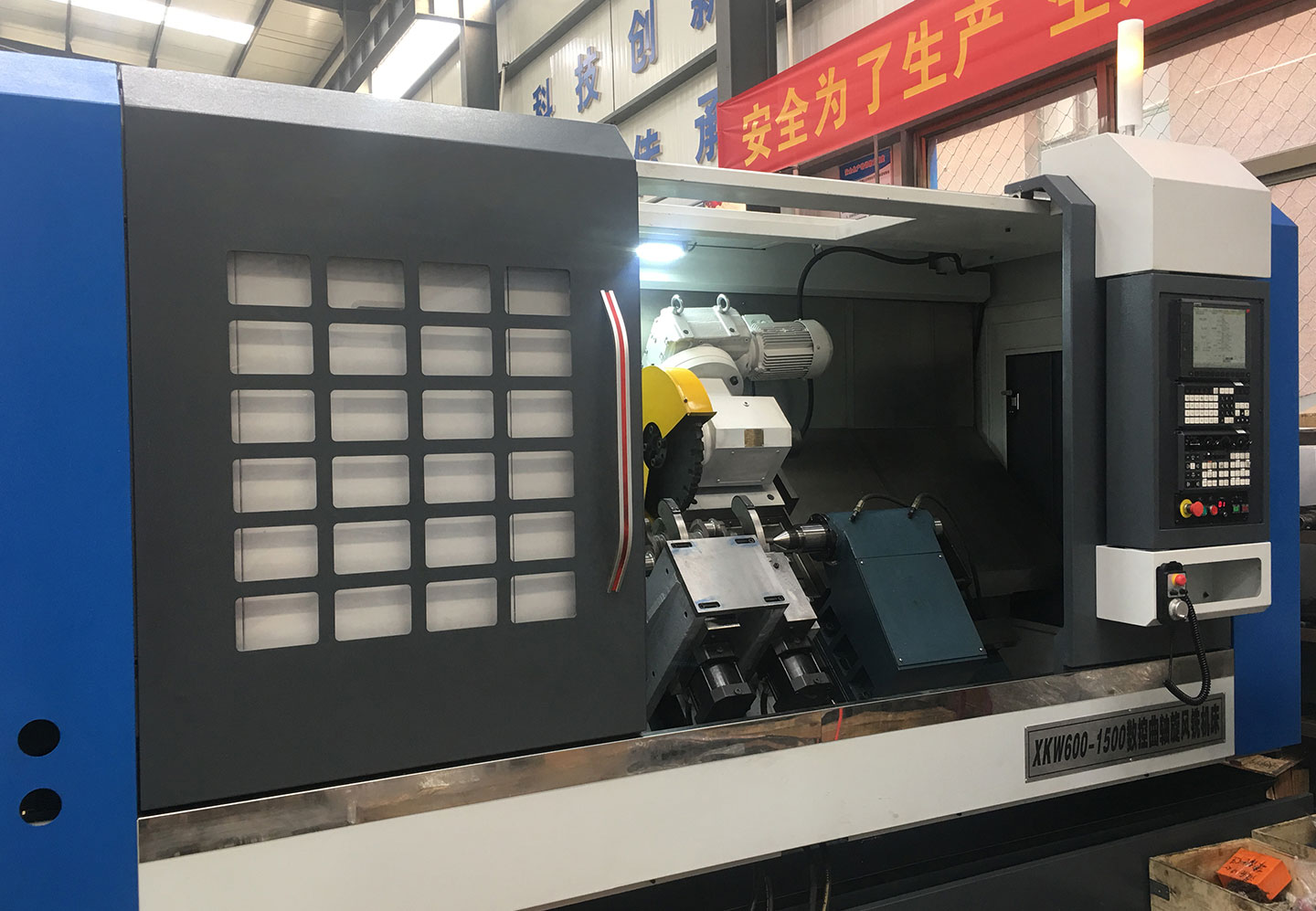

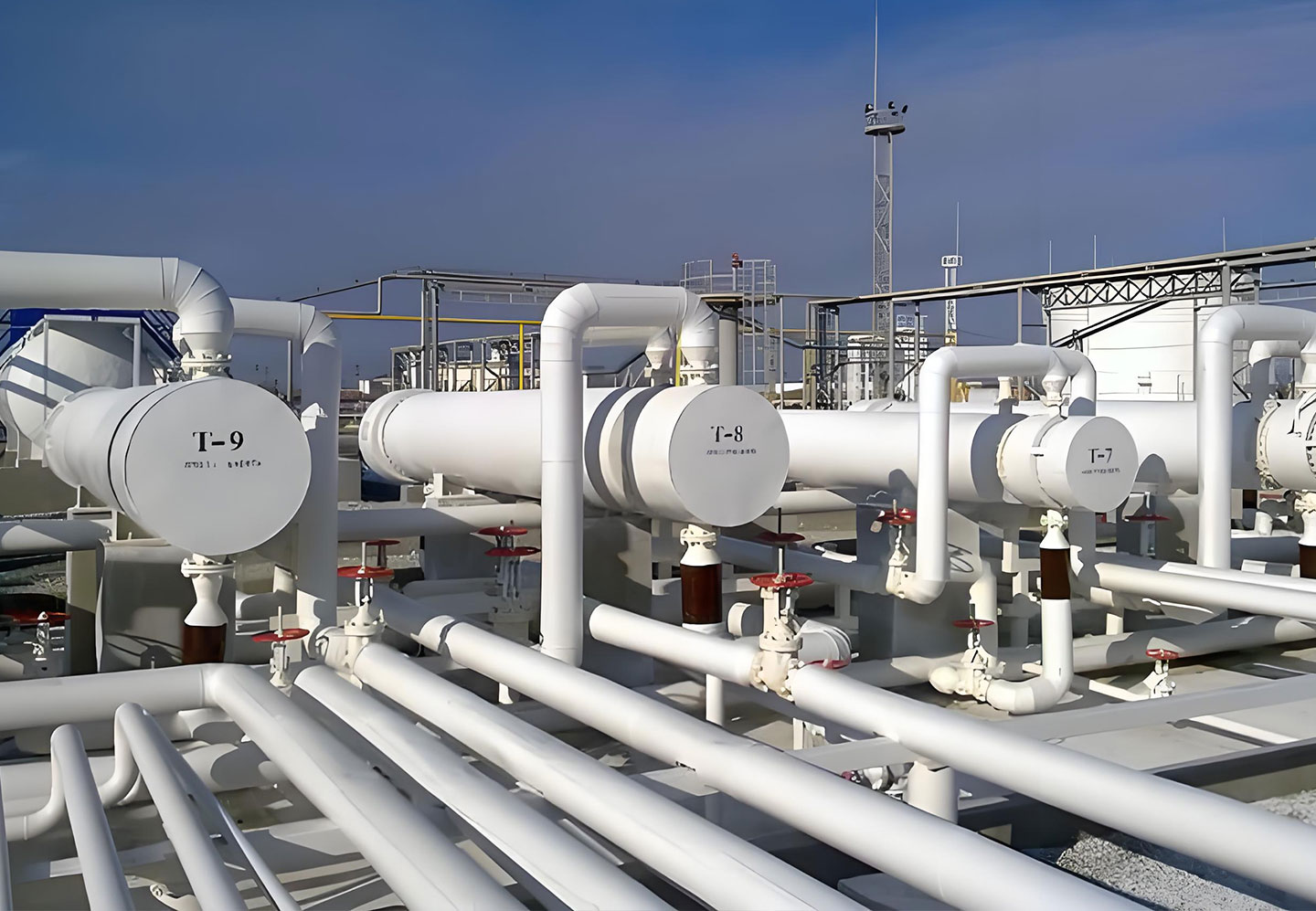

Large-sized nut	Pipeline	Machine tool	Container

Epoxy Zinc Phosphate Anti-rust Paint Compatibility

	Product	Thickness
Primer:	Epoxy Zinc Phosphate Anti-rust Primer	2*50 um (dry film thickness)
Paint:	Epoxy Mica Iron Oxide Paint	2*50 um (dry film thickness)
Finish:	Acrylic Polyurethane Finish Paint	2*40 um (dry film thickness)

Epoxy Zinc Phosphate Anti-rust Paint

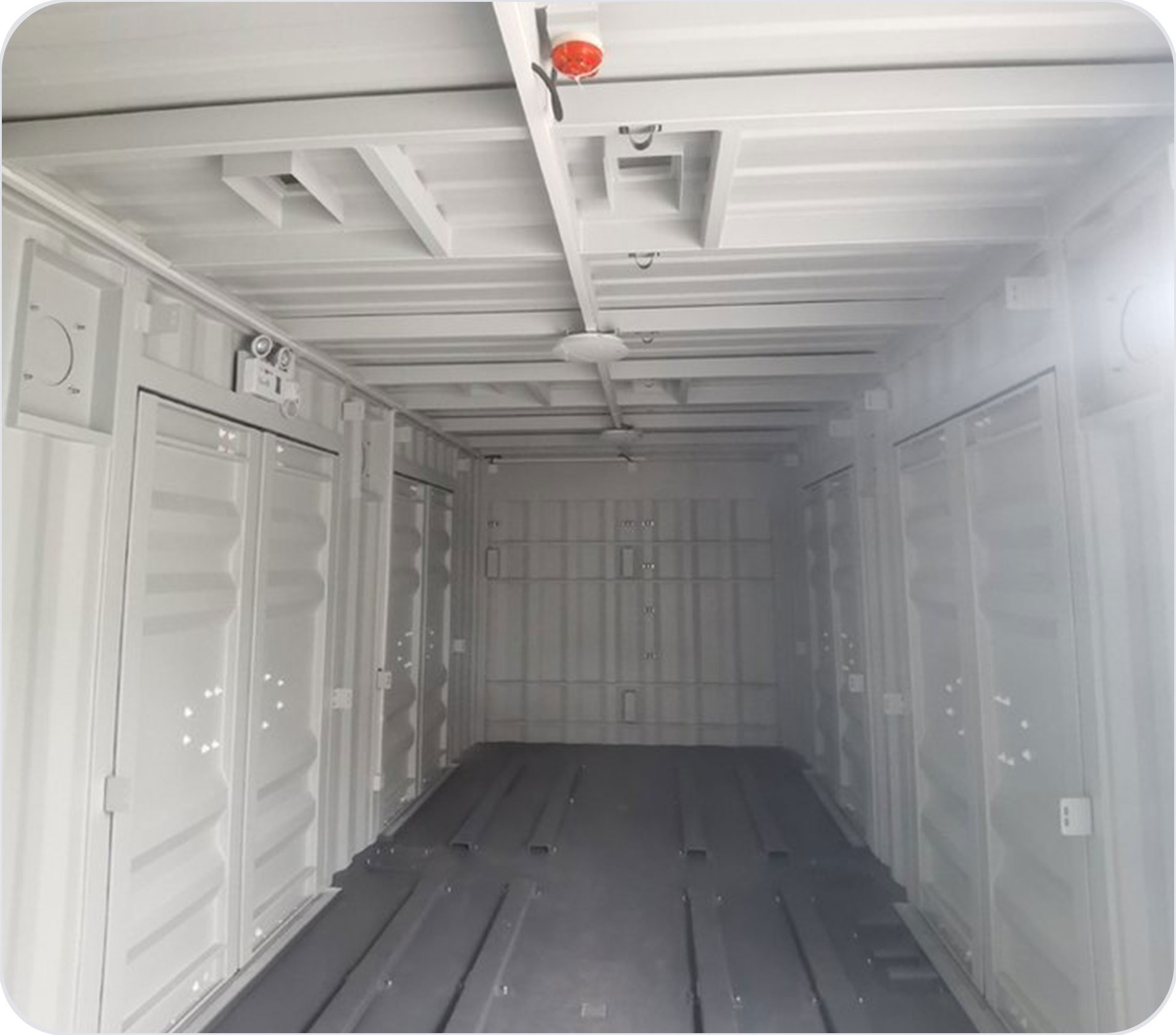

Finished Projects

Epoxy Zinc Phosphate Anti-rust Paint

Production Process

Epoxy Zinc Phosphate Anti-rust Paint

Instructions For Use

Substrate Treatment：

All surfaces to be coated shall be clean, dry and without contaminants. The surface shall be evaluated and treated according to ISO8504 standard.

Bare steel: Sand blasting to meet Sa2.5 (ISO8501-1:2007) standard. Depending on the environment of non-submerged part, it is acceptable to polish by power tools to meet at least St2.0 (ISO8501-1:2007) standard.

Steel coated with workshop primer: make sure workshop primer surface is clean, dry

and undamaged.

Coated surface: applied on clean, dry, undamaged and compatible primer only.

Instructions for Use:

Mixing:

Use the power mixer to mix the main paint evenly, and then as you stir it, you add the hardener until you get to mix well. Generally speaking, if the temperature is below 10 ℃, it needs 30 min induction time; if the temperature is over 10℃, it needs 15 min induction time.
